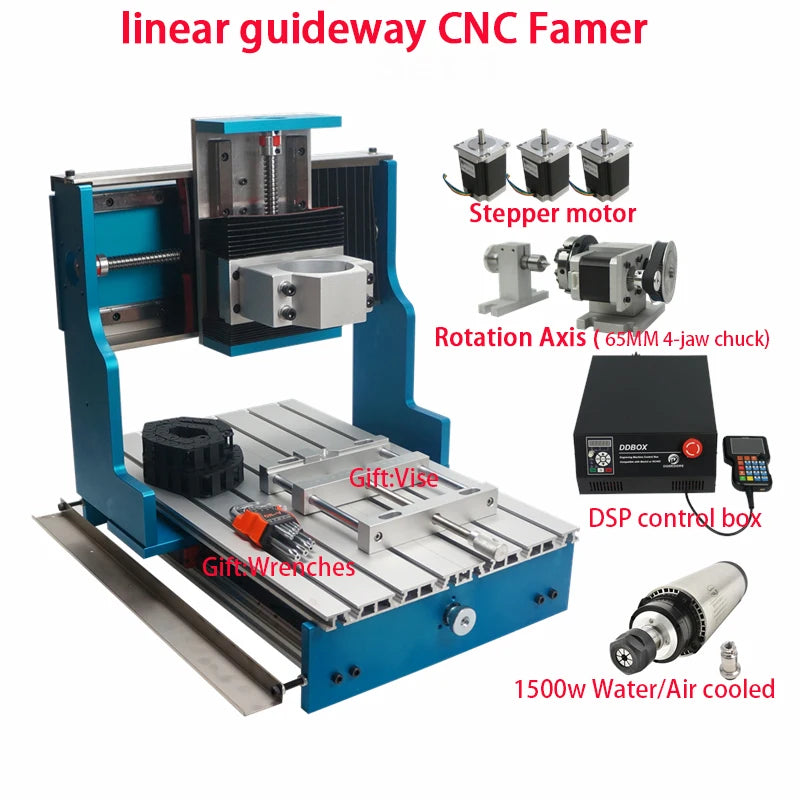

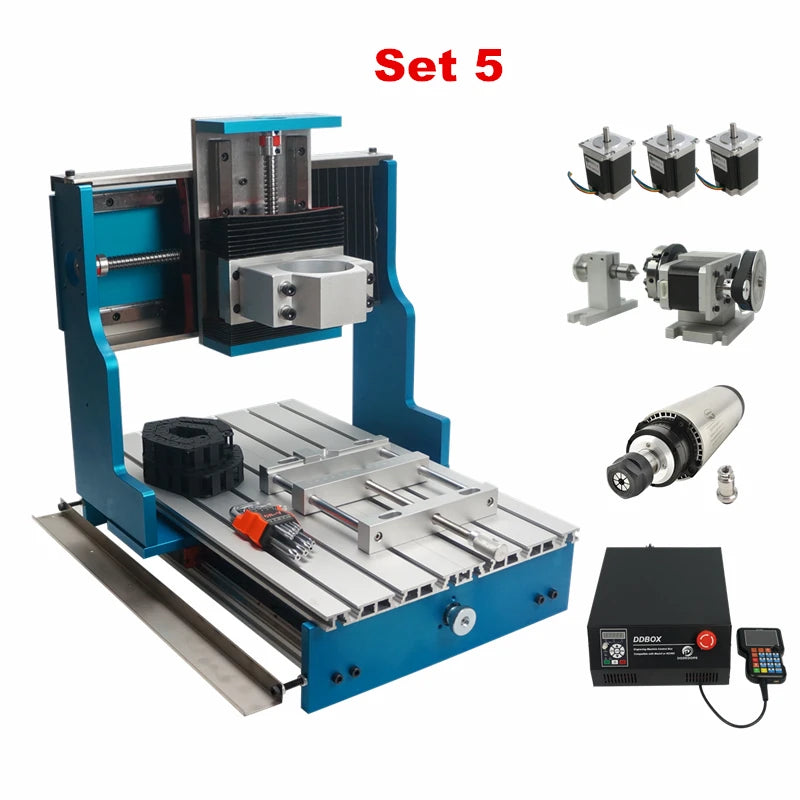

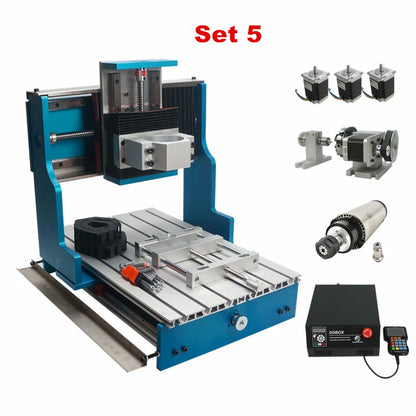

Mini CNC 6040L 3040L Linear Guideway Frame 4axis 1500W with Nema23 Motors for CNC 6040 Wood Metal Engraving Machine Router Kit
Mini CNC 6040L 3040L Linear Guideway Frame 4axis 1500W with Nema23 Motors for CNC 6040 Wood Metal Engraving Machine Router Kit
Couldn't load pickup availability
SPECIFICATIONS
Axis: 3axis 4axis
Brand Name: LYBGACNC
CNC or Not: CNC
Certification: CE
Condition: New

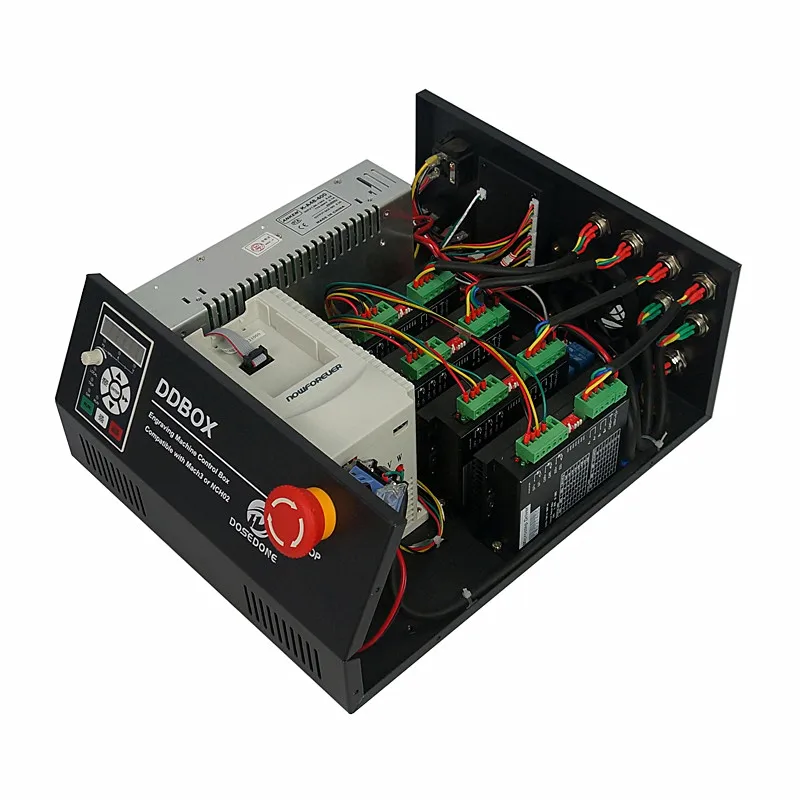

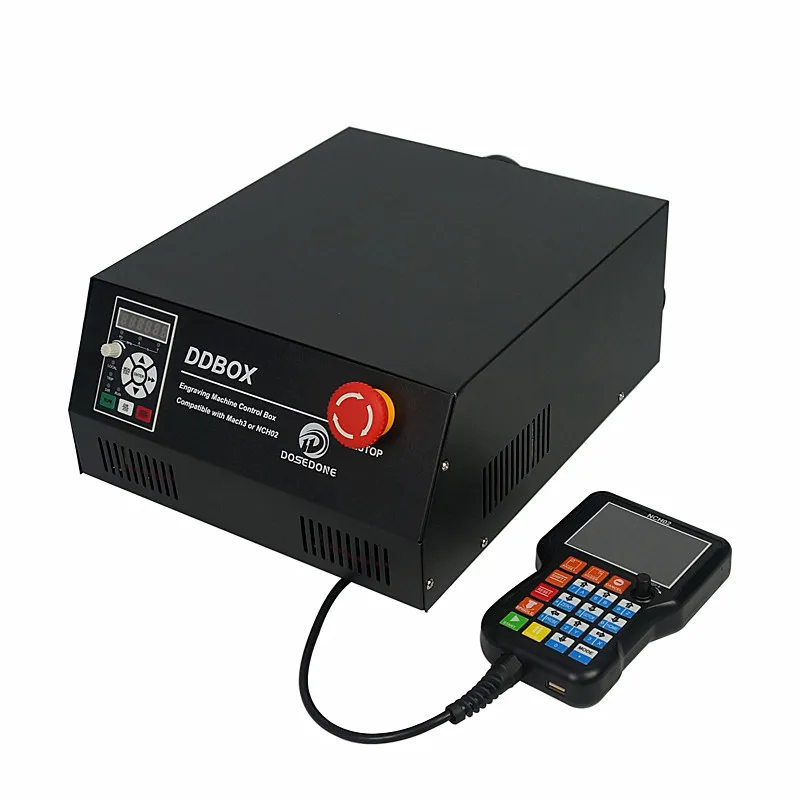

Controller: MACH3
High-concerned chemical: None
Is Smart Device: Yes
Model Number: LY cnc6040
Origin: Mainland China

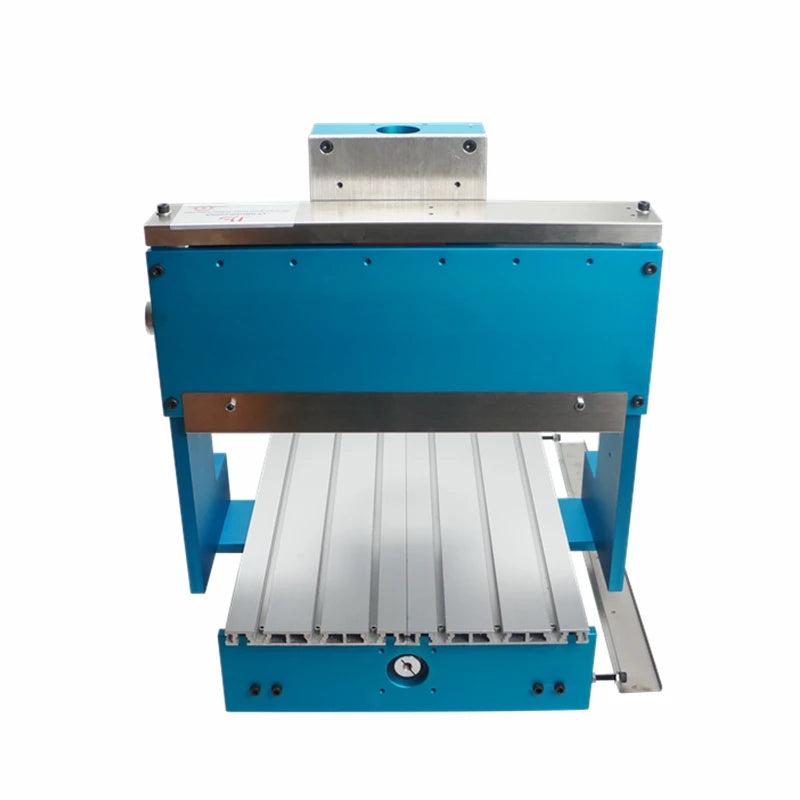

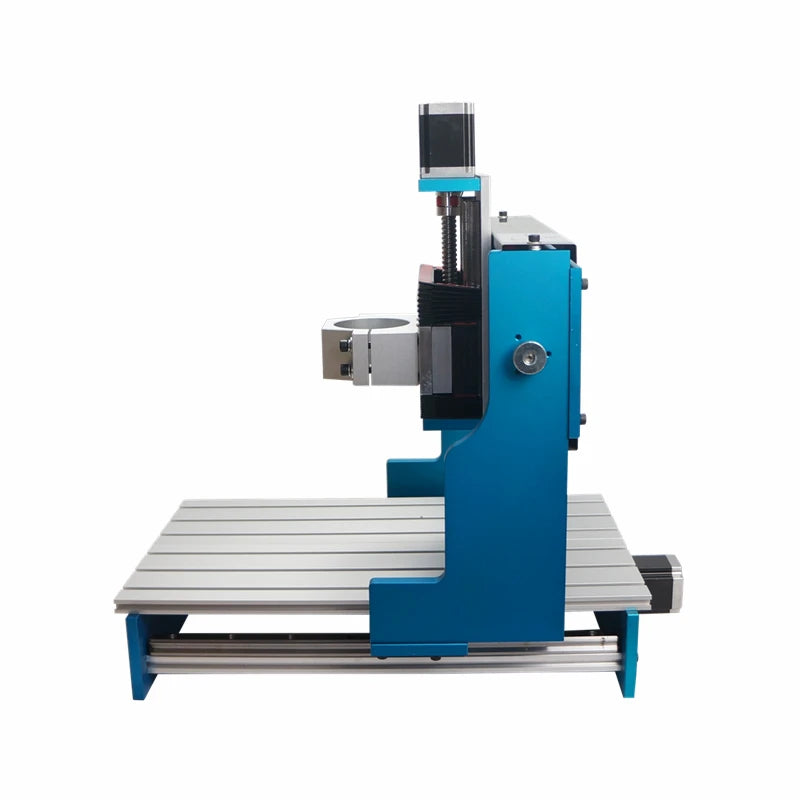

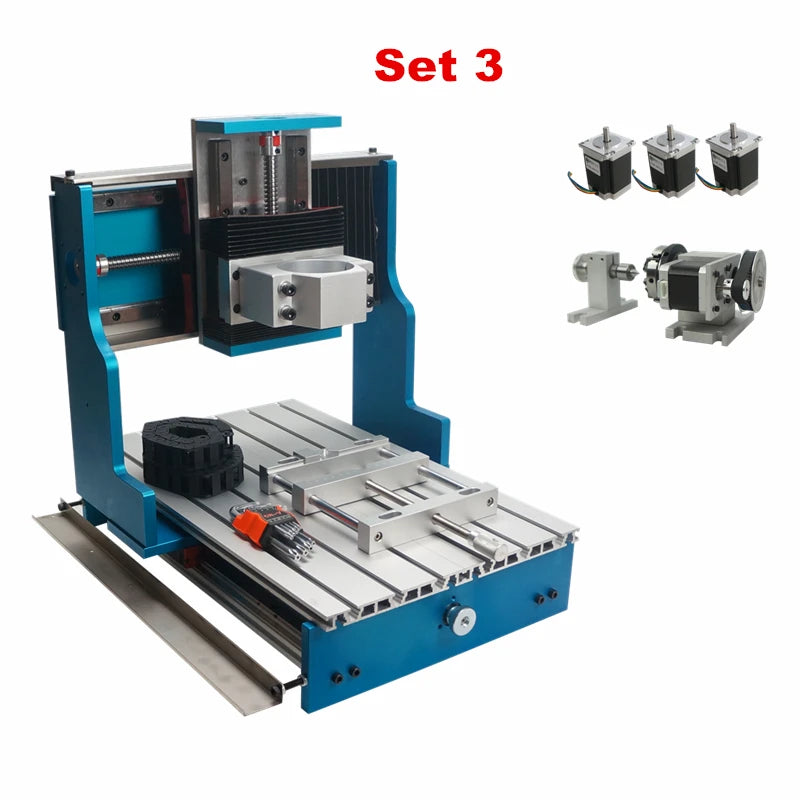

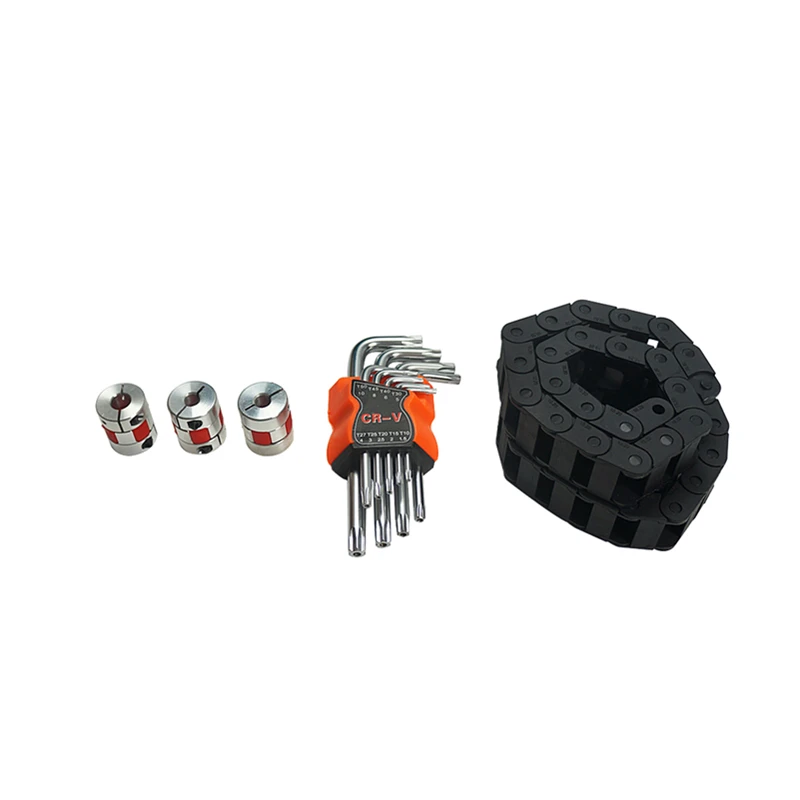

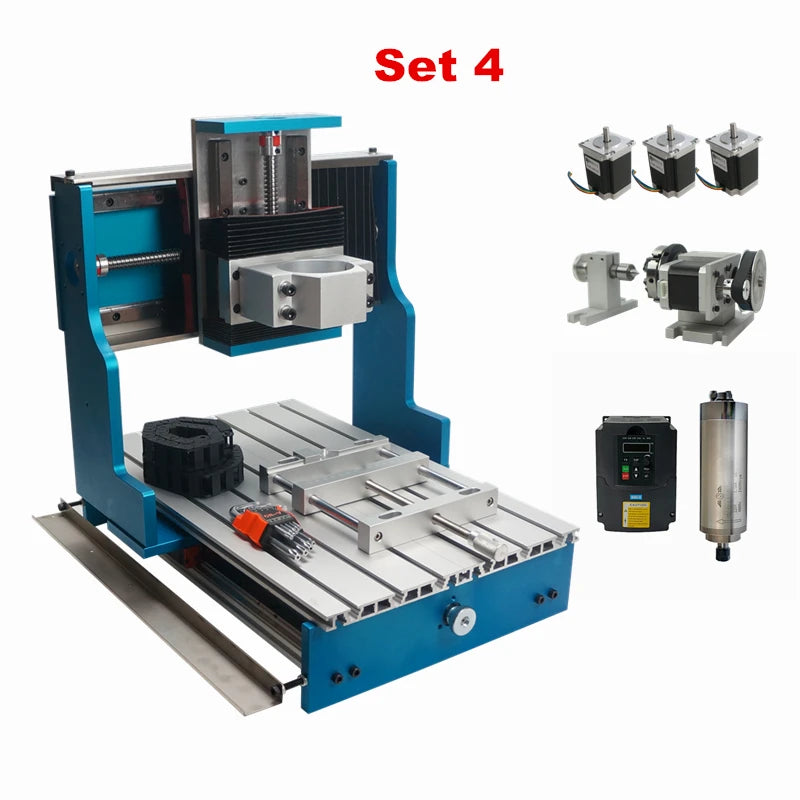

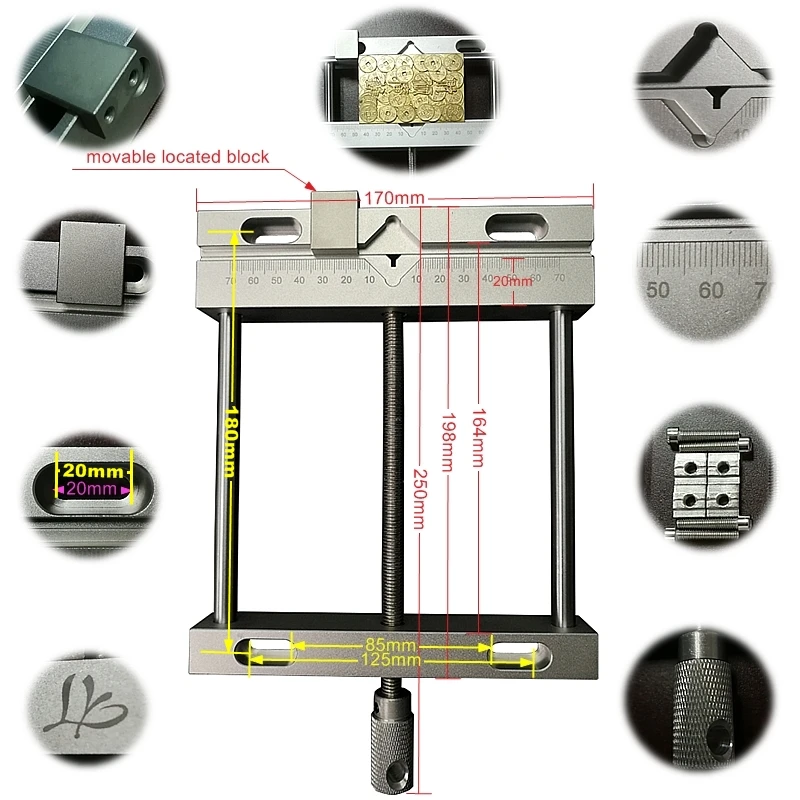

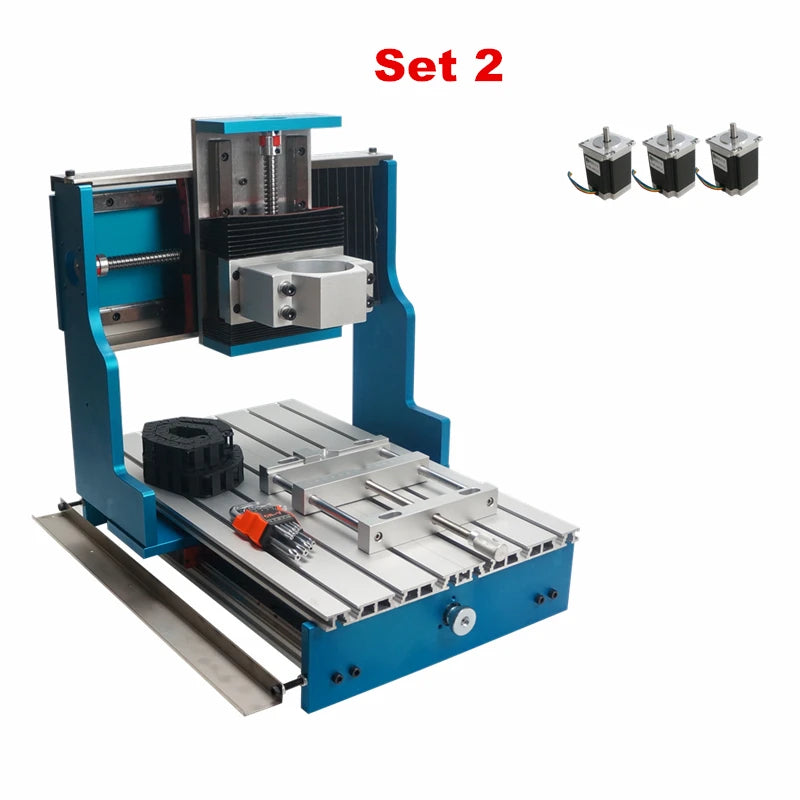

Mini CNC 6040L 3040L Linear Guideway Frame 4axis 1500W with Nema23 Motors for CNC 6040 Wood Metal Engraving Machine Router Kit

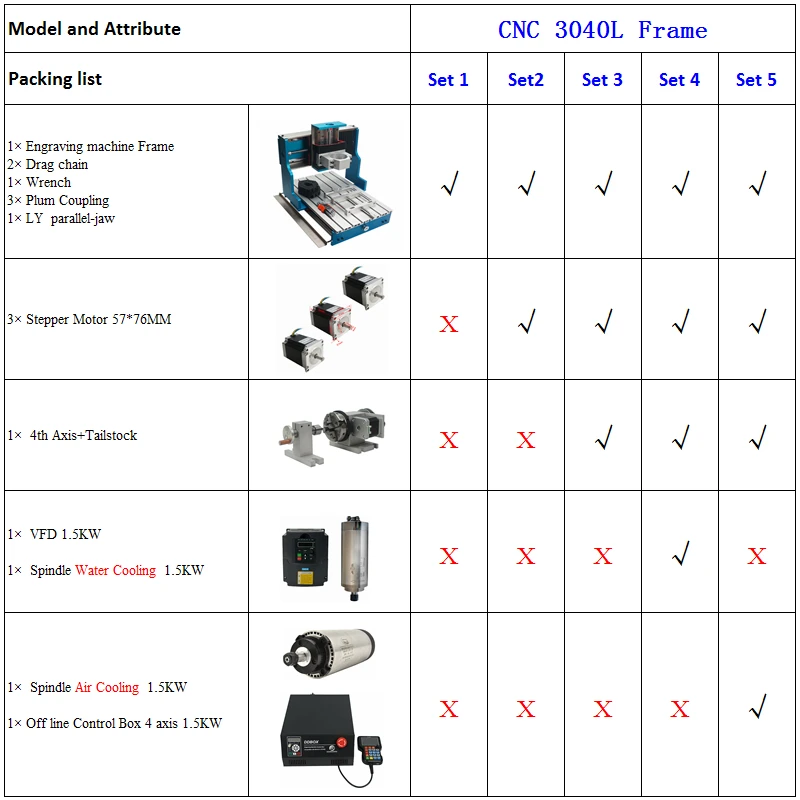

MODEL |

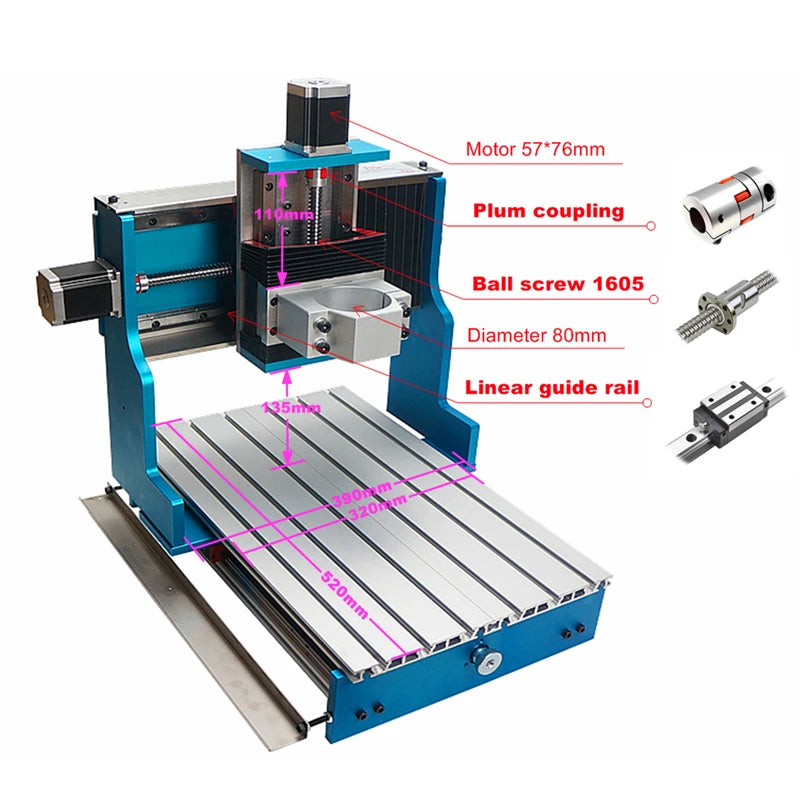

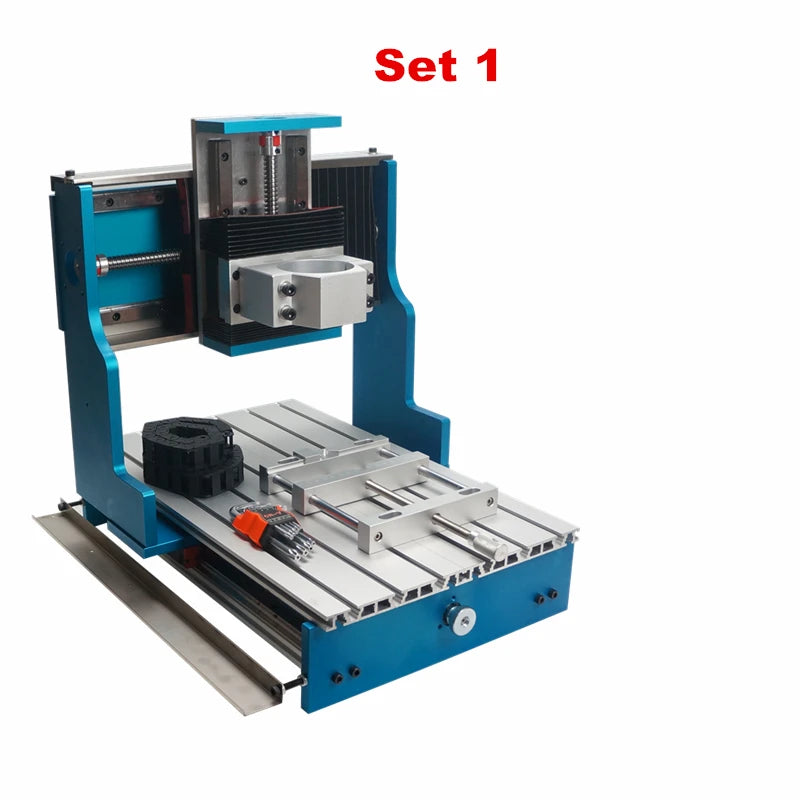

CNC Frame 3040L |
6061 and 6063 Hard aluminum alloy |
|
Table material: |
320 * 520mm (20mm aluminum alloy T table) |
Engraving area： |
260*380*110mm |

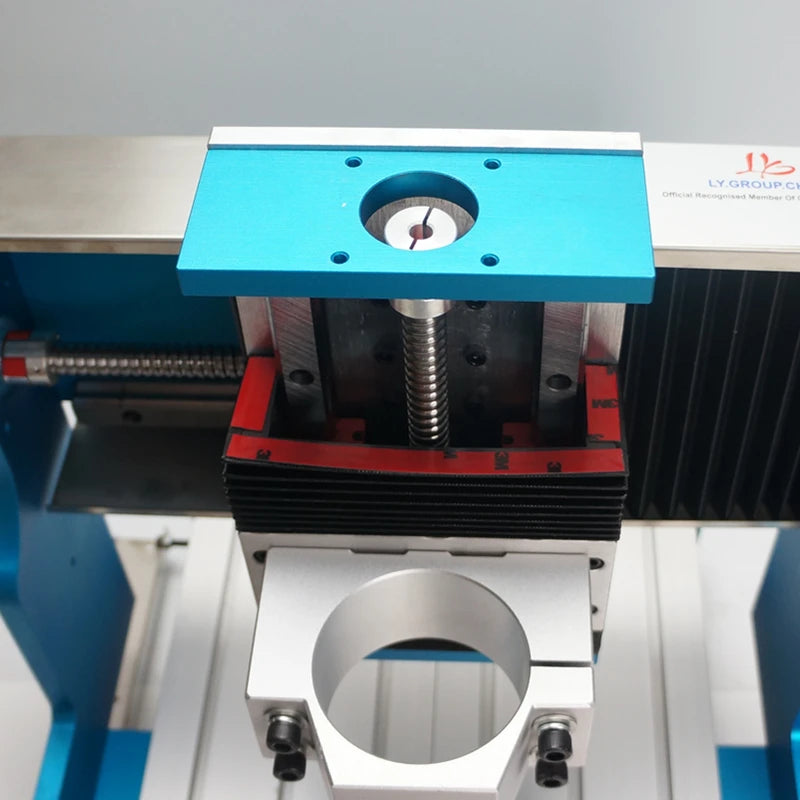

Z-Axis Stroke： |
110mm, Engraving depth depends on the length of the tool edge |
Acceptable material thickness： |
≤ 135mm |

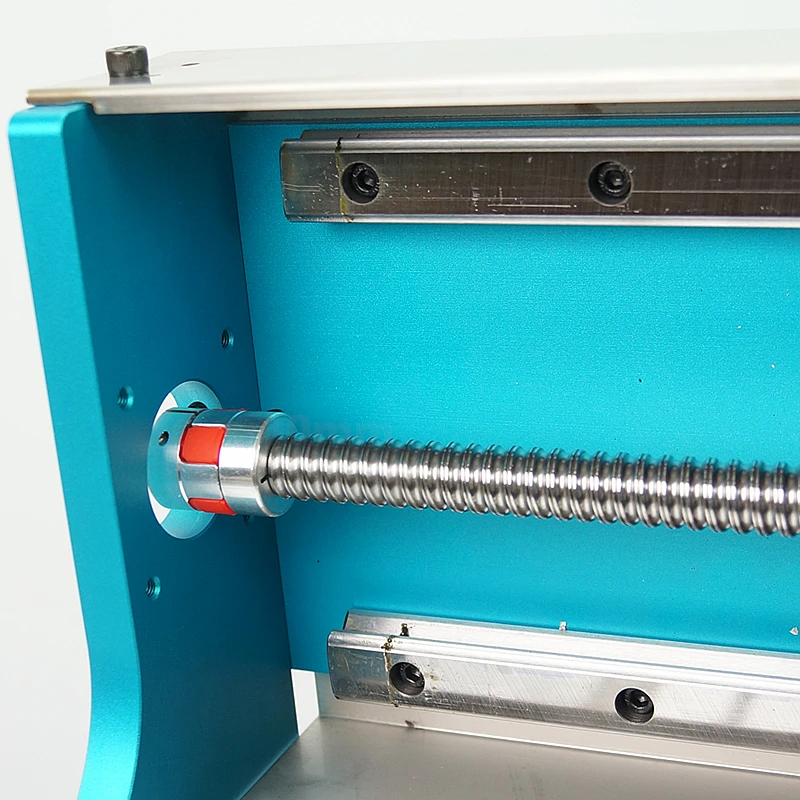

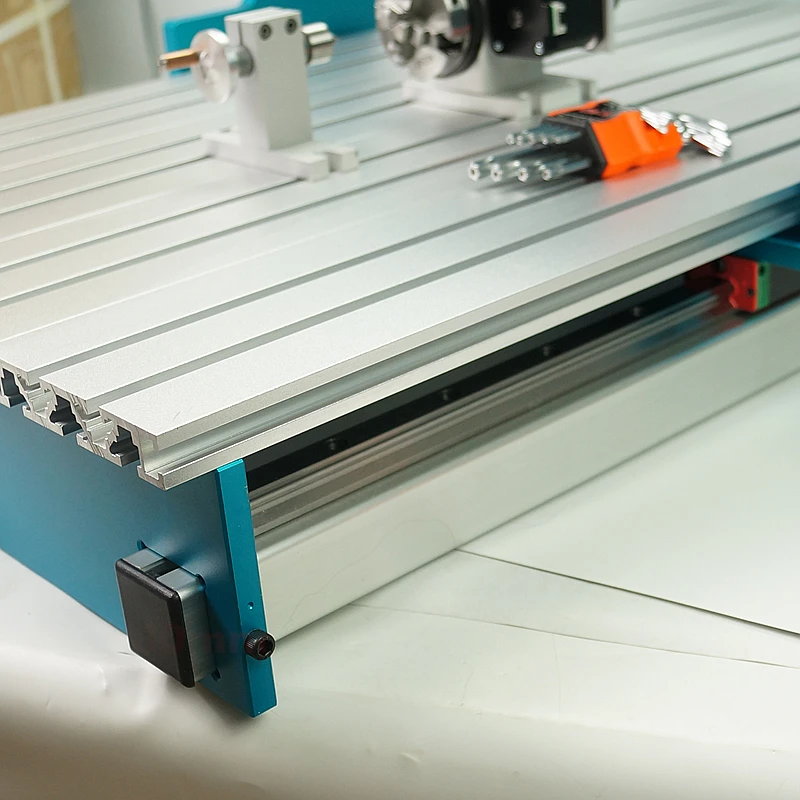

Rail type： |
Square line rail track, high precision, high strength, top configuration. |
Type of screw： |

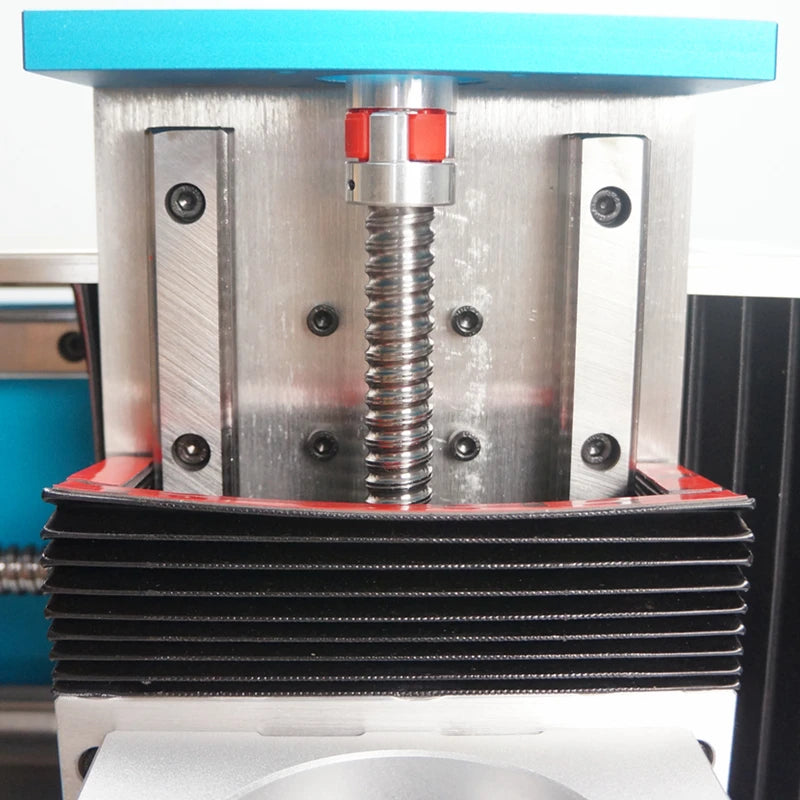

Ball screw 1605 |

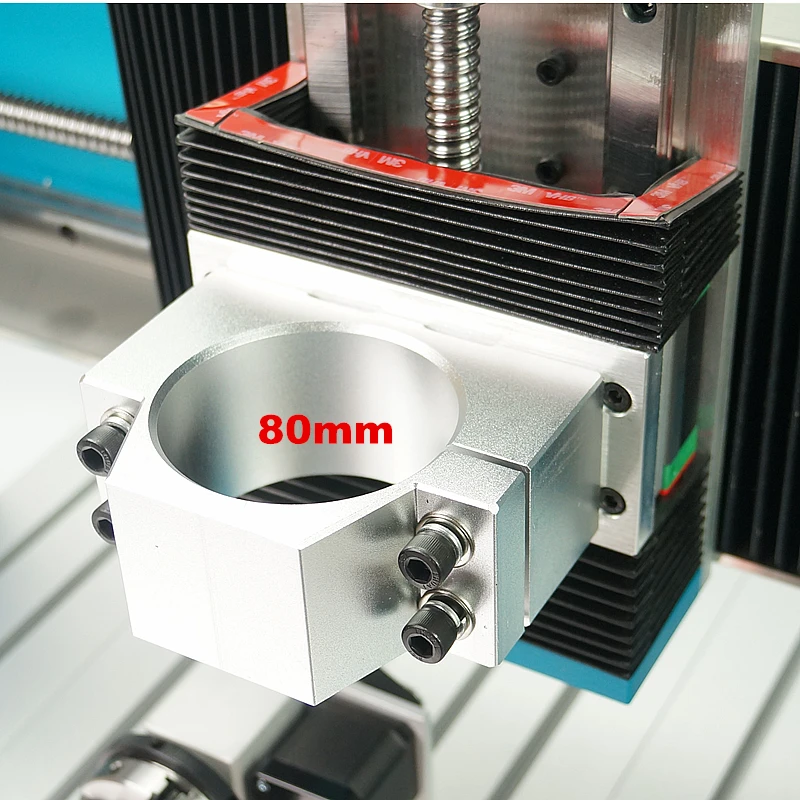

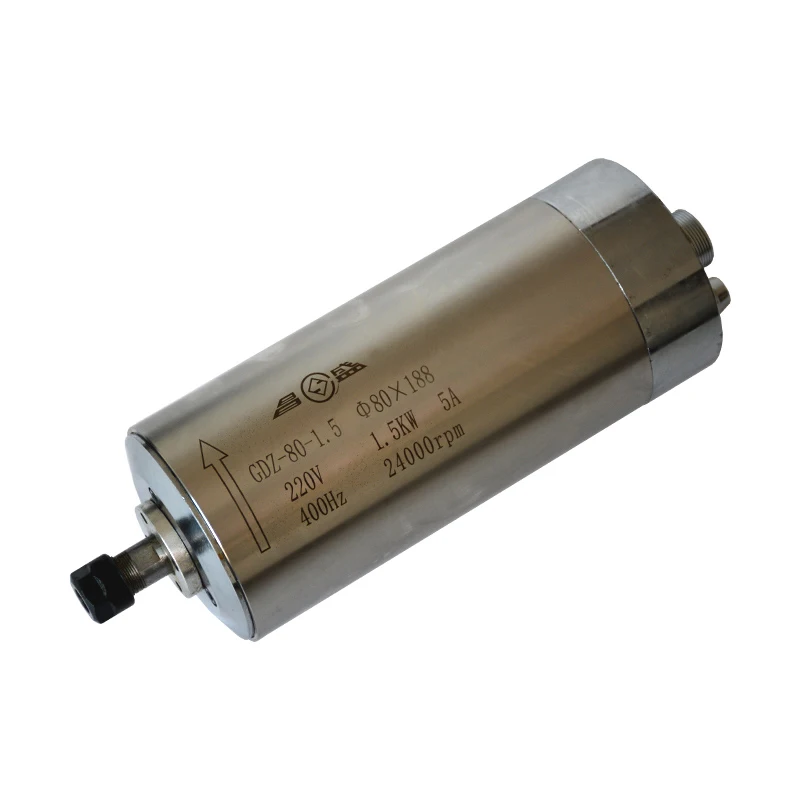

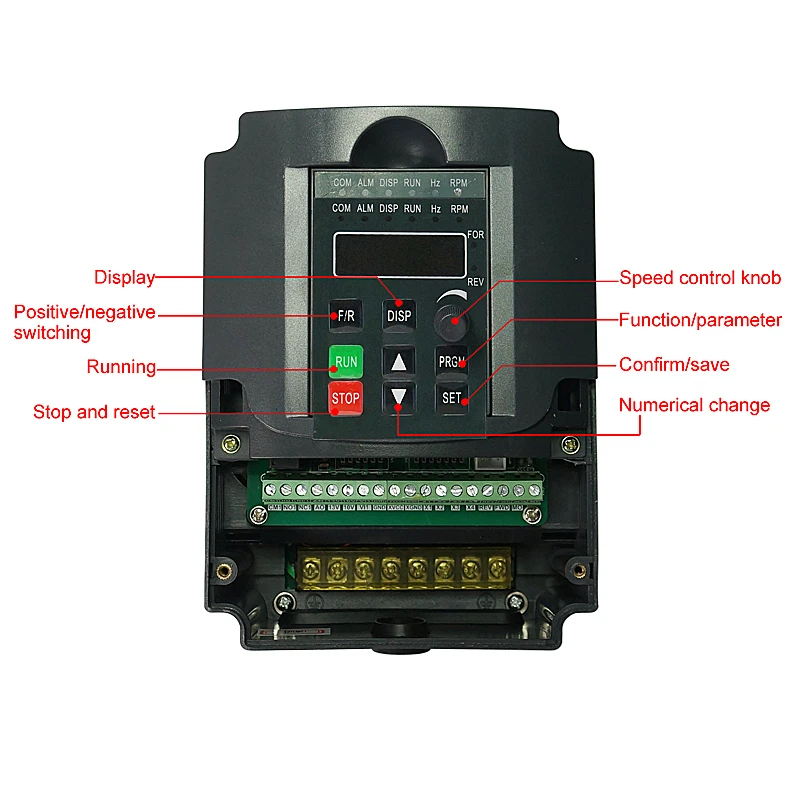

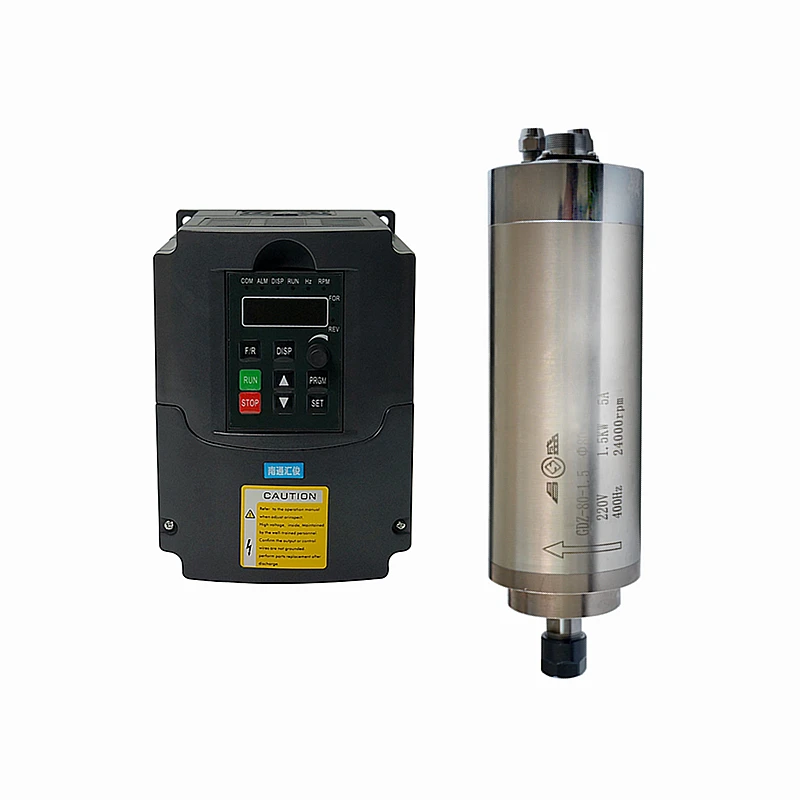

Diameter of Spindle motor: |
80mm |
Motor |

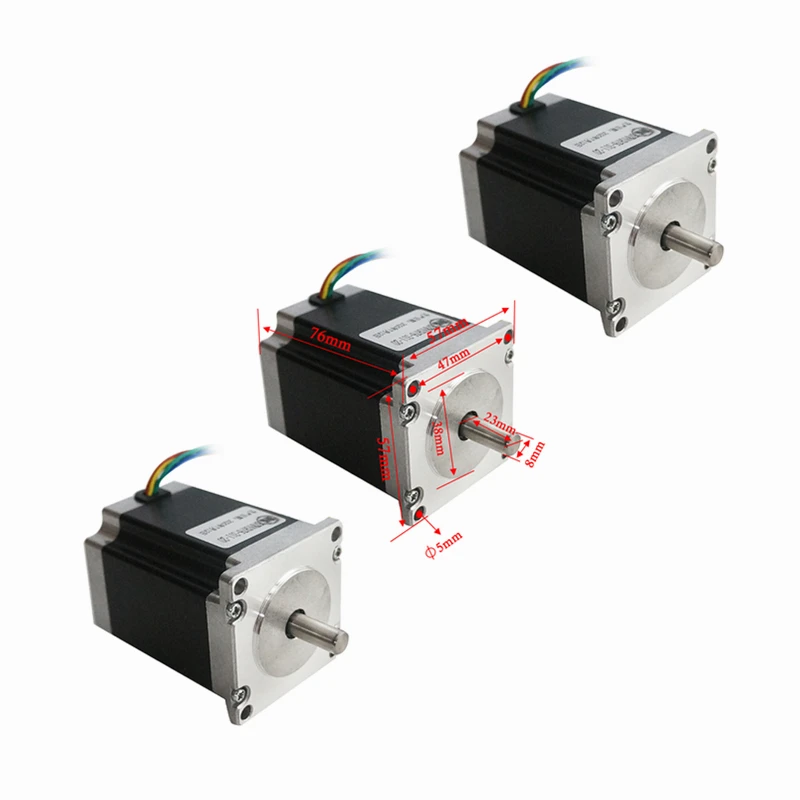

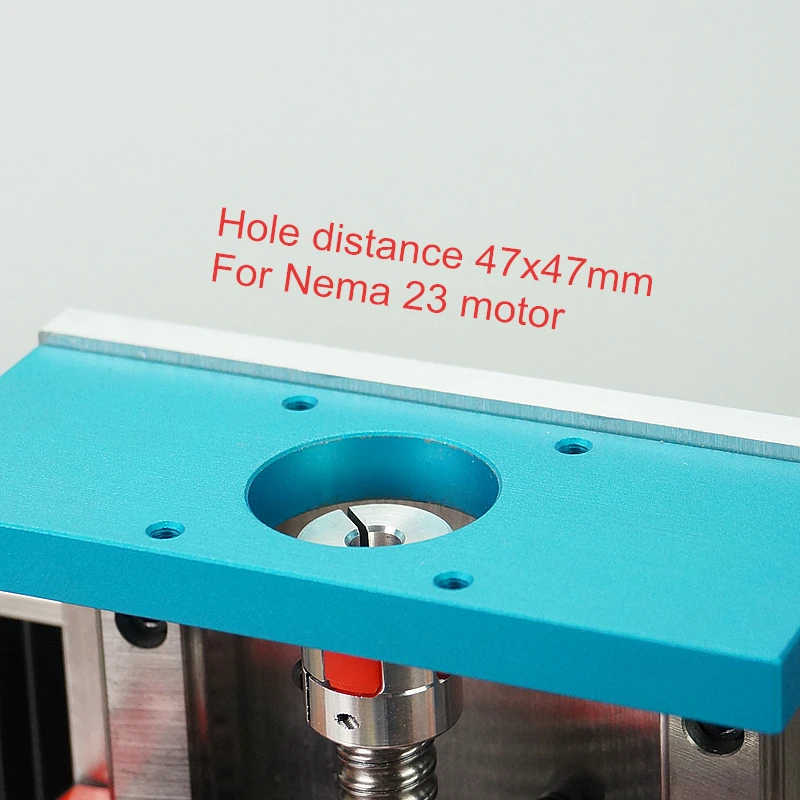

Nema 23 (57*76mm) Motors parameters: Model: 57BYGH76 Current: 3A Output torque: 1.5Nm Motor length : 76mm （Manual measurement, possible error） Length of output shaft: 23mm Diameter of output shaft : 8mm Output shaft mode: single output shaft Wiring method: two phase four lead wires ( red A, green C, yellow B,blue D) |
|

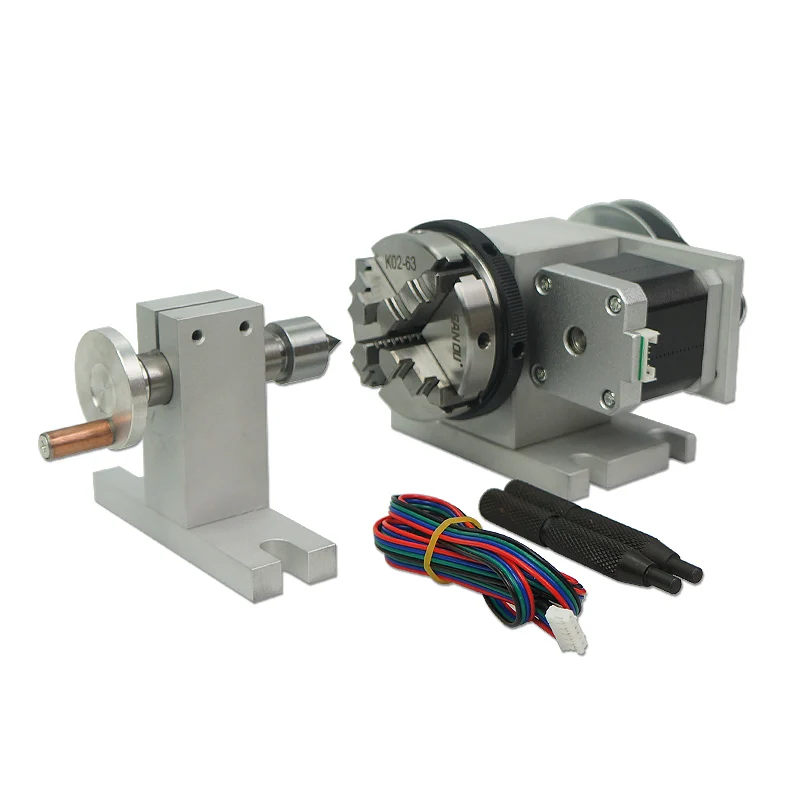

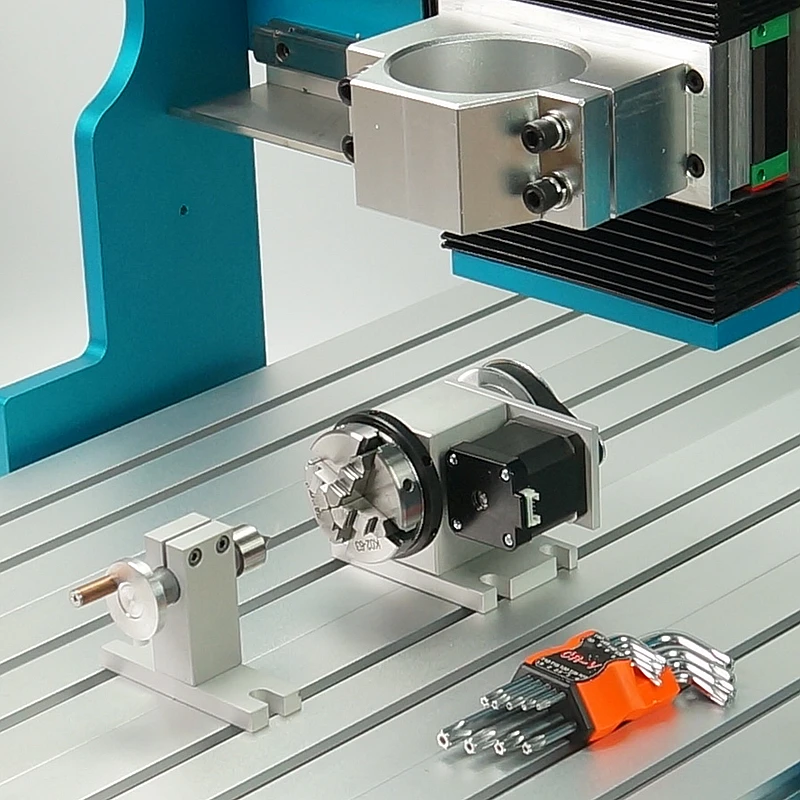

Rotation Axis (4th Axis) optional |
Chuck: 65MM 4-jaw chuckCenter height: 54MM Speed reducing ratio: 4:1 Stepper motor: Two phase 42 stepper motor |

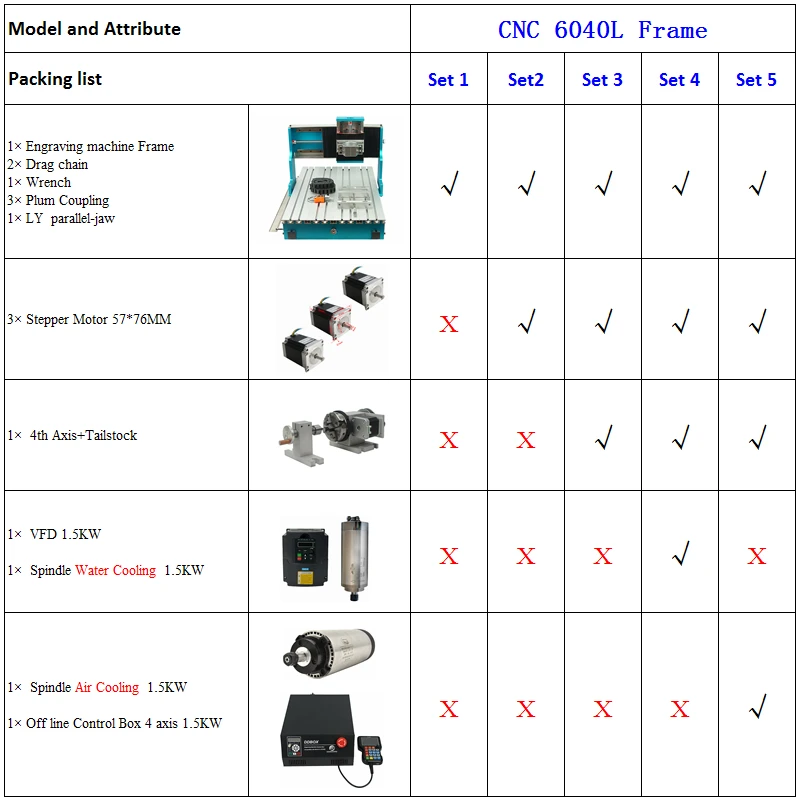

MODEL |

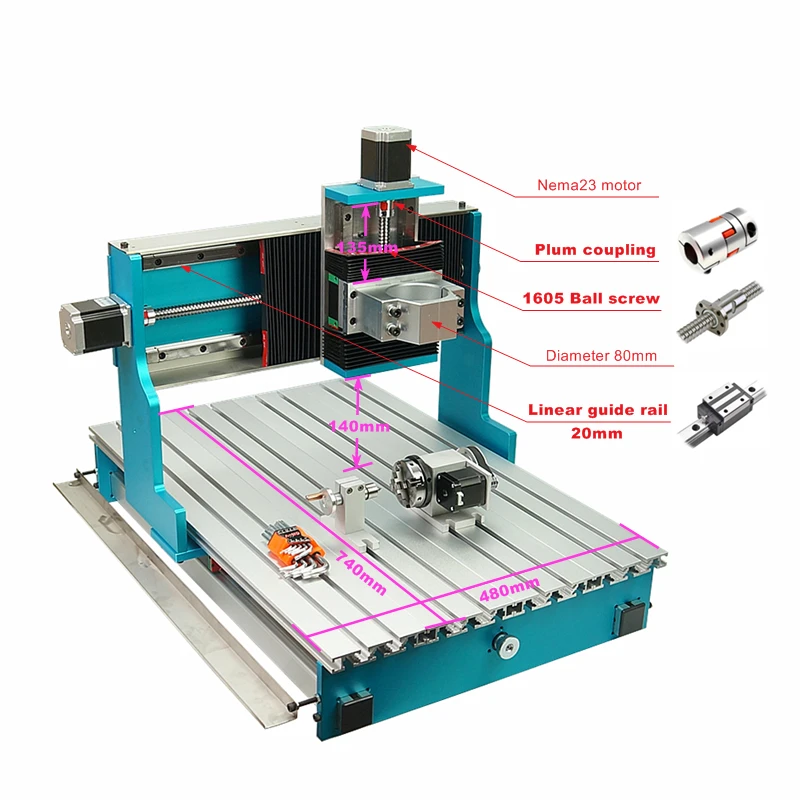

CNC Frame 6040L |
6061 and 6063 Hard aluminum alloy |
|
Table material: |
740 * 480mm (20mm aluminum alloy T table) |
Engraving area： |
360*570*120mm |
Z-Axis Stroke： |
120mm, Engraving depth depends on the length of the tool edge |
Acceptable material thickness： |
≤ 140mm |
Rail type： |
Square line rail track TRH20, high precision, high strength, top configuration. |
Type of screw： |
Ball screw 1605 |
Diameter of Spindle motor: |
80mm |
Motor |
Nema 23 (57*76mm) Motors parameter: Model: 57BYGH76 Current: 3A Output torque: 1.5Nm Motor length : 76mm （Manual measurement, possible error） Length of output shaft: 23mm Diameter of output shaft : 8mm Output shaft mode: single output shaft Wiring method: two phase four lead wires ( red A, green C, yellow B,blue D) |
|
Rotation Axis (4th Axis) (Optional) |
Chuck: 65MM 4-jaw chuck Center height: 54MM Speed reducing ratio: 4:1 Stepper motor: Two phase 42 stepper motor |
