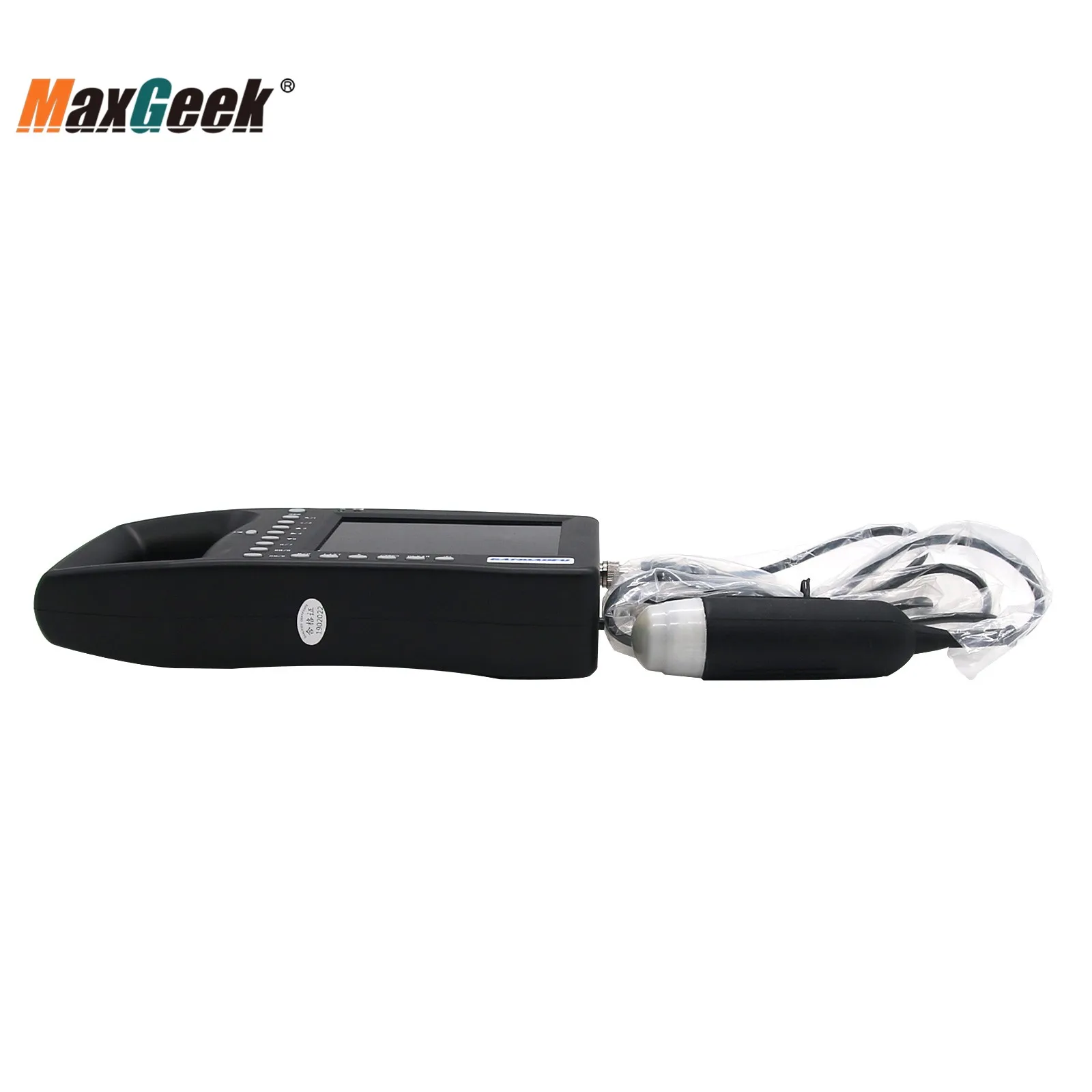

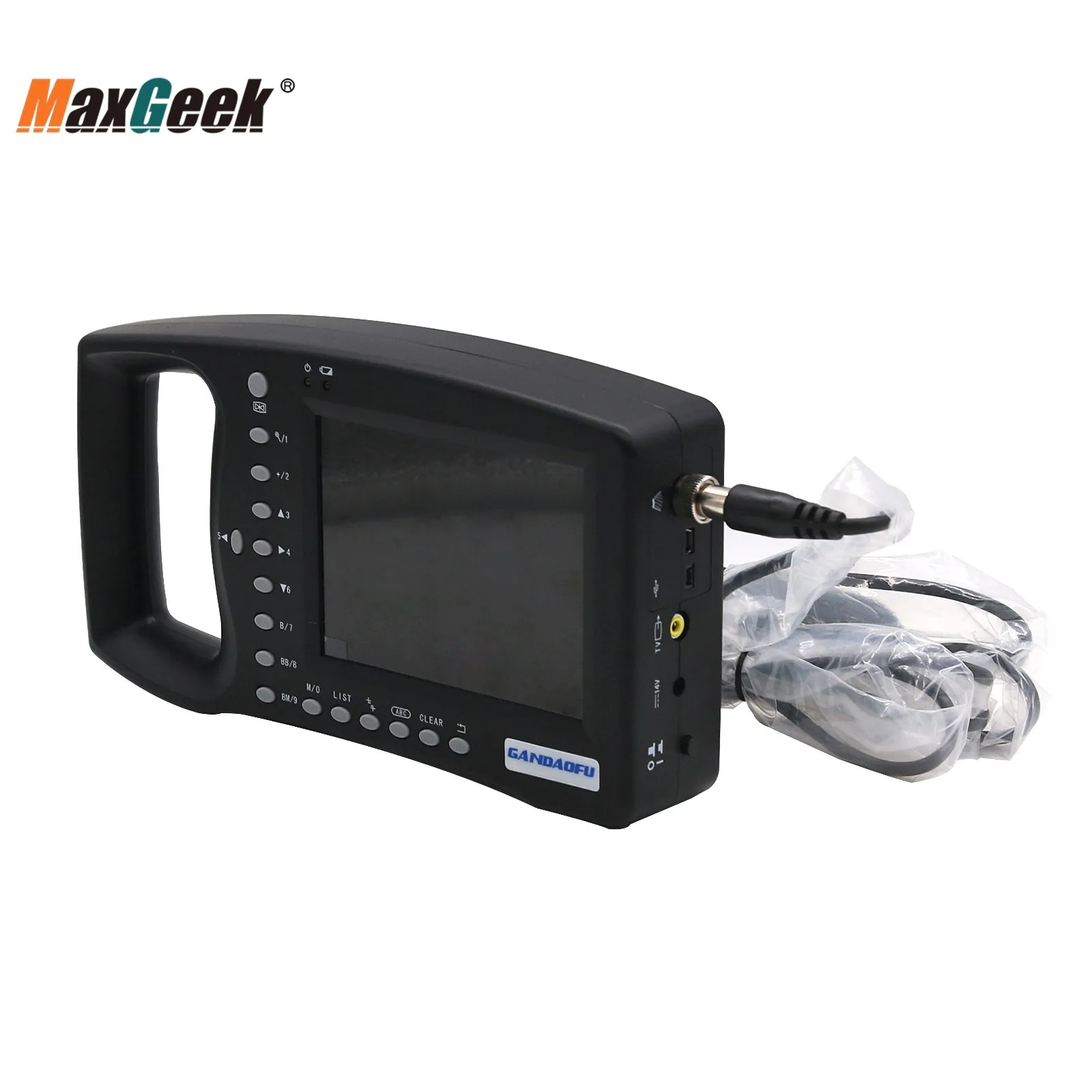

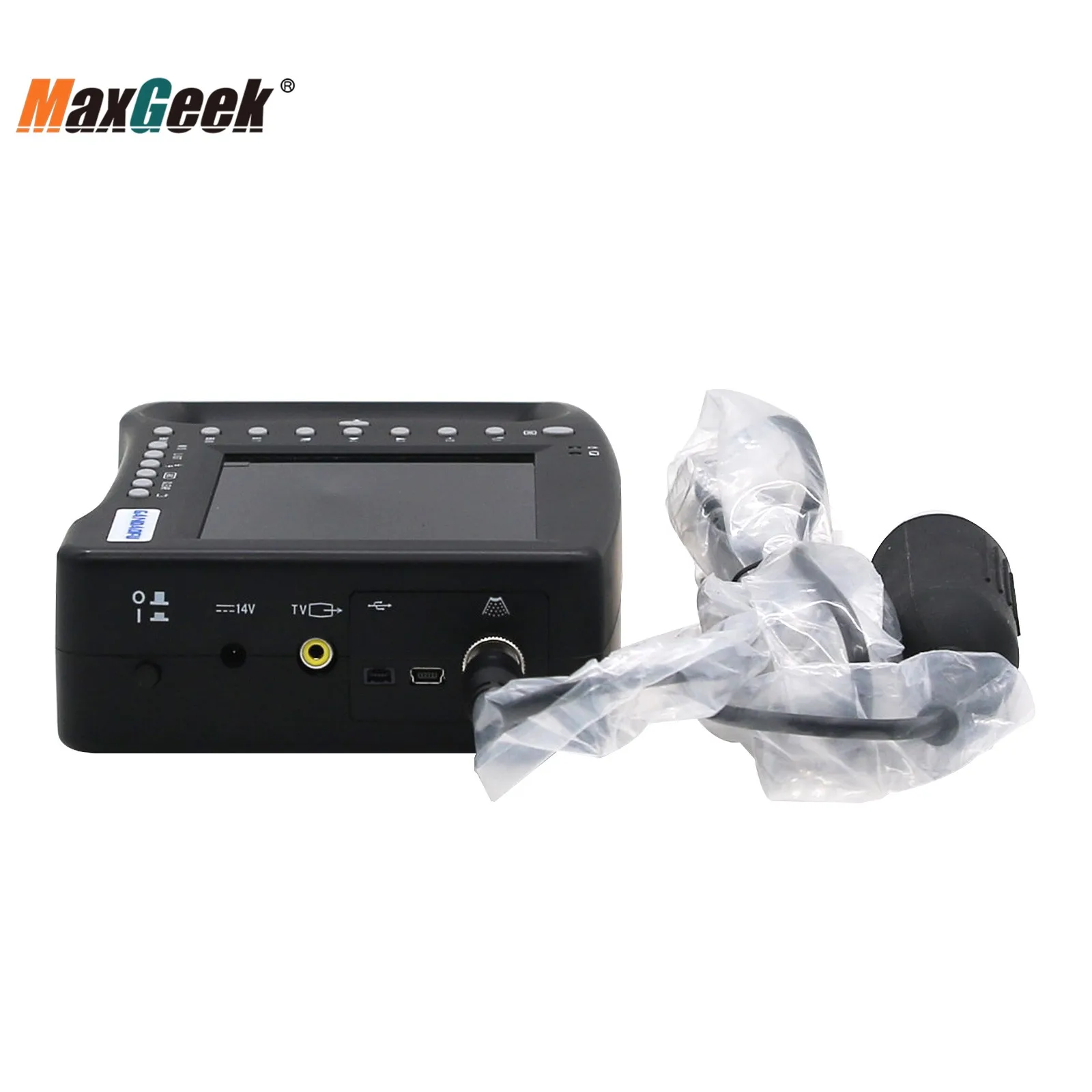

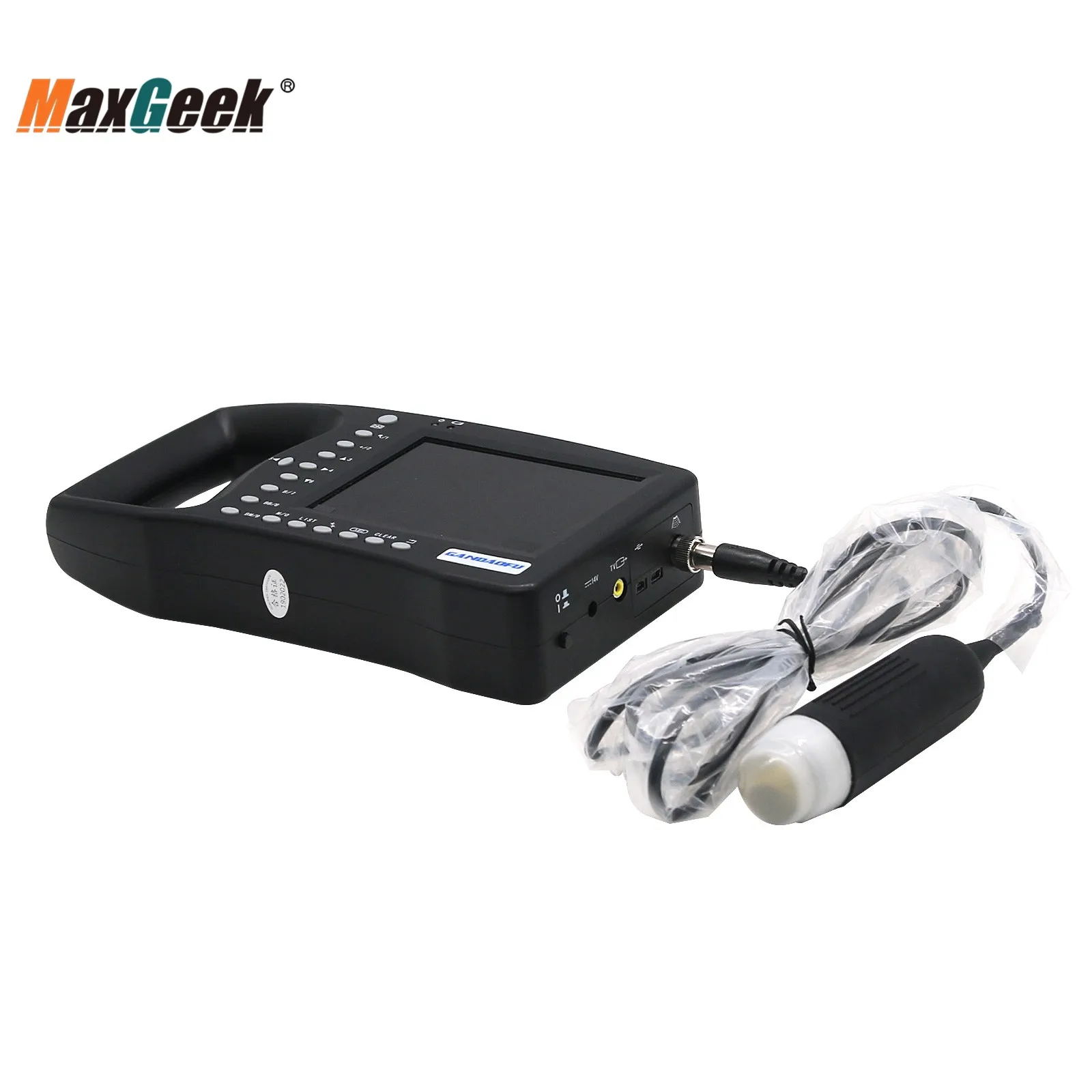

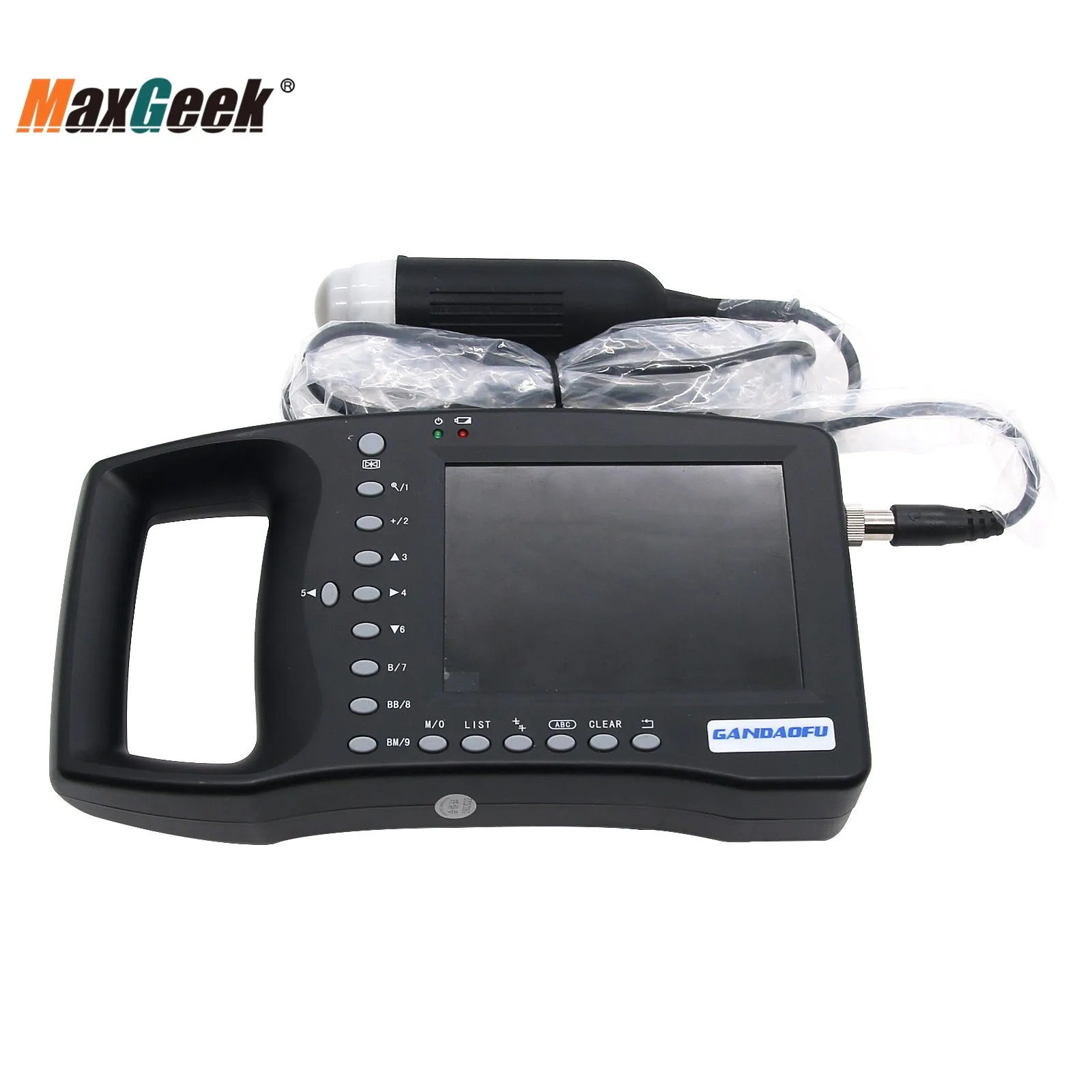

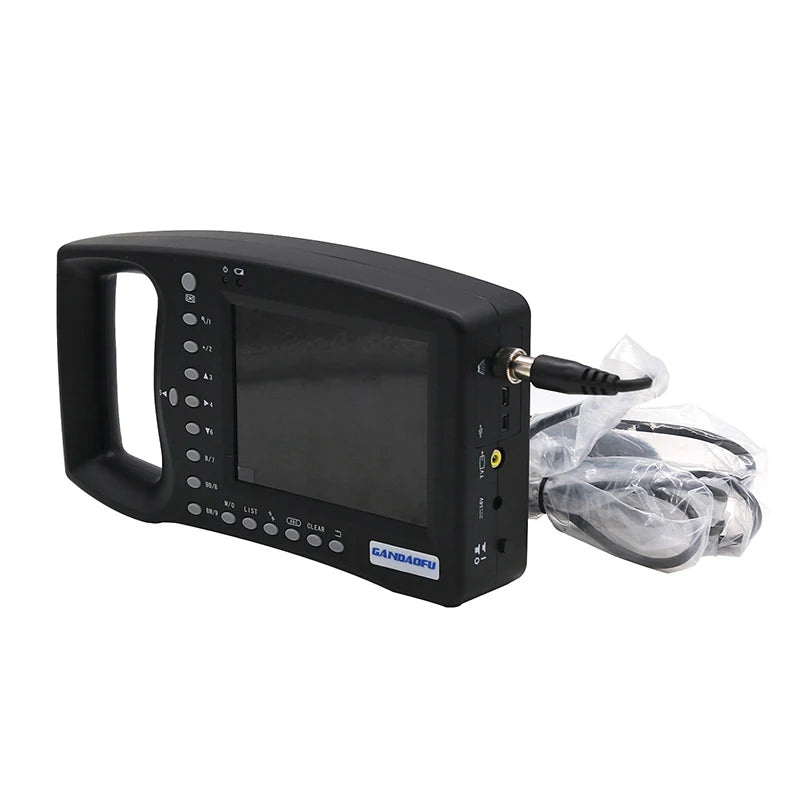

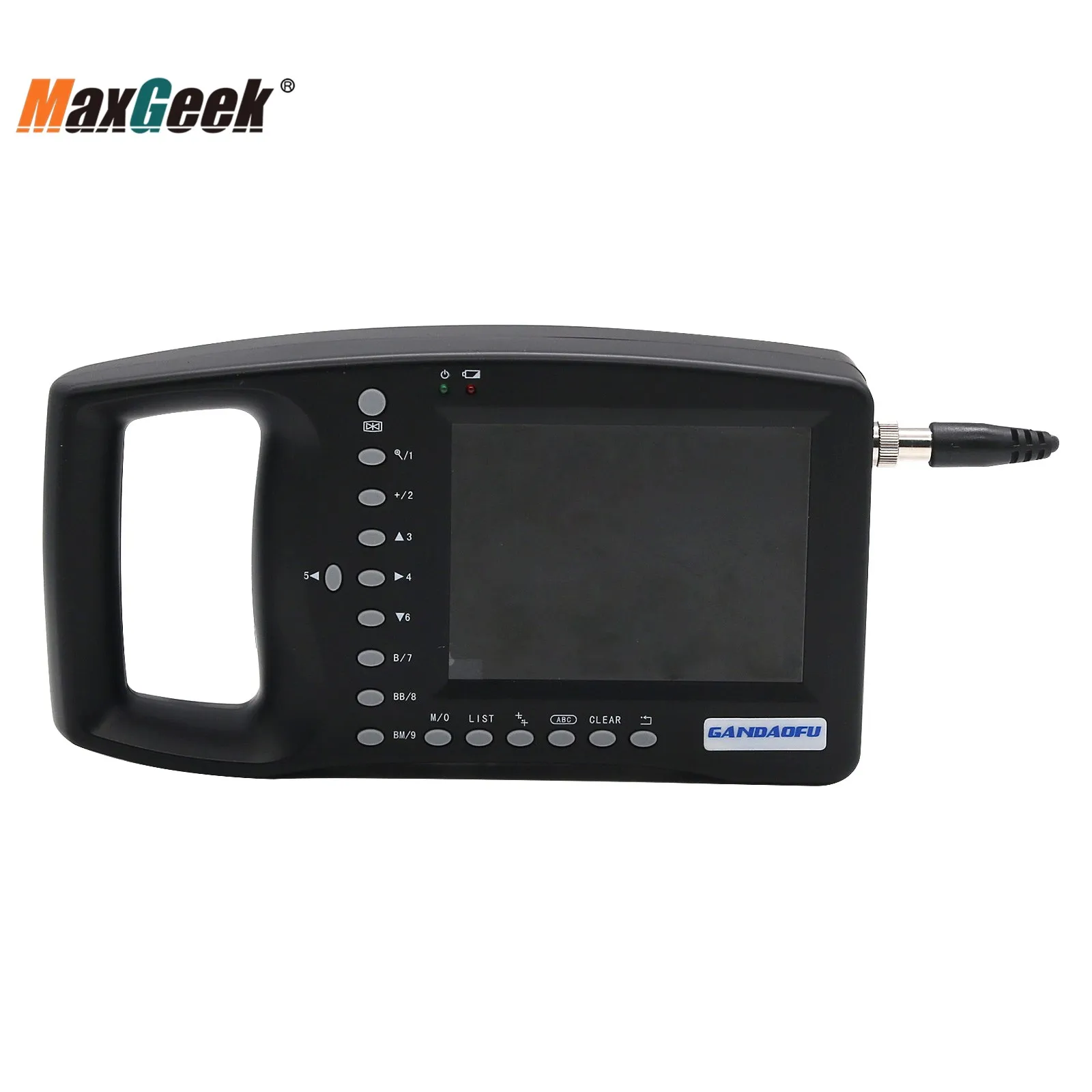

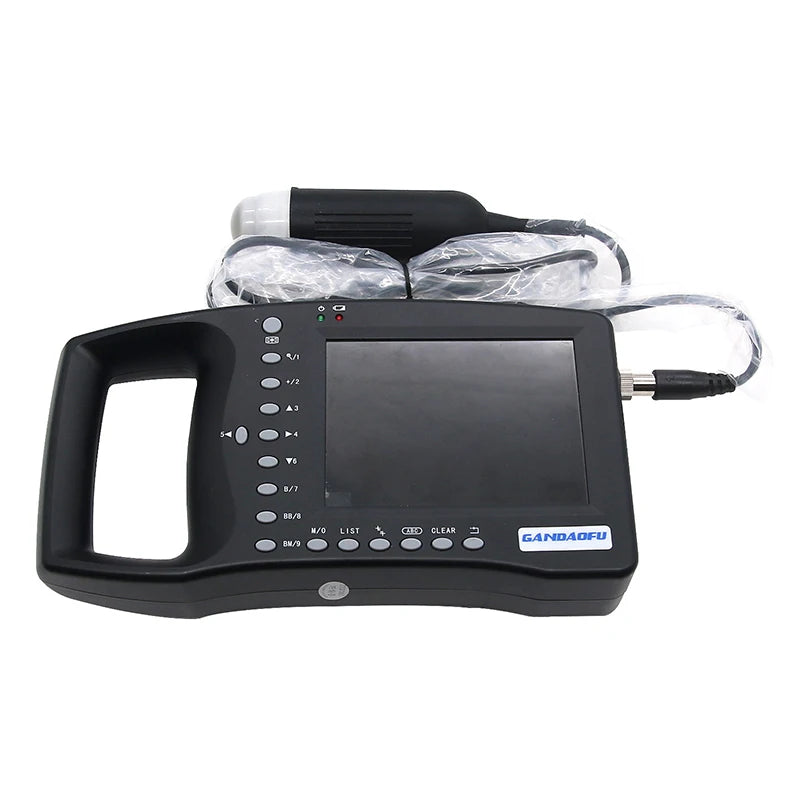

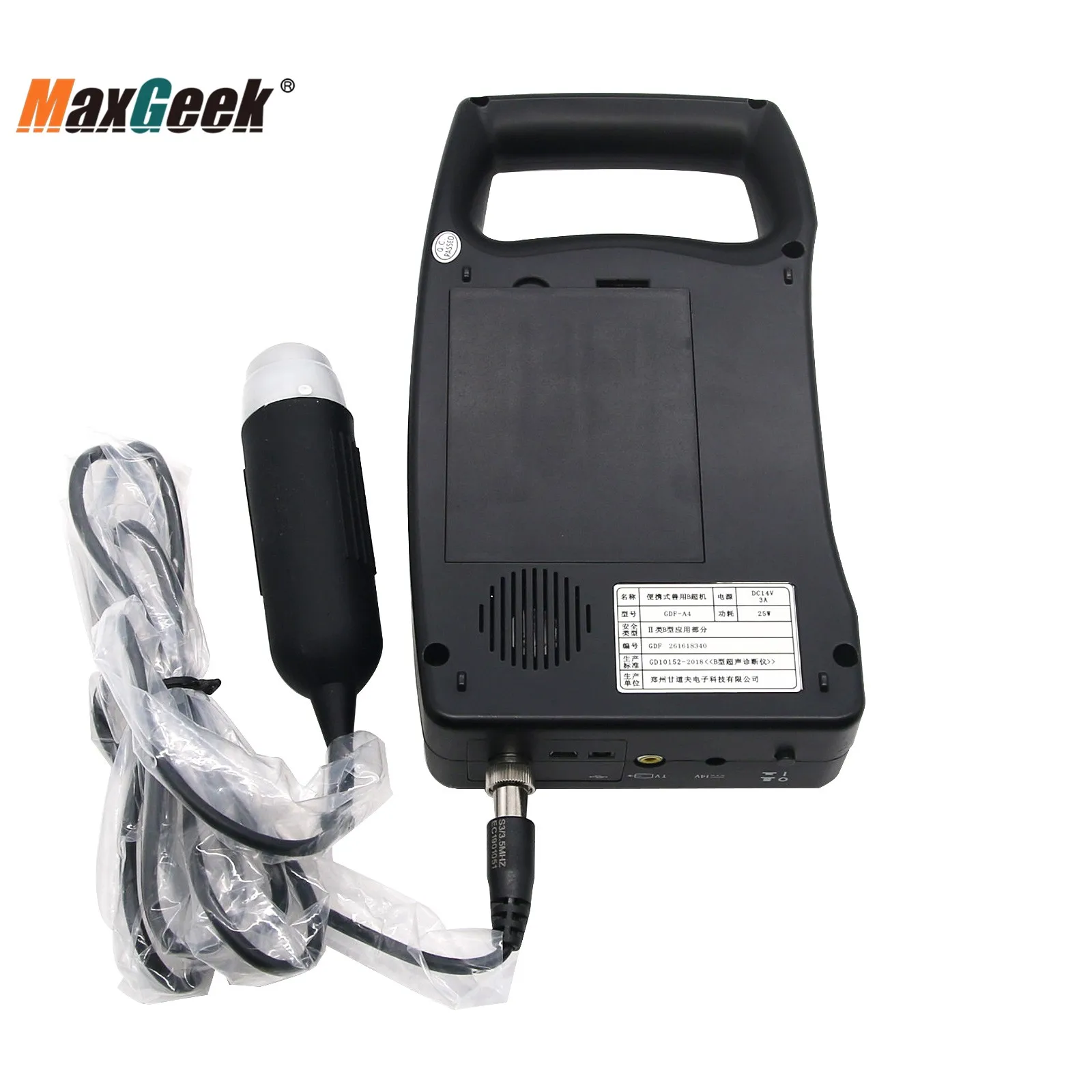

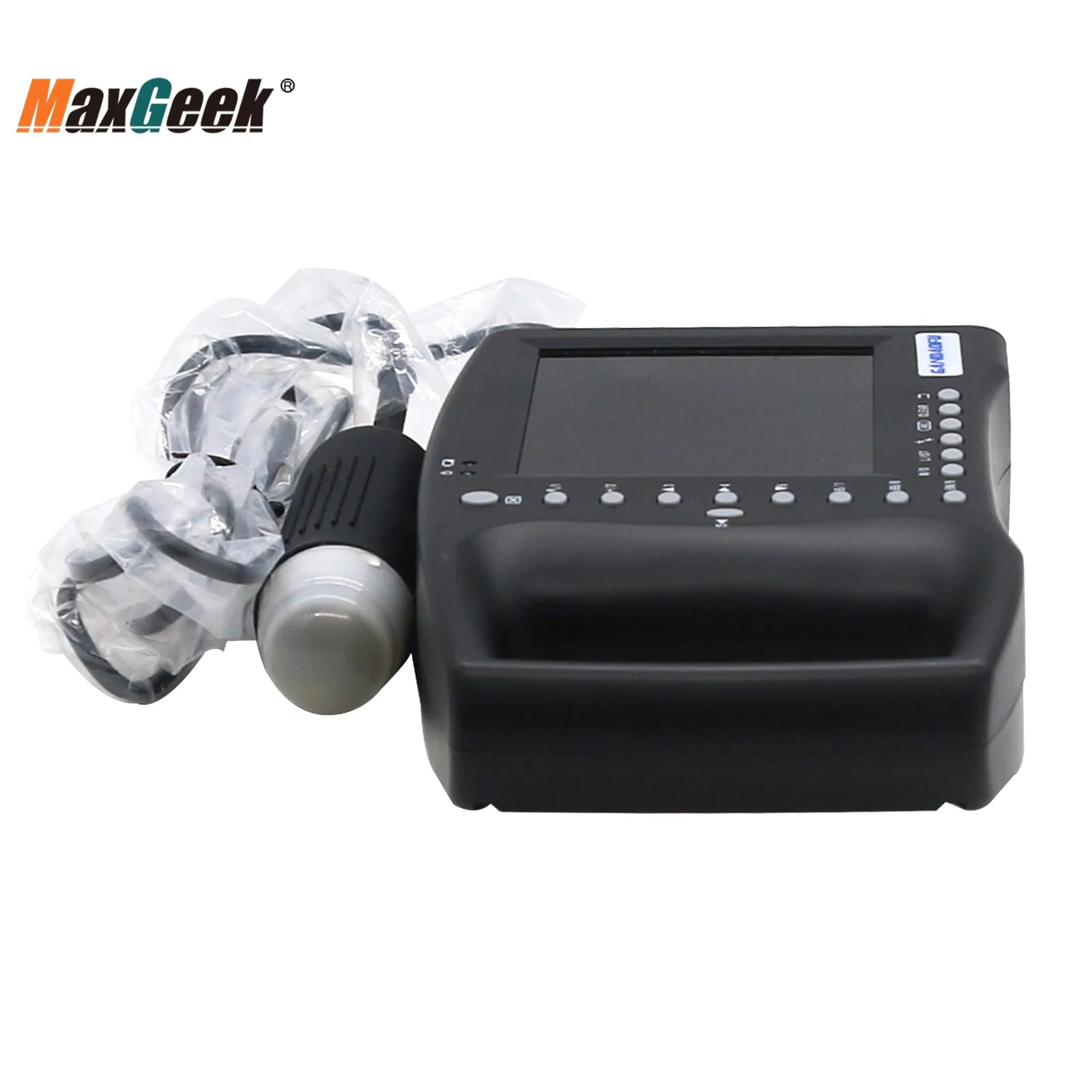

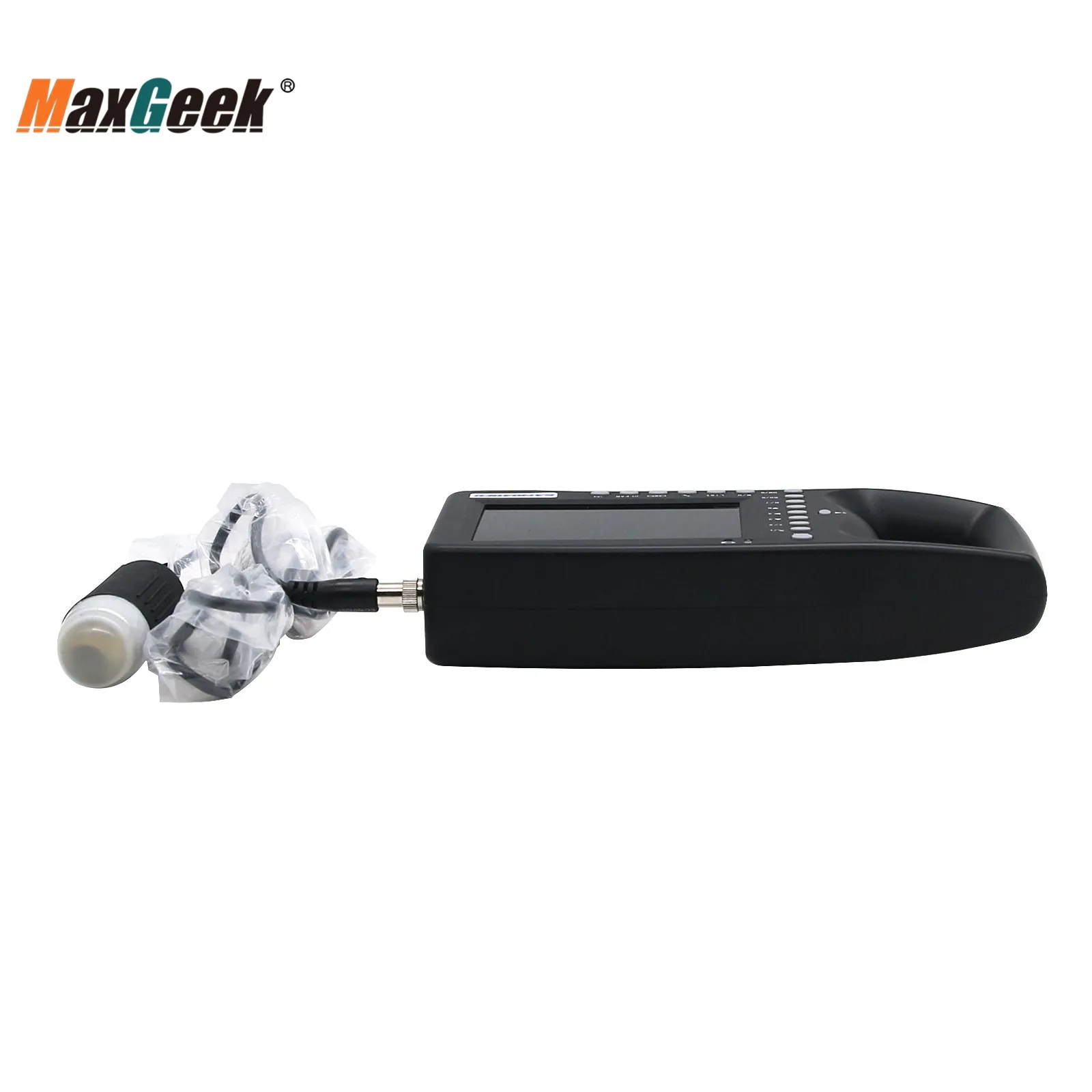

Maxgeek Portable Animal Pregnancy Test Veterinary Ultrasound Scanner For Small Animals Dogs Cats Pigs Sheep GDF-A4

Description:

GDF-A4 is a practical veterinary B-ultrasound diagnostic system. Its embedded operation system greatly improves the product performance, achieving stronger data process ability and fast process speed. Pop-up menu and keyboard design bring more convenient to users. The device is applicable to the measurement and calculation of the obstetric for sheep, cat, dog and other animals.

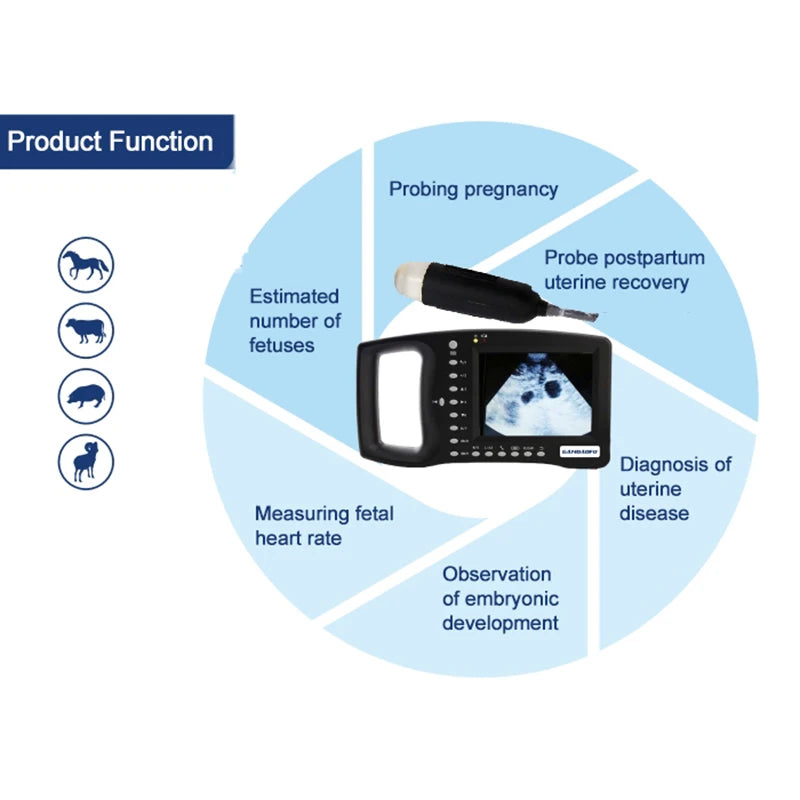

Main Functions:

- For pregnant animals

- Master postpartum uterus recovery

- Diagnosis of uterine diseases

- Observing embryo development

- Measuring fetal heart rate

- Estimate the number of babies

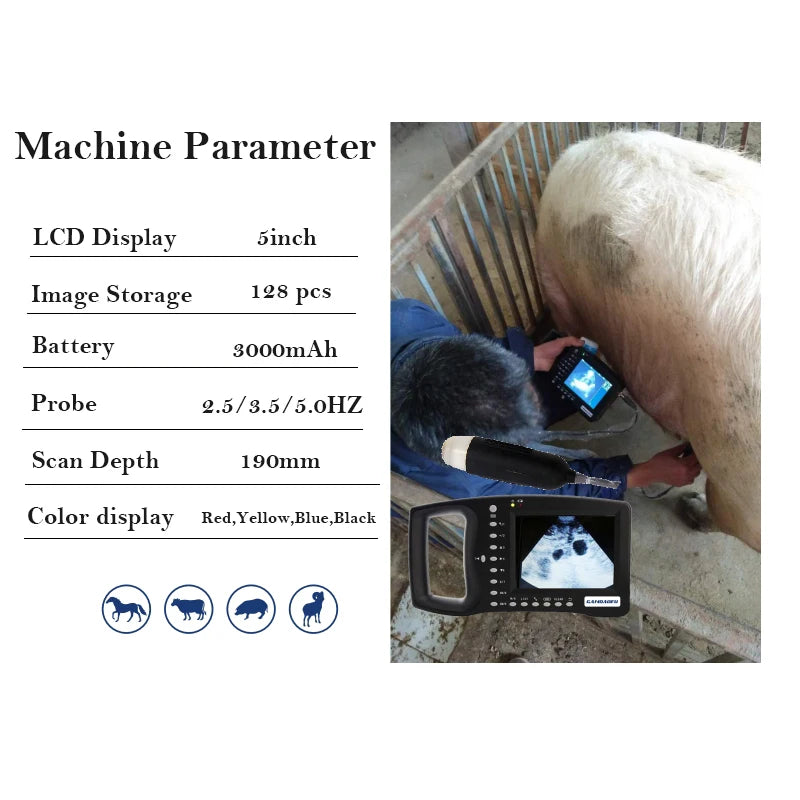

Specifications:

- Model No.: GDF-A4

- Monitor Size: 5.0 Inch LCD Screen

- Storage Capacity: up to 128 images

- Electrical capacity: 3000mAh

- Optional Probe: 2.5Hz, 3.5Hz, 5.0Hz (Default Probe: 3.5MHz)

- Max. Scan Depth: 190mm

- Multicolor Display: Red/Yellow/Blue/Black

Parameters of Default Probe 3.5MHz:

- Axial Direction: ≤2 (Depth≤80)

- Dead Zone: ≤8mm

- Geometric position Accuracy (%):

Horizontal direction: ≤ 20

Vertical direction: ≤10

- Display mode: B, B+B, B+M, M

- Image grayscale: 256 levels

- Image magnification: x1.0, x 1.2, x 1.5, x 2.0

- Built-in memory to store up to 128 images

- Depth (mm): 120~190, 8 adjustable levels

- Measurement function: distance, perimeter, area, volume, heart rate, gestational age

- Character display: case number, age

- Main Unit power consumption: 25W

- Adapter power consumption: 45W

- Net Weight of Main Unit: 800g

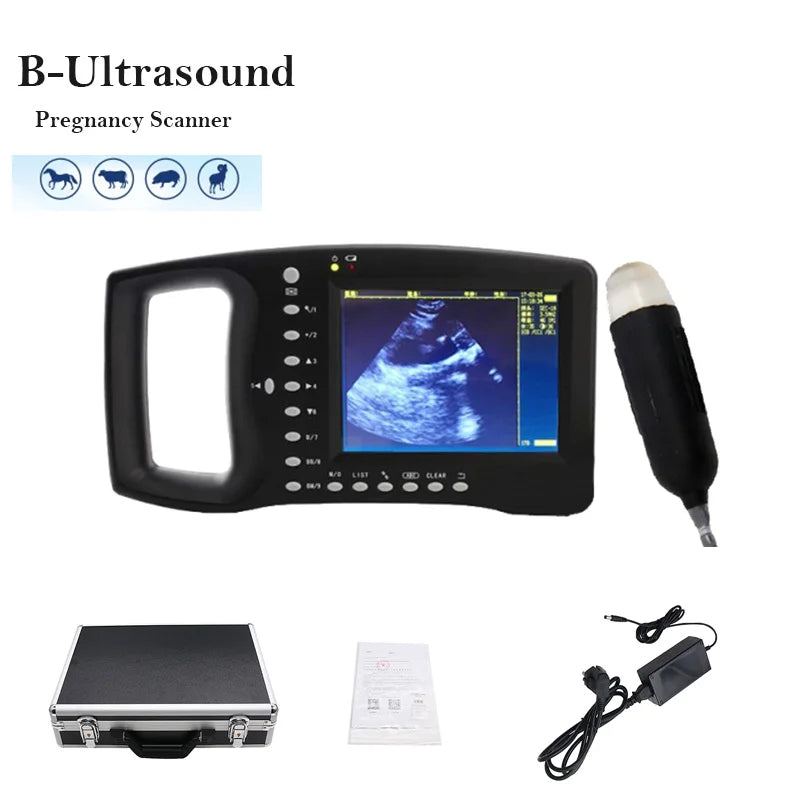

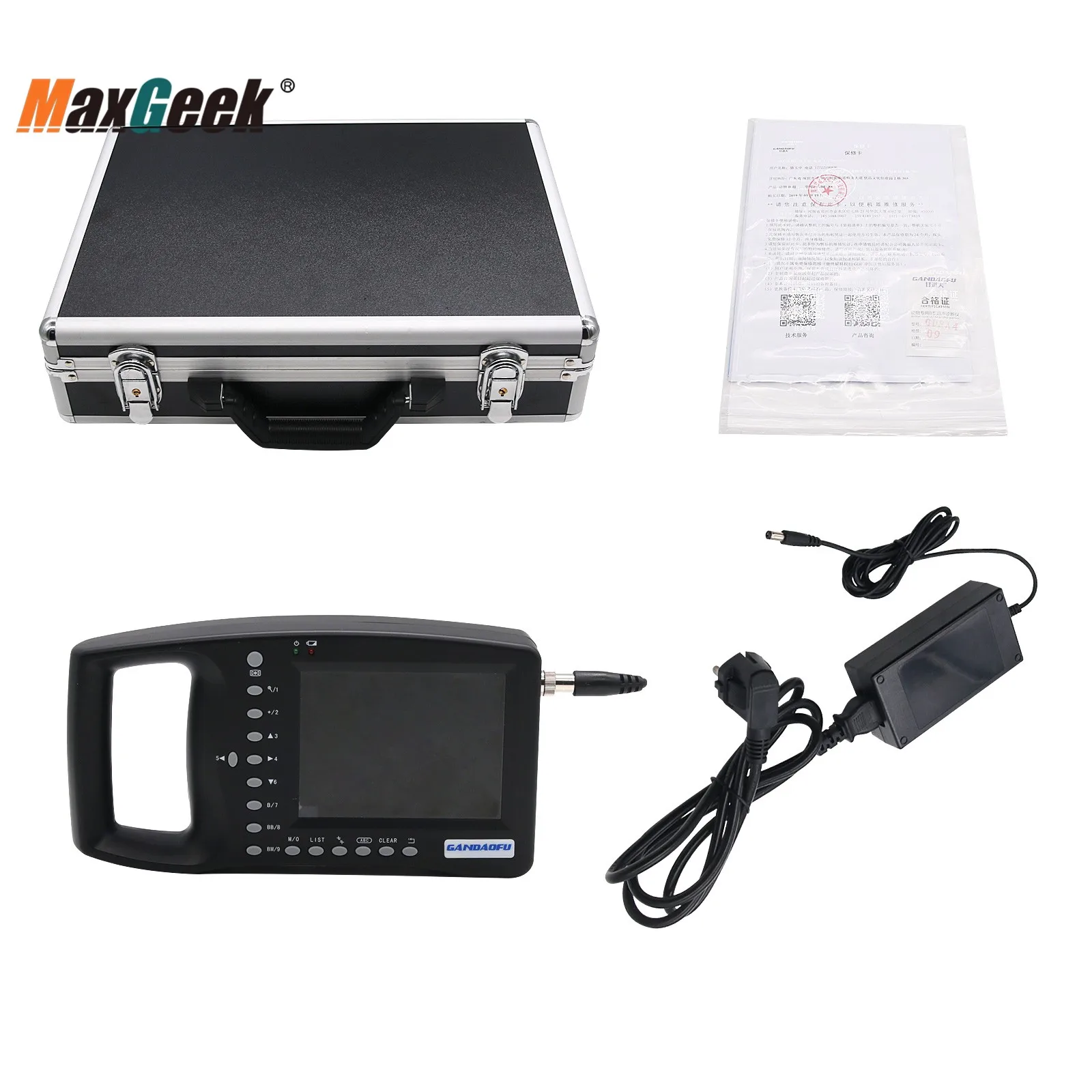

Package Included:

- 1 x Main Unit

- 1 x Probe

- 1 x User Manual

- 1 x Power Adapter

- 1 x Carry Case

Note: Optional Probe: 2.5Hz, 3.5Hz, 5.0Hz (Default Probe: 3.5MHz). Please tell us the one you want when purchasing. Thank you!
