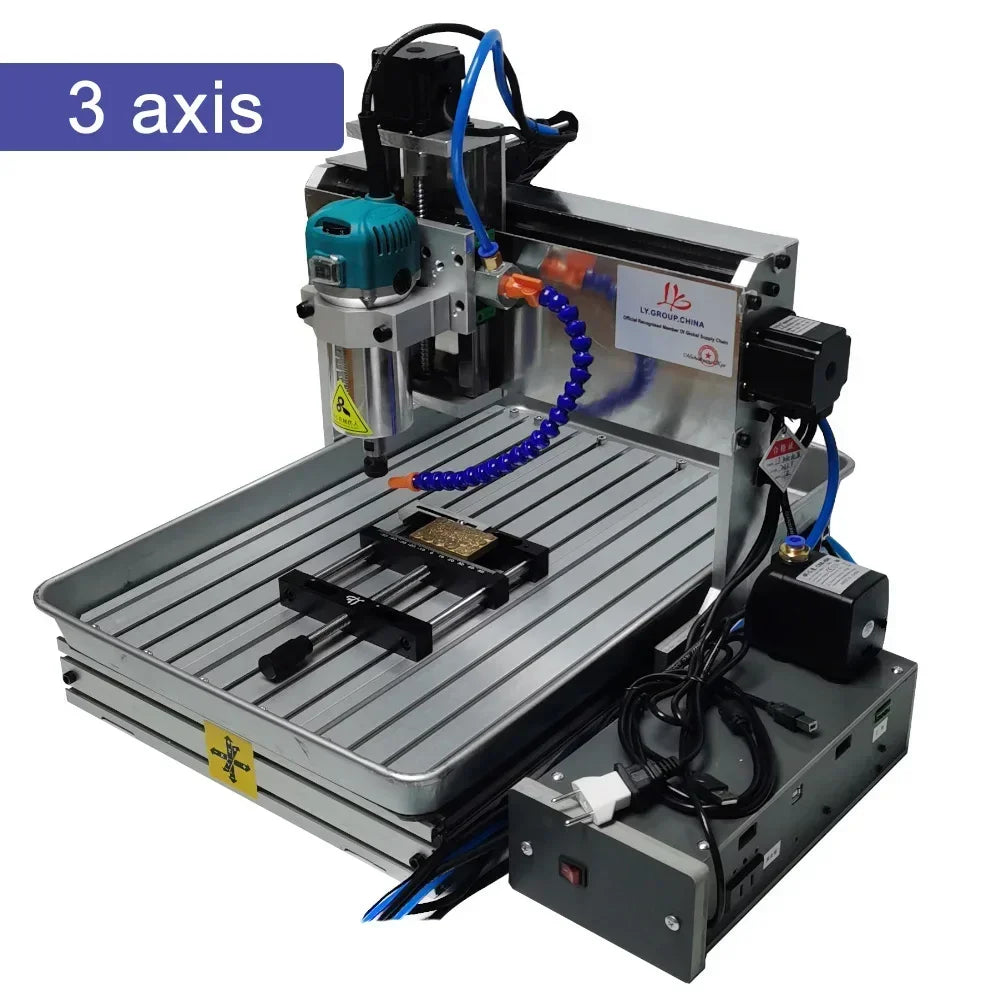

LYF 2030 3040 3060 4060 CNC Engraving Machine 1500W 3 Axis 4 Axis 5 Axis CNC Wood Router Engraving Drilling and Milling Machine
LYF 2030 3040 3060 4060 CNC Engraving Machine 1500W 3 Axis 4 Axis 5 Axis CNC Wood Router Engraving Drilling and Milling Machine
Couldn't load pickup availability
SPECIFICATIONS

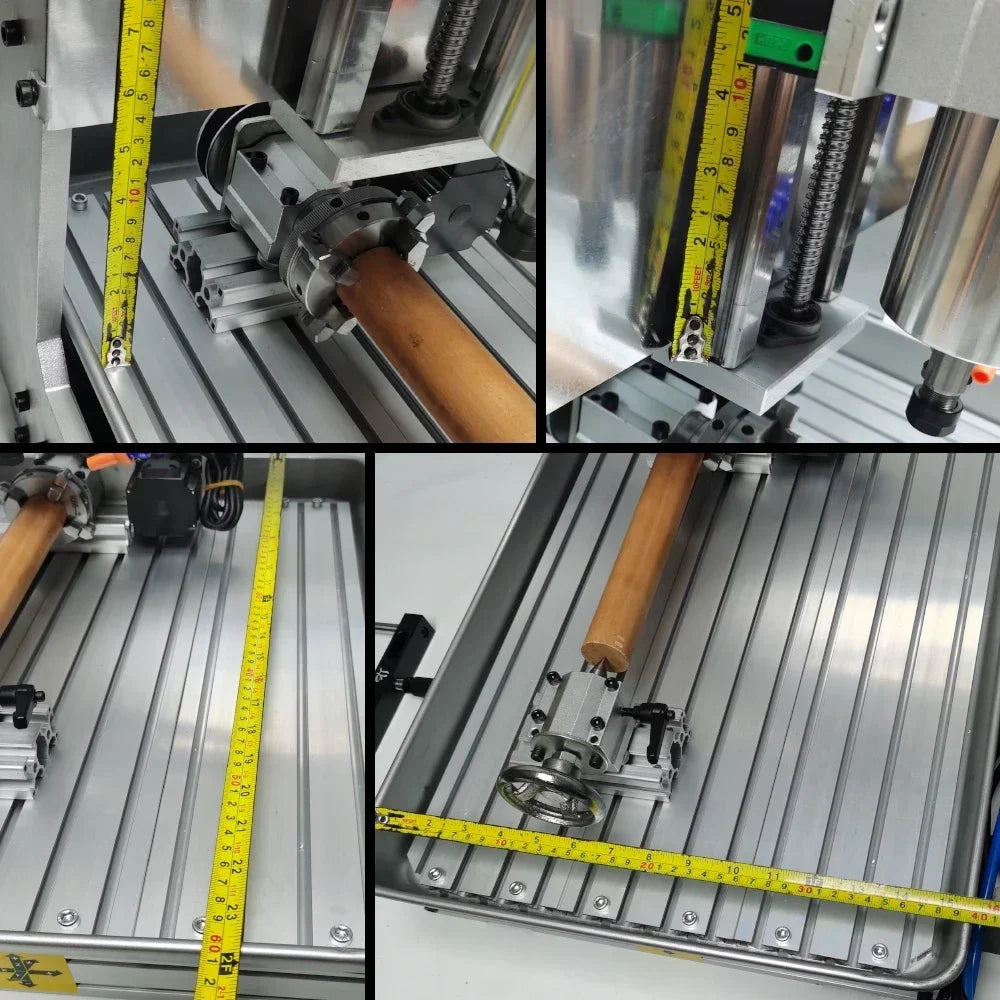

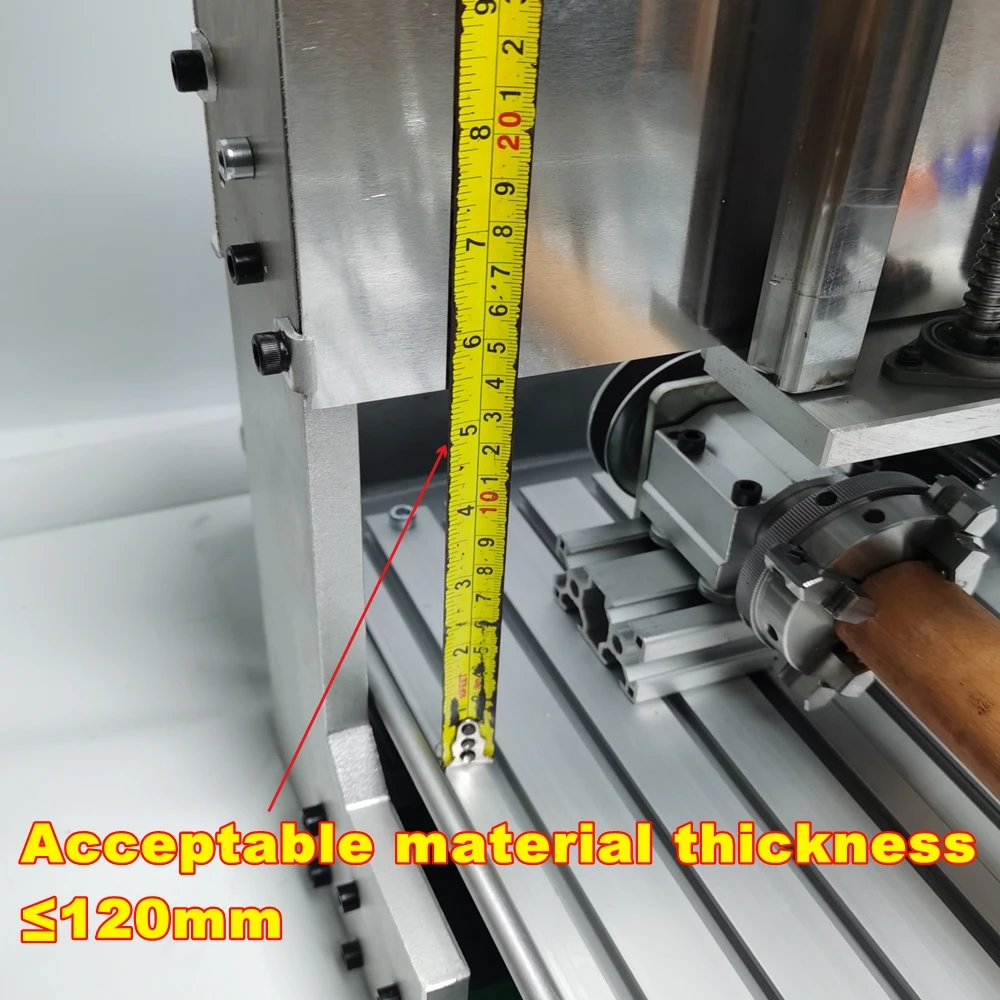

Acceptable material thickness: ≤120mm
Brand Name: LYBGACNC
CNC or Not: CNC
Certification: CE
Command code: G code/.nc/.ncc/.tab/.txt
Communication interface: USB Port
Condition: New
Controller: MACH3
Engraving Area: 300x300mm
Feature: CNC Wood Router
High-concerned chemical: None
Is Smart Device: No
Model Number: LYF2030/3040/3060/4060
Models: LYF 2030 3040 3060 4060
Origin: Mainland China
Product name: CNC Engraving Machine
Rack material: 12~15mm aluminum plate
Repeat positioning Accuracy: 0.02mm
Software Co patability: Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Stepper motor and drive: 57HS56
System requirements: Win-XP / Win 7 Win 8 Win10
Table material: Aluminum alloy T table + Water tank
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives; Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Model and Technical Parameters
Brand |
LYBGACNC |
|||
Model |
LYF2030 |
LYF3040 |
LYF3060 |
LYF4060 |
Working stroke (XYZ) mm |
300*400*100 |
300*600*100 |
400*600*100 |
|
Machine size cm |
50*40*50 |
62*52*50 |
80*52*50 |
80*60*50 |
Weigh |
27 |
31 |
35 |
43 |
≤120mm |
||||
12~15mm aluminum plate |
||||
Table material: |
Aluminum alloy T table + Water tank |
|||
Rail type |

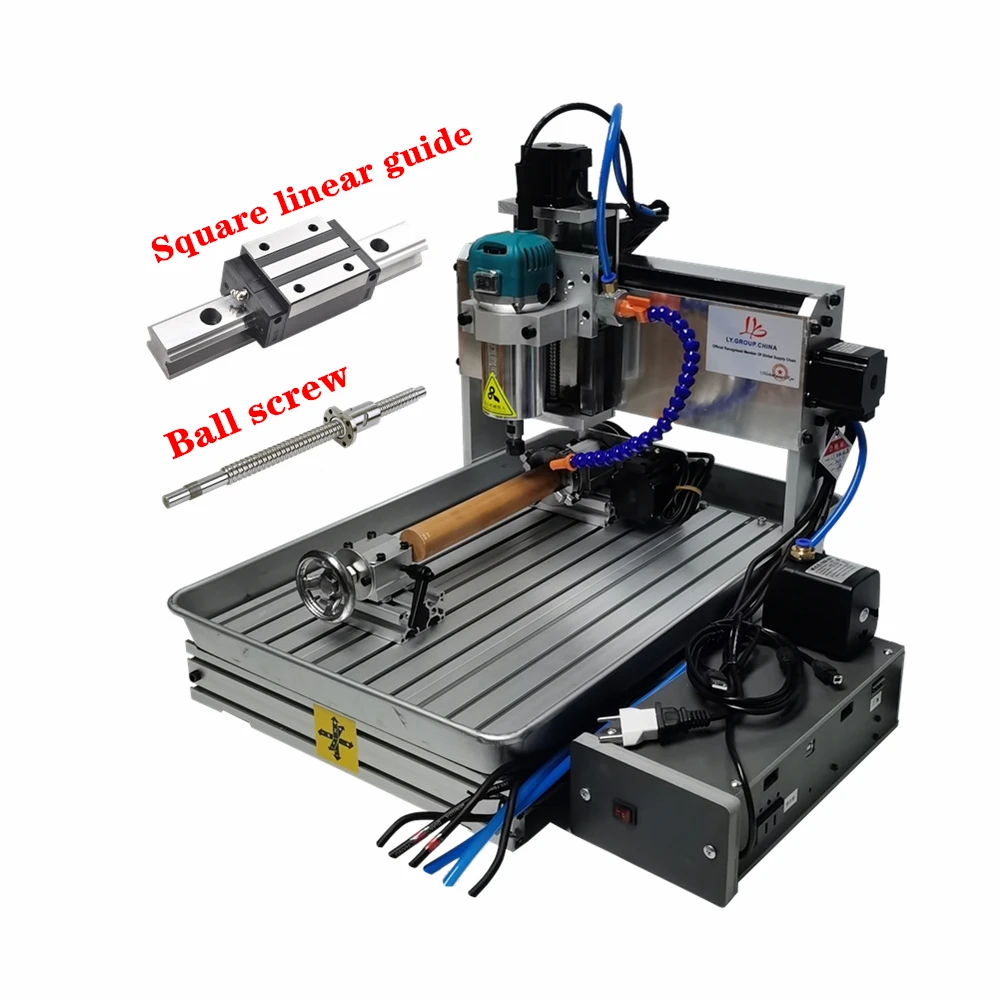

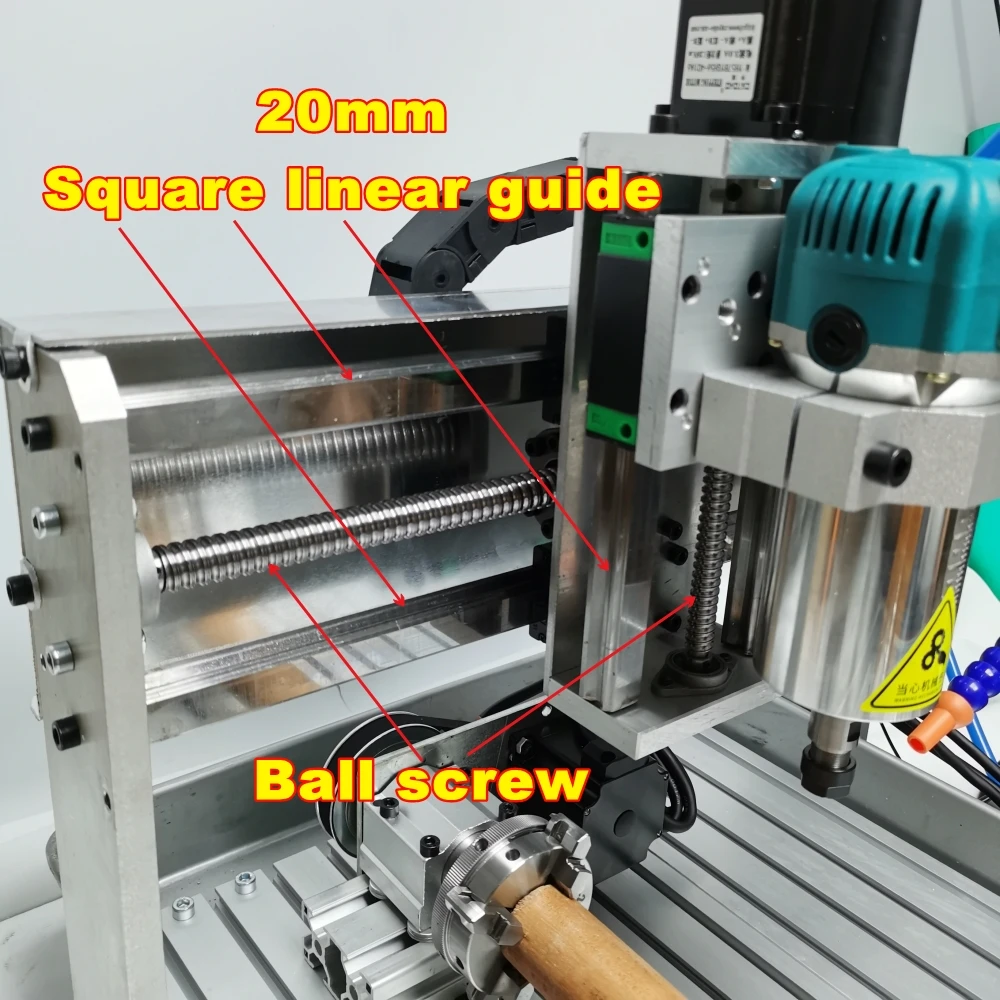

X Y 1605 ball screw; Z 1204 ball screw, Square line rail track, three-axis is 20 mm square wire track, |
|||
Spindle motor |

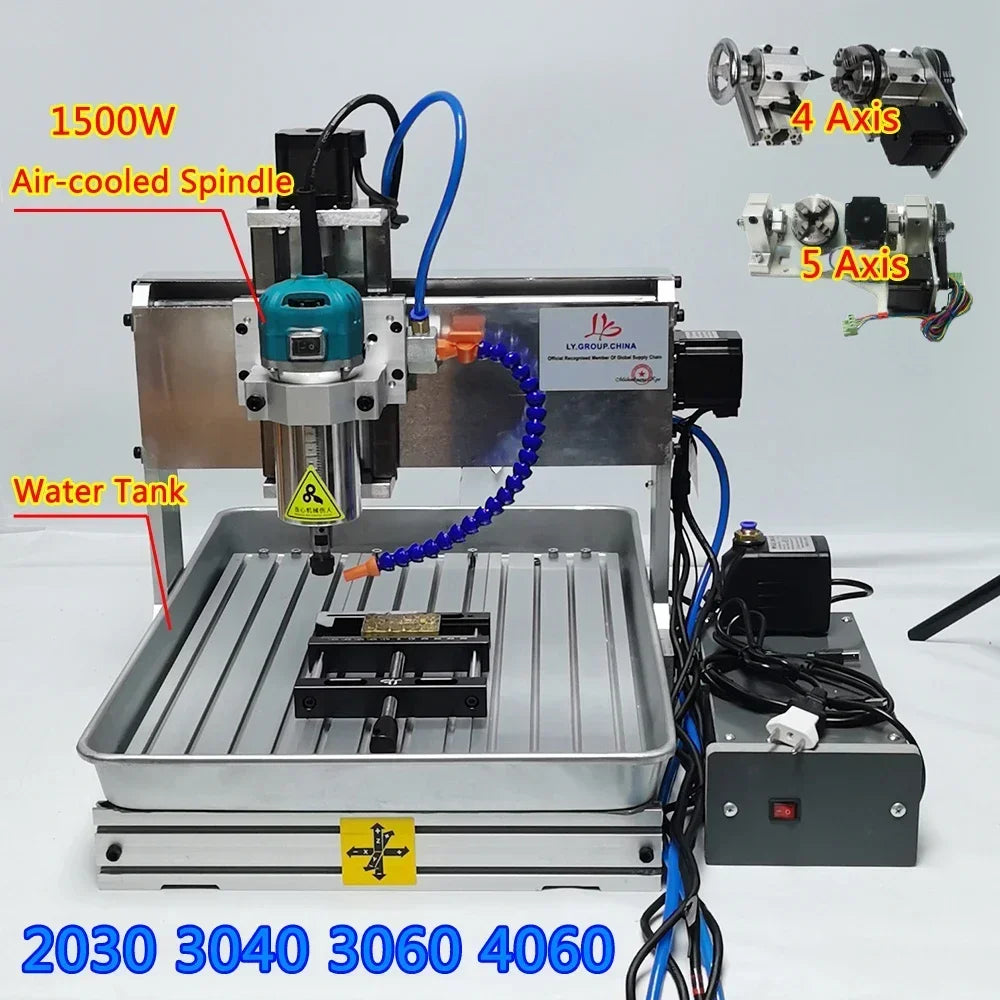

1500W Air cooling spindle ,0-30000r/min,6 speed regulation |
|||
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
Stepper motor and drive |
||||
Repeat positioning Accuracy |
0.02mm |
|||
Communication interface |
USB Port |
|||
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
Software Copatability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|

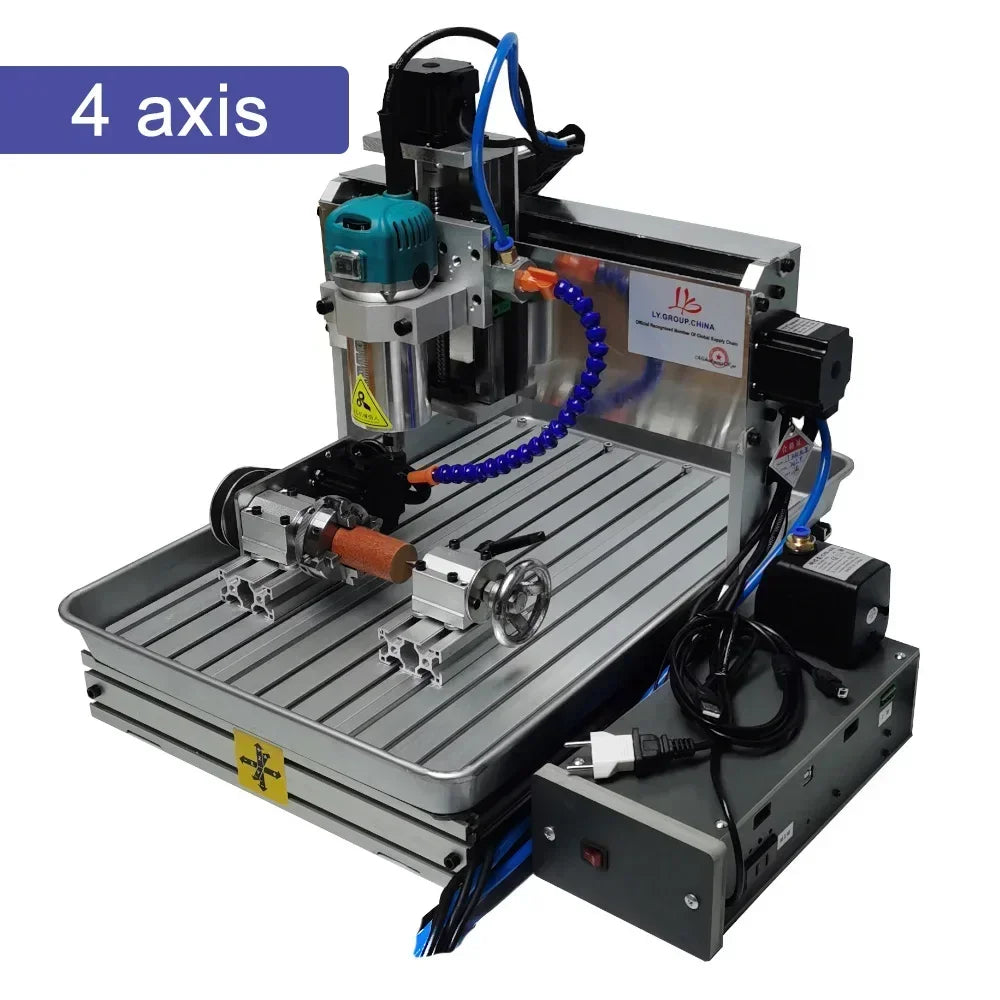

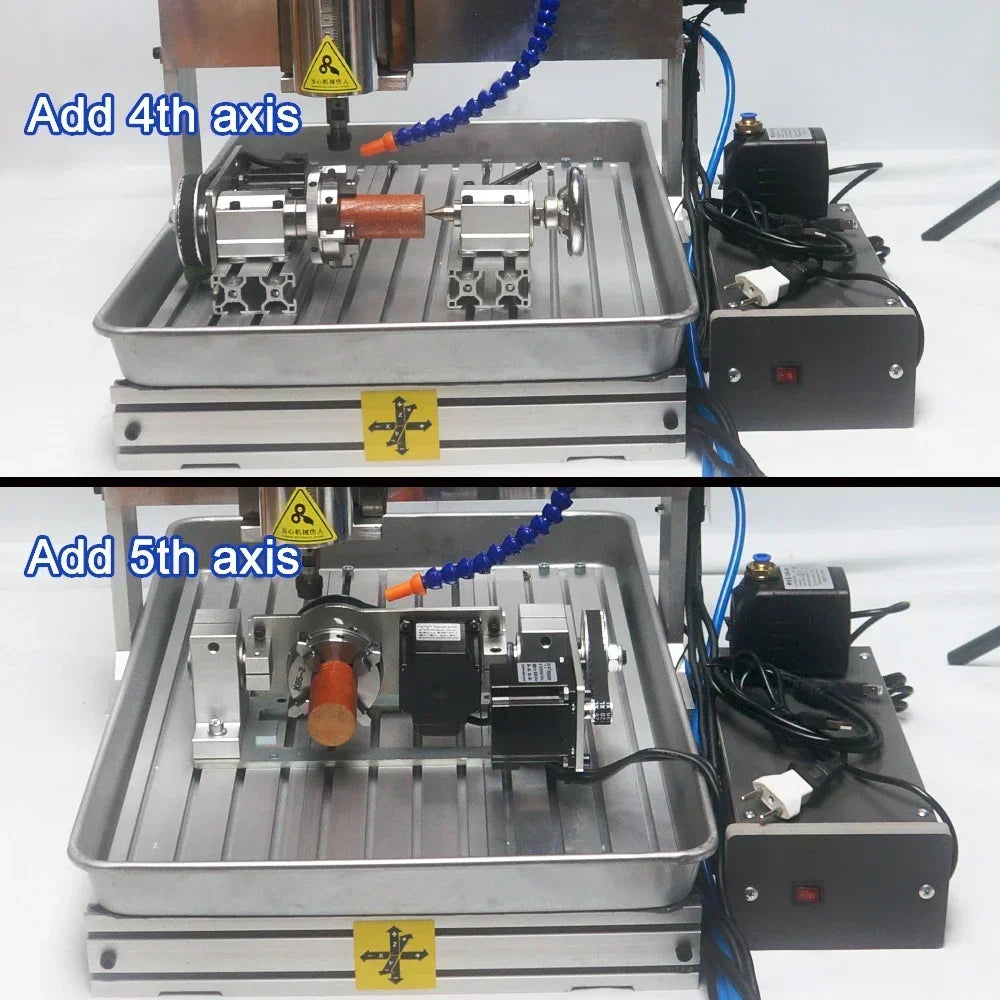

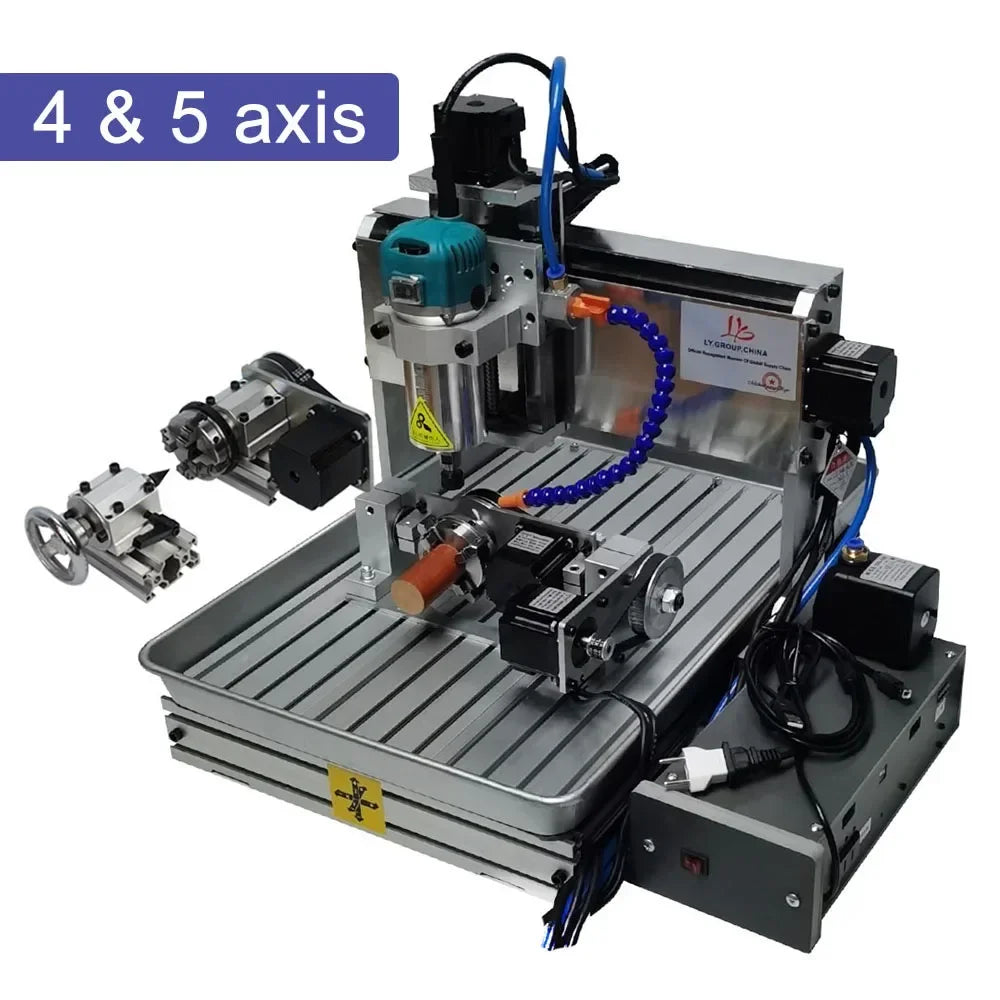

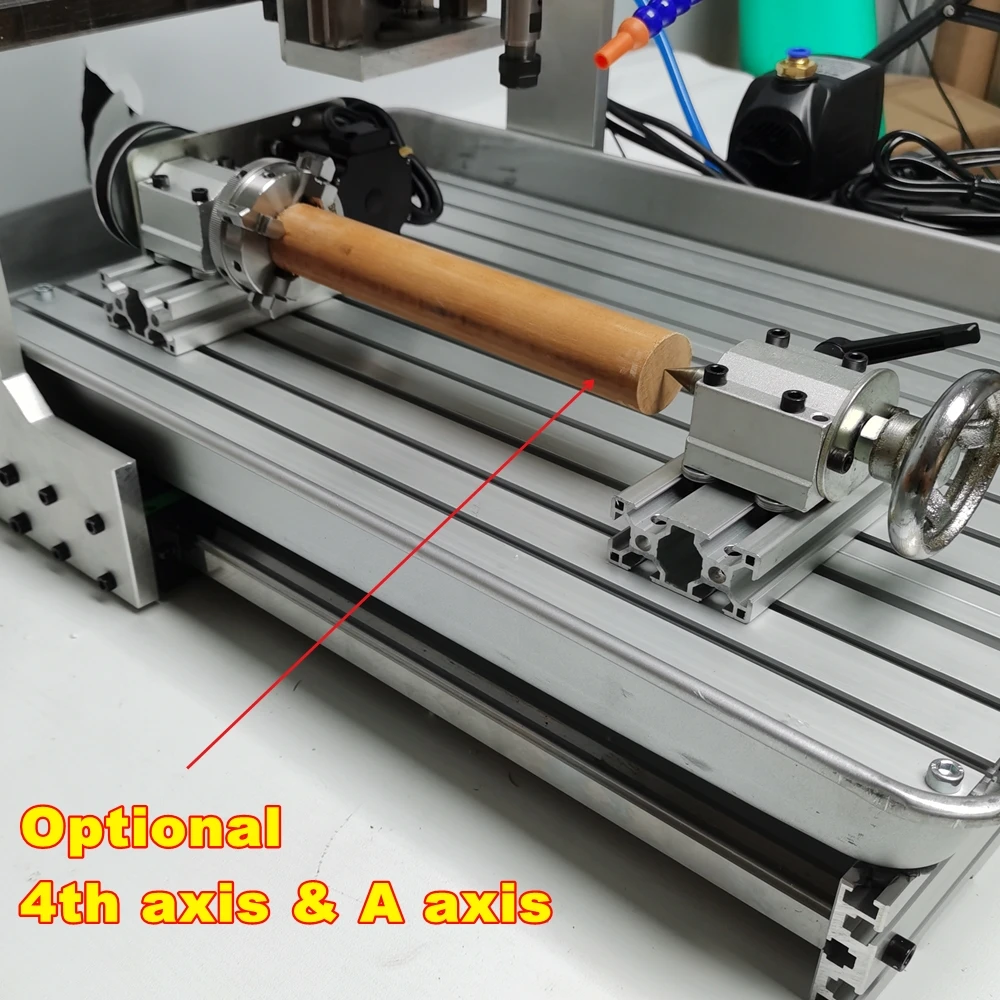

4th Axis (Optional) Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
|||
|

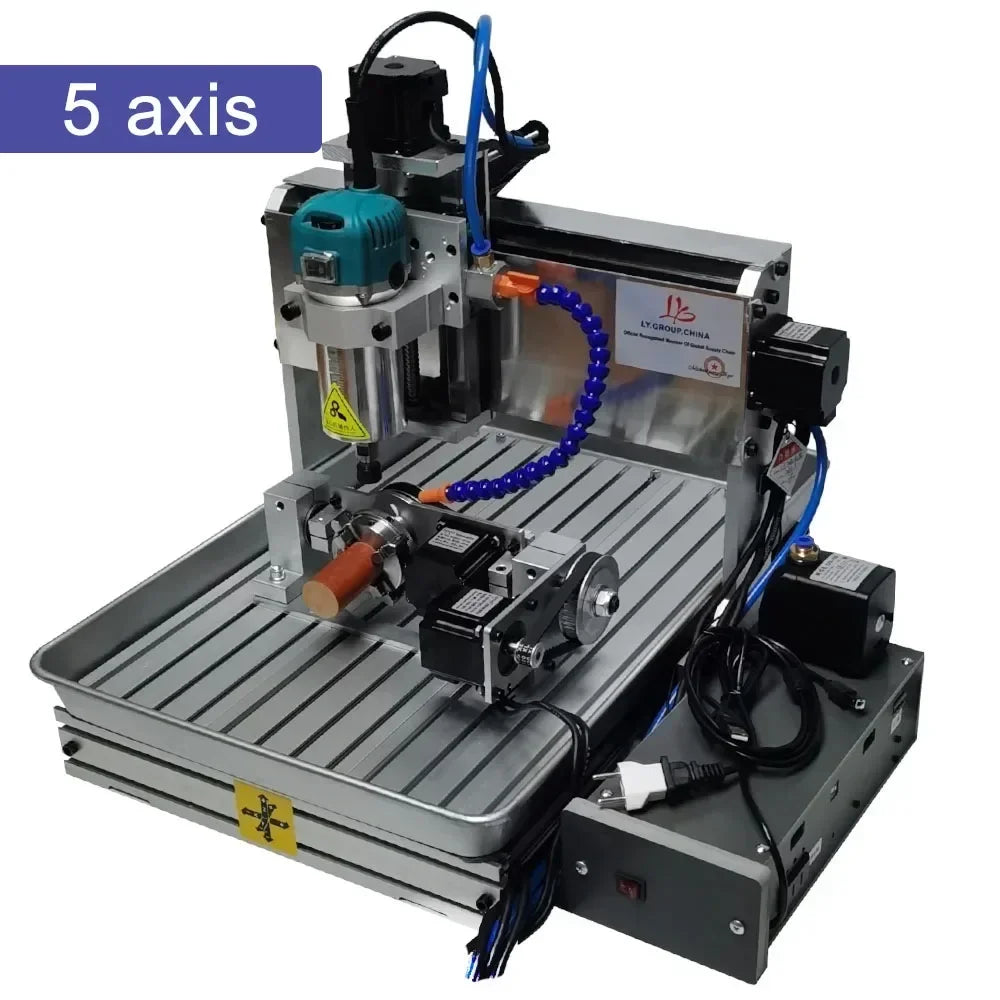

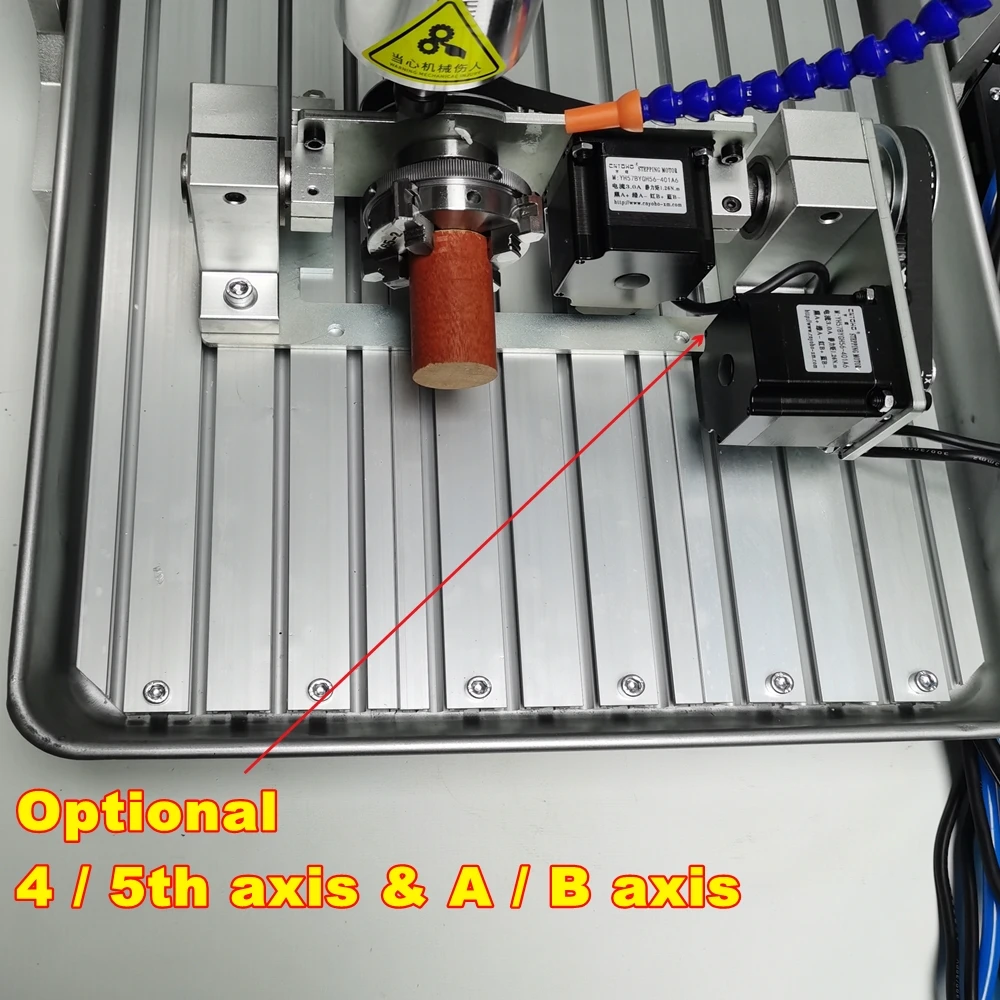

5th Axis (Optional) Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
1. Beware of potential safety hazards of electricity use. Please ground the rack and take necessary personal protection measures. It should be placed at a place where children can't touch everyday;
2. The machine is divided into 110 and 220V. Please leave a message when ordering;
3. When the new machine is assembled, the main shaft must be connected to the main shaft output of the control box;
4. After the machine works for a period of time, if the main shaft does not rotate, please check whether the two carbon brushes on the motor are worn;
