LY Mini DIY CNC Router 3020 Square Line Rail 500W ER11 Spindle 3 /4 /5 Axis PCB Wood Milling Metal Engraving Machine USB Port
LY Mini DIY CNC Router 3020 Square Line Rail 500W ER11 Spindle 3 /4 /5 Axis PCB Wood Milling Metal Engraving Machine USB Port
Couldn't load pickup availability
SPECIFICATIONS
Acceptable material thickness: MAX 100mm
Brand Name: NoEnName_Null
CNC or Not: CNC
Certification: CE
Collet type: ER11,1/8"(3.175mm) Collet
Condition: New
Controller: MACH3
Feature: Wood milling machinec
High-concerned chemical: None
Is Smart Device: Yes
Max. working stroke: XYZ=300*200*100mm
Model Number: 3020 CNC router
Origin: Mainland China
Rack material: 15mm PVC + corner brace connection
Rail type: X Y Z 1204 ball screw, Square line rail track, three-axis is 20 mm squ
Software Copatability: Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Spindle motor: 500W DC spindle , 0-12000r/min
Shipping Attention : | ||
Please understand the DDP service is ship from China, it is ship by the seller's shipping method, not by international express, thanks .DDP Service = Seller Prepay The Customs , Buyer DO NOT NEED PAY ! | ||
1 |
For EU countries (PS: Please select ship from China then do not prepay VAT on Aliexpress) |
DD Pservice from EU Warehouse to your door, fast and safe, 5-10 days shipping. Other goods can also be sent by rail transportation including DDP service , WE PAY THE TAX . |
2 |
For Russia / Ukraine |
Deliver from Moscow warehouse to your door, fast and safe, 5-10 days shipping.(Kazakhstan/Belarus also supply DDP service, ship from China, 22-35 days shipping) |
3 |
For United States/Canada/Australia |
Deliver from local warehouse to your door, fast and safe, 3-7 days shipping.If stock out we can ship from China by sea, transfer to your door by local shipping , 22-35 days shipping. |
4 |
For Southeast Asia |
DDP ship from China by sea, transfer to the door by local shipping, 15-20 days shipping. |
CNC Router 3020 Square Line Rail 500W ER11 Spindle 3 /4 /5 Axis PCB Wood Milling Metal Engraving Machine USB Port

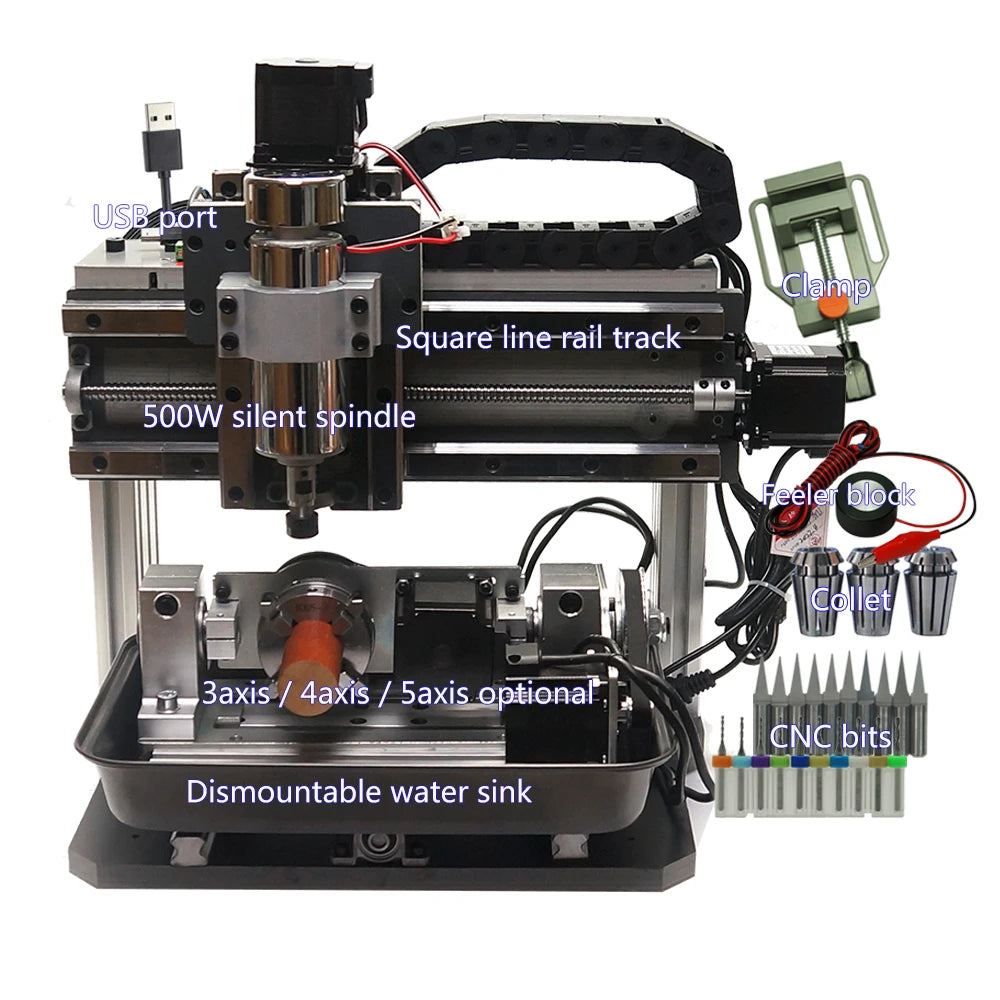

Buy machine get free gift :
ER11 3mm-7mm collet random size ...... 5 pcs
Spare 3.175mm CNC router bits ...... 20 pcs
Parallel-jaw vice clamp ...... 1 pcs
Feeler block ....... 1pcs
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Model and Technical Parameters
MODEL |
CNC 3020 |
||
Attribute |
3axis |
4axis |
5axis |
Axis |
3axis |
4axis |
4axis |
Interface |
USB Port |
USB Port |
USB Port |
Spindle Motor: |
500W |
500W |
500W |
Weigh |
27 |
31 |
33 |
Max. working stroke |
XYZ=300*200*100mm |
||

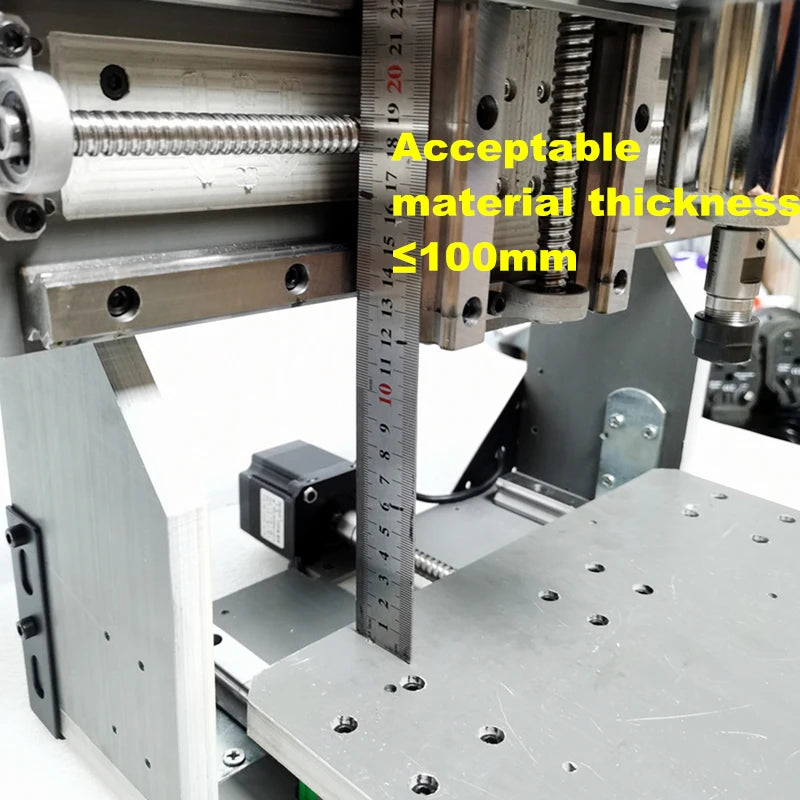

Acceptable material thickness |
≤100mm |
||
Rack material: |
15mm PVC + corner brace connection |
||
Table material: |

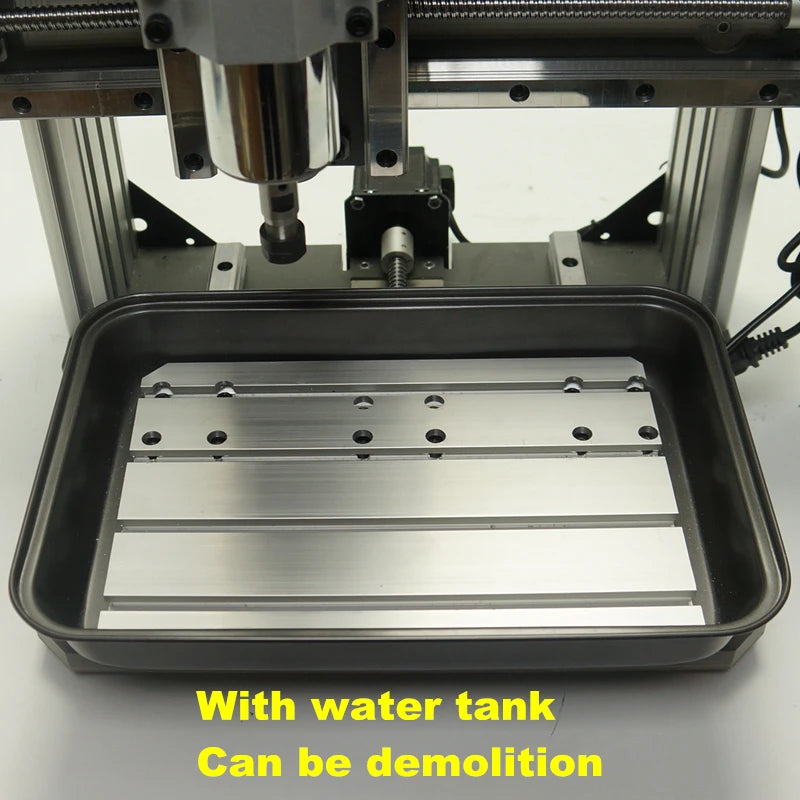

Aluminum alloy T table + Water tank |
||
Rail type |
X Y Z 1204 ball screw, Square line rail track, three-axis is 20 mm square wire track, |
||
Spindle motor |
500W DC spindle , 0-12000r/min |
||
Collet type |
ER11,1/8"(3.175mm) Collet |
||
Stepper motor and drive |
57HS56 |
||
Repeat positioning Accuracy |
0.02mm |
||
Communication interface |
USB Port |
||
System requirements |
Win-XP / Win 7 Win 8 Win10 |
||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
||
Command code |
G code/.nc/.ncc/.tab/.txt |
||
Machine weight |
27kg |
||
|

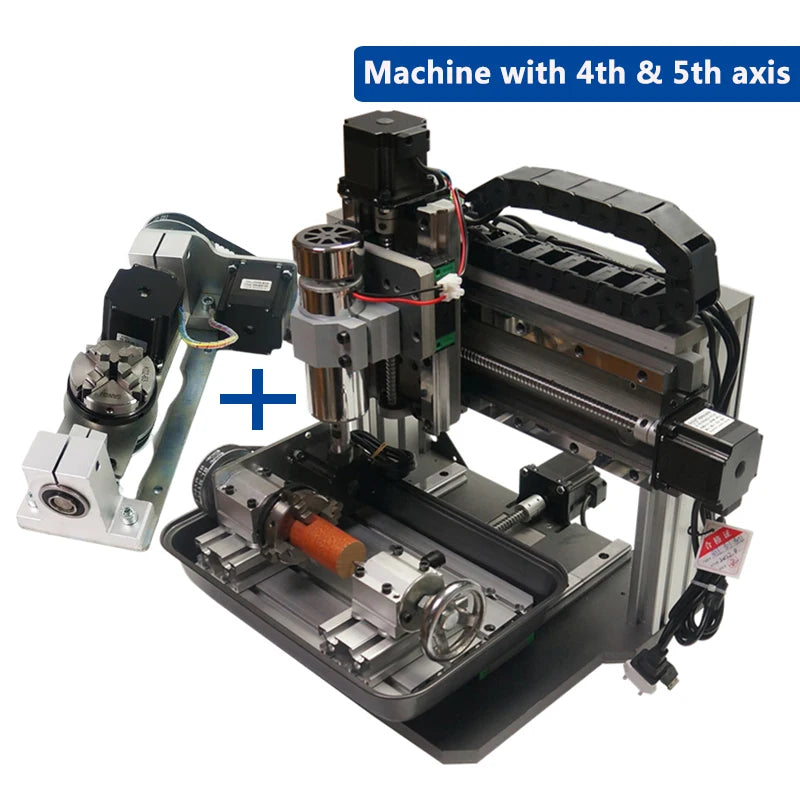

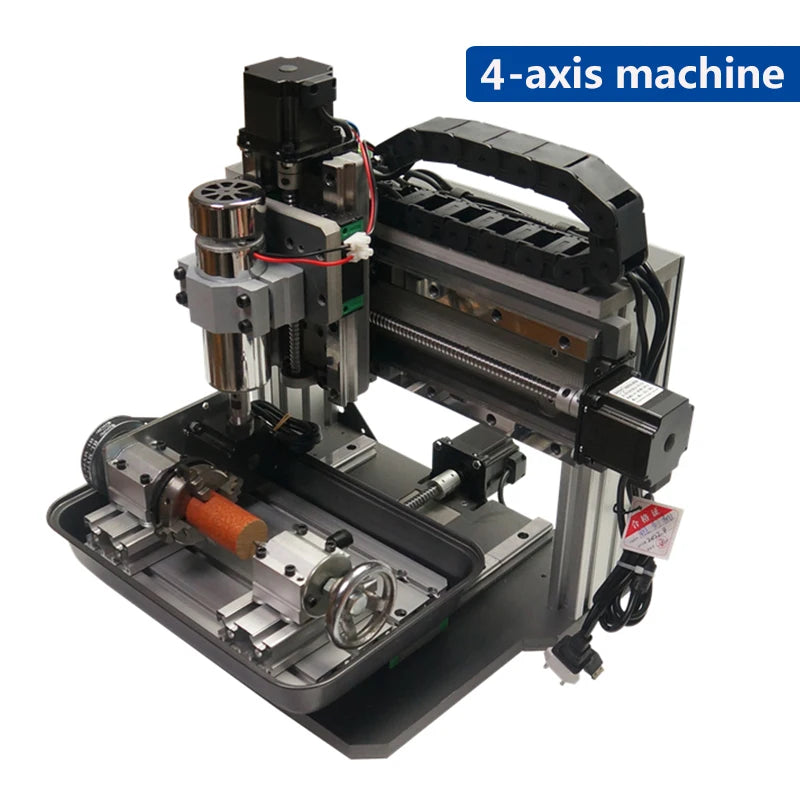

4th Axis Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
||
|

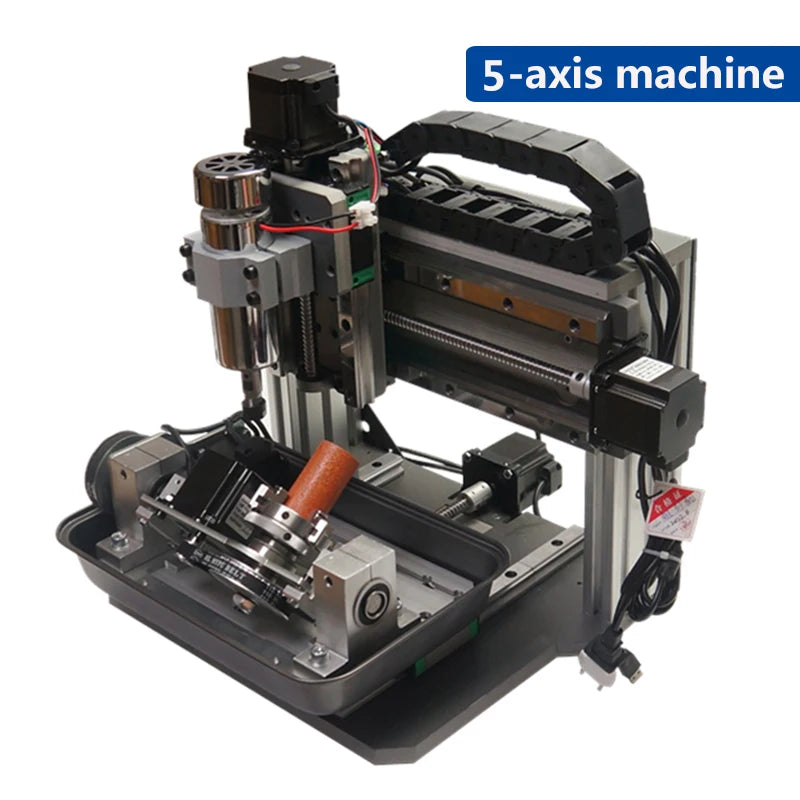

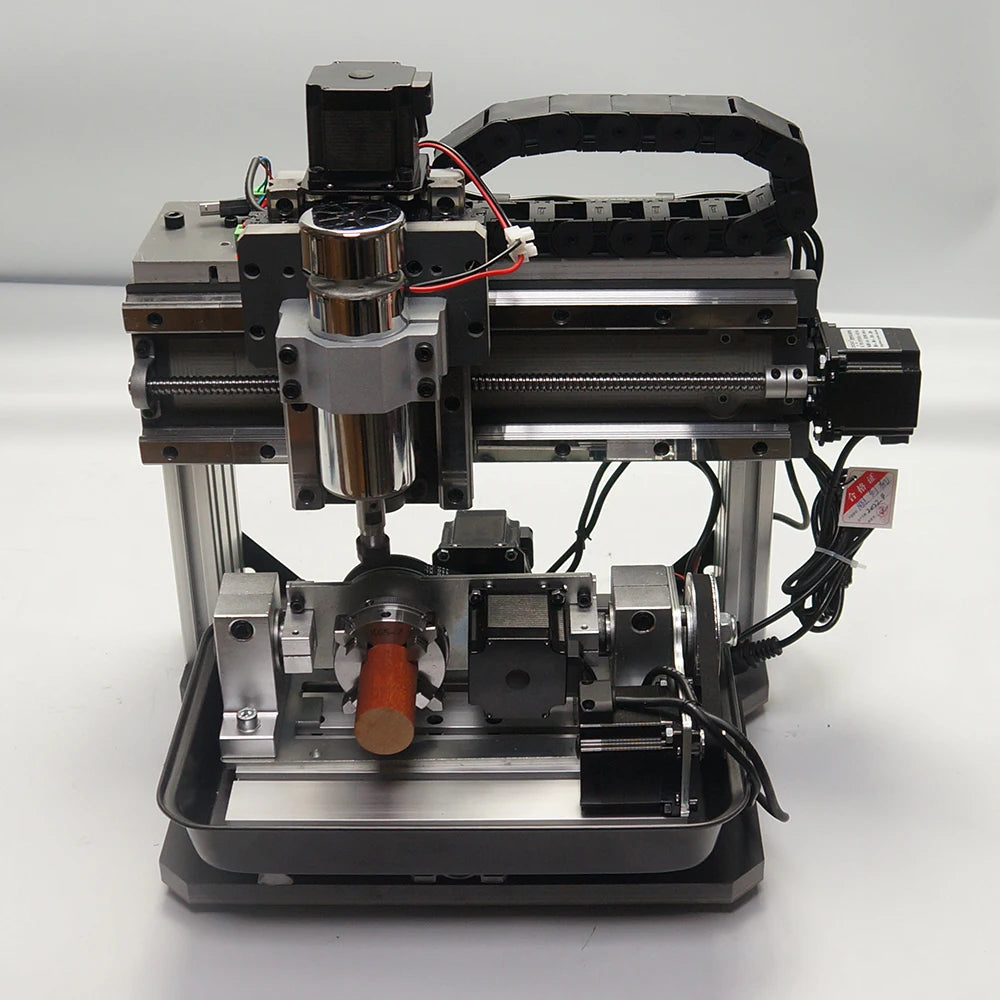

5th Axis Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
||
