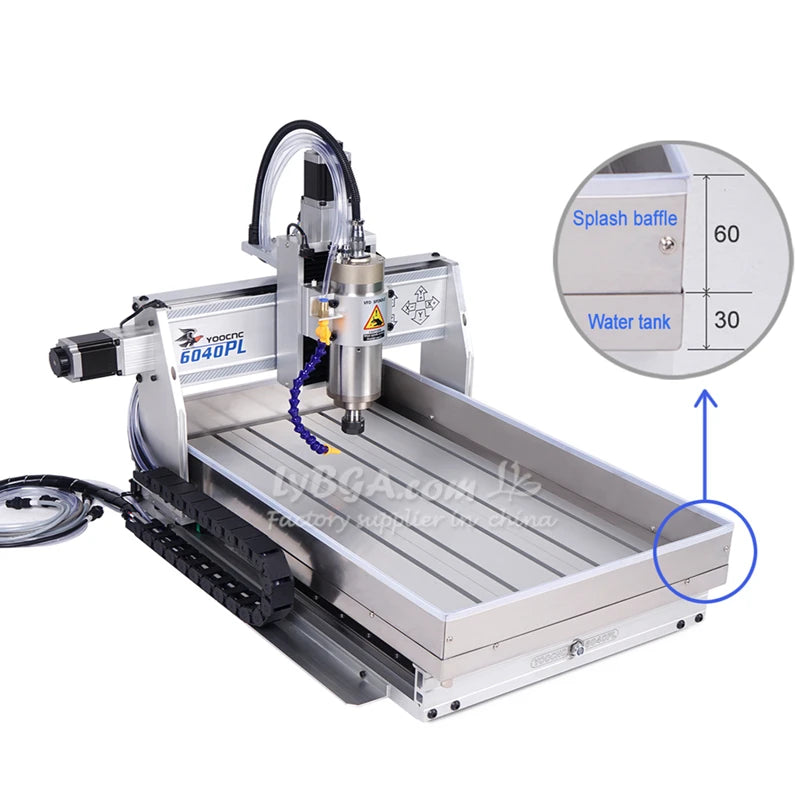

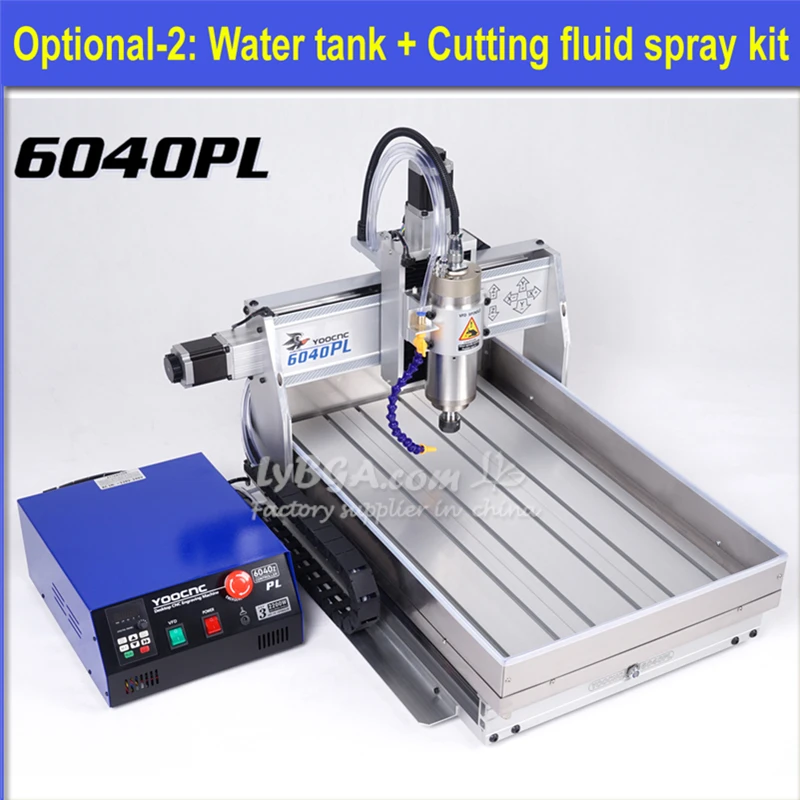

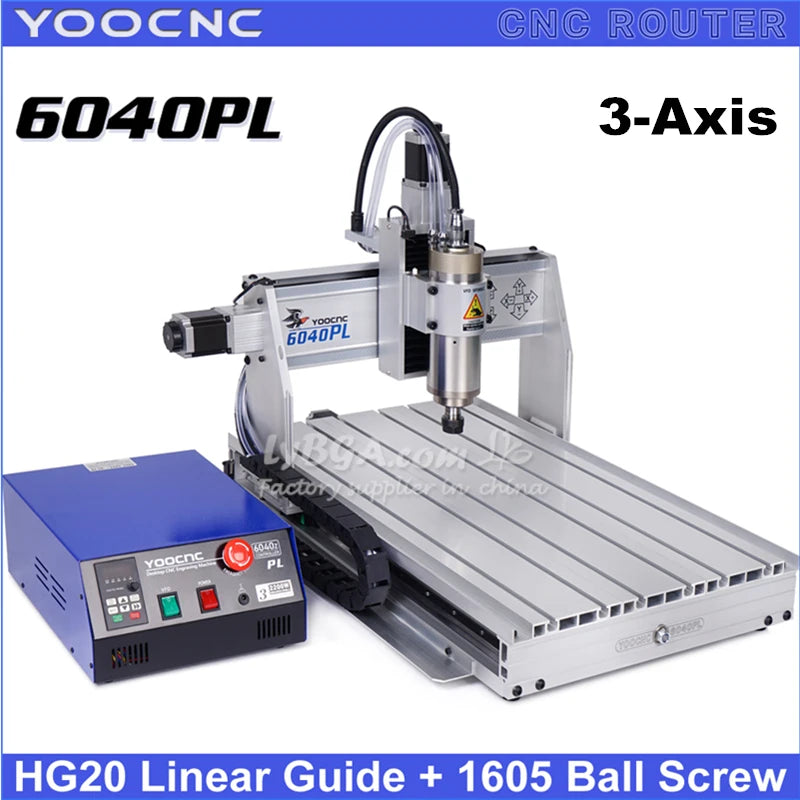

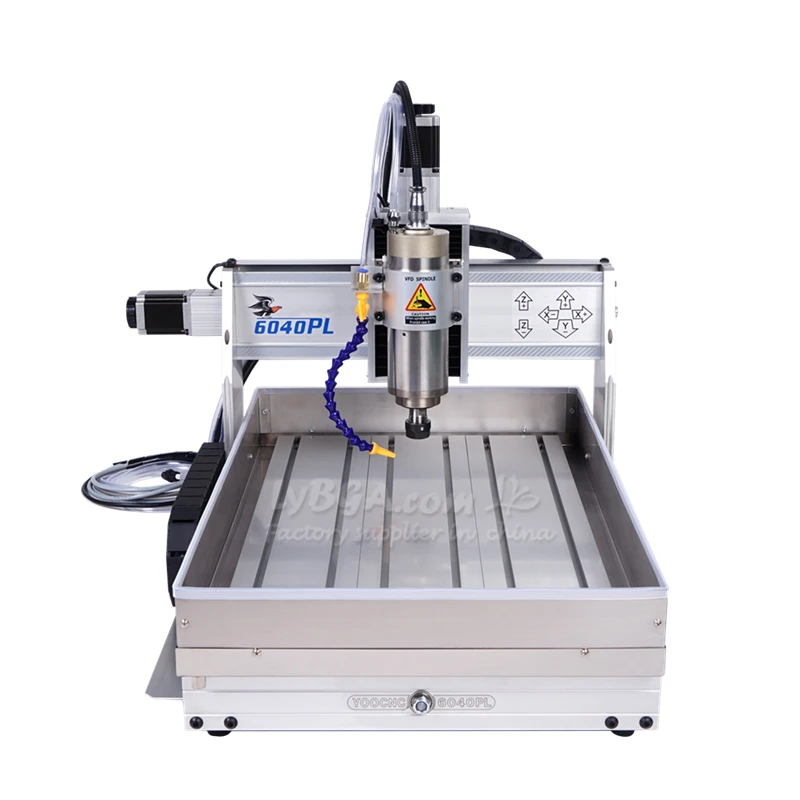

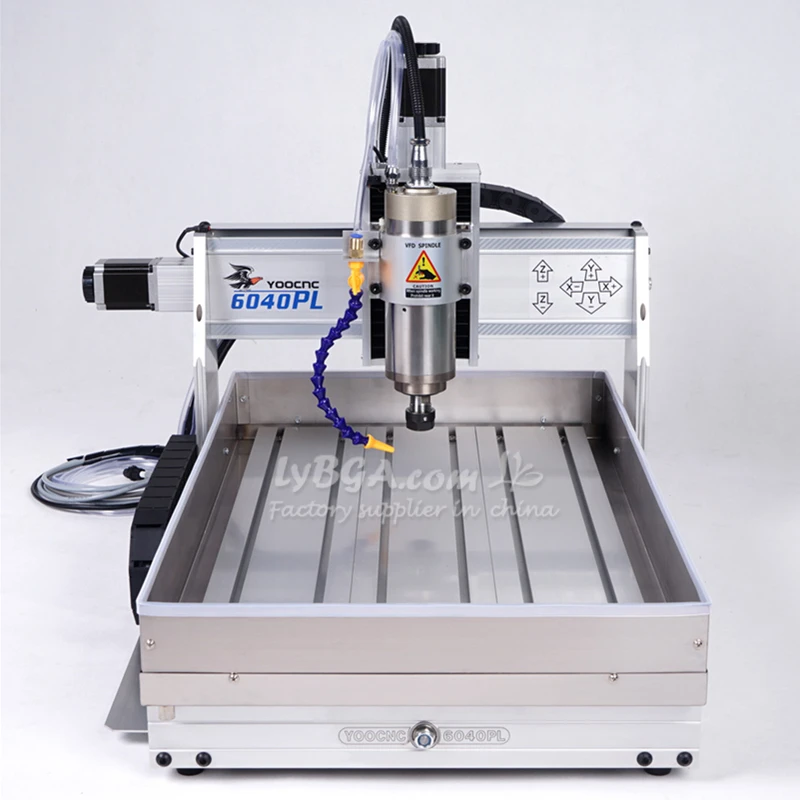

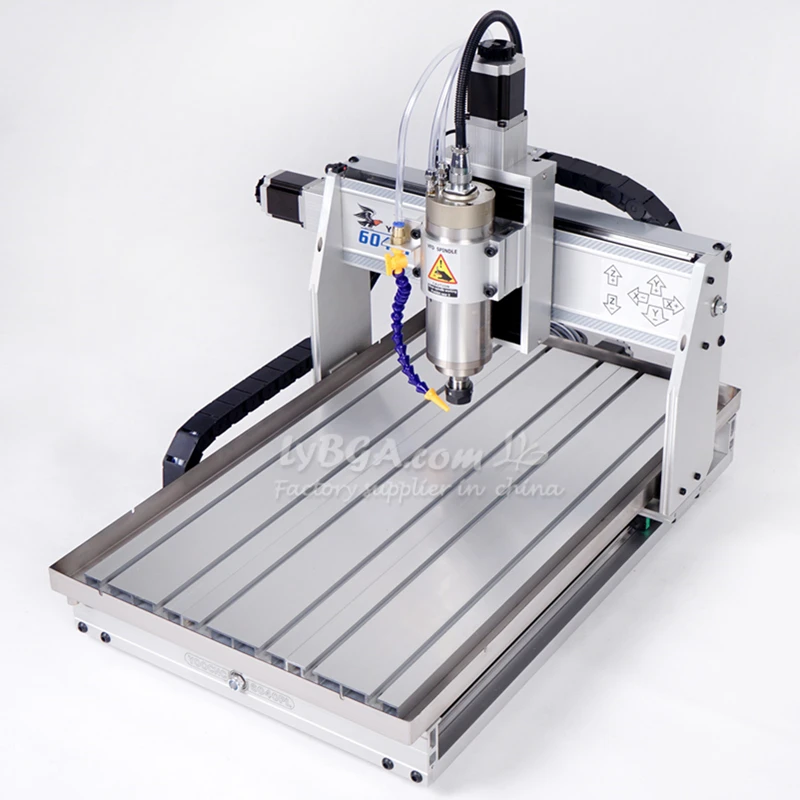

Linear Guide HG20 Metal Engraving Machine 6040 2200W Wood CNC Router 1500W PCB Cutting Machine With Sink
Linear Guide HG20 Metal Engraving Machine 6040 2200W Wood CNC Router 1500W PCB Cutting Machine With Sink
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: YOOCNC
CNC or Not: CNC
Certification: CE
Condition: New
Controller: MACH3
Engraving Area: 450x450mm
High-concerned chemical: None
Is Smart Device: Yes
Model Number: XYZ=575X375X100mm
Origin: Mainland China

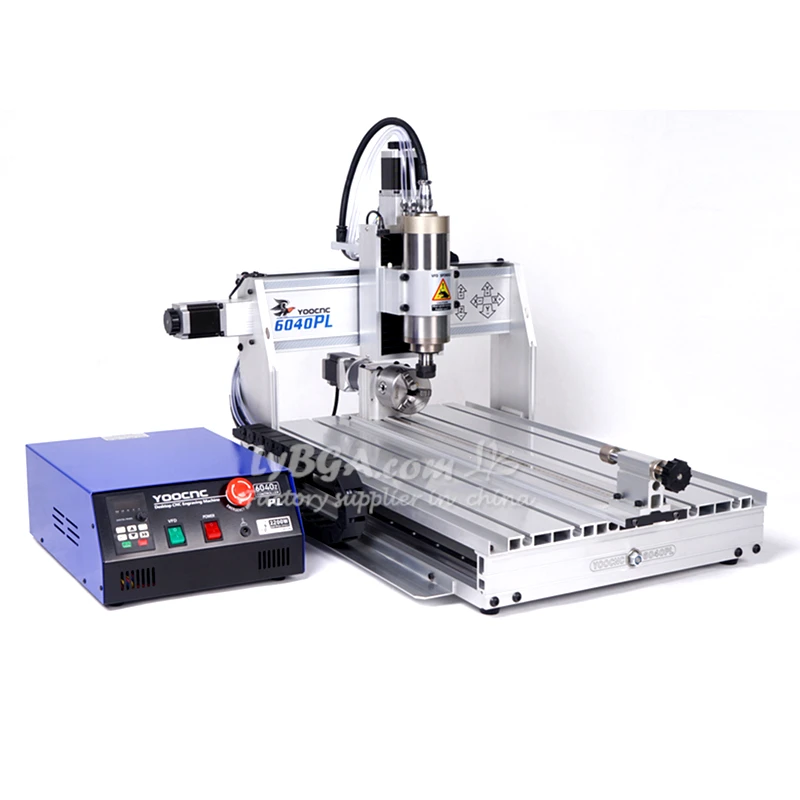

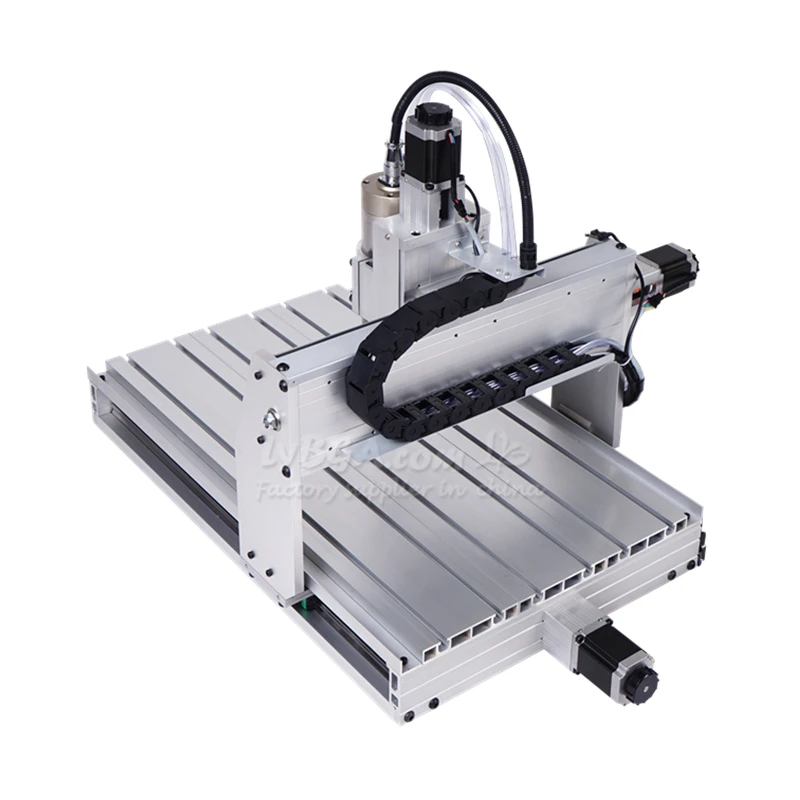

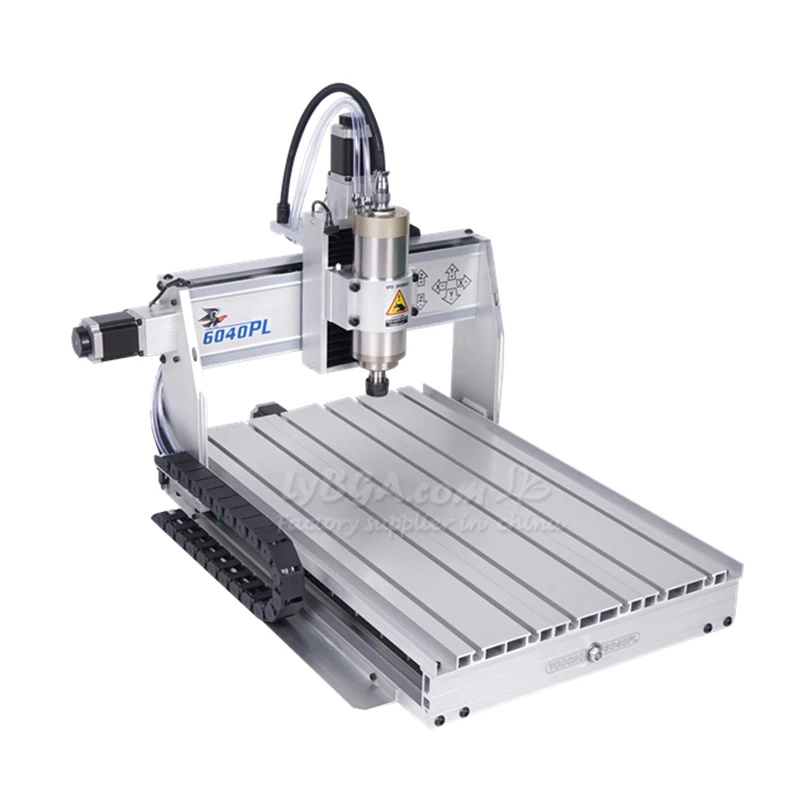

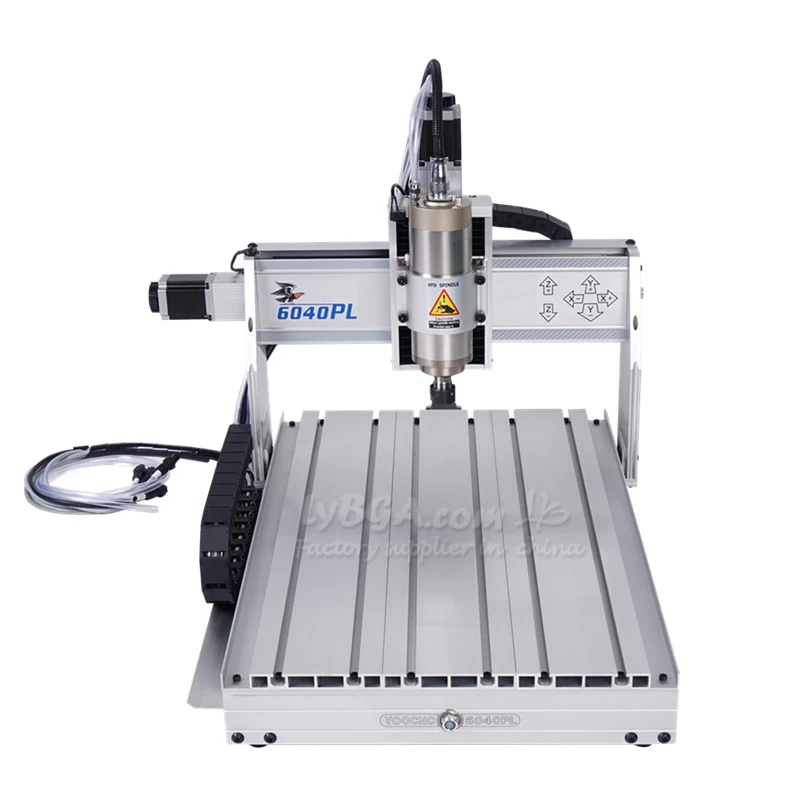

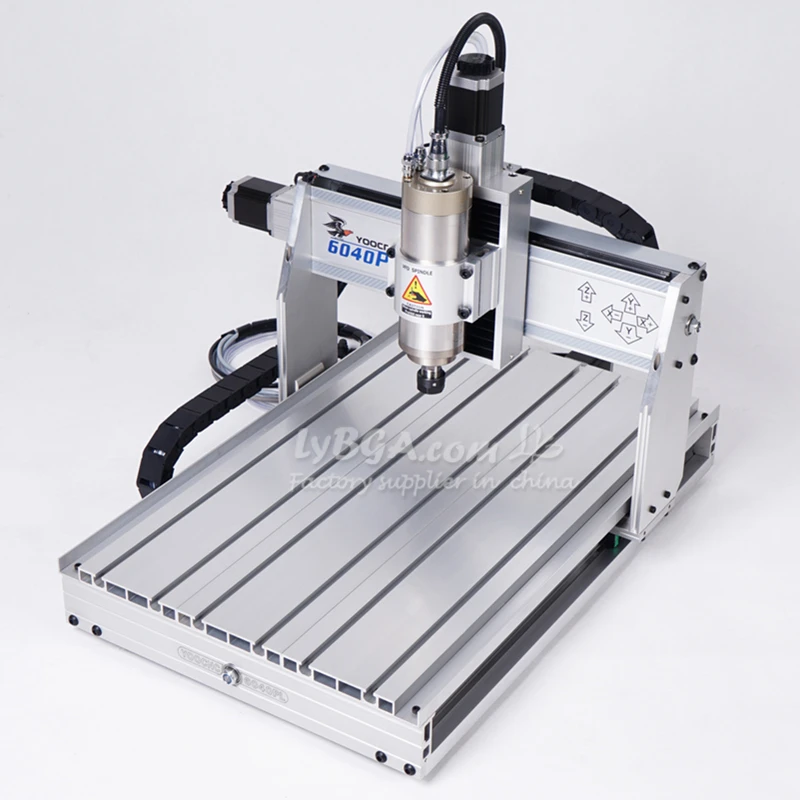

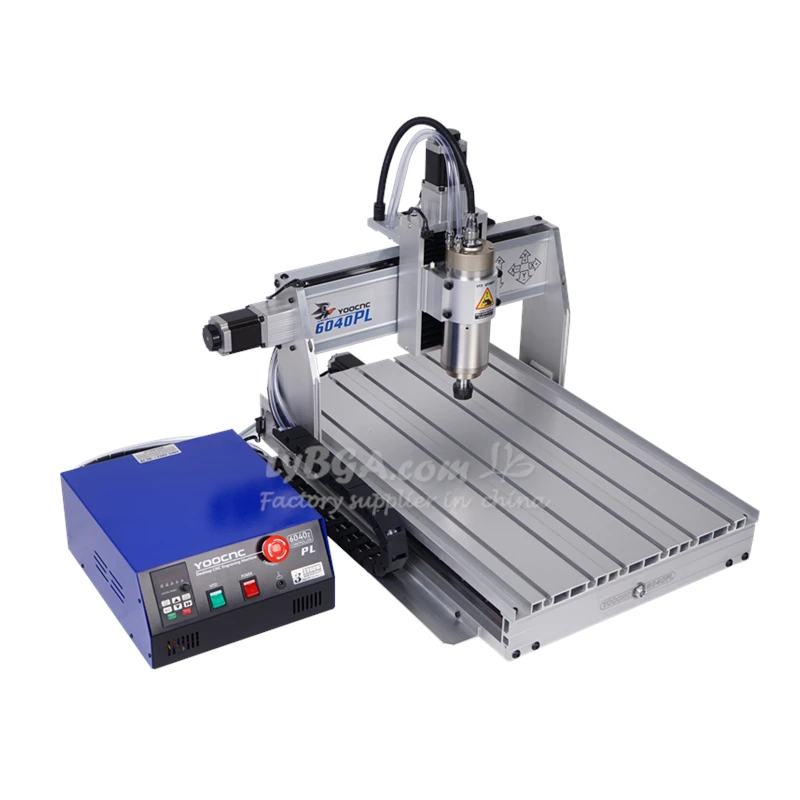

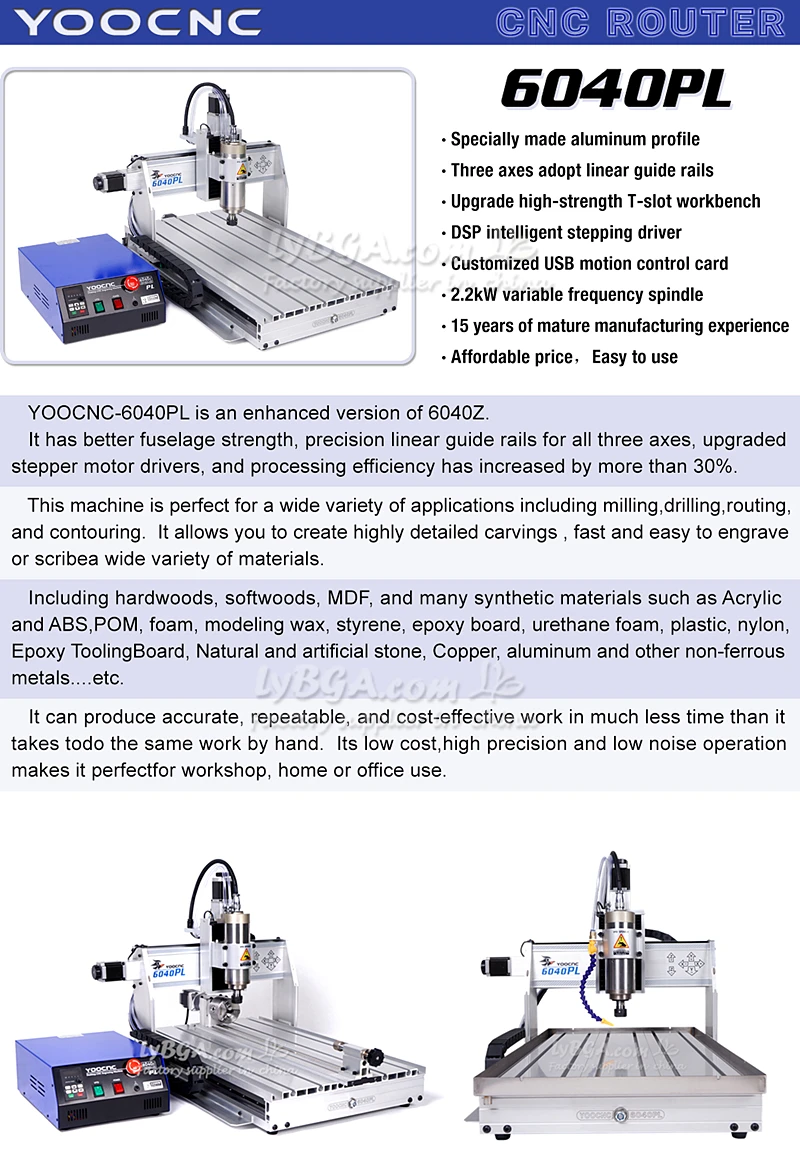

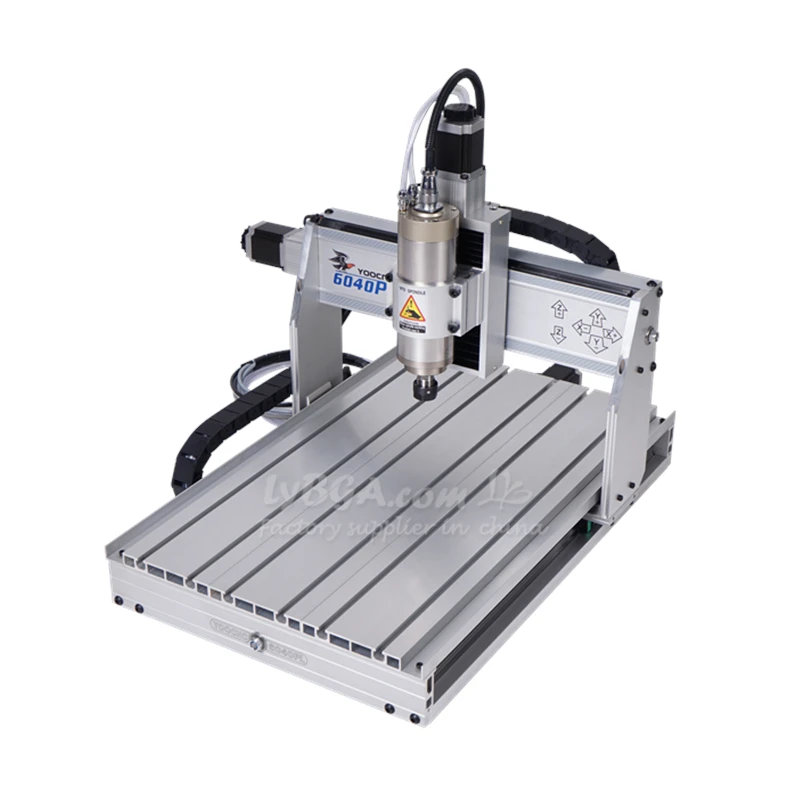

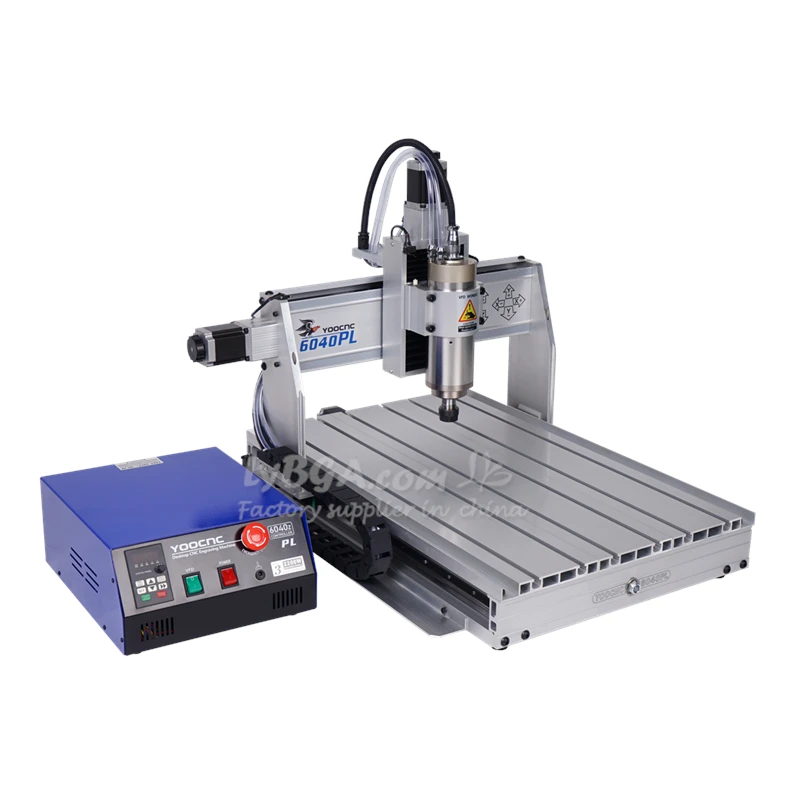

CNC Router Engraver YOOCNC 6040PL Engraving Drilling and Milling Machine

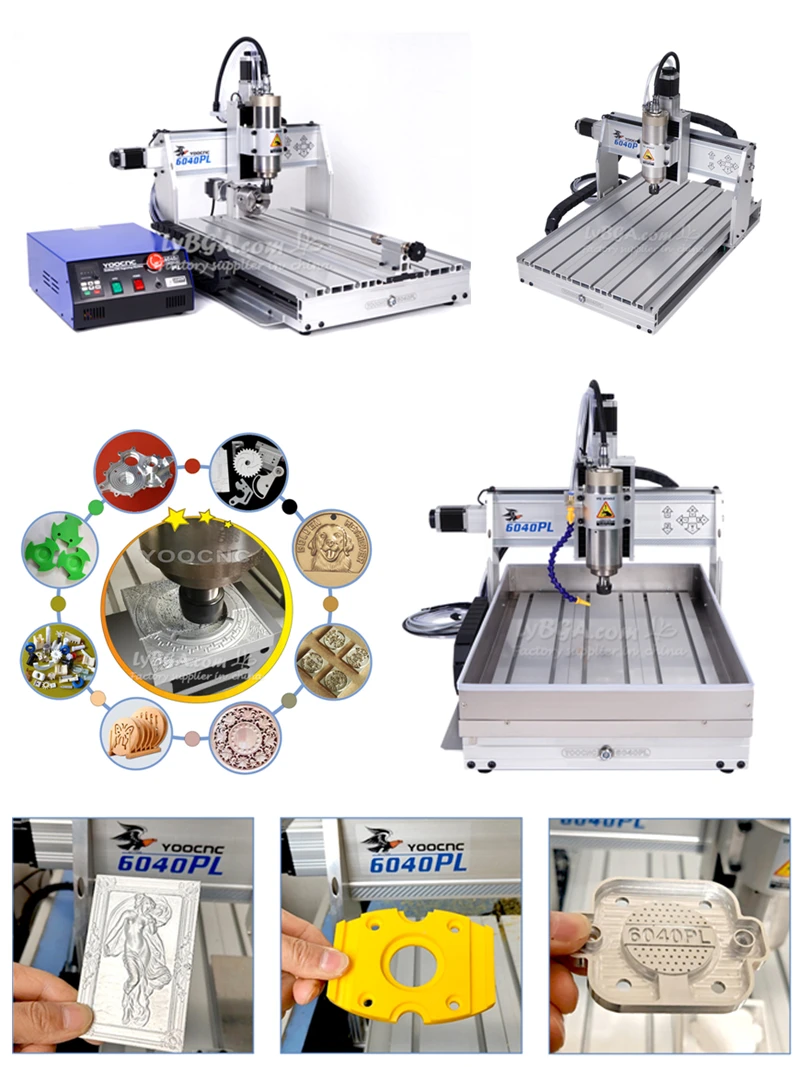

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby
Purposes.the cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB,
Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

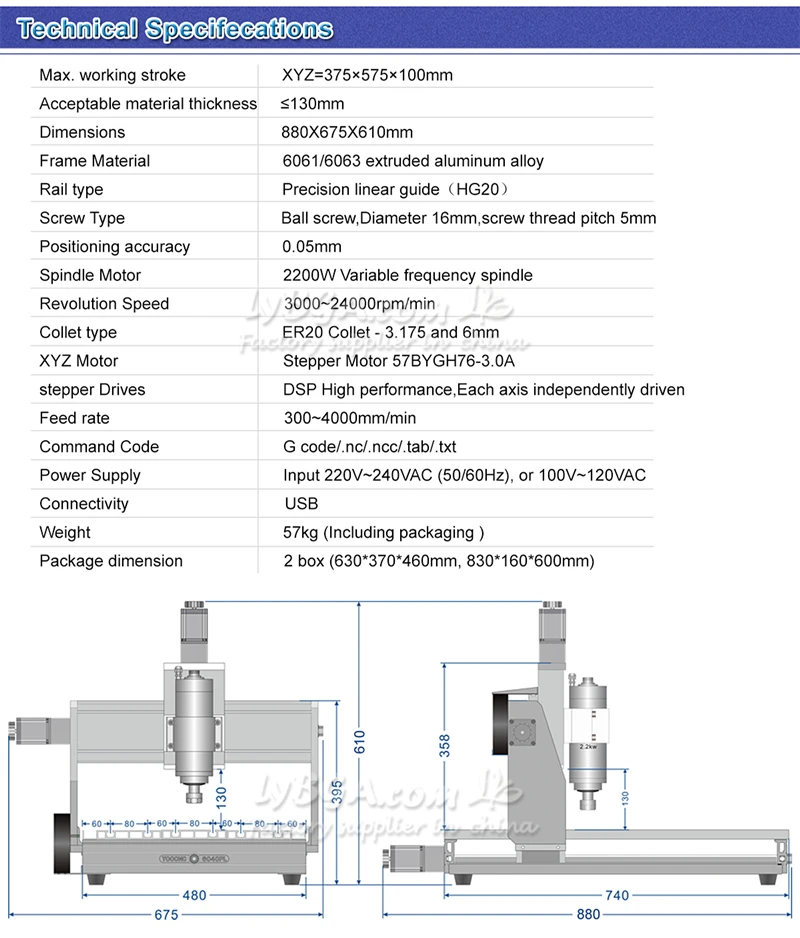

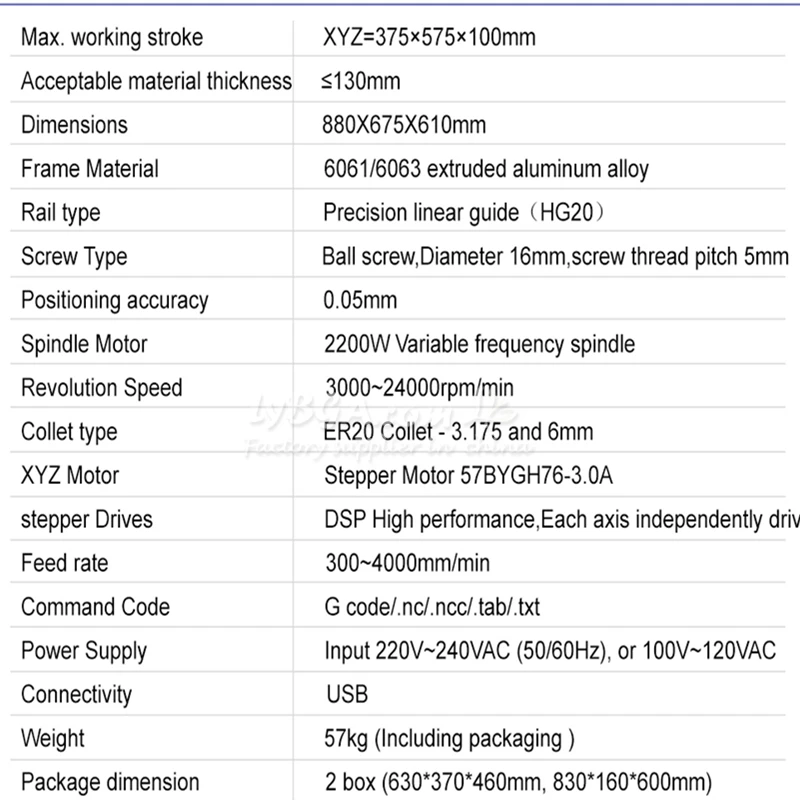

Model and Technical Parameters:
MODEL |
6040PL |
|||
Attribute |
2.2KW-3axis |
2.2KW-4axis |
1.5KW-3axis |
1.5KW-4axis |
Axis |
3axis |
4axis |
3axis |
4axis |
Interface |
USB port |
USB port |
USB port |
USB port |
Limit switch |
Yes |
yes |
Yes |
Yes |
Tool auto-checking |
Yes |
Yes |
Yes |
Yes |
Spindle Motor: |
2.2KW VFD |
2.2KW VFD |
1.5KW VFD |
1.5KW VFD |
Weigh |
52 |
59 |
51 |
58 |
Package dimension |
2 boxes (630*370*460mm, 830*160*600mm) |
|||

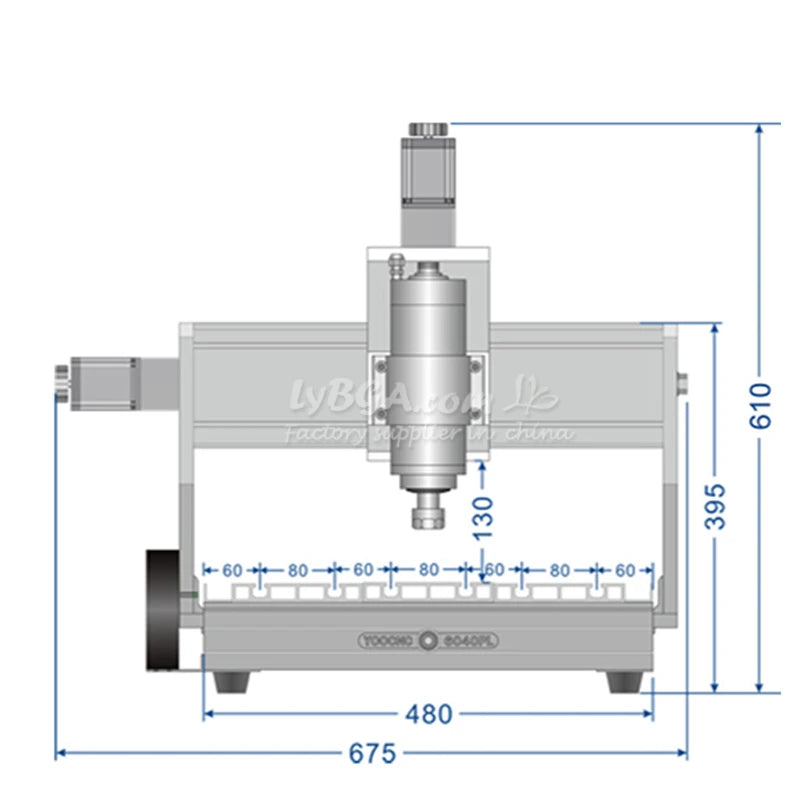

Machine Dimensions： |
880X675X610mm |
|||
Frame material： |
6061 and 6063 extruded aluminum alloy |
|||
Engraving area： |
XYZ=575X375X100mm |
|||
Acceptable material thickness |
≤ 130mm |
|||

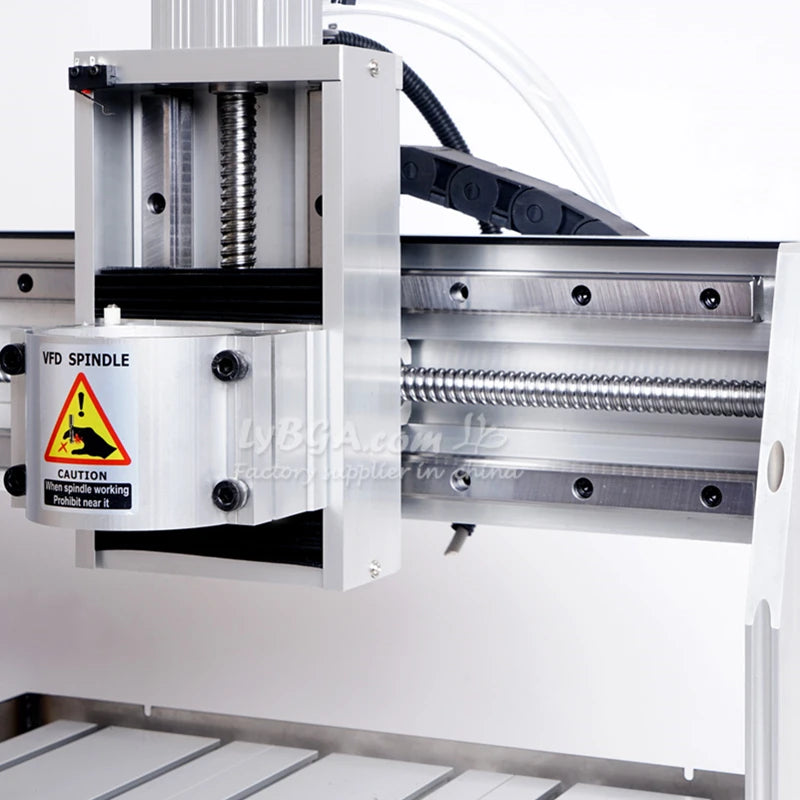

Rail type： |

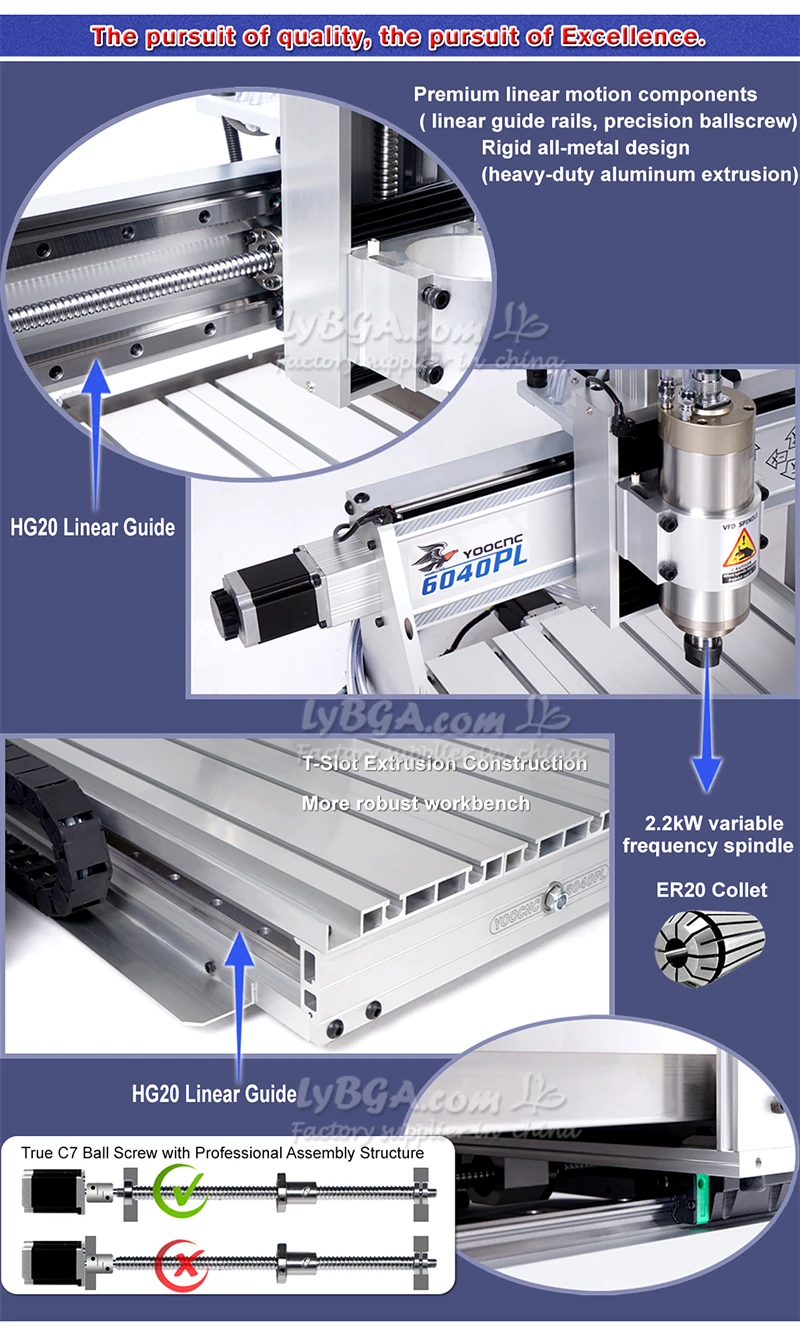

Linear guide (HG20) |
|||
Type of screw： |
Ball screw 1605, Pitch 5mm |
|||

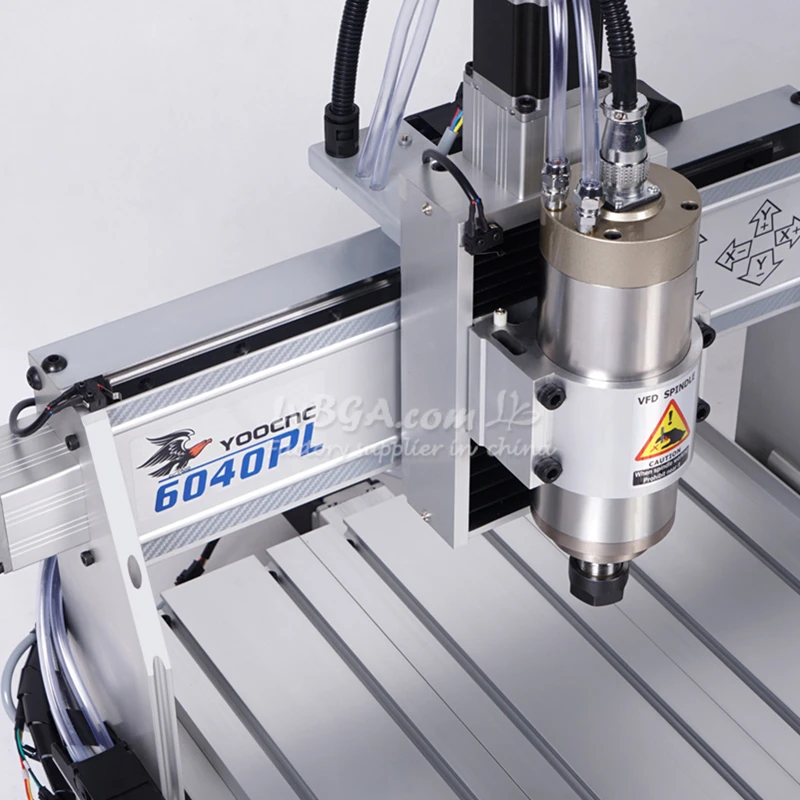

Spindle motor： |
2200W / 1500W Variable frequency spindle , 3000-24000r/min |
|||
Collet type： |
ER20 / ER11,1/8"(3.175mm or 6mm) Collet |
|||
Stepper motor and drive： |
stepping motor NEMA 23 (57BYGH76-3.0A), High-performance DSP digital driver |
|||
Maximum operating speed： |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
Repeat positioning Accuracy： |
0.05mm |
|||

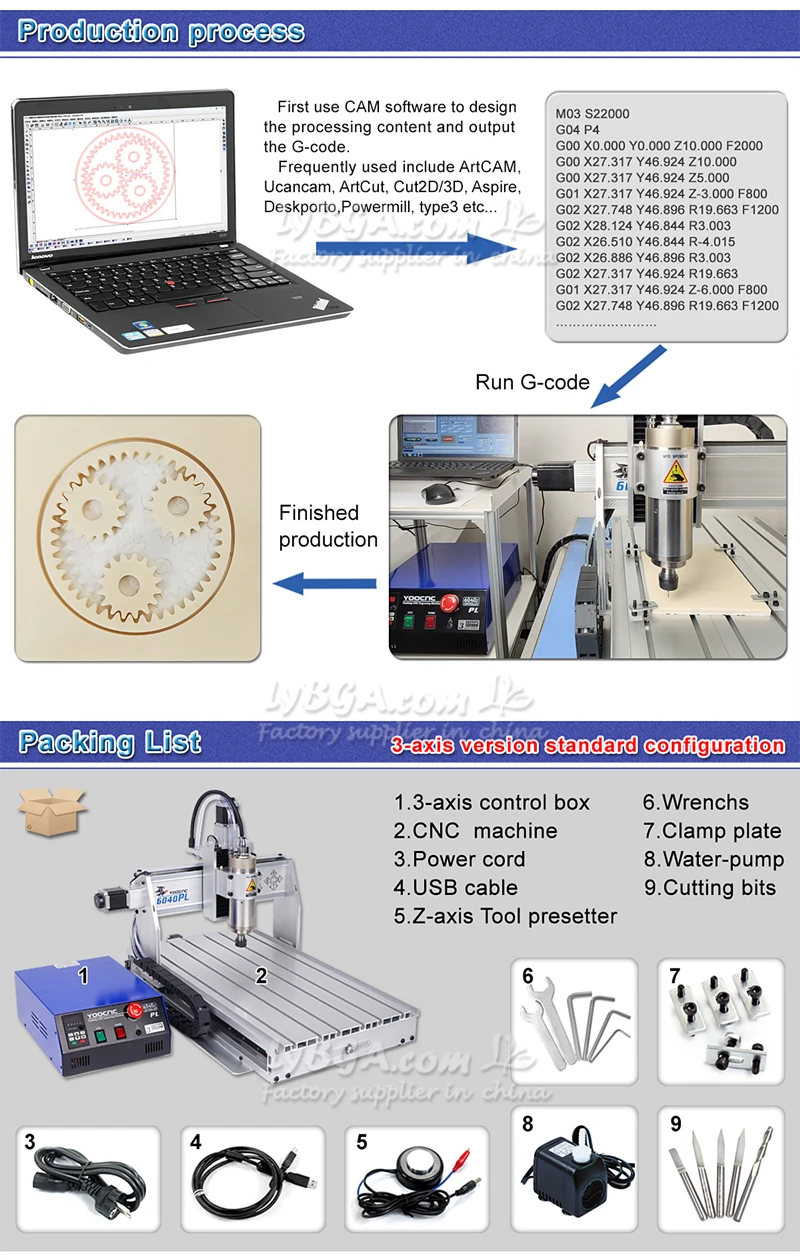

Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||
Power Supply |
Input 200V~ 240VAC (50/60Hz) or 100~ 120VAC |
|||
|

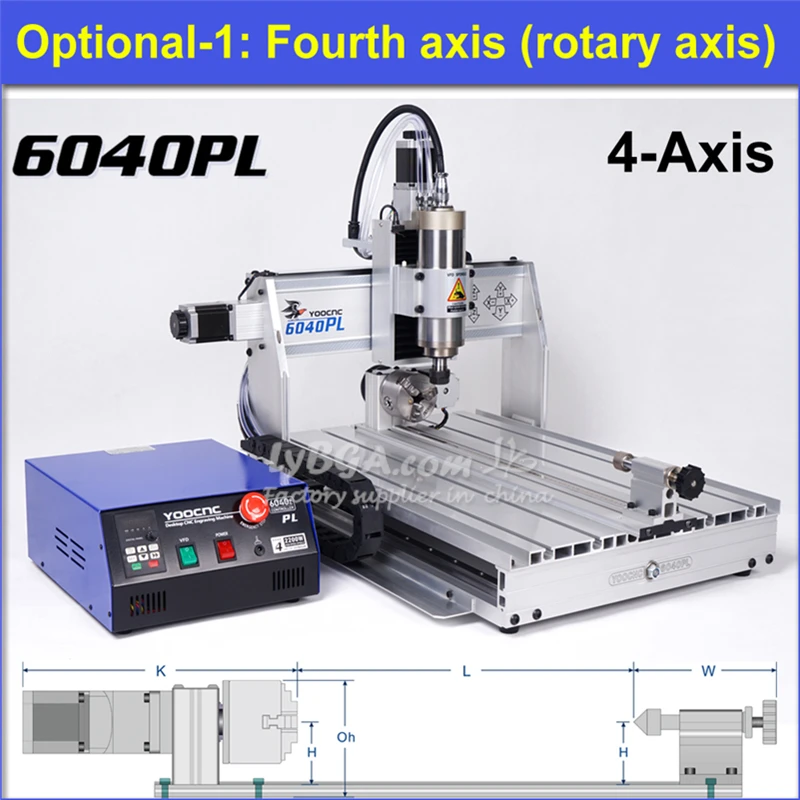

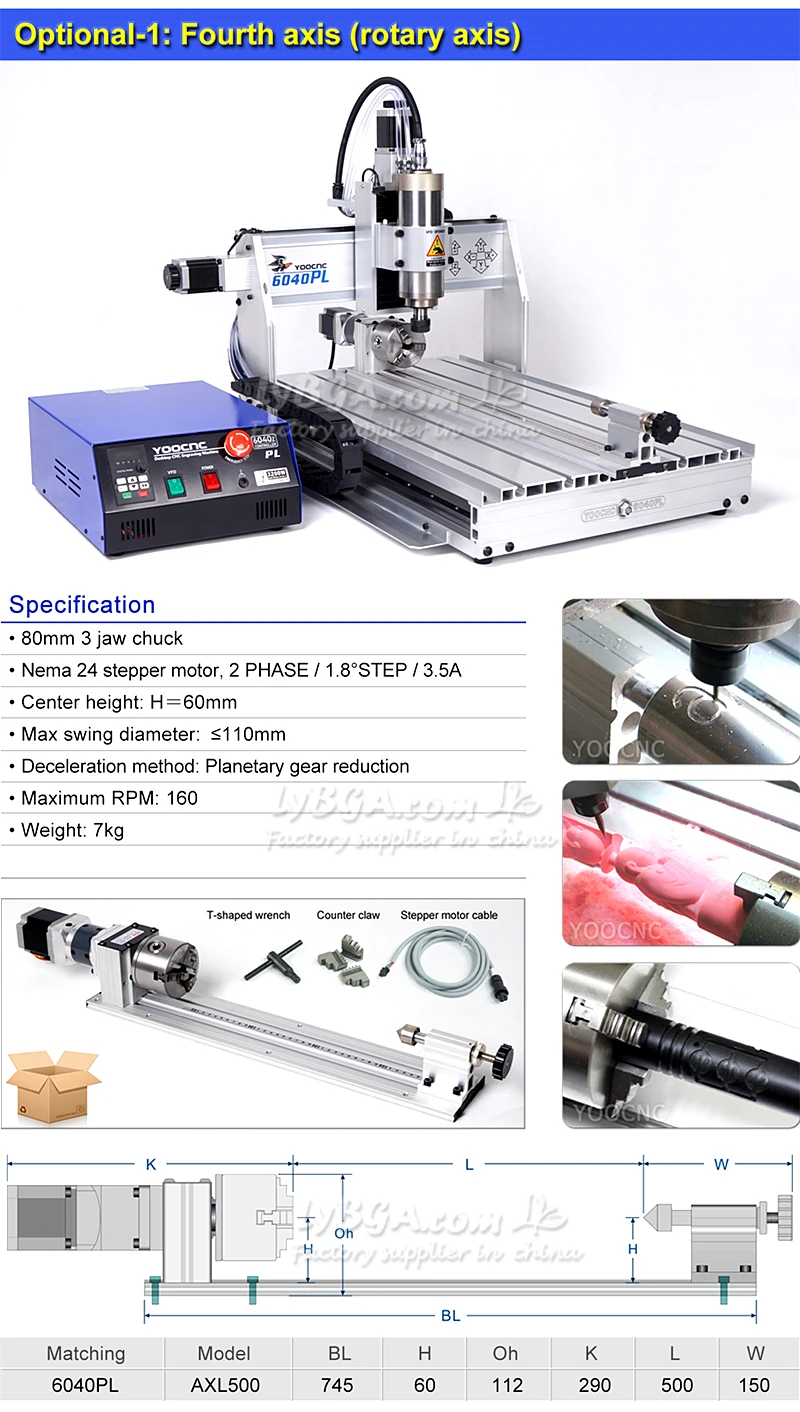

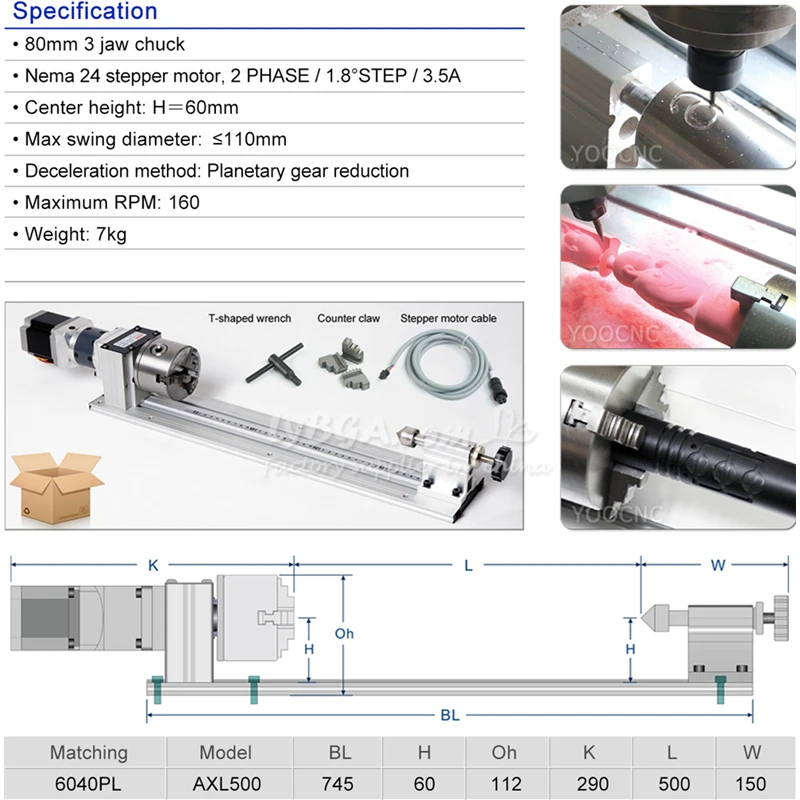

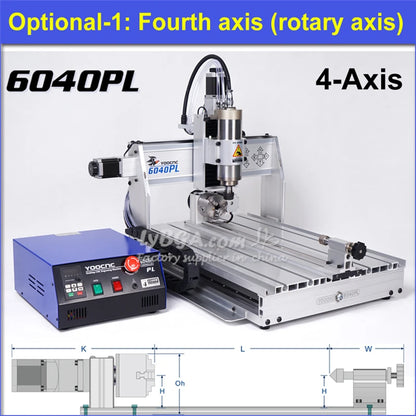

Rotation Axis (4th Axis) Description: |
80mm 3 jaw chuck Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration method: Planetary gear reduction Nema23 stepper motor, 2 PHASE/ 1.8°STEP /3.5A Maximum RPM: 160 Weight: AXL500=7.0KG |
|||
