SPECIFICATIONS

Brand Name: FoxAlien

CNC or Not: CNC

Certification: None

Condition: New

Is Smart Device: No

Model Number: FoxAlien Masuter Pro

Motor: Nema 17

Origin: Mainland China

Support: Laser support

Working area: 400

The CHEAPEST CNC for guitar building! (FoxAlien Masuter Pro full review). You can watch this review video on this Youtube: https://www.youtube.com/watch?v=XrD1mI90m5c Tips: There are 13k+ FoxAlien cnc router owners and fanciers in our Facebook group. Click to Join Facebook groupFoxAlien CNC Router & Laser Machine Group.

Shipment

• United States, United Kingdom, Australia, Russia, Canada , Brazil,Belarus, Kazakhstan, Canada, Belgium, Germany, Spain, France, Poland, Italy, Netherlands, Austria, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, Croatia, Hungary, Ireland, Lithuania, Portugal, Slovenia, Slovakia, Sweden.

• Masuter Pro machines can be shipped to above countries from our overseas warehouses.

• We promise 7-10 days delivery in the above countries, you don't need to pay customs duties.

• Please note that the offline controller and 1/4'' router bits will be shipped separately from China.

2. Do I have to pay for tax?

If you choose the item to be shipped from our overseas warehouse, you don't have to pay any duties, we've already paid.

If you do not choose overseas warehouse delivery. Please make sure your address is correct and complete before payment! Customs may contact you to pay customs duties for customs clearance. Please understand that customs duties are not under our control, because the machine is heavy and large. if you are in doubt about this, please consult your local customs.

Especially, If we ship the parcel to your country by sea, we will pay the customs duties for you, So if you need to ship by sea without paying customs duties, please leave a message to us on AliExpress.

Product Features

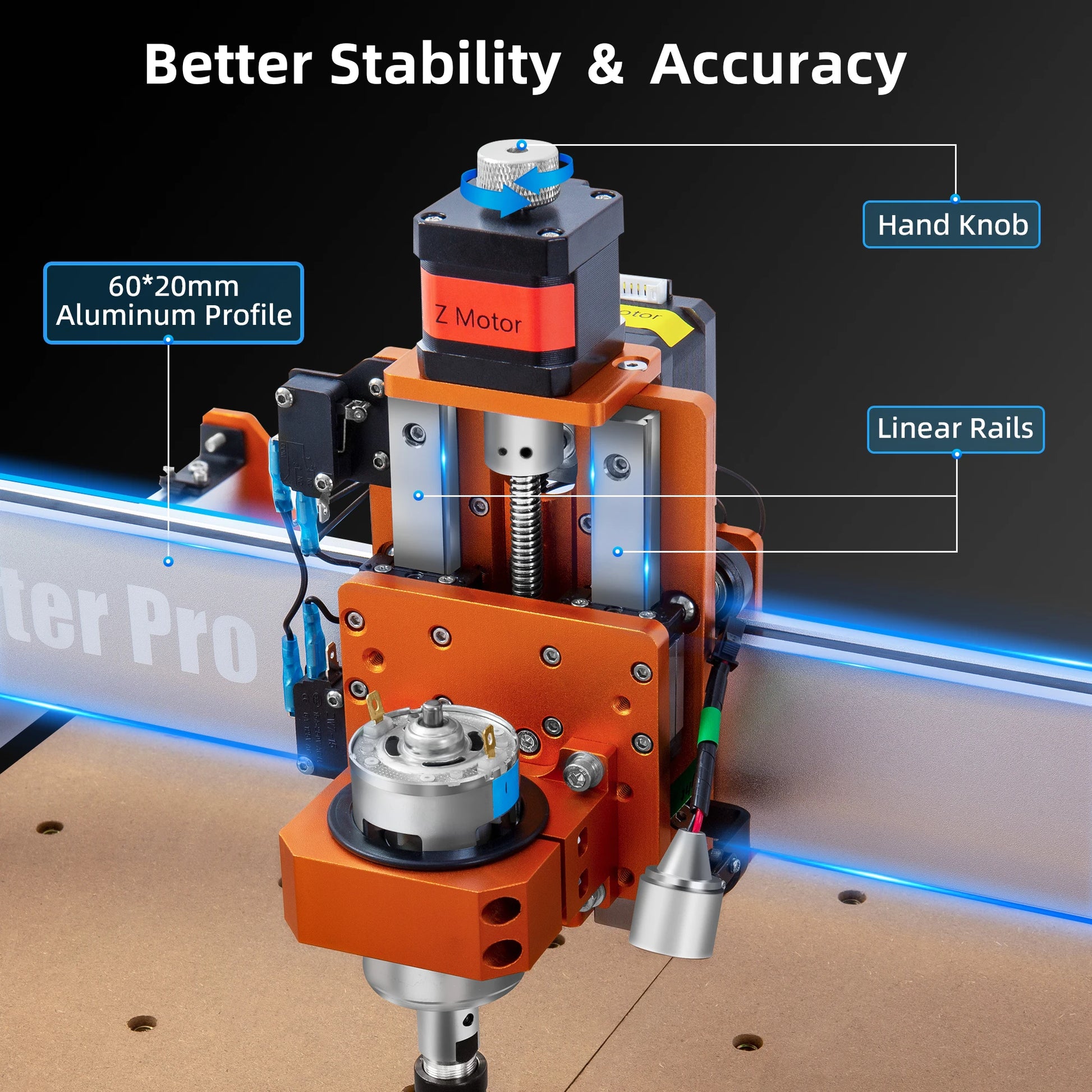

【Structure Upgrade】 Masuter Pro is an All-Aluminum CNC router, which makes the machine sturdier than the last version. The Z-axis uses linear rails instead of the optical axis, this greatly improves the stability and accuracy.

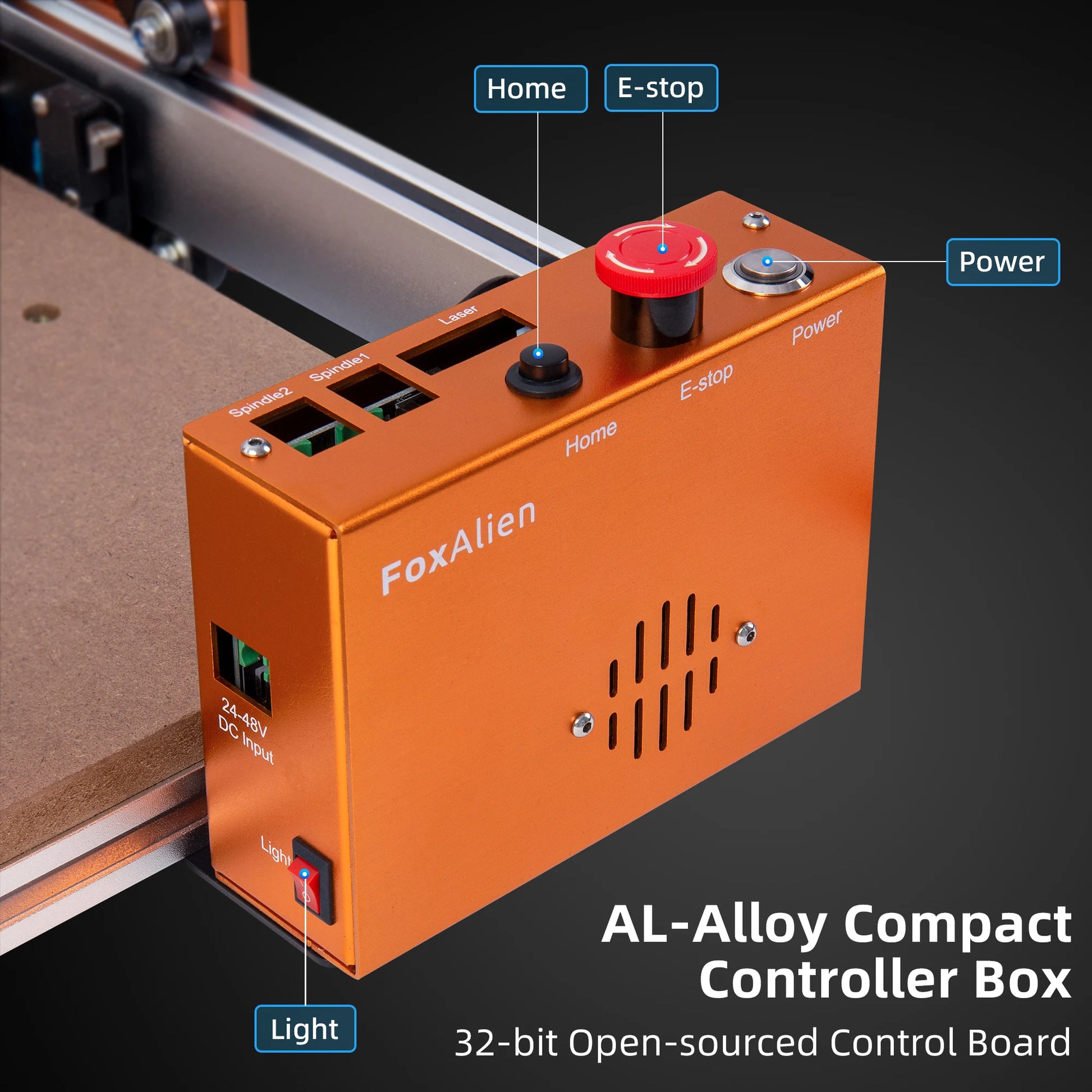

【Upgraded Controller Box】 The control board is upgraded to a compact controller box. The emergency stop button and home button are more easily and more convenient to access. The control box is also dust-proof for easy maintenance.

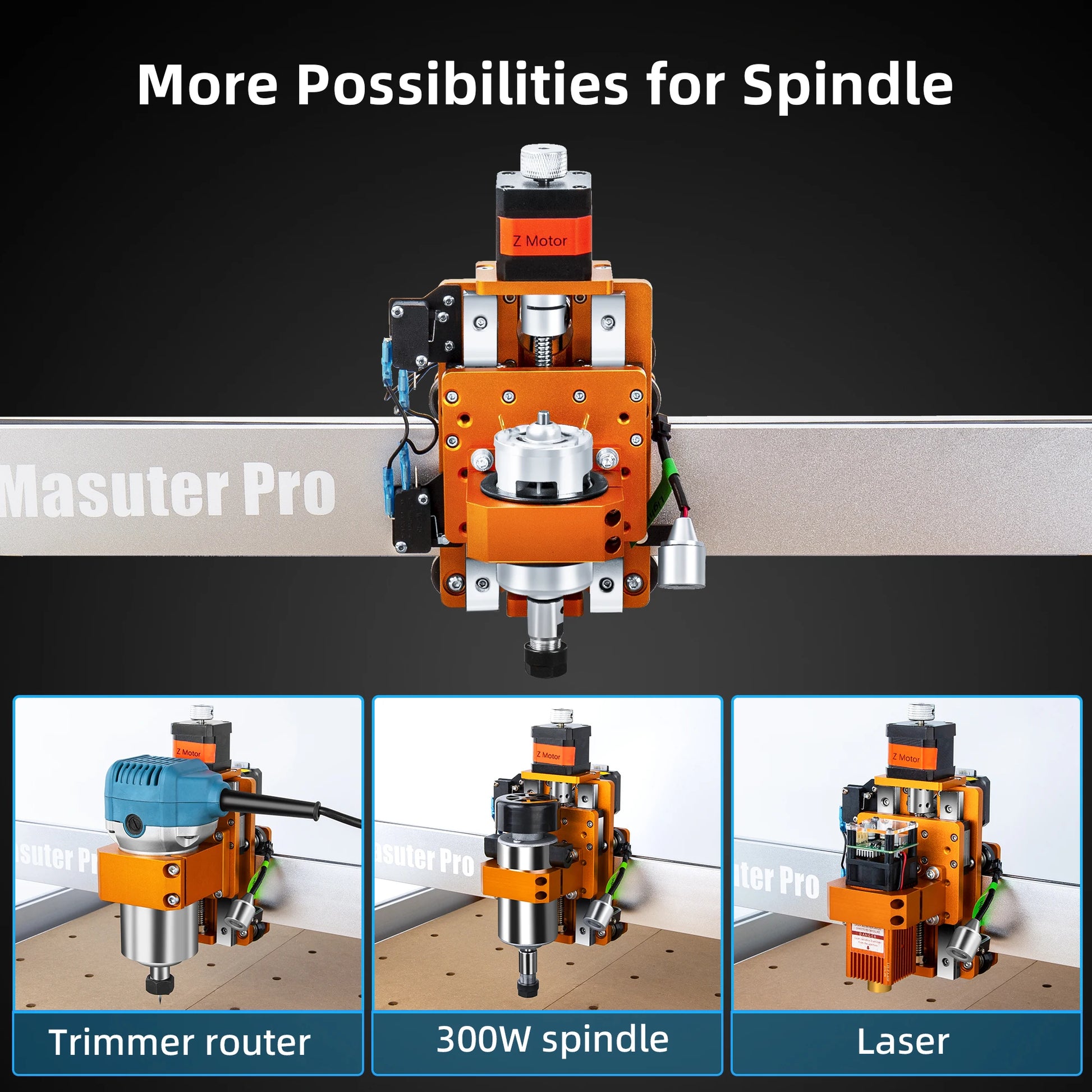

【Compatibility Upgrade】 Masuter Pro includes 2 spindle clamps: 52mm & 65mm. The 52mm clamp can accommodate the 60W spindle, 300W spindle and the FoxAlien laser modules. The 65mm clamp is for customized upgrade, such as 65mm Makita router, 1.5KW spindle, etc. Masuter Pro also supports the 69mm spindle clamp, please buy separately.

【Assembly Upgrade】 Main parts are pre-assembled, and the part of the wires are pre-installed to the controller box. It takes only 10-15 minutes to fully assemble.

【Additional Working Light】 A small working light is added to the Z-axis. It helps you to monitor the carving details and process more clearly. Each stepper motor has a knob for easy adjusting by hand.

2. Is there a warranty?

All FoxAlien CNC machines are protected by official 1-year warranty since the date of delivery.

All FoxAlien CNC accessories are protected by 3 months warranty since the date of delivery.

3. Can laser be installed for etching?

Yes, it supports spindle engraving and laser etcing, But only one model can be used at a time.

4. Can this CNC machine cut/engrave metals like Zinc Brass Aluminum?

Yes, it can be done with the correct parameters and router bits. Recommended for use with 300W Spindle Upgrade Kit.

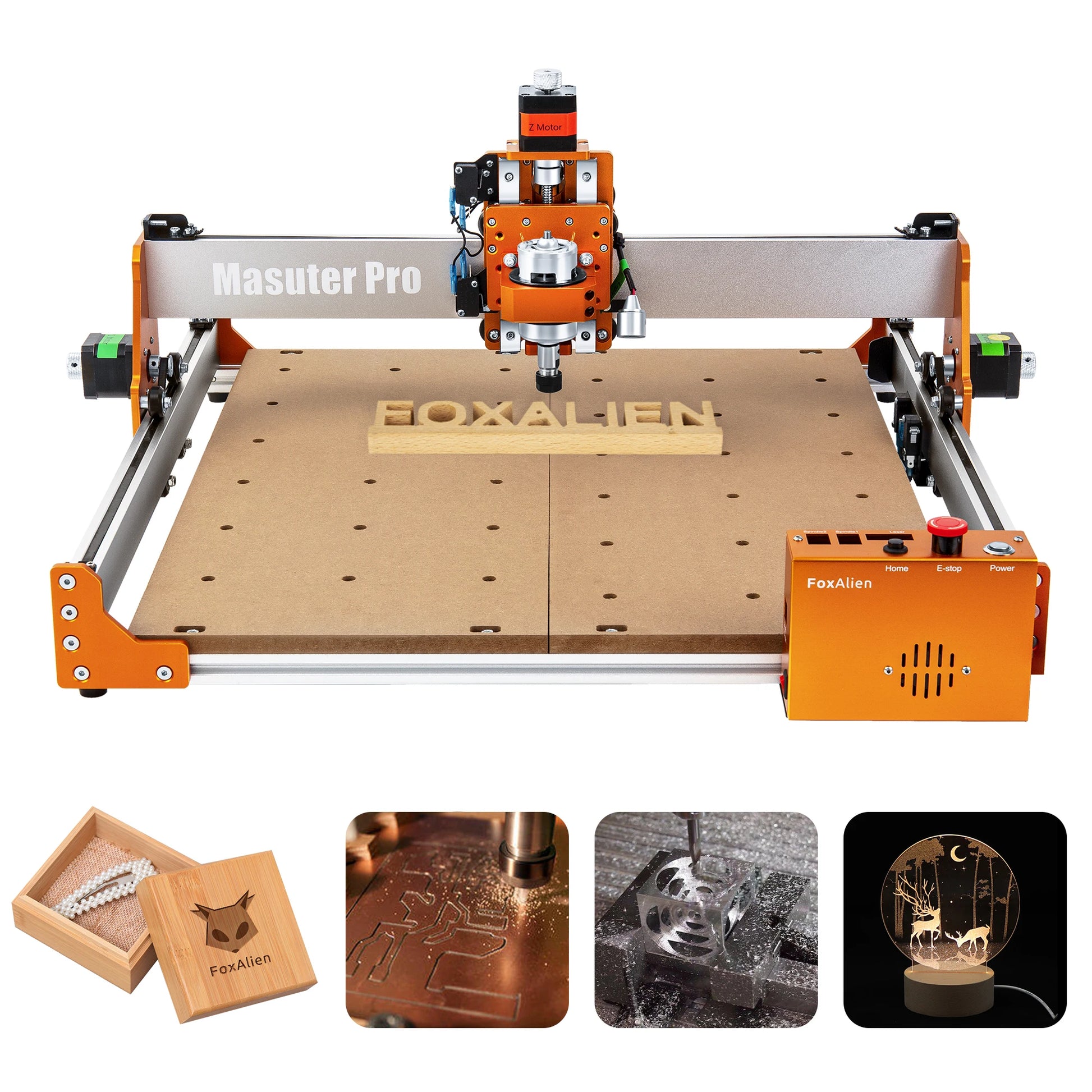

And it also can cut/engrave all kinds of material such as wood, leather, MDF, acrylic, foam, resin, nylon, carbon fiber, PCB

TIP: Click to see FoxAlien Masuter Pro review from Youtube. It can help you to know more about masuter pro.

5. What software does the machine work with? and will it come with the software?

This CNC machine is based on GRBL and is compatible with GRBL control software. We provide free open source software - Candle, which can also be downloaded online / if you need other software, you may need to buy it yourself.

6. Can I run this directly connected to my PC?

Yes, this CNC machine can be connected to PC through USB cable.

7. Can I use this machine for 3D engraving, is it compatible with Mach3 software?

No. This machine moves on all 3 axes (x, y, and z) simultaneously, what we call true 3-axis CNC in the industry. It does not support 3D engraving and is not compatible with Mach3 software. But it can do 3D relief.

8. Where to download the driver, if the thumb drive comes with the machine are corrupted?

You can download all the U disk contents from this link: https://www.foxalien.com/blogs/news/foxalien-cnc-and-laser-machine-user-manual

Masuter Pro Machine Specifications

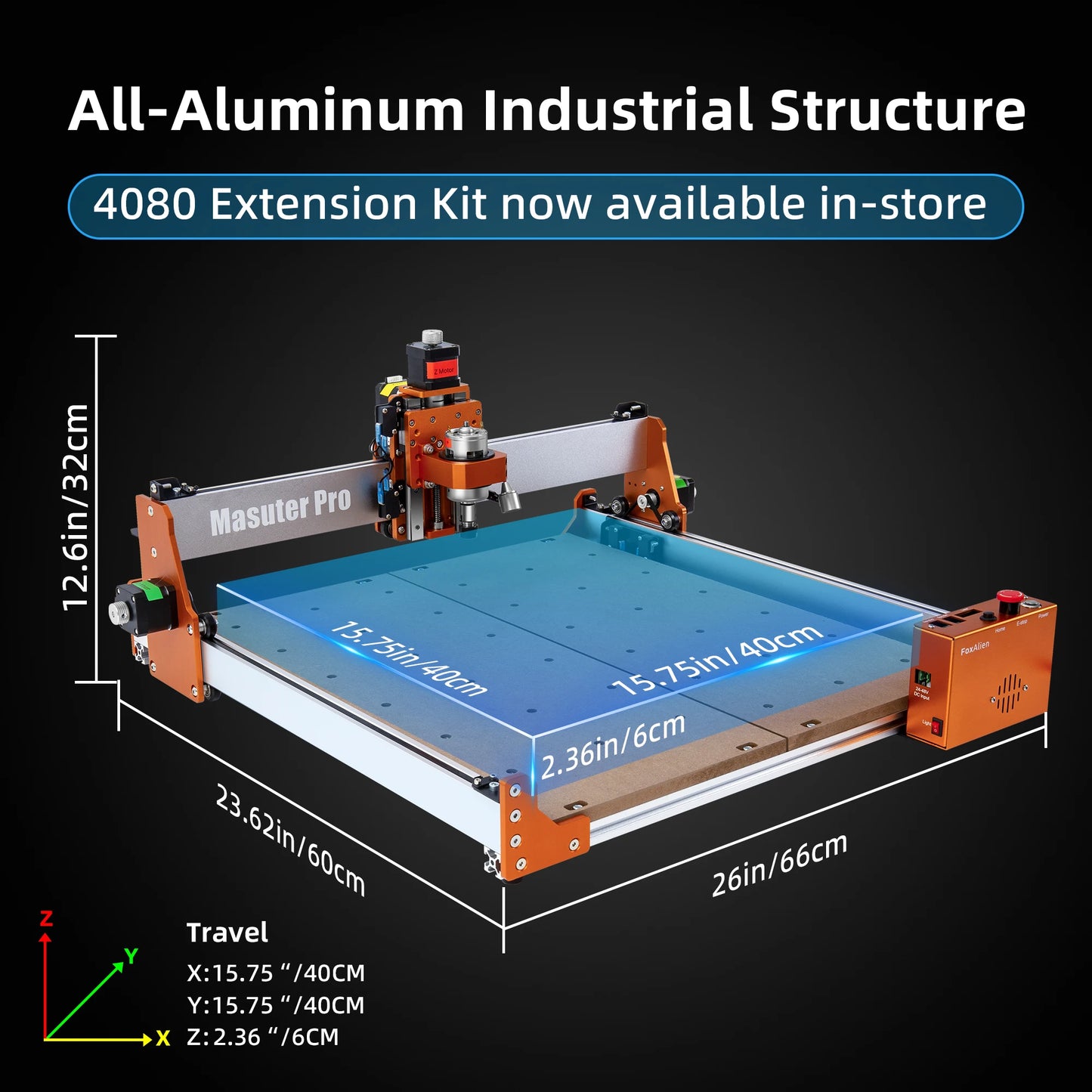

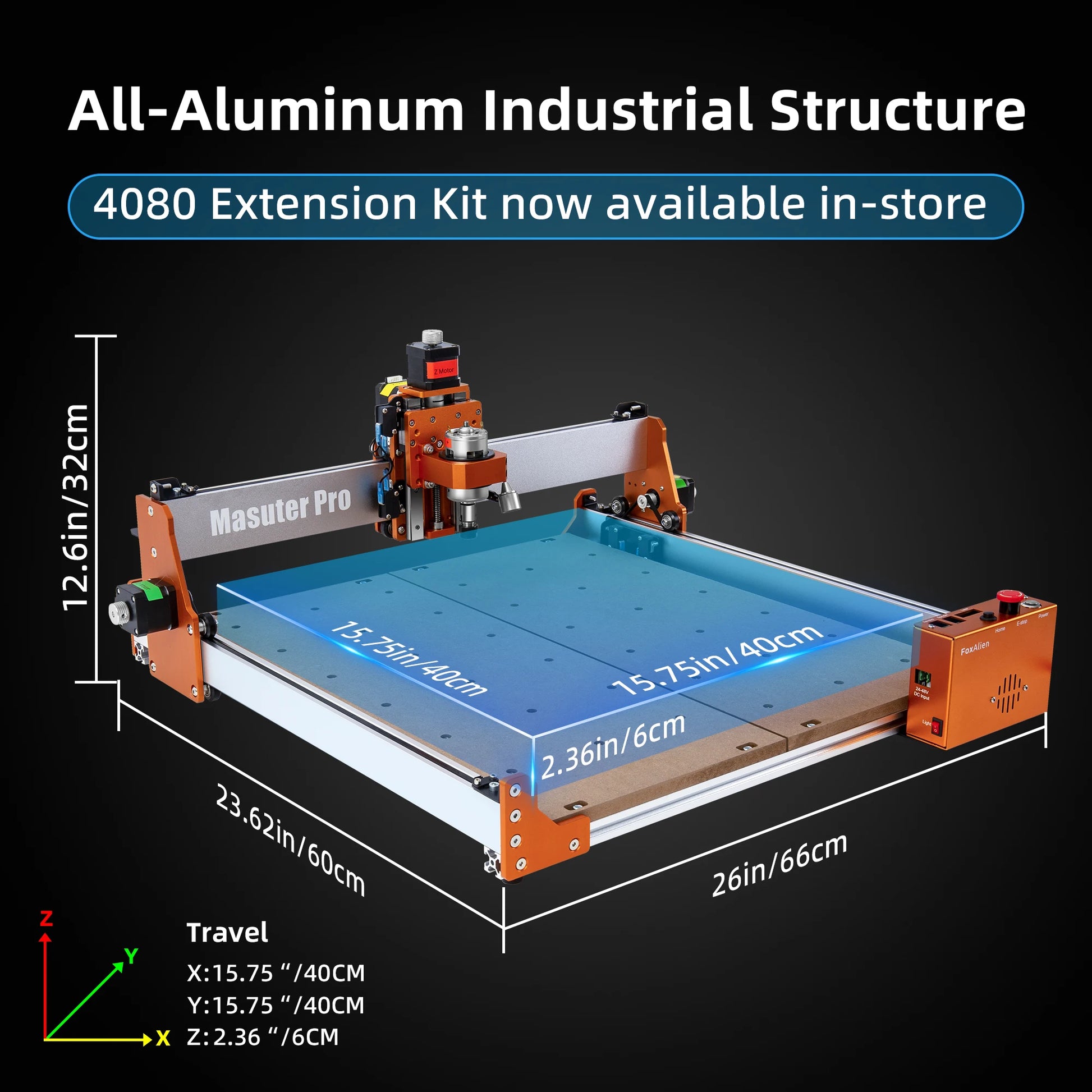

Active Working Area: 15.75” x 15.75” x 2.36” (400 x 400 x 60mm)

Spindle: 775; 10000RPM

Input Supply: 12V/5A

Stepper Motor: 1.3 A, 12V, 0.25 Nm torque (2.2 in lb)

Supported OS: Windows XP/7/8/10/11, MAC OS, Linux

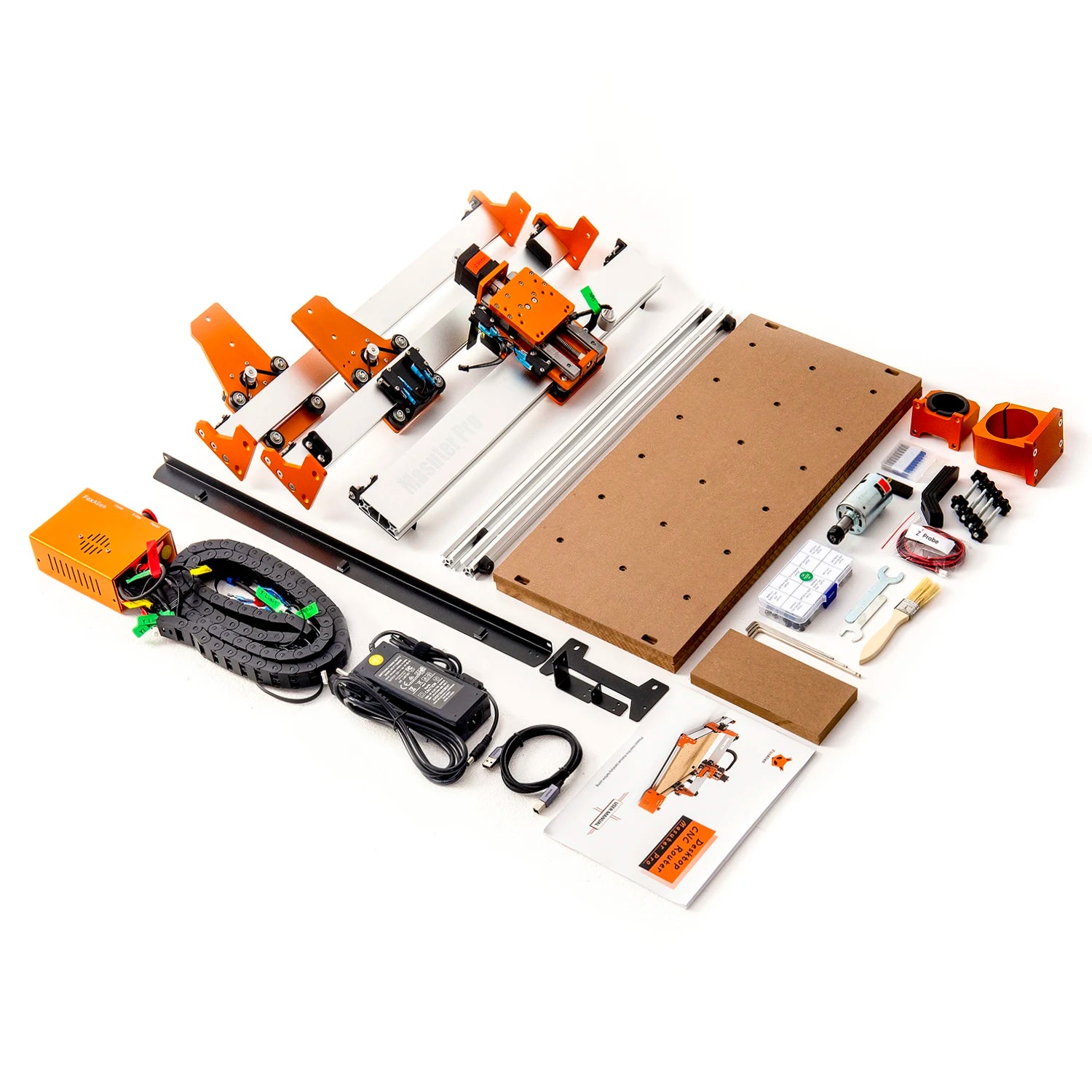

Masuter Pro Machine Package List

1x Masuter Pro CNC Router Machine (Main part pre-installed)

1x Z Probe

1x Controller Box

4x Hold-down Clamp

1x 52mm Spindle Clamp

1x 65mm Spindle Clamp

1x Power Supply

1x USB Cable

1x U Disk

1x User Manual

10 x Router Bits

Packs of screws

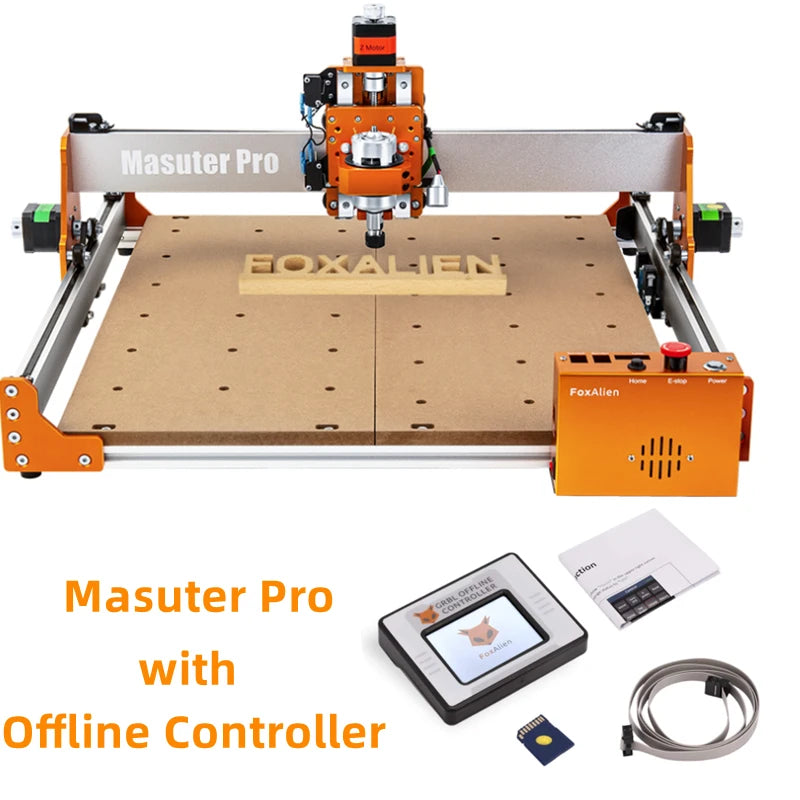

Masuter Pro Machine with Offline Controller Set

Offline Controller Specifications

Control X, Y, Z-axis moving

Control spindle on/off

Control spindle speed, step

Reset and resume the machine, unlock emergency stop switch

Compatible with: 3018-SE, Masuter, Masuter Pro, WM3020, LE-4040, LE-4040 PRO, Reizer.

Separate link to purchase offline controller:https://www.aliexpress.com/item/1005004346276401.html

Masuter Pro Machine with Offline Controller Set Package List

1x Masuter Pro CNC Router Machine (Main part pre-installed)

1x Z Probe

1x Controller Box

4x Hold-down Clamp

1x 52mm Spindle Clamp

1x 65mm Spindle Clamp

1x Power Supply

1x USB Cable

1x U Disk

1x User Manual

10x Router Bits

1x Offline controller

1x SD card

1x Cable

2x Wrench

Packs of screws

Masuter Pro Machine with 1/4'' Router Bits Set

1/4'' Router Bits Specifications

●【Wide Applications】These end mills suit for CNC routers, and Makita, Bosch, or any brands of plunge routers with 6.35mm 1/4" collet. Best for processing aluminum 6061,7075 etc. Also suitable for non-ferrous metal, plywood, OAK, MDF, and Any Hardwood Working..

●【High Performance for Hard Materials】Router bits is made of tungsten steel alloy carbide that is very tough, resists wear and offers high cutting performance.

●【Long Service Life】AlTiBN Coating - Titanium aluminum boron nitride (AlTiBN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better heat resistance than TiAlN, TiN or TiCN coatings.

●【High precision】High precision grinding and polishing, high resistance to abrasion and temperature resistance, good rigidity, high durability and not easy to break.

Separate link to purchase 1/4'' router bits:https://www.aliexpress.com/item/1005005430090336.html

Masuter Pro Machine with 1/4'' Router Bits Package List

1x Masuter Pro CNC Router Machine (Main part pre-installed)

1x Z Probe

1x Controller Box

4x Hold-down Clamp

1x 52mm Spindle Clamp

1x 65mm Spindle Clamp

1x Power Supply

1x USB Cable

1x U Disk

1x User Manual

10x Router Bits

1 x CNC Router Bits, 1/4'' Shank, 1/4" Cutting Diameter, 1 Flute

1 x CNC Router Bits, 1/4'' Shank, 0.5MM Cutting Radius

1 x CNC Router Bits, 1/4'' Shank, 30 Deg

1 x CNC Router Bits, 1/4'' Shank, 60 Deg, 4 Flutes

1 x CNC Router Bits, 1/4'' Shank, 1/4" Cutting Diameter, 2 Flutes

1 x CNC Spoilboard Surfacing Router Bit, 1/4" Shank

1 x ER11 Collet 1/4"

Packs of screws
