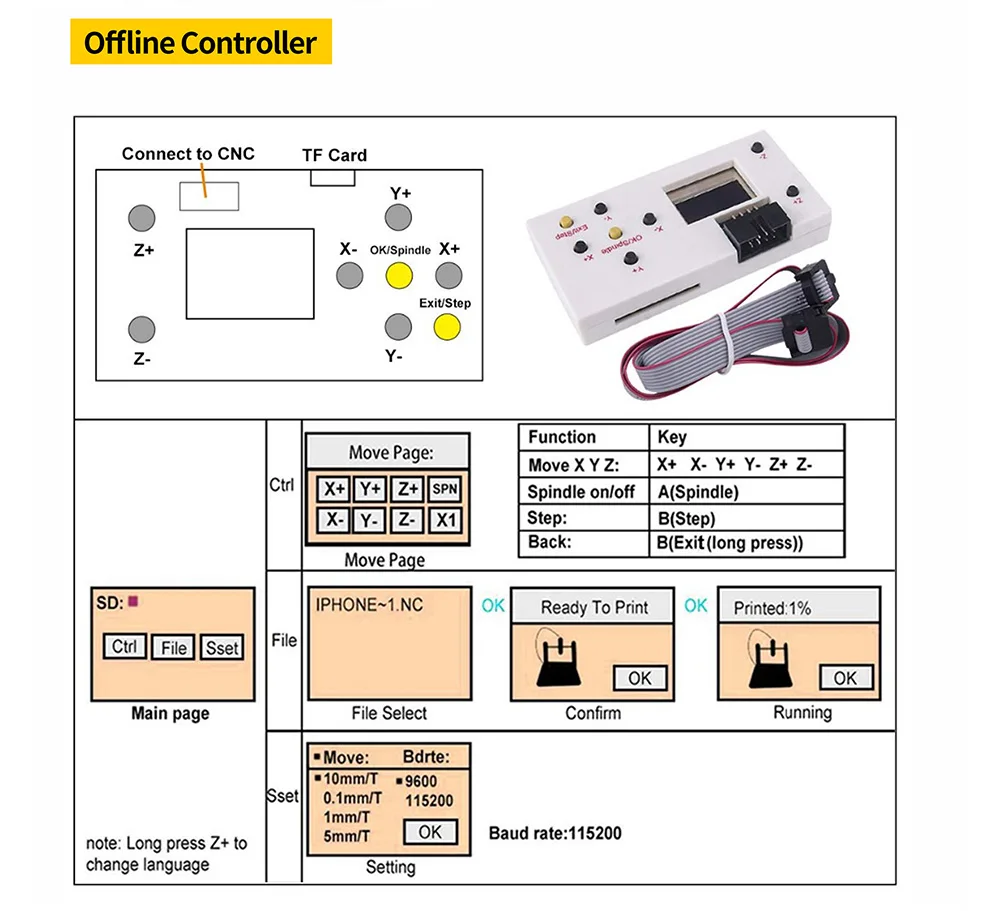

【EU US BZ】DIY Mini 1610 Pro 3 Axis CNC Laser Router Milling Woodworking Machine + Offline controller
【EU US BZ】DIY Mini 1610 Pro 3 Axis CNC Laser Router Milling Woodworking Machine + Offline controller
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
CNC or Not: CNC
Certification: CE
Condition: New
Controller: GRBL
High-concerned chemical: None
Is Smart Device: No
Model Number: 1610 pro
Origin: Mainland China

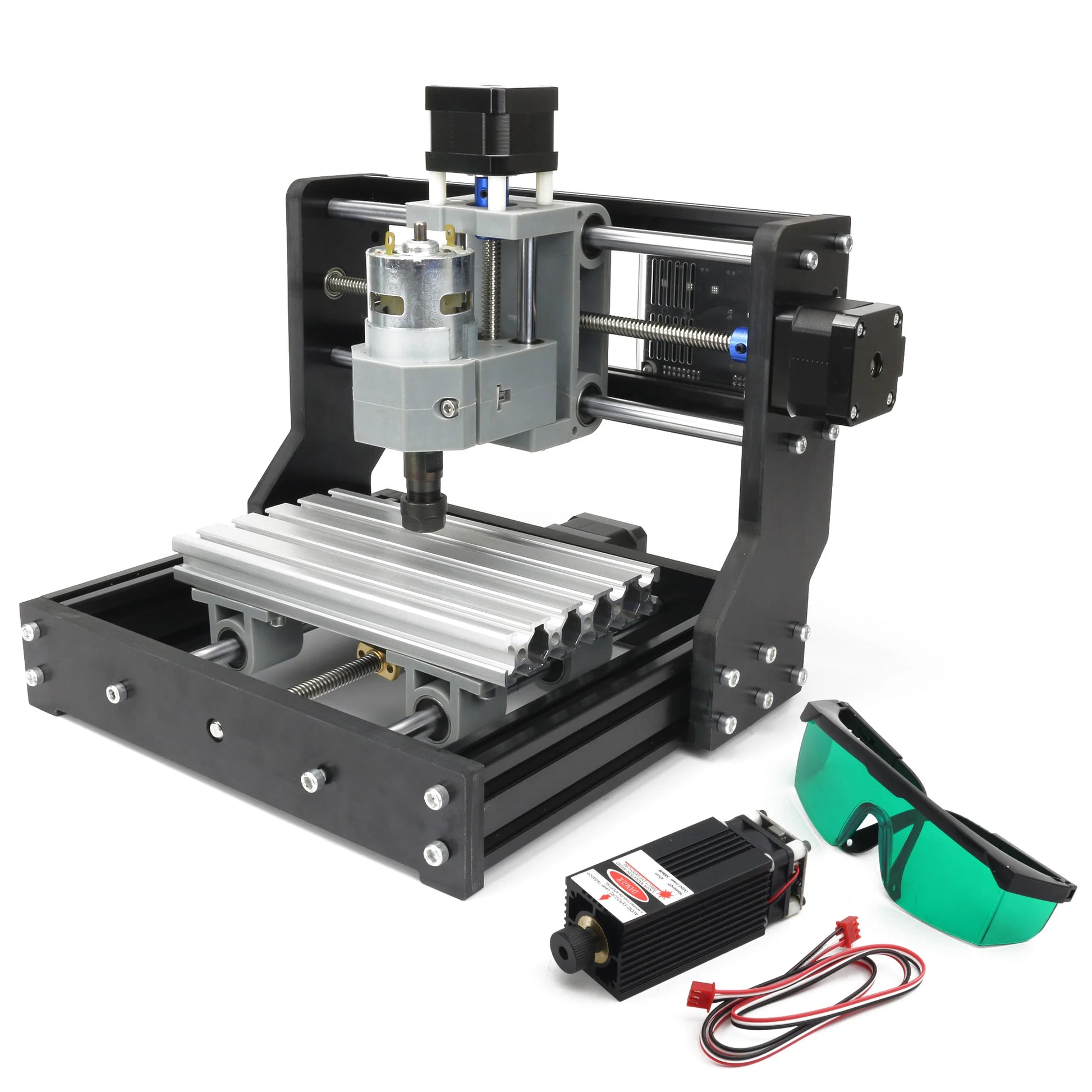

1 set CNC 1610 PRO 3-axis Laser engraving machine kit
1 x GRBL Controller
1 x Spindle motor ER11
10 x 20° 0.1mm drill bits
4 x plates clamps
1 Set of tool
Please download the installation instructions,user manual and GRBL software from the USB flash drive.
2) In addition, the product is not assembled, the buyer needs to assemble according to the instructions. Thank you for your understanding.

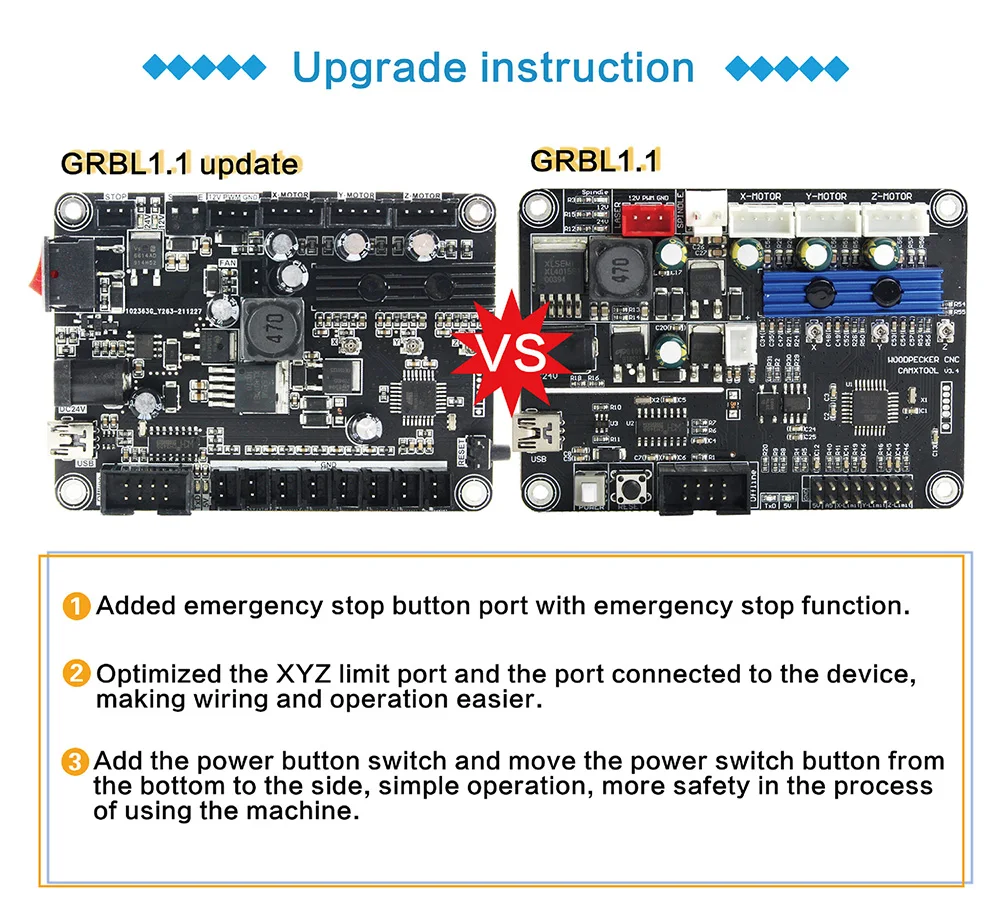

the function of X/Y/Z axis limit switches,optimized the XYZ limit port
and the port connected to the device,making wiring and operation
easier.After installing the limit switch, when the XYZ axis moves beyond
the travel of the engraving machine, the limit switch will trigger the
machine to automatically stop the movement.
the function of emergency stop button,this function can be used when an
emergency stop is required at work, making our work safer and more
efficient.
3.Add
the power button switch and move the power switch button from the
bottom to the side,simple operation,more safety in the process of using
the machine

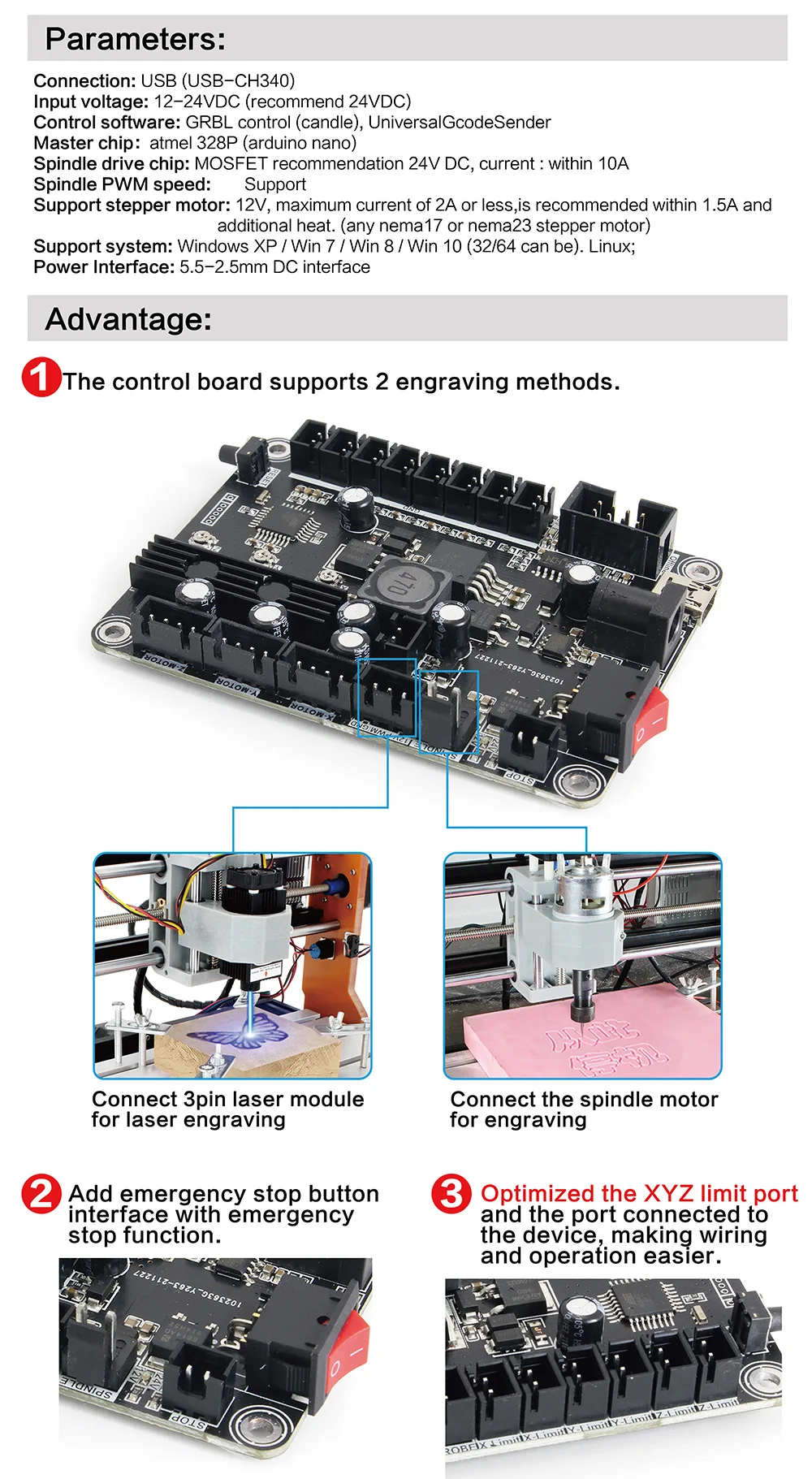

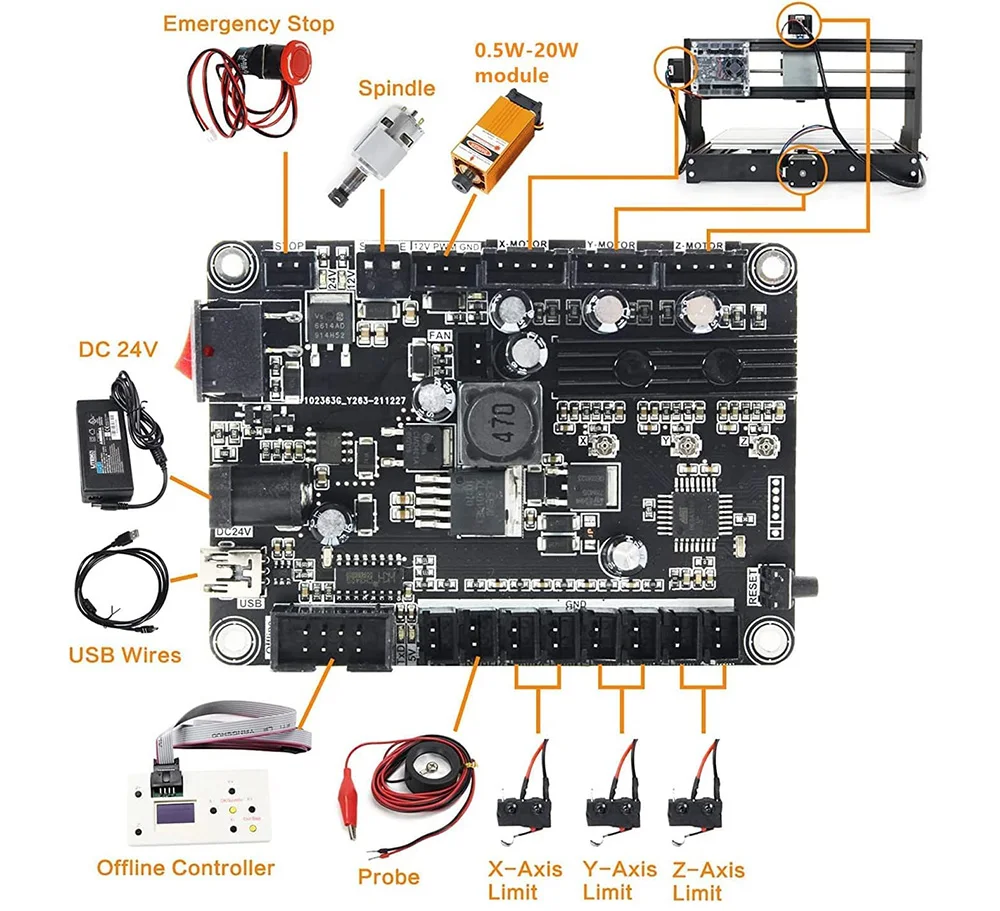

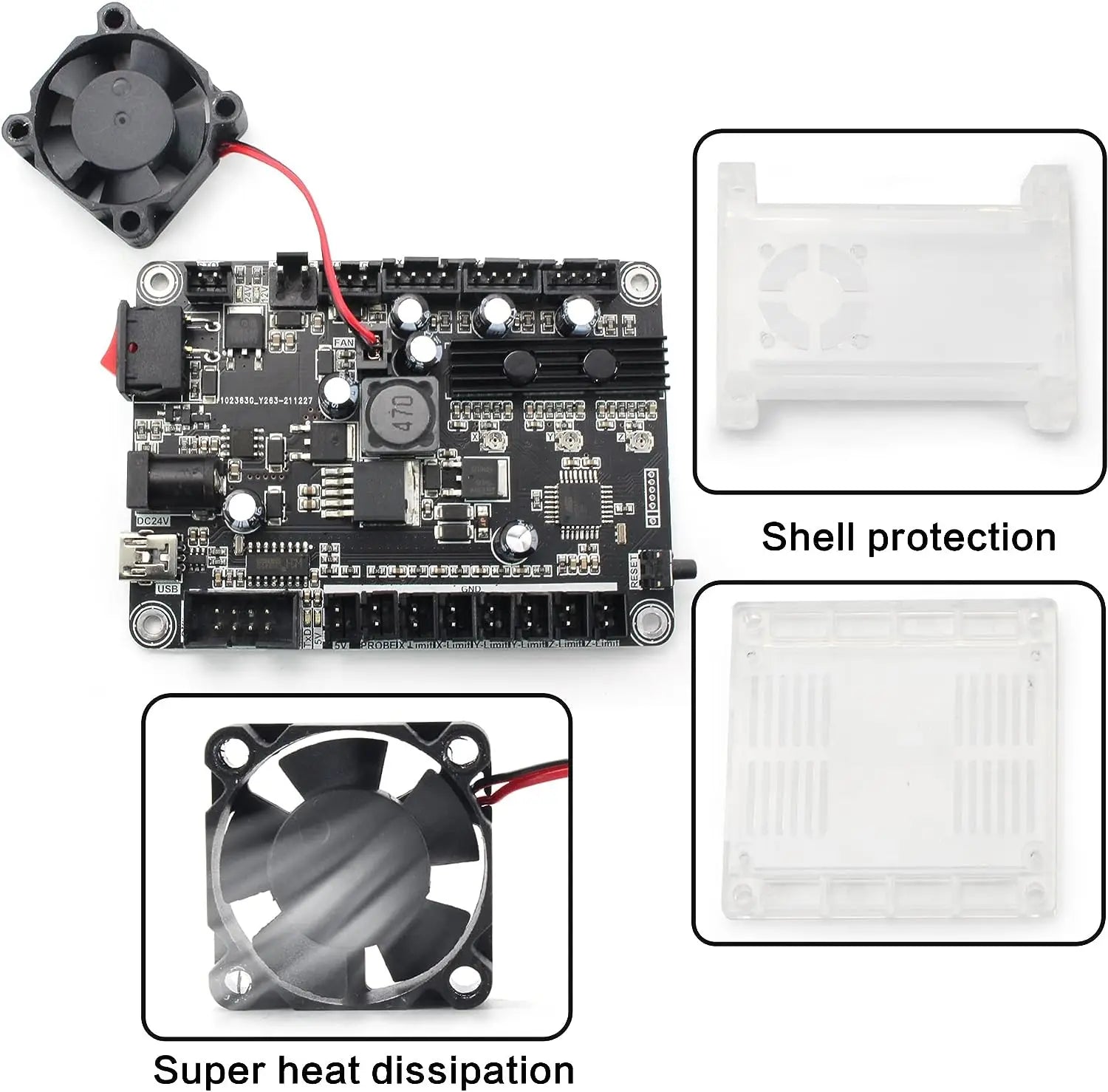

GRBL Controller Board(upgrade)
stepper motor: 12V, maximum current of 2A or less is recommended within
1.5A and additional heat. (Any stepper motor Nema17/Nema23)

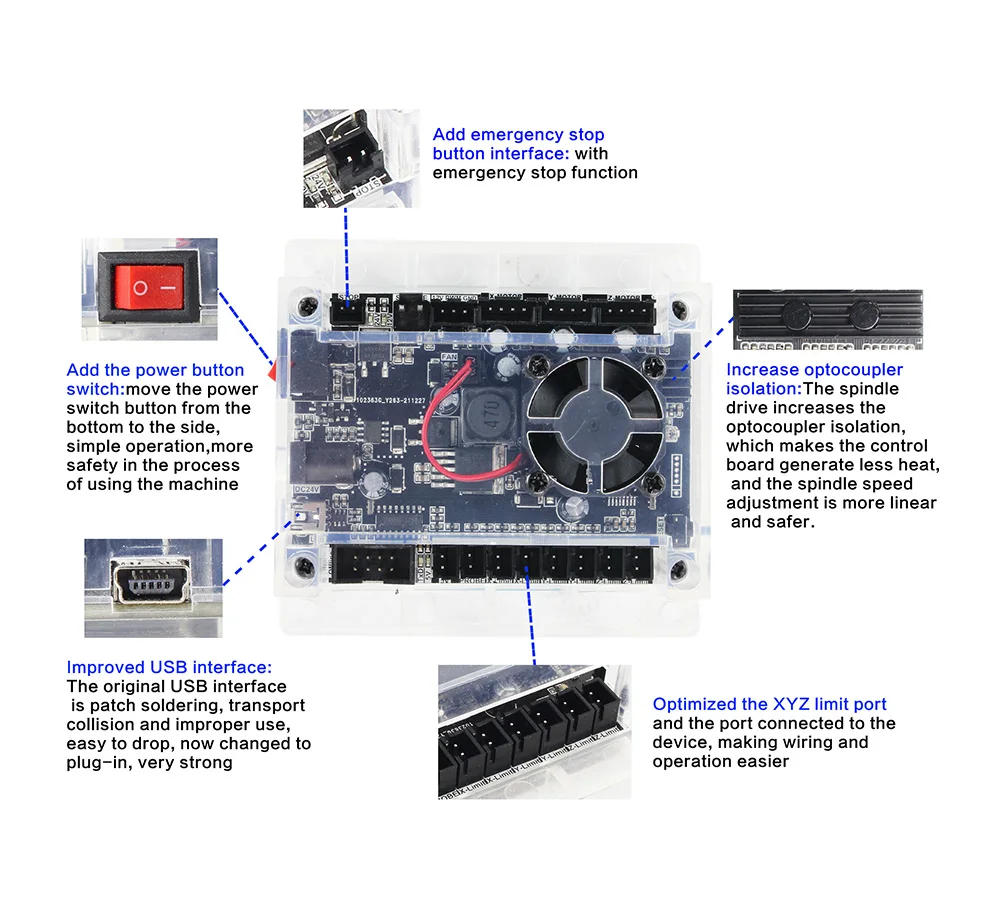

Advantages

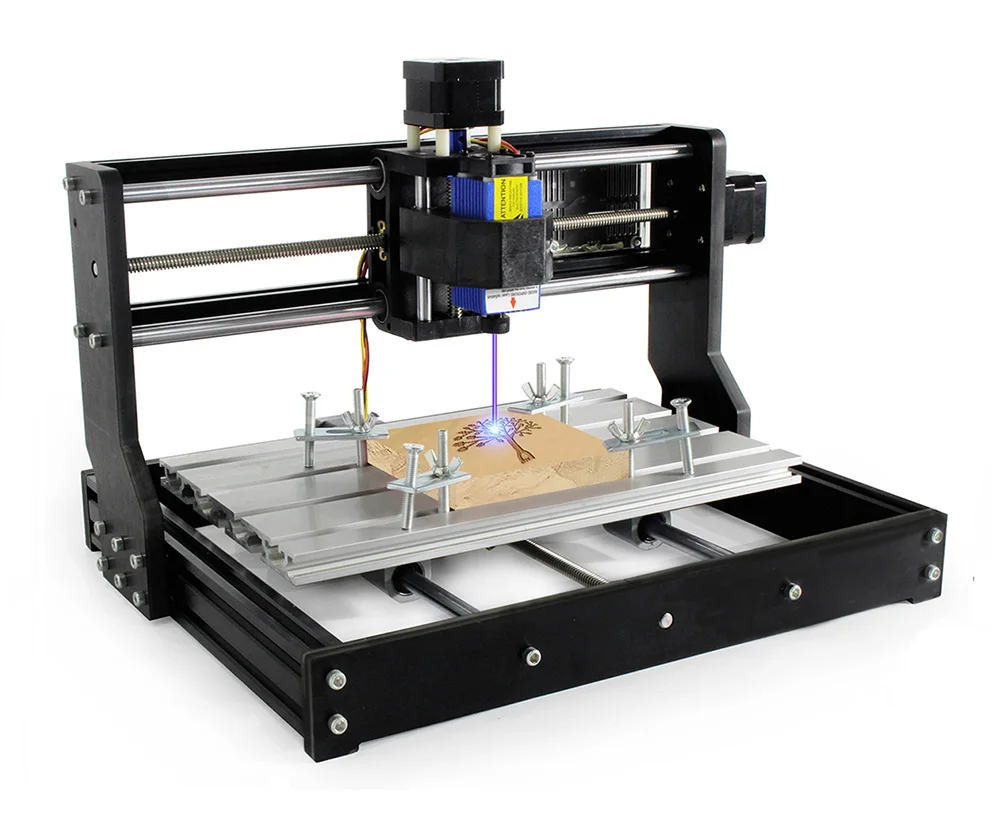

control board supports 2 engraving methods.1)Connect 3pin laser module
for laser engraving.2)Connect the spindle motor for engraving.
USB interface:The original USB interface is patch soldering,transport
collision and improper use, easy to drop now changed to plug-invery
strong.
the power button switch:move the power switch button from the bottom to
the side,simple operation,more safety in the process of using the
machine.
optocoupler isolation:The spindle drive increases the optocoupler
isolation,which makes the control board generate less heat,and the
spindle speed adjustment is more linear and safer.
Applications
· CNC

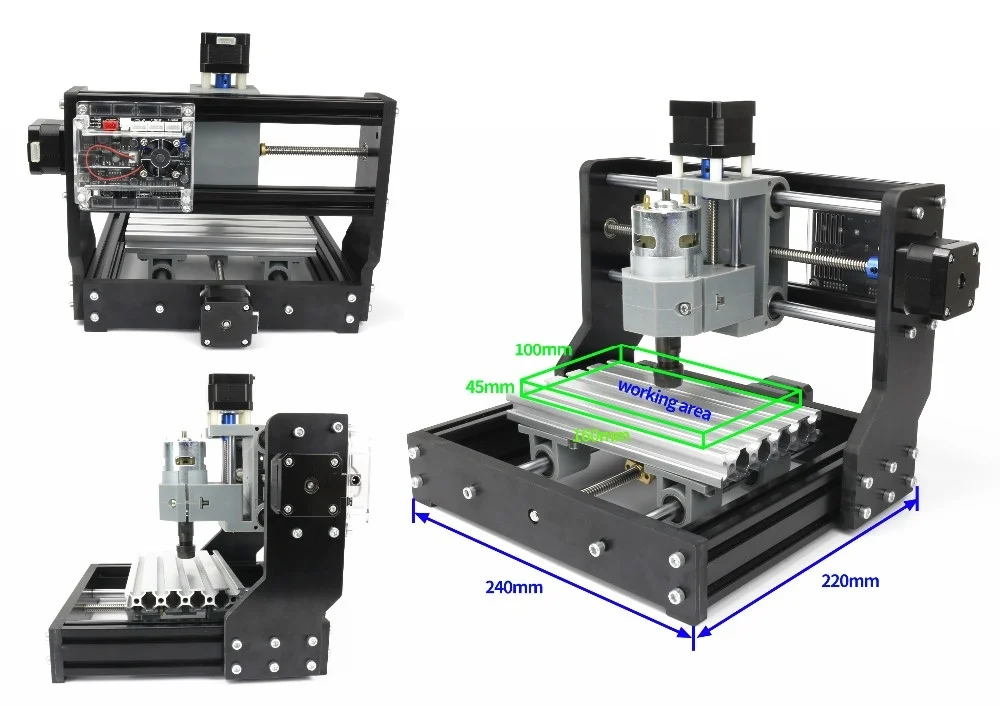

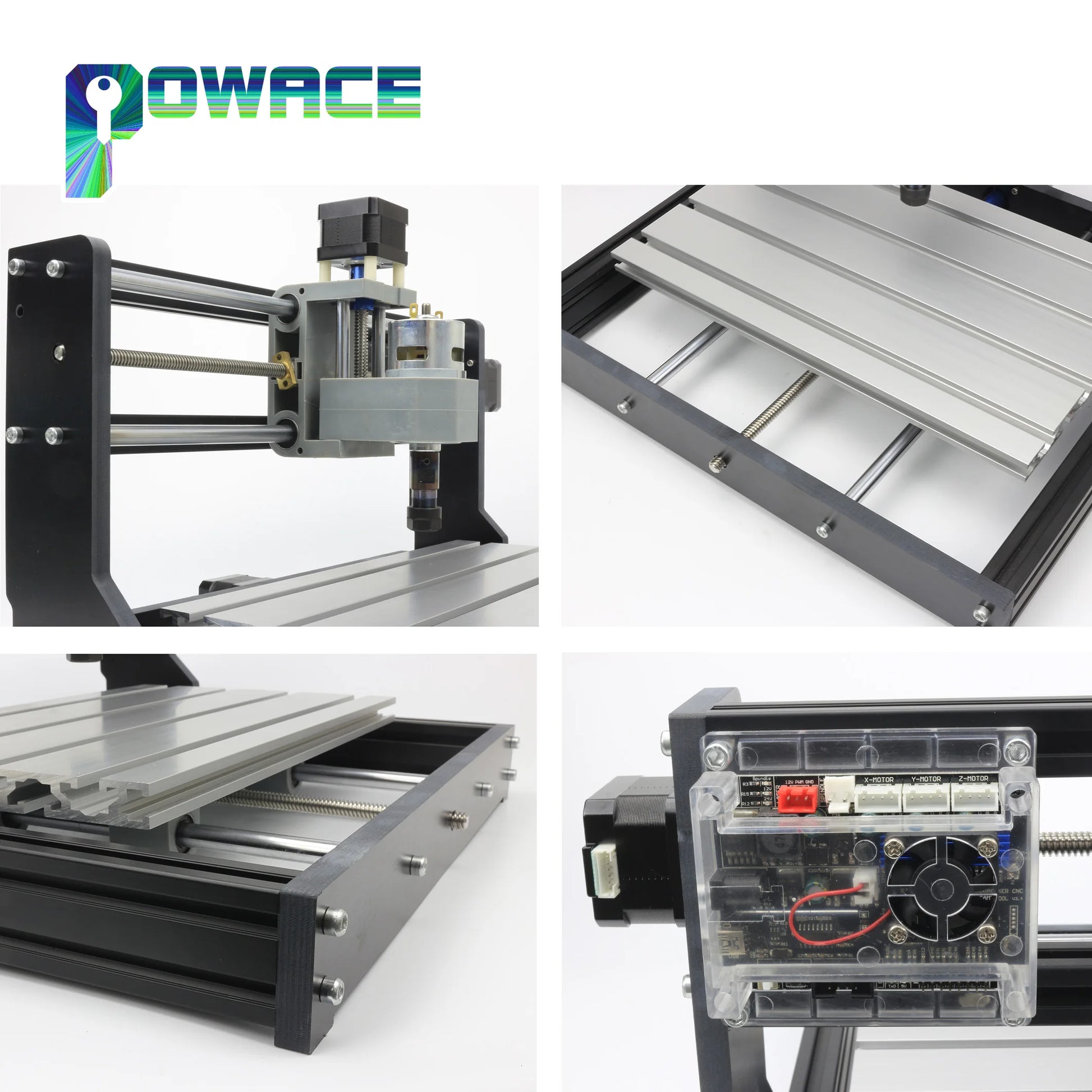

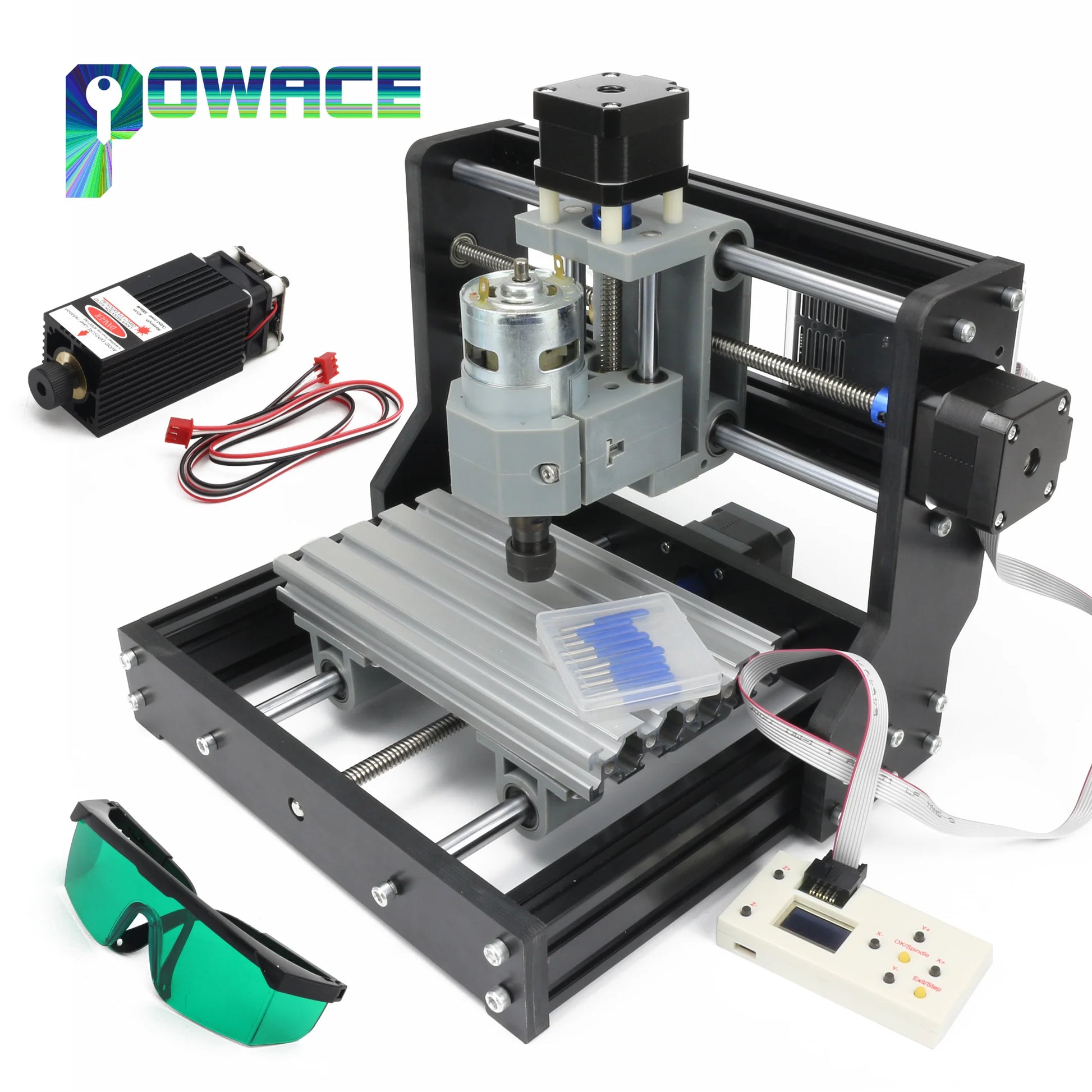

1610PRO Mini CNC machine small size, is very easy to install,with
stable structure, USB interface, GRBL control systems, great cnc router
machine for beginers;
· Main
application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and
the like material.soft metal like copper and aluminum and other metal
materials, but can not carve hard metal, jade or other very hard texture
of the items.

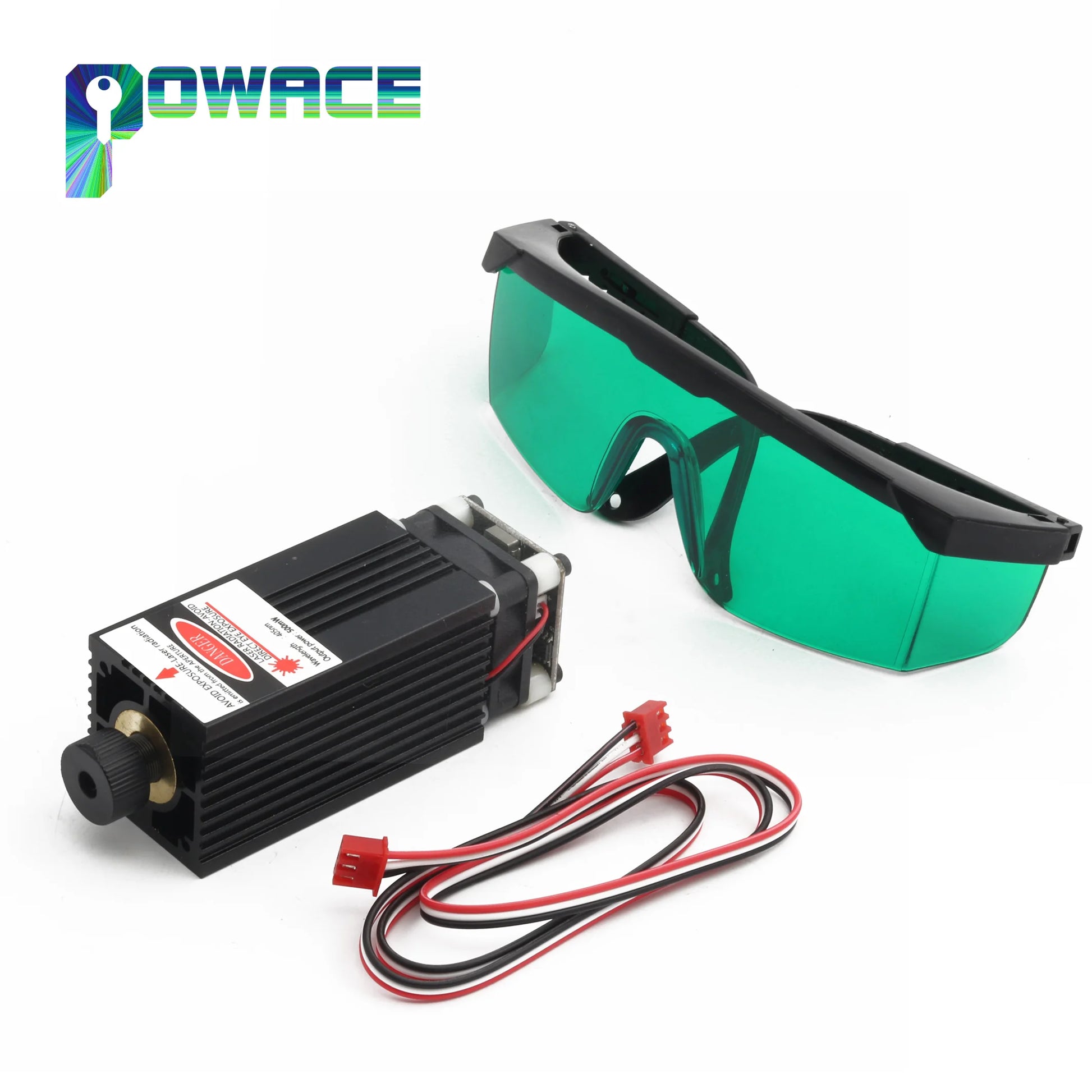

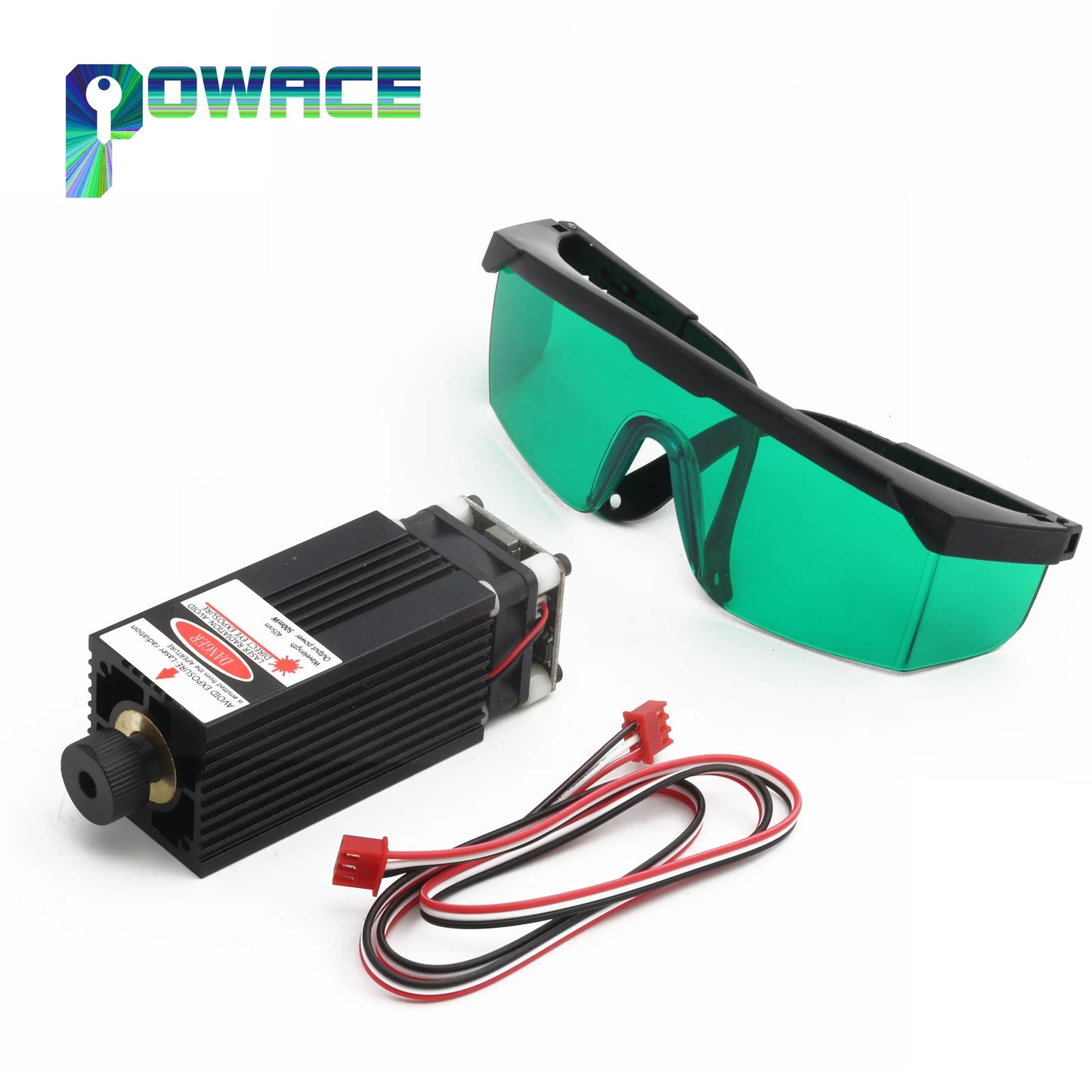

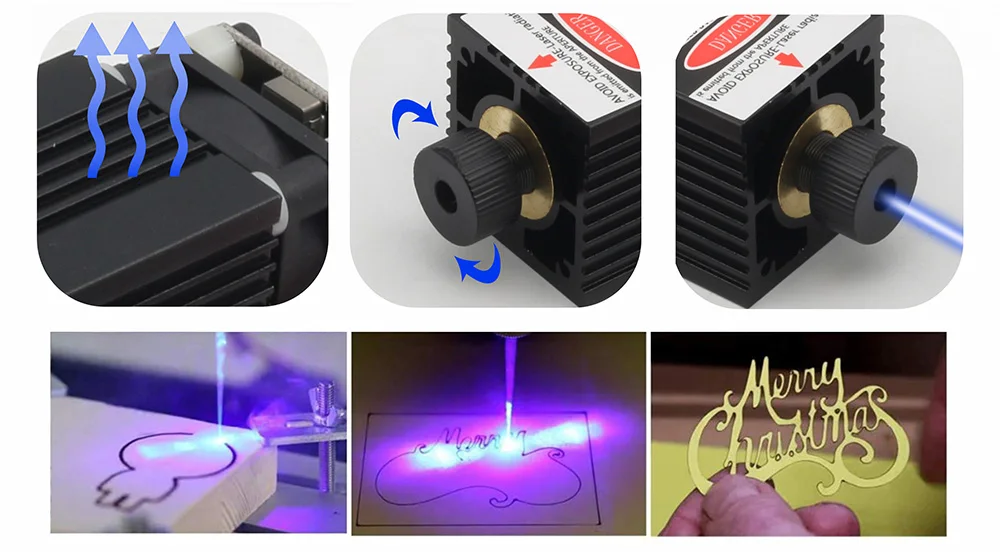

· If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.
Advantages of 1610 PRO:
Updated control board firmware GRBL1.1, added the outer
casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis
limit port and add the power button switch,supports installation

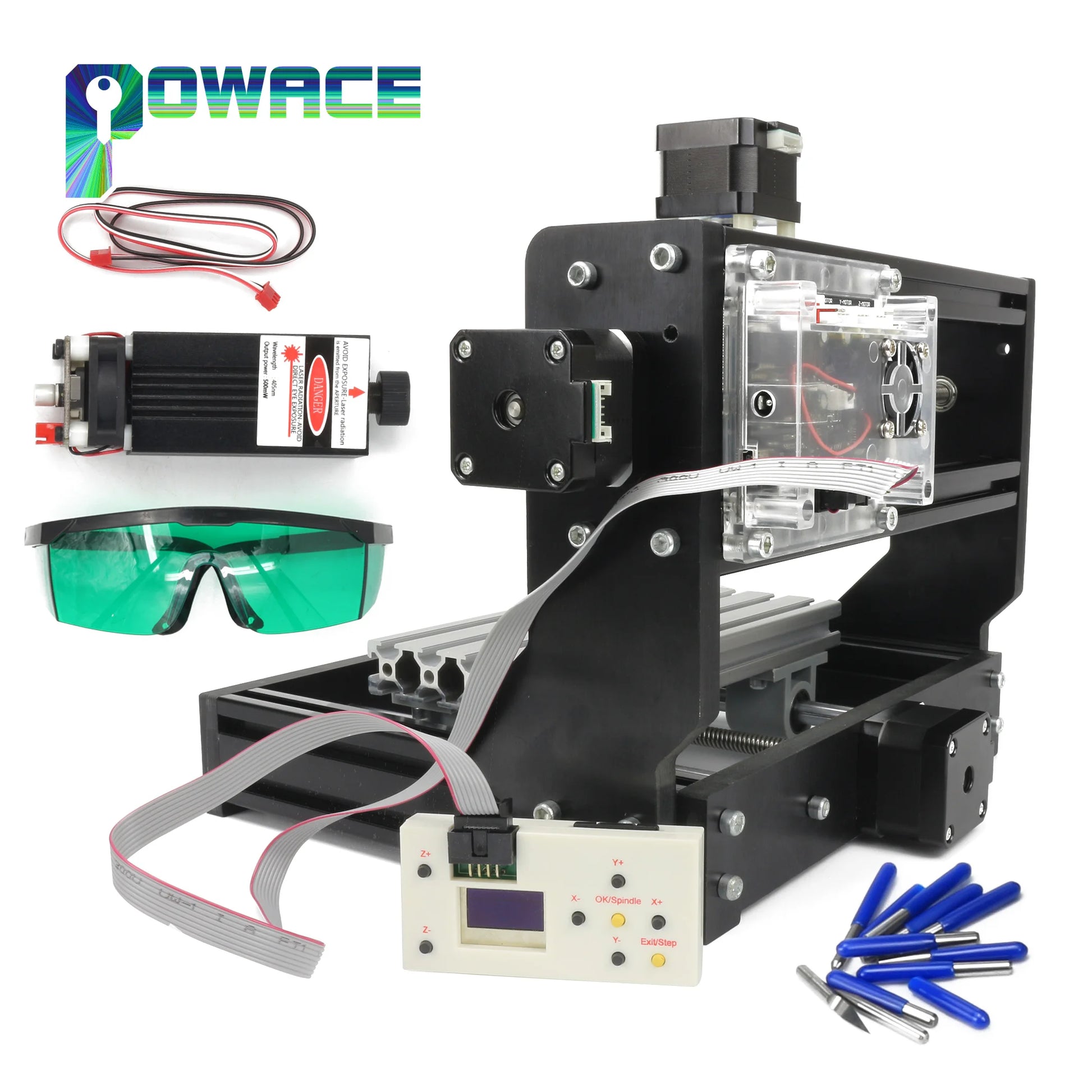

functions such as emergency stop,limit switches etc. It supports offline
engraving, offline tool setting.and come with the fan port to force
heat dissipation,with enhanced spindle drive,can support maximum
20000rpm spindle,and also can support 0.5W-20W module.
Feature:
Supporting files: G-code (.nc/.txt/.tape/.gcode...)

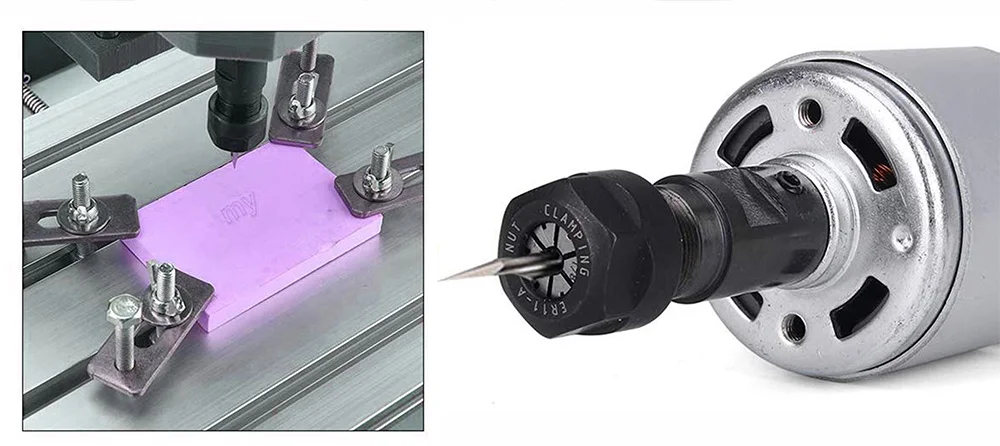

Spindle parameters: 775 spindle motor (12-36V) 24V:10000r/min
Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.
Motor shaft diameter: 15mm;
Motor diameter: 42mm
Drill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm )

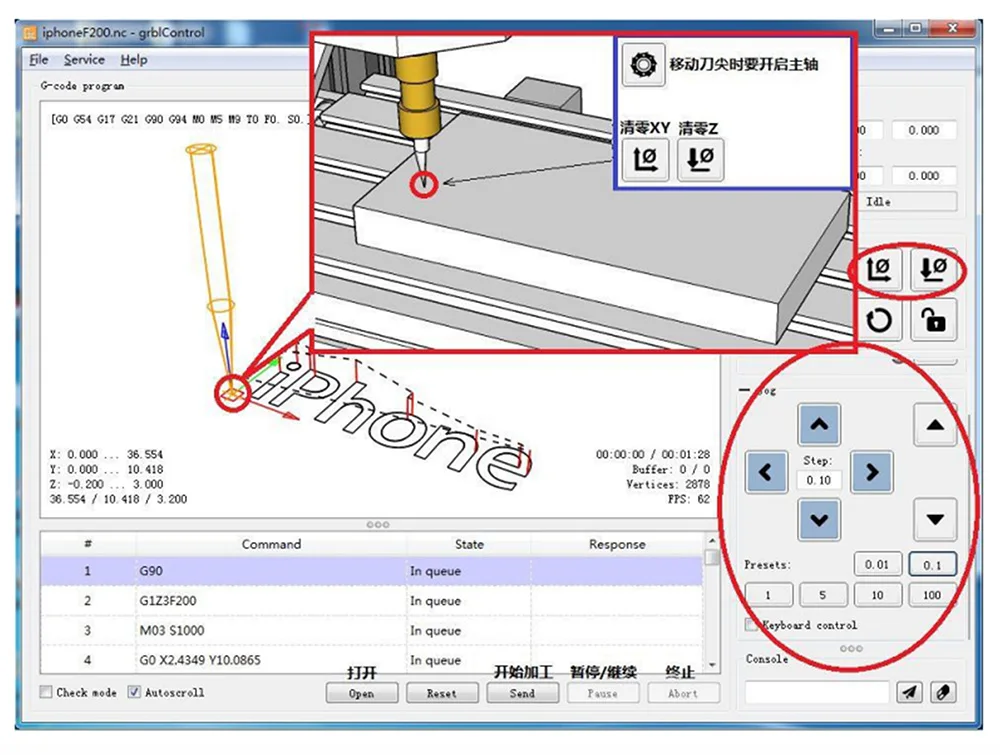

Control software: GBRL control(candle)
Supporting files: G-code (.nc/.txt/.tape/.gcode...)
Processing accuracy: About 0.2mm
Machinable material: Wood、 plastic、 PCB、 PVC、 carbon fiber、 acrylic、 density board etc
Power: DC 24V 5.6A power adapter (input voltage 110-240VAC)
Compared with the old version
