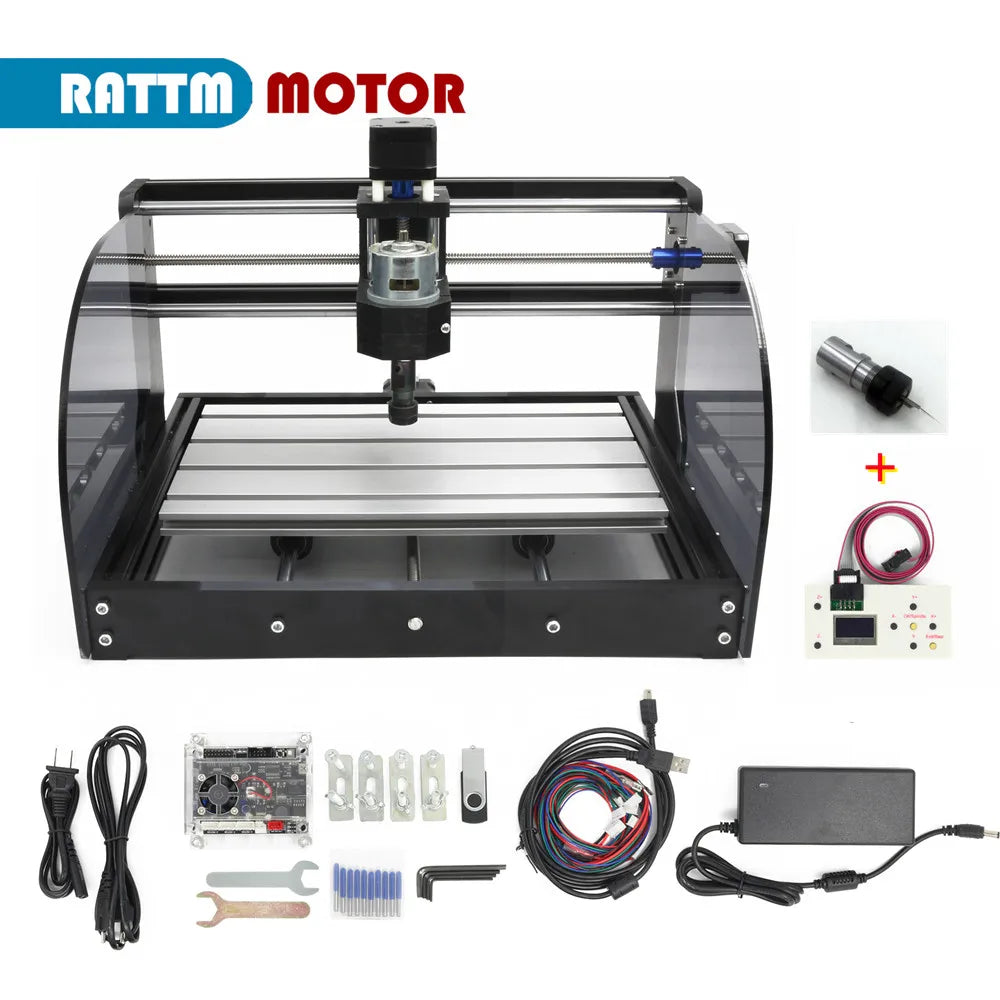

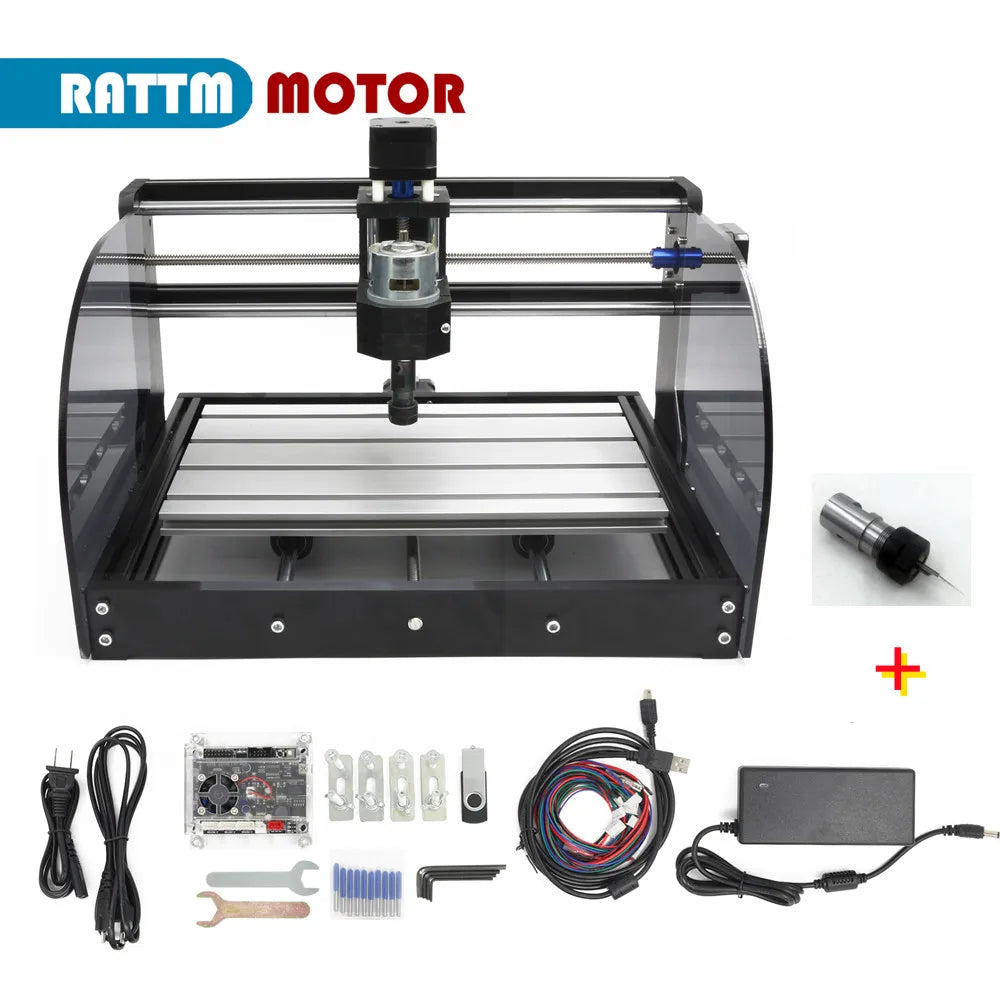

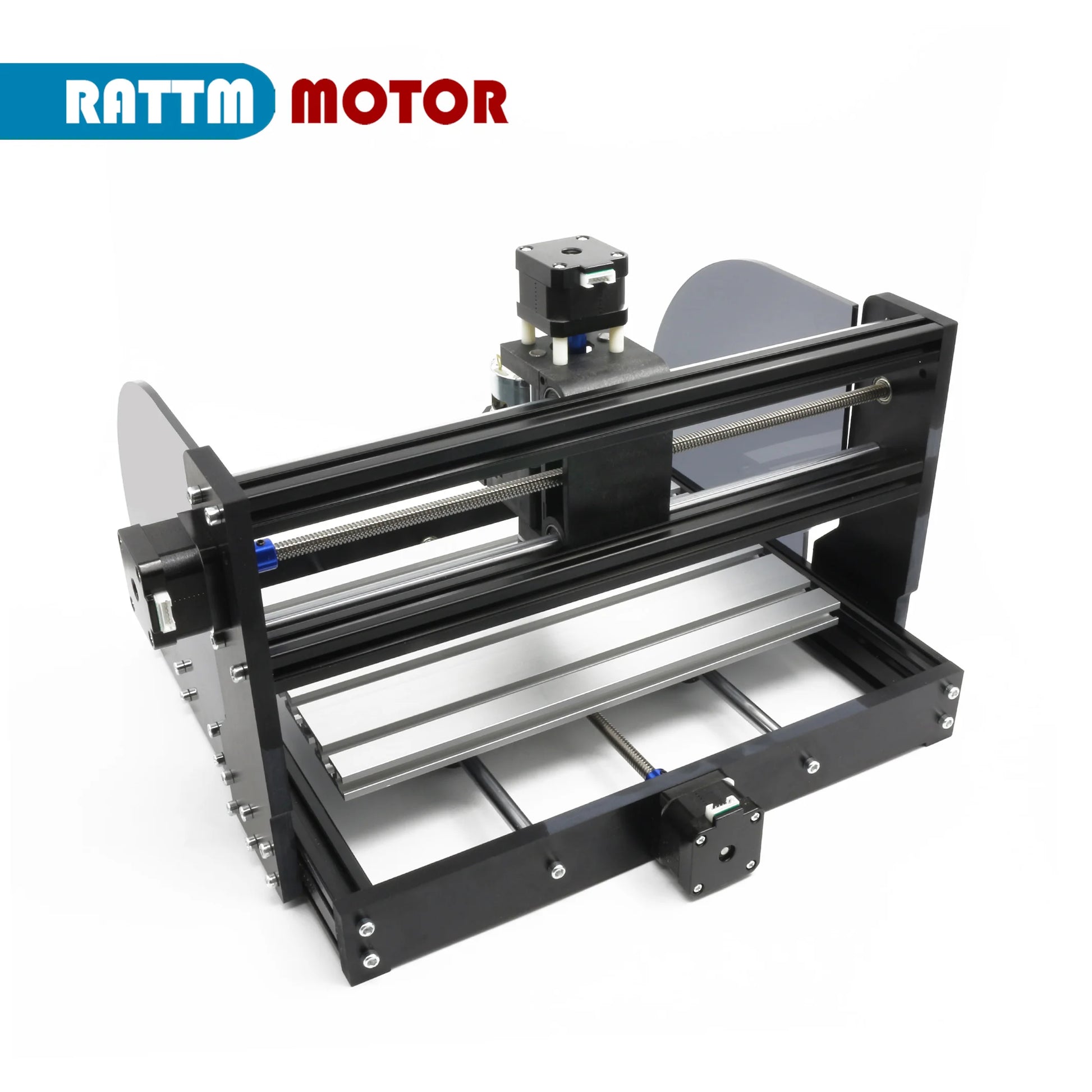

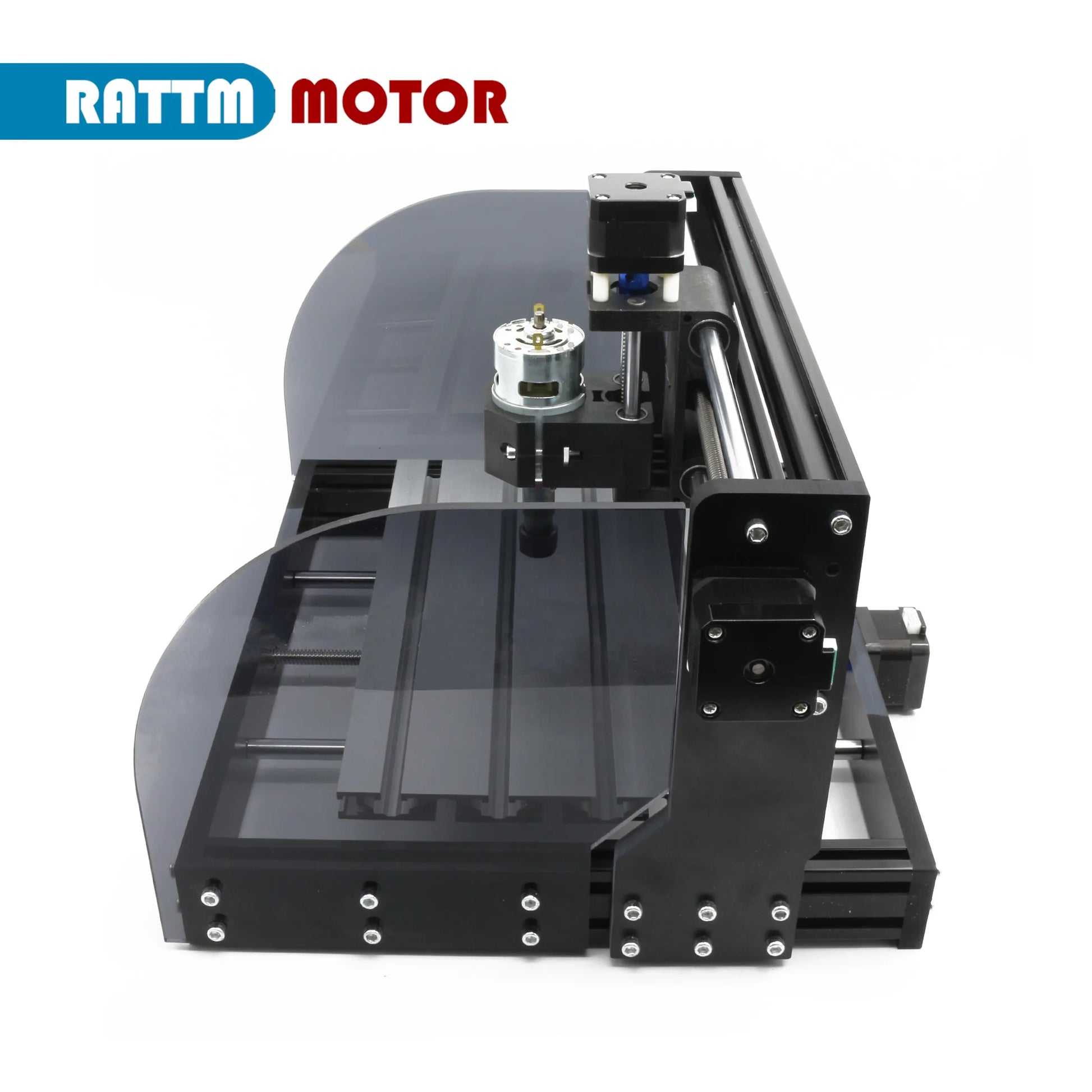

【BZ EU US】3018 Pro MAX 3 Axis GRBL CNC laser engraving Router Milling Machine with Offline Controller
【BZ EU US】3018 Pro MAX 3 Axis GRBL CNC laser engraving Router Milling Machine with Offline Controller
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: RATTMMOTOR
CNC or Not: CNC
Condition: New
Drive: Stepper motor
High-concerned chemical: None
Model Number: 3018 Pro max
Origin: Mainland China
Port: USB port
Software: Grbl Control
Spindle: 775spindle motor(12-36V) 24V:7000r/min 36V:9000r/min
System requirements: windows XP SP3, win7, win8, win10. (32/64 can be). Linux
Type: Desktop cnc router
Voltage: 220VAC
is_customized: Yes

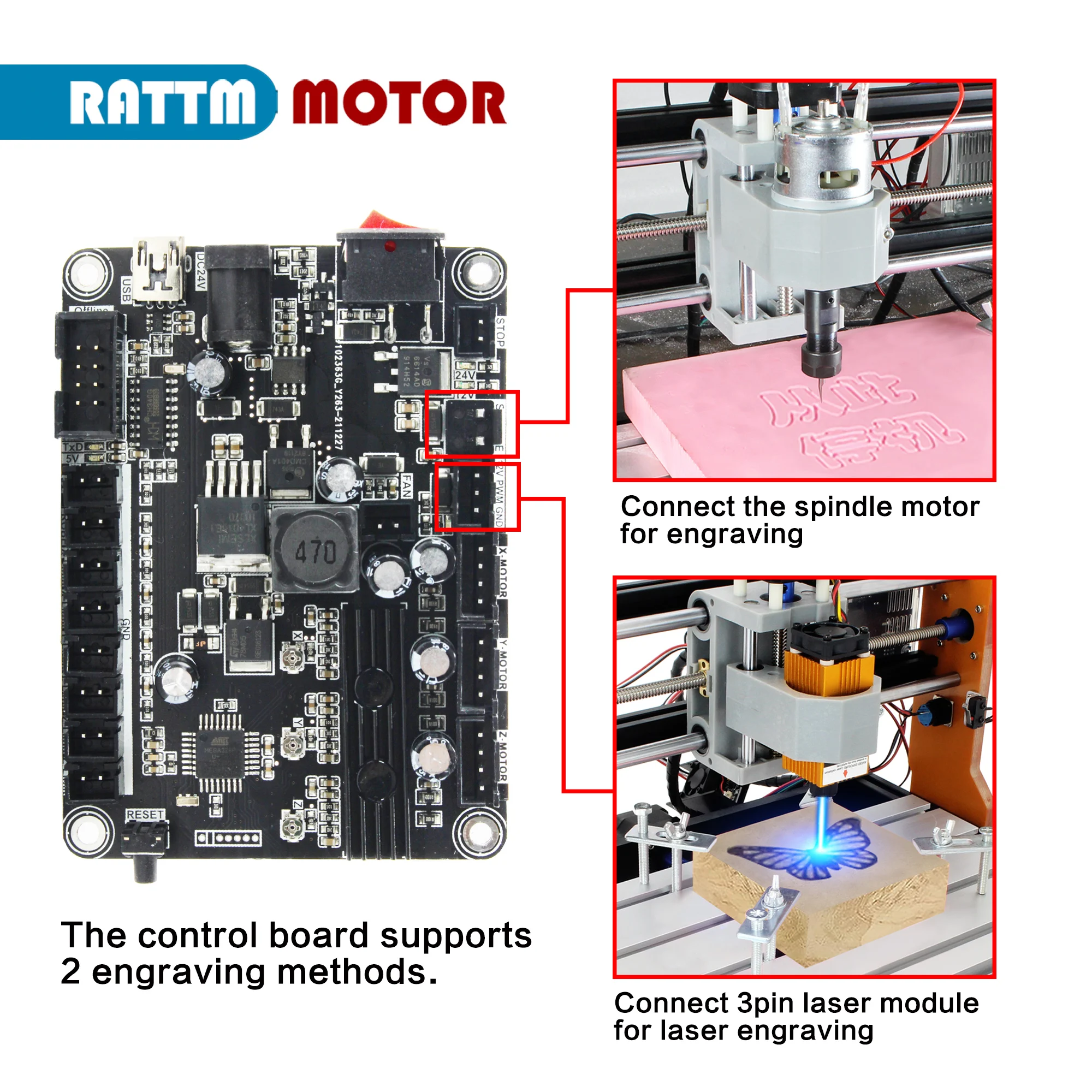

laser: Support laser

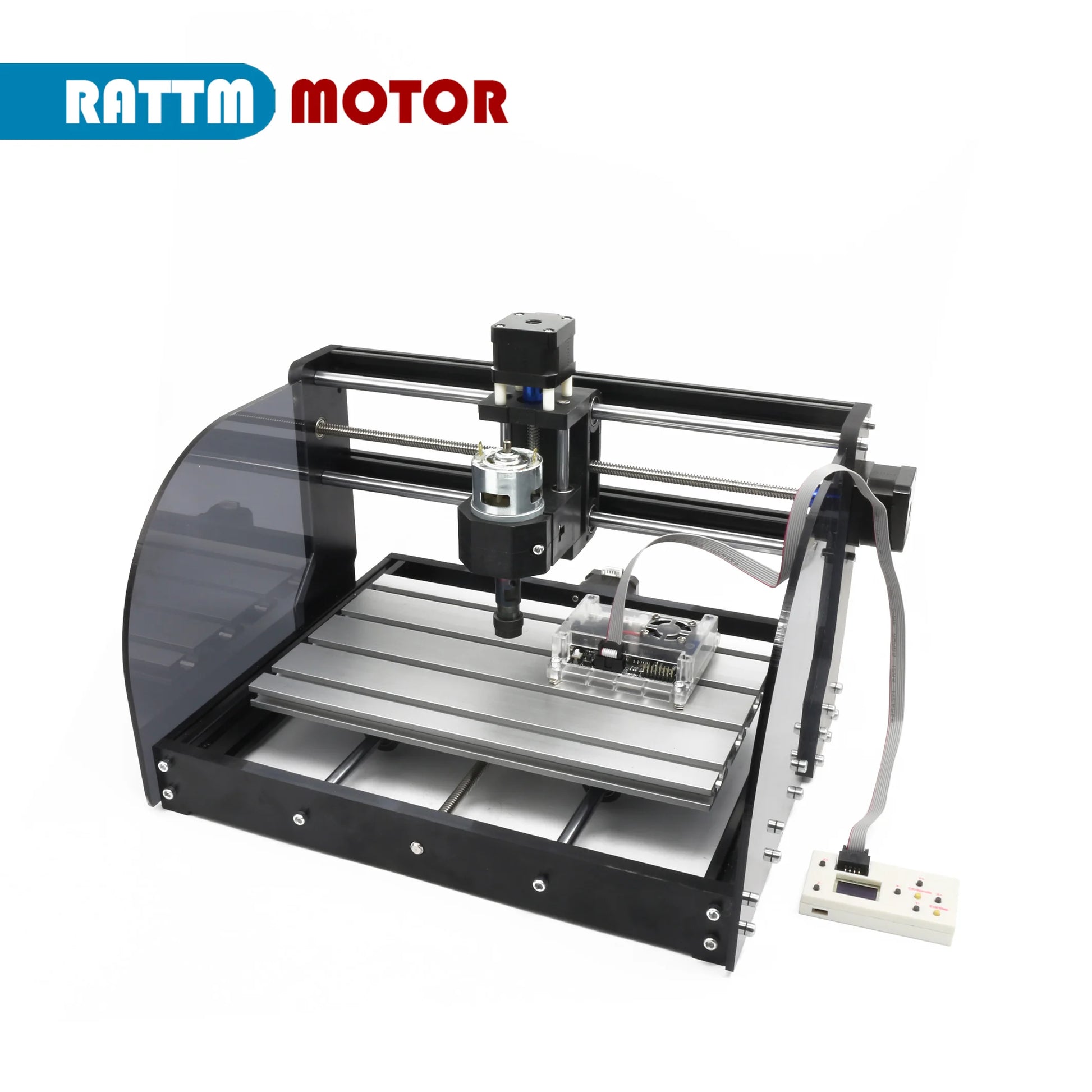

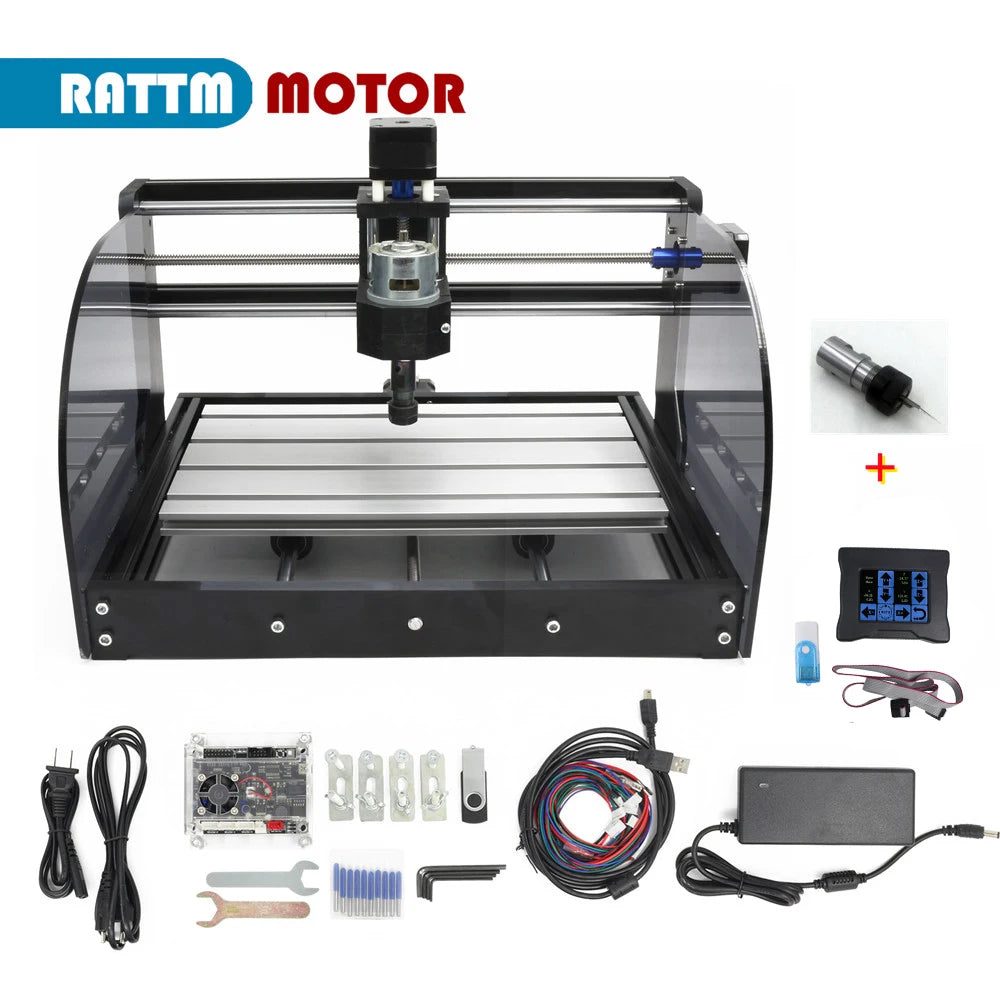

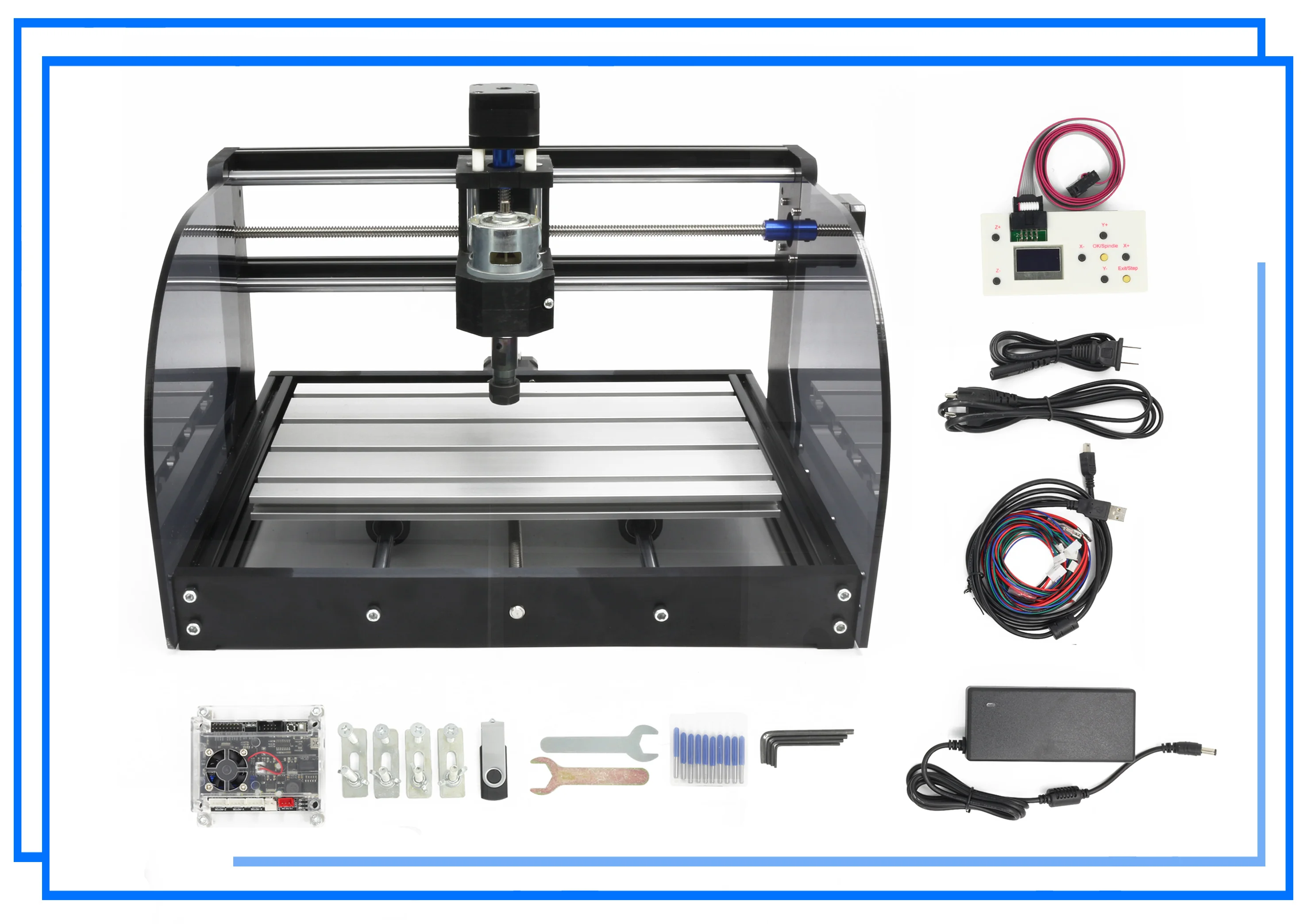

1set GBRL 3018 Pro max CNC Laser machine with off-line controller
10pcs drill bits.
laser head (optional)
off line controller (optional)

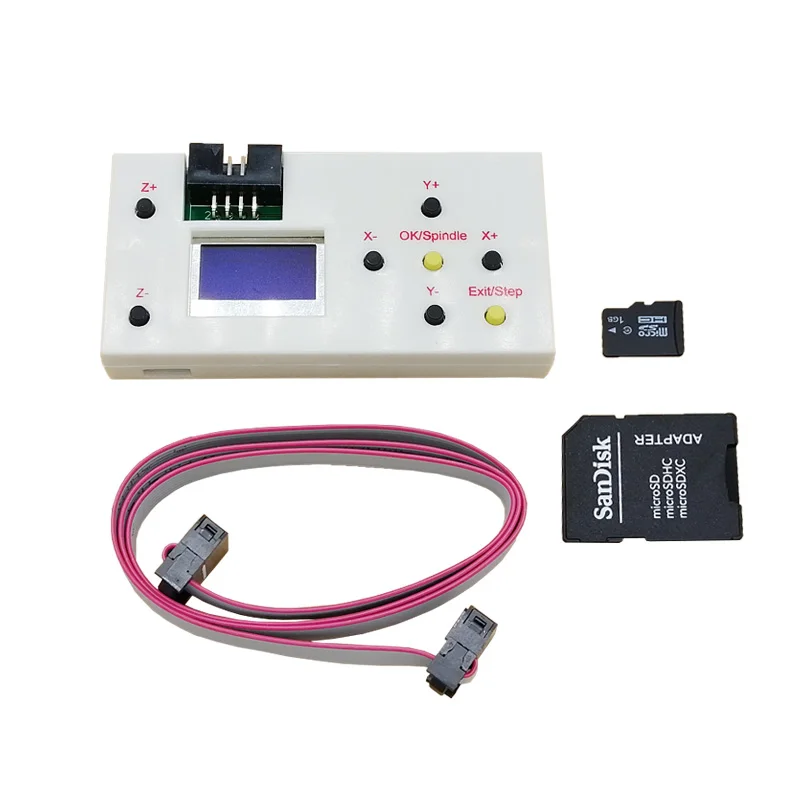

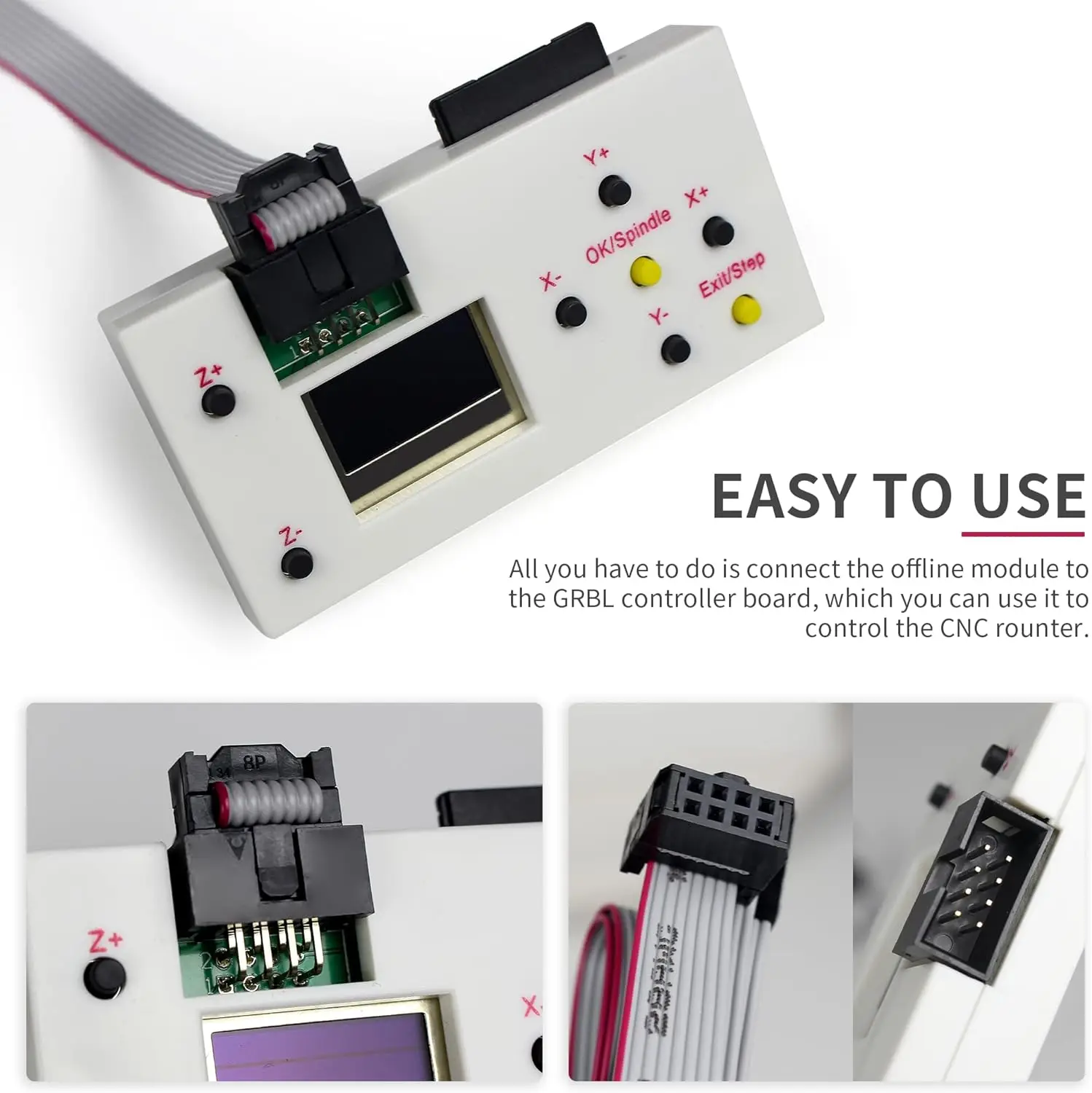

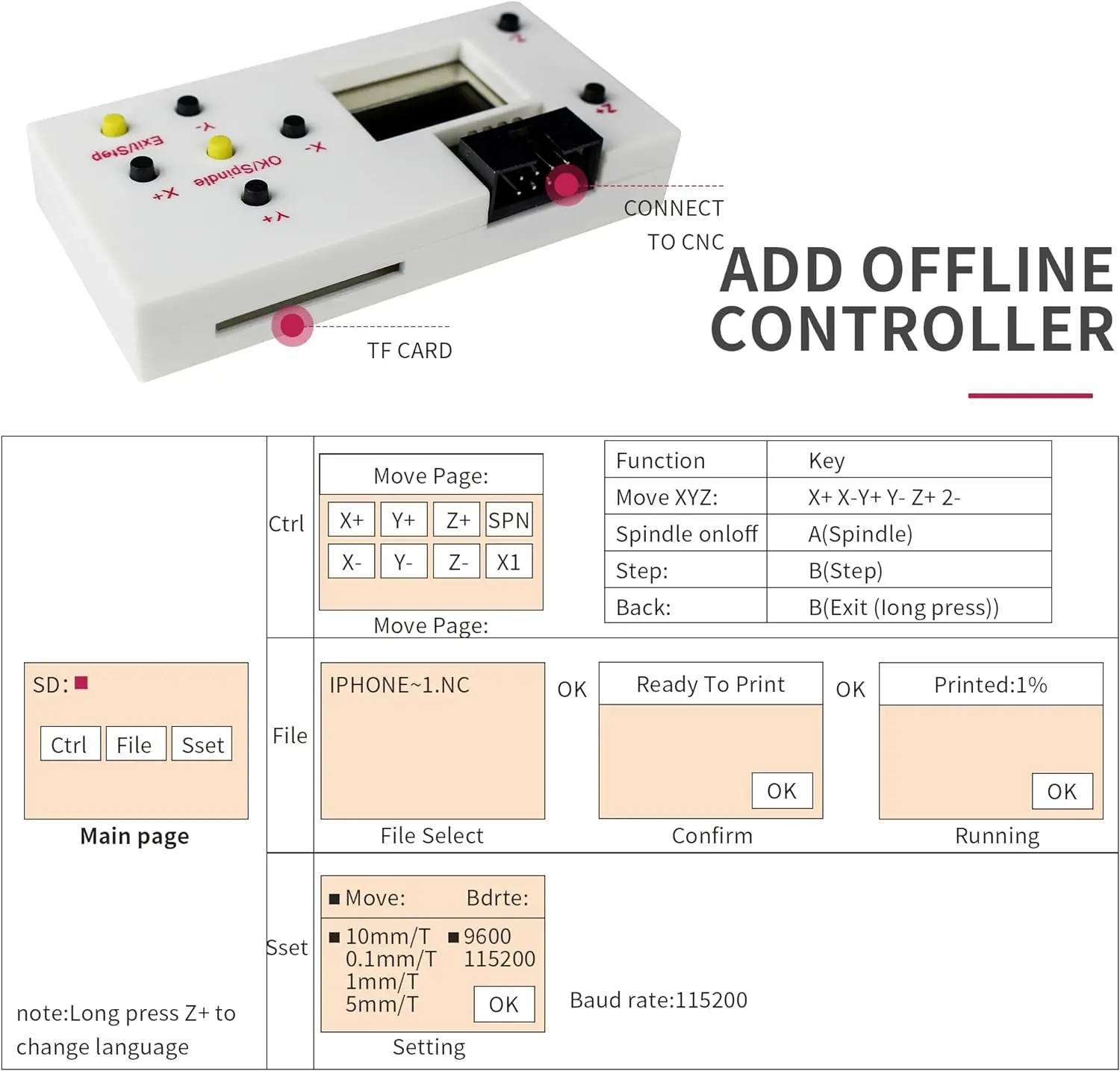

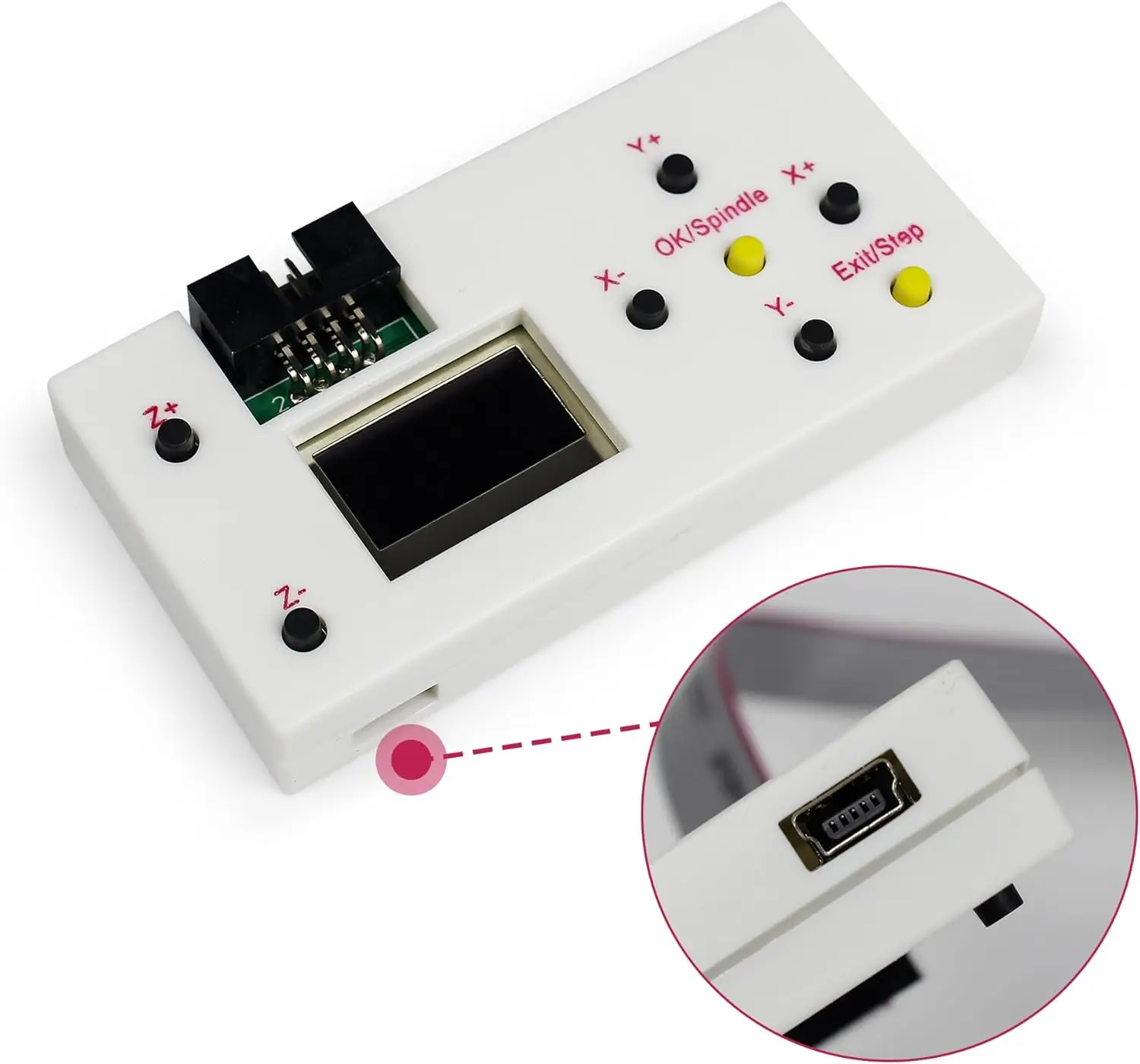

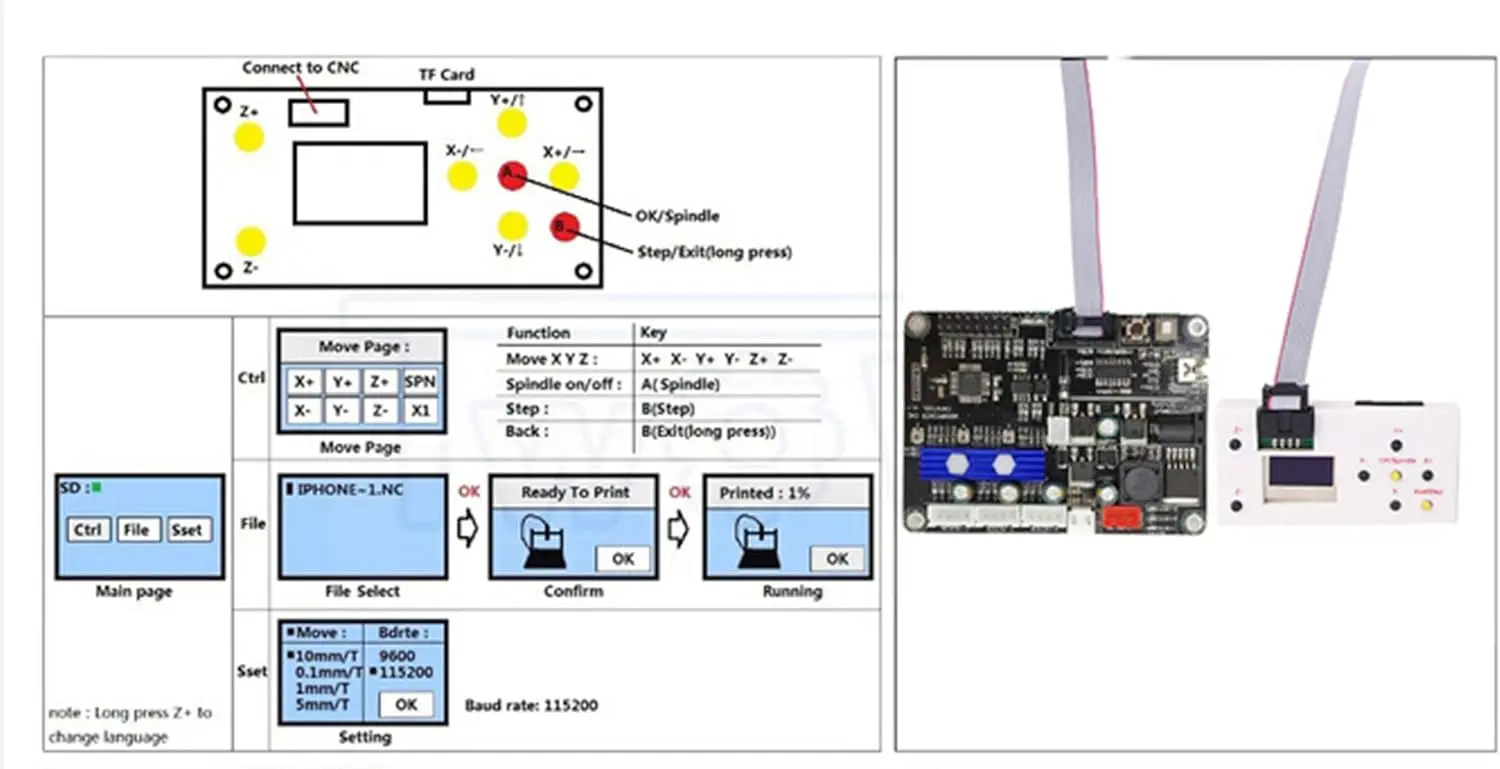

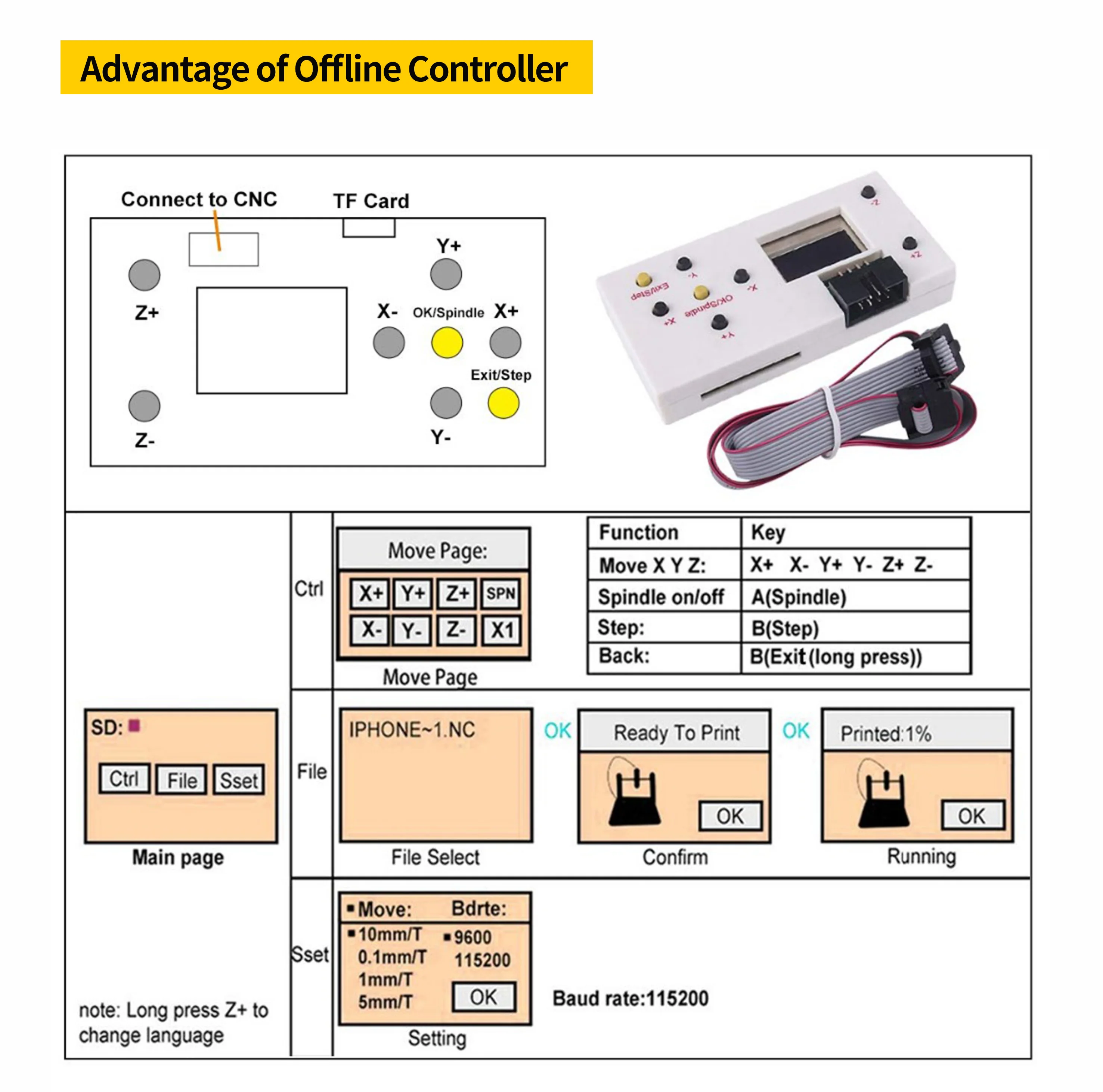

Offline controller:

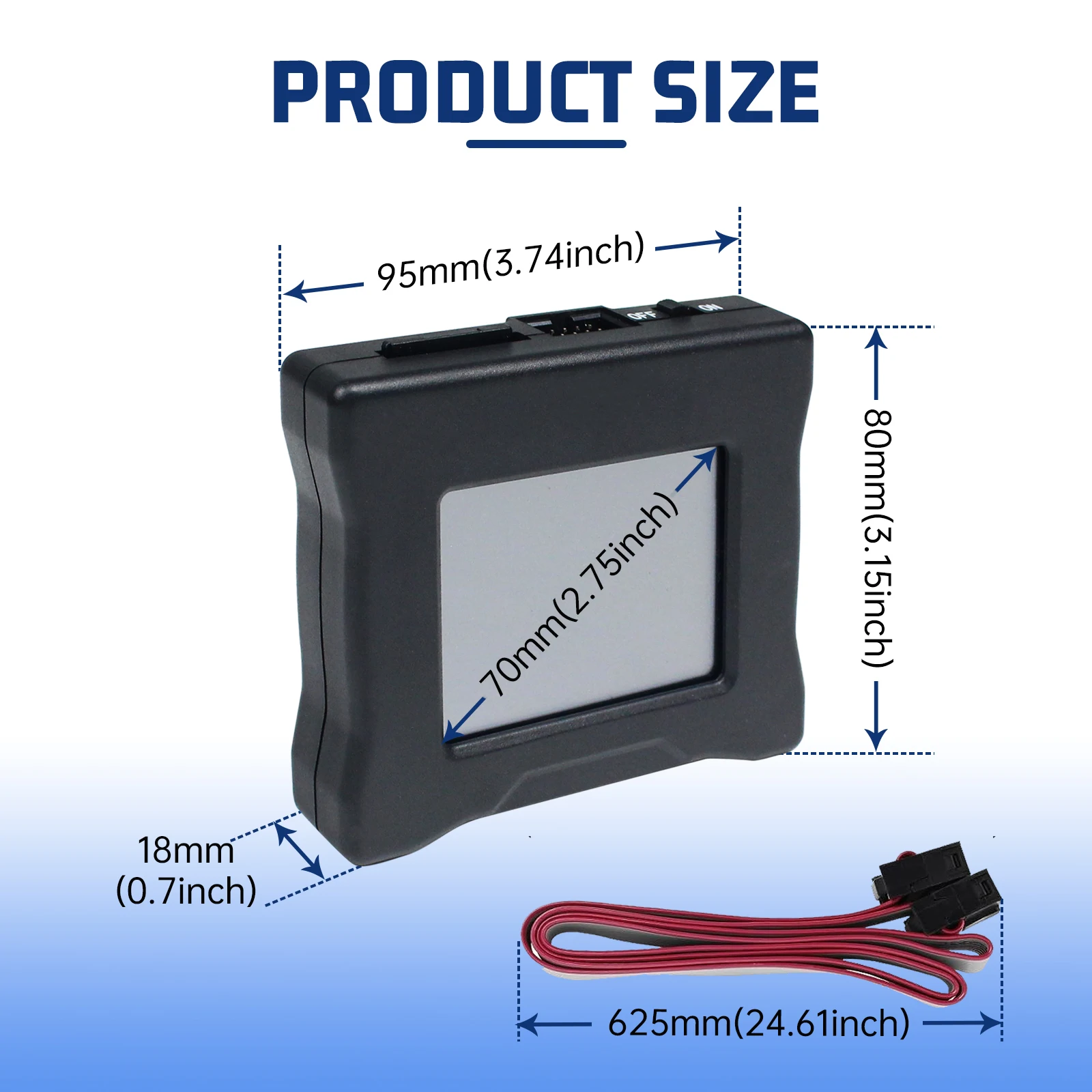

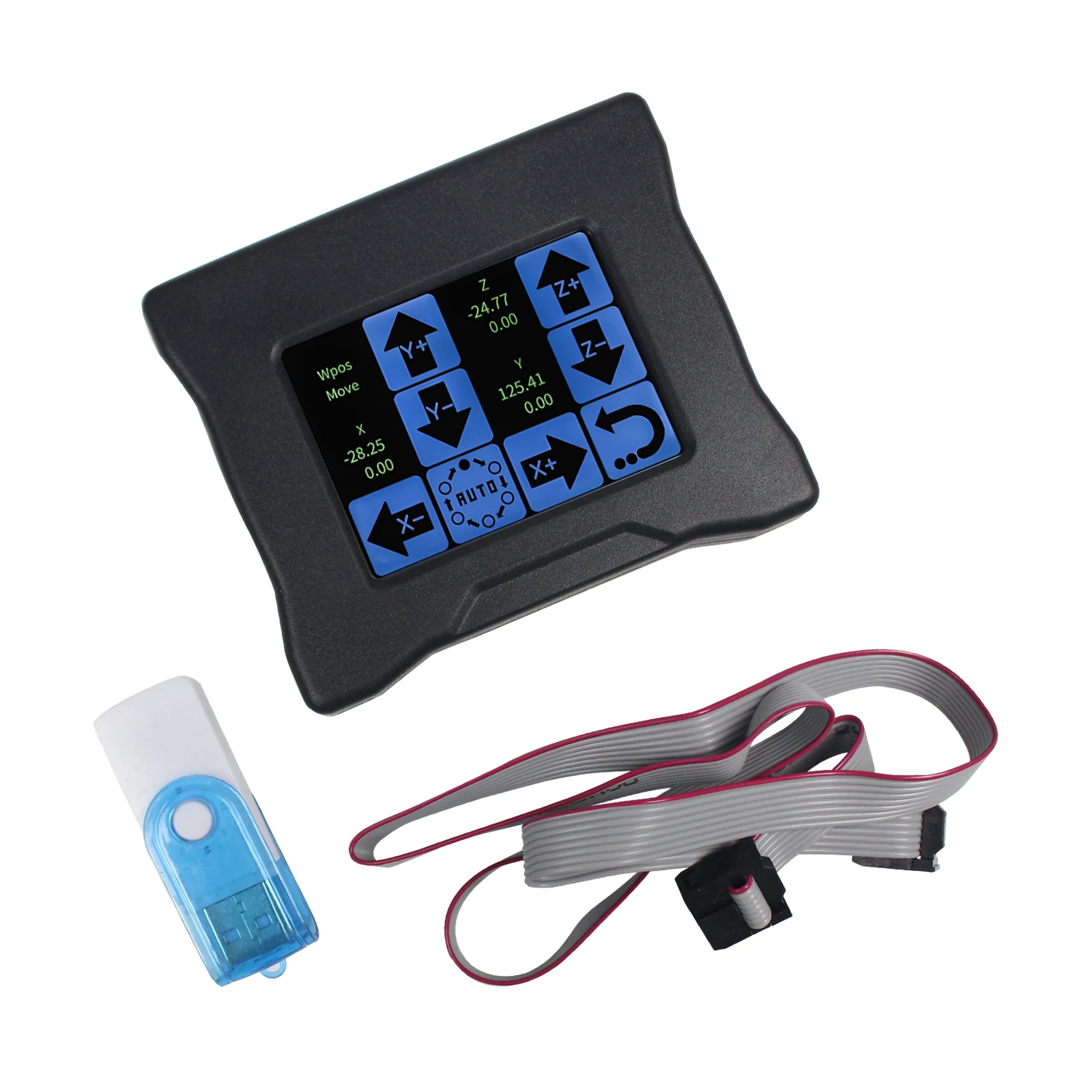

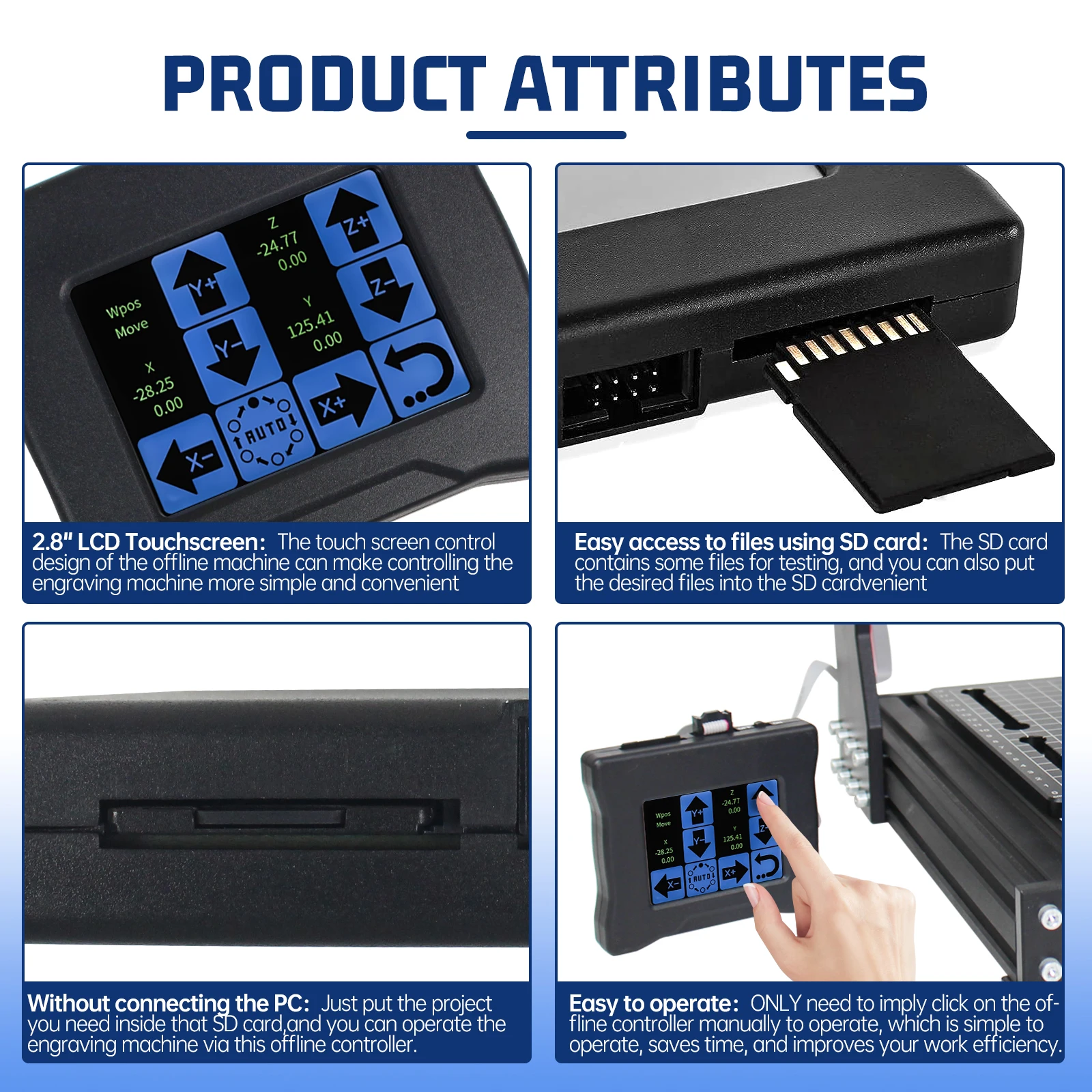

2.8Inch Touch offline controller:
Introduction:
Body
used profiles and plastic, small size, light weight, USB interface,
GRBL control system, learning, entry preferred. Can use carving knife,
but also can use laser engraving.
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the other similar material.

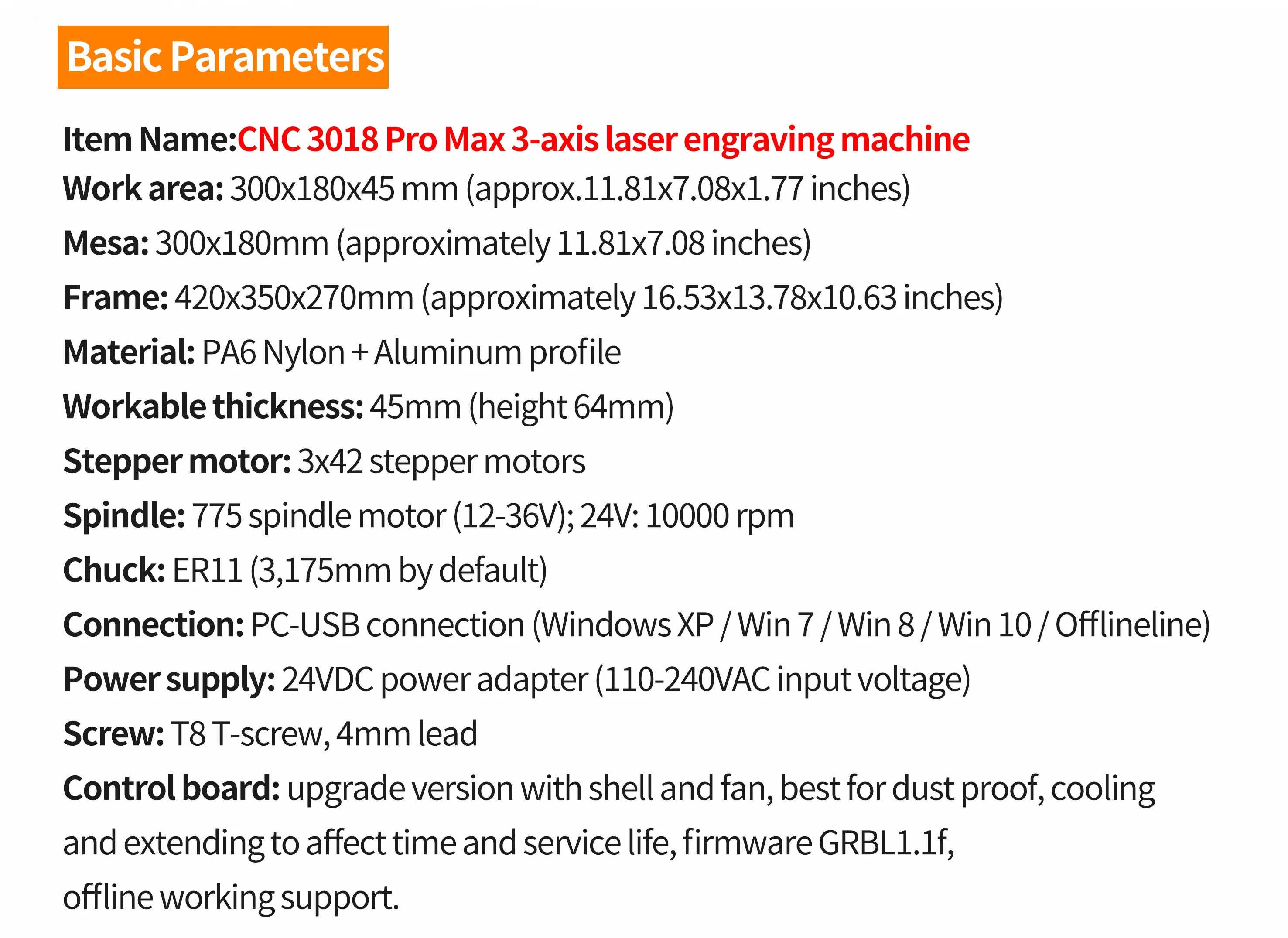

Specification:

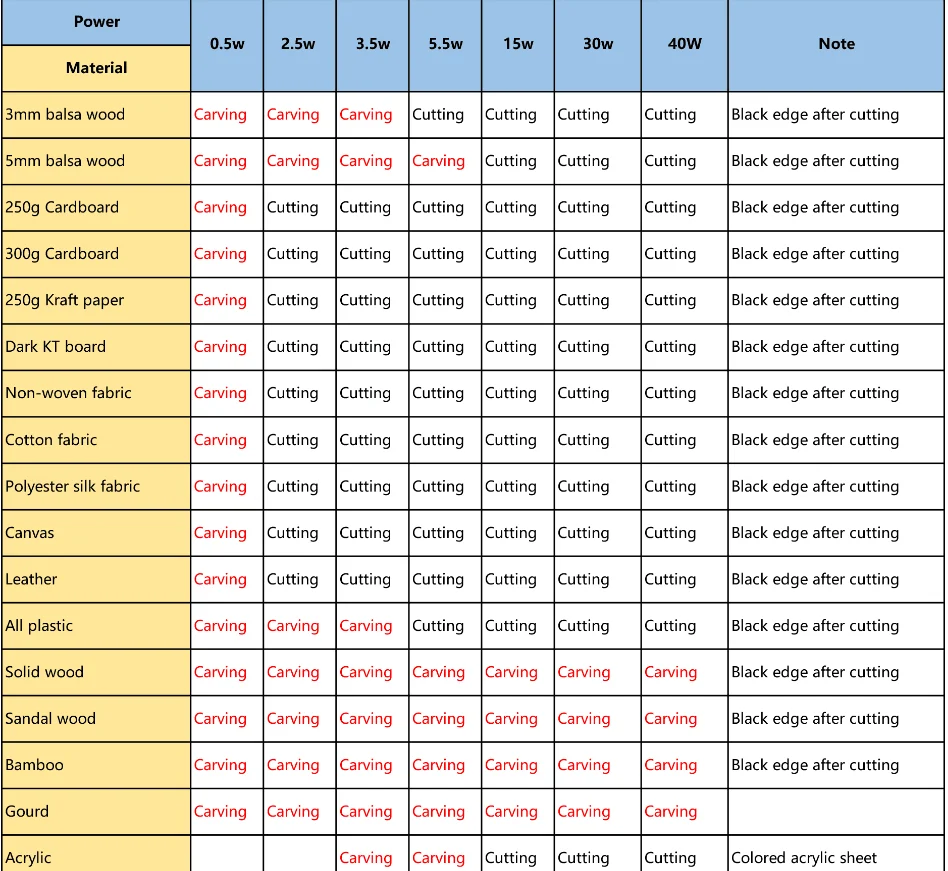

Laser: 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v.
Drill bits: tip 0.1mm ,20 degree , diameter3.175mm.the package include 10p
Support System: Windows XP / Win 7 / Win 8 / Win 10 / Linux

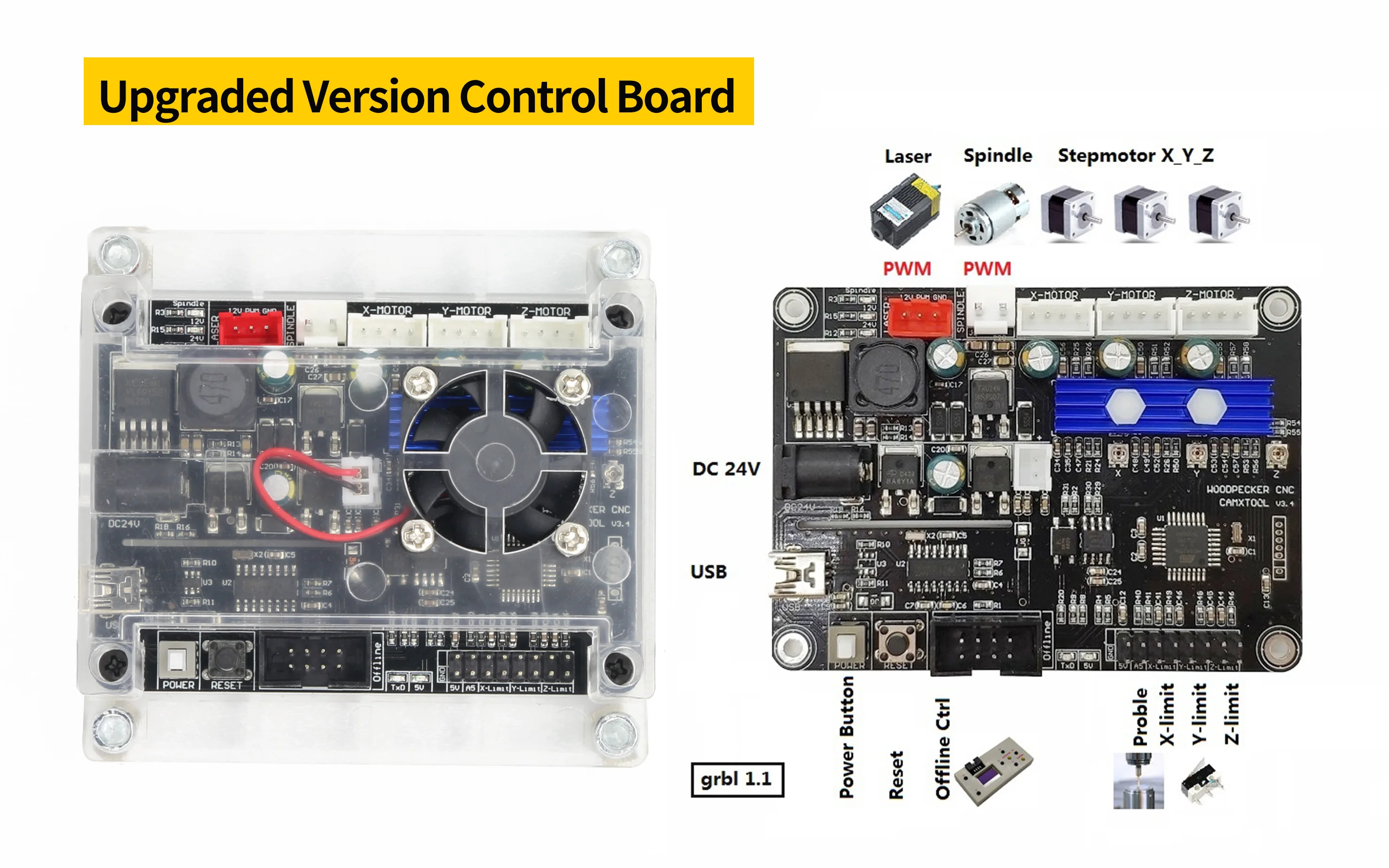

Software : GRBL controller
Power supply : 24V 5.6A
Step motor : Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Spindle Chuck: normal
Spindle : 775 spindle motor (12-36V)24V: 10000r/min

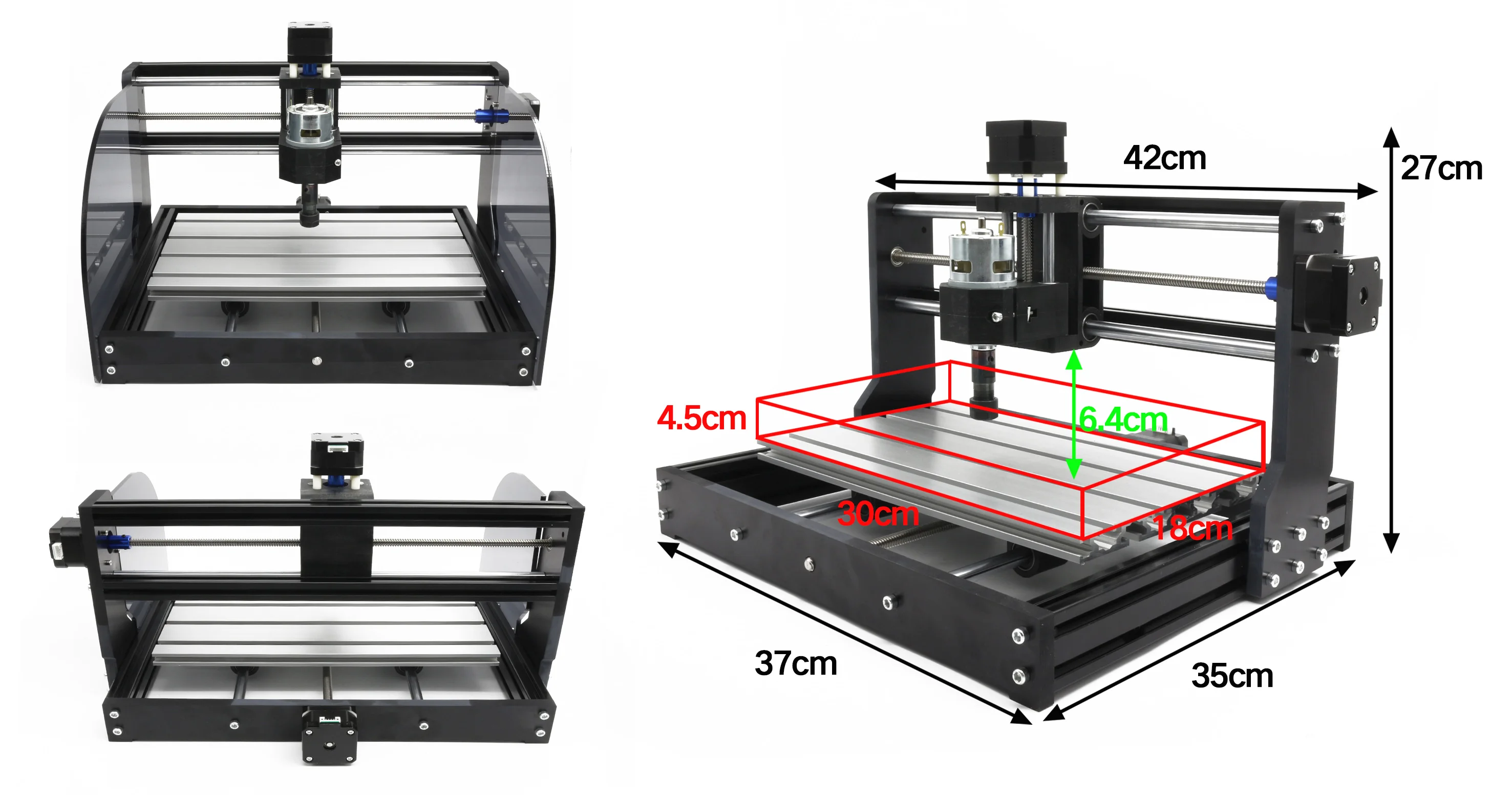

Frame size : 40x33x24cm
Working area : 30x18x4.5cm

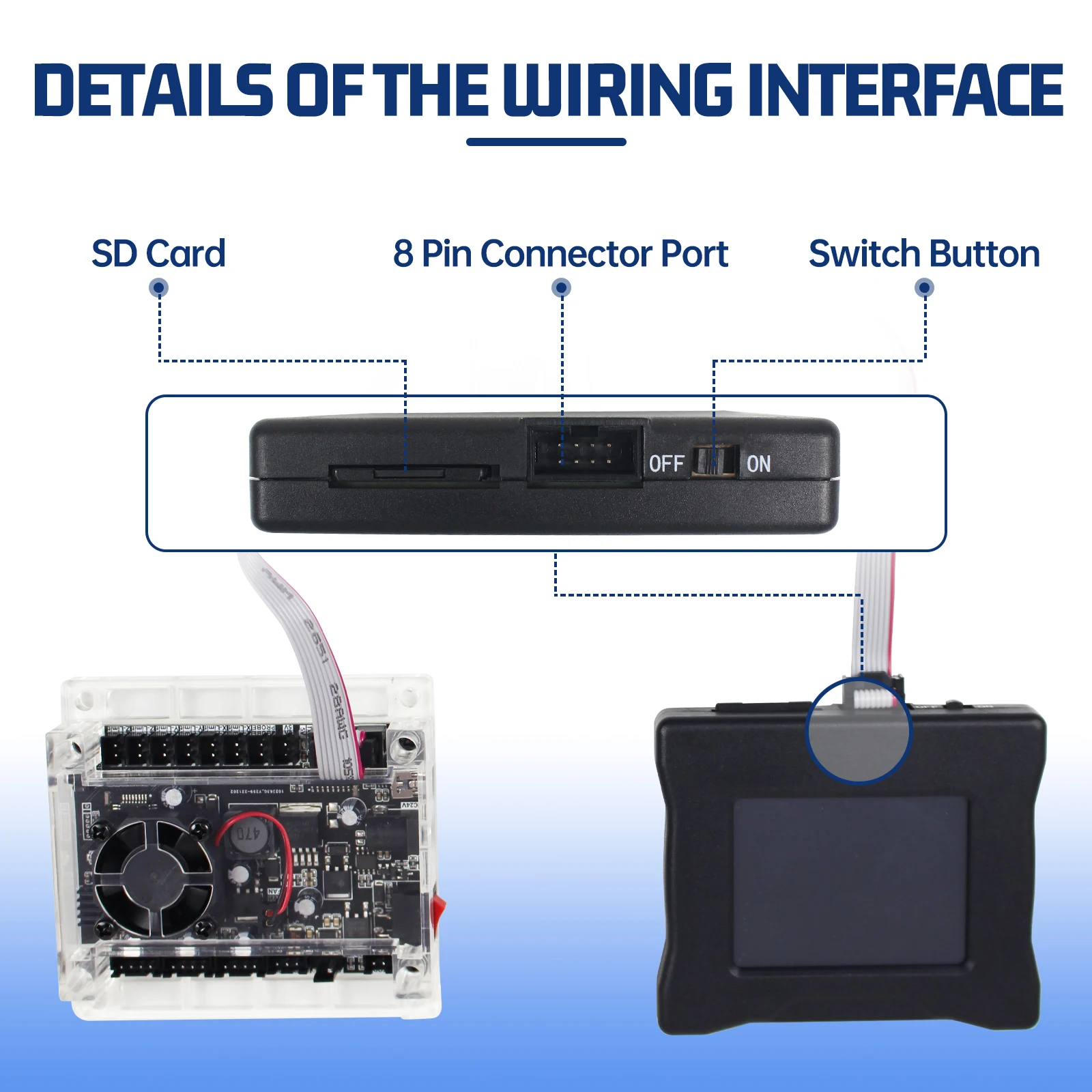

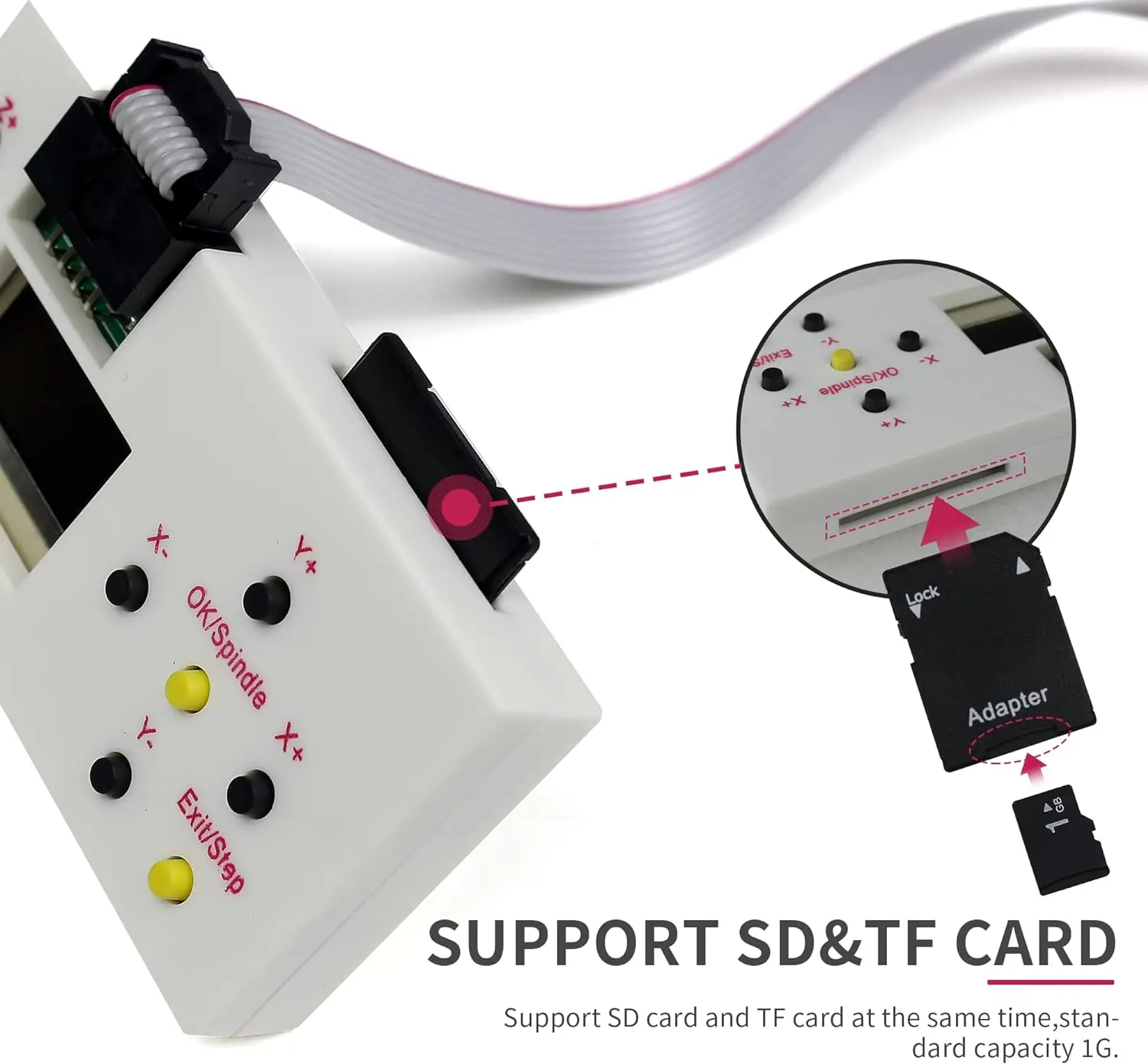

Offline controller:
