BulkMan3D OXMAN CNC Router Kit SFU1610 Ball Screw Dual Linear Rails 4-Axis Industrial Engraver for Metal Wood Acrylic Cutting
BulkMan3D OXMAN CNC Router Kit SFU1610 Ball Screw Dual Linear Rails 4-Axis Industrial Engraver for Metal Wood Acrylic Cutting
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: BULK-MAN 3D
CNC or Not: CNC
Certification: CE
Color of Aluminum Profiles: Silver or Black Anodized
Condition: New
Controller: Offline
Frame Material: 6063-T5 Aluminum
Frame Size: 1000x1000mm or 1500x1500mm
High-concerned chemical: None
Max Working Area(X*Y*Z): 1300x1300x150mm
Model: OX MAN CNC Router
Model Number: OXMAN
Origin: Mainland China
Stepper Motor for Each Axis: 2.2N.m Close Loop Stepper Motor
Thickness of CNC Plates: 12mm
X Axis and Y Axis Ball Screw: SFU1610 (Diameter 16mm)
Z Axis Ball Screw: SFU1204(Diameter 14mm)
Z-Axis Maxinum operating speed: F12000~F20000
Industrial Grade OX-MAN CNC Kit - SFU1610 Ball Screw Trammission |
The OXMAN CNC Router – a revolutionary industrial-grade CNC machine engineered for unparalleled performance and precision. Featuring state-of-the-art SFU1610 (16mm) ball screws,Double HG&MGN Linear Rails&Extended Linear Blocks, this upgraded model builds on the success of the top-selling Ultimate Bee CNC Machine. It is 100% fully self-developed, designed by BulkMan3D International R&D Team and copyrighted by BulkMan3D.
Machine Specification:
01. Configuration:4-Axis Trammission CNC Engraver
02. Frame Material:High Strength●Corrosion 6063-T5 Aluminum
03. Available Models (Frame Size):1000x1000mm | 1500x1500mm
04. Working Stroke (X*Y*Z):

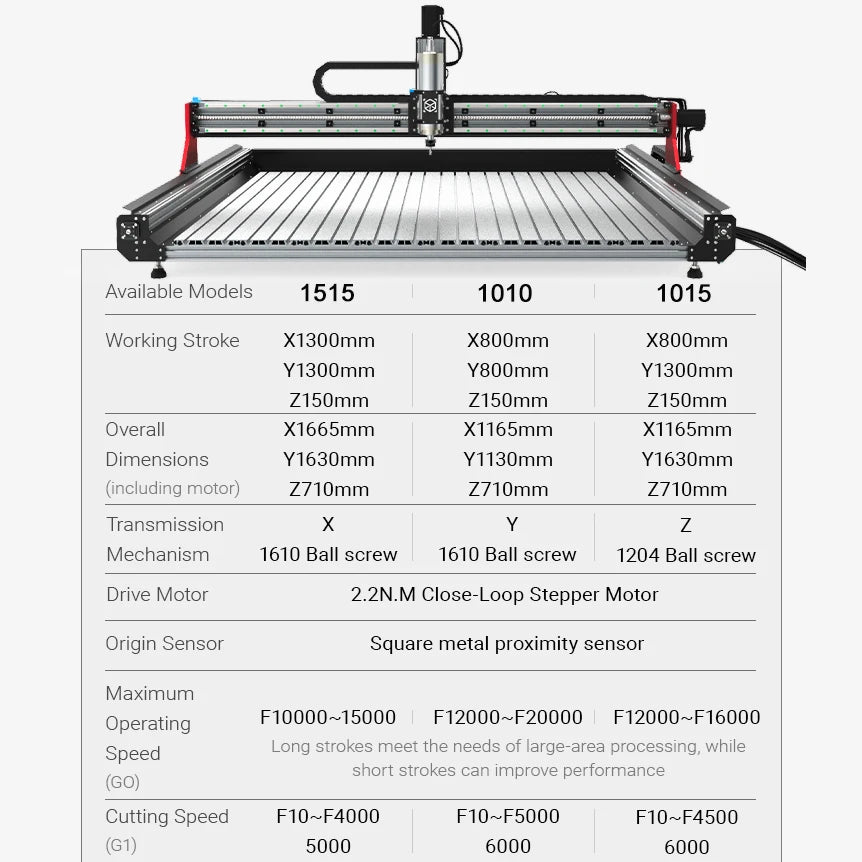

1000x1000mm: X-Axis=800mm(31.50in), Y-Axis=800mm(31.50in), Z-Axis=150mm(5.91in)
1500x1500mm: X-Axis=1300mm(51.18in), Y-Axis=1300mm(51.18in), Z-Axis=150mm(5.91in)
05. Overall Dimensions (Including Motors):
1000x1000mm: X-Axis=1165mm(45.87in), Y-Axis=1130mm(44.49in), Z-Axis=710mm(27.95in)
1500x1500mm: X-Axis=1665mm(65.55in), Y-Axis=1630mm(64.17in), Z-Axis=710mm(27.95in)
06. Transmission on X/Y/A-Axis:SFU1610 Precise Ball Screw + HG15 Extended &Dual Linear Rails
07. Transmission on Z-Axis:SFU1204 Precise Ball Screw + MGN15 Extended &Dual Linear Rails
08. Recommend Supported Weight of Z-Axis(Spindle Motor):6.5kg
09. Motor Type (X/Y/Z/A-Axis):Precision2.2N.m Close Loop Stepper Motor
10. Thickness of CNC Aluminum Plates:12mm
11. Maxinum Operating Speed:F10000mm/min ~ F20000mm/min
12. Cutting Speed(G1):F10~F4000/6000mm/min
13. Gross Weight of Shipment:Approx. 90kg~136kg
14. Warranty:1.5 Years Online Supports
This OXMAN CNC Router Includes: |
 |
|

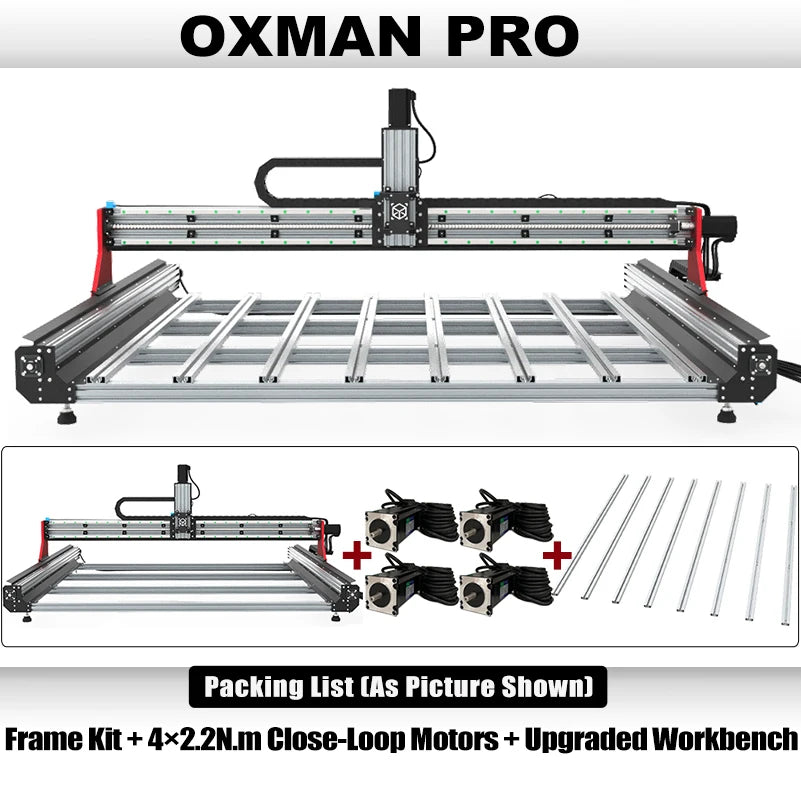

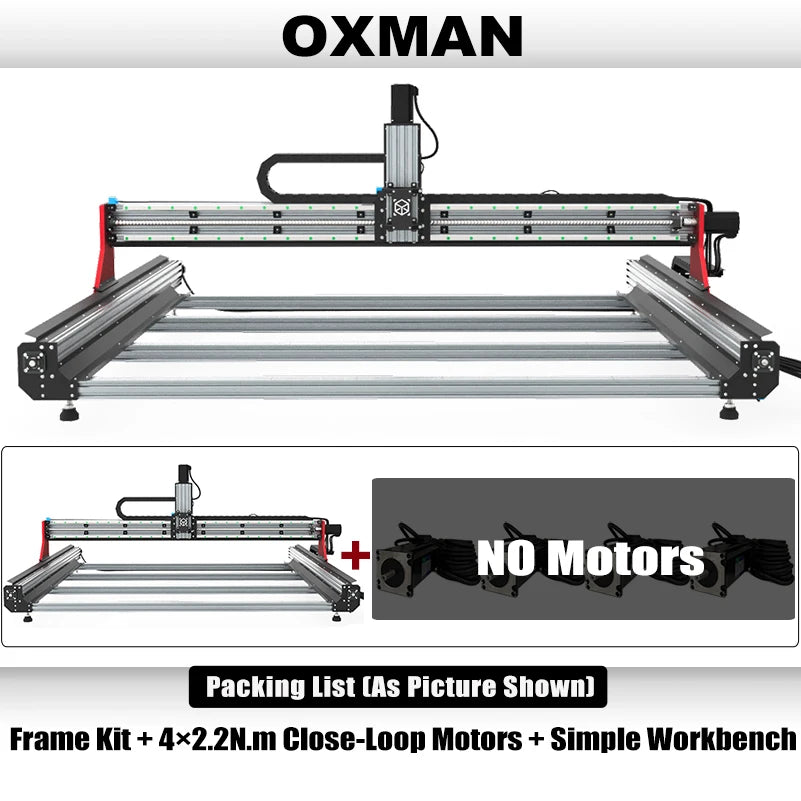

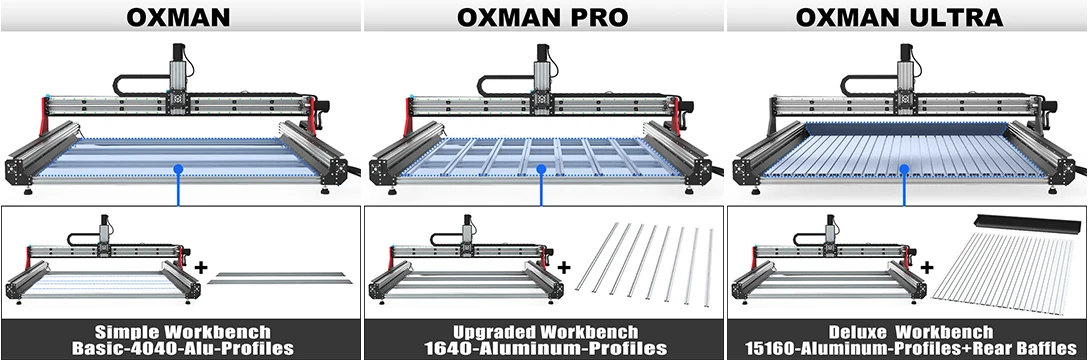

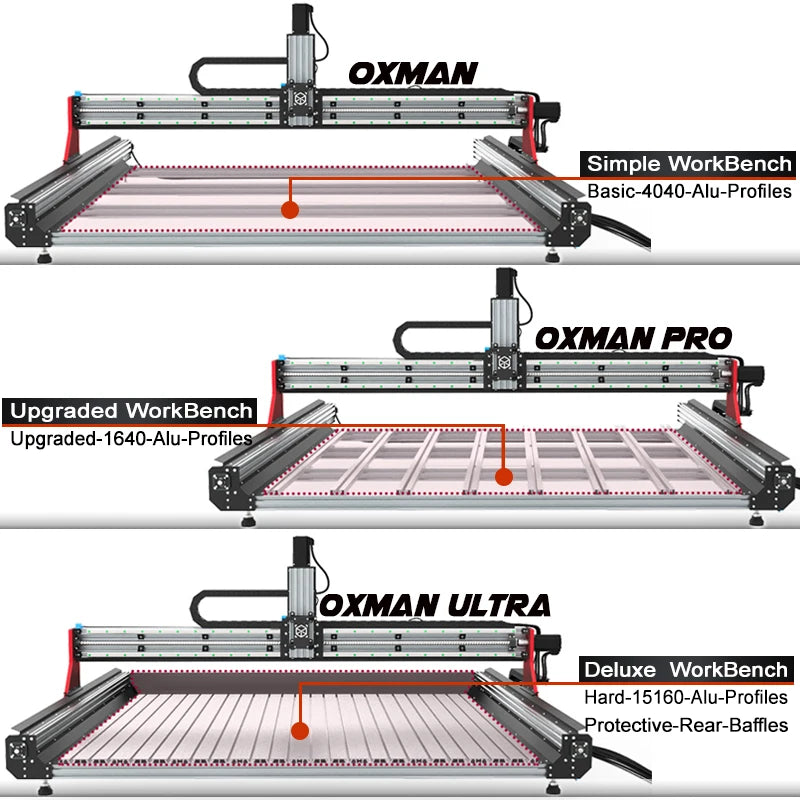

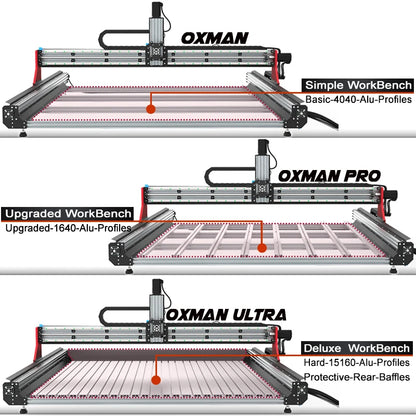

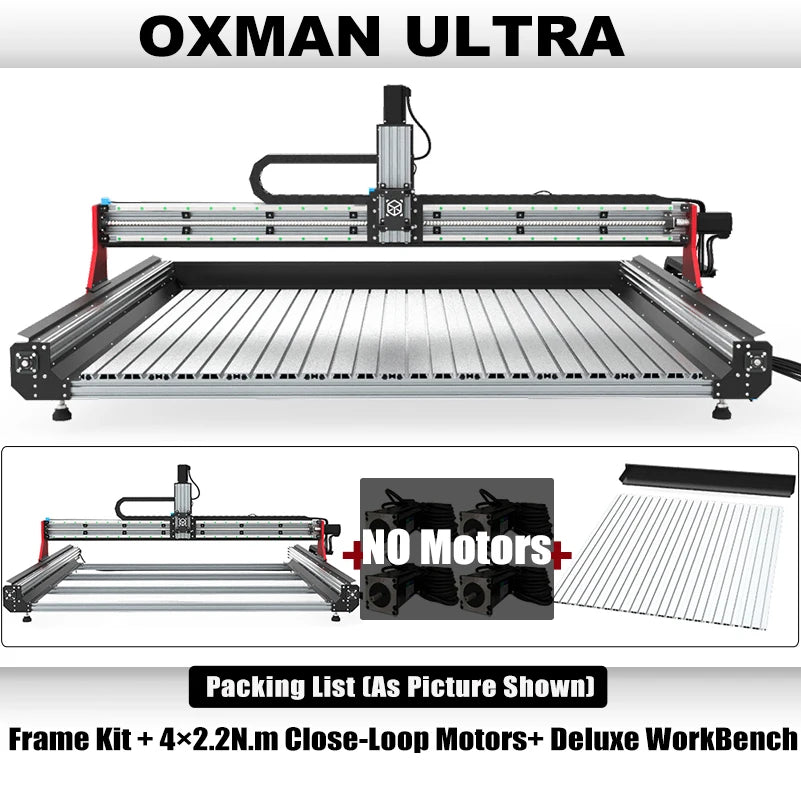

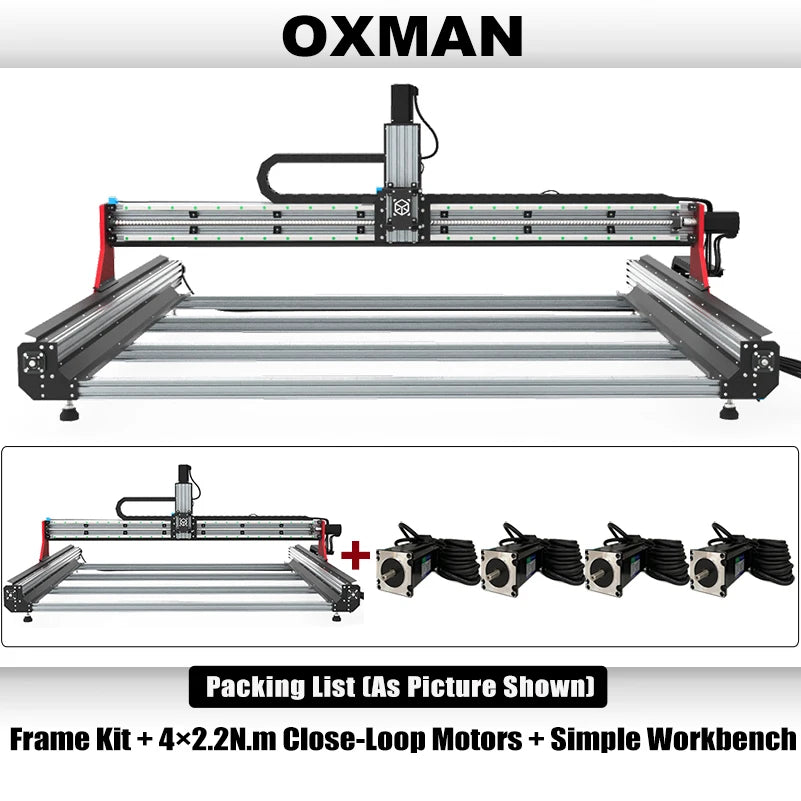

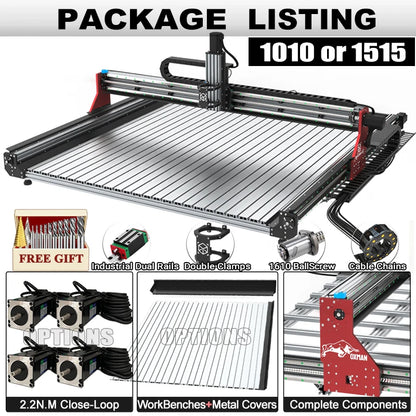

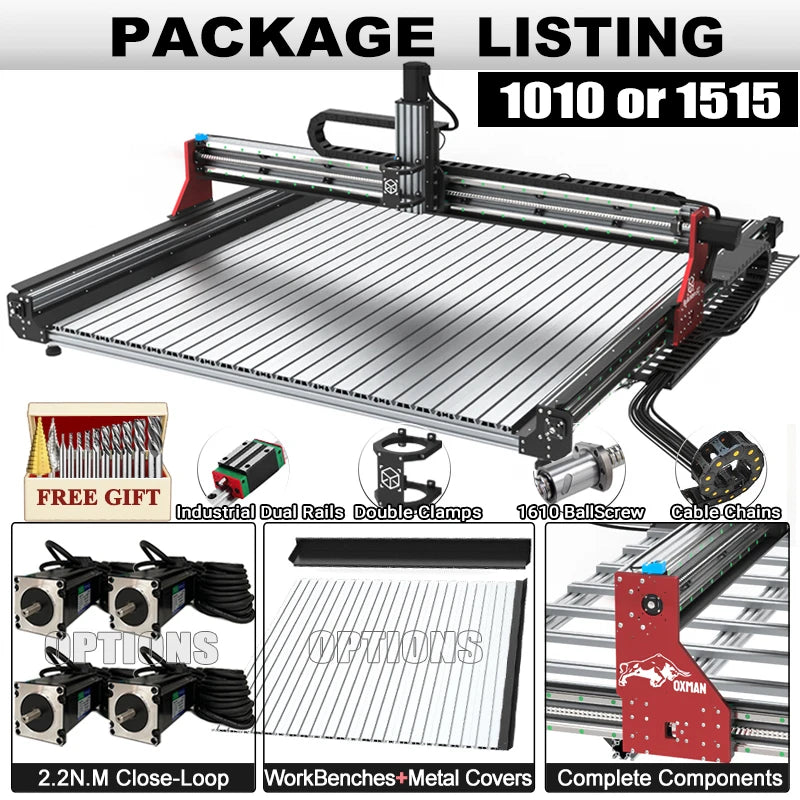

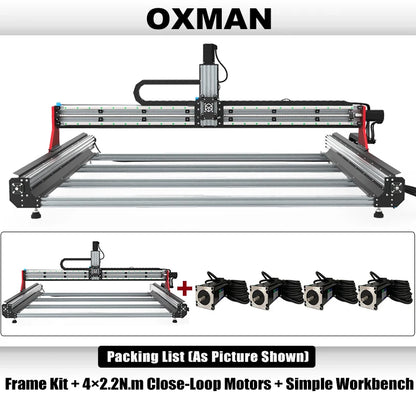

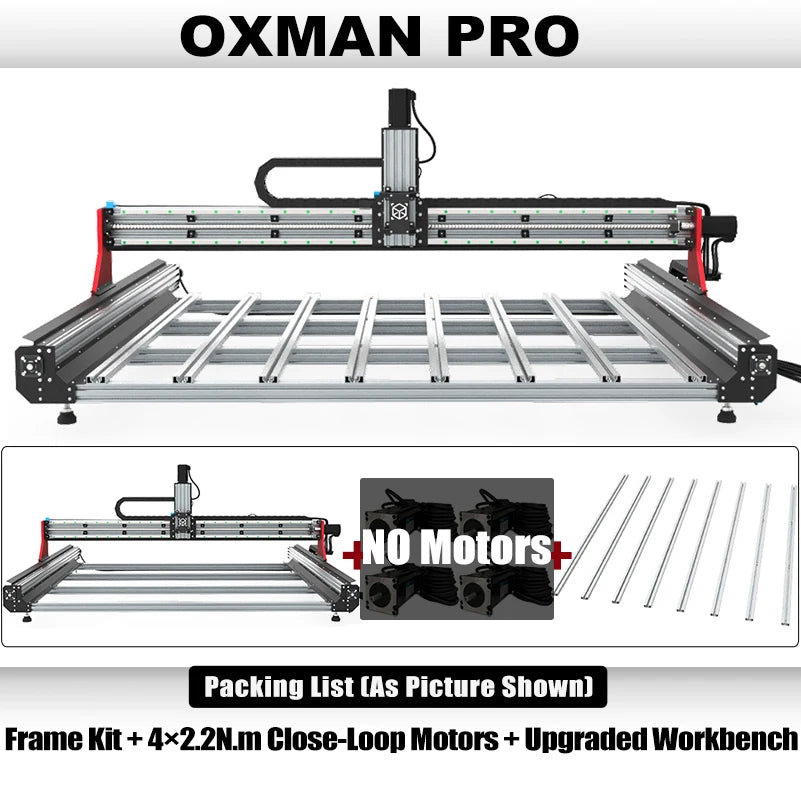

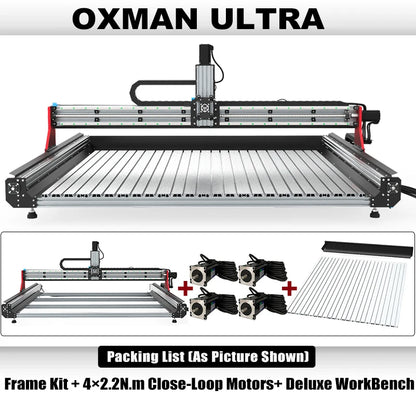

● Optional Sizes OXMAN CNC Series ○1000x1000 (Working Area:800x800x150mm | 31.50x31.50x5.91in) ○1500x1500 (Working Area:1300x1300x150mm | 51.18x51.18x5.91in) ● Options As Picture Shows Different Workbench ○OXMAN (with simple workbench) ○OXMAN PRO (with upgraded workbench-1640 profiles) ○OXMAN ULTRA (with deluxe workbench-15160 profiles + rear baffles) ● Options As Picture Shows Stepper Motor ○4Pcs 2.2N.m Closed Loop Stepper Motors ○No Motors ● OXMAN CNC Machine Plates ● SFU1610&SFU1204 Ball Screws + Extended HG&MGN15 Linear Rails ● New Design Extended Interior-Opening Cable Drag Chain System ● Complete CNC Components (fixing screws, nuts, brackets etc) ● After Assembly, You will Get the Whole Machine as shown in Picture! |
Key Features |

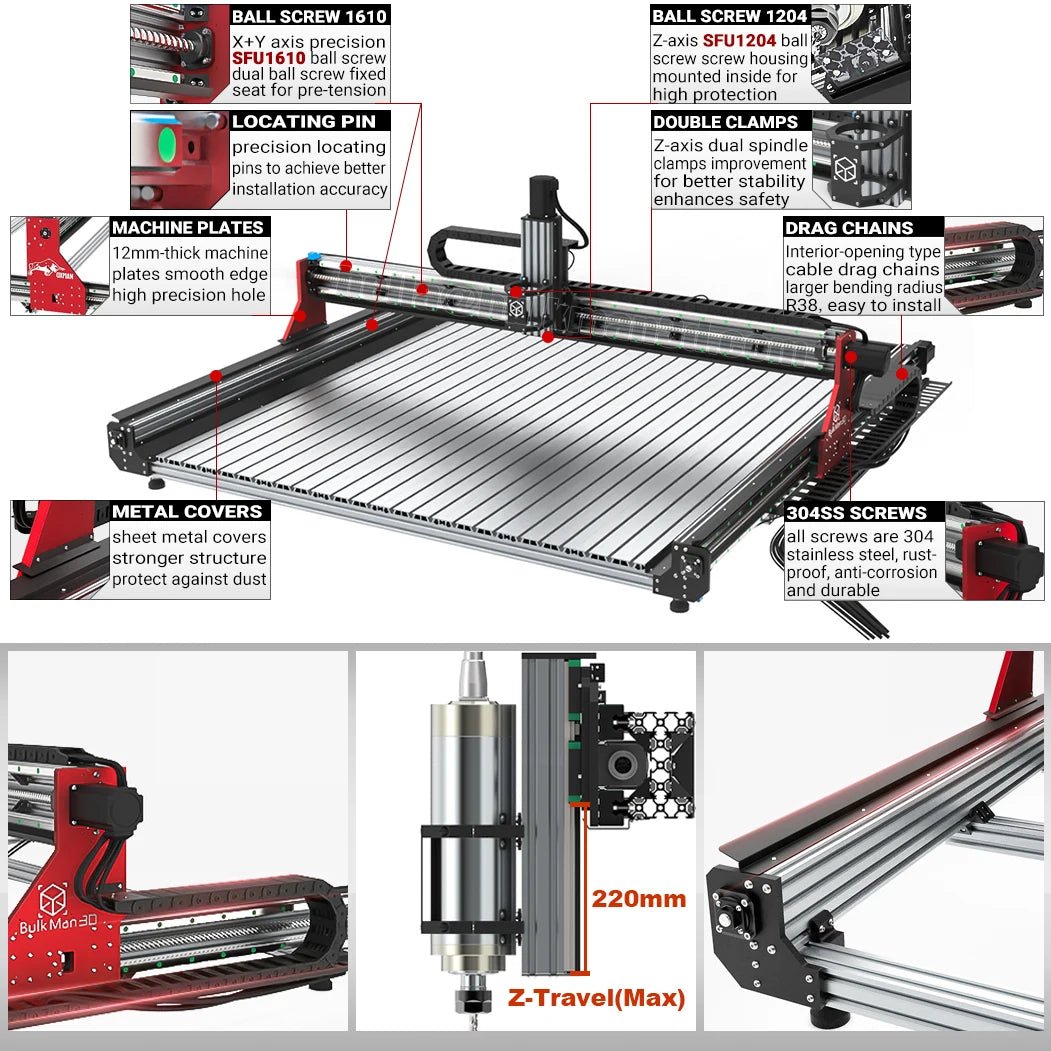

✅[Robust Aluminum Frame] Constructed with a robust 6063-T5 aluminum alloy frame, the OXMAN CNC ensures exceptional durability and stability, effectively reducing vibrations for smooth, precise operation over extended machining sessions.
✅[Precision Locating Pins] Each key component uses precision pins for perfect alignment, while robust metal covers and reinforced aluminum protect all axes for superior stability. Even DIY CNC users can achieve accurate setup without professional tools.
✅[2.2KW Spindle Motor] Powered by a potent 2.2KW spindle motor, the OXMAN CNC offers impressive torque and speed across various materials, ensuring superior cutting and engraving performance even on the toughest substrates.
✅[High-Precision Stepper Motors] Outfitted with advanced 2.2N.M closed-loop stepper motors, the OXMAN delivers consistent and repeatable results, enabling high-quality cuts and engravings with minimal deviation.
✅[Enhanced Precision with Ball Screws] Equipped with premium ball screws, the OXMAN improves movement accuracy and efficiency, reducing backlash and guaranteeing smoother, more precise cuts.
✅[Dual Linear Rails & Extended Blocks] Featuring dual linear rails & extended blocks, the OXMAN enhances stability and ensures smoother motion, delivering accurate and reliable machining results even under heavy loads.
✅[Durable 304Stainless Steel Screws] Incorporating stainless steel screws throughout its build, this machine resists wear and corrosion, extending its lifespan while consistently maintaining high precision.
✅[Versatile Workbench Options] Offering three distinct workbench configurations, the OXMAN accommodates various budgets and applications—ideal for both heavy-duty tasks and everyday use.
✅[New Design Interior-Opening Cable Drag Chain] The enhanced cable drag chain optimizes cable management, shielding them from wear and reducing friction, which in turn supports smoother machine movements and improved reliability.
✅[Compatible Materials for Cutting/Milling/Engraving]
Perfect for aluminum, hardwood, plywood, PVC, plexiglass, Delrin, PCB boards, light metals, and more.
Frequently Ask Questions |
Q1:What are the differences among the OXMAN, OXMAN PRO and OXMAN ULTRA? |
Q2: Is this a complete cnc router comes with everything ready to work? |
Q3: What about the Accuracy of the OXMAN CNC Series? |
Q4: How to assemble this CNC? |
Q5: What about Warranty and Technical Support? |
OXMAN CNC Engraver: 1 Machine, 100+ Materials Mastery! |
Features of 2.2N.M Close-Loop Stepper Motors |
|
● Stepper Motor model: 57HSE2.2N
● Shaft Diamater: 8mm
● Motor Current: 3.5A
● Hold Torque:2.2N.M
● Encoder cable: 5000mm
● Motor cable: 5000mm
● Rated voltage/current: 3.5A
● Outlet mode: single output shaft
● Rated speed: 1000 rpm (no-load speed: 2000 rpm)
● Outlet mode: two-phase four-wire (must be wired according to motor label
Key Features:
- High Precision: Achieves accurate positioning, good for fine control like
micro-machining.
- Strong Torque Output: 2.2N.m torque can handle heavier loads, ensuring
reliable operation.
- Closed-Loop Control: Continuously monitors and corrects position errors for
stable running.
- Energy-Efficient: Adjusts current based on load,reducing energy consumption.
|
|
