Black 1515 QueenAnt PRO V2 16mm Big Ball Screw CNC Full kit Linear Rail upgraded precise CNC router Engraving machine
Black 1515 QueenAnt PRO V2 16mm Big Ball Screw CNC Full kit Linear Rail upgraded precise CNC router Engraving machine
Couldn't load pickup availability
SPECIFICATIONS
Accuracy: below 0.03mm
Ball Screw: Big Diamater 1610
Brand Name: YUYONG INDUSTRY
CNC or Not: CNC
Condition: New
Controller system: Controller system: GRBL/Mach3/Off-Line
Drive system: Ball Screw
Frame: V-slot Aluminum extrusion
High-concerned chemical: None
Item: QueenAnt PRO CNC Full kit
Model Number: YY-QA-FPB01
Origin: Mainland China
Rail system: Linear Rail
Size: 1500x1500
Spindle: 1.5KW/2.2KW
Spindle Type: Air/Water cooled
Voltage: 110V or 220V
|
NOTE: Seller's Shipping Method: This is sea or train to door, include tax(part countries), time is about 35-90days.If not urgent,please choose this! UPS/Fedex/Other: This is Express,not include tax,time is about 5-20days.If urgent,please choose this! |

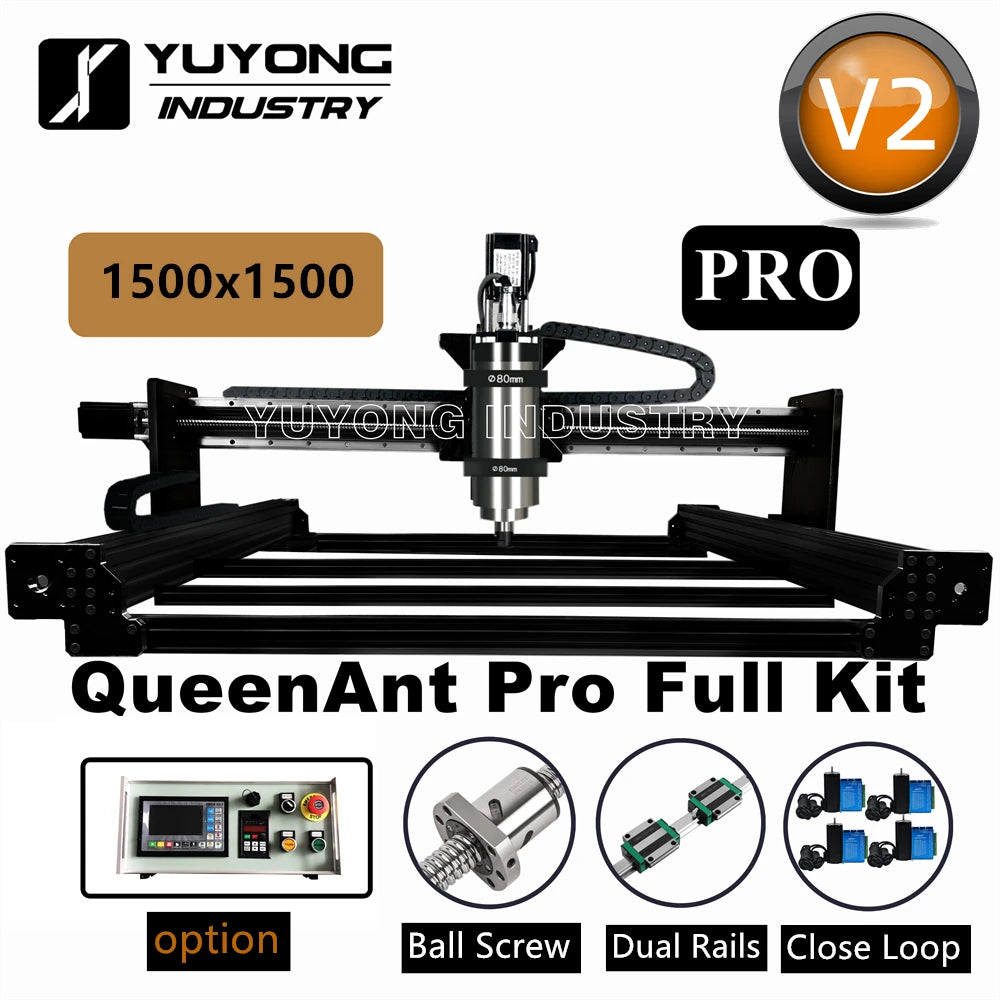

QueenAnt PRO V2 16mm Big Diamater Precise Ball Screw CNC Machine Full kit
The QueenAnt(PRO)is a Industrial Grade CNC with Ultra High Precise Ball Screw and Full Track Linear Rail Upgrade based on very well-received WorkAnt CNC and QueenBee CNC Machines.It's 100% Independent research,development,design and owned by YUYONG INDUSTRY. Our R&D department fully listened to community members’ requests for a high-precision CNC machine,Combining our own technology,Multi-party correction and testing and continuous improvement, which lasted 1 year,then the Industrial Grade QueenAnt Ball Screw CNC Machine is born!
Its many super upgrades have greatly improved the mechanical performance of the entire machine in terms of frame design or rigidity and precision.
With Full Series size,no matter Cutting or 3D carve wood,pcb plastics, aluminum, etc. to create beautiful intricate 3D carvings, inlays, furniture, signs, plaques, amazing works of art and so much more. All can be achieved here!
It will become a most popular Ball Screw CNC machines for Factory,Tech,Electric,Art,Furniture,DIYers etc.
|
Compatible Material for Cutting/Milling/Engraving:
Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam.....
|
|
This Full Kit Includes:

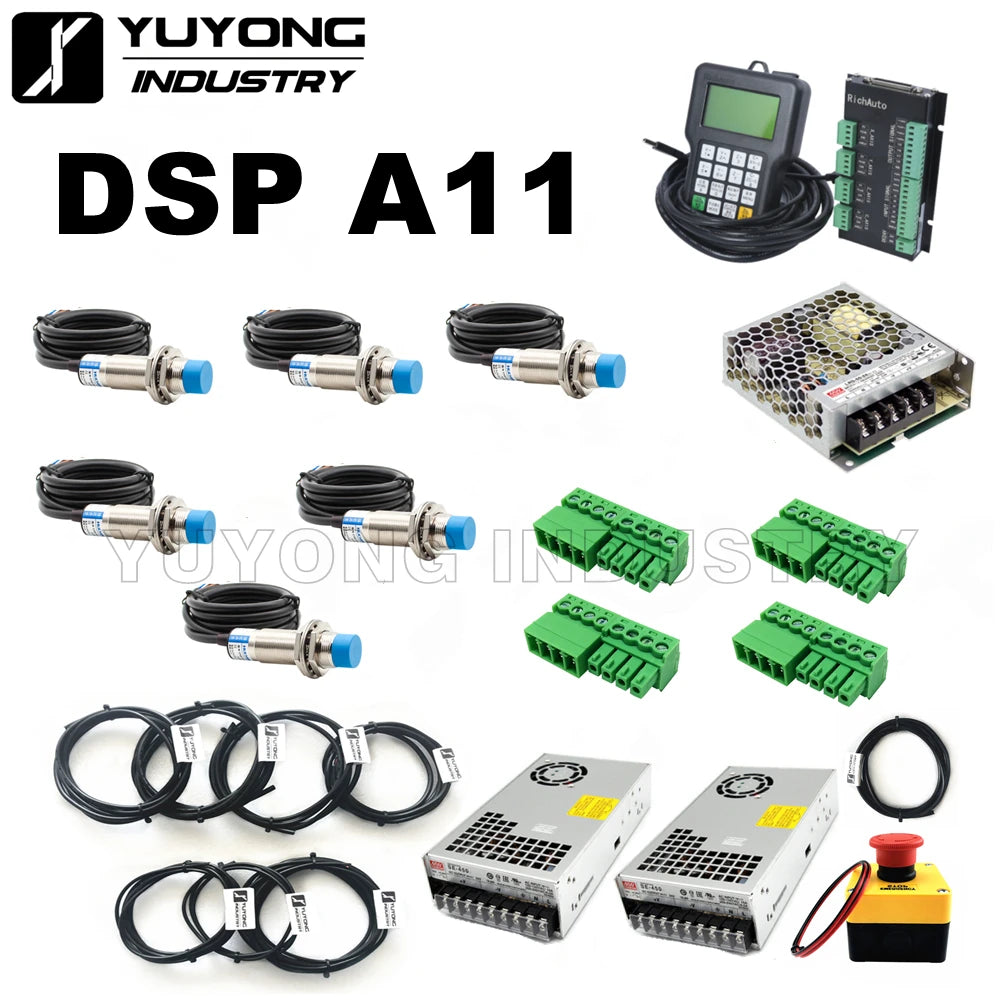

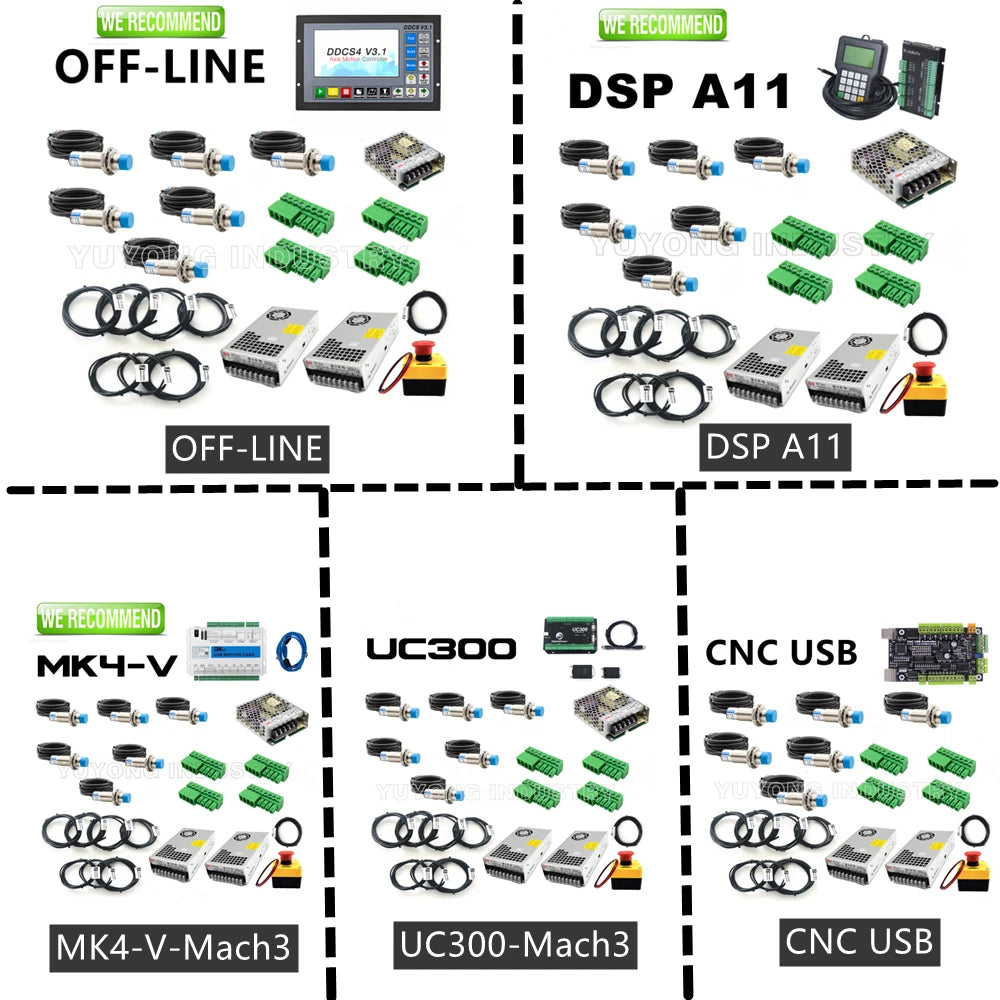

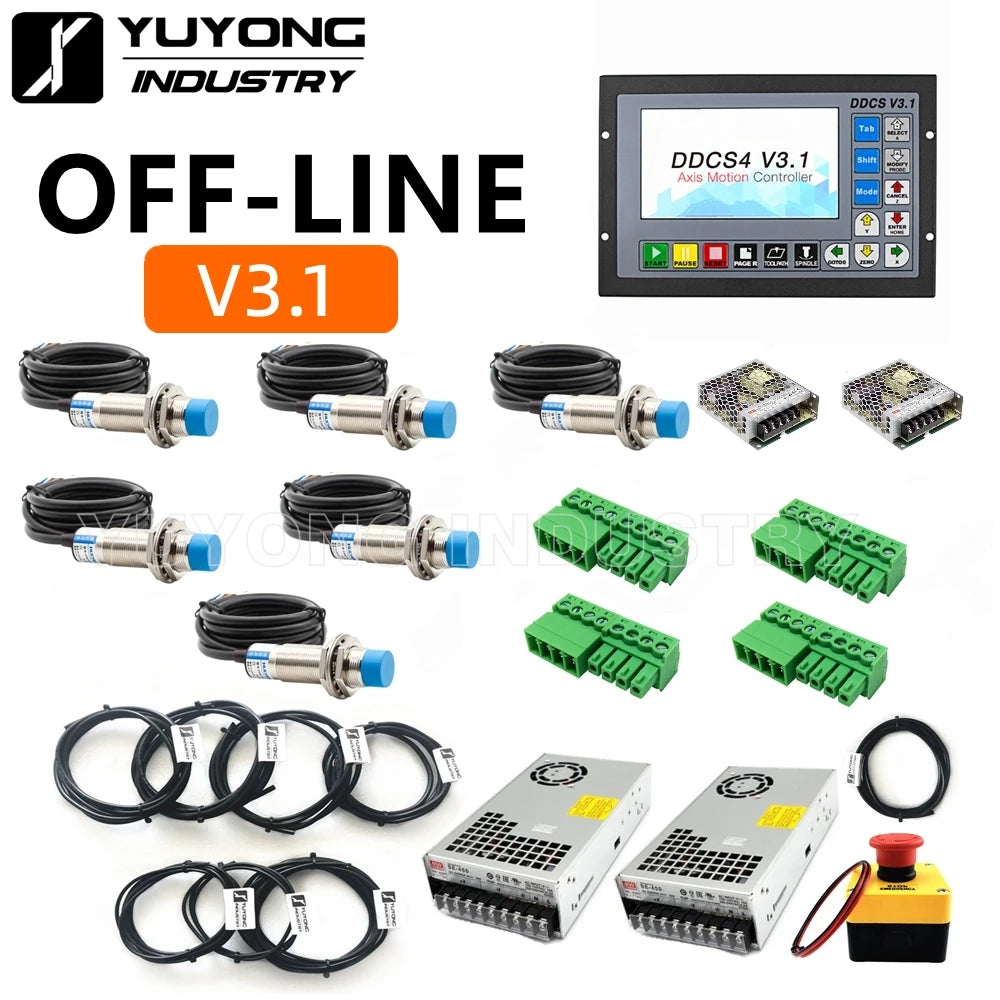

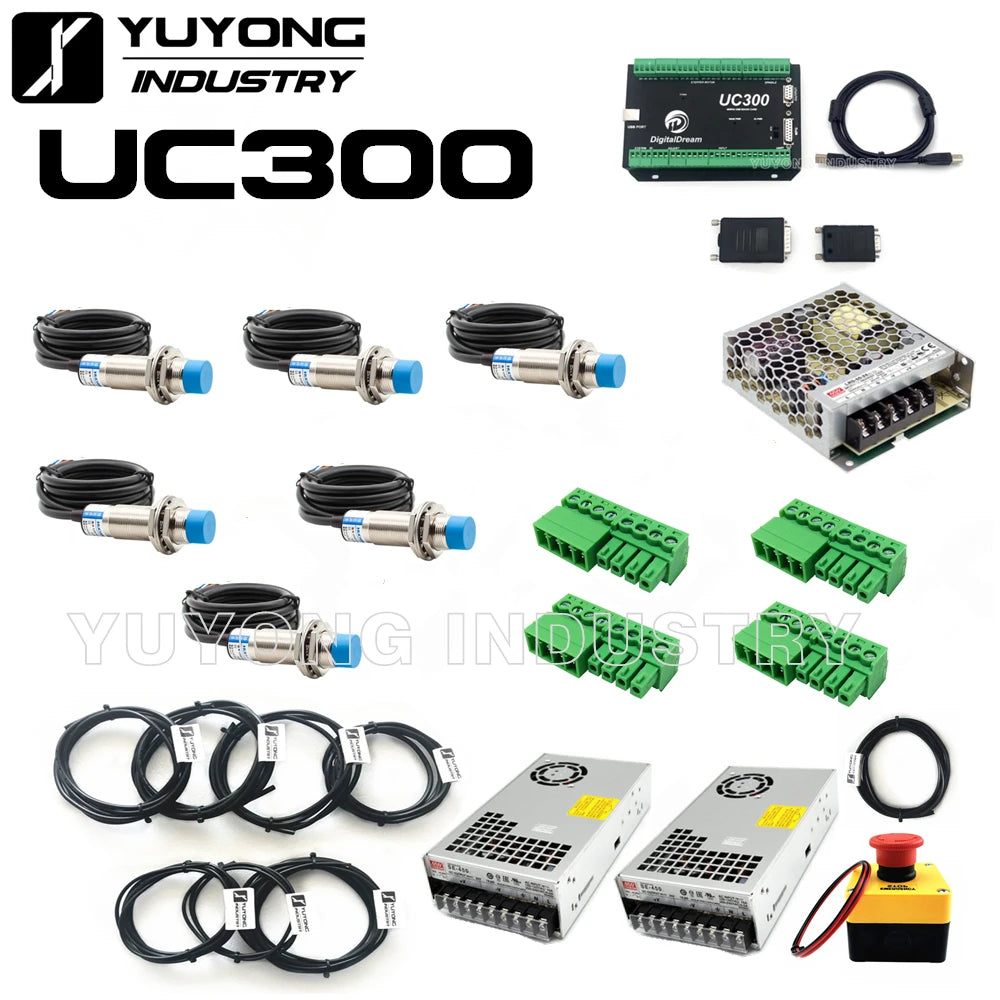

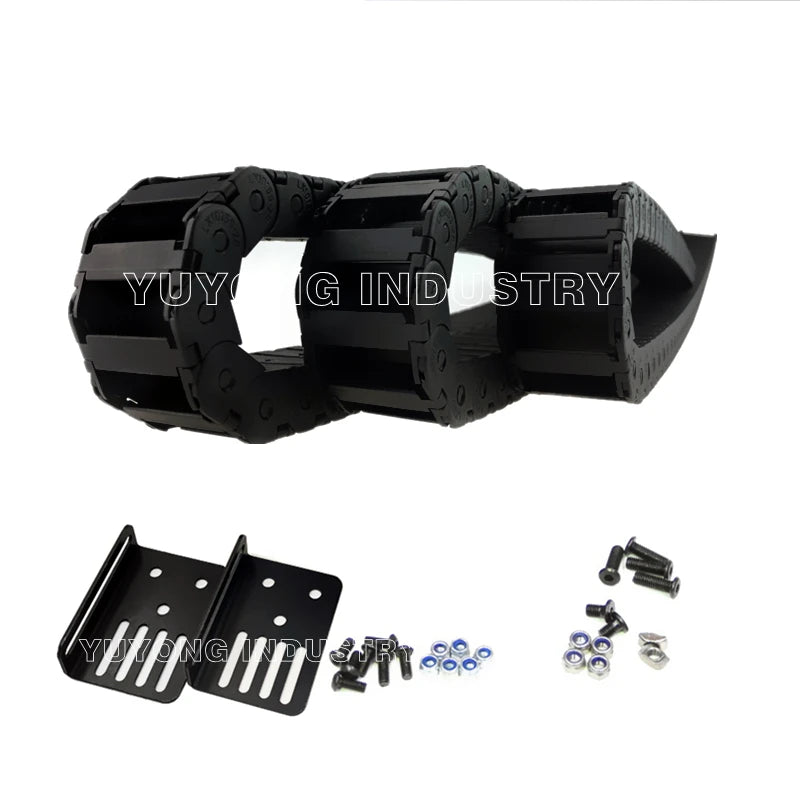

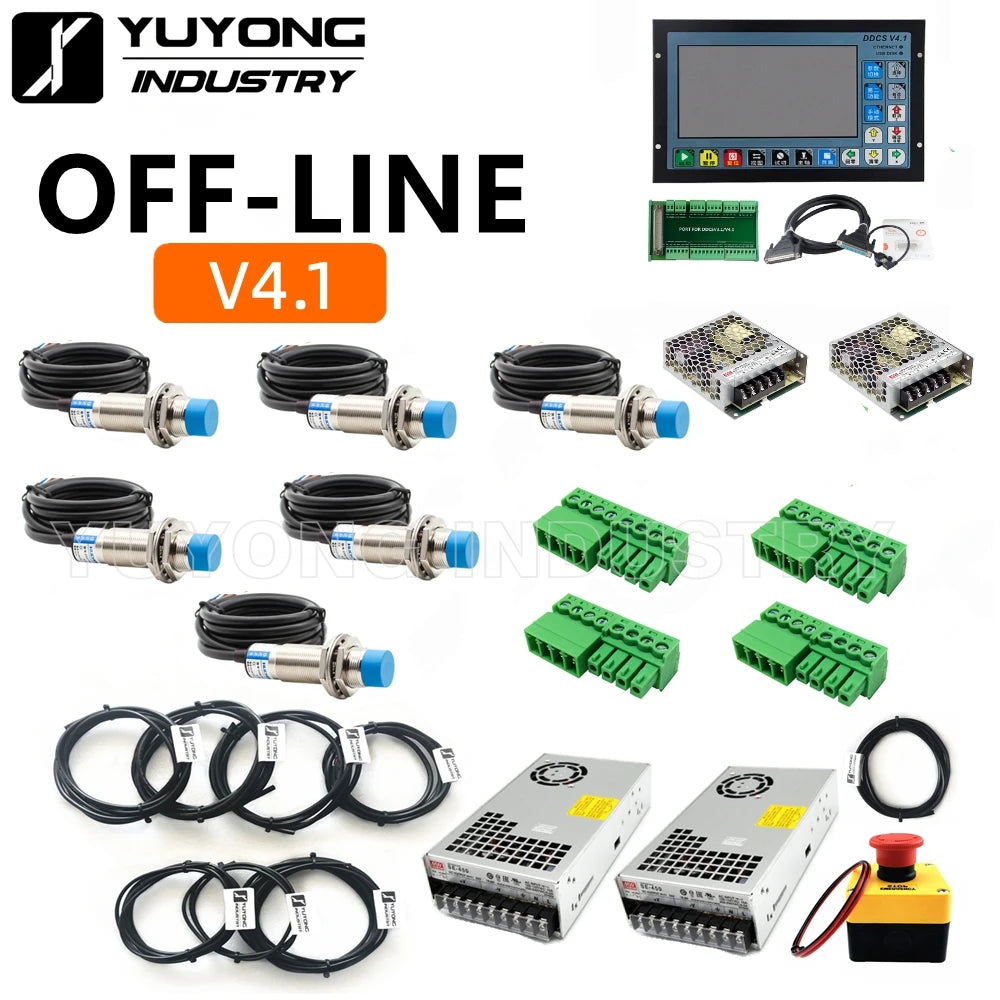

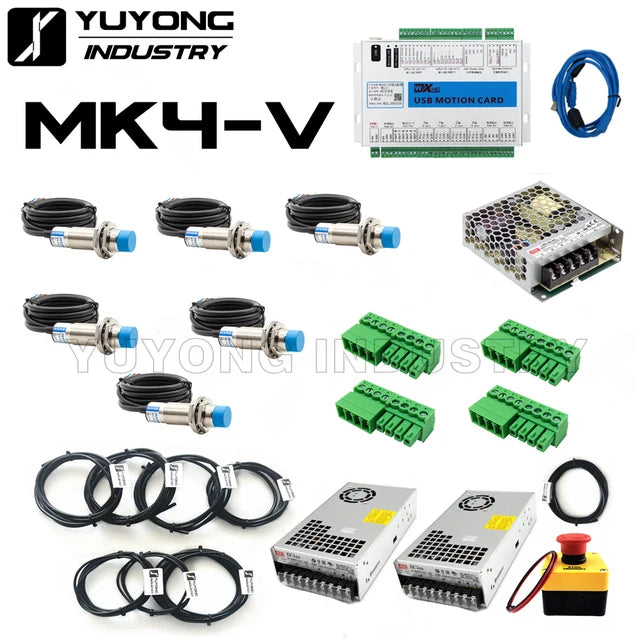

l QueenAnt PRO CNC V2 Mechanical Kit l 1610 Big Diamater Precise Ball Screws l 4 x Close-Loop 3.6N.m Stepper Motors with Close-Loop Drivers l OFF-LINE or DSP or Mach3 or CNC USB Controller Bundle l 1.5kW/2.2kW Air Cooled or Water Cooled Spindle Bundle l Cable Drag Chain Bundle l Wiring Cable Kit l XYZ Touch Probe l Drill Bits l All Extrusions are M5 Tapped as where it is necessary |
Please note:
MDF Table and Power Cord are Not included with this kit.
We do not provide technical support for software debugging.
Any Mains power connections must be installed by a Licensed electrician or suitability qualified person
Do not turn the screw nut out, otherwise the steel ball inside will break away from the raceway and cannot be installed again.
Please lubricate the guide rail and ball screw regularly to ensure lubrication.
Machine assembly may require different sizes and types of tools.
·3 Linear Rails + 6 Blocks on Reinforced 8080 X-Axis |
·16mm Big Diamater Ball Screw |
  |
|
|
16mm Big Diamater Precise Ball ScrewIf you have experienced whipping and wobbling issues with 8mm or thin diamater lead screws on workbee and other machines, you will know how important a large diameter ball screw can be for machines with long travel. Thin Ball screw can result in reduced straightness and insufficient concentricity, resulting in distorted motion, which in turn results in a loss of accuracy. The large diameter of 16mm not only avoids whipping and shaking, but also solves the problem of sagging caused by the slender screw，Further improve the running accuracy, working accuracy, repeatability and positioning accuracy of the machine！Especially for long travel machines such as 1500mm and longer. |
·Best Match for Torque&Load&Motor |
|
|
|
According to YUYONG Tech Dept‘s testing,the motor type is nothing to do Ball screw Diamater! If the torque is enough, it will support any big diamater Ball Screw! The Ball Screw Diamater is nothing to do with Accuracy! According to Principles of Physics： T=(PF*I)/2π T:Drive Torque N.m P: Ball Screw Lead m I:Ball screw drive efficiency，generally 90-94% Hypothetical conditions：Horizontal load 100kg, 1610 Ball Screw,friction coefficient μ=0.1，then the drive torque T=0.01x100x0.9/6.28=1.43NM. Generally take 1.5 times the driving torque，then it's 2.2N.M, no matter stepper motors 2.45N.m or Close Loop Motors 3.6N.m, all can meet the needs. That means With sufficient torque，the ball screw diamater never affect Torque,There is no such thing as a so called which diamater ball screw is best for Nema23 motors! 16mm is the most commonly used ball screw machine, even the smallest machines such as 3040, 6090 are using 16mm instead of 12mm! So for long Travel Machine such as 1500mm or longer,16mm is best option! Below 16mm is just for DIY machines,This is one of the reasons why the queenant can be used as a quasi-industrial machine！ |
·2 Linear Rails+4 Linear Blocks on each axis |
 |
|
|
Please don't be deceived by some company's advertisement, No matter QueenBee or other machines, they all use 2 linear rails+4 Blocks. Our QueenAnt machine each axis all use 2 rails+4 Blocks, Especially the Y and A aixs, they load entire X axis and Z axis, much higher loads than the X-axis，but the X axis has been used 2 rails+4 Blocks, Y and Axis should use 2 rails+4 Blocks more! Please always believe that the double rails have better load capacity, balance, stability and anti-vibration than the single rail. |
·12mm Thickened and Super Flat Aluminum Luxury Plates |
|
|
|
For the first time, queenant uses an ultra-thick 12mm aluminum plate to prevent deformation in any direction, which greatly improves the overall rigidity, flatness and stability！
|
·Super Enhanced X & Z V2 |
 |
|
Customers have been suffering from Flexing of the X-axis for a long time when working with 2.2KW or heavier spindles.And this is obvious when the spindle is working on harder materials and longer X-axis of machines.The torsional force of the spindle causes the X-axis to twist and cause displacement of the workpiece, resulting in a loss of accuracy. |
·X&Z Balance Force |
 |
|
In previous CNC machines, the whole Z axis with spindle attach to X plate,this causes the X-axis to only be stressed on one side, and when a 2.2KW or heavier spindle is attached, it may cause vibrations when the spindle is working, which will also cause loss of accuracy and flexing of the X-axis. |
·High Precise sensitive Inductive Sensors |
|
|
|
Non-touch inductive switch instead of mechanical limit switch,Higher sensitivity and sensing distance improve the repeatability of the machine！ Up to 100% higher accuracy than traditional mechanical switches！ |
·36V Power Supply |
 |
|
After many tests and professional data analysis,also many customer's feedback,36V is a best voltage which not only dissipate heat and prolong the life of the motor, but also maximize the torque of the motor!It's time to make your machine become a beast! |
·Longer and Strength Z Axis |
 |
|
Use Longer 340mm Z Axis Length to replace original 250mm,also use stronger HGR15 Linear Rail and Blocks to replace original smaller MGN15 Rails and Blocks.Greatly increases strength and stability！ |
·Filled 2040V-slot in the gap of 4080 |
 |
|
With the new in-line bottom design allows all Y and A axes to be supported, which avoids twisting in the Y&A direction, and the movement is more linear and smoother! |
·Brand new bottom support for Y&A axis |
 |
|
With the new in-line bottom design allows all Y and A axes to be supported, which avoids twisting in the Y&A direction, and the movement is more linear and smoother! |
·Dual Spindle Mount Kit |
 |
|
Use Dual Spindle Mount Kits to keep the spindle vertical and ensure the stability of the spindle! |
·XYZ Touch Probe |
 |
|
The YUYONG INDUSTRY XYZ Touch Probe allows you to quickly identify and set your work zero in (X, Y, and Z-Axis) by running the probing features. Our Touch Probes boast a plug and play feature which allows you to freely connected and disconnect the probe when not in use. |

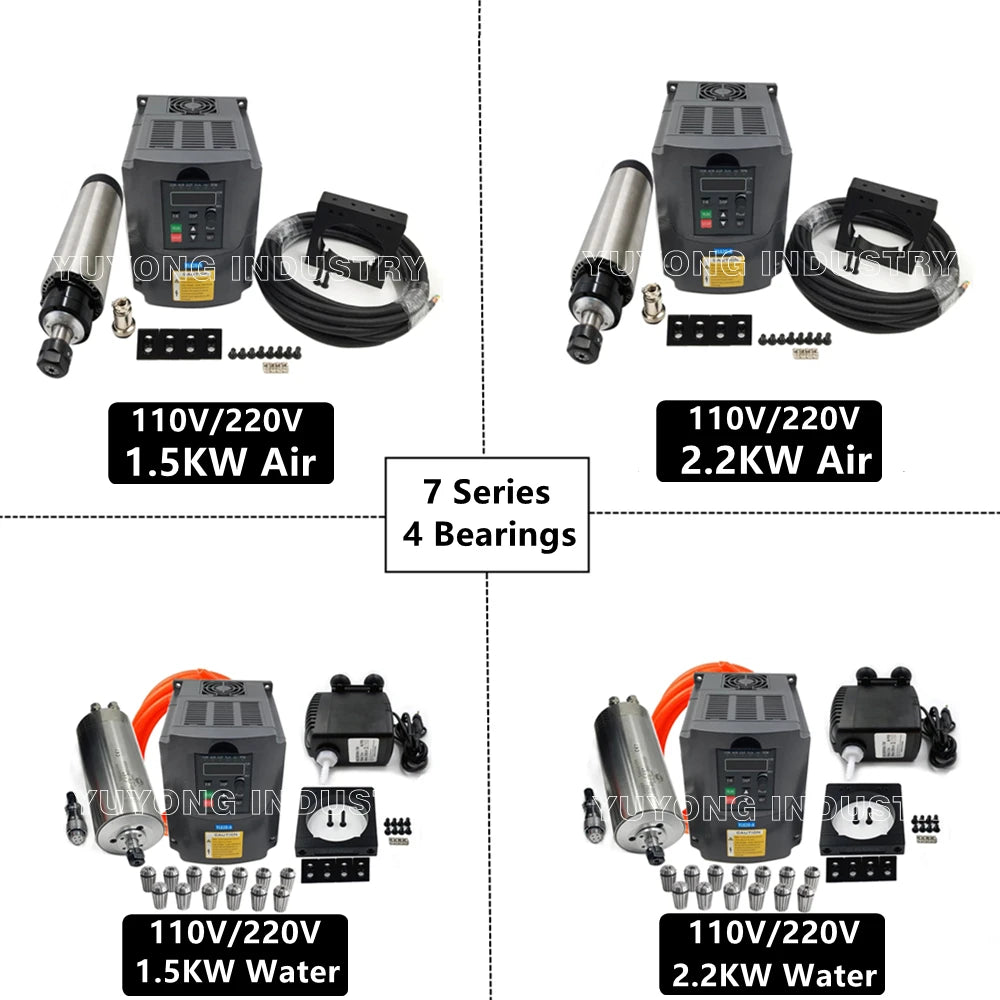

·7 series 4 bearings Spindle |
 |
|
The spindle use 7 series Angular contact bearings, can bear radial and lateral loads at same time to make sure it's high speed running and high rotation accuracy. |

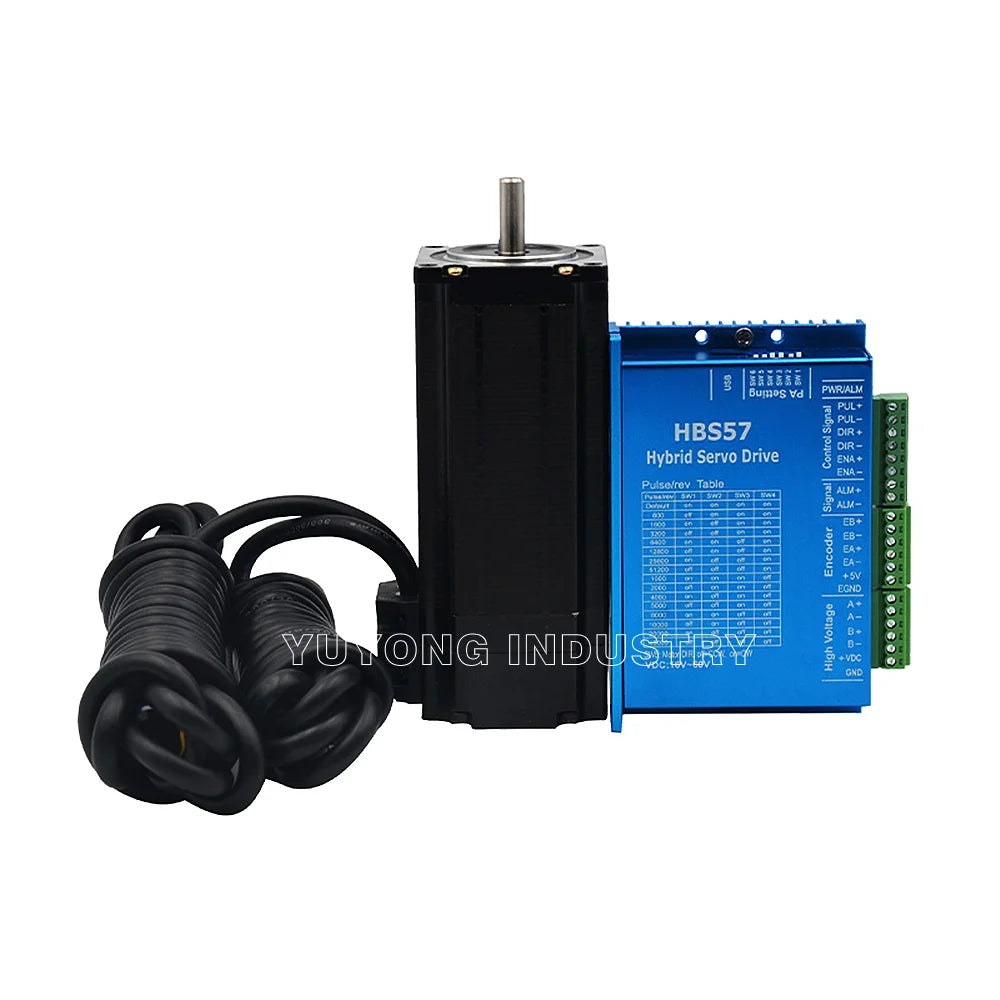

·Close-Loop Stepper |
 |
|
|
The Close Loop motors prevent lost steps by adding an encoder, further improving accuracy and speed.With the precise 1610 Ball screw, the speed can reach above 6000mm/min.
|
