SPECIFICATIONS

Application: Circuit Board Automatic Soldering

Axis of Motor: 4

Brand Name: NoEnName_Null

Certificate: CE Certificate

Heating Power: 150~300W

High-concerned chemical: None

Key Selling Points: Automatic

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Material: Plastic

Max Load Weight: 10KG (For Work Platform)

Movement Speed(X,Y,Z): 10-800mm/Sec

Origin: Mainland China

Preheating Temperature Range: 0℃~ 550℃

Product name: Automatic soldering machine

Repeat Positioning Accuracy: ±0.02mm (X*Y*Z)

Type: Power Tool Parts

Video outgoing-inspection: Provided

Warranty of core components: 2 years

Work Platform Size: 300*300*100mm(X*Y*Z) can customized

brand name: BBA

condition: New

current: Alternating current

dimensions: 54*54*70CM

place of origin: Guangdong, China

rated capacity: 350W

rated duty cycle: 85%

type: Soldering Machine

usage: Iron soldering for electronic products

voltage: 110/220V 50/60HZ

warranty: 2 years

weight (kg): 90 KG

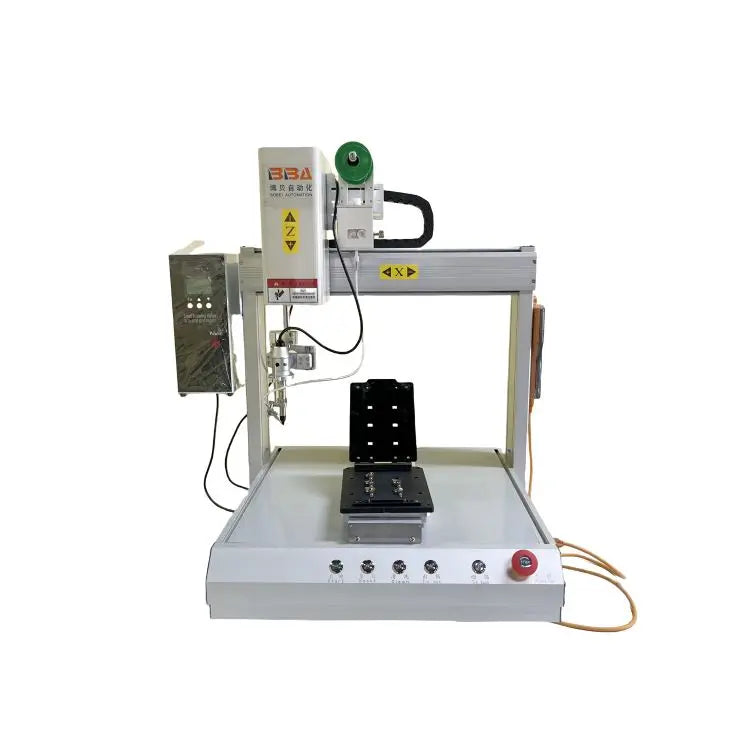

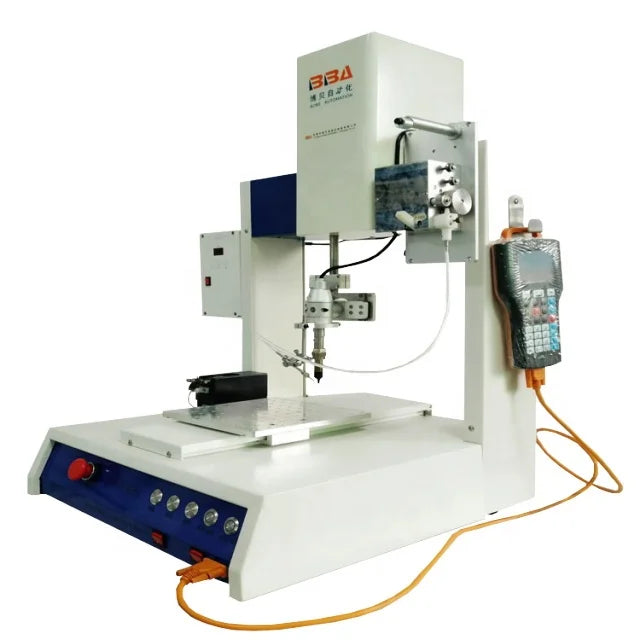

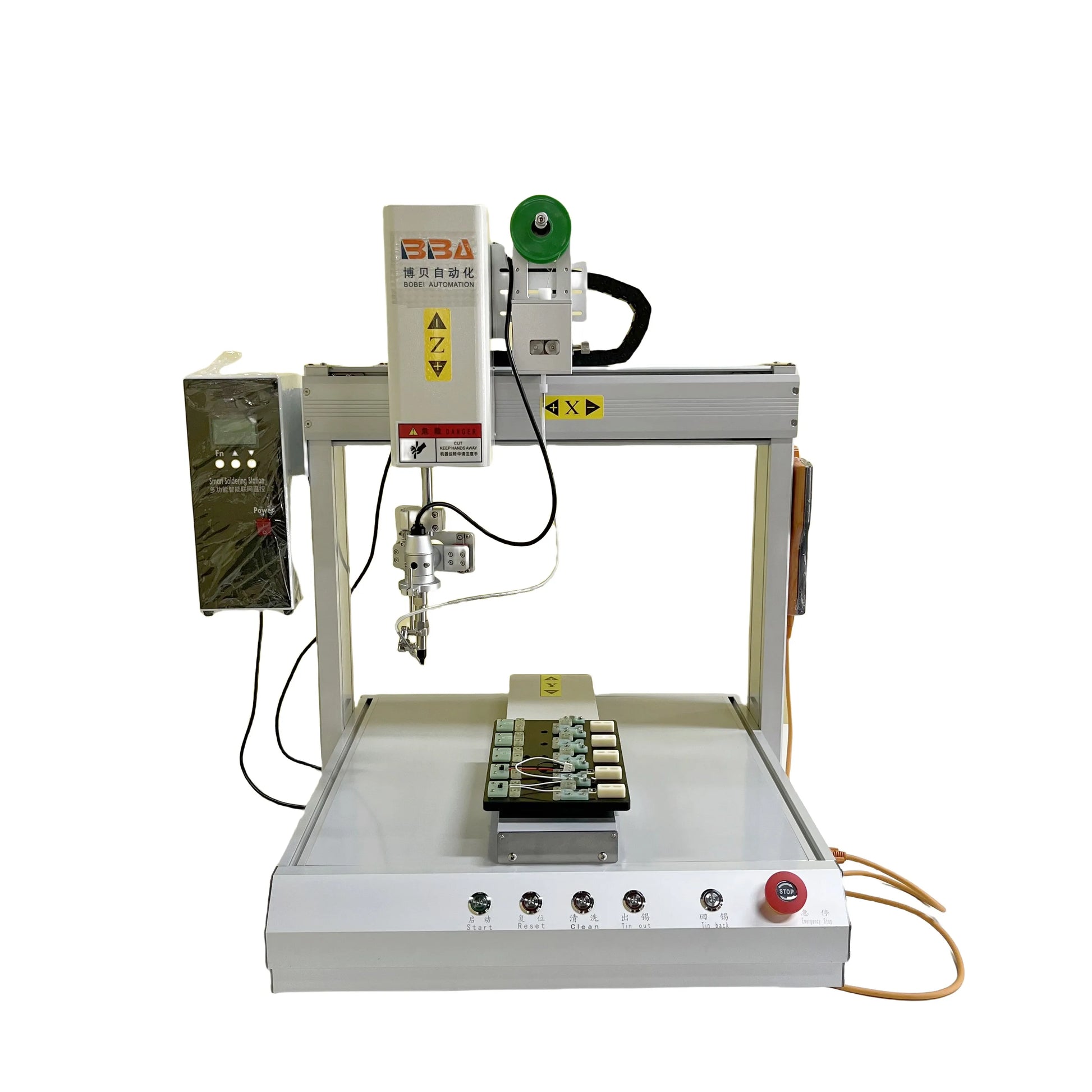

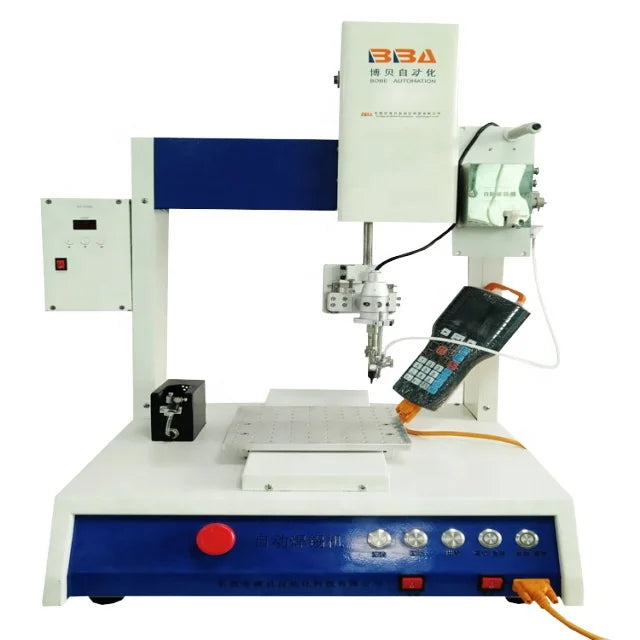

BBA Advanced automatic soldering robot Desktop 3 axis soldering weld machine with tin feeder mqquina de soldar robot de soudure

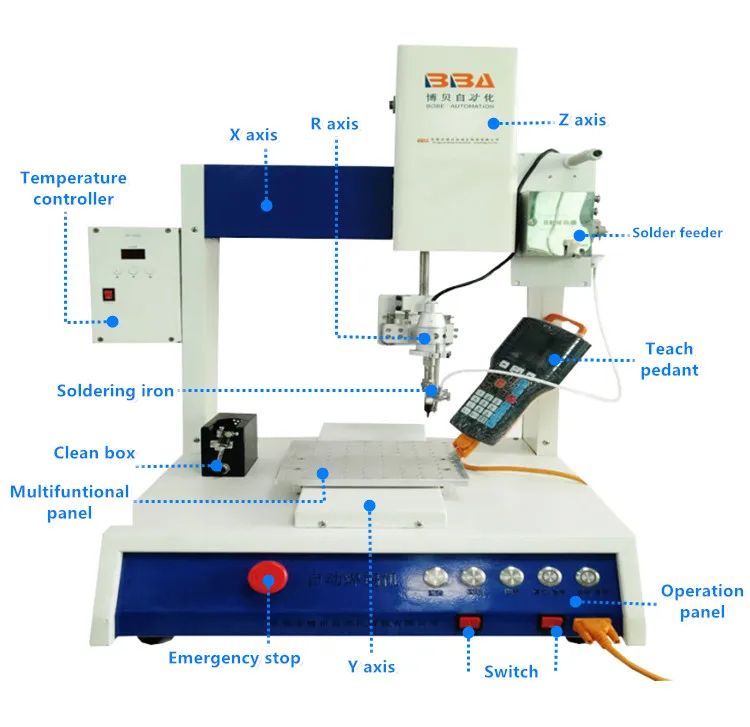

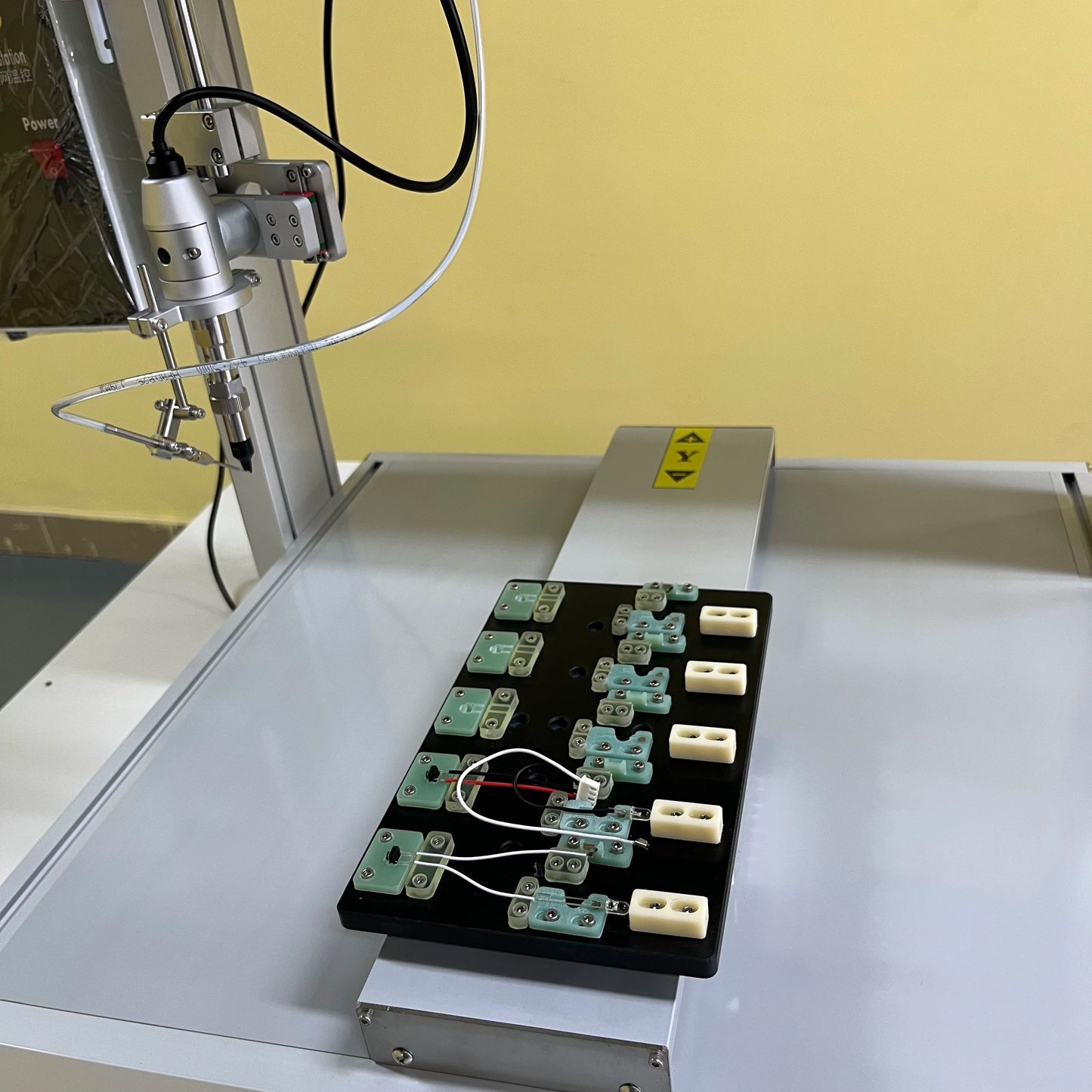

Automatic iron soldering machine is an automatic soldering robot, which mainly completes the soldering operation by using the motion function of the manipulator. The core part of the automatic PCB soldering machine is the soldering system. The soldering system is mainly composed of automatic tin feeding mechanism, temperature control, heating element and soldering iron head.The soldering iron head unit can be adjusted to any direction, 360° free rotation for R-axis. Data wire cable soldering machine is for XYZ movements with teaching pendant for easy programming, even beginner can quickly grasp the operation essentials. Widely used in electronic products as wires, PCBA, Led light, circuit boards, new energy industry,home appliances,etc.

Products Description

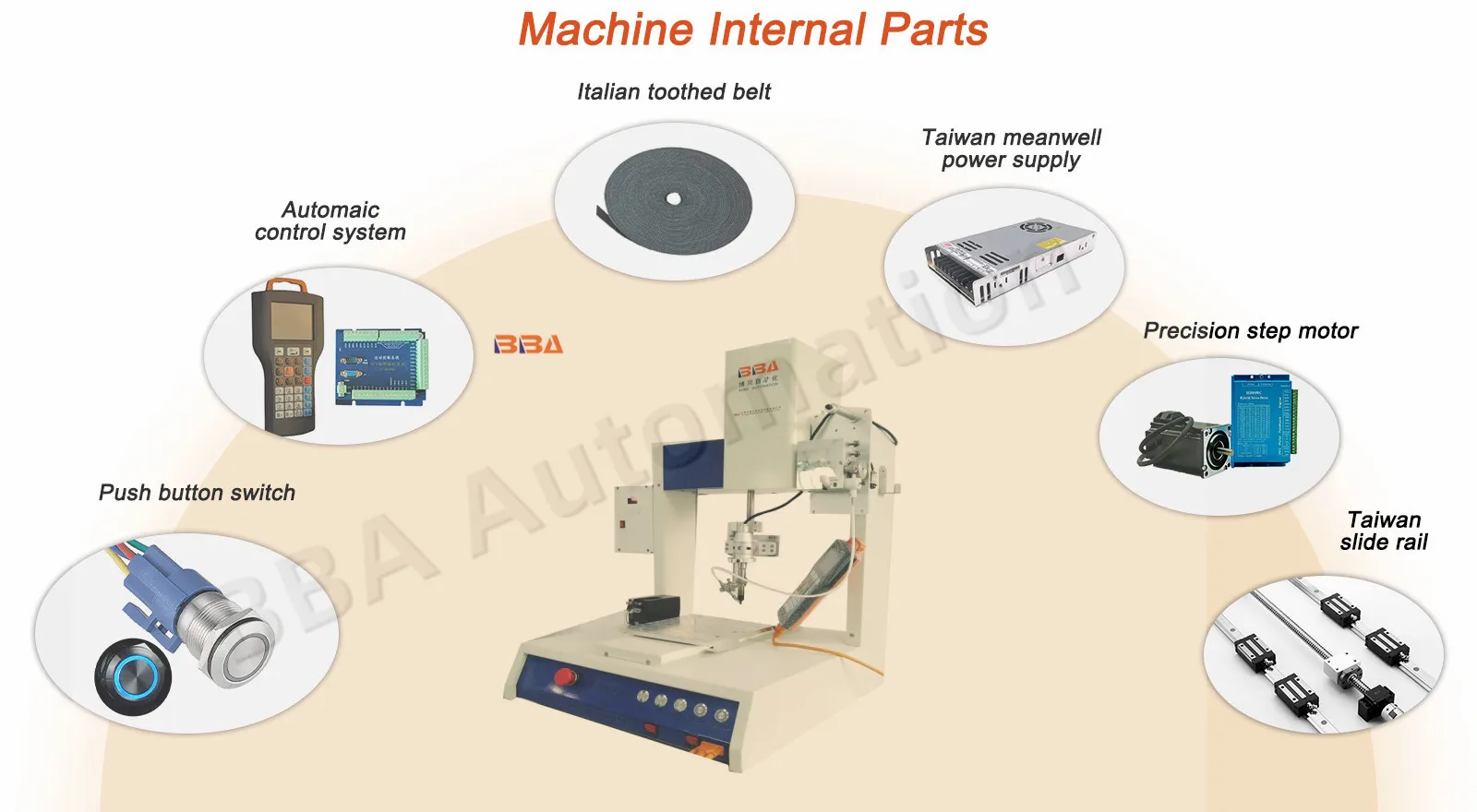

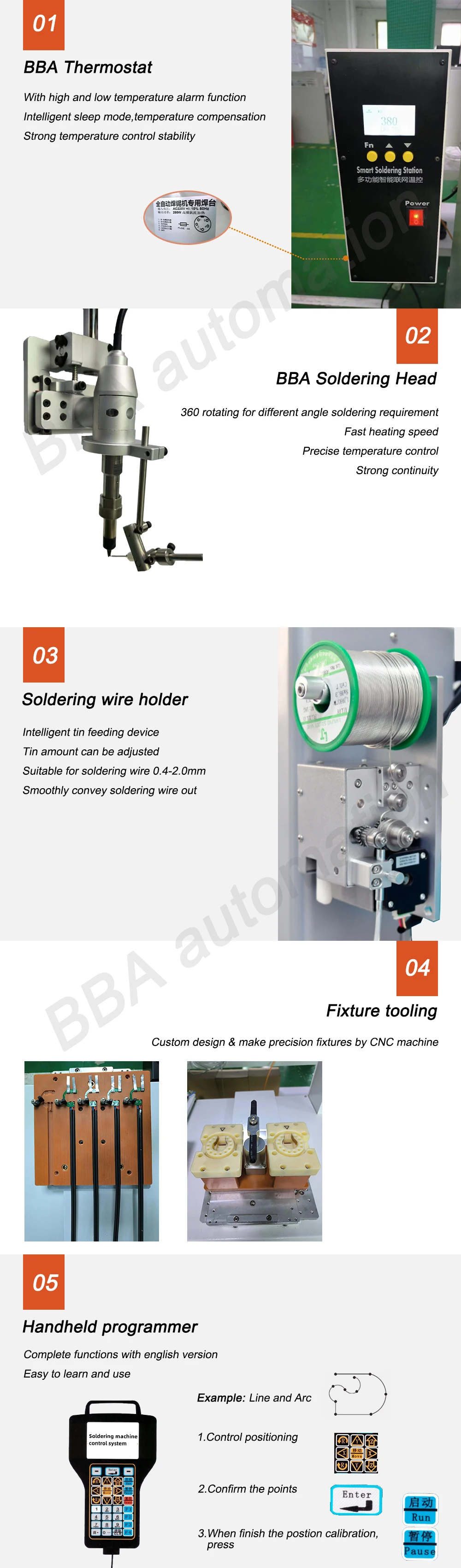

Machine external accessories

Detailed operating instructions & videos prepared to teach you step by step

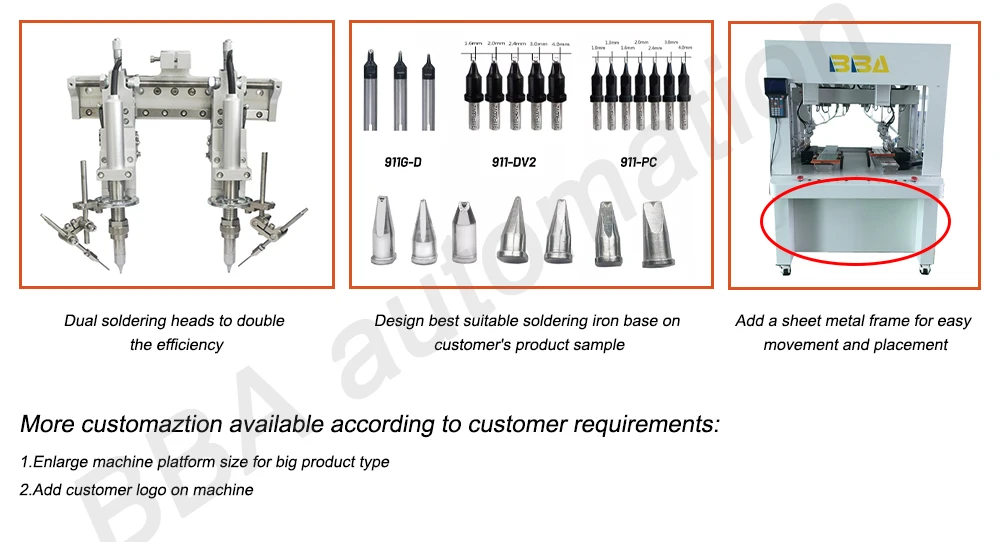

Customaztion available



Specifications of soldering machine series

Model

BBA-331HX (Single Y platform)

BBA-5331HX  (Dual Y platforms)

BBA-6331HX  (Dual soldering systems)

BBA CUSTOMIZED

Voltage

AC 110/220V 50/60HZ

Power

350W

350W

700W

To order

Movable range

X

300mm

X

500mm

X

500mm

To order

Y

300mm

Y1/Y2

300mm

Y1/Y2

300mm

Z

100mm

Z

100mm

Z

100mm

R

360°

R

360°

R

360°

Max moving speed

X

600mm/s

X

600mm/s

X

600mm/s

To order

Y

600mm/s

Y1/Y2

600mm/s

Y1/Y2

600mm/s

Z

400mm/s

Z

400mm/s

Z

400mm/s

R

300°/s

R

300°/s

R

300°/s

Repeat Positioning Accuracy

±0.02mm (X * Y * Z), ±0.05° (R)

To order

Maximum Load Weight

8KG (For Work Platform)

To order

Programming File Capacity

256MB, up to 999 files, single file up to 1000 points

To order

Preheating Temperature Range

0鈩儈 550鈩�

To order

Solder Wire Diameter

0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm)

To order

Tin feeding control

Precision stepper motor

To order

External Dimensions(L*W*H)

70*60*85(CM锛�

85*60*85(CM锛�

100*60*85(CM锛�

To order

Weight

65KG

90KG

120KG

To order

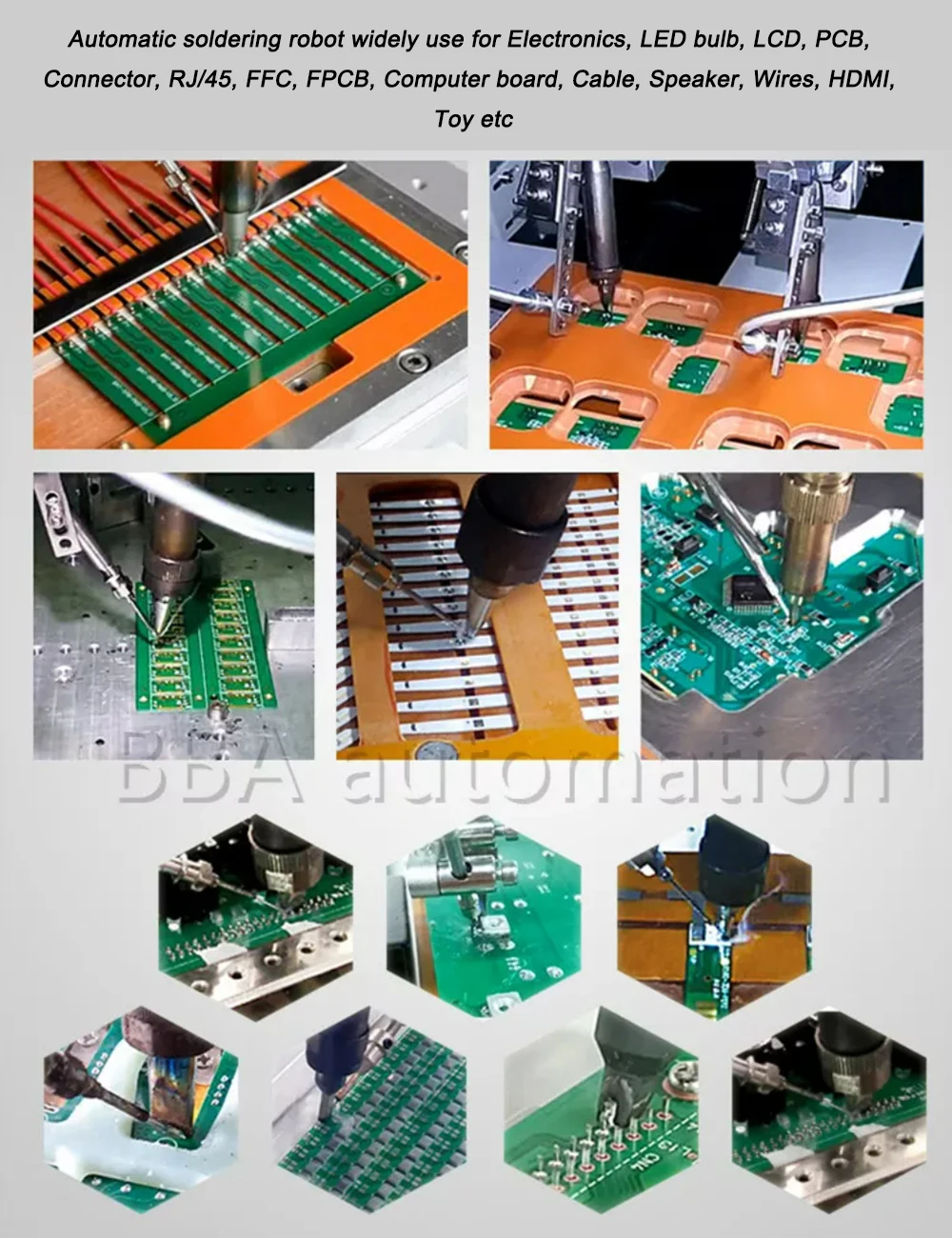

Customer case
