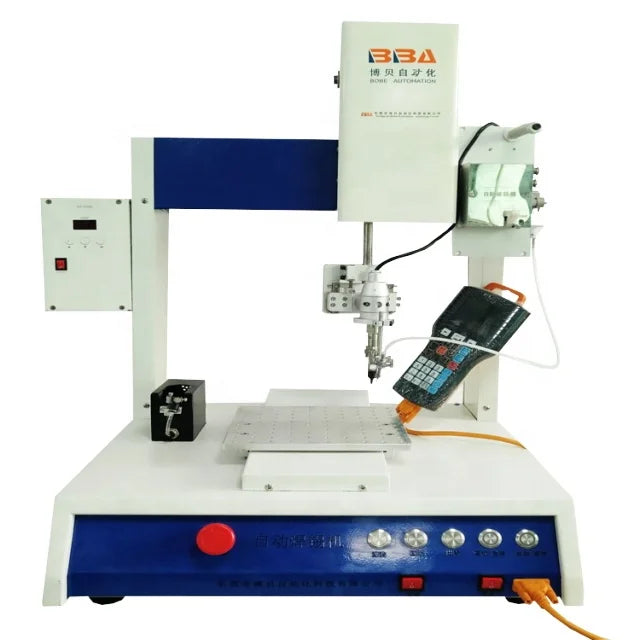

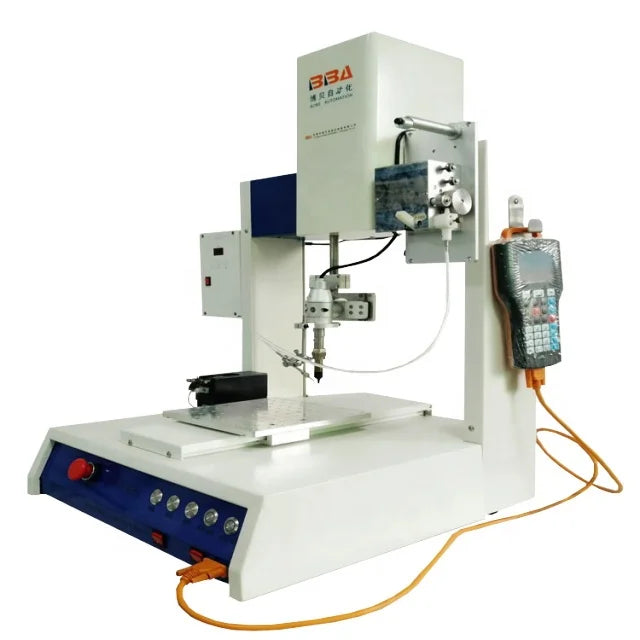

Advanced Automatic Soldering Robot Desktop 3 Axis Soldering Weld Machine With Tin Feeder Mqquina De Soldar Robot De Soudure
Advanced Automatic Soldering Robot Desktop 3 Axis Soldering Weld Machine With Tin Feeder Mqquina De Soldar Robot De Soudure
Couldn't load pickup availability
SPECIFICATIONS
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops,
Application: Circuit Board Automatic Soldering
Axis of Motor: 4
Battery Included: No
Brand Name: XMSJ
Certificate: CE Certificate
Core Components: PLC, Bearing, motor, Temperature controller, tin breaker, soldering gu
Heating Power: 150~300W
High-concerned chemical: None
Key Selling Points: Automatic
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Max Load Weight: 10KG (For Work Platform)
Movement Speed(X,Y,Z): 10-800mm/Sec
Origin: Mainland China
Preheating Temperature Range: 0℃~ 550℃
Product name: Automatic soldering machine
Repeat Positioning Accuracy: ±0.02mm (X*Y*Z)
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, G
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Work Platform Size: 300*300*100mm(X*Y*Z) can customized
brand name: BBA
condition: New
current: Alternating current
dimensions: 54*54*70CM
place of origin: Guangdong, China
rated capacity: 350W
rated duty cycle: 85%
type: Soldering Machine
usage: Iron soldering for electronic products
voltage: 110/220V 50/60HZ
warranty: 2 years
weight (kg): 90 KG
If you have any questions, Please contact our customer service
If you are interested in it and want to get a discount, please contact us :
WhatsApp: +86 18973113160
Email: nikikung3@gmail.com
|
Model
|
BBA-331HX (Single Y platform)
|
BBA-5331HX
(Dual
Y
platforms)
|
BBA-6331HX
(Dual soldering systems)
|
BBA CUSTOMIZED
|
|||||||||
|
Voltage
|
AC 110/220V 50/60HZ
|
||||||||||||
|
Power
|
350W
|
350W
|
700W
|
To order
|
|||||||||
|
Movable range
|
X
|
300mm
|
X
|
500mm
|
X
|
500mm
|
To order
|
||||||
|
Y
|
300mm
|
Y1/Y2
|
300mm
|
Y1/Y2
|
300mm
|
||||||||
|
Z
|
100mm
|
Z
|
100mm
|
Z
|
100mm
|
||||||||
|
R
|
360°
|
R
|
360°
|
R
|
360°
|
||||||||
|
Max moving speed
|
X
|
600mm/s
|
X
|
600mm/s
|
X
|
600mm/s
|
To order
|
||||||
|
Y
|
600mm/s
|
Y1/Y2
|
600mm/s
|
Y1/Y2
|
600mm/s
|
||||||||
|
Z
|
400mm/s
|
Z
|
400mm/s
|
Z
|
400mm/s
|
||||||||
|
R
|
300°/s
|
R
|
300°/s
|
R
|
300°/s
|
||||||||
|
Repeat Positioning Accuracy
|
±0.02mm (X * Y * Z), ±0.05° (R)
|
To order
|
|||||||||||
|
Maximum Load Weight
|
8KG (For Work Platform)
|
To order
|
|||||||||||
|
Programming File Capacity
|
256MB, up to 999 files, single file up to 1000 points
|
To order
|
|||||||||||
|
Preheating Temperature Range
|
0鈩儈 550鈩�
|
To order
|
|||||||||||
|
Solder Wire Diameter
|
0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm)
|
To order
|
|||||||||||
|
Tin feeding control
|
Precision stepper motor
|
To order
|
|||||||||||
|
External Dimensions(L*W*H)
|
70*60*85(CM锛�
|
85*60*85(CM锛�
|
100*60*85(CM锛�
|
To order
|
|||||||||
|
Weight
|
65KG
|
90KG
|
120KG
|
To order
|
|||||||||
|
Q: Why choose us?
|
||||||||
|
A: We are factory and provide overall solutions for processing equipment. Our standard equipment is very complete,all are in stock and can be shipped quickly. We have our own equipment factory, which can fully customize equipment according to customer requirements, such as ordering different machine size& appearance and brand for agents.
|
||||||||
|
Q: How can we guarantee quality?
|
||||||||
|
A: We implement strict incoming materials inspection and 100% tests before shipment. Furthermore, our products have CE certificate.
|
||||||||
|
Q: How long is your warranty?
|
||||||||
|
A: Lasts for 12 months, lifetime technical support.
|
||||||||
|
Q: Why need use automatic soldering machine?
|
||||||||
|
A: Can guarantee all soldering point are uniform and precise by iron soldering machine
|
||||||||
|
Q: What solder wire can be used for automatic soldering robot?
|
||||||||
|
A: 0.4~2.0mm solder wire.
|
||||||||
|
Q: What's the bulk order delivery time?
|
||||||||
|
A: Order lead time will be 3~10 working days, depends on your product.
|
||||||||
