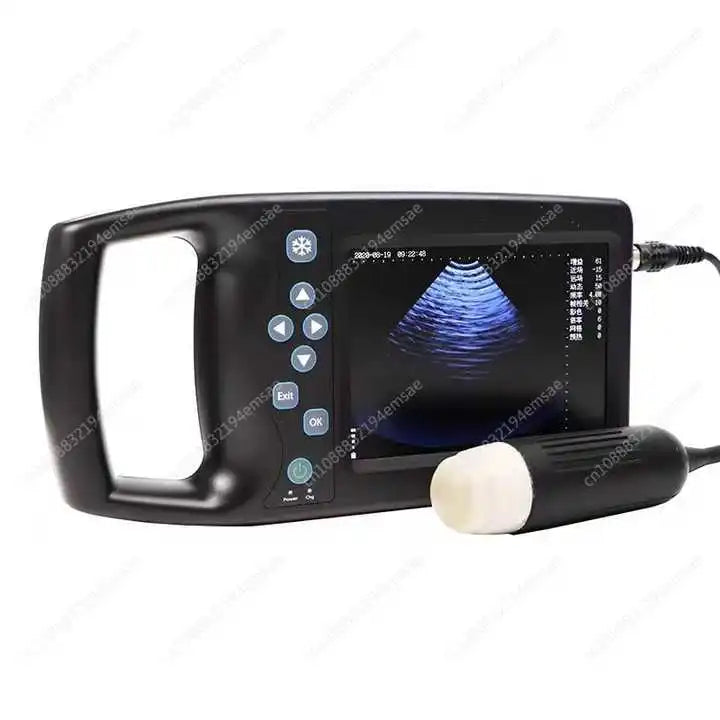

Functional parameters of mechanical fan scan ultrasonic diagnostic apparatus

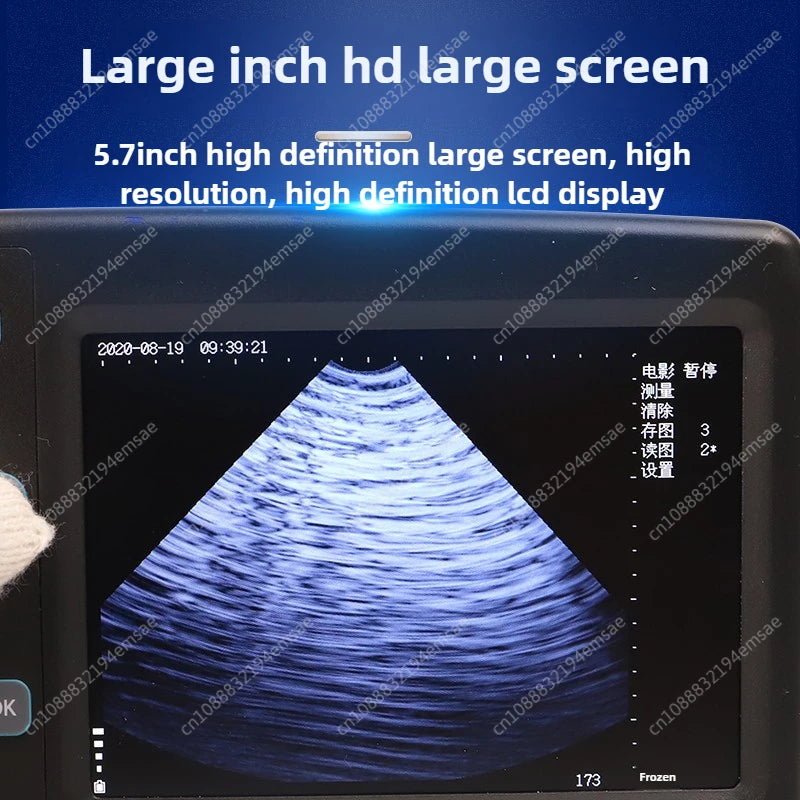

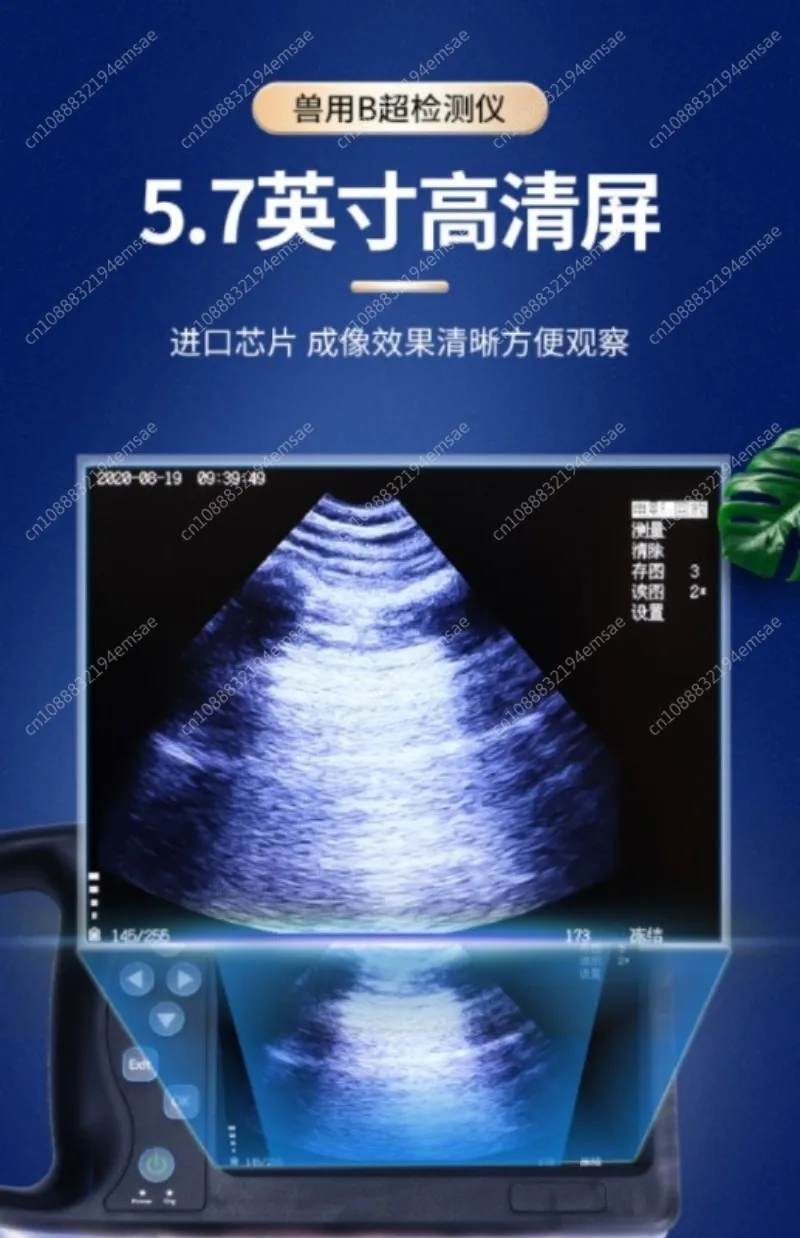

Display: 5.7-inch high-resolution display
Scanning method: 3.5M mechanical fan scan
Operating language: English

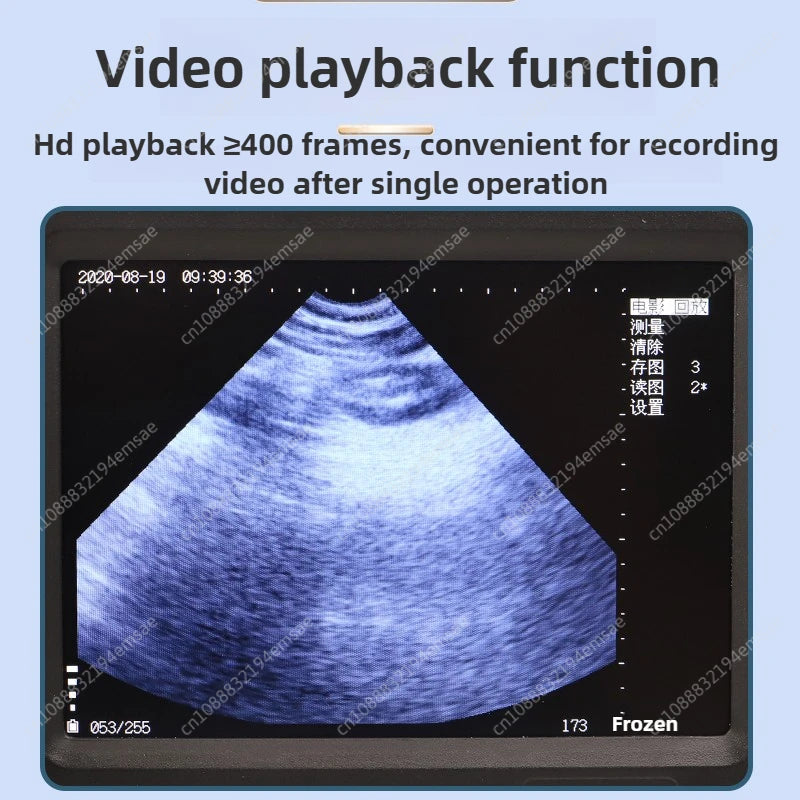

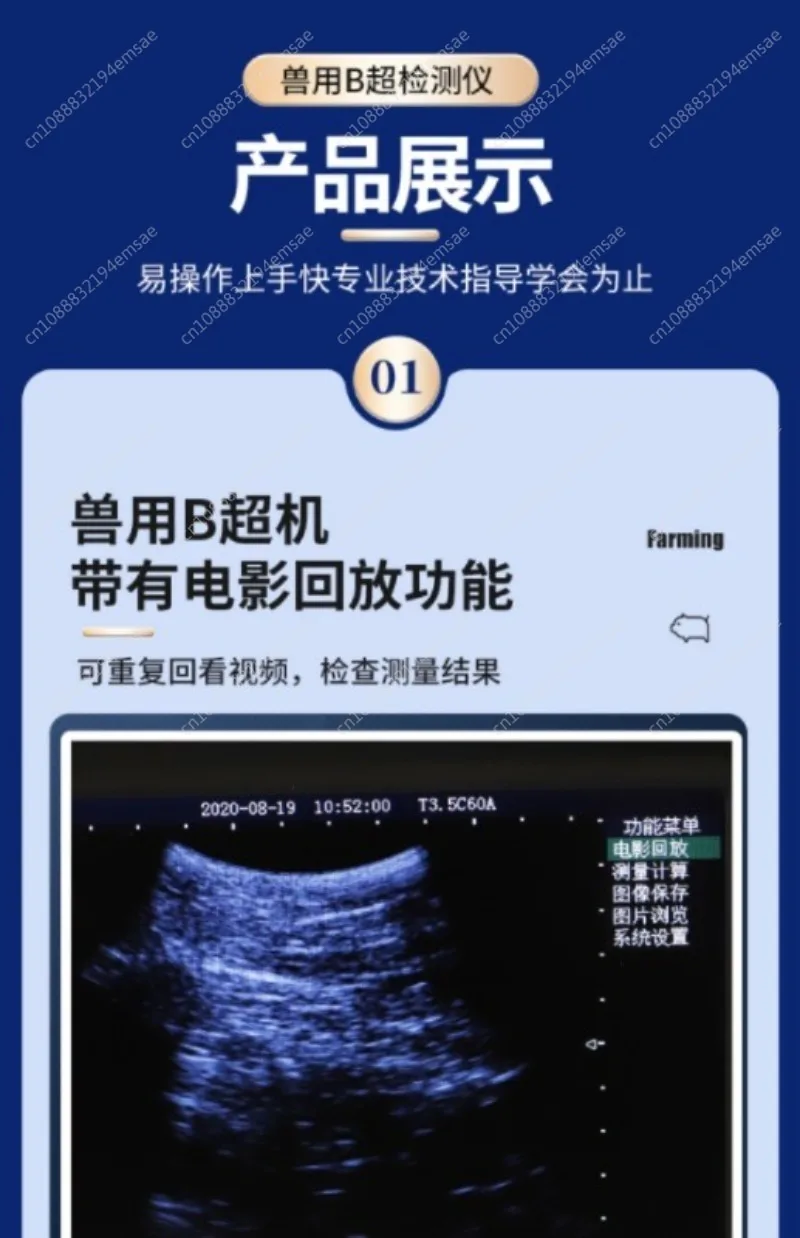

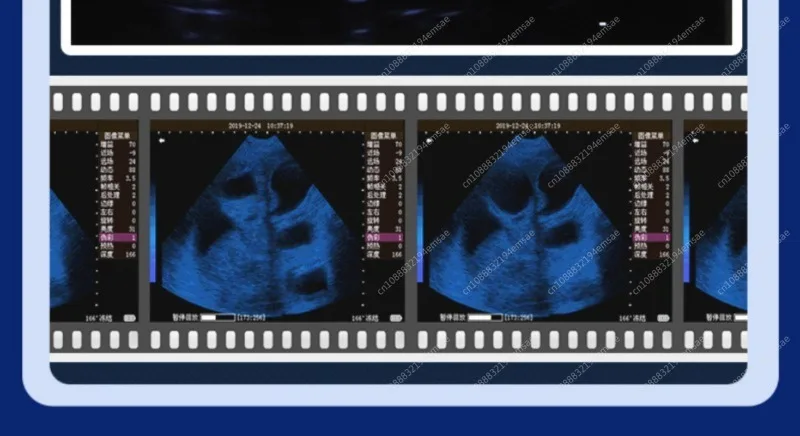

Video playback: 256 frames, images can be played back after testing, convenient for single person recording
Warm-up function: One-key warm-up function in winter, no need to worry about the probe freezing
Ten colors adjustable
Four frequency conversion: 2.0MHZ, 2.5MHz, 3.5MHz, 5.0MHz

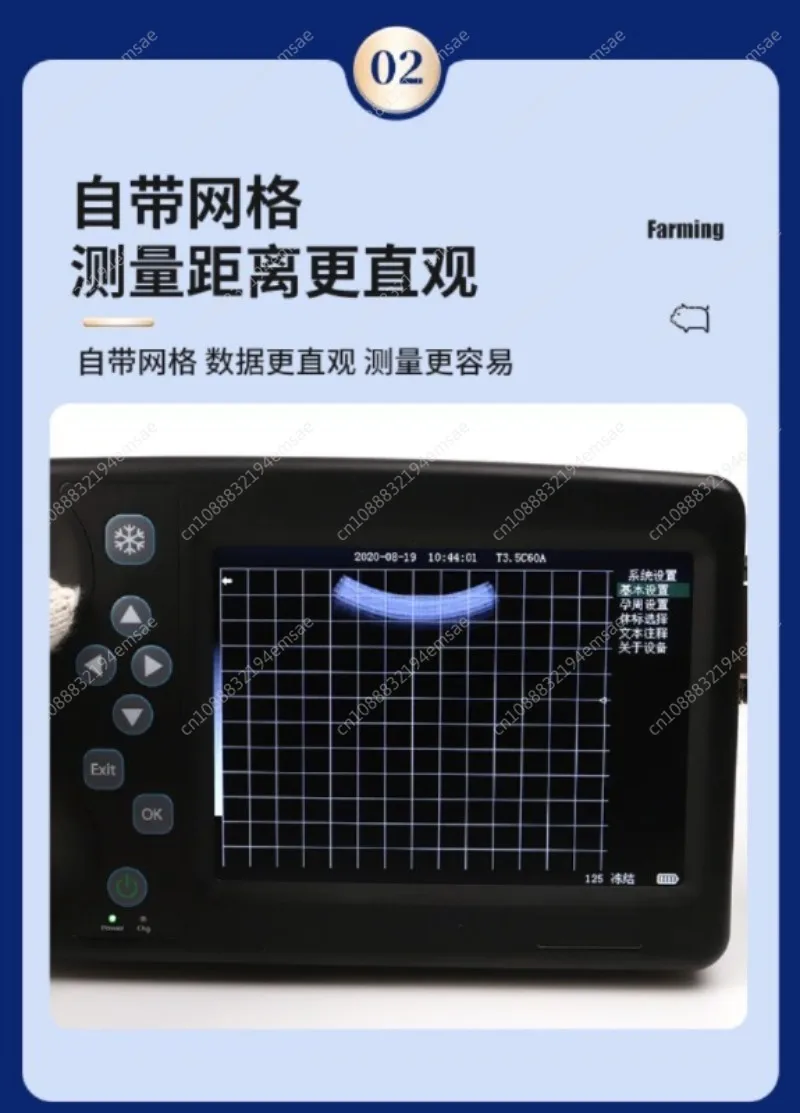

Grid: 0, 1, 2 three modes (dot grid, mesh grid), the distance of the dot can be adjusted, which is convenient to quickly read the size of the measurement target

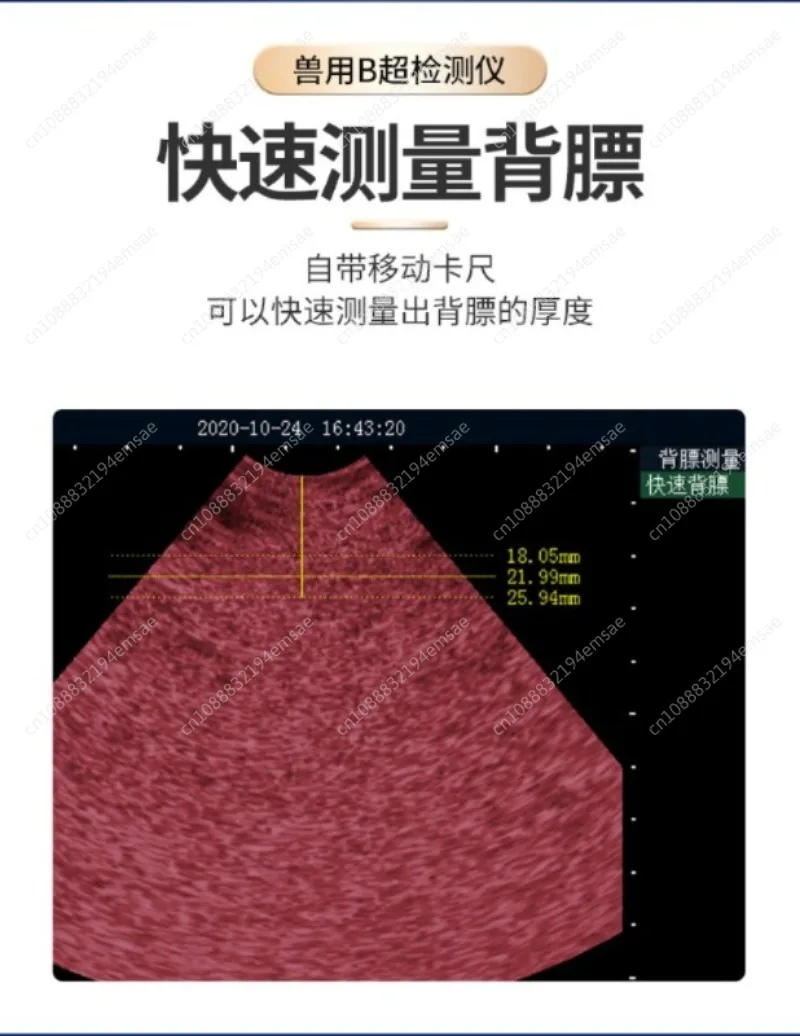

Routine measurement: distance, circumference, area, volume, angle
Using ergonomic handle design, small arc, more comfortable to hold
Operation interface: use the up and down keys to select parameters, the left and right keys to adjust the size, macro layout, humanized design, easier to operate
Storage: 127 pictures can be stored permanently
Dynamic range: 0-135dB
Frame related: 0-15 step by step adjustment
15 levels of magnification adjustment, maximum display depth: 270mm

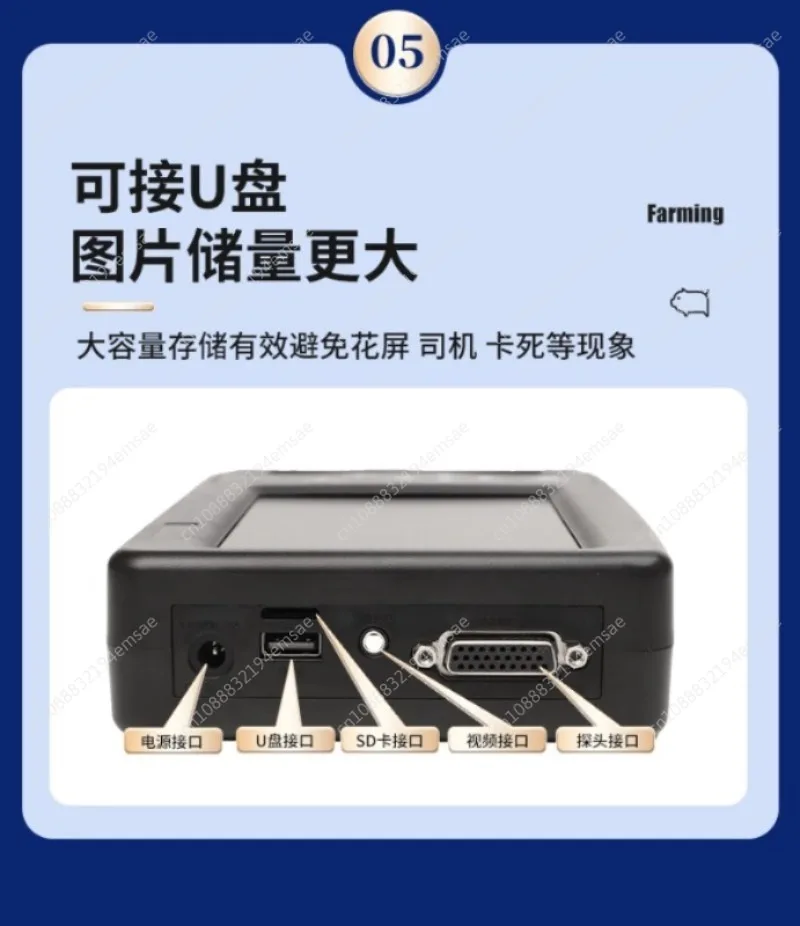

Interface: USB interface, video output interface, power interface, probe interface
Gain range: 0～100dB
Near field adjustment range: -31~0
Far field adjustment range: 0~31
Character brightness 0-255 can be adjusted step by step; 16 character colors can be adjusted
Energy-saving setting: 0-120 minutes can be adjusted step by step, set the number of minutes to automatically power off without operation at the specified time
With time and date, key tone switch, standby protection, multi-language selection, etc.
Large-capacity lithium battery, imported 18650 standard batteries, can work continuously for about 5 hours
Host size: 245x130x44mm (length x width x height)
Host weight: 720g

How to use B ultrasound:
The sow under inspection was free to stand or lie on its side in the restricted feeding pen, and was probed on the abdominal wall of its inner thighs and outer nipple. When probing, just apply the probe with a coupling agent and then stick it on the lower abdominal wall. There is no damage or stimulation during probing, and it has the characteristics of short probing time and high accuracy without stress. The image is intuitive, and early pregnancy can be confirmed when seeing the dark area of the pregnancy sac or the fetal bone image.
For the inspection of other animals, the body surface projection part of the inspected organ can be simply hair removed and coated with a coupling agent. By rotating the probe, a variety of cross-sectional images of the inspected organ can be obtained.
