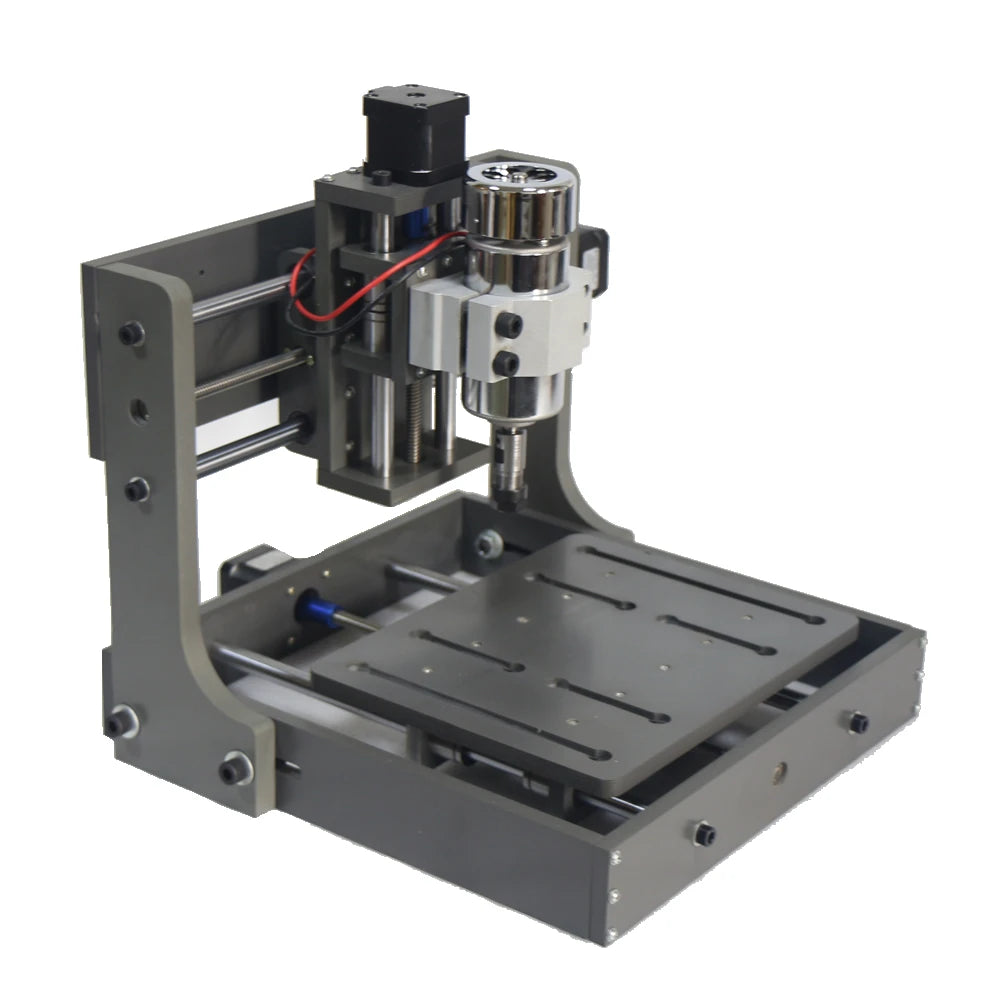

4 Axis USB CNC Router 2020 300W Embossed Round Sculpture CNC Engraving Machine PVC Frame 3axis Wood PCB PVC Milling Machine
4 Axis USB CNC Router 2020 300W Embossed Round Sculpture CNC Engraving Machine PVC Frame 3axis Wood PCB PVC Milling Machine
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: XMSJ
CNC or Not: CNC
Certification: CE
Collet chuck: ER11-3.175mm
Condition: New
Controller: CNC USB
Effective travel: 220*200*60 mm
Engraving Area: Other
High-concerned chemical: None
Interface: USB port (Windows XP, 7,10,11)
Is Smart Device: No
Model Number: CNC 2020
Origin: Mainland China
Software: 4 axis-CNCUSBController; 3 axis-GRBL
Spindle clamp: 52mm
Spindle motor: 300W high-speed
4 Axis USB CNC Router 2020 300W Embossed Round Sculpture CNC Engraving Machine PVC Frame 3axis Wood PCB PVC Milling Machine
Technical Parameters
Effective travel: 220*200*60 mm;
Stepper motor: 42mm 1.5A;
Spindle motor: 300W high-speed,
Spindle clamp: 52mm
Power supply: 48V 360W
Collet chuck: ER11-3.175mm
Rail type:
X axis is a 12 mm diameter hard axis,
Y axis is a 16 mm diameter hard axis,
Z axis is a 12 mm diameter hard axis;
XYZ axis are T8 stainless steel screw, with double nut back to poor organization
Software: 4 axis-CNCUSBController; 3 axis-GRBL
Interface: USB port (Windows XP, 7,10,11)

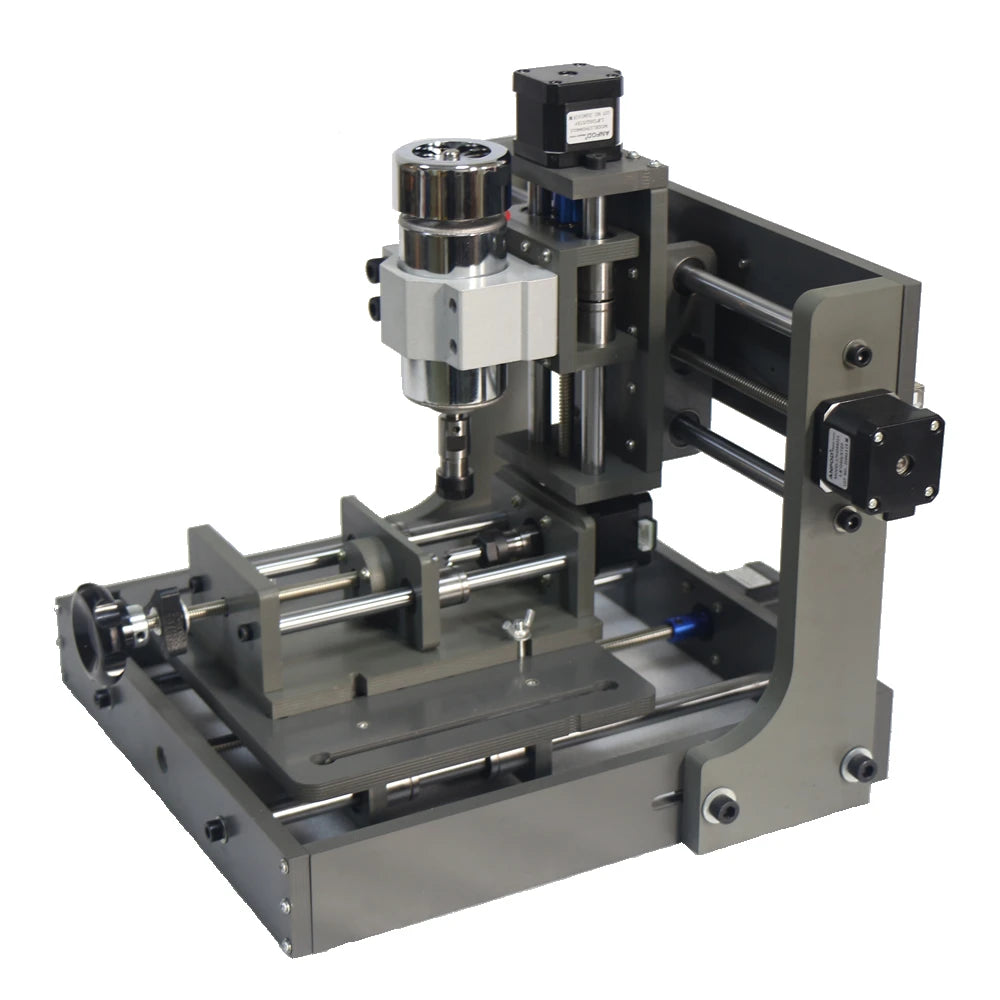

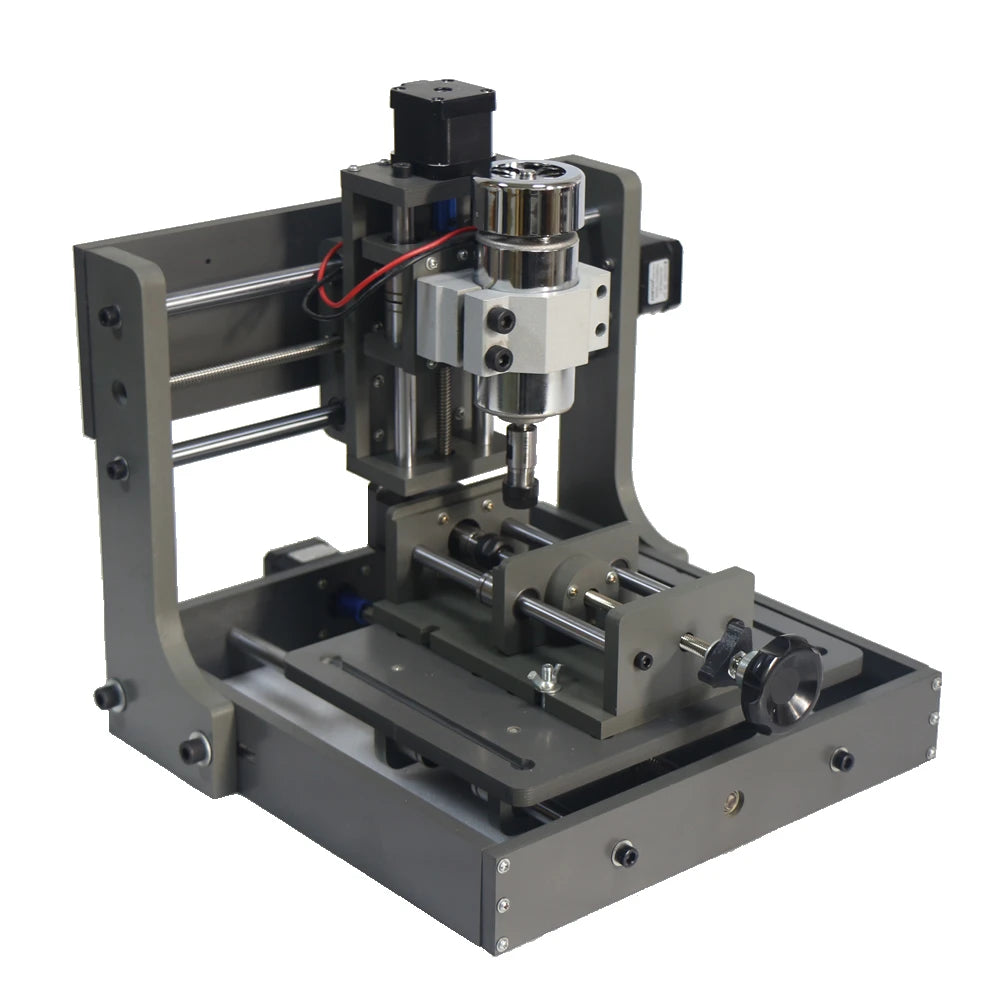

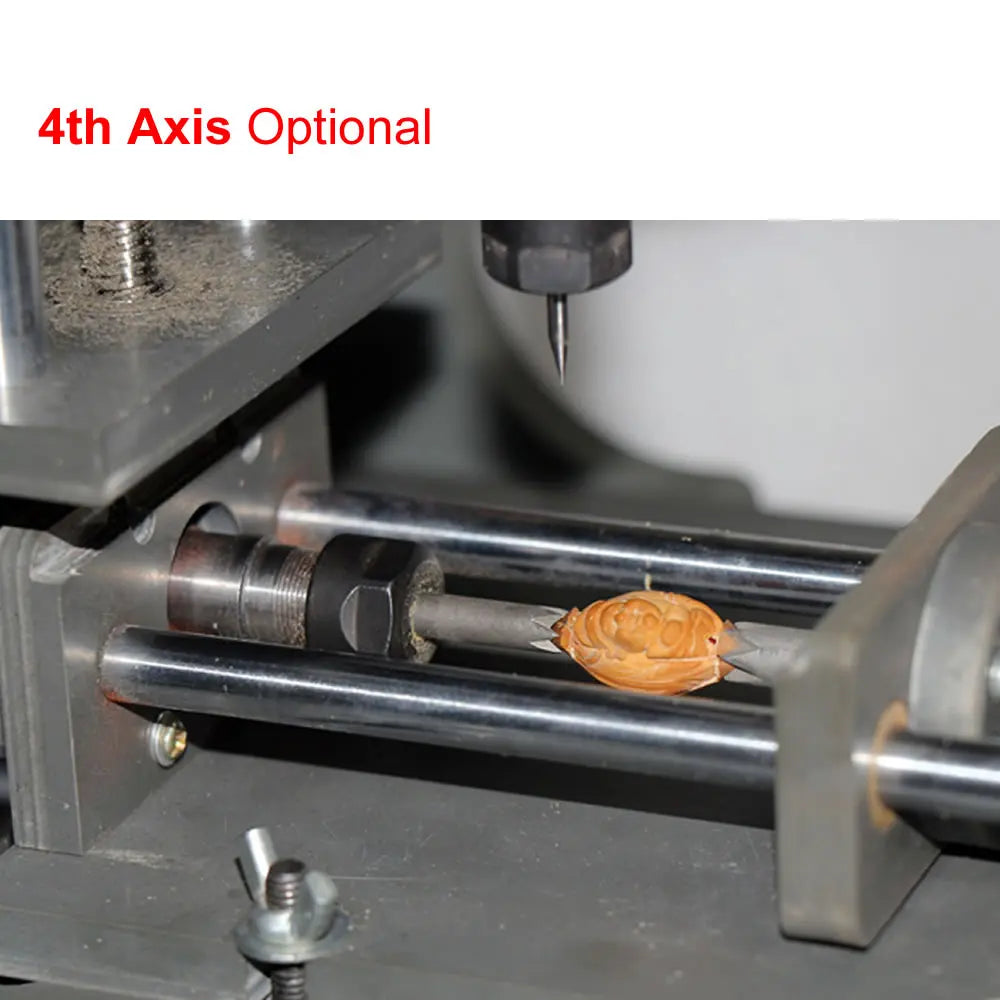

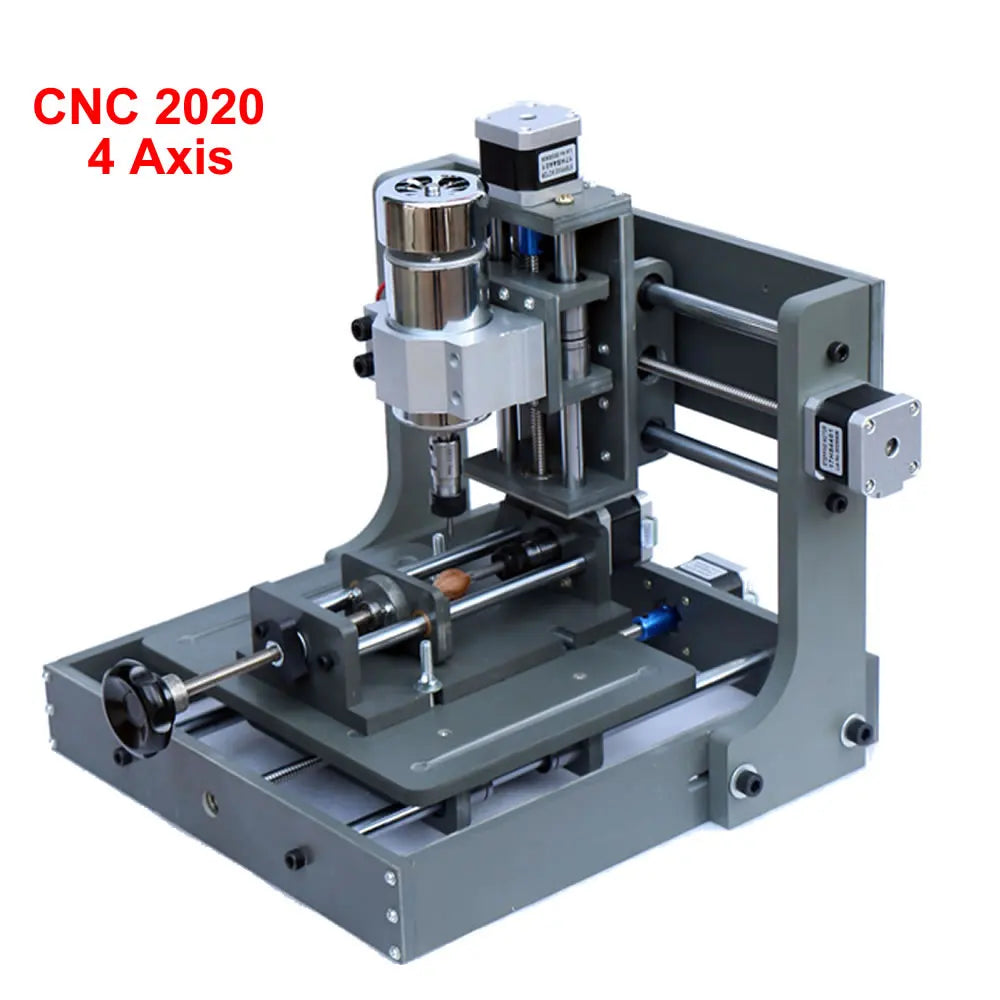

4th Axis:
It can clamp both flat engraving workpieces and round engraving workpieces.
1. Flat engraving
Jaw width: Max 78mm.
Jaw opening: Max 140mm.
2. Round engraving
Maximum diameter: 42mm.
Maximum length: 60mm.
