20%OFF BulkMan3D 1500x1500mm Lead CNC Router Machine Full Kit Screw Driven Engraving Complete Kit with Upgraded Lead Screws

20%OFF BulkMan3D 1500x1500mm Lead CNC Router Machine Full Kit Screw Driven Engraving Complete Kit with Upgraded Lead Screws

CHF 1,505.29
CHF 0.00 CHF 1,505.29
Sale Sold out
🔒 Safe Purchase & Lifetime Warrantee, Taxes included. 4-7 Day Delivery.
Color
Size
Power (W)
Stripe Trust Badge
View full details

  • 📦 Free Express Delivery in 4-7 Days

  • 🛠️ Industrial-Machine.net Quality Warranty

  • 🧢 24/7 Customer Support & Guidance

1 3

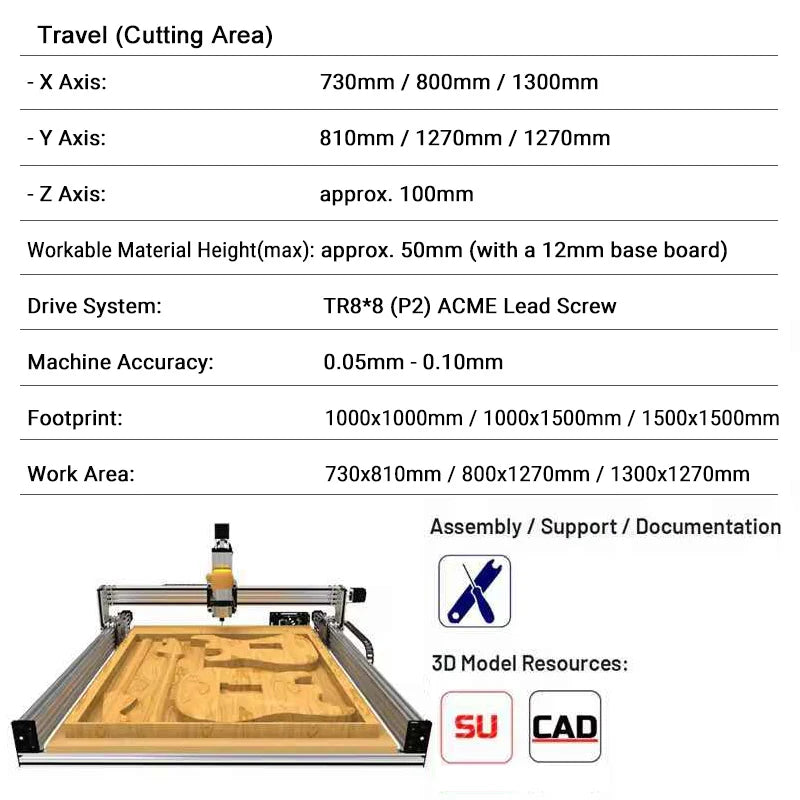

SPECIFICATIONS

Brand Name: BULK-MAN 3D

CNC or Not: CNC

Condition: New

Controller: GRBL

Drive System: TR8x8(P2) ACME Lead Screw

Extrusion Color: Silver Anodized Standard (Contact us if you need Black))

Footprint: 1500mm x 1500mm

Frame Material: 6063-T5 Aluminum

High-concerned chemical: None

Is Smart Device: Yes

Item Name: Lead CNC Full Kit-1500x1500mm

Machine Accuracy: 0.05mm-0.10mm

Model Number: BM3D-FLD-1515

Motor: 2.45N.m NEMA23 Stepper Motors (X, Y, Z)

Origin: Mainland China

Spindle: 1.5KW/2.2KW; Air-Cooled/Water-Cooled; 24000RPM

Workable Material Height (max): Approx. 50mm (with a 12mm base board)

X Axis Travel: 1300mm

Y Axis Travel: 1270mm

Z Axis Travel: Approx 100mm

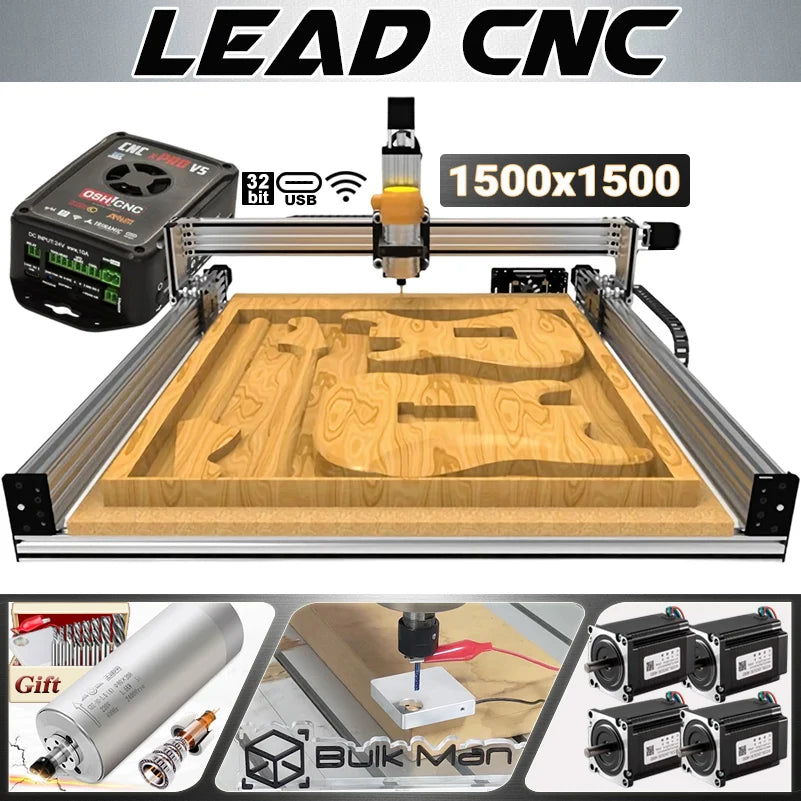

BulkMan3D 1500x1500mm LEAD CNC Complete Full Kit with Spindle &Controller

This is the BULK-MAN 3D Kit of the Open Source Lead CNC Machine.
The Lead CNC Machine was originally designed by Mark Carew and the design is licensed under CC – Attribution – CC BY. It is a super strong, accurate and easy to assemble CNC machine.

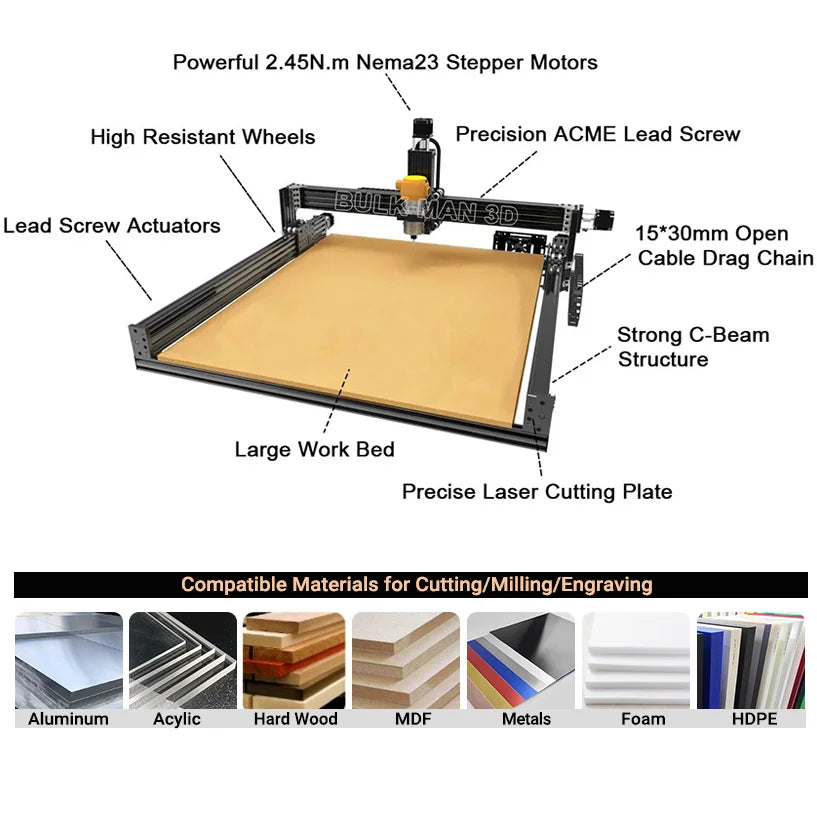

  • Based on C-Beam, V-Slot, Xtreme Solid V-Wheels and TR8x8(P2) Lead screws it is strong, accurate and reliable.
  • It has been designed to accurately cut foams, woods, plastics and aluminium to 0.05-0.10mm accuracy or better.
  • Functional engineering parts, toys, signs or anything else that can be imagined, can be made on the Lead CNC Machine.
  • The BULK-MAN 3D Kit has a couple of small differences from the design published by Mark Carew. Most notably are the use of Black Corner Connectors in place of Cast Brackets in order to increase rigidity.
The LEAD CNC Full Kit is a self-assembly kit and comes with everything needed for building your CNC Machine. Other parts that are needed for you to perform your 'first cut' are:
  • Baseboard
  • Power cord
  • Software

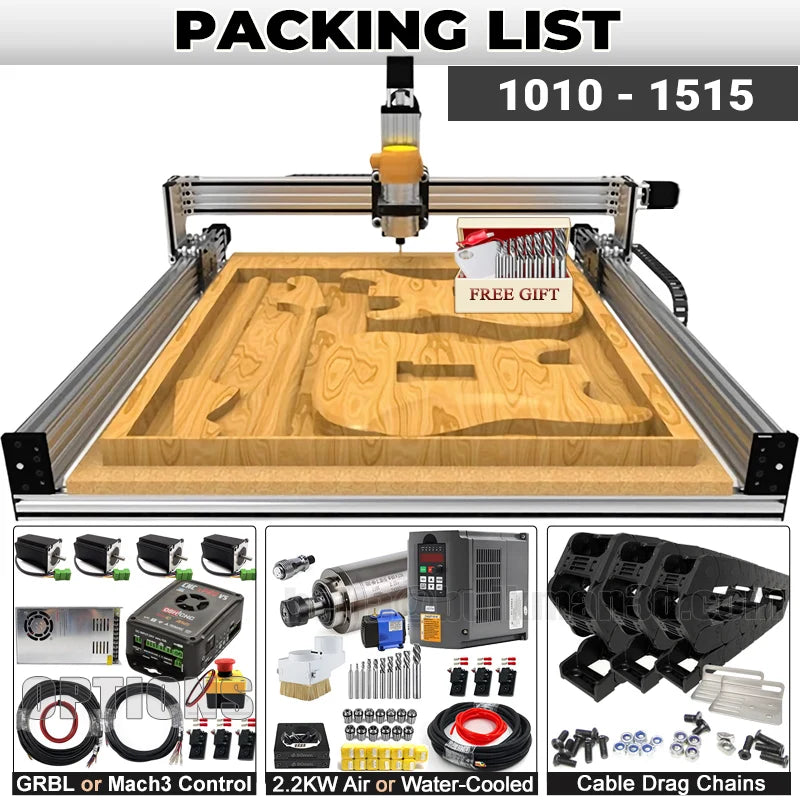

This CNC Complete Kit Includes:

●Lead CNC Mechanical Kit - 1500x1500mm

●High Precise ACME T8 Leadscrews and shims

●Interior Opening Cable Drag Chain System

●Wiring Shielded Cable Kit

●XYZ Touch Probe

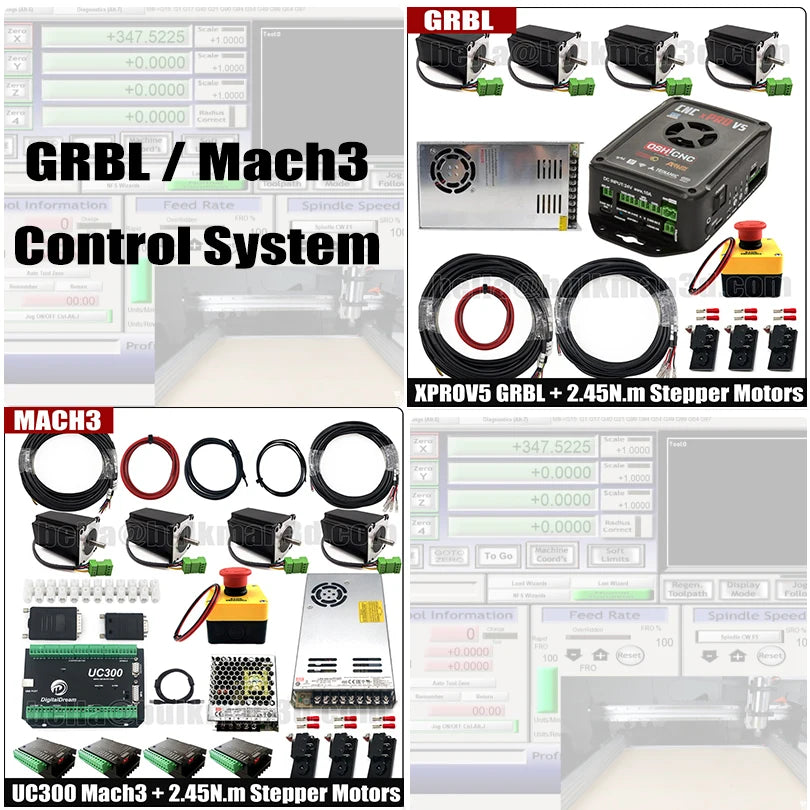

●Options Different Controller Kit with stepper motors

○GRBL-XPROV5 Controller Kit +2.45N.m Nema23 Stepper Motors

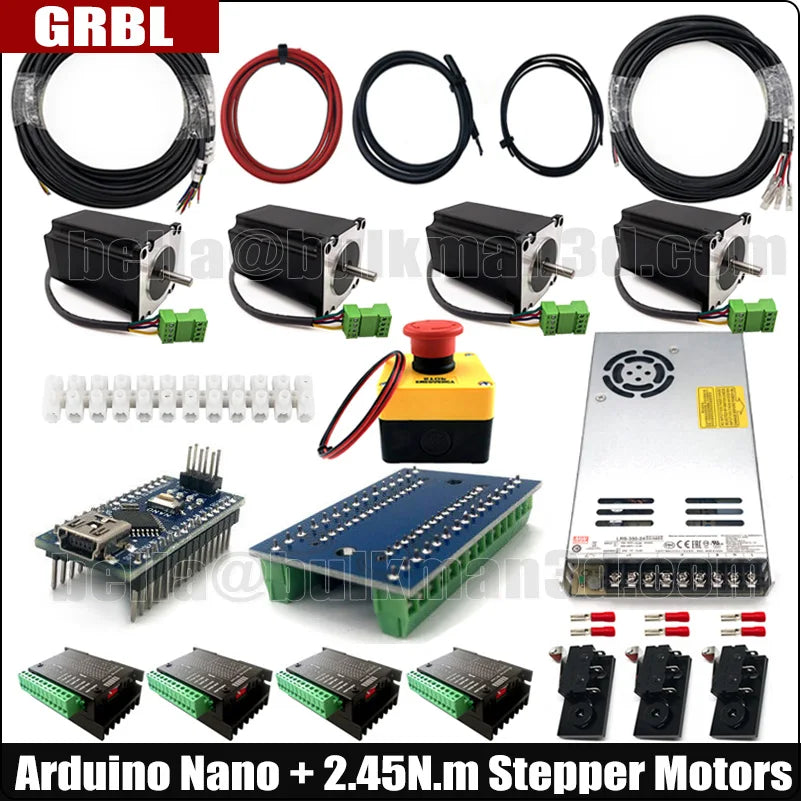

○GRBL-Arduino Nano Controller Kit +2.45N.m Nema23 Stepper Motors

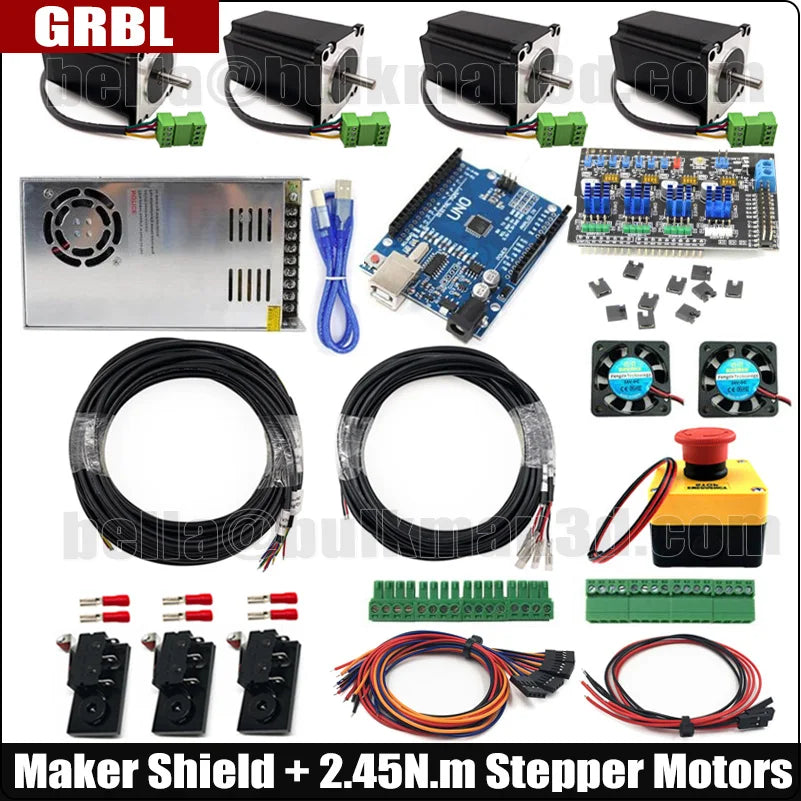

○GRBL-Maker Shield Controller Kit +2.45N.m Nema23 Stepper Motors

○Mach3-UC300 Controller Kit +2.45N.m Nema23 Stepper Motors

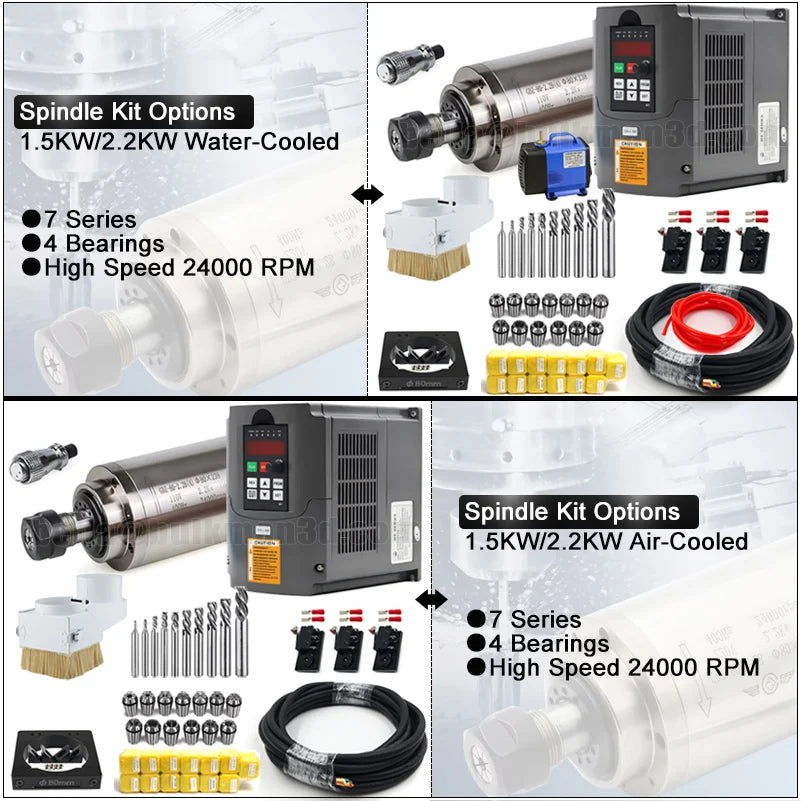

●Options Different Spindle Kit with Dust Cover

○1.5KW Air-Cooled

○1.5KW Water-Cooled

○2.2KW-Air-Cooled

○2.2KW Water-Cooled


●Free-Gift XYZ Touch Probe + High-Speed 4Flutes end mills(10pcs)


Attention

●About Aluminum Profile Color: Silver anodized standard.

If you need "Black anodized" pls specify in order notes or contact us (no extra cost!).

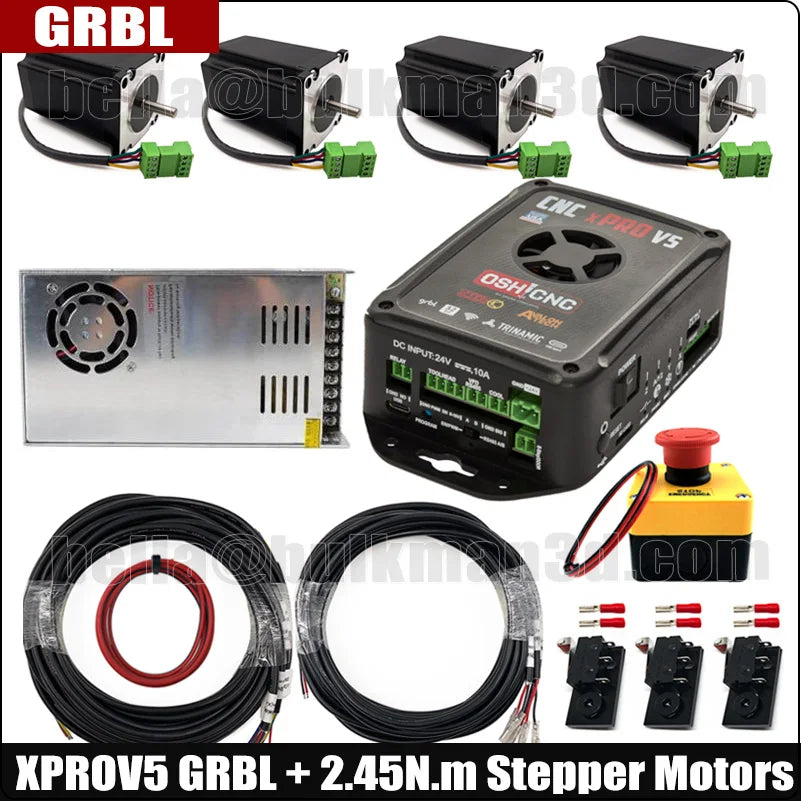

GRBL : CNC XPROV5 Controller Kit + 2.45N.m Stepper Motors

The xPRO V5 (We Recommend) is the most advanced GRBL CNC Controller

in the world. Developed by Spark Concepts in USA who have been making

GRBL CNC products for many years. It runs off a 32bit processor with over

4x the processing power of most other GRBL controllers. The xPRO V5 is

pre-assembled and pre-flashed with the latest GRBL version. We recommend

the xPRO V5 as the best controller option available.

The stepper drivers are easily suitable for our High Torque Stepper Motors and can even power stronger motors such as Nema34.


Key Features:

● 32bit processor

● High powered Trinamic 6A Stepper Drivers

● Supports VFD control

● Easy Plug and Play

● SD Card which allows for offline use

● Both Wi-Fi connection & USB connection (user choice)

● This option is the best choice for both a novice starting out, and with people

with experience and technical knowledge.


We understand that it can be confusing deciding between the different GRBL CNC Controller options we offer. This link is to help explain the differences between the options available.【Click to View More】

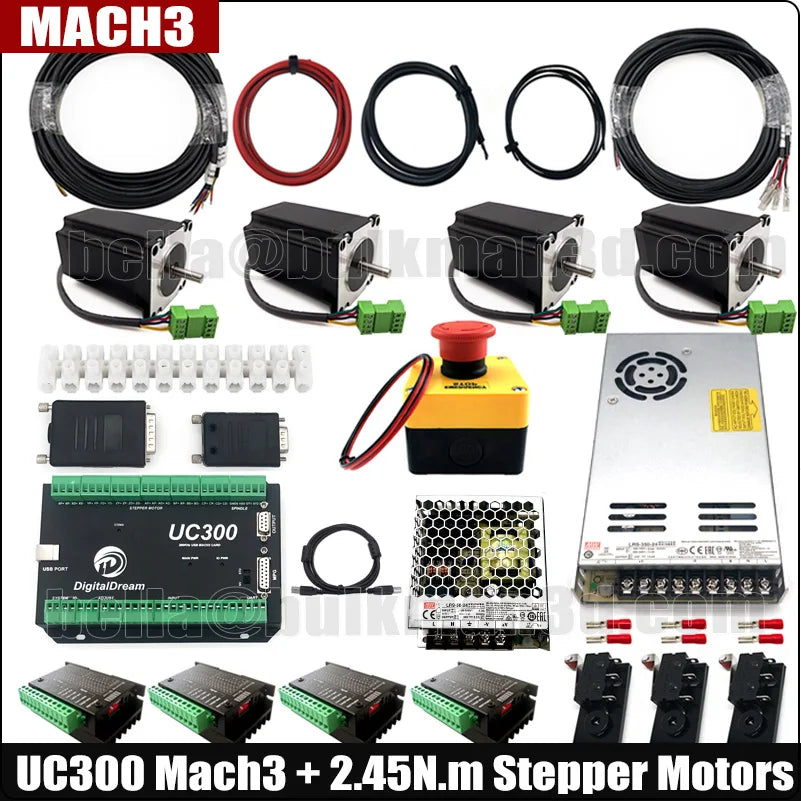

Mach3 : UC300 Controller Kit + 2.45N.m Stepper Motors

The UC300 Mach3 Controller —a precision-engineered motion control solution
designed to seamlessly integrate with Mach3 software. Whether you’re engraving delicate patterns, milling intricate parts, or routing large workpieces,
this controller delivers rock‑solid performance and unparalleled accuracy.
Enjoy snappy responsiveness, unwavering signal stability, and a host of advanced capabilities that empower you to tackle complex projects with confidence.
Key Benefits:
● Ultra‑Fast USB Plug‑and‑Play: Instant setup and high‑speed data transfer for smooth, jitter‑free motion.
● Stable, Error‑Free Communication: Industrial‑grade interface keeps signals
solid even under heavy loads.
● Seamless Mach3 Compatibility: Full support for Mach3’s functions and
macros unlocks total software integration.
● Precision Real‑Time Control: Millisecond‑level responsiveness ensures
accurate toolpaths and repeatable cuts.
● Modular Expansion: Easily add breakout boards or I/O modules to grow your
system as your projects evolve.


Features of 2.45N.M NEMA23 High-Torque Stepper Motors



Technical Specifications
● Holding Torque: 2.45N·m (24.5kg·cm)
● Rated Voltage: 3.6V DC
● Rated Current: 3A/Phase
● Step Angle: 1.8° ±5%
● Phase Number: 2
● Insulation Resistance: **≥100MΩ (500V DC)**
● Insulation Class: Class B
● Rotor Inertia: 600g·cm²
● Resistance per Phase: 1.2Ω ±10%
● Inductance per Phase: 4mH ±20%
● Detent Torque: 90mN·m
● Compatible Controllers: CNC xPRO V5, UC300, High-Current GRBL, etc.Key
Key Features
- High Torque: 2.45N·m holding torque for heavy-load applications.
- NEMA 23 Frame: Standard 57×57mm (2.3"×2.3") mounting.
- Precision: 1.8° step angle with ±5% accuracy.
- Robust Design: Class B insulation, ball bearings, and durable housing.
- Multi-Application: CNC, robotics, automation.
- Efficiency: Low noise, 3A rated current.
- Flexibility: Customizable voltage/current variants




Features of Spindle Motor

 Features of 2.2KW Water-Cooled Spindle Motor Kit

●Net weight(1.5KW Water-Cooled): 4.2kg

●Specs(1.5KW Water-Cooled): ∅80 x 205mm

●Net weight(2.2KW Water-Cooled): 5.5kg

●Specs(2.2KW Water-Cooled): ∅80 x 238mm

●Material: The cover is made of 304 stainless steel, and the water jack is high

compression casting aluminium tube, red copper coil

●High Speed-7 series 4 Bearings: 7005 bearings(3pcs)+7002 bearing(1pc)

●Coaxality: 0.025 mm (2.5 microns)

●Voltage: 220~250 V or 110 V

●AC Rated Current: 8 A

●Frequency: 0-400 Hz

●Max Rotation Speed: 24000 R/min

●Water Cooled Run out: 0.01 mm

●Collet Type for 1.5KW: ER11 (15pcs from 1mm-7mm)

●Collet Type for 2.2KW: ER20 (28pcs from 1mm-13mm)

●Power interface: GX16 water proof aviation plug marked with numbers 1, 2, 3, 4 (Numbers 1,2 and 3 are connected to the inverter power U, V, W respectively. Number 4 is connected to the Earth wire)

●Lubrication: High temperature resistance grease lubrication.


Features of 2.2KW Air-Cooled Spindle Motor Kit

●Net weight(2.2KW Air-Cooled): 4.5kg
●Specs(2.2KW Air-Cooled): ∅80 x 195mm
●Material: The cover is made of 304 stainless steel, and the water jack is high
compression casting aluminium tube, red copper coil
●High Speed-7 series 4 Bearings: 7005 bearings (3pcs) + 7002 bearing (1pc)
●Voltage: 220~250 V or 110 V
●AC Rated Current: 8 A
●Frequency: 0-400 Hz
●Max Rotation Speed: 24000 R/min
●Run out: Less than 0.005mm
●Collet Type for 2.2KW: ER20 (28pcs from 1mm-13mm)
●Power interface: GX16 water proof aviation plug marked with numbers 1, 2, 3, 4 (Numbers 1, 2 and 3 are connected to the inverter power U, V, W respectivey. Number 4 is connected to the Earth wire)
●Lubrication: High temperature resistance grease lubrication.




LEAD CNC








Please note:

  • The MDF Working Table is NOT included with this cnc full kit.

  • Any Mains power connections must be installed by a Licensed electrician or suitability qualified person!








Look! How the LEAD CNC is Cutting our Bulk Man 3D Logo!
