SPECIFICATIONS
Brand Name: ZONESUN
Certification: CE
High-concerned chemical: None
Model Number: ZS-SPL3
Origin: Mainland China
DESCRIPTION

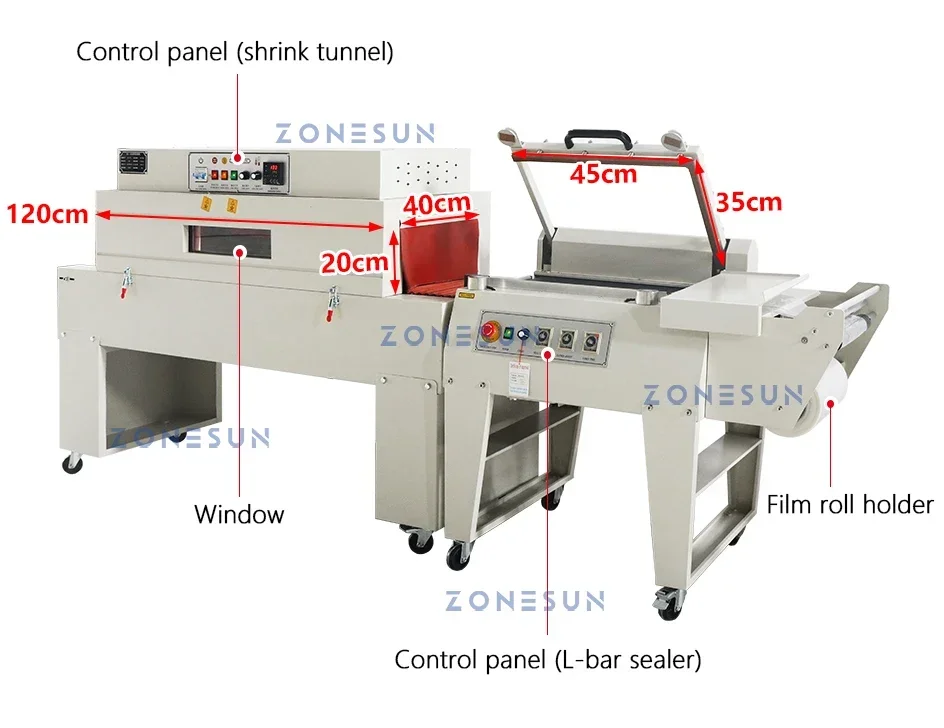

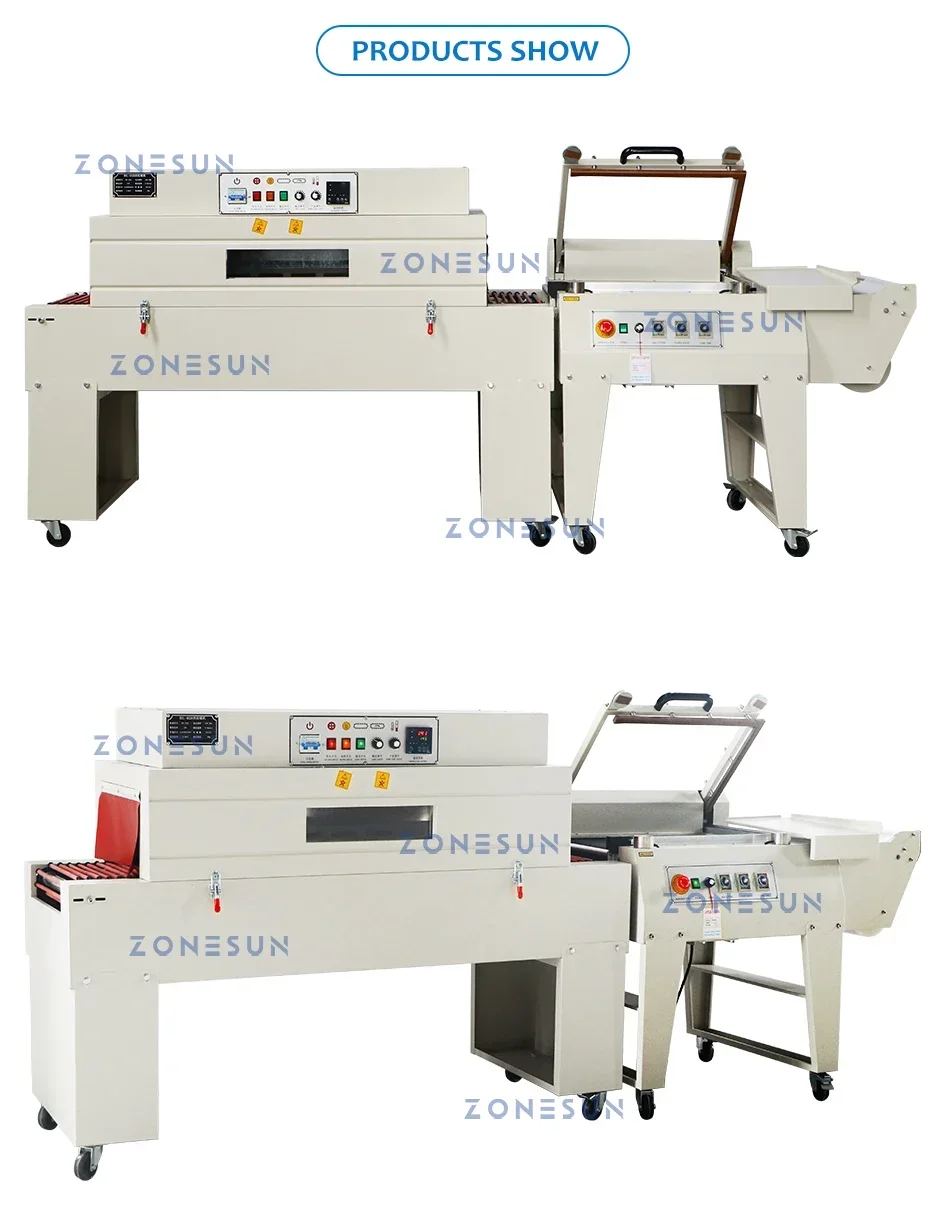

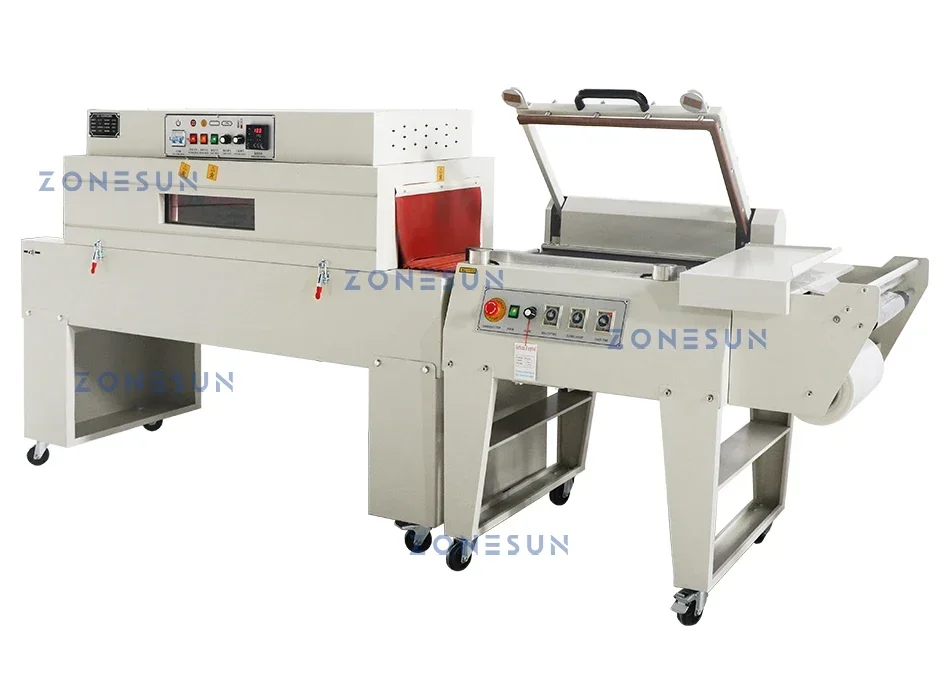

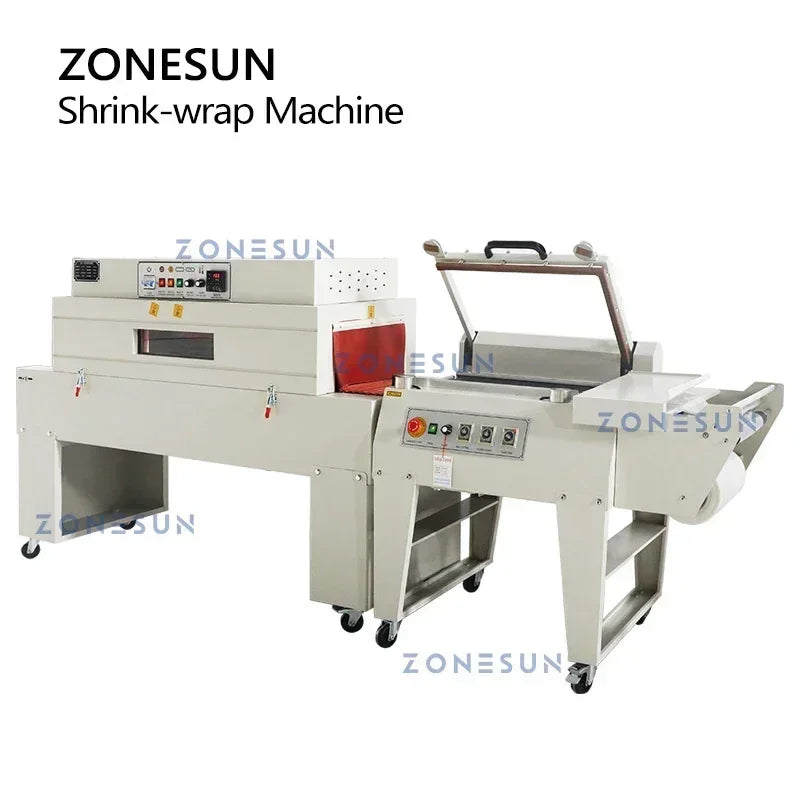

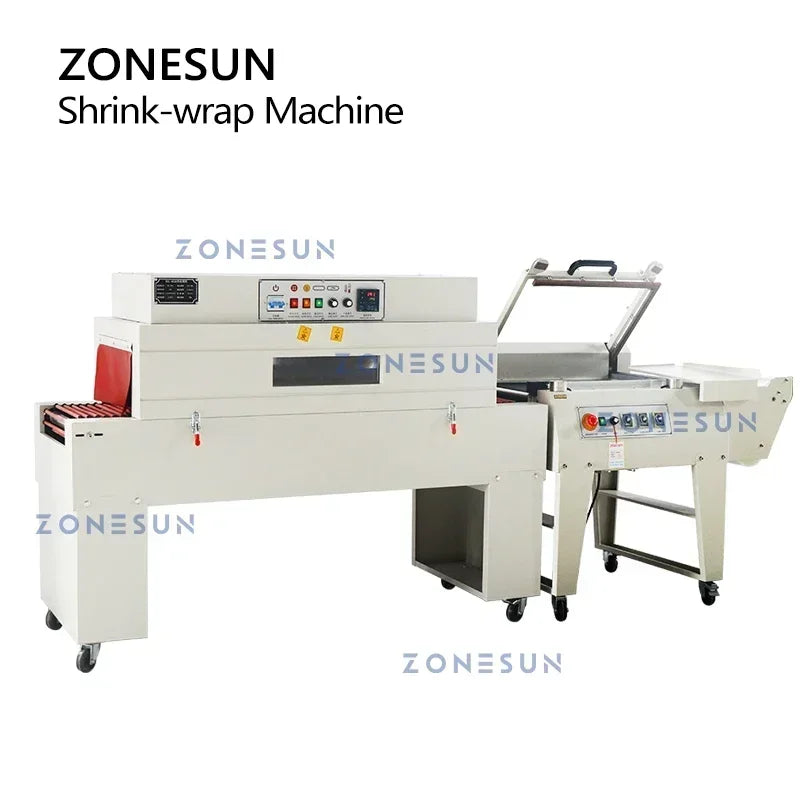

This is a set of an L-bar sealer and a shrink tunnel. It is the all-in-one solution to dispense and seal shrink-wrapped film around items. It fits conveniently into a production line operation. With durable all steel construction, it will give you years of reliable service and high quality seals.

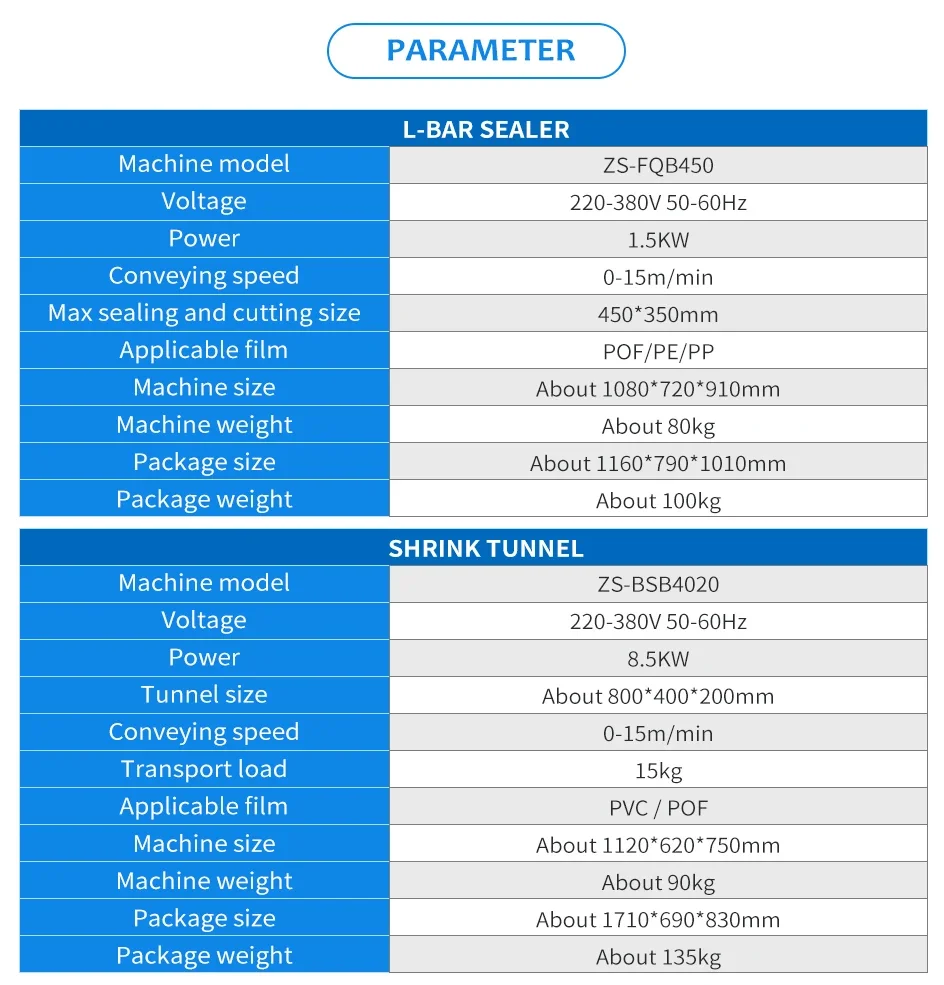

PARAMETER
|

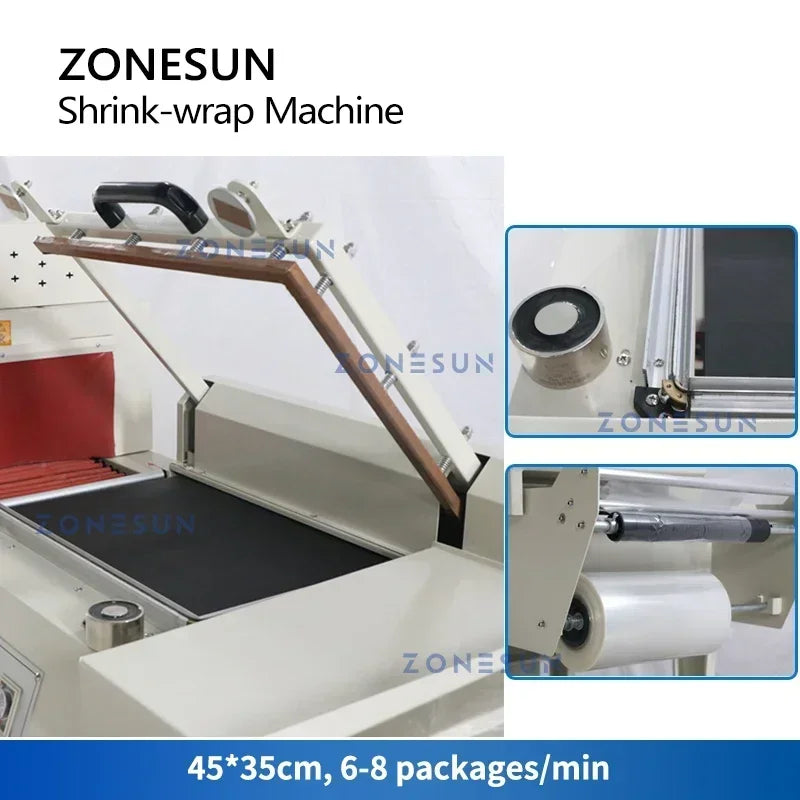

L-bar Sealer |
|
|
Machine model |
ZS-FQB450 |
|
Voltage |
220-380V 50-60Hz |
|
Power |
1.5KW |
|
Conveying speed |
0-15m/min |
|
Max sealing and cutting |
450*350mm |
|
Applicable film |
POF/PE/PP |
|
Machine size |
About 1080*720*910mm |
|
Machine weight |
About 80kg |
|
Package size |
About 1160*790*1010mm |
|
Package weight |
About 100kg |
|

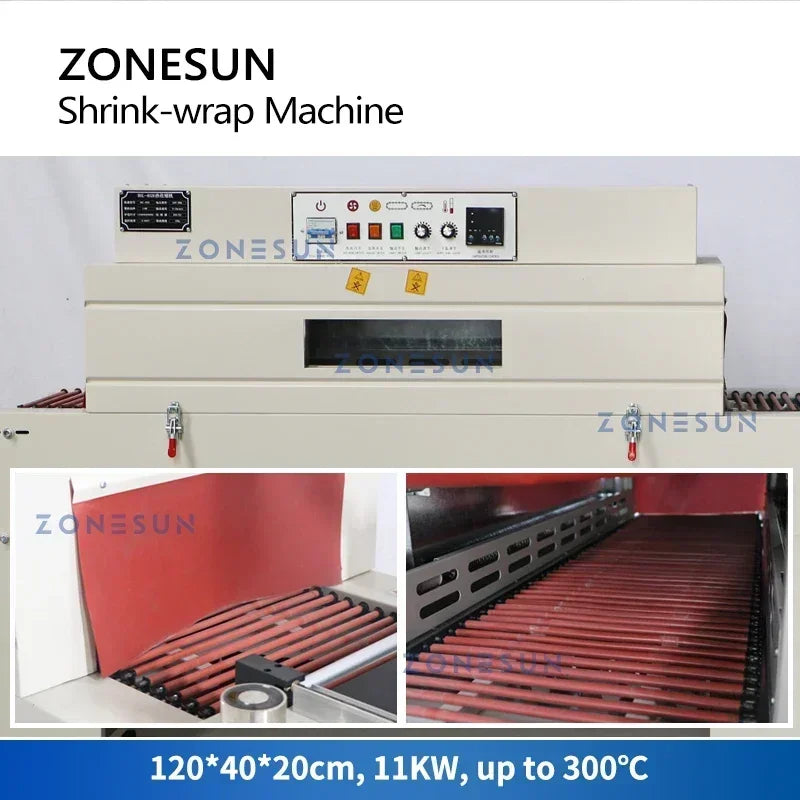

Shrink Tunnel |
|
|
Machine model |
ZS-BSB4020 |
|
Voltage |
220-380V 50-60Hz |
|
Power |
8.5KW |
|
Tunnel size |
About 800*400*200mm |
|
Conveying speed |
0-15m/min |
|
Transport load |
15kg |
|
Applicable film |
PVC / POF |
|
Machine size |
About 1120*620*750mm |
|
Machine weight |
About 90kg |
|
Package size |
About 1710*690*830mm |
|
Package weight |
About 135kg |
