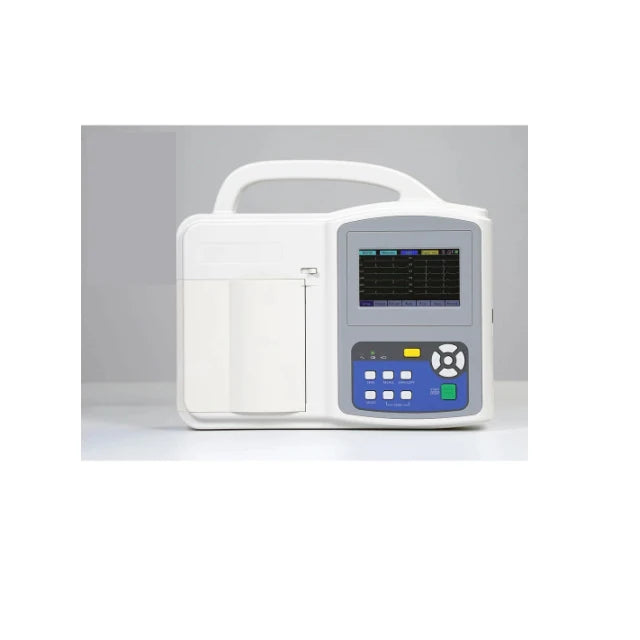

YD-8003V Pet Hospital 3 Channels Veterinary ECG EKG Machine electrocardiograph sale

Application for animals sucha as cat, dogs, rabbit, etc.





Features:

1.    Low weight and compact size
2.    Touch screen and touch key for easy operation
3.    High resolution thermal printer, recoding frequency response ≤ 150Hz
4.    12-lead gathered and amplified simultaneously, 3-channel built-in printer.
5.    Automatic mode and manual mode optional
6.    Color TFT touch screen with 640× 480 dot or 480× 272 dot
7.    Built-in rechargeable Li battery with high capacity
8.    Prompt information for lead off, lack of paper and low battery capacity etc.
9.    Automatic adjustment of baseline for optimal recording
10.  Standard input/output interface
11.  RS232 communication interface for linking to special network and setting

3 channel ECG machine with automatic interpretation

Manual/Auto working Modes

Simultaneous 12 leads acquisition and 3-ch recording with high resolution thermal printer.

4.3 inch Color TFT LCD display ECG wave and friendly menu setting

Support touch panel and keypad input ways

Support SD card storage

120 seconds ECG wave freeze and replay function

Lead-off detection and alert

Digital filtering, resisting baseline drift, AC and EMG interference

Built in USB/RS232 interface(ECGNET software optional)

Built in rechargeable Li-ion battery support less than 3 hours continuously work

AC power supply at 90-240V@50/60Hz



Technical Specifications:

Lead: standard 12 leads

Lead acquisition: 16bit/24bit 1000Hz(synchronously 12 leads)

Work modes: MANUAL,AUTO modes

Filter: AC Flter : 50Hz / 60Hz EMG Filter : 35Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR: ≥100dB (with AC filter)

Input circuit: floating; Protection circuit against defibrillator effect

Input Impedance: ≥50MΩ

Input circuit current: ≤0.05μA

Input dynamic range: ±5mVpp

Patient current leakage: <10μA

Calibrating voltage: 1mV±2%

Voltage tolerance:±600mV

Time constant: ≥3.2s

Frequency response: 0.05~150Hz(-3db)

Noise level: <15μVp-p

Sensitivity valve: ≤20μV

Sensitivity: 2.5, 5,10,20mm/mV

Inter-channel Interference: ≤0.5mm

Paper speed:5, 10, 12.5, 25, 50mm/s(±3%)

100 patient information storage

Display:4.3 inch TFT LCD with touch panel.
