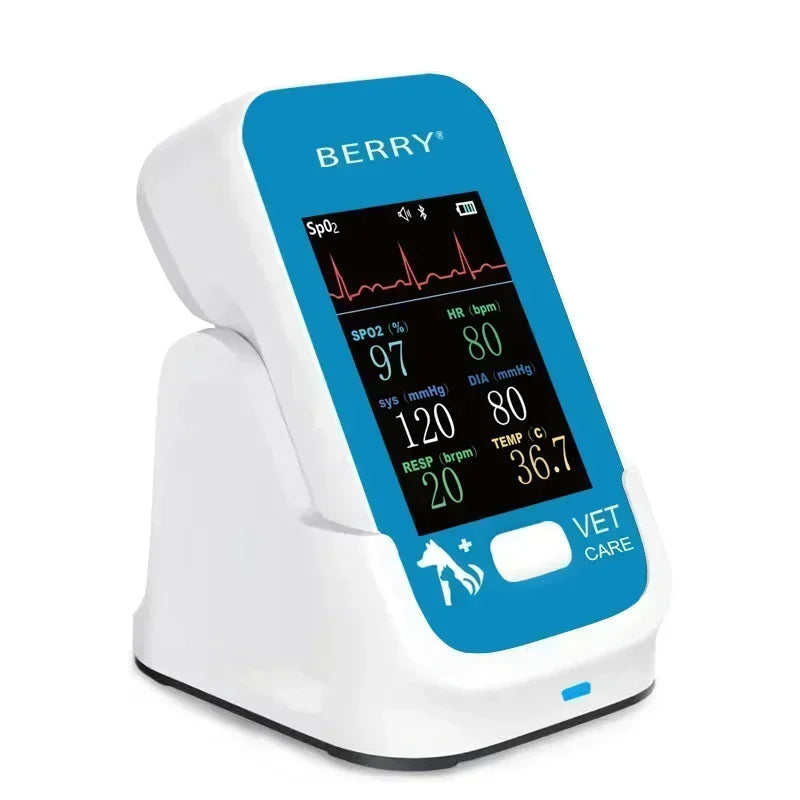

Veterinary monitor ecg handheld Berry veterinary monitor multiparametros AM6200 veterinary monitor device
Veterinary monitor ecg handheld Berry veterinary monitor multiparametros AM6200 veterinary monitor device
Regular price
CHF 690.32
Regular price
CHF 0.00
Sale price
CHF 690.32
Unit price
per
🔒 Safe Purchase & Lifetime Warrantee, Taxes included. 4-7 Day Delivery.
Couldn't load pickup availability
SPECIFICATIONS
Animal: DOGS&CATS
Application: Signs detection
Brand Name: NoEnName_Null
Certificate: CE
Function: SPO2
High-concerned chemical: None
Model Number: AM6200
Origin: Mainland China
Place of Origin: Shanghai, China
Product name: Veterinary Monitor
Properties: Disinfection Equipment
Type: Other
is_customized: Yes
Instructions

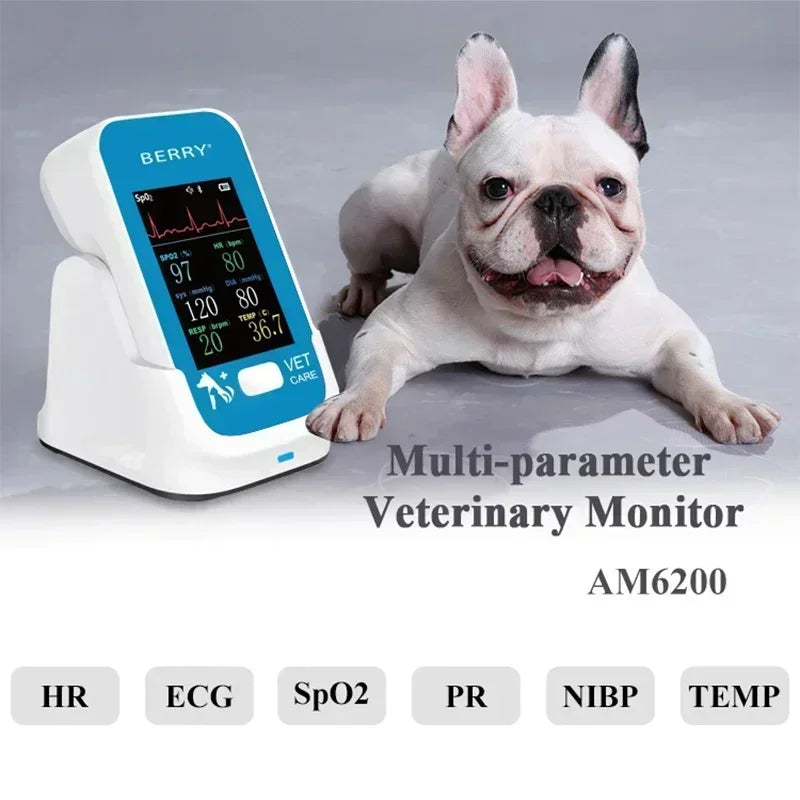

BERRY Multi-parameter veterinary monitor AM6200 This monitor is capable of monitoring parameters: ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood pressure), SpO2, PR(pulse rate), TEMP(body temperature). The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently. Besides, this monitor can be connected with the other smart terminals such as PC or Android phones. This monitor integrates the functions of parameter measurement, waveform monitoring, etc. Its color TFT liquid crystal display is able to show animal parameters and waveform clearly.
Custom made
The minimum quantity for customization is 1000.
Application scenarios
AM6200 pet monitor is applicable to the daily and surgical monitoring of various pets, and widely used in pet hospitals, pet clinics, zoos, indoor and outdoor home care.

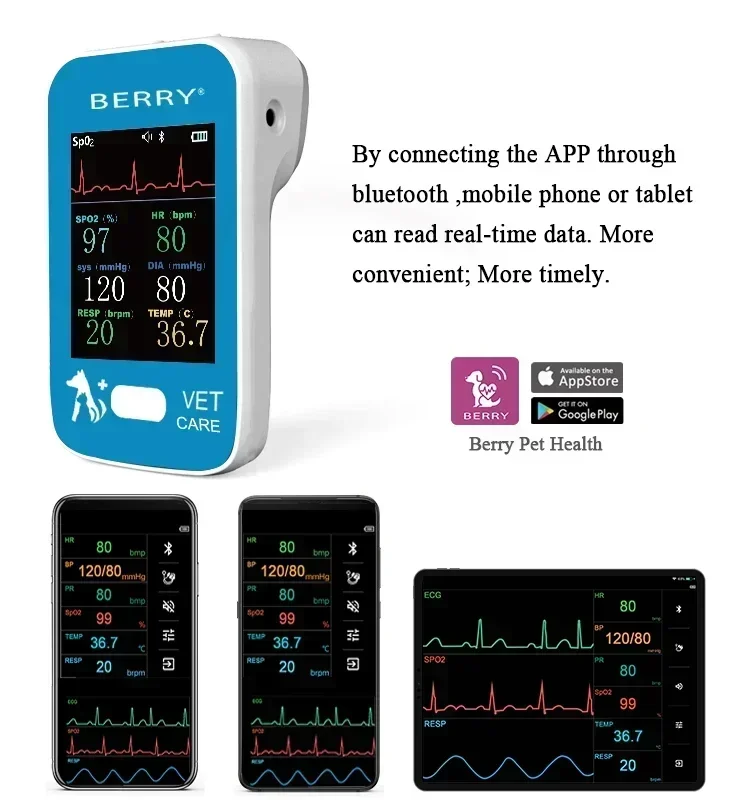

APP
By connecting the APP through Bluetooth ,mobile phone or tablet can read real-time data. More convenient; More timely.
Download
"Berry Smart Health"app at APP Store and Google Play
Can be used while charging, charge supports Type-c interface

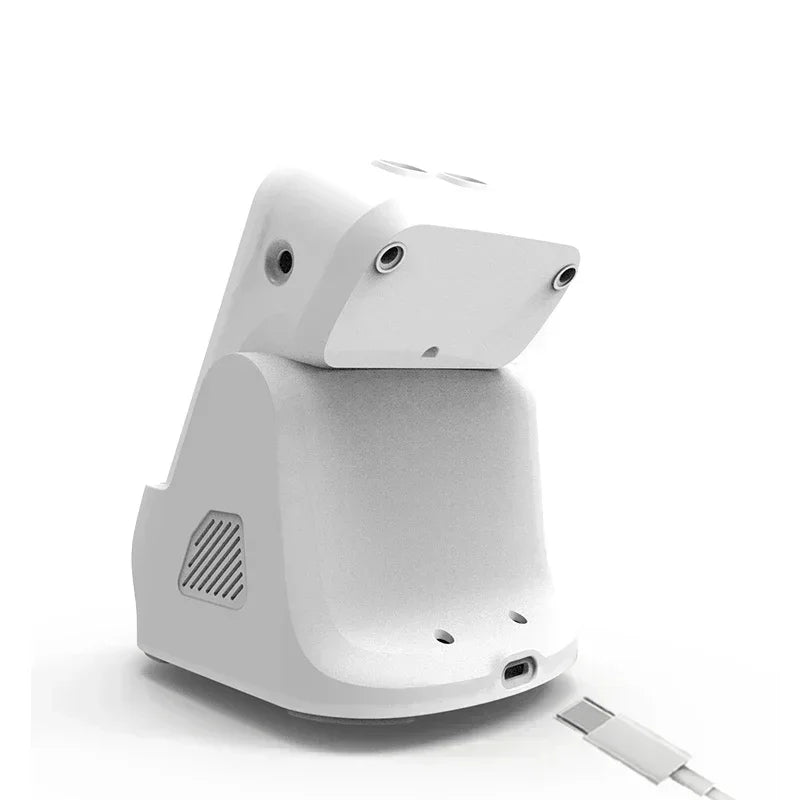

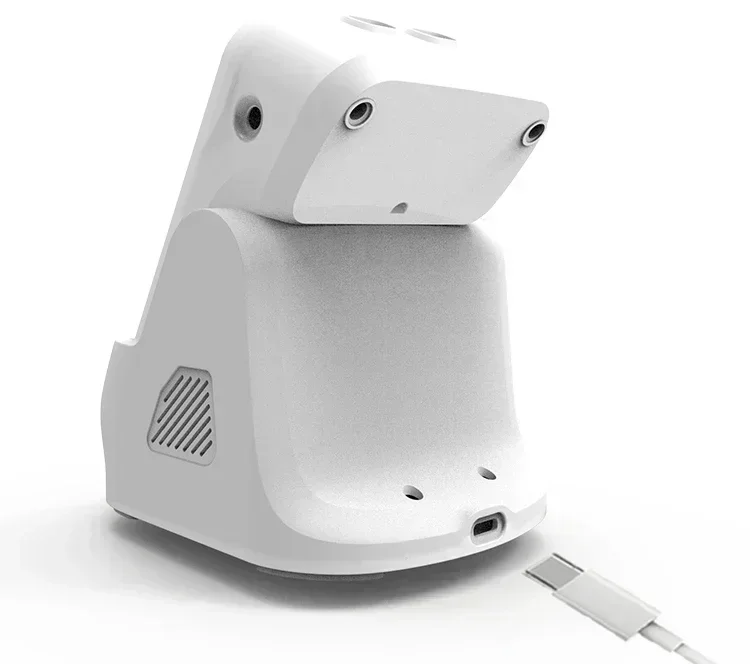

Wireless charging base Machine charging

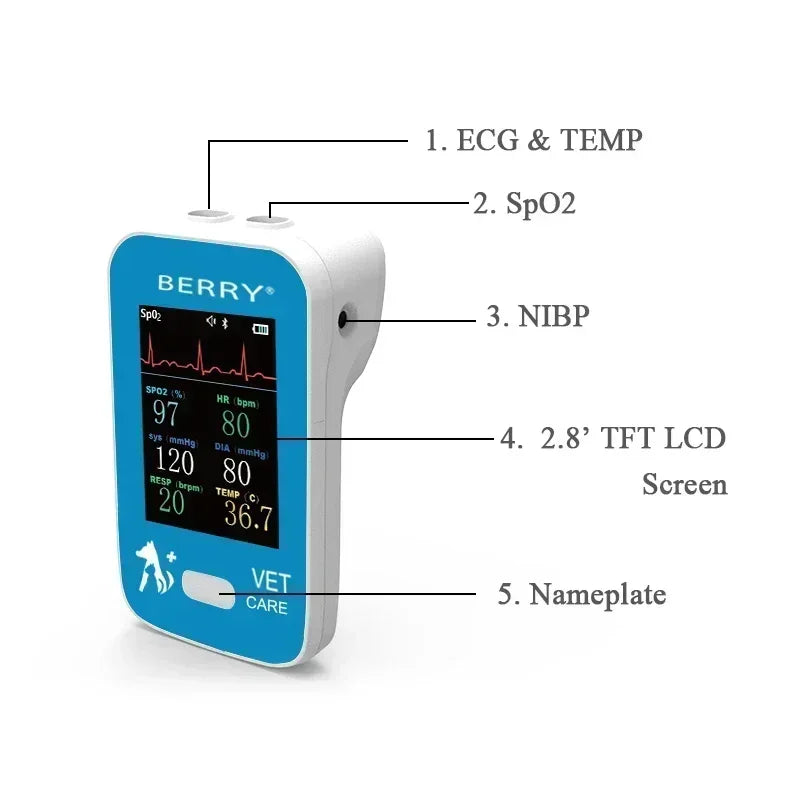

Function buttons and sockets
|
Number
|
Name
|
Purpose
|
|
1.
|
ECG & TEMP
|
ECG & TEMP cable connector, Charging Connector.
|
|
2.
|
SpO2
|
SpO2 sensor connector.
|
|
3.
|
NIBP
|
NIBP cuff hose connector.
|
|
4.
|
S creen
|
2.8'TFT LCD.
|
|
5.
|
Key
|
Power and functions key.
|

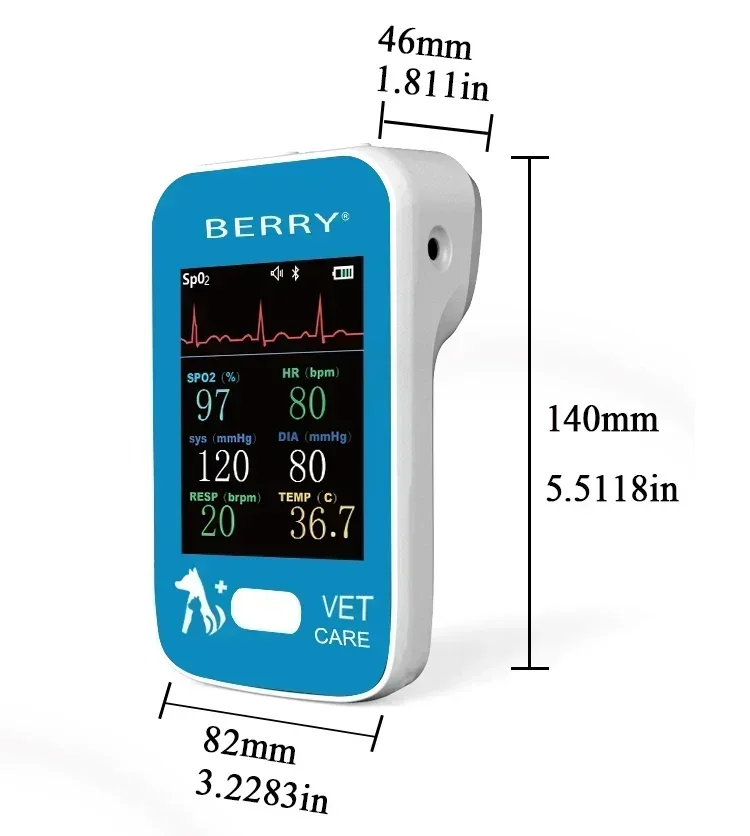

Size
Battery and Charging
Built-in Battery :
3.7V, 1800mAh lithium battery.
Wired Charging :
5V⎓1A
Wireless Charging :
5W

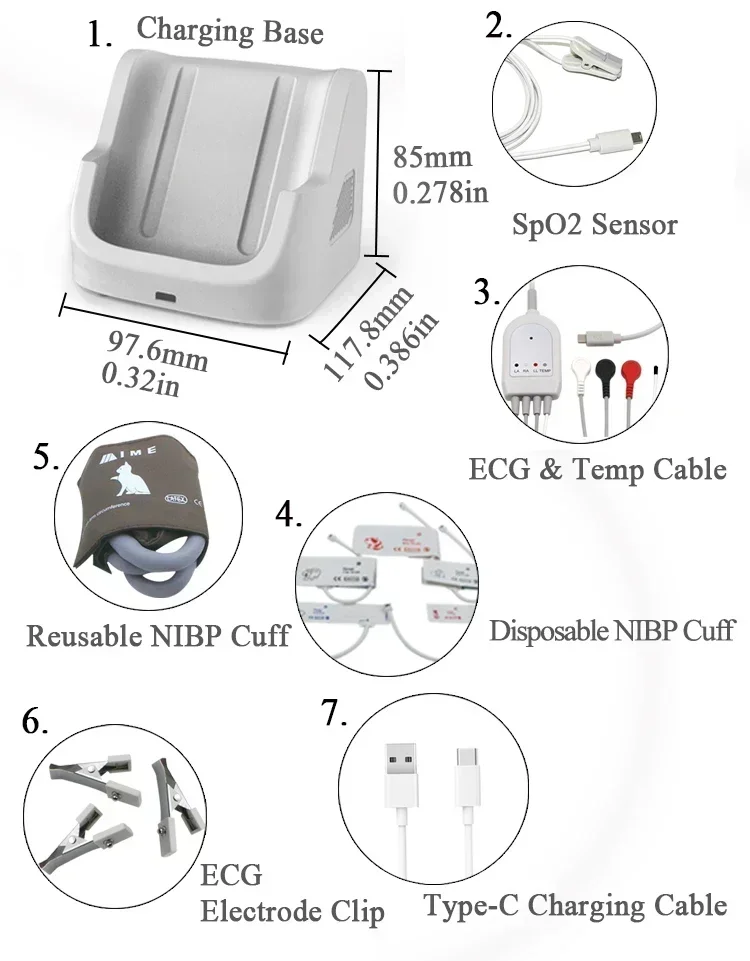

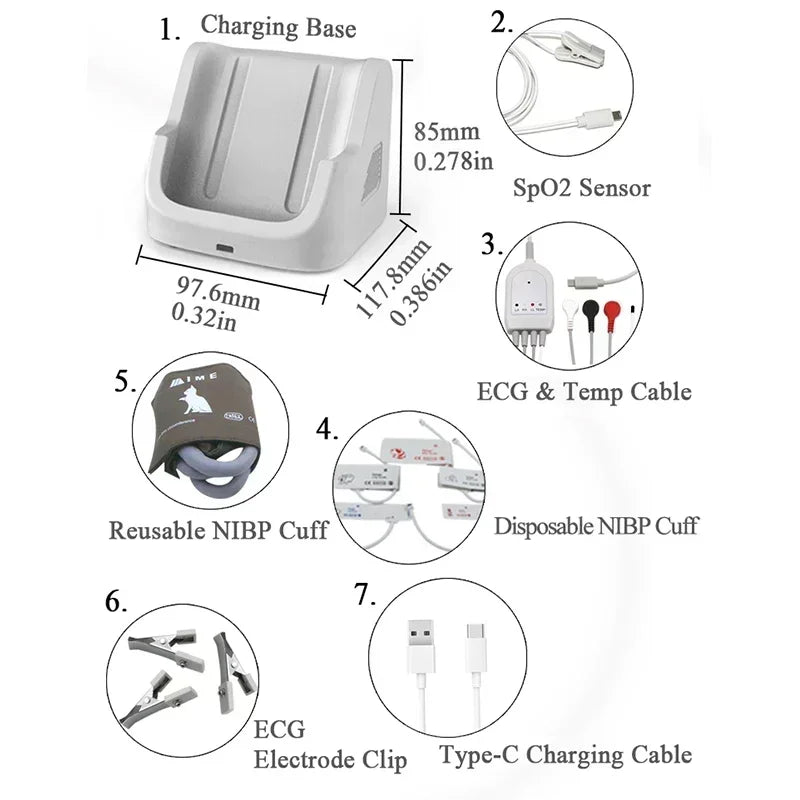

Standard Configuration
1,Charging Base 2,SpO2 Sensor 3,ECG & Temp Cable 4,Disposable NIBP Cuff 5,Reusable NIBP Cuff 6,ECG Electrode Clip 7,Type-C Charging Cable
1,6-Vital signs numerical results and waveform are shown on the TFT-LCD in real time. 2,Communication with other intelligent terminals via Bluetooth. 3,Automatically power off to save power. 4,Portable, palm size 5,Low power consumption. 6,One touch operation 7,APP for Android and iOS 8,Real time data transmission 9,Rechargeable battery and wireless charging 10,Can be used while charging 11,Lithium battery is builtin. 12,Multi-function for SpO2, HR, Temp, ECG, RR and NIBP
Technical Features
|
Display ECG, HR, NIBP, SpO2, PR, TEMP
|
Screen: 2.8 inches colorized
TFT-LCD screen |
|
ECG
Waveform: Lead I
Band width 0.05Hz ~ 100Hz(3dB) diagnose mode
1 ~ 40Hz monitor mode
0.1 ~ 25Hz operation mode
|
Heart rate:
Scope: 15 bpm ~ 300 bpm Accuracy:±2bpm or 2%, whichever is greater. |
|
NIBP
Scope:
Systolic blood pressure: 4kPa ~ 34kPa(30mmHg ~ 255mmHg)
Diastolic pressure: 2kPa ~ 29.3kPa(15mmHg ~ 220mmHg)
Mean pressure: 2.7kPa ~ 31.3kPa (20mmHg ~ 235mmHg)
Detection accuracy: Static pressure: ±3mmHg
|
Temp:
Type: Vascular/surface temperatureScope: 25℃ ~ 45℃ Accuracy: ±0.2℃ |
|
RESP
Measurement range: 5～100brpm. Accuracy:±2brpm |
TEMP
Measurement range: 25～45℃.
Measurement accuracy: ±0.2℃. |
|
SpO2
Measurement range:35~100%. Accuracy: ±2% (80%~100%), ±3% (70%~79%),
±3% (35%~69%) |
PR
Measurement range: 25~250bpm. Accuracy: ±2bpm or 2%, whichever is greater. |
|
NIBP:
Scope: Systolic blood pressure:
4kPa ~ 34kPa (30mmHg ~ 255mmHg)
Diastolic pressure:
2kPa ~ 29.3kPa (15mmHg ~ 220mmHg)
Mean pressure: 2.7kPa ~ 31.3kPa (20mmHg ~ 235mmHg)
Detection accuracy: Static pressure: ±3mmHg
|
Weight: 256±10g
(not includingaccessories).
|
