SPECIFICATIONS

Arm Length: 600

Brand Name: NoEnName_Null

Certification: CE

Condition: New

DIY Supplies: Electrical

Function: Picking Lifting Handing Placing

High-concerned chemical: None

Keyword: Automatic Robot

Marketing Type: Hot Product 2024

Model: BRTIRSC0603A

Number of axis: 4 Axis

Origin: Mainland China

Payload: 3KG

Product name: 4 Axis Robot Arm

Robot type: 4 Axis Articulated Robot

Showroom Location: Argentina, India, Brazil

Technology: Huacheng Control System

Usage: Production Line

Warranty: 2

Warranty of core components: 2 years

brand name: BORUNTE

core components: Engine, Bearing, Gearbox, motor, Pressure vessel, Gear

dimension(l*w*h): 55*70*90

machinery test report: Provided

place of origin: Guangdong, China

power(w): 5.62

video outgoing-inspection: Provided

voltage: 220

weight (kg): 28 KG

Hello, if you need to buy other models, please contact our business manager: WhatsApp: +86 18973840055 or email: 3546813709@qq.com ng fee. Due to the different quantity, size and delivery address of the goods, the specific shipping fee needs to be consulted by customer service on the day to ask for the logistics quotation. Thank you for your cooperation!

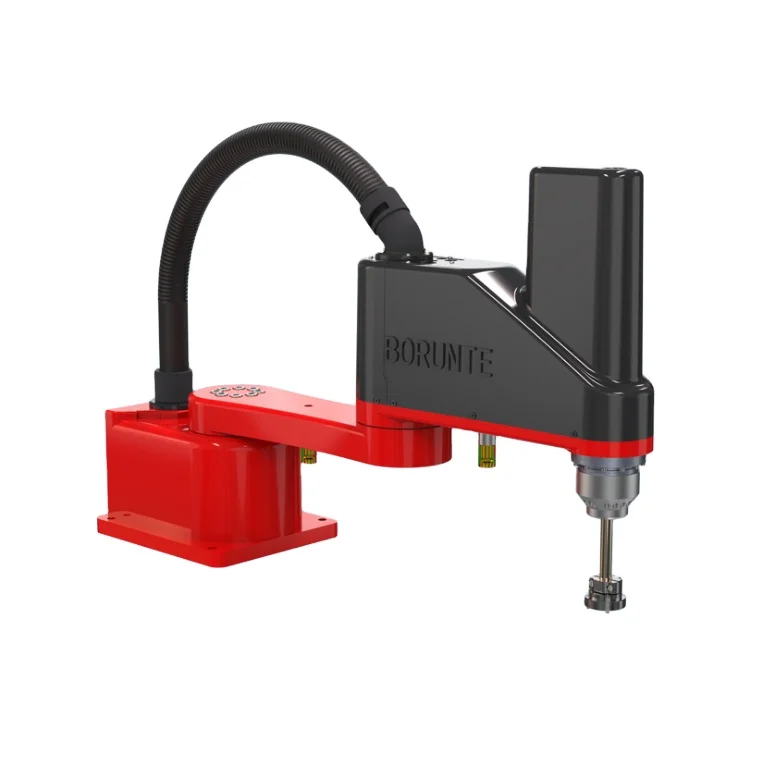

BRTIRSC0603A

BRTIRSC0603A is a four-axis robot developed by Bronte for some monotonous, frequent and repetitive long-term operations. It has a 600mm arm span and a maximum load of 3kg. It has the flexibility of multiple degrees of freedom and is mainly used in printing and packaging, metal processing, textile home furnishing, electronic equipment and other fields. High protection level: IP40. High precision: repeated positioning accuracy ±0.02mm.

● The structure of servo motor with RV reducer and harmonic reducer, which has small volume, large working range, fast speed and
high precision, and can be integrated with turntable, slide conveyor chain system and other auxiliary equipment. ● The handheld
dialogue operator of the control system is simple and easy to learn, which is very suitable for production.
● The robot body adopts partial internal wiring, which is safe and environmentally friendly

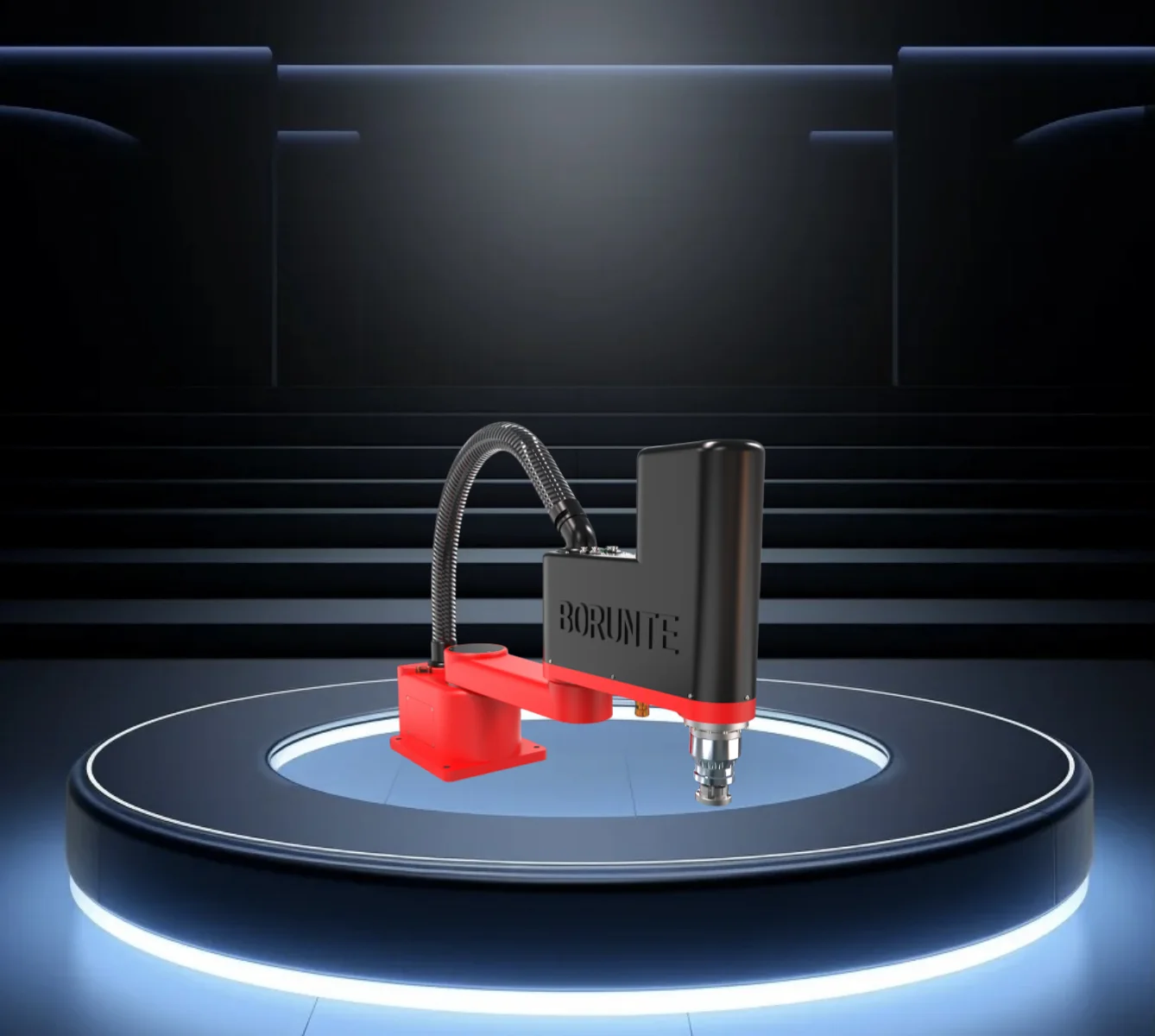

BRTIRSC0603A robot arm

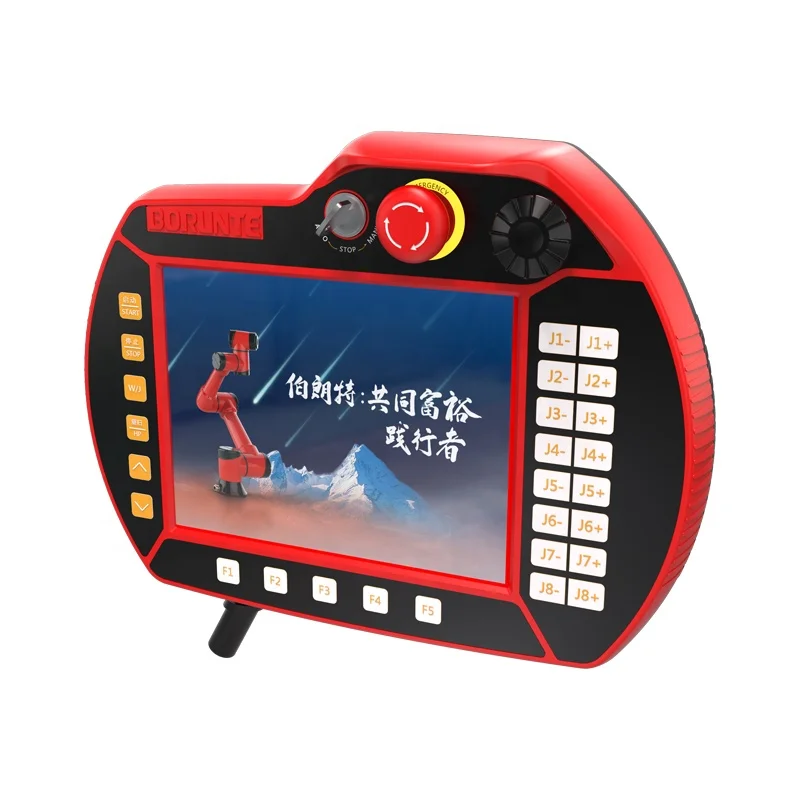

FlexPendant

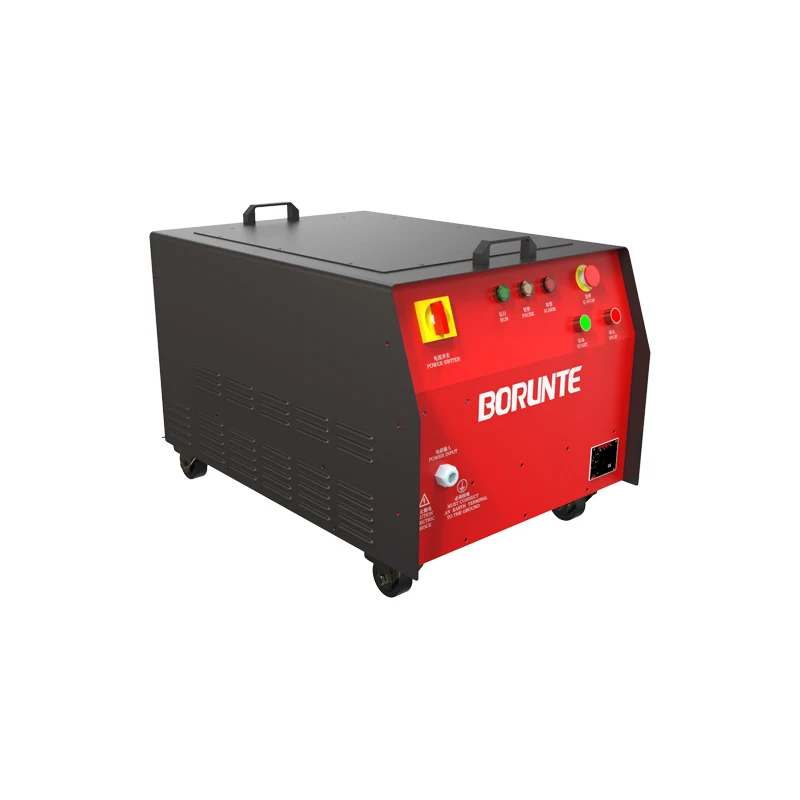

Electric Cabinet

Product Specifications

Model

BRTIRSC0603A

Axes

4 axis

Loading ability

3kg

IP code

IP54 Dust-proof and water-proof

Repeated positioning accuracy

±0.02mm

Maximum arm span

600mm

Weight

28kg

Max speed

J1

163°/s

J2

149°/s

J3

223°/s

J4

169°/s

J5

270°/s

J6

398°/s

Motion range

J1

±165°

J2

-100°/+70°

J3

±80°

J4

±150°

J5

±110°

J6

±360°

Allowable torque

J4

15N*m

J5

25.24N*m

J6

25.563N*m

Allowable moment of inertia

J4

0.262kg*m2

J5

0.542kg*m2

J6

25.563N*m

Mounting environment

Operating temperature: 0℃~40℃ Best temperature:25℃~40℃ Relative humidity:20~80%RH(No condensation)

Mpa

0.5~0.7MPa

Power supply

220V±10% 50Hz/60Hz

Core components

Name

Operating system

Brand

BORUNTE

Casting body

BORUNTE

Servo motor

BORUNTE

Reducer

BORUNTE

Electrical component

BORUNTE

Oil content

J1

900ML

J2

800ML

J3

400ML

J4

/

J5

/

J6

/

Vulnerable parts

Timing belt

MBT233090503 HTD-5M-09 Bandwidth: 89 teeth

Vulnerable parts

Timing belt

MBT233090305 HTD-3M-09 Bandwidth: 188 teeth

Timing belt

MBT233090305 HTD-3M-09 Bandwidth: 188 teeth

Robot accompany materials

USB

Applications

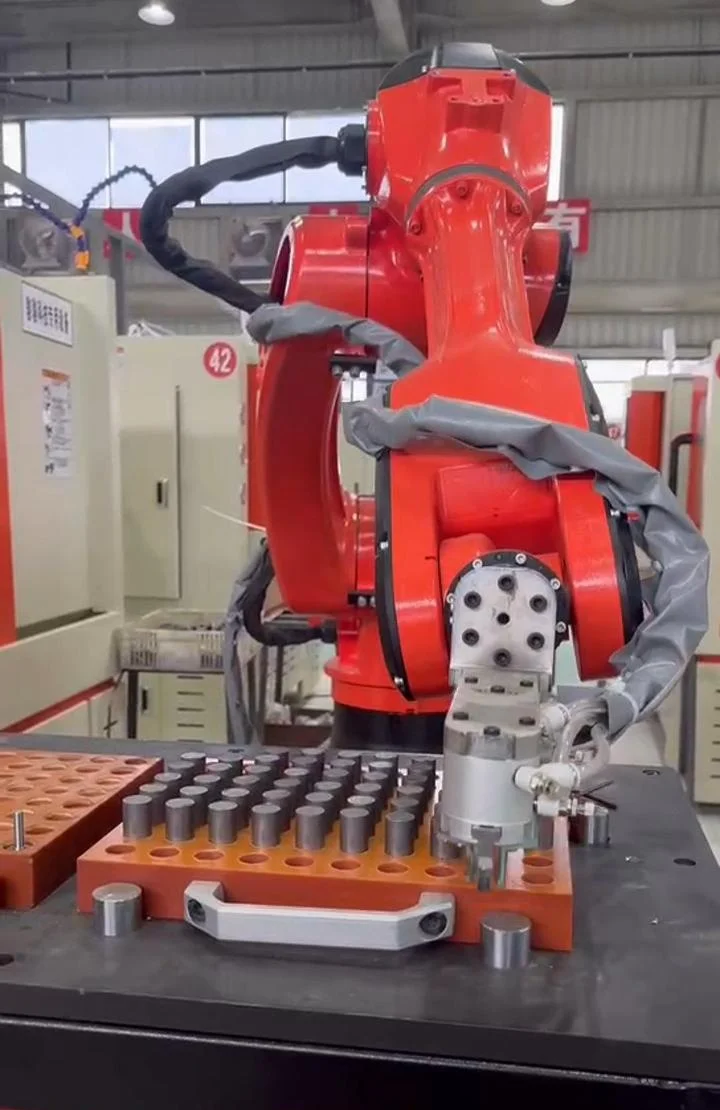

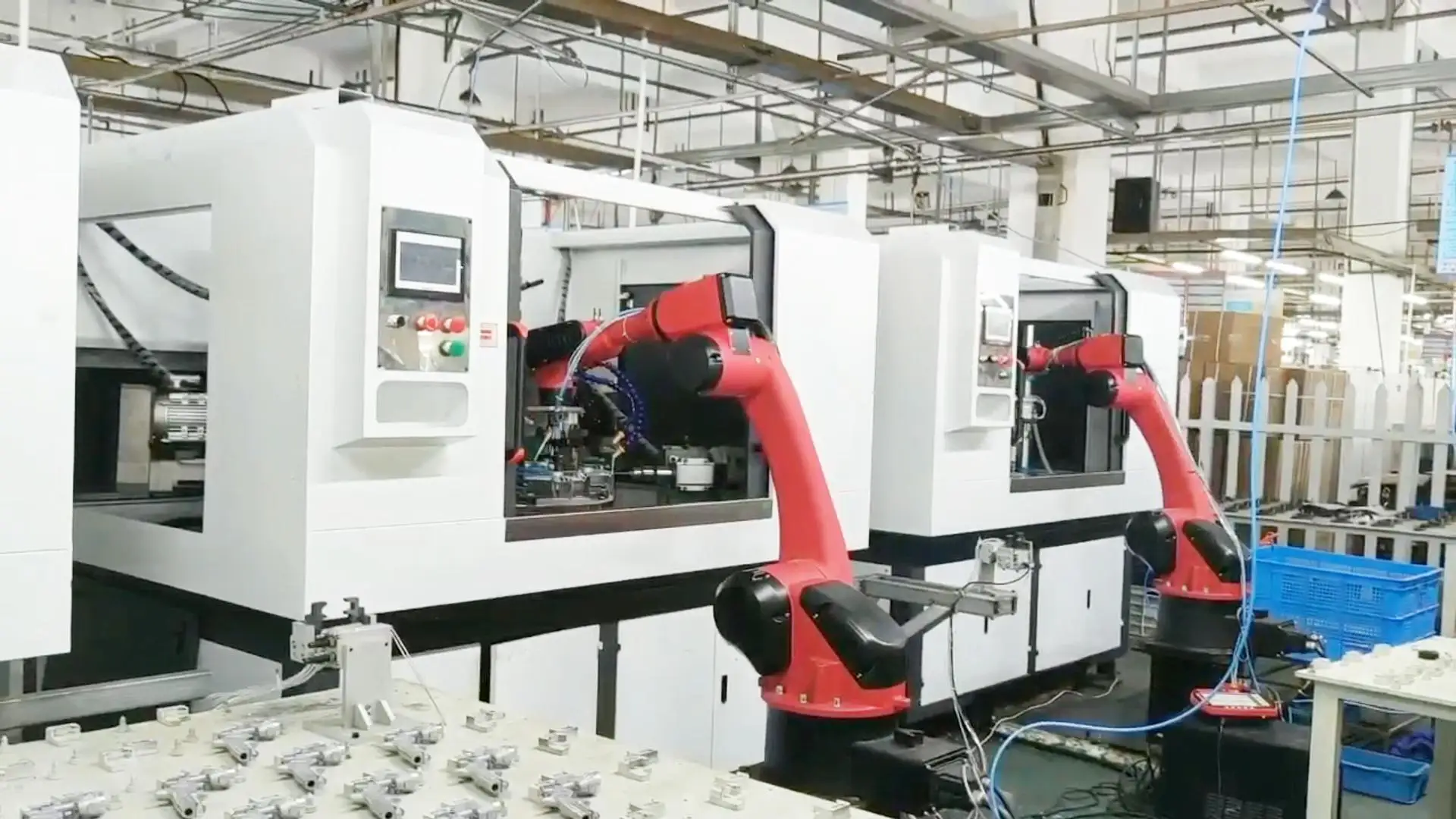

loading with CNC machine

handing

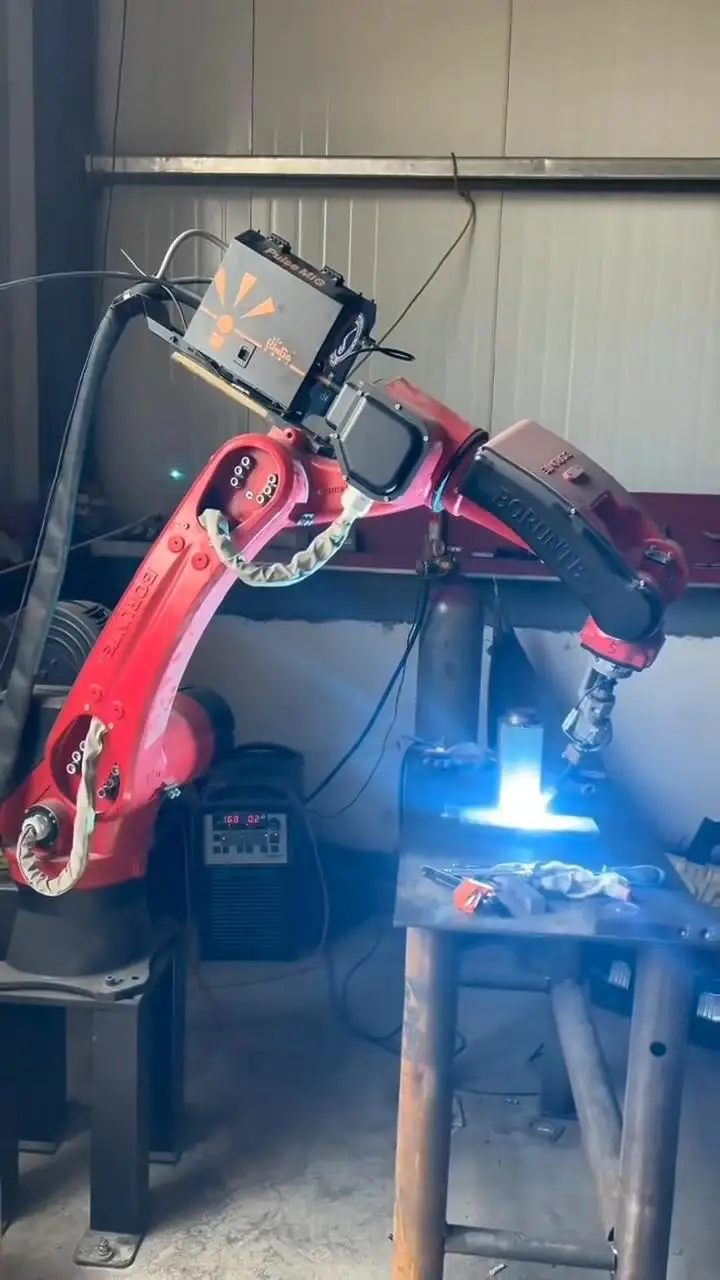

welding

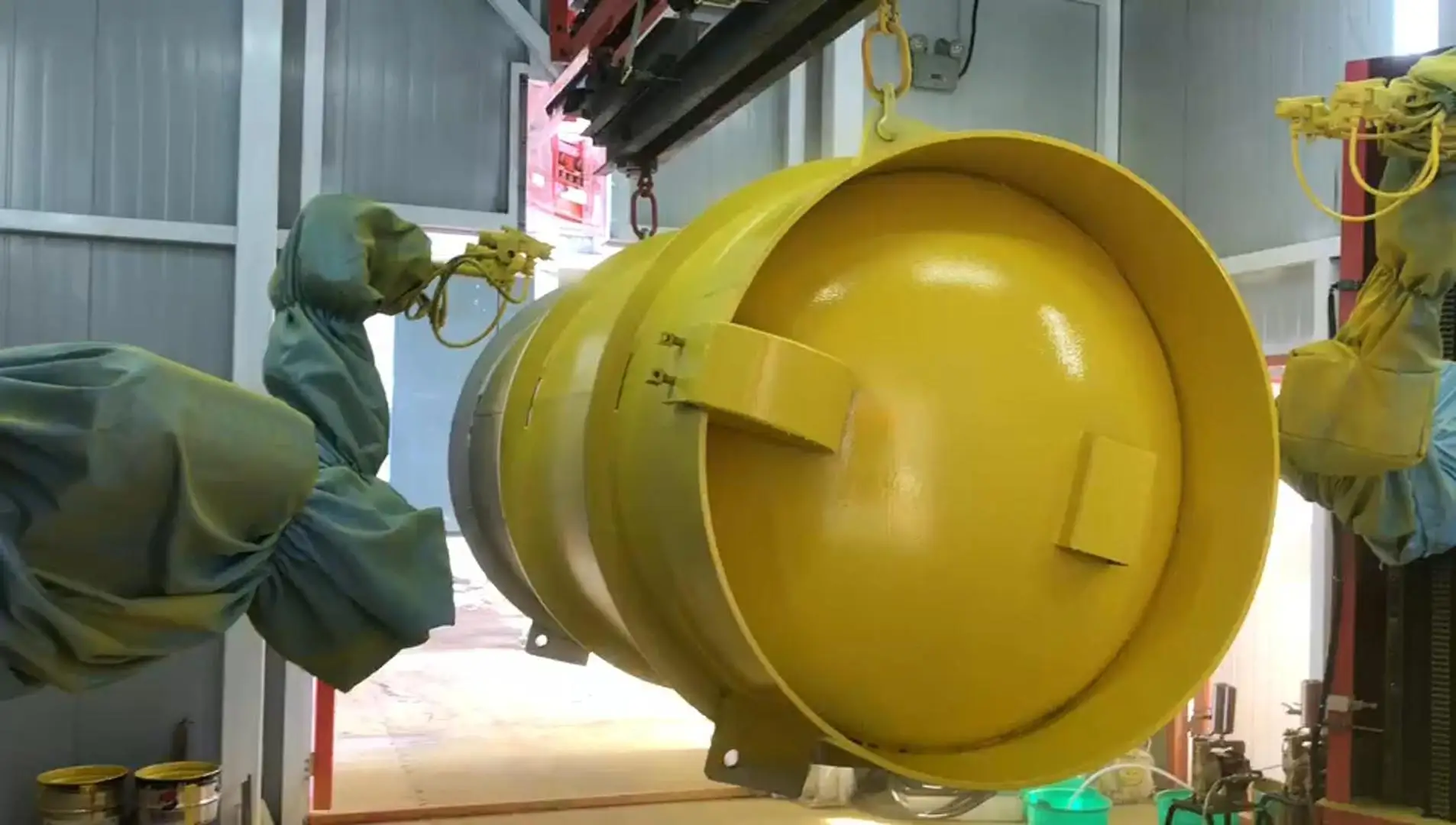

painting

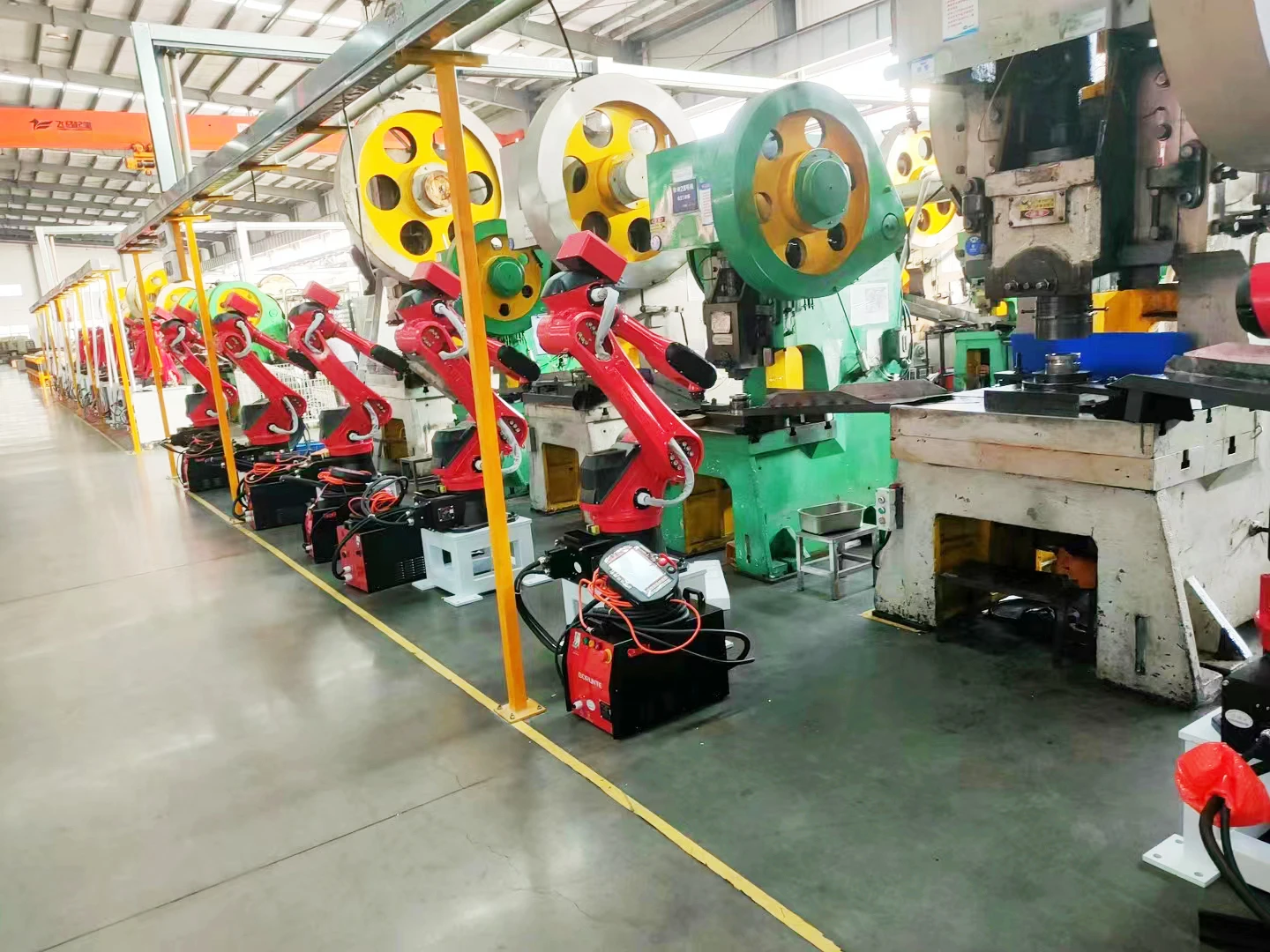

stamping

injection molding
