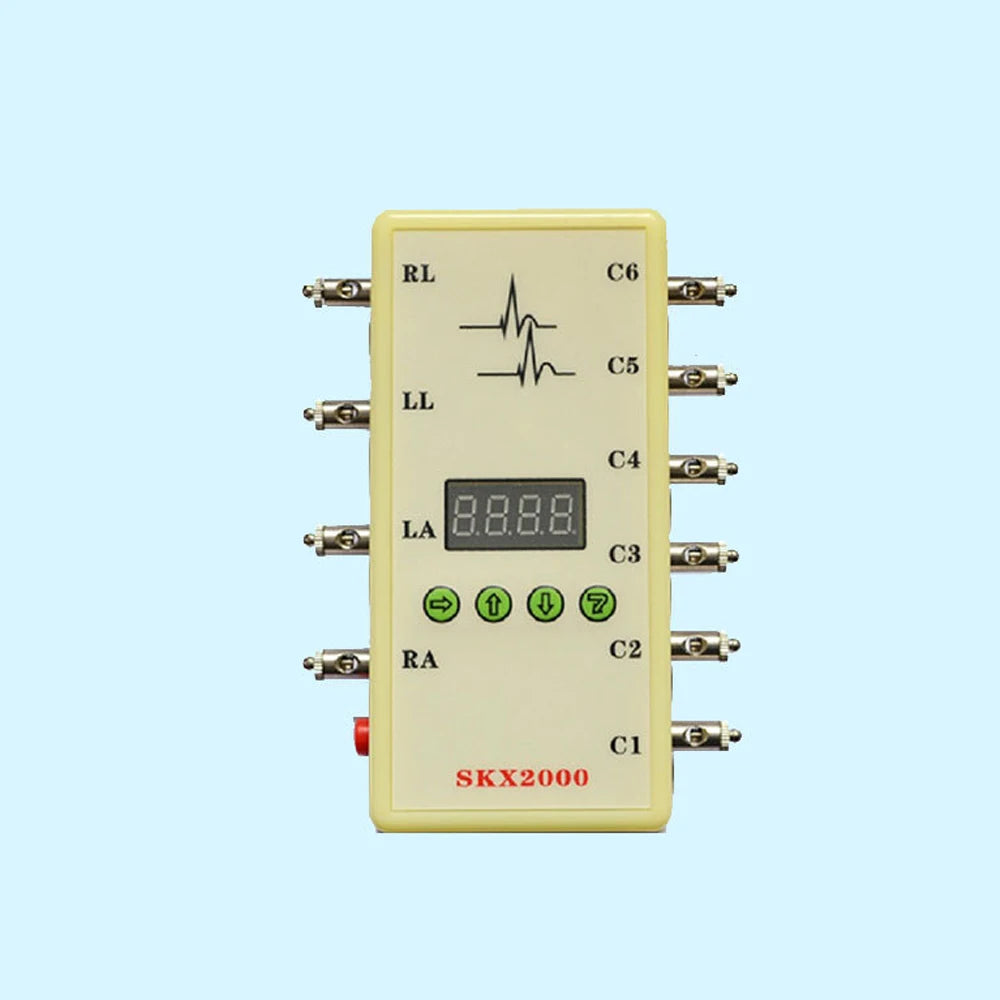

Hardware configuration:

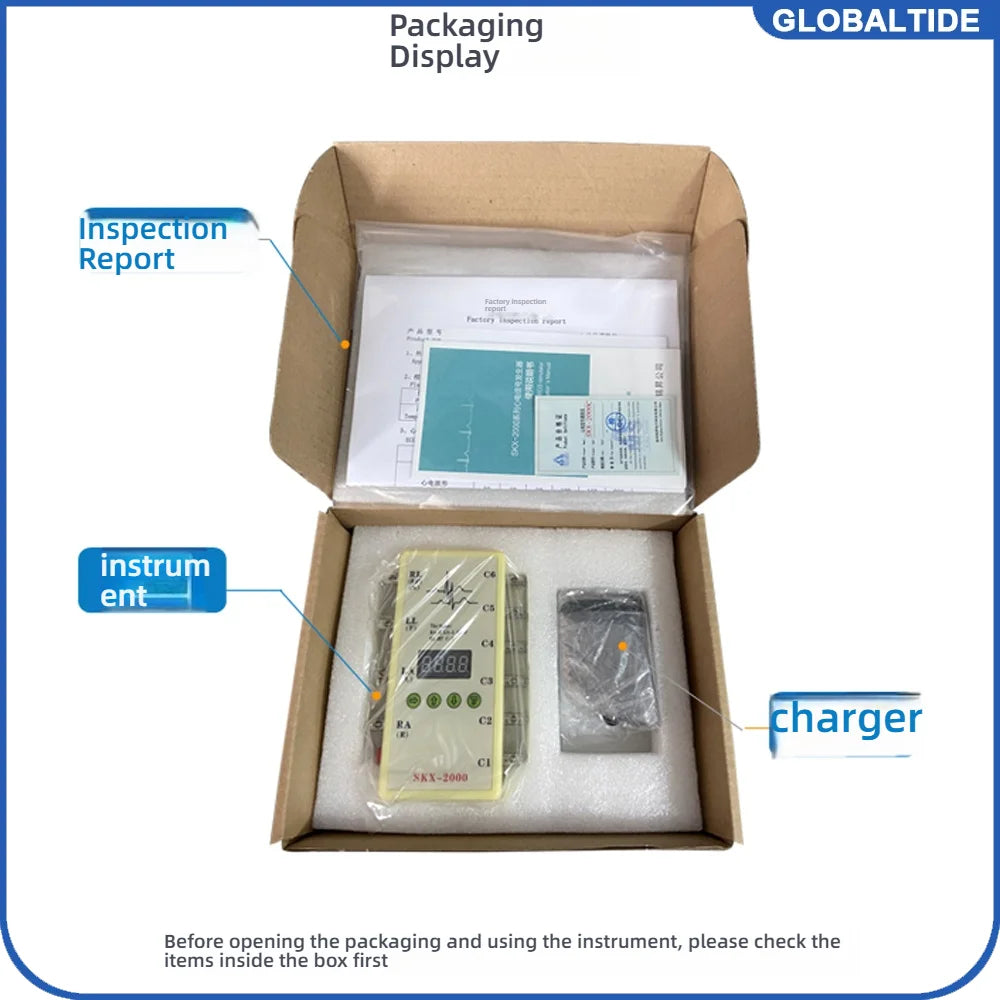

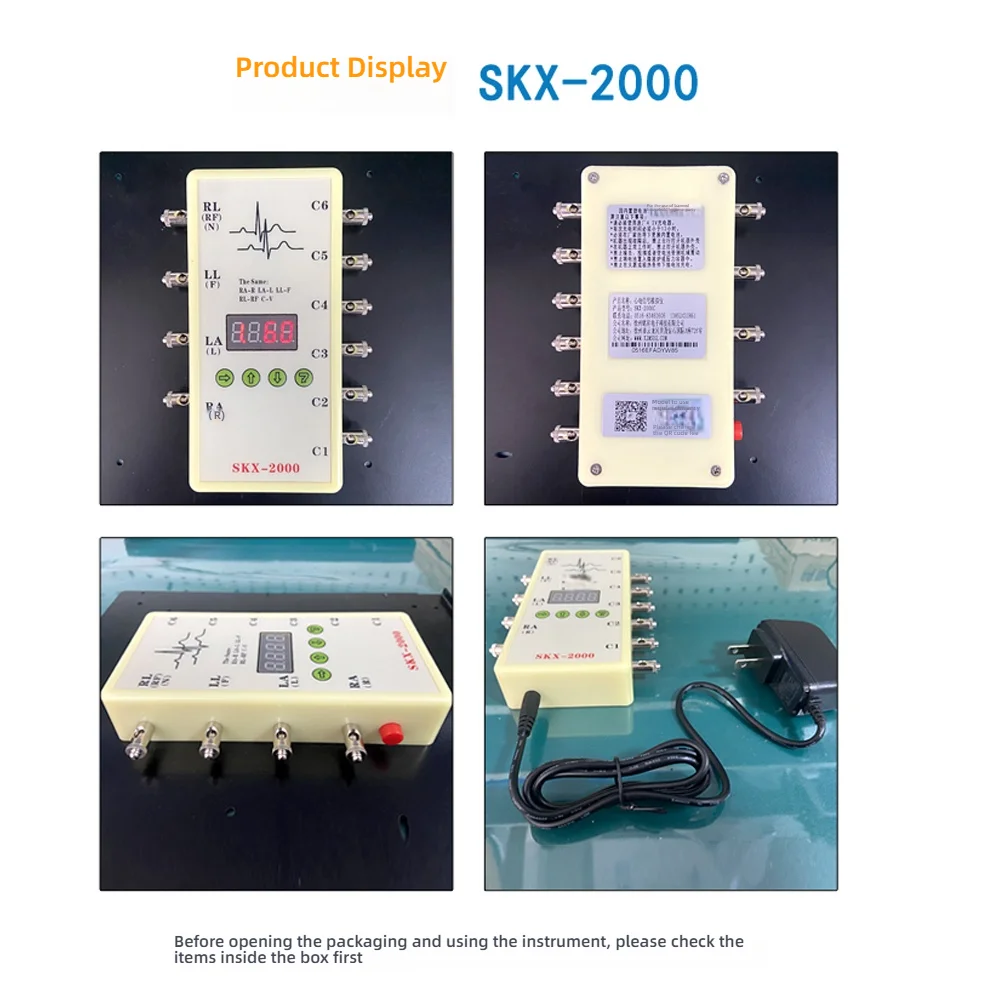

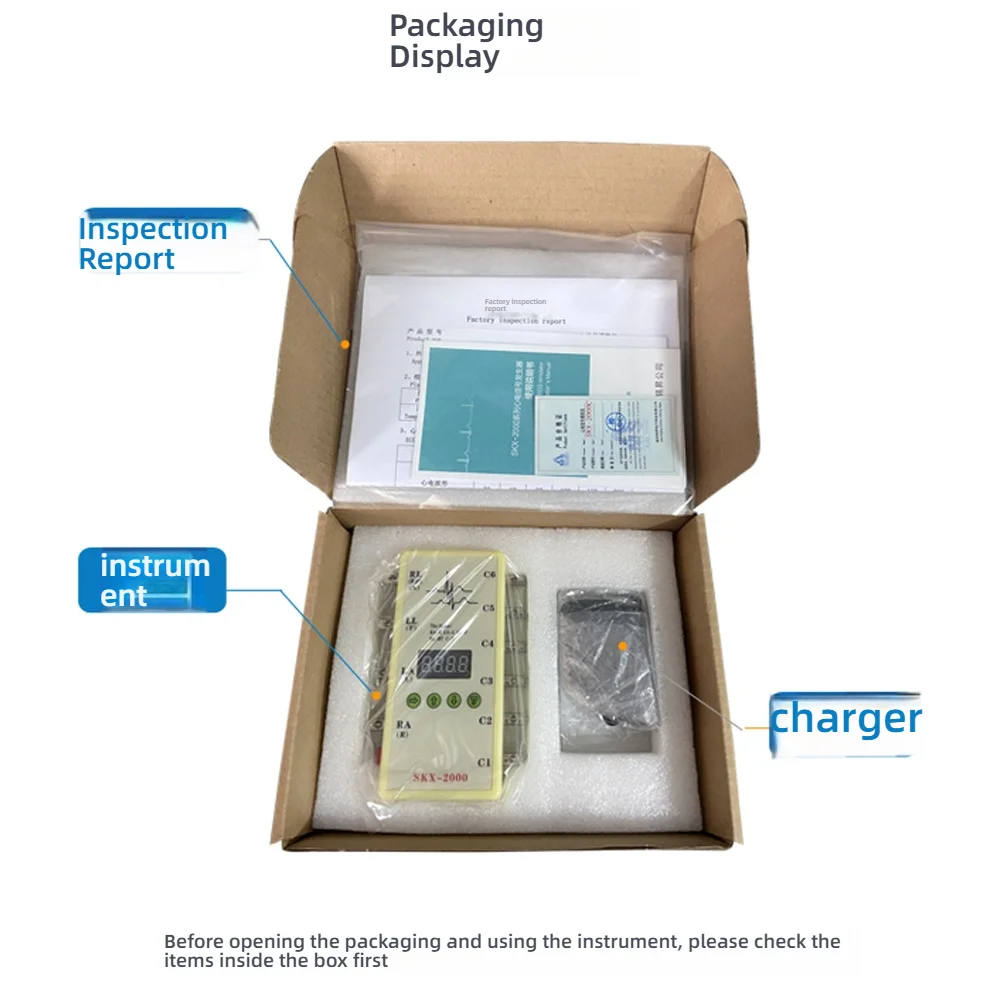

1. Equipped with a large capacity rechargeable lithium battery and an external lithium battery charger.

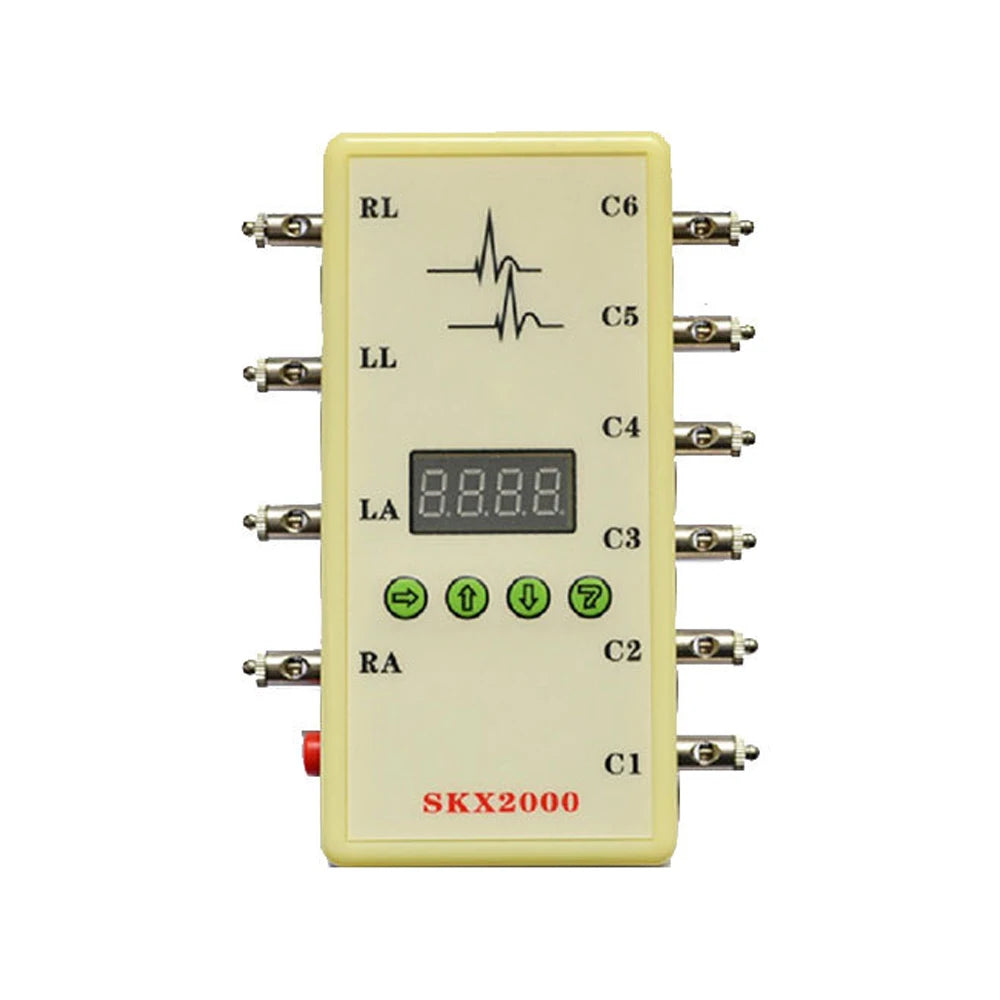

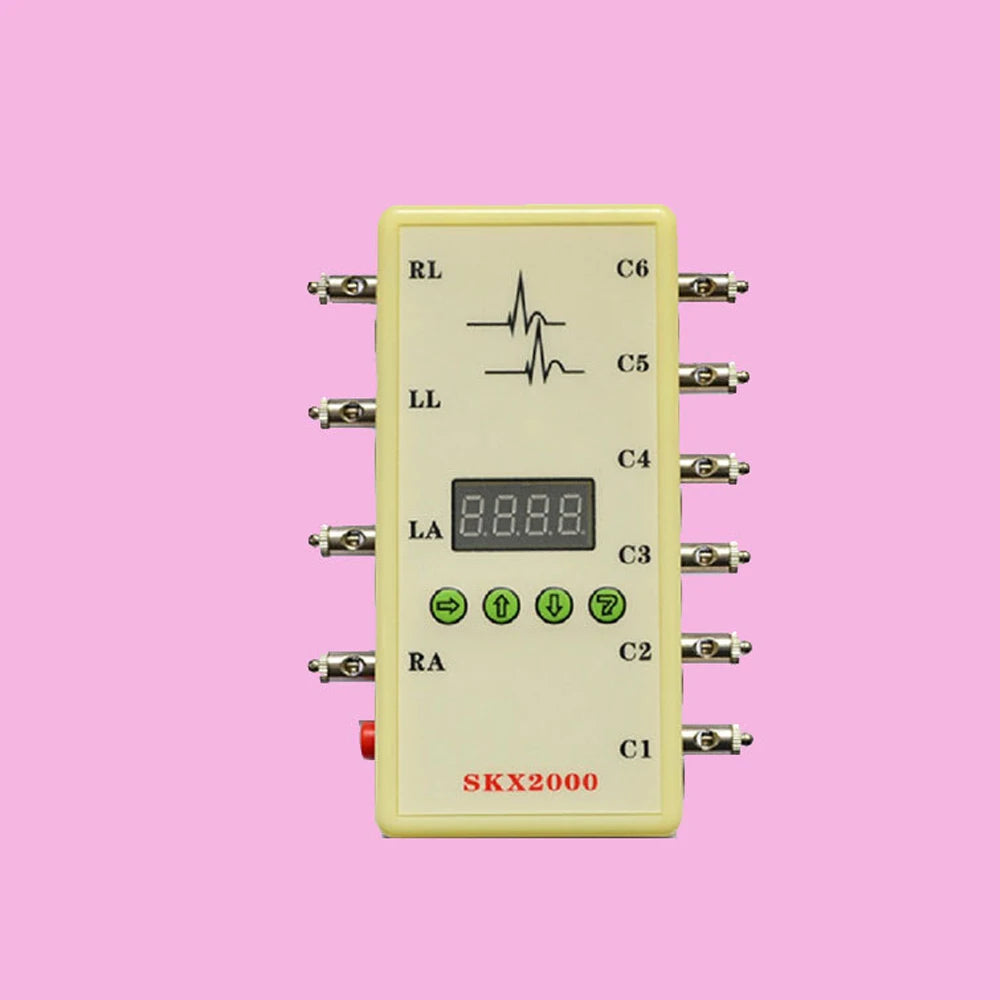

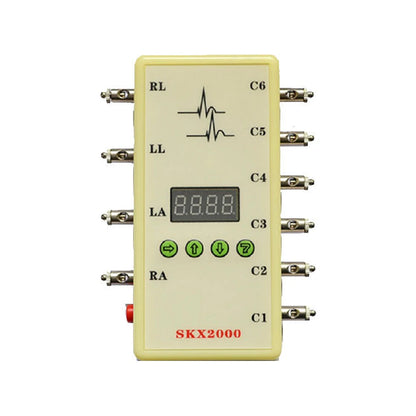

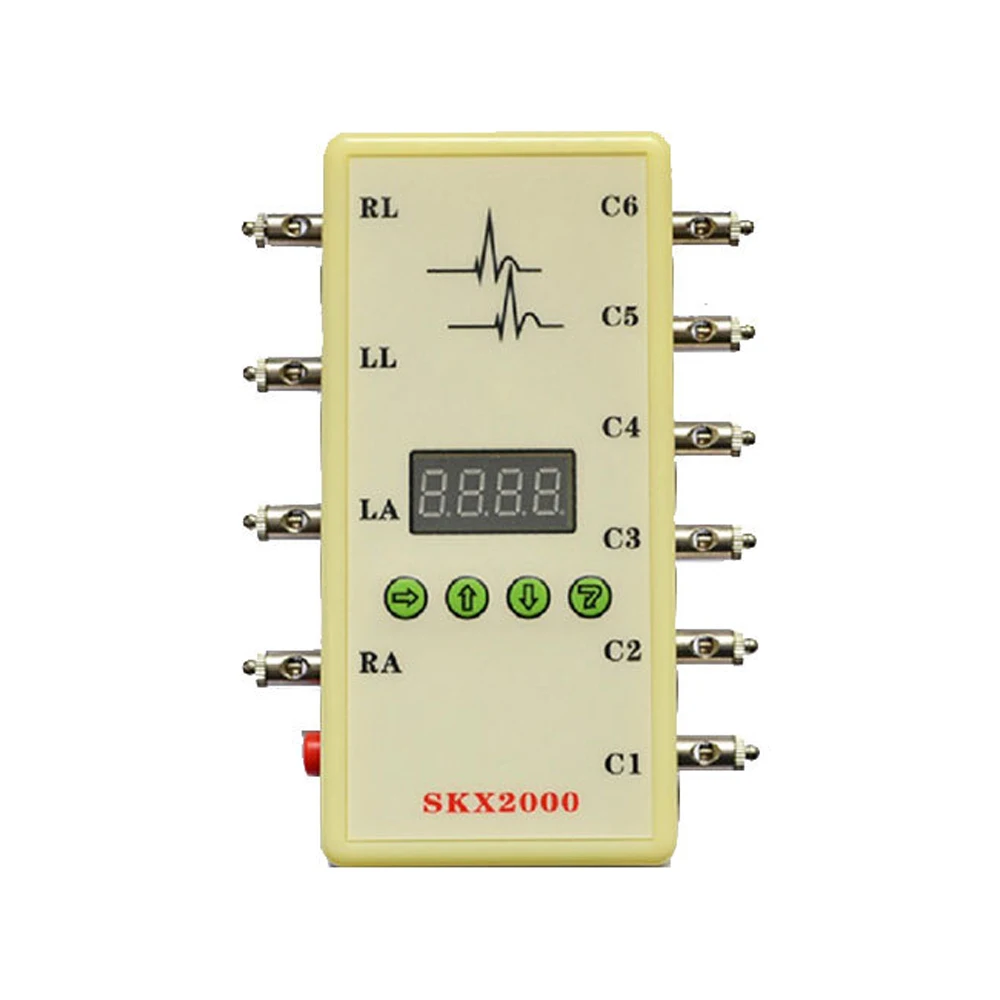

2. 10 connection sockets that can connect ECG machine and ECG monitor lead wires.
Connection instructions:
1. After powering on, this simulator automatically generates a normal electrocardiogram waveform with waveform code 1;
2. The simulator uses four digital tubes to display waveform content and related parameters;
3. To prevent users from forgetting to turn off the power during use, the system is designed such that if there is no button operation within 24 hours,
The instrument will enter standby mode for power saving, and will work normally when turned on again;

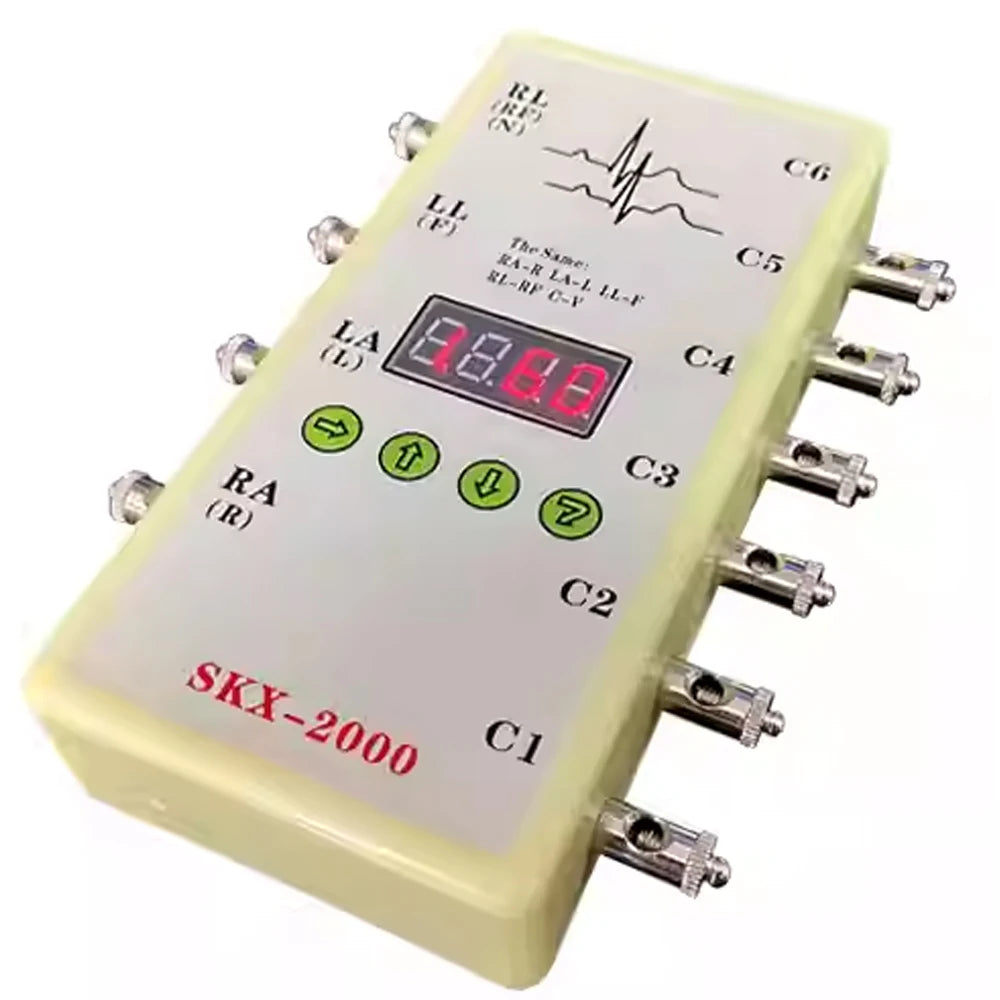

4. ECG machine connection: RA-R (right hand), LA-L (left hand), LL-F (left leg), RL-RF (right leg), C1-C2 chest lead;
5. Monitor connection: RA - right hand (white), LA - left hand (black), LL - left foot (red), RL - right foot (green), C1—C6
Chest guide (brown);
6. Three way connection method: RA right hand (white), LA left hand (black), LL left foot (red);
7. European standard corresponding connection method: L-LA R-RA RF (N) - RL F-LL C-V.
Type of waveform:
1. Normal ECG waveform
Fixed amplitude, heart rate range 10bpm-160bpm
2. Positive negative triangular waveform
Amplitude range: 0.2mV-4mV, heart rate range: 10bpm-350bpm
3. Irregular heart rate waveform:
Frequency range: 20-250bpm; (Initial value: 80 bpm)
Amplitude range: 0.1-4MV (10:0.1mV, 400:4mV);
4. Square wave:
Frequency range: 0.1Hz-10Hz (10:1Hz 100:10Hz); (Initial value: 1 Hz)
Amplitude range: 0.1-4MV (10:0.1mV, 400:4mV);
5. Sinusoidal waveform: frequency range: 1-100Hz; (initial value: 10 Hz)
Amplitude range: 0.1-4MV (10:0.1mV, 400:4mV);
6. Simulated respiratory waveform:
Frequency range: 10-120 times/minute. (Initial value: 15 bpm)
Please note that the respiratory lead is RA-LL and the baseline impedance is 1K.
7. Calibration signal
Frequency range: 60ppm
Pulse width: 100ms
8. Amplitude setting
Setting range: 20-400 represents 0.2mV-4mV
