SPECIFICATIONS

After Warranty Service: Video technical support

After-sales Service Provided: Online support

Application: Welding, cutting, assembly, handling, painting, marking,

Arm form: Vertical multiple joints

Brand Name: NoEnName_Null,JIAXIN

Condition: New

Core Components: PLC, Bearing, Motor,Bearing

Dimensions: 650x460x580mm

High-concerned chemical: None

Horizonal Travel(mm): 570mm~3200mm

Key Selling Points: Automatic

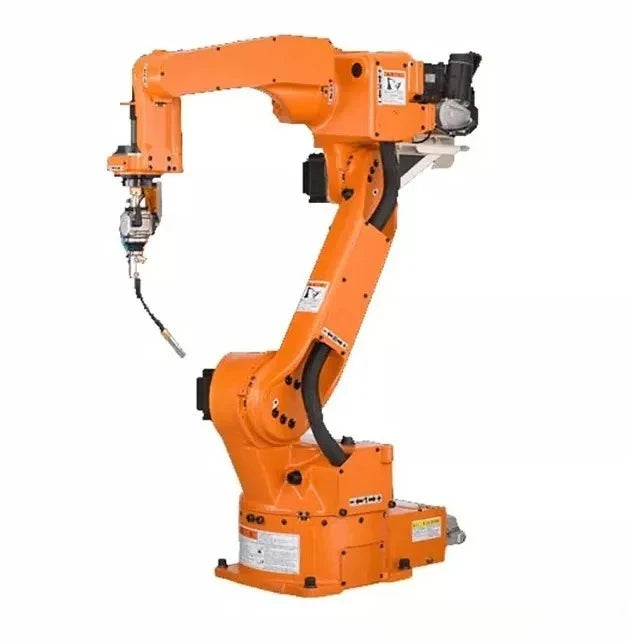

Machine Type: Welding robot

Machinery Test Report: Provided

Marketing Type: New Product

Maximum payload: 6kg 8kg 10kg

Model Number: fiber laser cutting

Origin: Mainland China

Place of Origin: Shandong, China

Robot body weight: 39kg~1950kg

Showroom Location: Italy, Viet Nam, Peru, Saudi Arabia, Thailand, Chile, Algeria, Romania

Size: machines for steel metal

Use: for welding and cutting

Video outgoing-inspection: Provided

Voltage: 220V

Warranty: 1 Year

Warranty of core components: 1 Year

Weight (KG): 260

keywords: 6 axis robot arm



Video Description



Products Description

Let your factory realize unmanned production

Parametric description

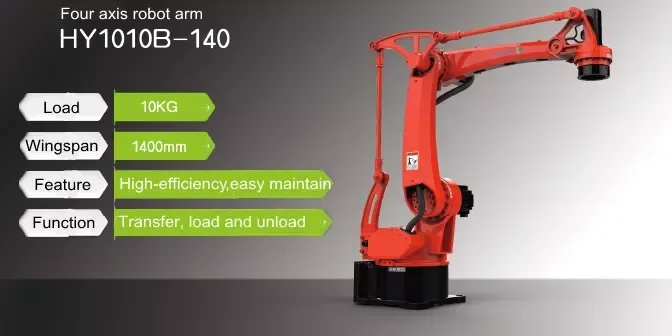

Mode			HY1010B-140
Number of axles			4
Load capacity			10KG
Positional repeatabiliy			±0.08mm

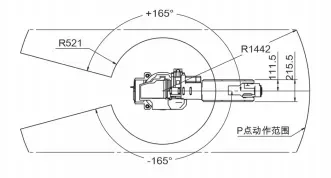

Actuation range	J1	±170°
		J2	±10°~ +125°
		J3	±10°~ -95°
		J4	±360°
Service environment			0-45°,20-80%RH(No mist)
Installation method			Ground
Level of protection			IP65
Max speed	J1	190°/s
		J2	120°/s
		J3	120°/s
		J4	200°/s

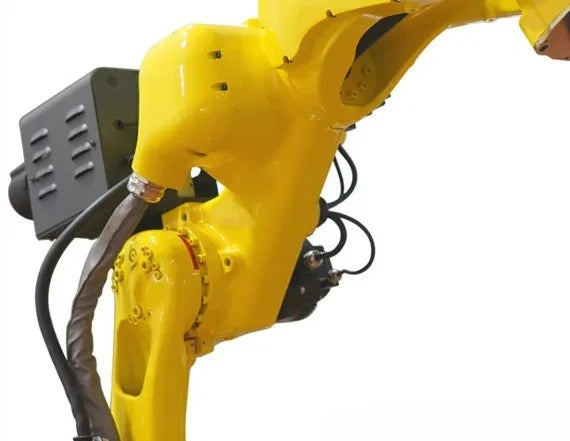

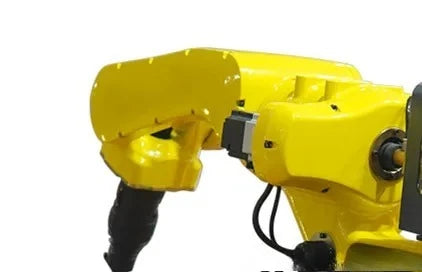

Detail of the Robot arm

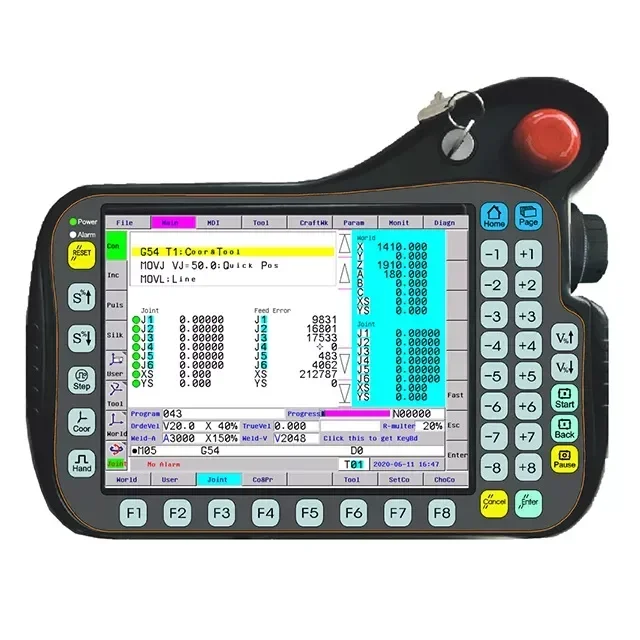

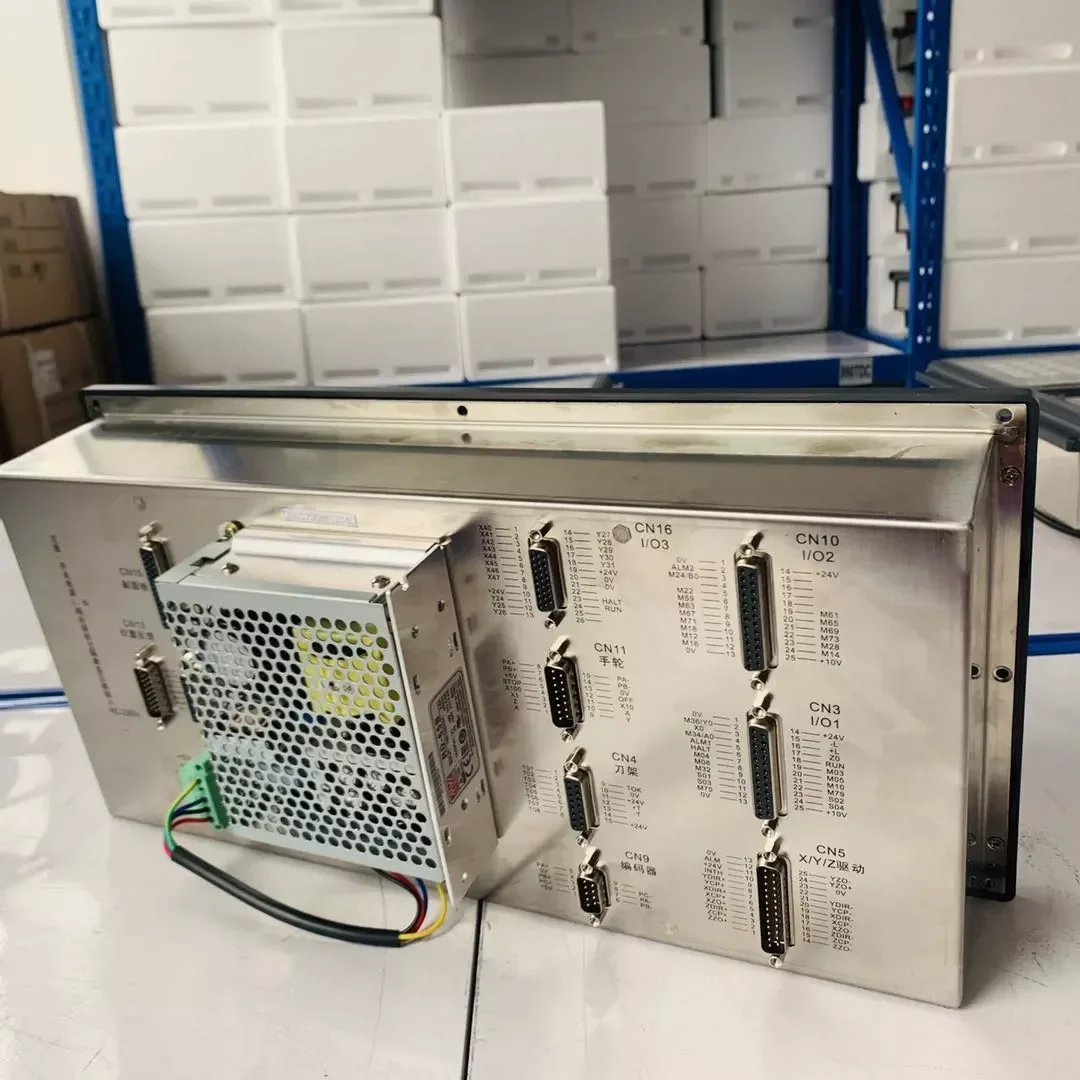

Control Panel



I/O Interaction center

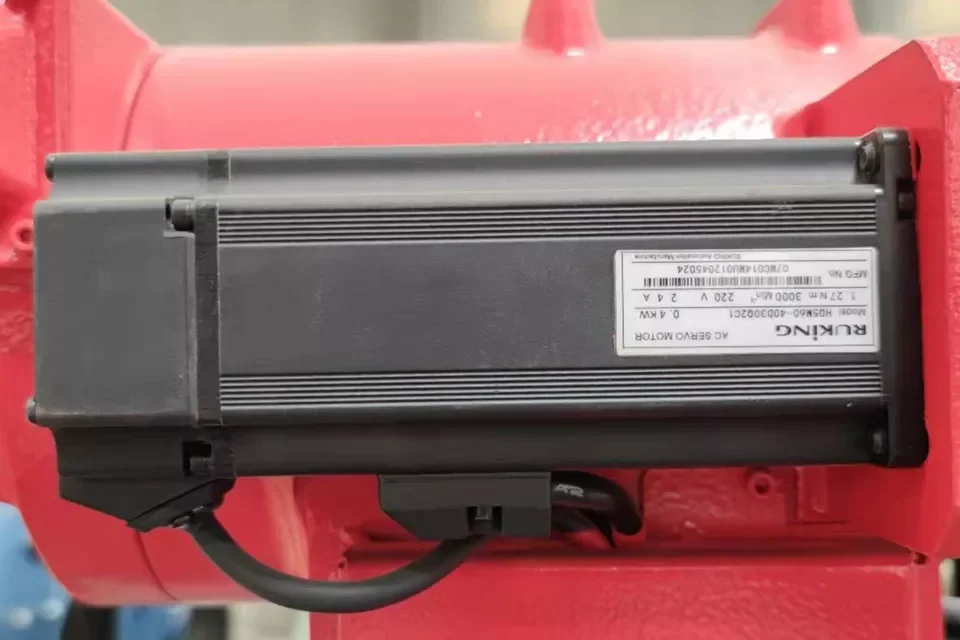

AC servo motor

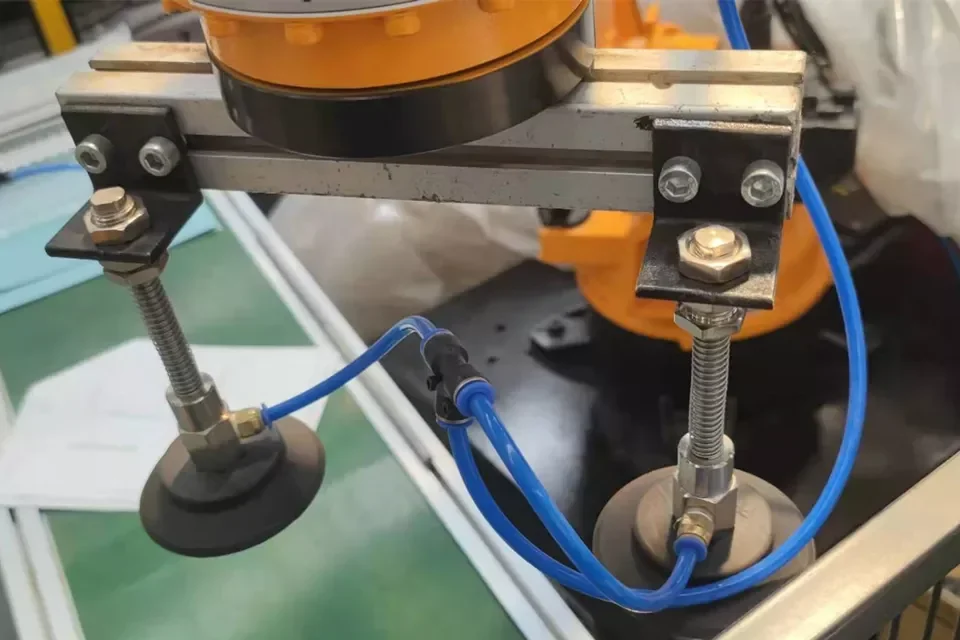

Tooling for transfer

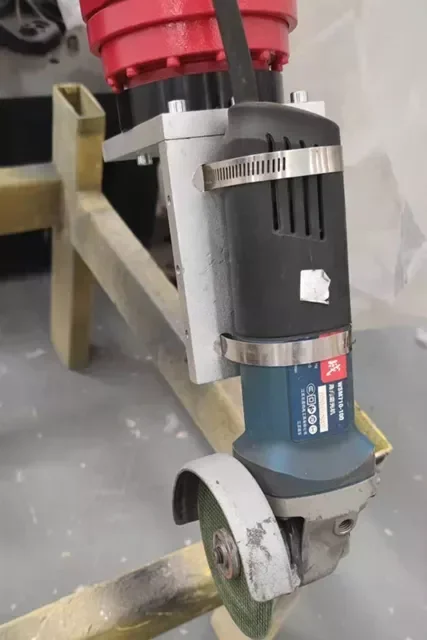

Tooling for cut

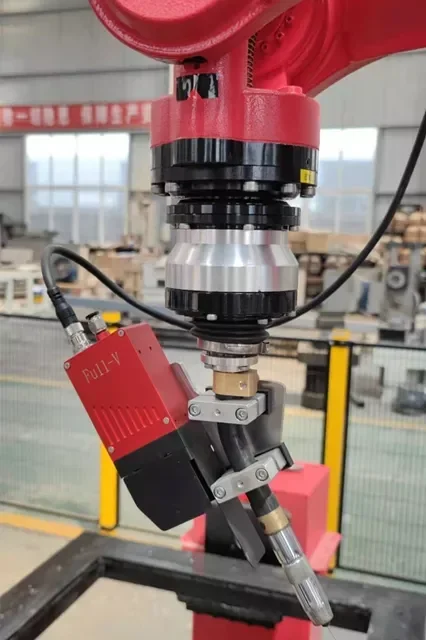

Tooling for weld

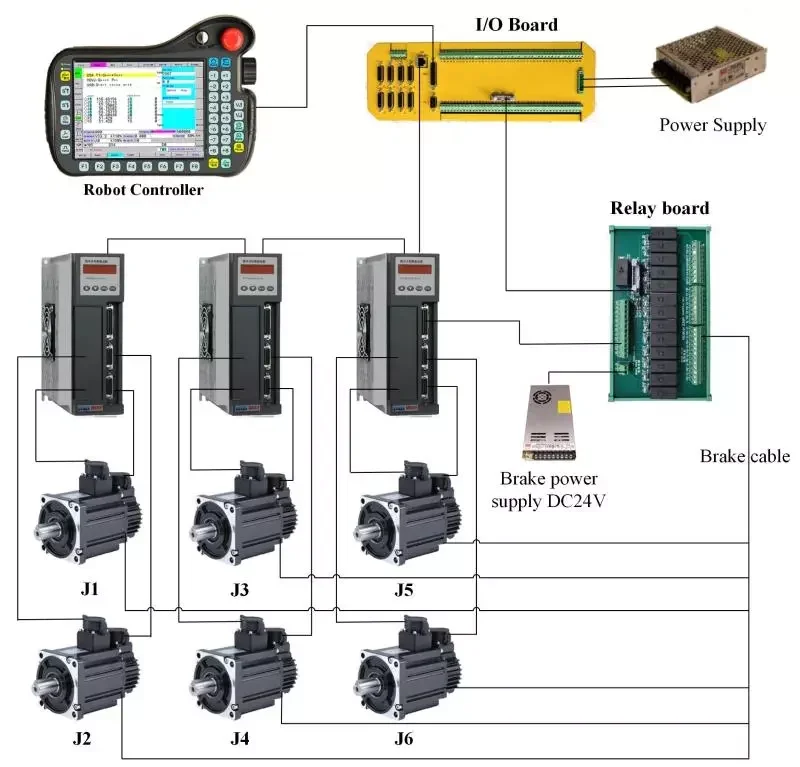

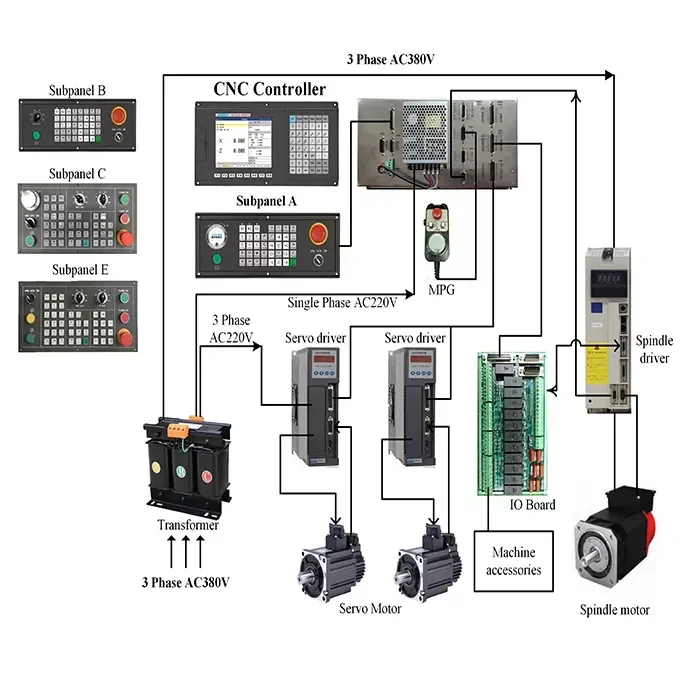

How the signal travels?

Packing & Delivery

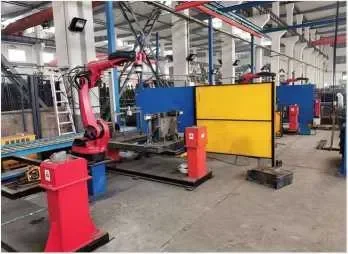

Application
