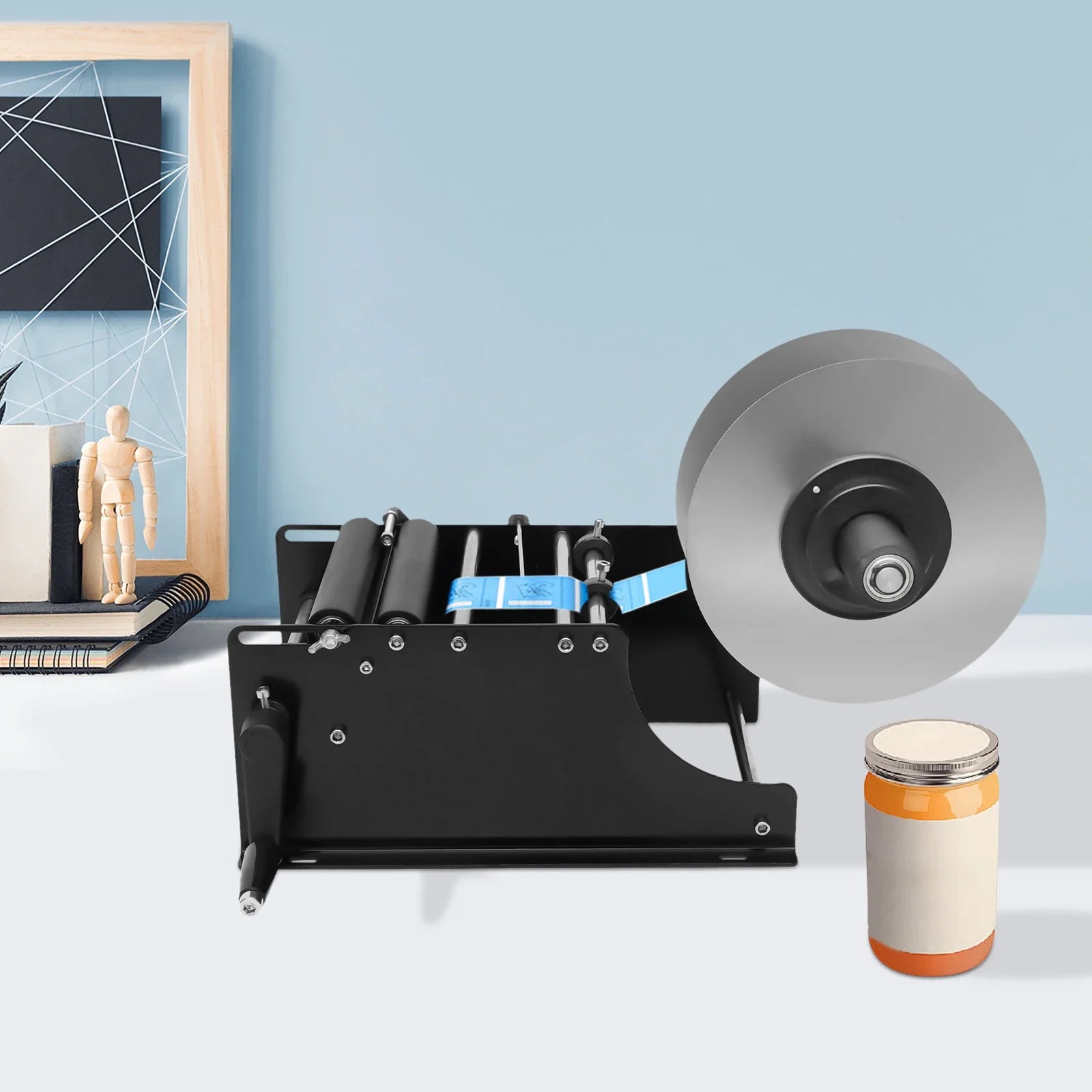

Application
It can be used to apply pressure-sensitive adhesive labels on round bottles, round cans, or cylinders. It is suitable for round bottles of 0.79in-4.72in diameter, such as PET bottles, plastic bottles, glass bottles, metal bottles, etc. It is widely used in cosmetic, beverage, food, food, medical, and other industries to rapidly increase production efficiency as well as improve label quality.

Specification

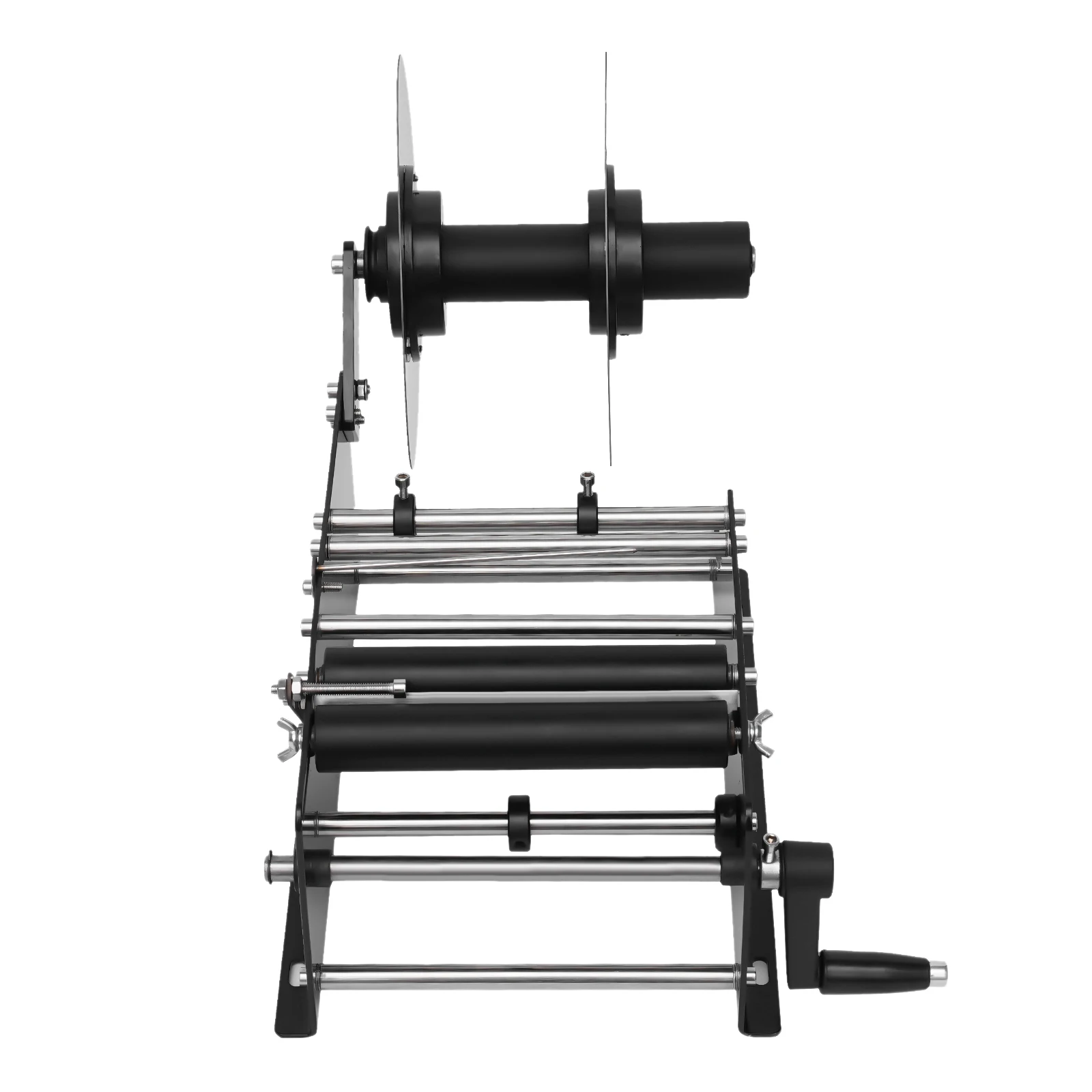

Model: MT-30
Color: Black
Material: Iron
Style: Modern
Process: High-temperature Baking Paint Process
Mounting Type: Desktop Mount, Freestanding
Accuracy: ±0.5mm/0.01inch
Suitable Bottle Diameter: 2-12cm(0.79in-4.72in)
Label Speed: 10-30pcs/min
Label Roll Inner Diameter: ≥75mm/2.9inch
Laber Roll Out Diameter: ≤250mm/9.8inch
Label Width: 10-110mm/0.3-4.3inch
Label Length: 10-300mm/0.3-11inch
Net Weight: 5kg/11.02lbs
Gross Weight: 5.5kg/12.13lbs

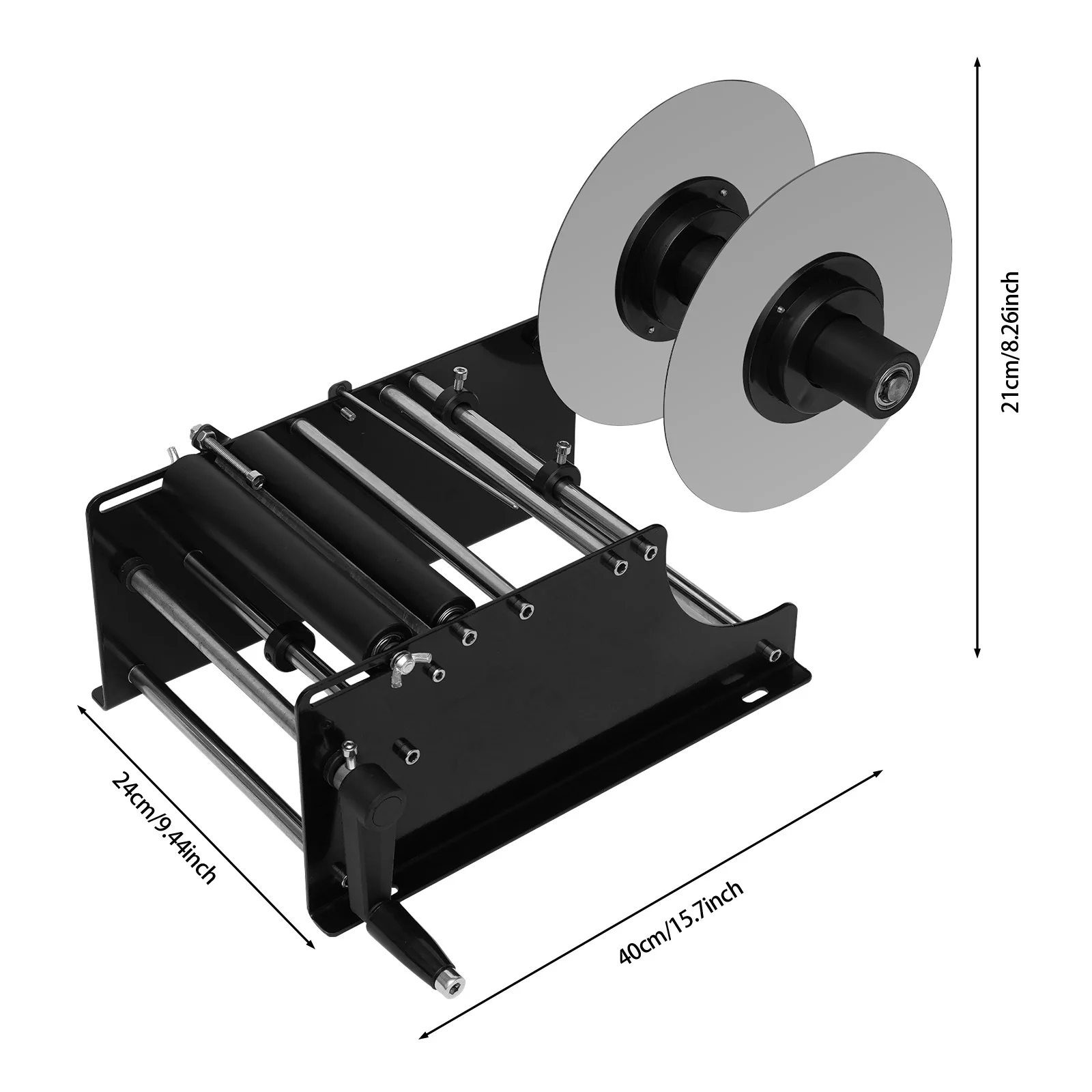

Package Size: 42*25*28cm/16*9.8*11.0inch

Installation
1.Attach the label cartridge to the side of the machine with screws and nuts.
2.Attach the nut and the label cartridge with a silicone ring.
3.Fix the paper supply tray and the middle part with screws.
4.Insert the paper supply tray into the label cartridge.
5.Attach the hand joystick to the side of the machine with screws.
6.Attach the remaining part of the hand joystick.
7.The installation is complete.

How to Use
1.Use an allen key to unscrew the paper supply tray.
2.Insert the label into the label roller and reattach the paper supply tray.
3.Pull out a piece of label paper and insert it into the machine in sequence.
4.Place the bottle on top of the machine.
5.Rotate the hand joystick to complete the labeling.

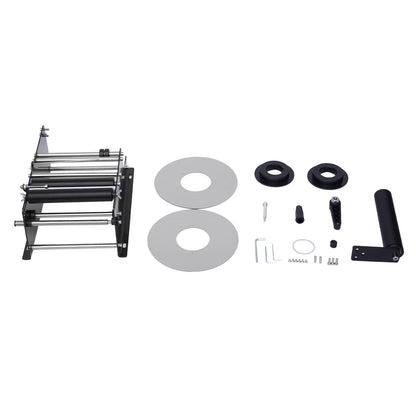

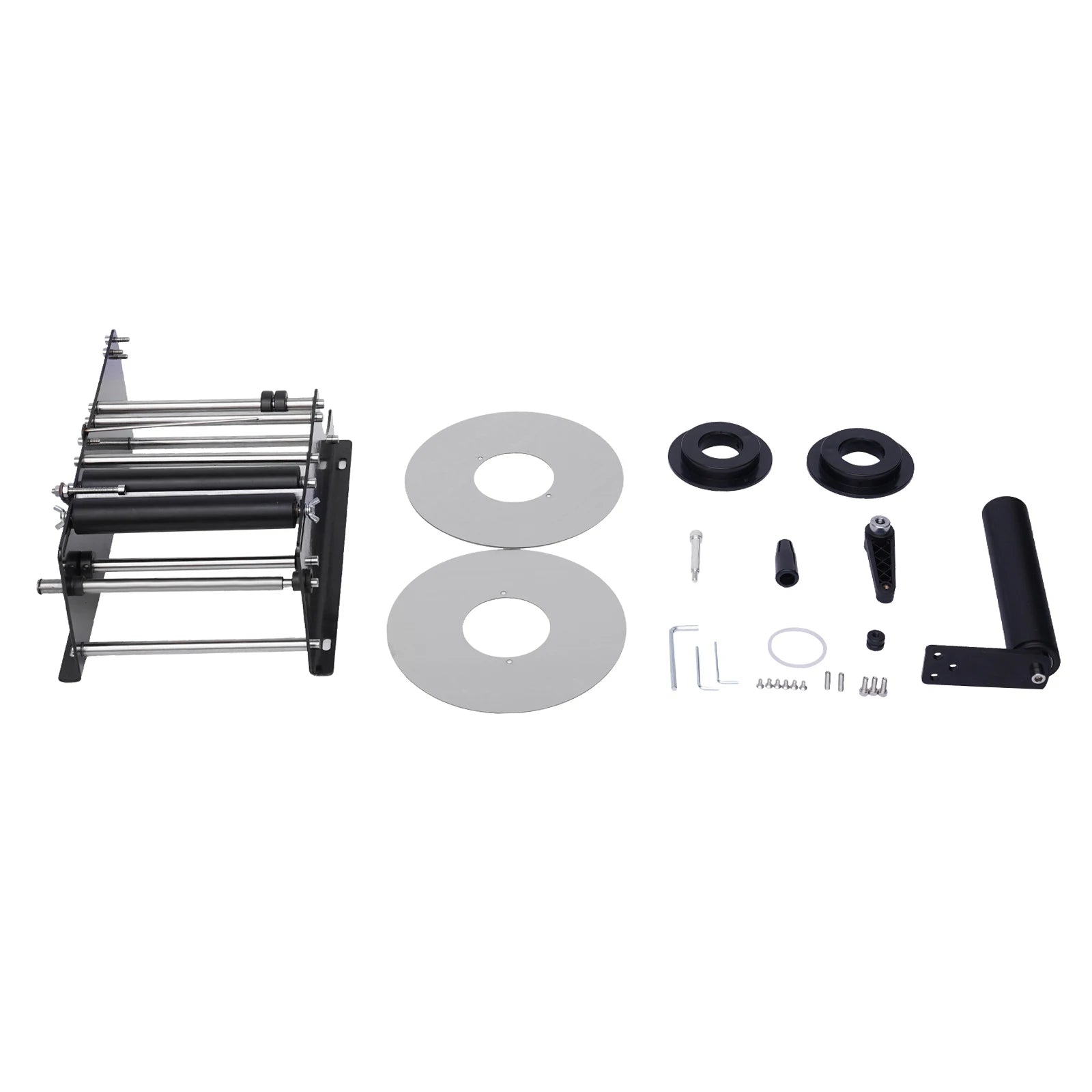

Package Included
1* Labeling Machine
2* Paper Supply Trays
1* Label Cartridge
1 Set* Hand Joystick
3* Allen Keys
1* Silicone Ring
11* Screws
2* Label Tray Clamps
Other Accessories for Assembly

Notes
1.It's suggested that you put a piece of tape at the beginning of the label to easy pulling.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
