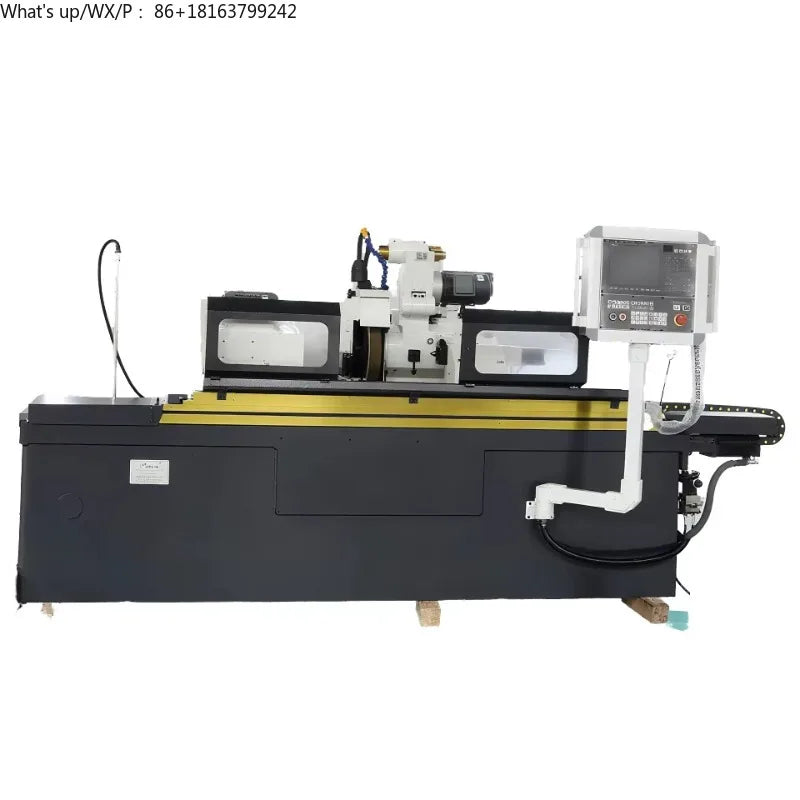

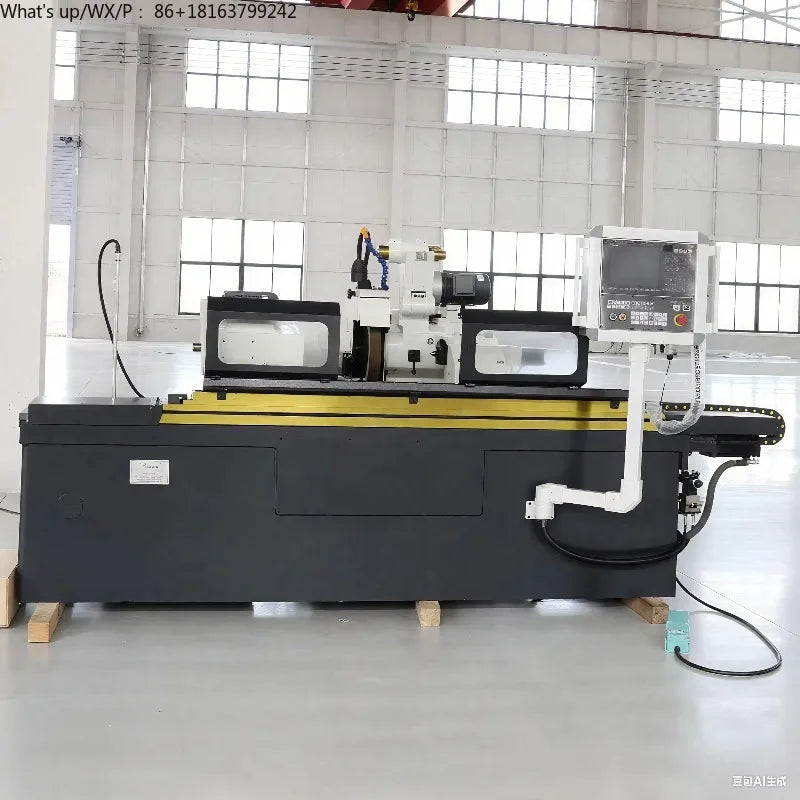

MK1420 Precision CNC Surface Grinding Machine | Automatic Flat Grinder | High-Accuracy Metal Grinding Equipment
MK1420 Precision CNC Surface Grinding Machine | Automatic Flat Grinder | High-Accuracy Metal Grinding Equipment
Regular price
CHF 43,158.21
Regular price
CHF 0.00
Sale price
CHF 43,158.21
Unit price
per
🔒 Safe Purchase & Lifetime Warrantee, Taxes included. 4-7 Day Delivery.
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Color: Custmized
High-concerned chemical: None
Key word: Cylindrical Grinding Machine
Keywords: External cylindrical grinding machine
Material: Stainless Steel
Model: MK1420
Name: cylindrical grinding machine
Origin: Mainland China
Product name: Grinding Machine
Type: Other
cnc or not: CNC
core components: Motor, PLC
dimension(l*w*h): 3100*1450*1650
is_customized: Yes
key selling points: Competitive Price
machinery test report: Provided
place of origin: China
power (kw): 7.5
type: Universal
video outgoing-inspection: Provided
voltage: Customer's Requirement
warranty: 1 Year
weight (kg): 3000
Welcome! This product comes with worry-free after-sales service and supports customization. Due to the wide range of product calibers and models, as well as their varying applicable scenarios, please feel free to consult me before placing an order. We recommend adding the following contact information for easier future inquiries: WhatsApp / WeChat / Phone: 86+18163799242 Tel: +86 18163799242 Email: 2689607605@qq.com Note: The product price is affected by the delivery location, and the displayed price is not the final price. Feel free to contact us if you are interested!
Products Description
Product Paramenters
|

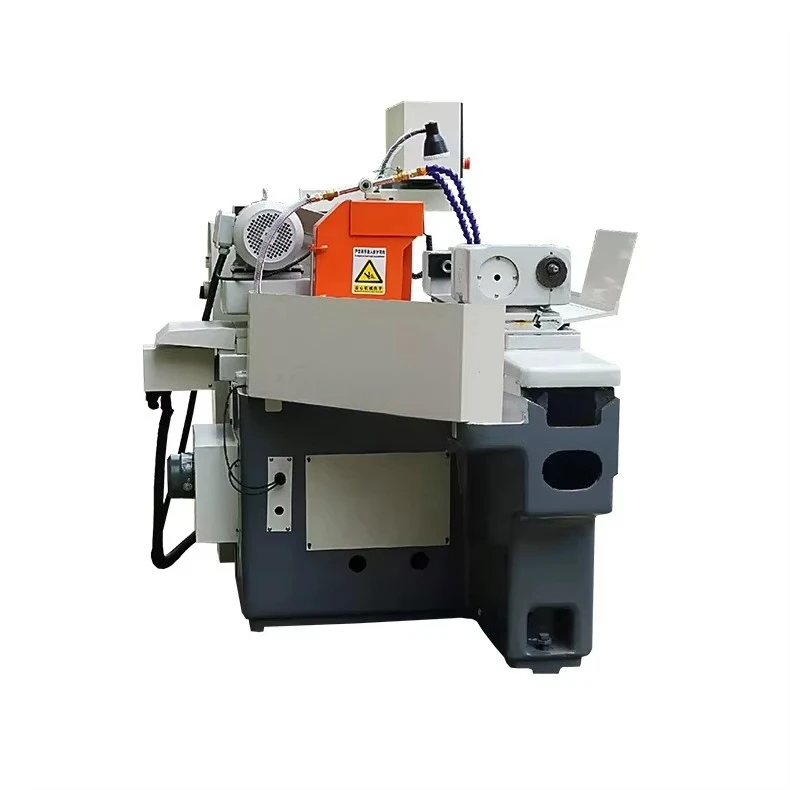

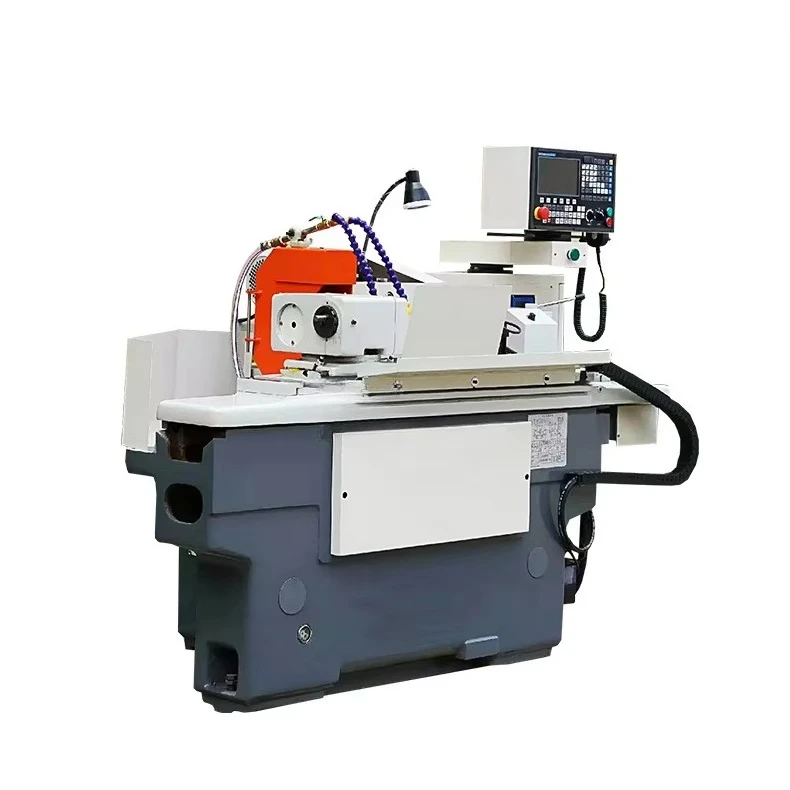

Cylindrical grinding machine
|
M1320-1000
|
|
|
Diameter of grinding
|
Dia.8~200mm
|
|
|
Maximum grinding length
|
1000mm
|
|
|
Maximum spindle load-bearing
|
50kg
|
|
|
Maximum travel of working table
|
1080mm
|
|
|
Speed of working table
|
100~4000mm/r/min
|
|
|
Rotary angel of working table
|
-3~+7°
|
|
|
Rotary angel of headstock
|
-30~90°
|
|
|
Rotary angel of grinding wheel
|
180°
|
|
|
Center height
|
125mm
|
|
|
Center sleeve taper
|
3#
|
|
|
Grinding wheel size
|
400*40/50*203
|
|
|
Speed of headstock
|
60、85、230、120、170、460r/min
|
|
|
Speed of grinding wheel
|
1780r/min
|
|
|
High-speed travel of grinding wheel
|
20mm
|
|
|
Maximum travel of grinding wheel
|
150mm
|
|
|
Feeding rate of grinding wheel handwheel per grid
|
0.005mm
|
|
|
Feeding rate of grinding wheel handwheel per rev
|
1mm
|
|
|
Power of grinding wheel motor
|
4kw
|
|
|
Power of headstock motor
|
0.25/0.37kw
|
|
|
Power of oil pump motor
|
0.75kw
|
|
|
Power of cooling motor
|
0.125kw
|
|
|
Dimension (length * width * height)
|
3100*1450*1650
|
|
|
Weight
|
3000kg
|
|
|
Roundness 0.002mm Cylindricity 0.003mm Roughness Ra0.32
|
|
|
