SPECIFICATIONS

Accessories: Avaliable

Brand Name: Maycool

Certification: ce,CE

Cooling Method: S&A Industrial Water chiller

Cutting Head: Raytools XC3000S

Cutting system: Raytools BM110

High-concerned chemical: None

Laser Source: MAX Raycus

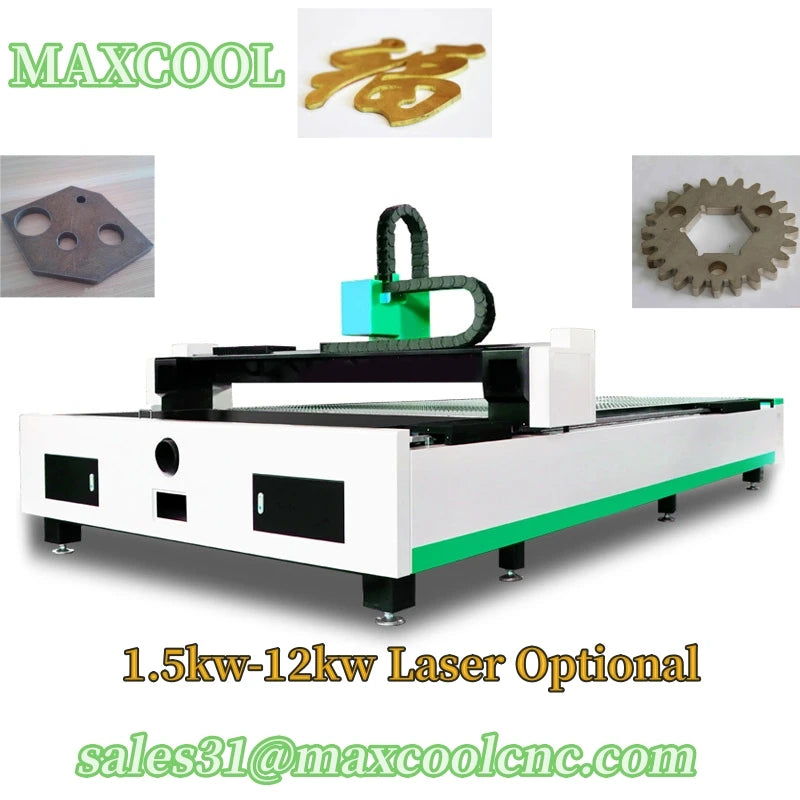

Machine Power: 1500w 2000w 3000w 4kw 6kw 12kw 20kw 30kw 40kw

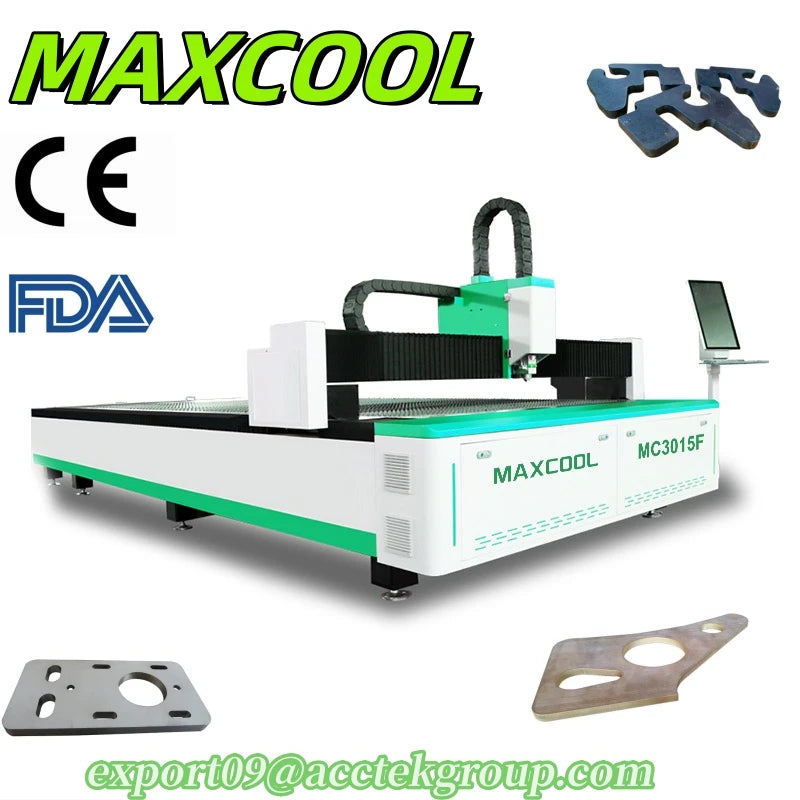

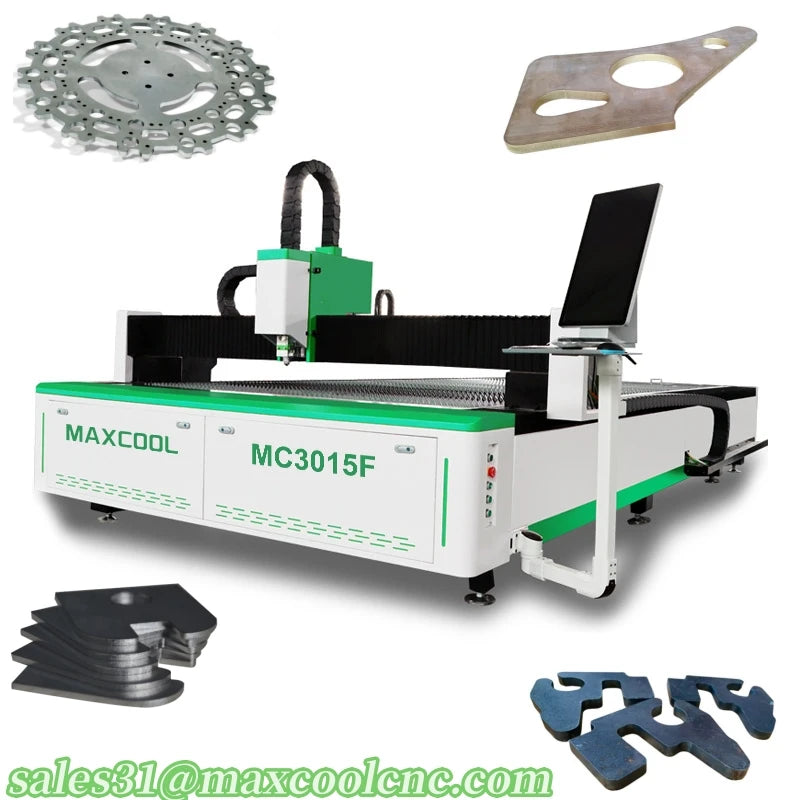

Model Number: MC3015F

Origin: Mainland China

Table Size: 1500*3000mm

Warranty: 3 years for the whole machine, 2 years for laser generator

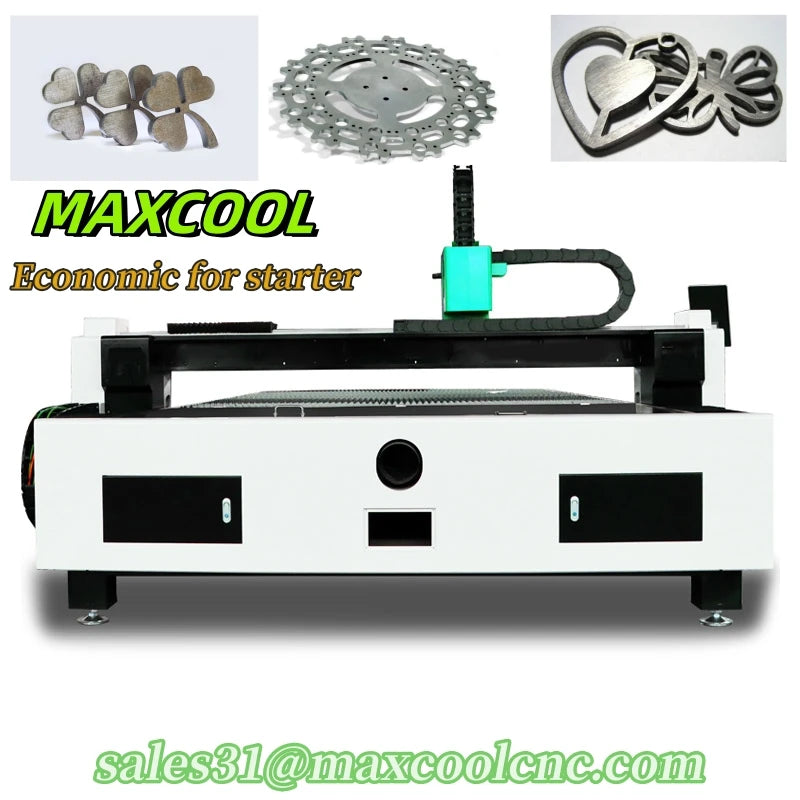

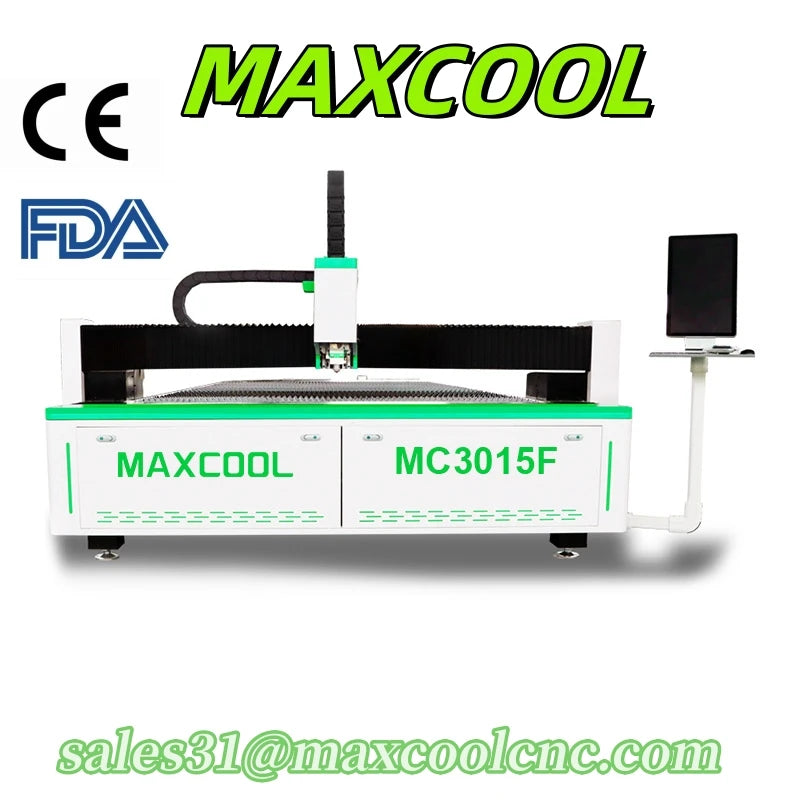

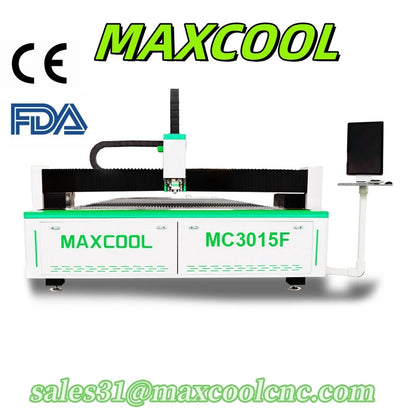

Maxcool New Designed Fiber Laser Metal Sheet Cutting Machine Advertising Letter Engraving SS CS Laser Cutter 3kw 6kw 12kw

!!! Dear Customer! Our machines are customized type, basically, we have power, size, configurations customizable.

If you want, color and logo can also be customized to what you like for free!

Contact Ella for details: E: sales31@maxcoolcnc.com  |  WA: +86 19306346153

NEW DESIGN MAXCOOL LASER CUTTING MACHINE FOR METALS!

Machine is with heavy duty, CE verified quality, as well as life-time after-sale service! You will not regret to Order it!

DETAILS OF NEW DESIGN MAXCOOL LASER CUTTING MACHINE FOR METALS

Raytools BM110 Cutting Head

BM110 series is an auto-focusing fiber optic cutting head launched by RayTools in 2019.

This product has a built-in motor drive unit, which drives the focusing mirror to change position automatically within 24mm through a linear mechanism.

Users can set continuous focusing through the program to complete fast perforation of thick plates and automatic cutting of plates with different thicknesses and materials.

The product is equipped with D30 composite lens group for beam integration, optimized optics and water-cooled design makes the laser head can work continuously and stably for a long time under high power.

Raytools Control System XC3000S:

The X series is a planar laser cutting system developed based on the xStudio platform. It includes the XC3000S model and simultaneously supports EtherCAT bus servo and pulse servo. It features unique functions such as seamless perforation, perforation slag removal, common edge overcutting, vibration suppression, sharp corner starting, and seamless micro-connection. Among them, the XC3000PRO supports special functions such as double-head cutting, segmented feeding and splicing, and small-sized processing of large parts. It is mainly applied to conventional planar cutting machines, precision machines, on-line cutting of coil sections and other equipment.

Hanli Water Chiller

This is Famous Water Chiller brand in China, which is widely used for laser machines. The cooling effect is very good~

Which can improve the machine's working efficiency

Leadshine Servo motors 750watt and drivers:

1. Operating voltage range AC187V~240V, single-phase/three-phase input; 2. Support pulse/direction, double pulse, quadrature pulse three pulse forms, can receive differential and single-ended signals; 3. Optocoupler isolation signal input, strong anti-interference ability; 4. Support analog input: -10V~+10V, resolution 16bit; 5. Adaptive notch filter can automatically suppress mechanical resonance on-line, significantly improving system dynamic performance; 6. A variety of position smoothing functions, significantly improve the smooth running of the equipment, reduce the impact of mechanical systems, and extend the service life of the equipment; 7. It can be equipped with 400-750W AC servo motor, the maximum speed is up to 5000RPM, the maximum overload capacity is 3 times, and various precision encoders can be configured.

Application OF NEW DESIGN MAXCOOL LASER CUTTING MACHINE FOR METALS
