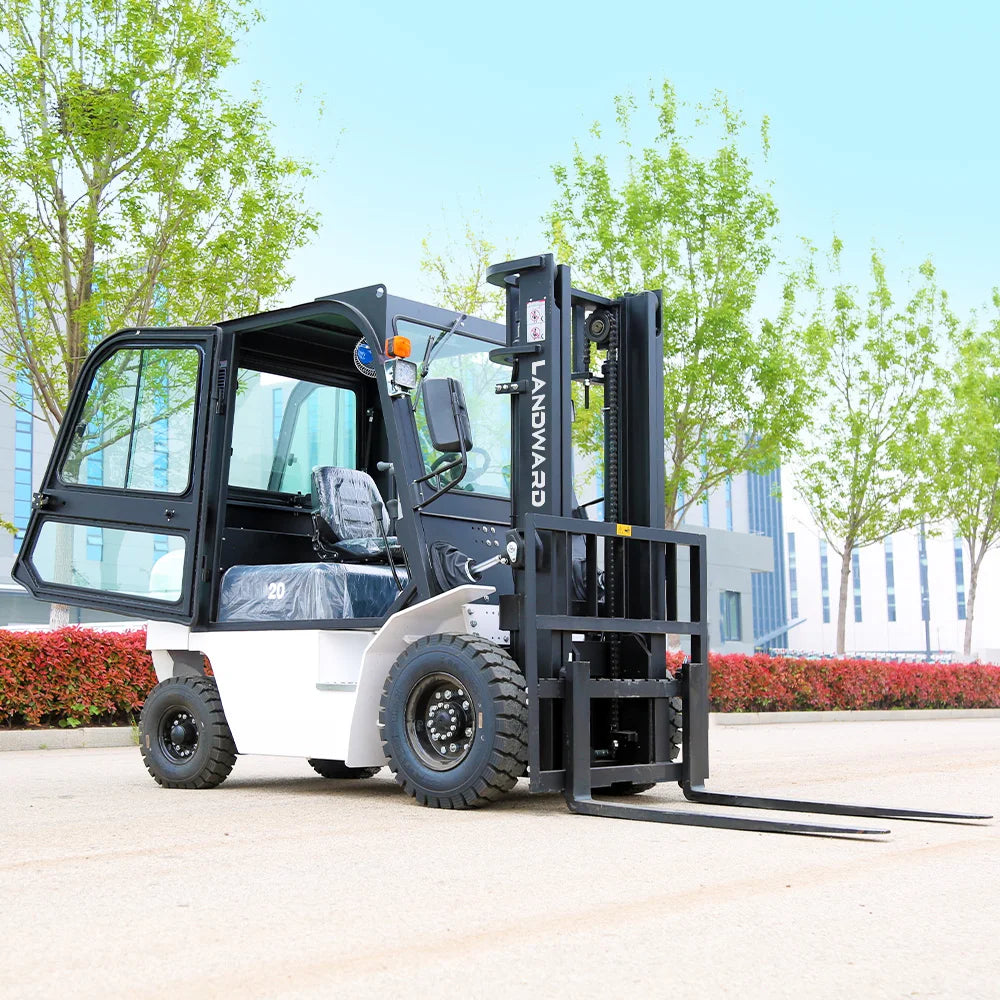

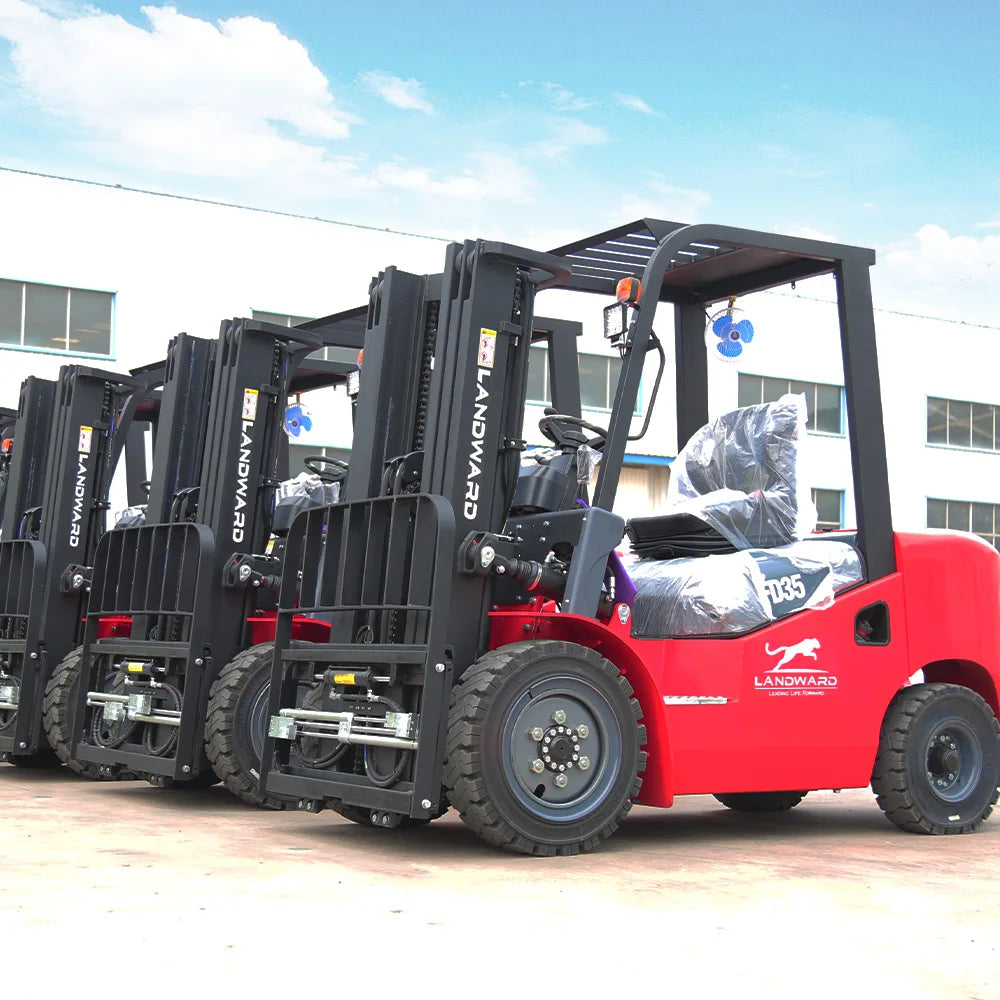

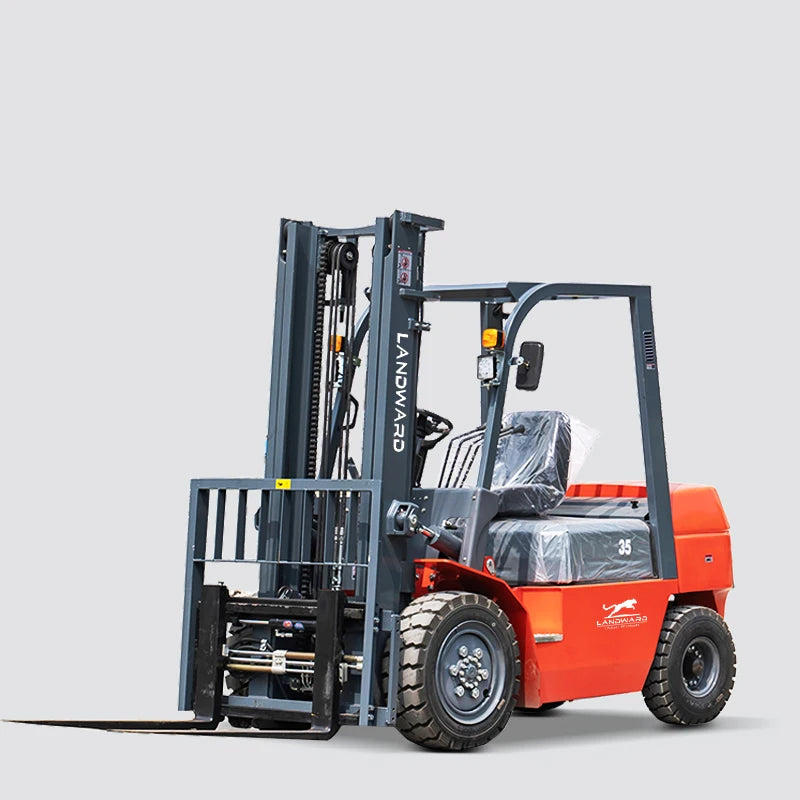

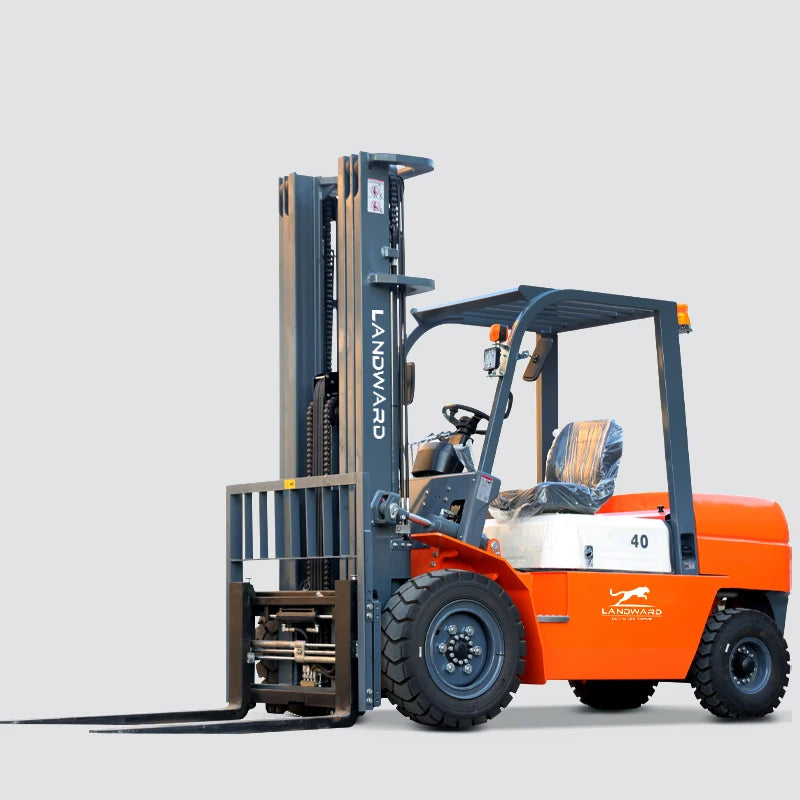

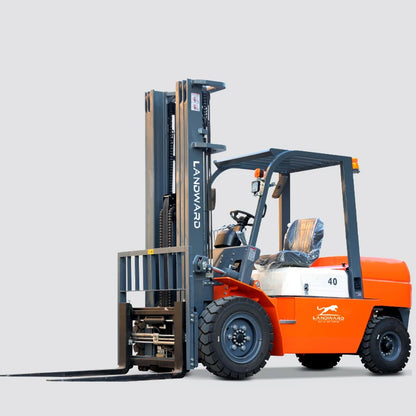

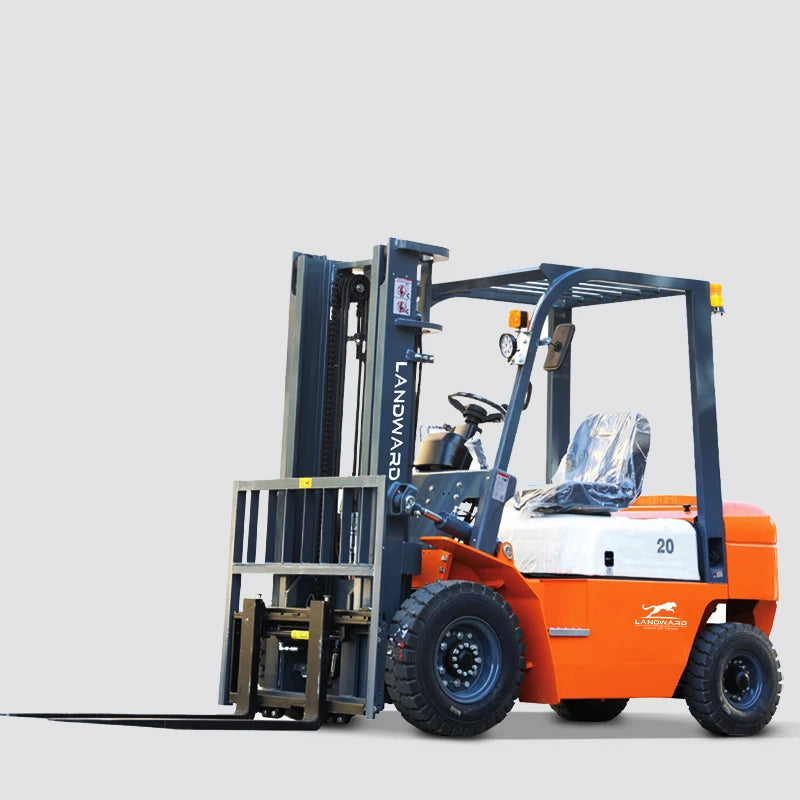

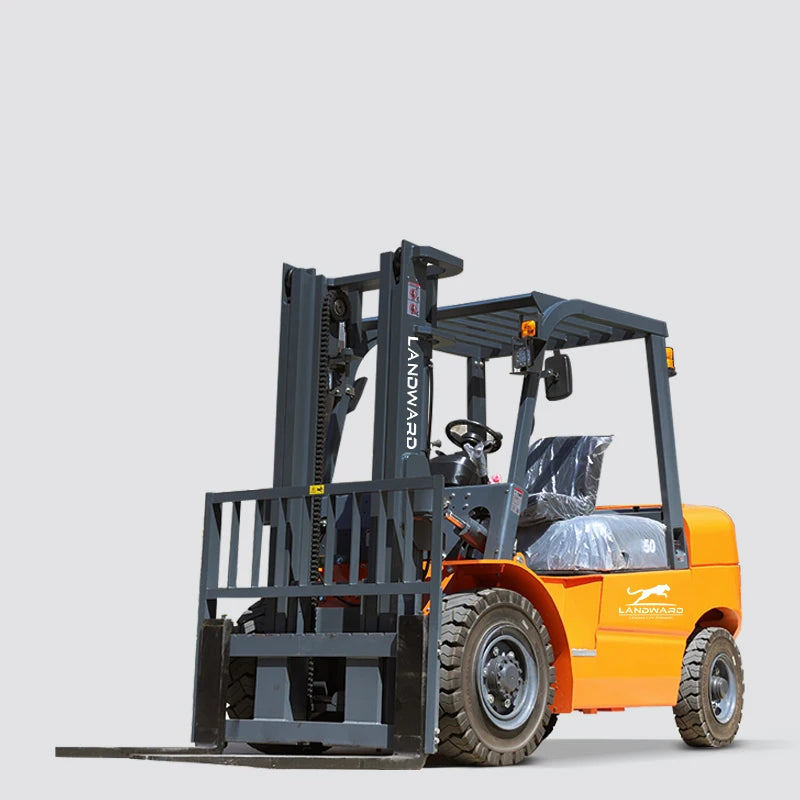

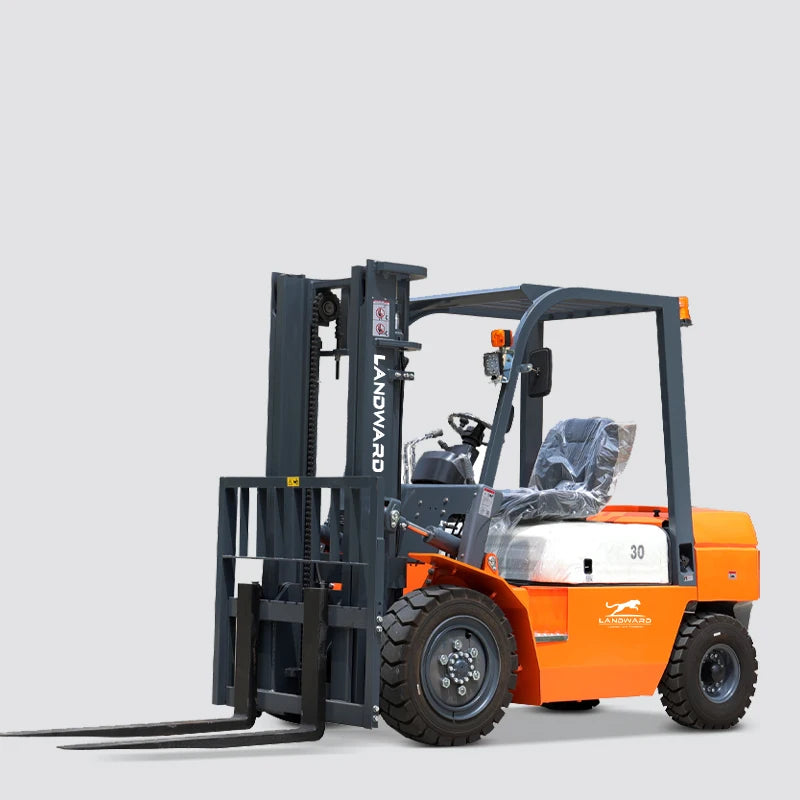

Hydraulic Diesel Forklift Lifting Truck 3 Ton 5 Tons CE EPA With Fork Positioner And Side Shifter Warehouse Forklift Customized

Hydraulic Diesel Forklift Lifting Truck 3 Ton 5 Tons CE EPA With Fork Positioner And Side Shifter Warehouse Forklift Customized

CHF 9,177.42
CHF 0.00 CHF 9,177.42
Sale Sold out
🔒 Safe Purchase & Lifetime Warrantee, Taxes included. 4-7 Day Delivery.
Color
Stripe Trust Badge
View full details

  • 📦 Free Express Delivery in 4-7 Days

  • 🛠️ Industrial-Machine.net Quality Warranty

  • 🧢 24/7 Customer Support & Guidance

1 3

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,EPA

Full free lift height: 100 mm

Groud clearance: 135 mm

High-concerned chemical: None

Lift height: 3000 mm

Load capacity: 3000 KG

Load center: 500 mm

Max.traction power: 13.5 KN

Min.turning radius: 2400 mm

Origin: Mainland China

Overhead guard height: 2165 mm




Follow The Store To Enjoy Exclusive Discounts For Our Fan Members

（Discount on Discount）Global agents are sincerely invited.

Customers who come to China from afar are welcome to visit our company and factory. We treat you in the most comfortable way and look forward to doing business with you.

Welcome to LANDWARD official store

we are a professional manufacturer of FORKLIFT.


We support OEM & ODM service for any clients, even you only need 1 pcs.

Click on more different models to choose which is suitable for you, or contact us directly,

our sales will recommend most suitable excavator for you.

Talk with our sales colleague, you will get exclusive one-to-one serviceand outlet sale price

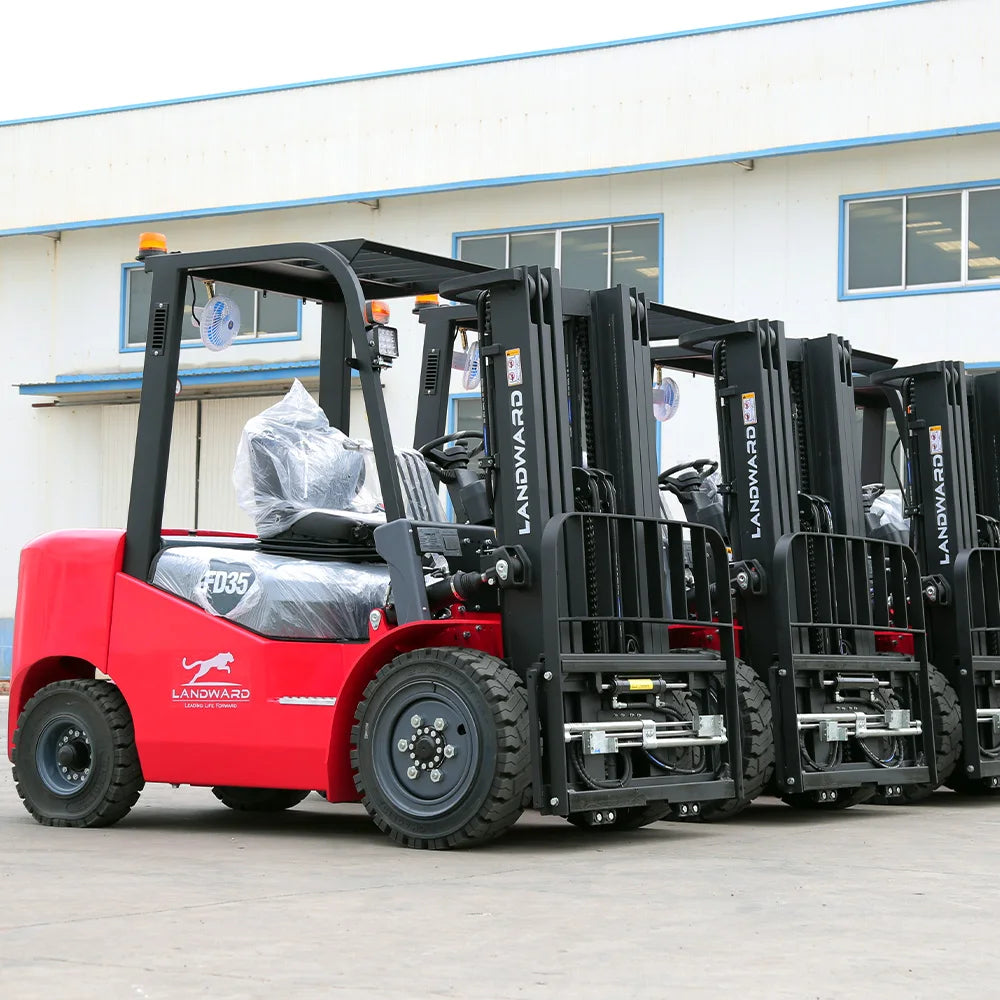

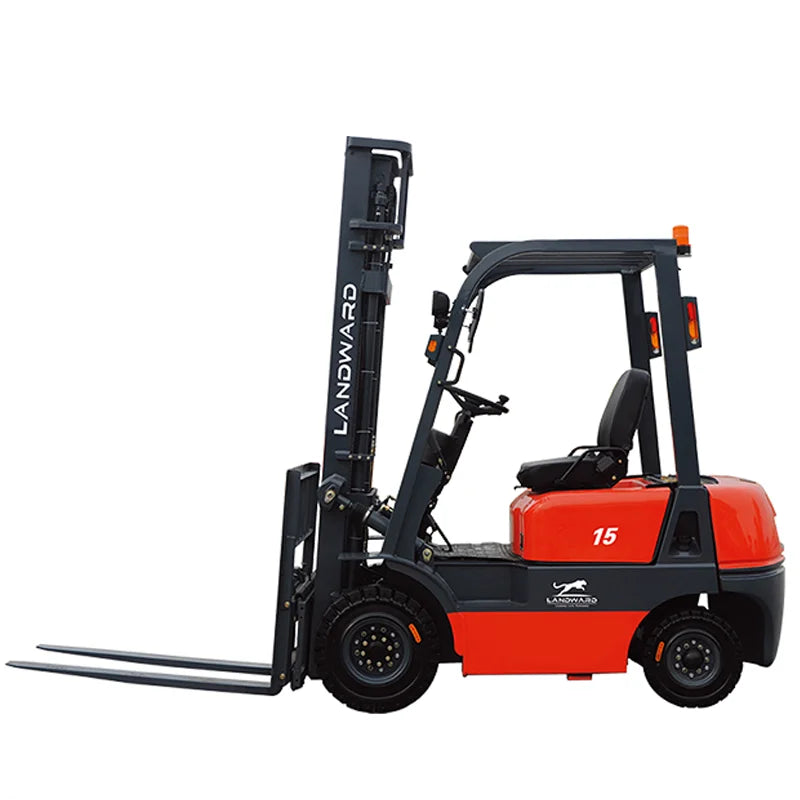

Diesel Forklift

FD15

FD20

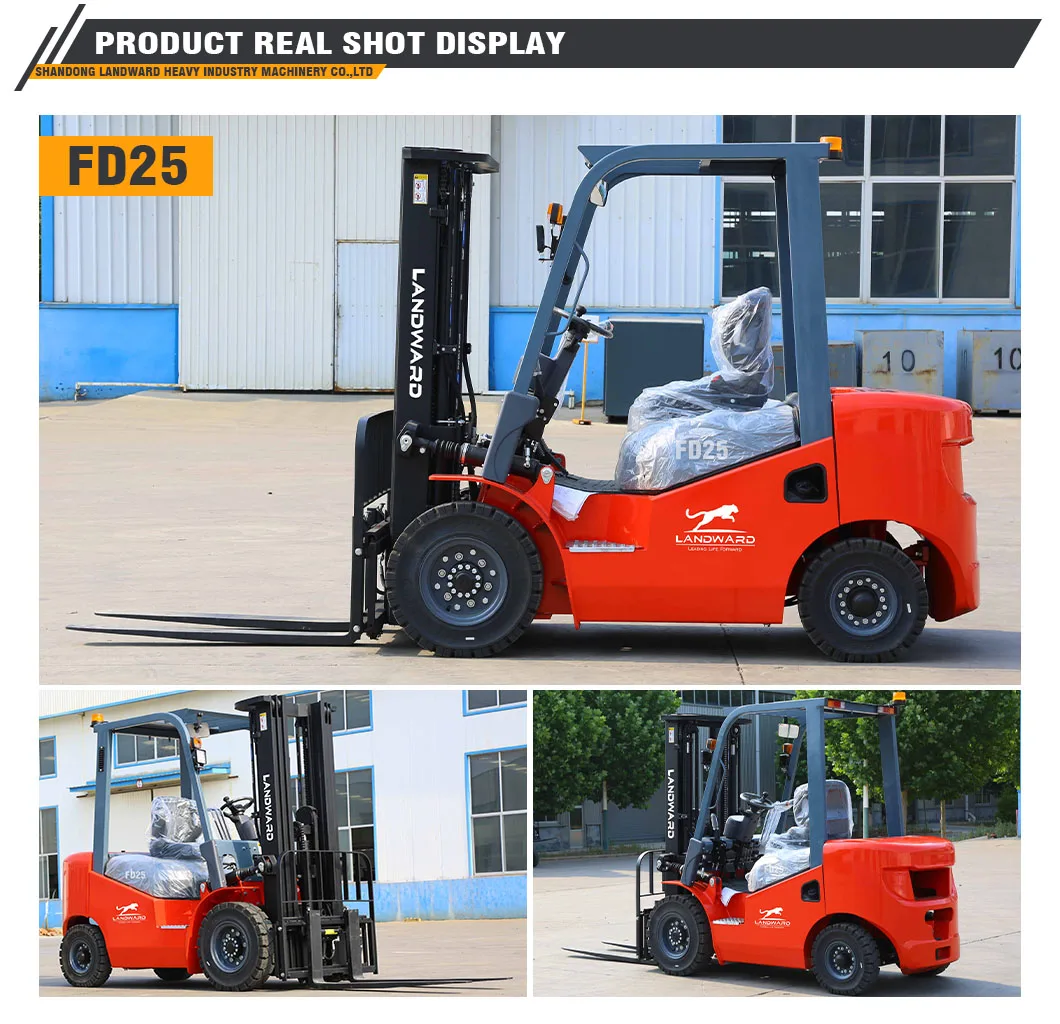

FD25

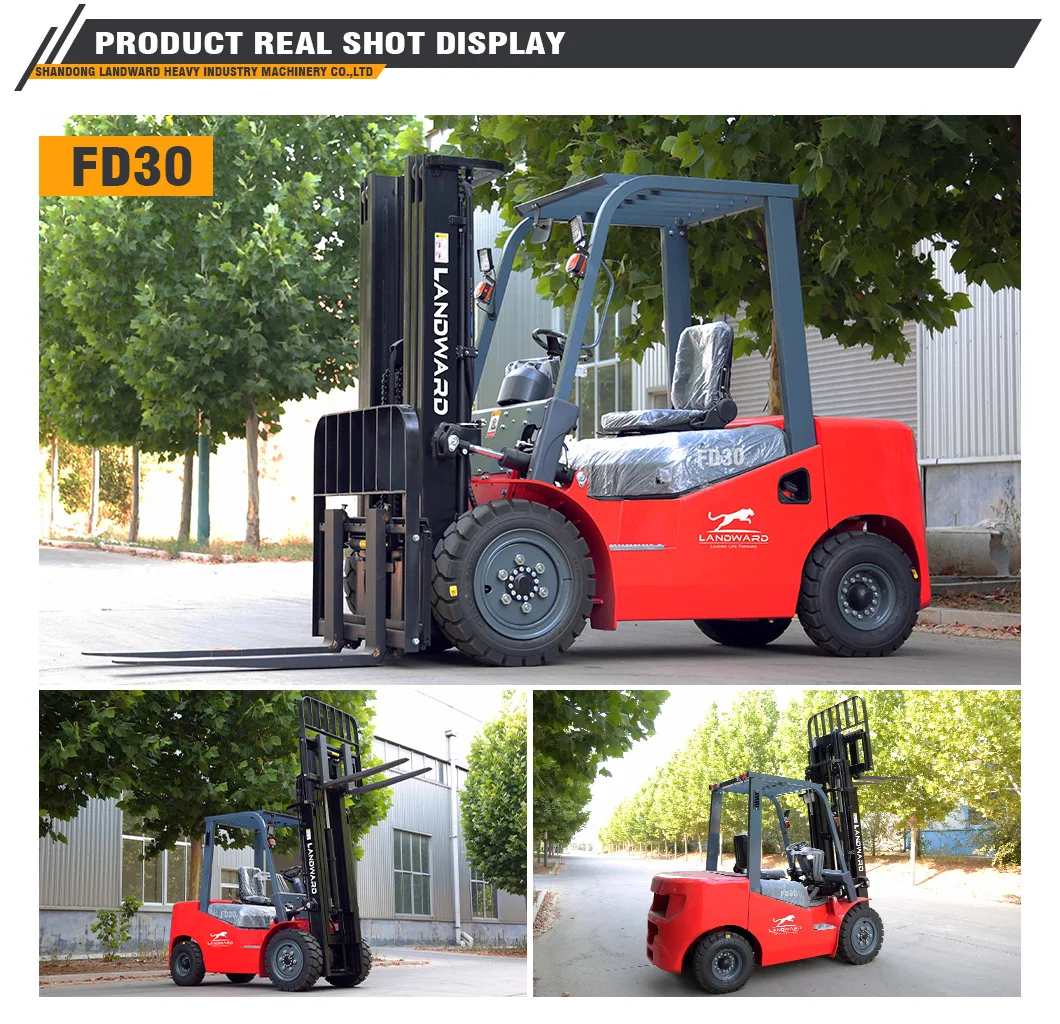

FD30

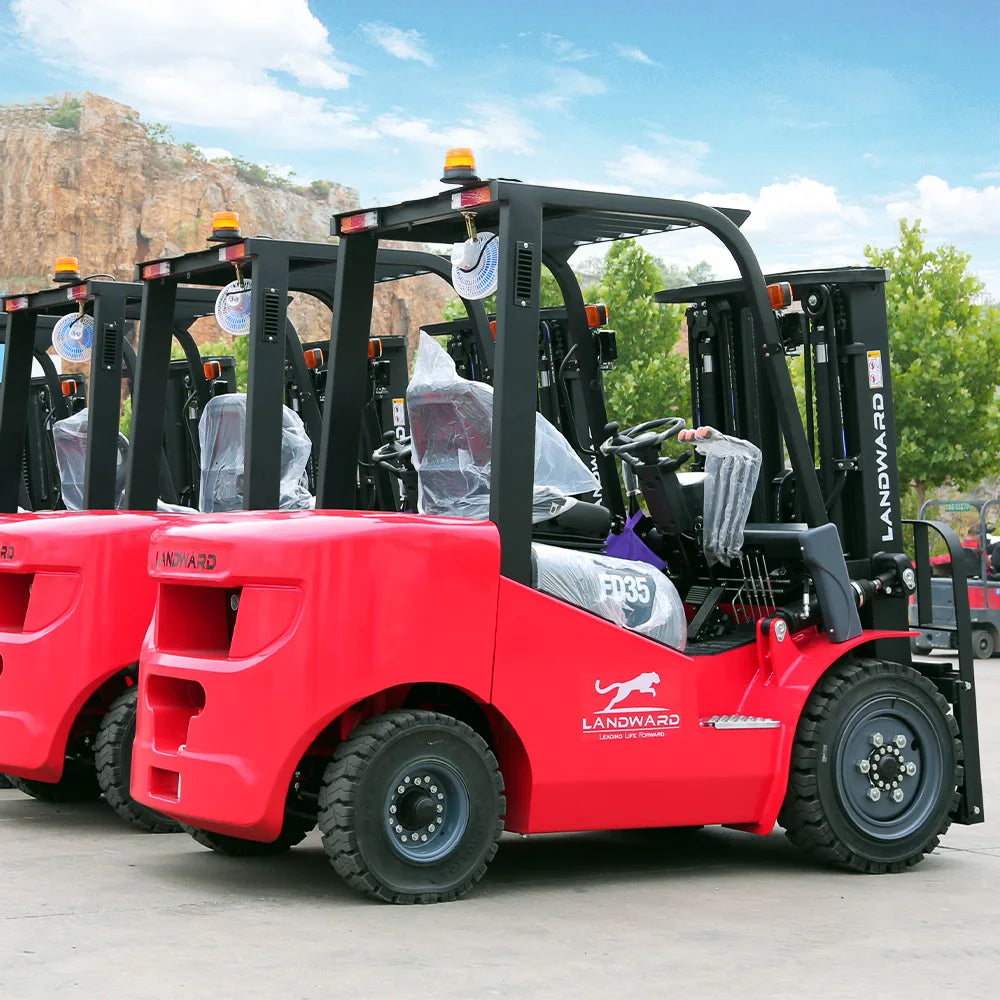

FD35

FD40

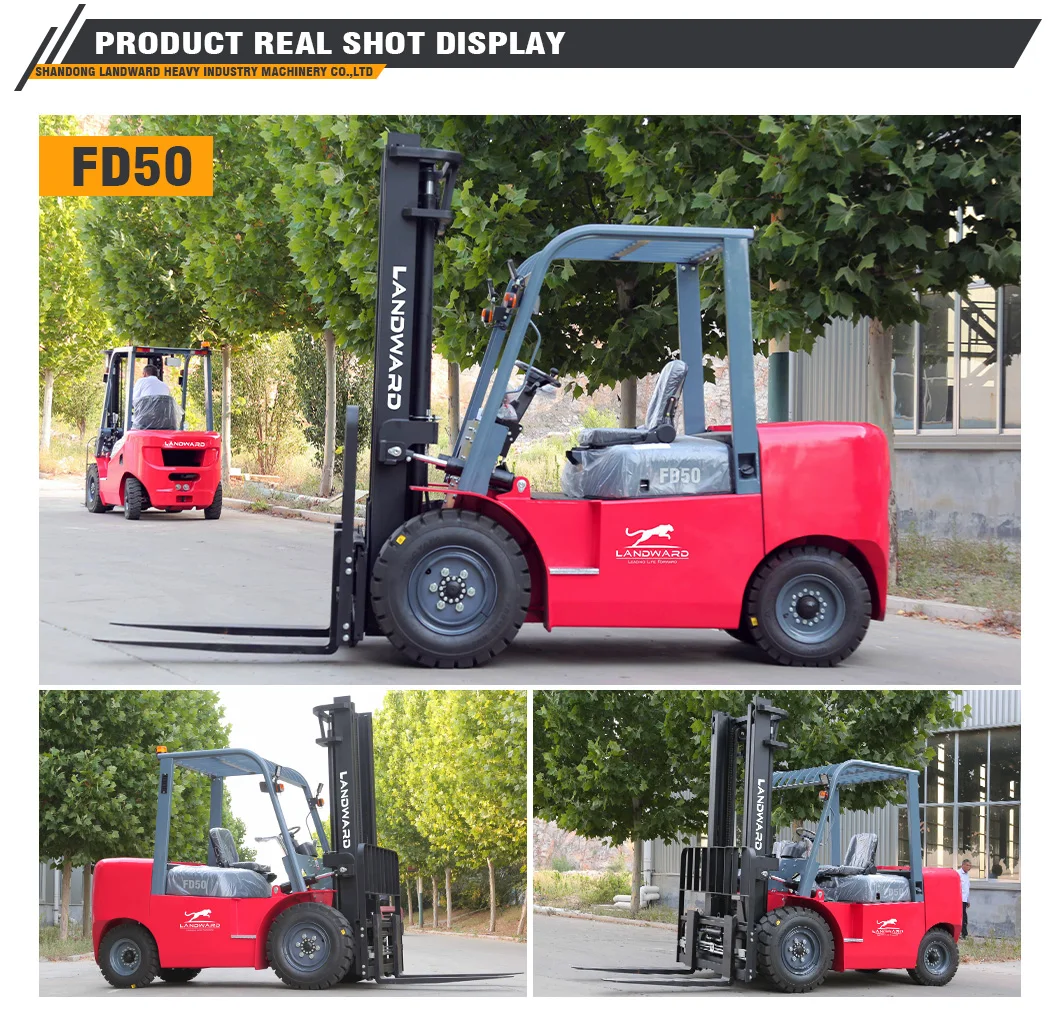

FD50

Fuel model


Diesel

Diesel

Diesel

Diesel

Diesel

Diesel

Diesel

Load capacity

kg

1500

2000

2500

3000

3500

4000

5000

Load center

mm

500

500

500

500

500

500

500

Lift height

mm

3000

3000

3000

3000

3000

3000

3000

Full free lift height

mm

100

100

100

100

100

0

0

Mast tilting angle

Deg.

6/12

6/12

6/12

6/12

6/12

6/12

6/12

Min.turning radius

mm

1955

2220

2240

2400

2550

2800

3050

Groud clearance

mm

110

120

120

135

135

135

140

Overhead guard height

mm

2040

2140

2140

2165

2165

2230

2290

Front overhang

mm

425

448

485

495

495

500

570

Max travel speed

km/h

13.5

19

19

19

19

18.5

25

Max lift speed

mm/s

590

550

550

480

480

420

430

Max.traction power

KN

12.3

12.3

12.3

13.5

13.5

20

23

Max. gradeability

%

20

20

20

20

20

20

18

Total length with fork

mm

3175

3523

3610

3820

4065

4105

4520

Total length without fork

mm

2255

2453

2540

2750

2995

3035

3300

Total width

mm

1070

1160

1160

1225

1225

1400

1480

Mast extended height

mm

4030

4220

4220

4265

4265

4270

4300

Mast lowered height

mm

1995

2060

2060

2060

2060

2190

2190


All price is based on FOB Qingdao, China, please consult our sales for more details if you need other delivery solutions.

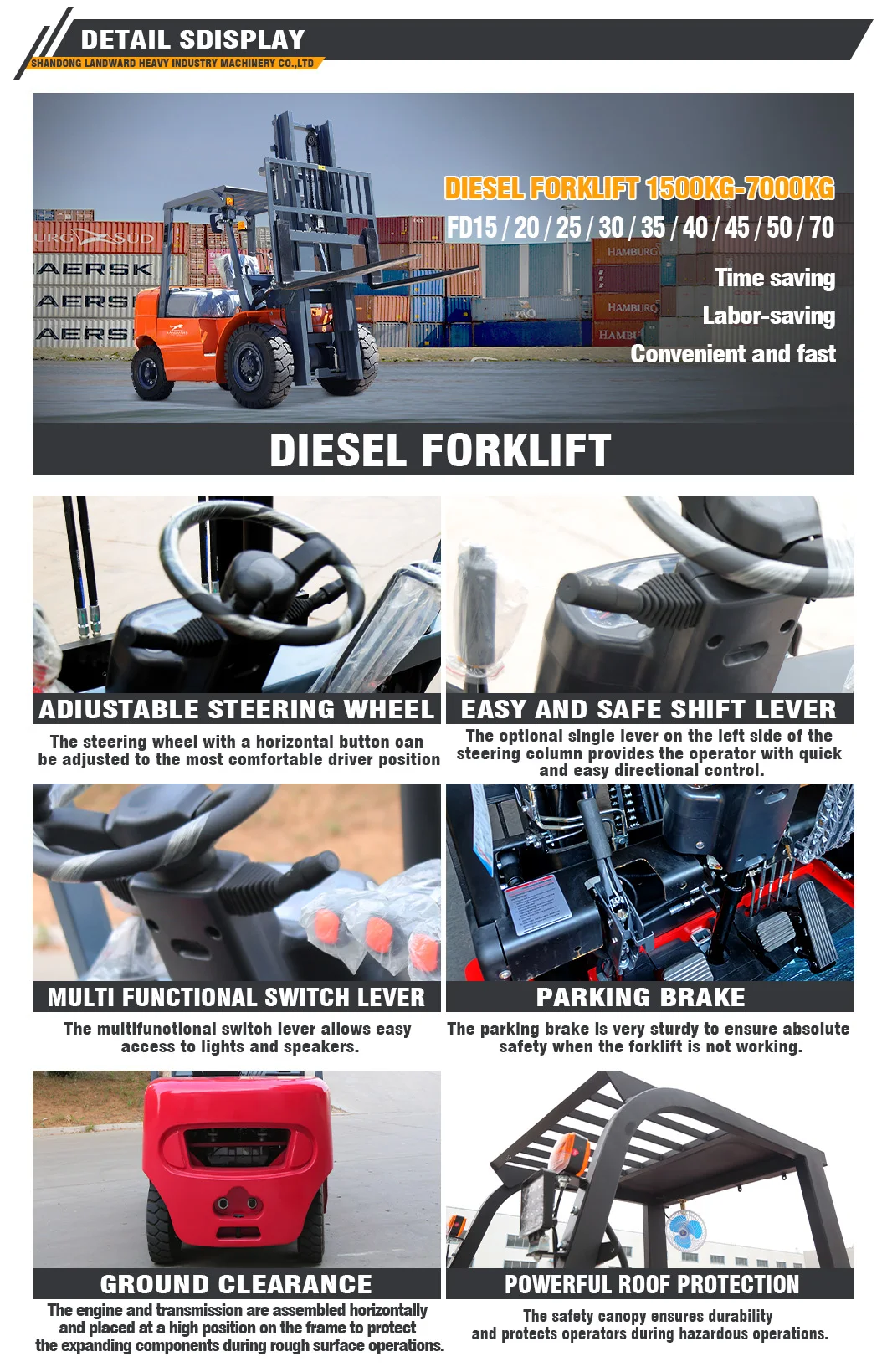

1. The core components such as gearbox and drive axle are jointly manufactured, and the key components are imported, with low failure rate and reliable quality

2. Equipped with cast steering axle, compact structure, small load deformation, dustproof and waterproof, improving service life and reliability
3. Adopting a wide field of view gantry, with a wide field of view; The section of the gantry channel steel is enlarged, and the overall structure is sturdy and reliable!
4. It adopts a large opening angle integrated machine, with an internal frame reinforcement plate structure, high strength, quality, and reliability!
5. Adopting a new type of mechanical locking mechanism, the mechanical opening and closing are more flexible and reliable in locking
6. The iron shell large air filter is used, with high strength and aging resistance. Can better adapt to harsh working environments
7. The lifting system is equipped with explosion-proof safety valves to ensure safety during the lifting process of heavy objects
8. The boarding pedal adopts a fully anti slip pedal to ensure the safety of forklift drivers getting on and off the vehicle
9. The connection between the steering bridge and the frame is supported by damping rubber pads, reducing the vibration of the entire vehicle and improving the comfort of the operator
10. The large opening angle of the machine and the external maintenance components such as the oil filter make maintenance and repair more convenient


Options:
1.optional attachment :Quick hitch ,pallet fork ,4in 1 bucket , closed road sweeper,Grass fork ,snow bucket , snow blade

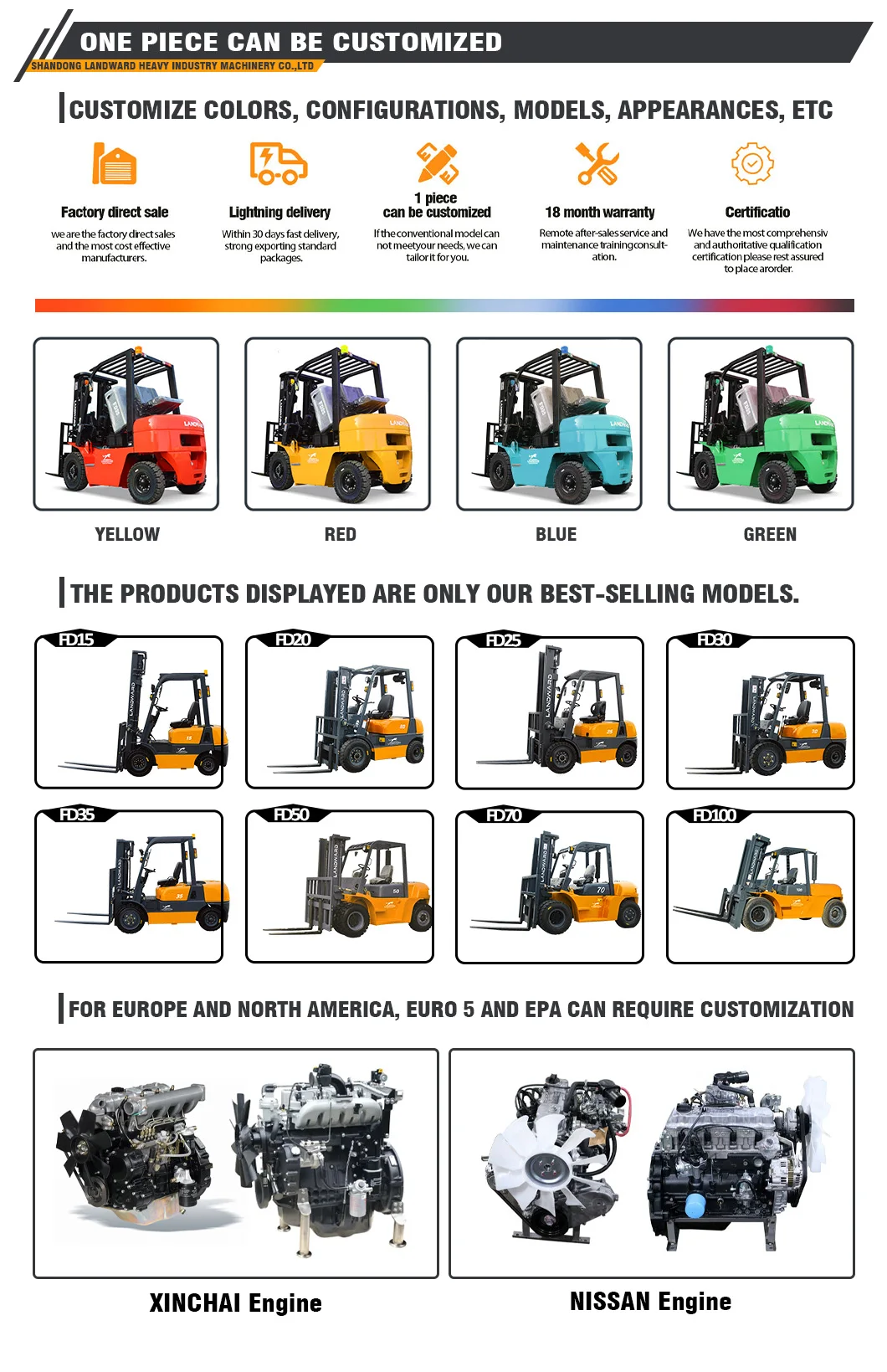

2.Color and style can be customized
