SPECIFICATIONS

After-sales Service Provided: Engineers available to service machinery overseas

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Shops, C

Brand Name: NoEnName_Null

Color: Optional

Condition: New

Feature: valve grinding machine

Function: Surface grinding

Guarantee: One year

High-concerned chemical: None

Key word: valve grinding machine

Marketing Type: Ordinary Product

Material: Stainless Steel

Origin: Mainland China

Precision: High

Showroom Location: None

Type: Other,Surface Grinding Machine

Warranty of core components: 1 Year

cnc or not: Normal

core components: Motor, Pump, Bearing, Gear, Pressure Vessel, Gearbox, PLC

dimension(l*w*h): 3000x1712x2057mm

grinding head power: 7.5kw

grinding length(mm): 1000

is_customized: Yes

key selling points: Long Service Life

machinery test report: Provided

place of origin: China

rotate speed: 1440r/min

table travel (x) (mm): 1000

table travel (y) (mm): 400

video outgoing-inspection: Provided

voltage: 380v

warranty: 1 Year

weight (kg): 3700

Welcome! This product comes with worry-free after-sales service and supports customization. Due to the wide range of product calibers and models, as well as their varying applicable scenarios, please feel free to consult me before placing an order. We recommend adding the following contact information for easier future inquiries: WhatsApp / WeChat / Phone: 86+18163799242 Tel: +86 18163799242 Email: 2689607605@qq.com Note: The product price is affected by the delivery location, and the displayed price is not the final price. Feel free to contact us if you are interested!

Product Description

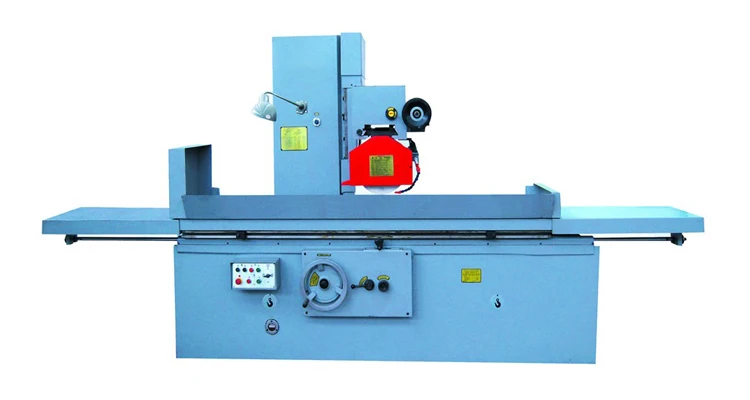

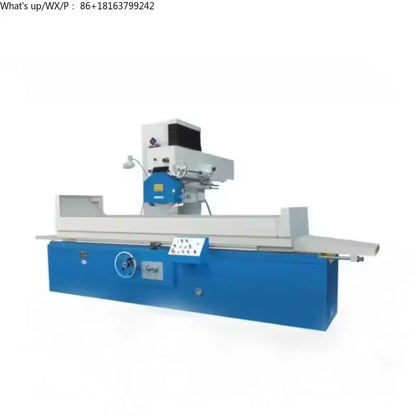

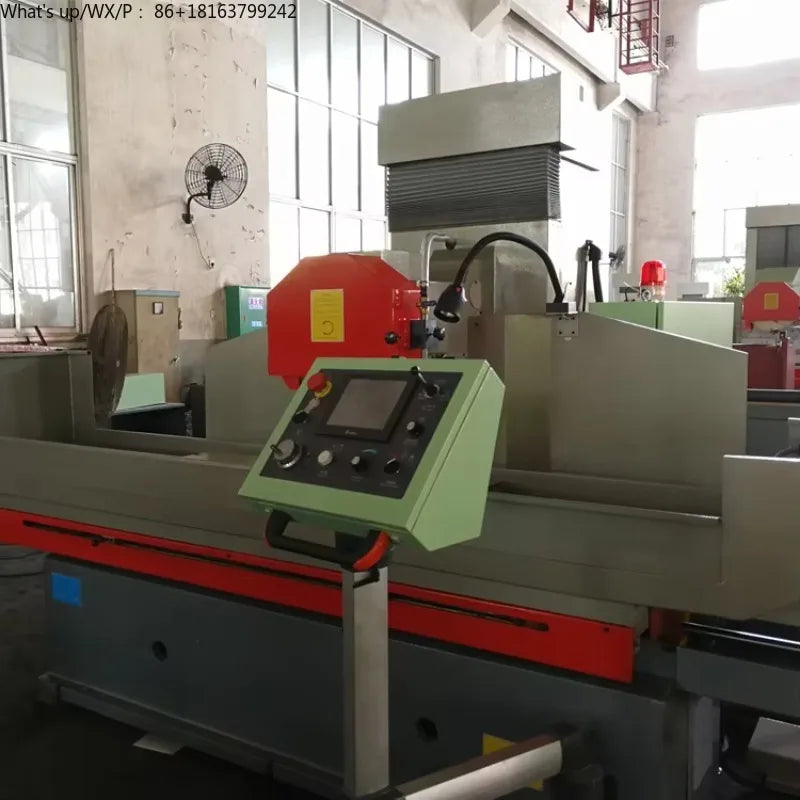

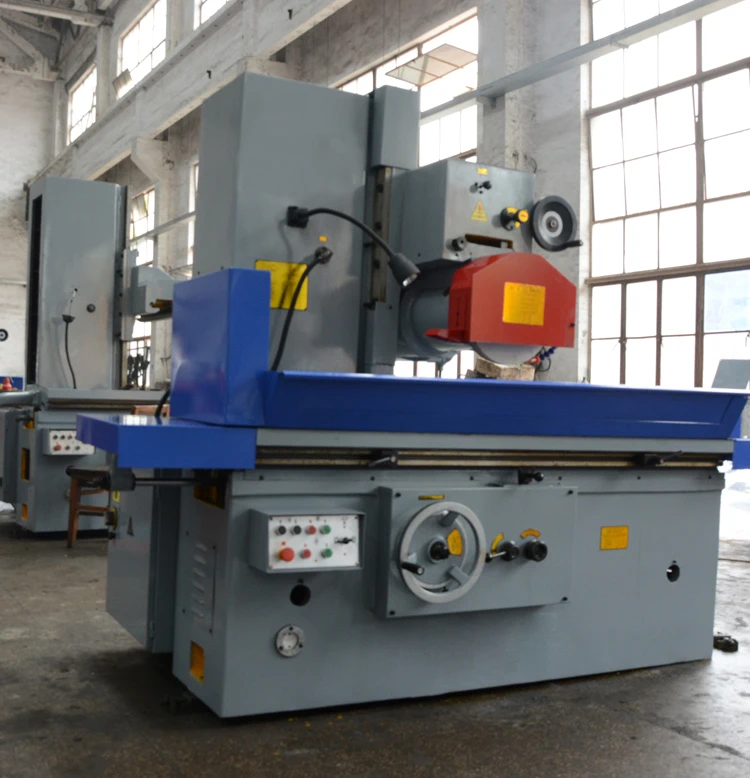

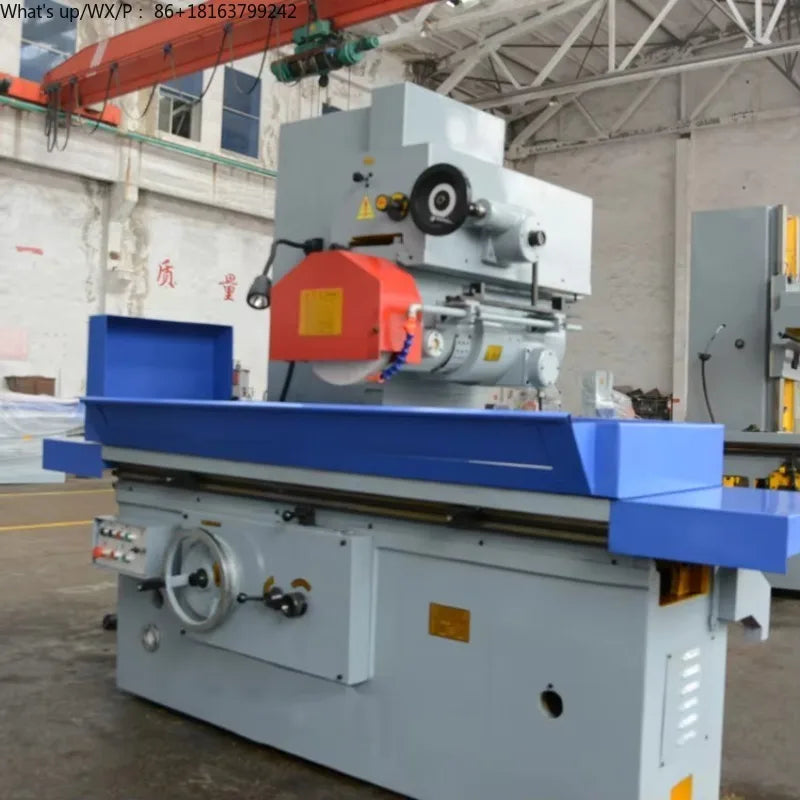

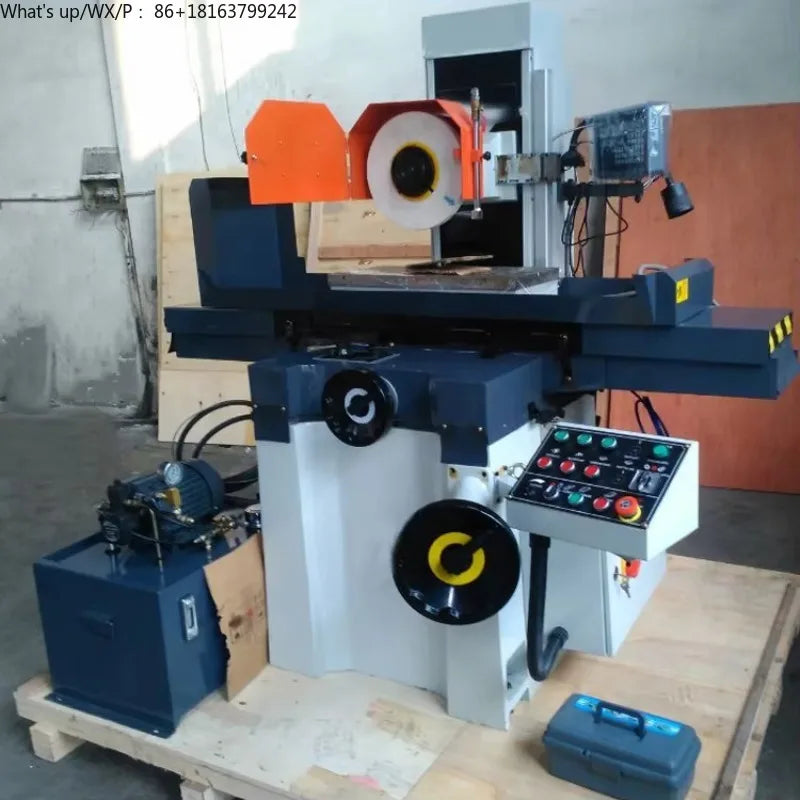

Surface Grinding Machine

1.The lengthways moving of the working table and the transverse moving of the grind head are hydraulic transmission, and the velocity modulation is step less. 2.The machine tool bed adopts the head symmetry design, and the heat-distortion is little. It use the oil returning to heat the bed slide way. The grinder head perpendicular feed is manual, and has the quick elevating mechanism. It can lighten labor intensity and raise work efficiency.

3.The electrical equipment carries out the new national standard, and increases the electrical equipment interlock safety device. It is very convenient to operate. 4.The machine tool motion is smooth and steady, the function is reliable, the noise is low and the precision is stable. It is convenient for user to operate.

Item	M7140	M7140Lx14	M7140Lx16	M7140Lx20
Max. size of work piece to be ground(WxLxH)	1000x400x400	1400x400x400	1600x400x400	2000x400x400
Table longitudinal travel(hydraulic)	1100mm	1500mm	1700mm	2100mm
Lateral movement speed (stepless)	0.5-3m/min	0.5-3m/min	0.5-3m/min	0.5-3m/min
Longitudinal movement speed (stepless)	3-30m/min	3-30m/min	3-30m/min	3-30m/min
Grinding wheel spindle speed	1440r/min	1440r/min	1440r/min	1440r/min
Grinding head motor power	5.5Kw	5.5Kw	5.5Kw	5.5Kw
Maximum table load capacity	620kg	800kg	1000kg	1380kg
Surface roughness	Ra0.63μm	Ra0.63μm	Ra0.63μm	Ra0.63μm
Net weight	3700Kg	4000Kg	4800Kg	6800Kg
