SPECIFICATIONS

Applicable Flute Quantity: 2 4 flutes

Applicable Tool Diameter: 04 20 mm

Brand Name: NoEnName_Null

Grinding Efficiency: 2 minutes/piece

Grinding Wheel Size: 125 *10 * 32 mm

Grinding Wheel Speed: 2000 3000 r/min

High-concerned chemical: None

Machine Dimensions: 680 * 510 *730 mm

Material: Stainless Steel

Net Weight: 562 kg

Origin: Mainland China

Total Power: 1.5 kW

Type: Other

Voltage: 220 V

Wheel Size (repeated line): 125 * 10 *32 mm

cnc or not: CNC

core components: Motor, Gearbox, PLC

dimension(l*w*h): 2120*1850*1530mm

is_customized: Yes

key selling points: Automatic

machinery test report: Provided

place of origin: China

power (kw): 37

type: Other

video outgoing-inspection: Provided

voltage: 220V

warranty: 1 Year

weight (kg): 10000

wheel size(mm): 600x400x305

Welcome! This product comes with worry-free after-sales service and supports customization. Due to the wide range of product calibers and models, as well as their varying applicable scenarios, please feel free to consult me before placing an order. We recommend adding the following contact information for easier future inquiries: WhatsApp / WeChat / Phone: 86+18163799242 Tel: +86 18163799242 Email: 2689607605@qq.com Note: The product price is affected by the delivery location, and the displayed price is not the final price. Feel free to contact us if you are interested!

Products Description

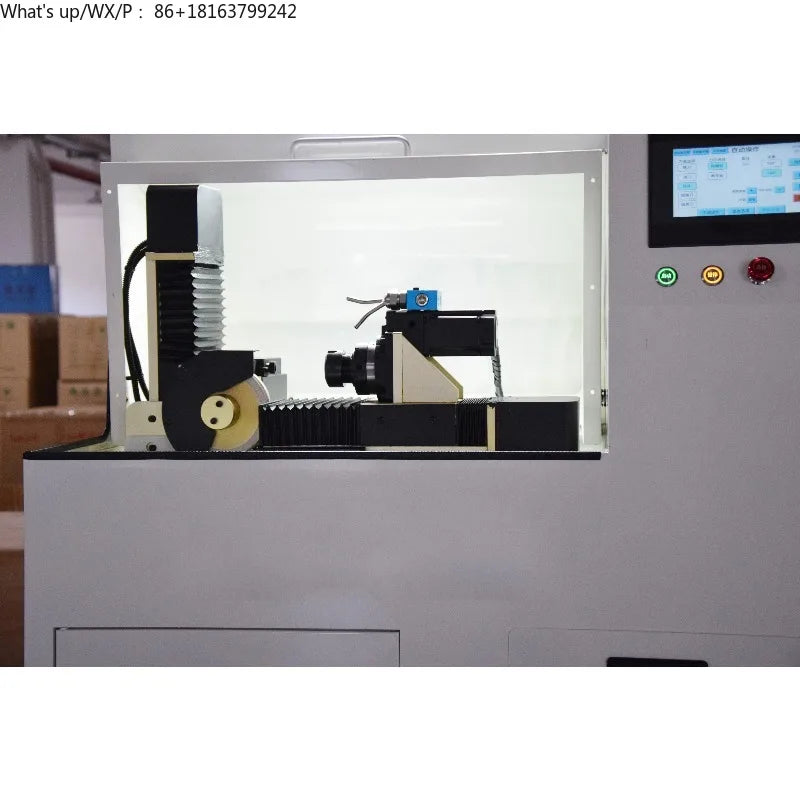

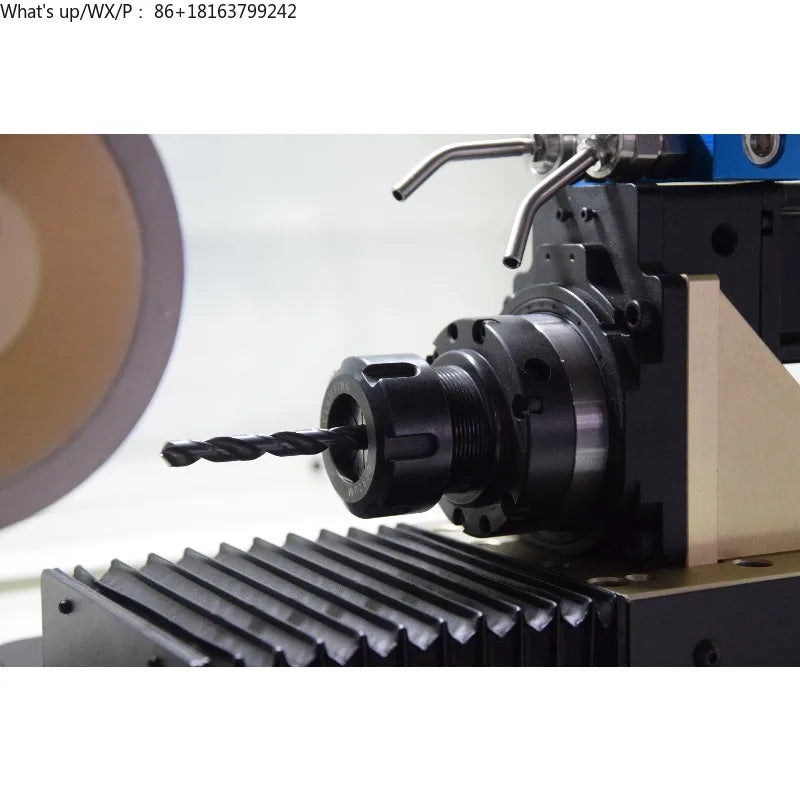

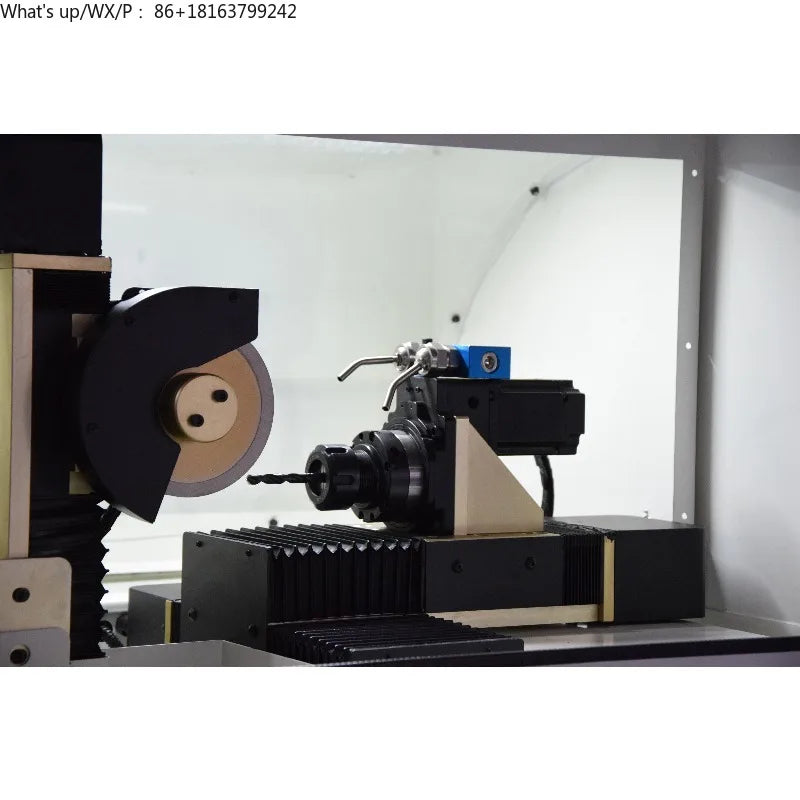

End Mill Grinder is a high-precision tool sharpening machine designed for grinding 2-flute, 3-flute, and 4-flute end mills,
including ball nose, drill point, and flat bottom end mills. It supports tool diameters ranging from 4mm to 20mm, making it ideal for manufacturers and tool service shops seeking efficient, accurate, and repeatable results.

Wide Tool Compatibility: Supports a variety of end mill types, including standard end mills, ball nose, and flat end mills from Ø4
to Ø20mm.
High Grinding Efficiency: Each tool can be sharpened in just 1–2 minutes, significantly improving productivity.
Precision & Stability: Equipped with a powerful 1.5kW motor and precision guide system to ensure consistent accuracy.

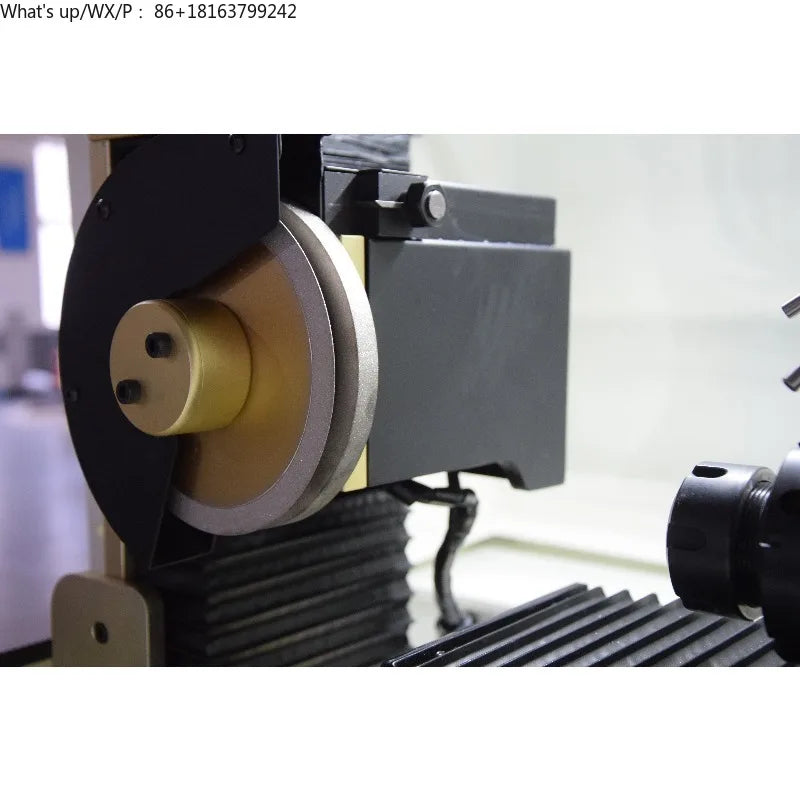

* Durable Grinding Wheel: 125×10×32mm grinding wheel with a long service life (can sharpen Ø8mm tools up to 800–1000 times).

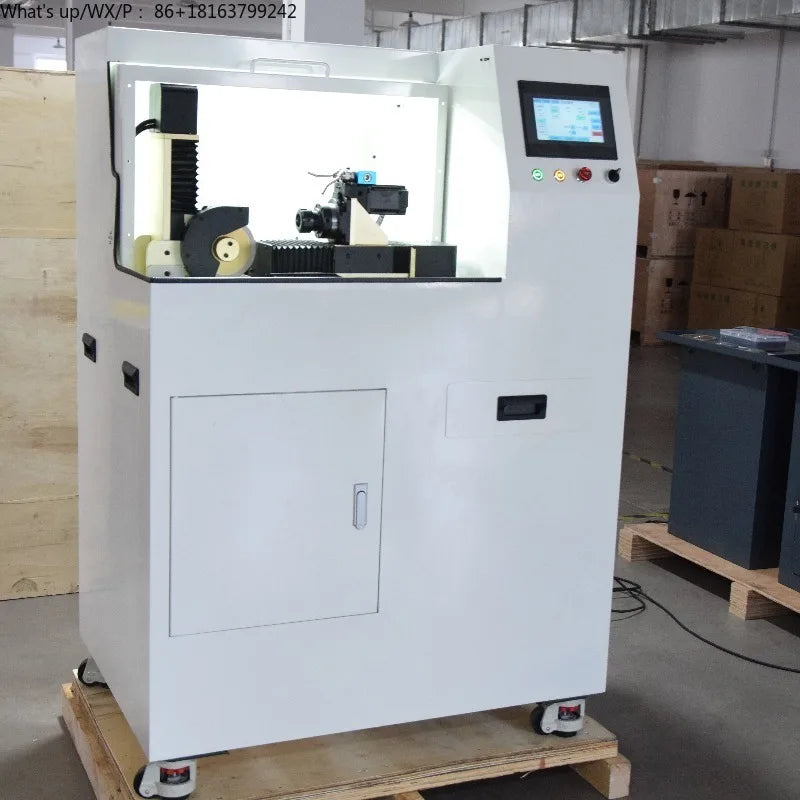

* Compact Design: Machine dimensions are 680×510×730mm, suitable for small to medium-sized workshops.

* Easy Operation: Intuitive control panel allows users to operate with minimal training.

* Custom Program Support: Capable of customized tool path programming and includes free lifetime software upgrades.

Specifications

Parameter	Specification
Applicable Tool Diameter	04–20 mm
Voltage	220 V
Applicable Flute Quantity	2–4 flutes
Machine Dimensions	680 × 510 × 730 mm
Net Weight	562 kg
Total Power	1.5 kW
Grinding Wheel Speed	2000–3000 r/min
Grinding Wheel Size	125 × 10 × 32 mm
Grinding Efficiency	1–2 minutes/piece
Wheel Size (repeated line)	125 × 10 × 32 mm
Grinding Wheel Life	Ø8 mm tool: 800–1000 uses
Machine Application	Suitable for grinding 2-, 3-, and 4-flute end mills, ball nose end mills, drill bits, and flat end milling cutters with diameters ranging from 4–20 mm
Special Program Support	Supports customization of special tool programs; free lifetime software upgrades
