Heavy Duty Automatic Flat Bed Label Paper Box Die Cutting Machine Carton Printing Slotting Die-cutting Creasing Machine
Heavy Duty Automatic Flat Bed Label Paper Box Die Cutting Machine Carton Printing Slotting Die-cutting Creasing Machine
Couldn't load pickup availability
SPECIFICATIONS
Applicable Industries: Advertising Company, Printing Shops
Brand Name: NoEnName_Null
Core Components: Gearbox
High-concerned chemical: None
Key Selling Points: High-accuracy
Machinery Test Report: Provided
Marketing Type: New Product 2020
Origin: Mainland China
Showroom Location: United States
Type: Die Cutting Machine
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
brand name: CHENGYUE
condition: New
place of origin: Zhejiang, China
warranty: 1 Year
weight (kg): 2000 KG
CREASING AND DIE CUTTING MACHINE
PRODUCT DESCRIPTION:

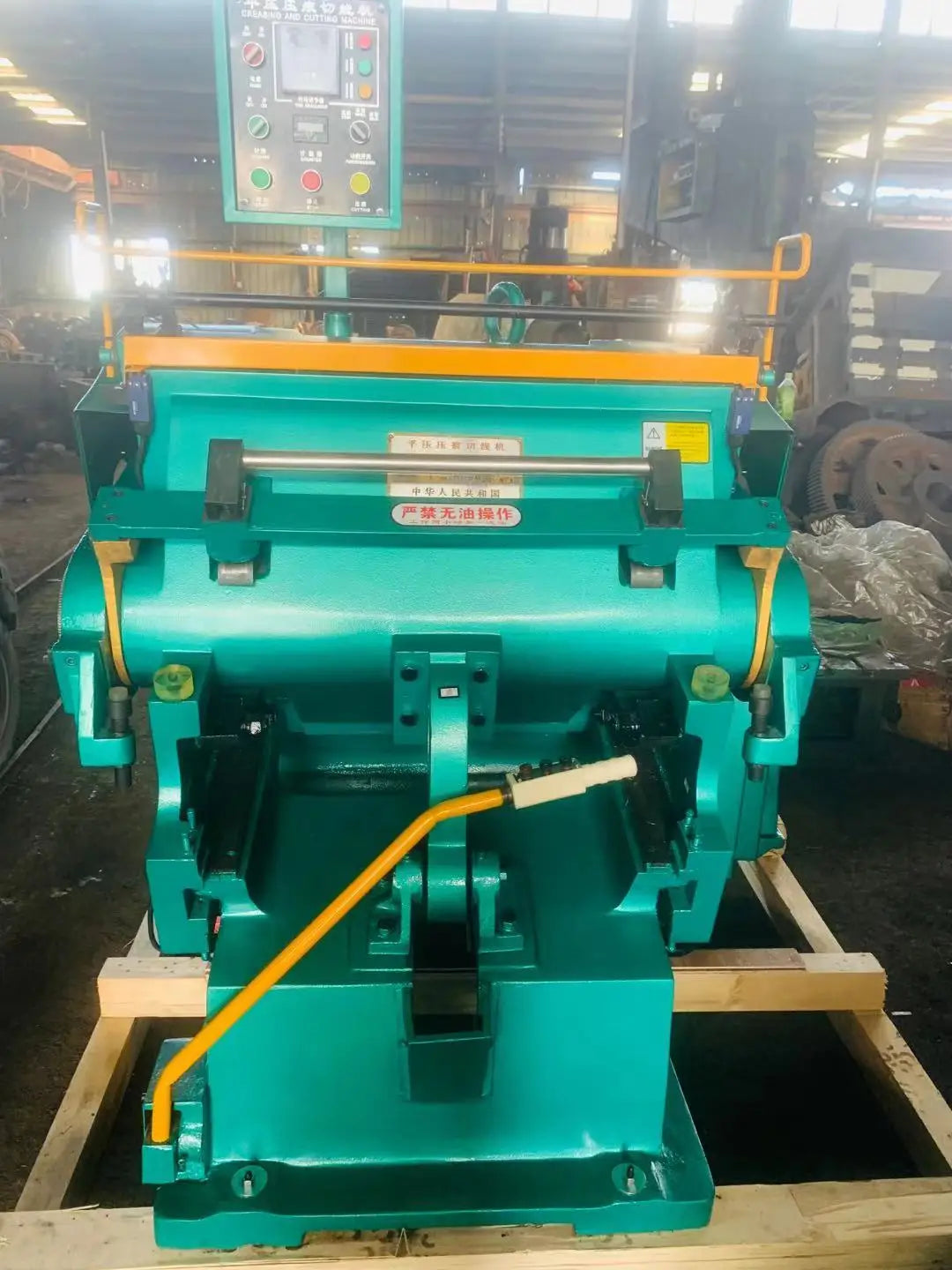

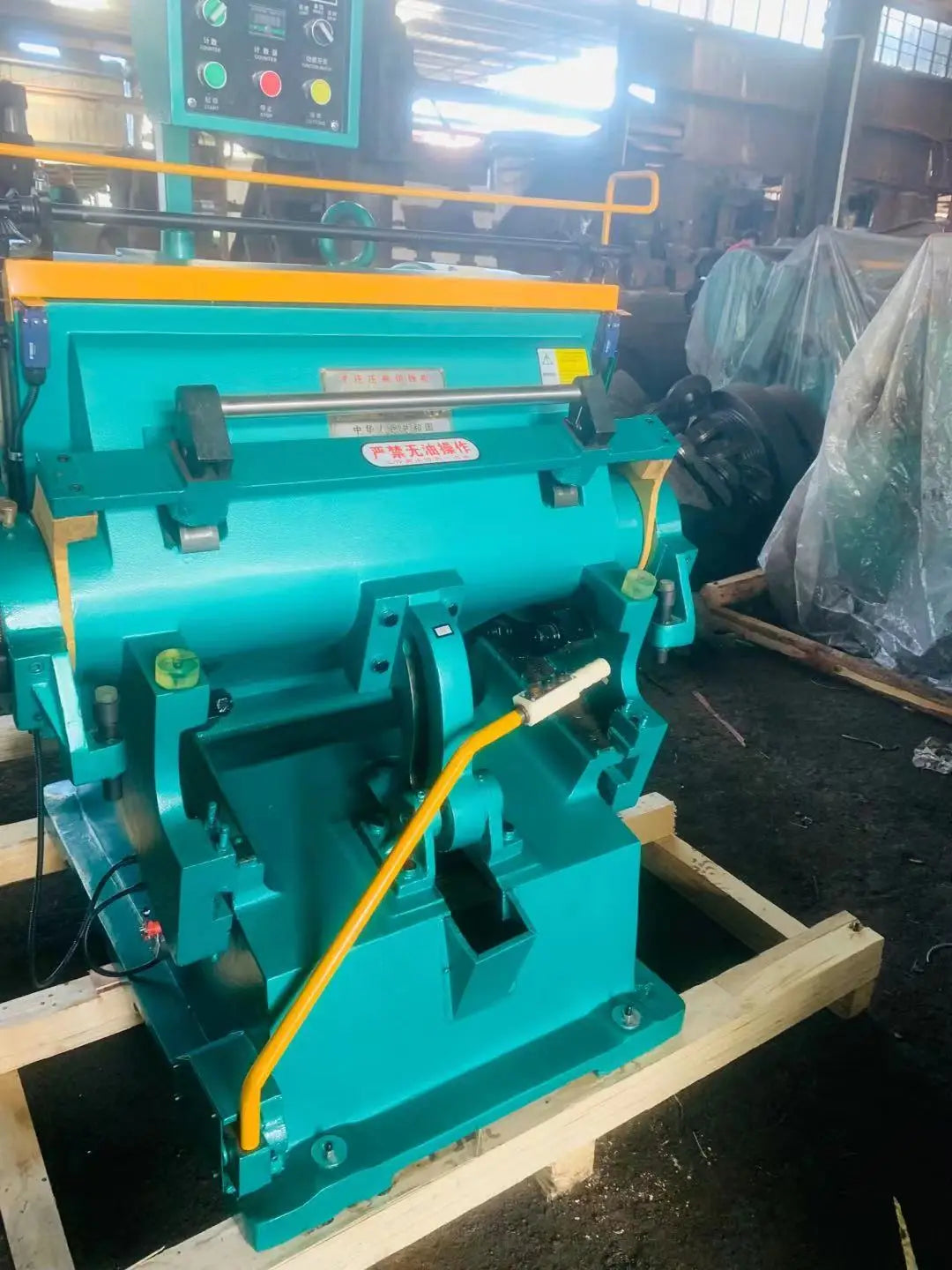

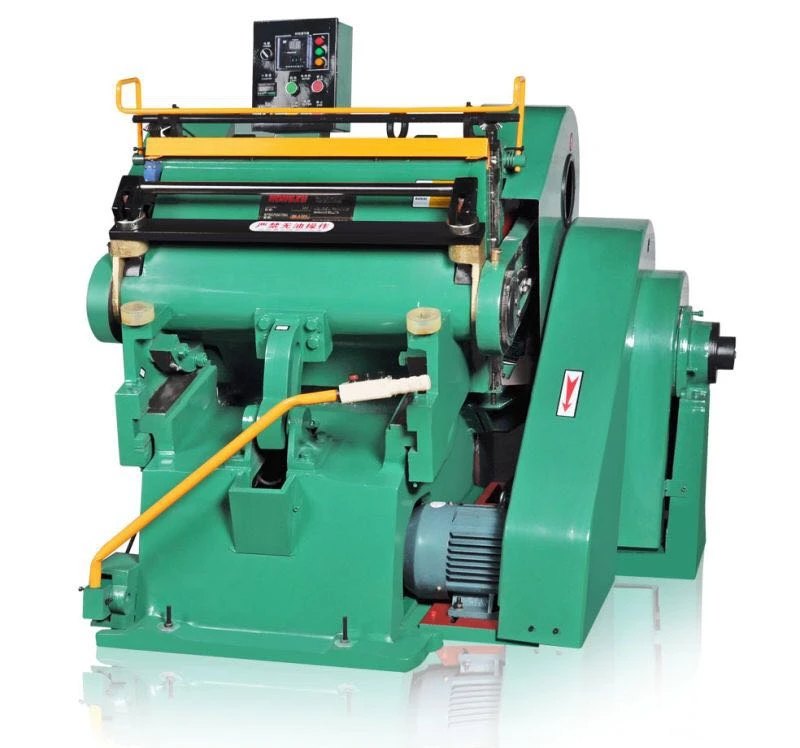

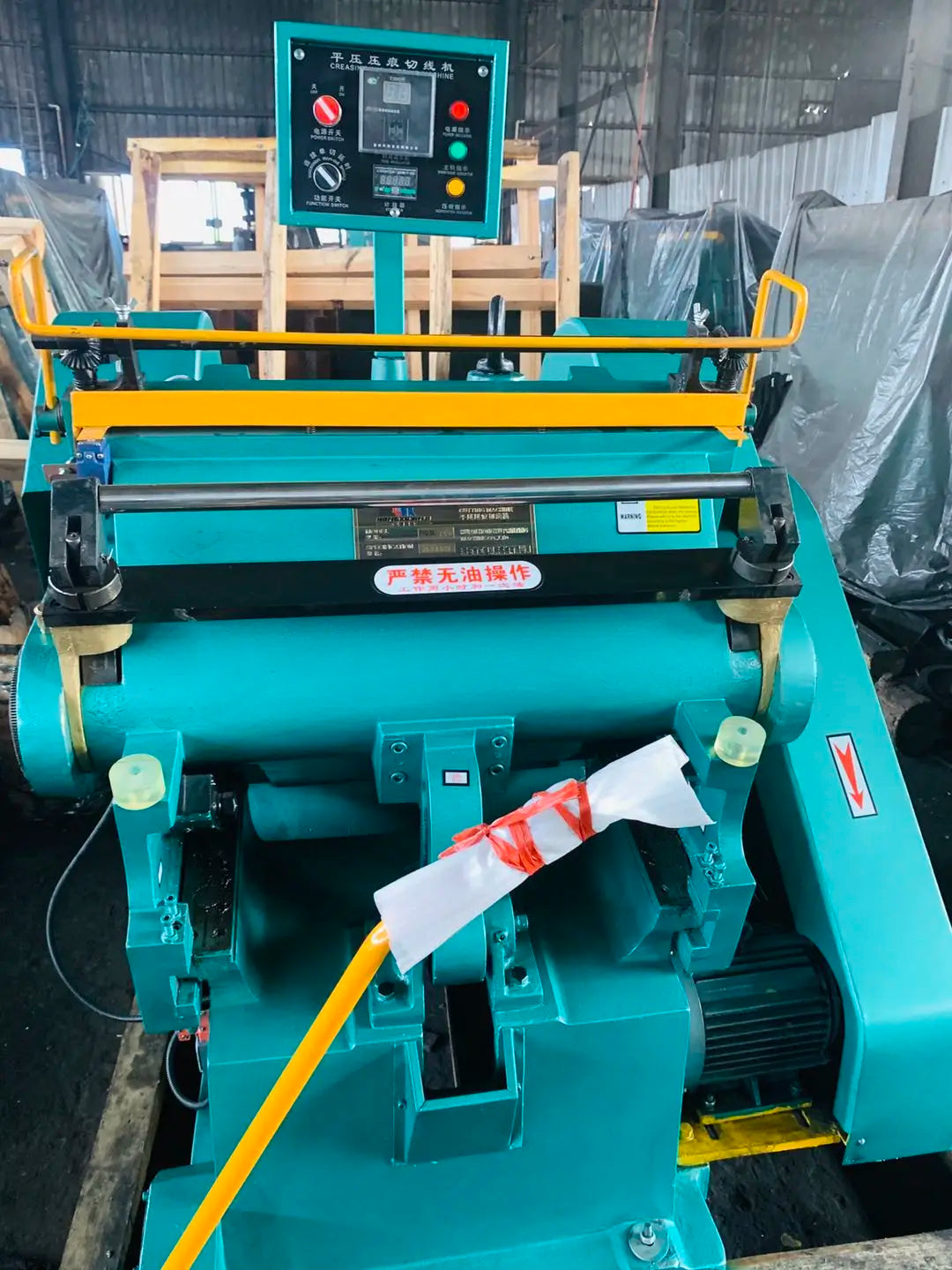

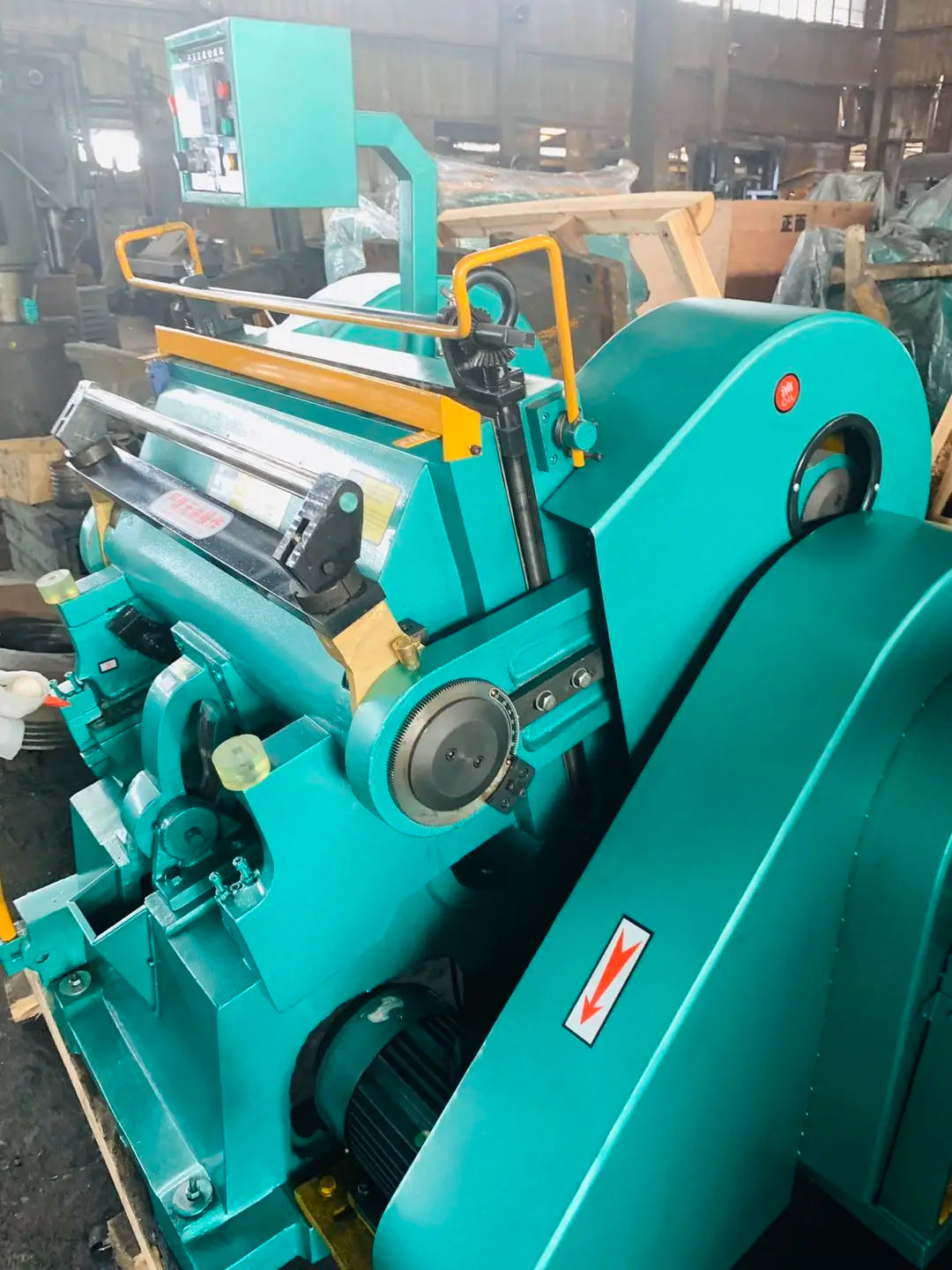

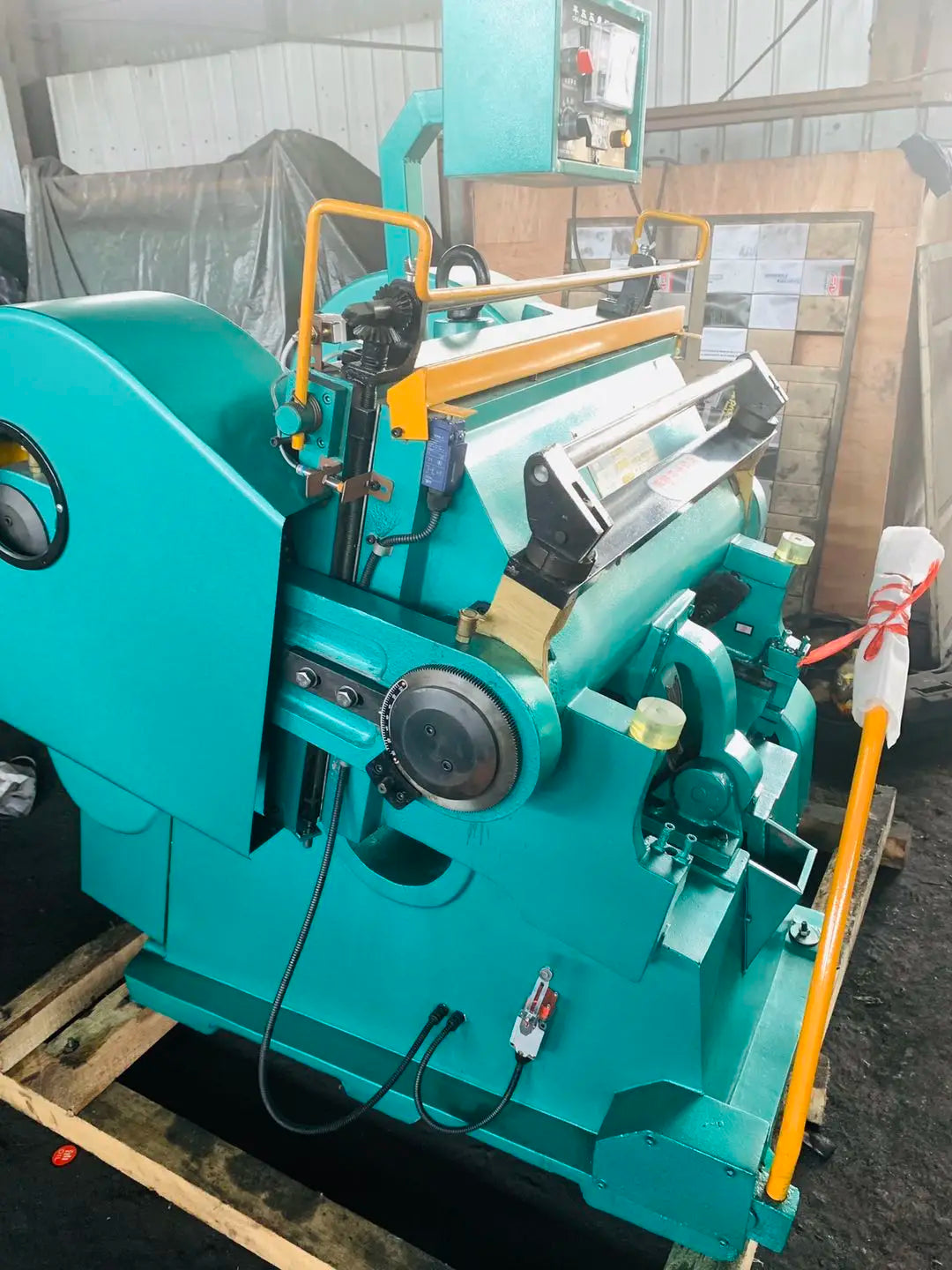

ML series creasing and die cutting machine, also called as clam shell die cutter, is a kind of special equipment for die cutting
and creasing a wide range of material, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of
printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from domestic
and oversea market due to its outstanding performance, reliable in quality, easy for operating and low cost in price.
FEATURES:
1) The casting material is HT250 gray cast iron and with annealing treatment so as to achieve the casting not easy to deformation,
breakage.
2) The principal axis mainly adopts of 4Cr13MoV and with thermal refining treatment to improve the main-shaft’s intensity and
rigidity, hardness and adhesive the effort of uneasy deformation.
3) The main parts of gear is made of 4Cr13Mov and with thermal refining treatment.
4) The machine’s guide plate is made of 38crmoral and with nitrogen treatment to increase intensity and make it not easy to wear.
It can keep a long time balance of machine’s fluctuation pressure.
5) The single plate electromagnetic clutch is nimble and reliable.
6) It has the function of continuous cutting and opening dwell. Dwell is adjustable.
7) The motion link (arm drag) is mainly made of nodular cast iron. It has the advantage of intensity銆乼oughness and strong
compression.
8) The key parts of bearing is mainly made of Harbin bearing.
9) The lubrication of concentrated refuel, manual refuel (optional) can better the oil flow in good condition and its maintenance.
10) Transmission bearing is made of composite bushing (Ensure the lubrication), connecting roads PM bushing to increase the
machine’s precision.
11) The machine electrical is made from China Zhengtai Group and Schneider electric.
12) Hand on triangle limit switch, emergency switch, and hand push rod limit switch. Three insurance devices. Ensure safety.
13) Plate and frame can be adjusted.
14) Stainless steel plate.
|
Model
|
Inner chase size (mm)
|
Speed (strokes/min)
|
Max.rule length (m)
|
Motor power
|
Overall dimension
(mm) |
Gross weight
(kg) |
|
ML750
|
750x520
|
26±2
|
≤15
|
2.2kw-6H 380V
|
1750x1500x1800
|
2200
|
|
ML930
|
930x670
|
23±2
|
<25
|
4kw-6H 380V
|
1700x 1550x1700
|
3300
|
|
ML1100
|
1100x800
|
22±2
|
<30
|
4kw-6H 380V
|
2050x2150x1850
|
4300
|
|
ML1200
|
1200x820
|
22±2
|
<35
|
4kw-6H 380V
|
2150x2030x1700
|
4800
|
|
ML1300
|
1300x920
|
15±2
|
<40
|
5.5kw-6H 380V
|
2400x2100x1950
|
5900
|
|
ML1400
|
1400x1000
|
15±2
|
<40
|
7.5kw-6H
|
2450x2100x2000
|
6800
|
|
ML1500
|
1500x1050
|
15±2
|
<45
|
7.5kw-6H
|
2550x2100x2100
|
7800
|
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
