SPECIFICATIONS

After-sales Service Provided: Engineers available to service machinery overseas

Automatic Grade: Automatic

Brand Name: NoEnName_Null

Communication: English/Turkish/Russian/Spanish

Exporting countries have: South America,Europe, Southeast Asia

Has been exporting country: European/United States / Africa/Middle East/Asia

High-concerned chemical: None

Hign-concerned Chemical: None

Material: Plastic

More language: Arabic Spanish Korean Russian English

Near airport: Beijing airport ,Tianjin airport , Jinan airport

Origin: Mainland China

Packaging Type: Cartons

Type: Other

Voltage: 220V/380V

Warranty: 12 Months

Weight (KG): 500

Worker: More than 50 workers

core components: Engine, Bearing, motor

dimension(l*w*h): 3600mm*1400mm*1850mm

driven type: Electric

key selling points: Easy to Operate

machinery test report: Provided

packaging material: Plastic, Wood

place of origin: Hebei, China

video outgoing-inspection: Provided

Product description

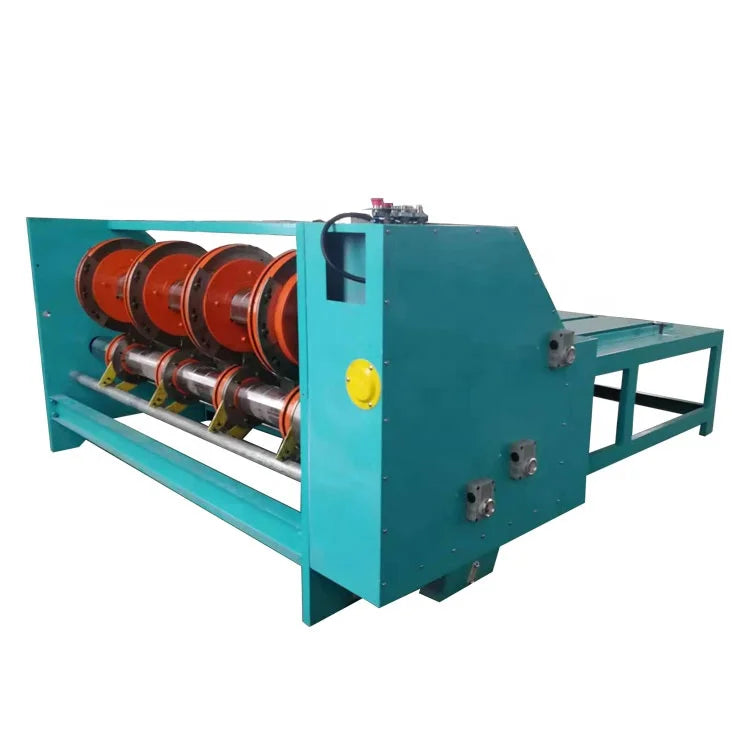

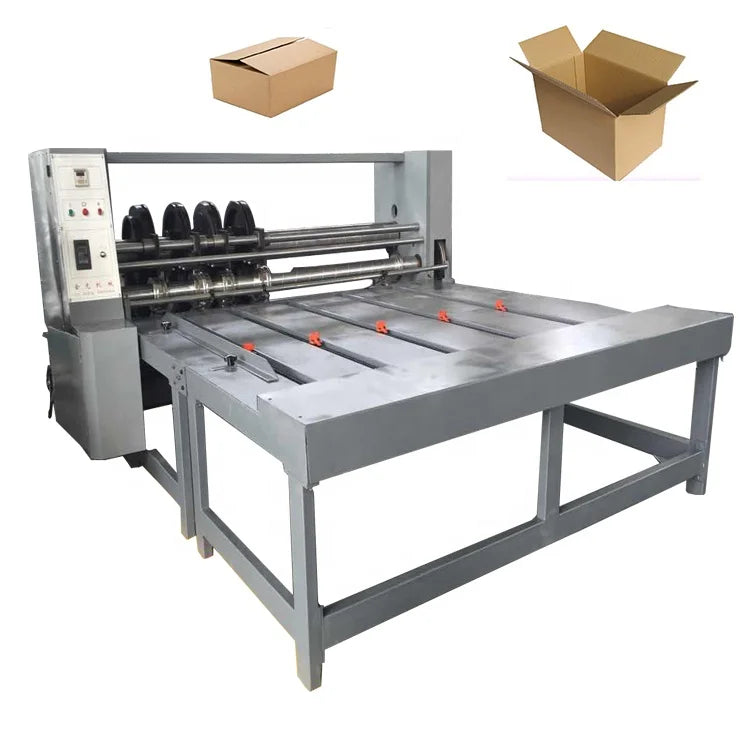

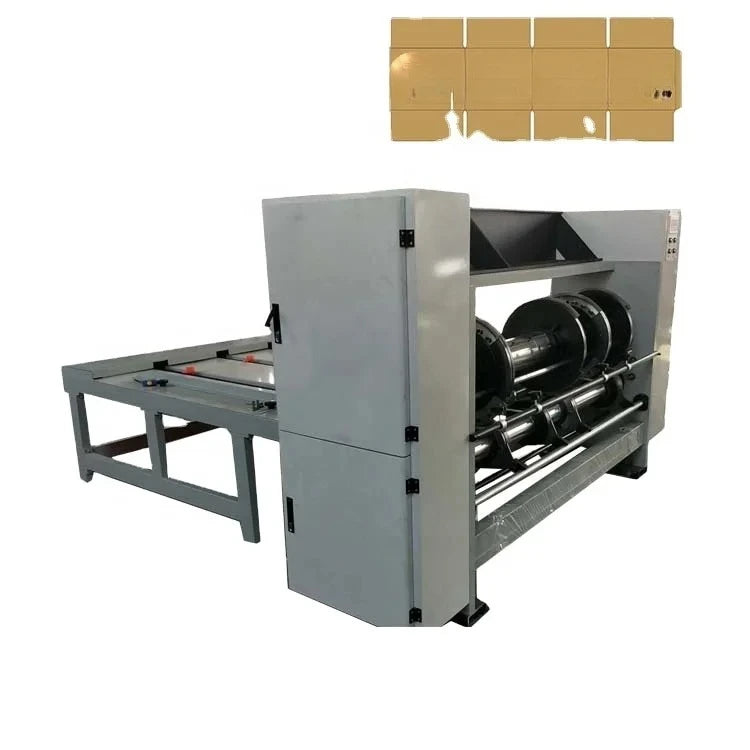

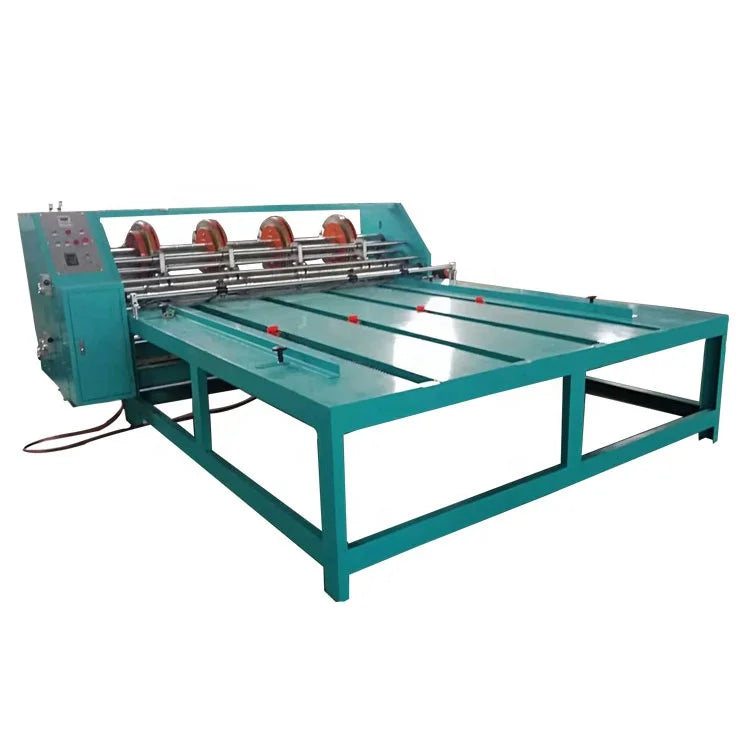

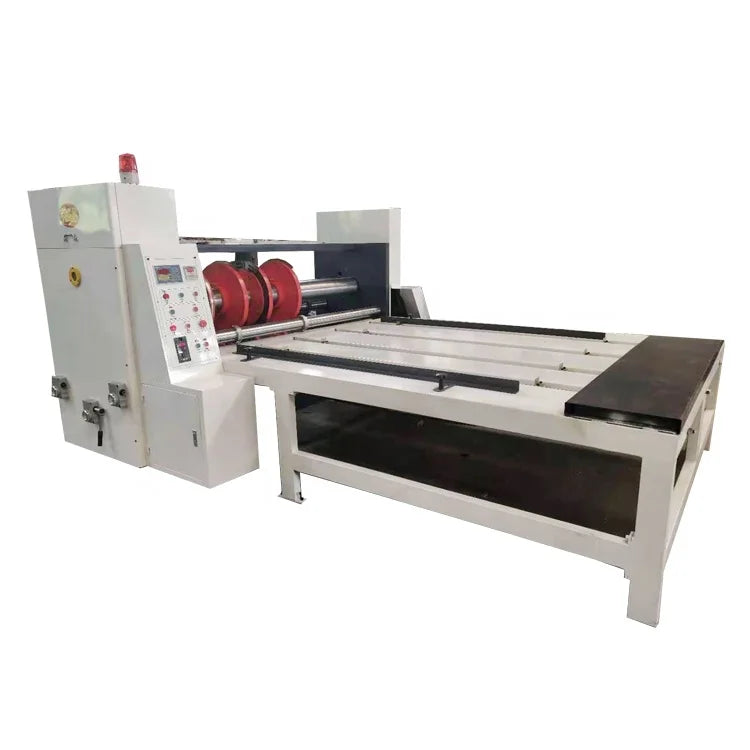

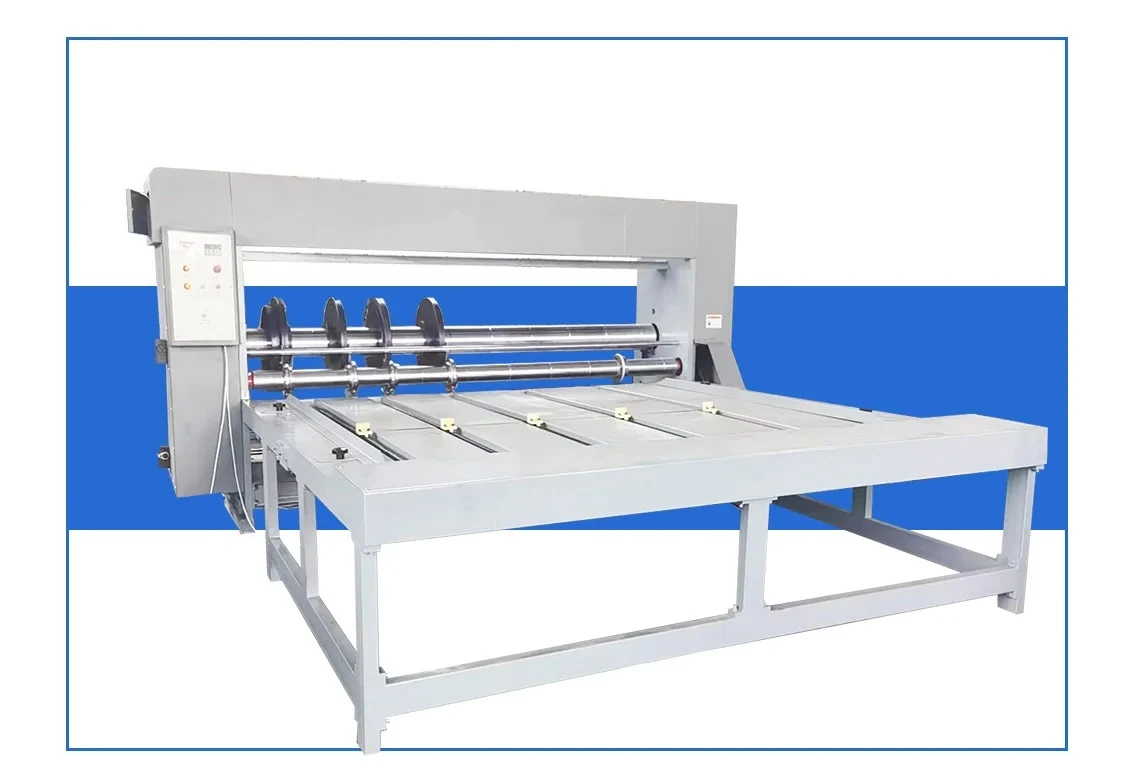

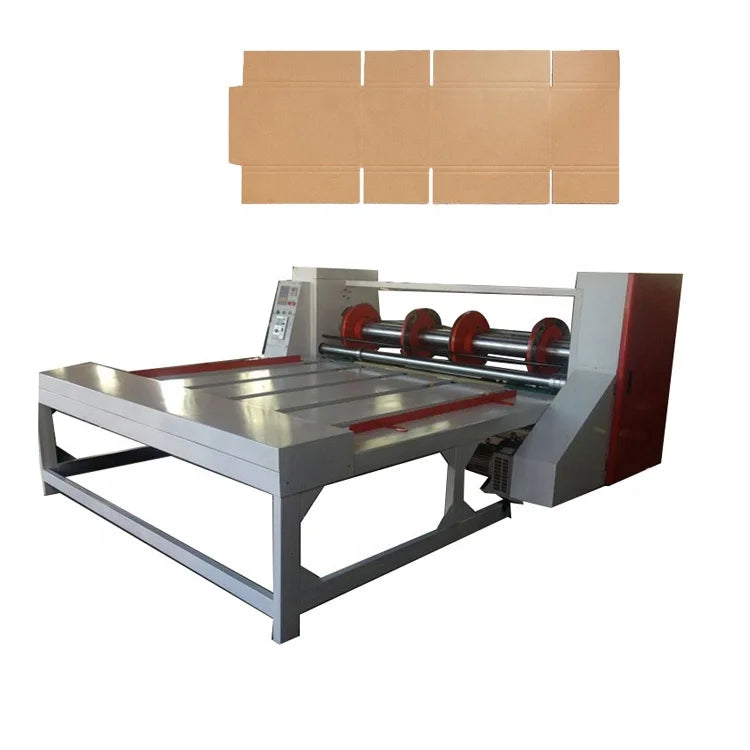

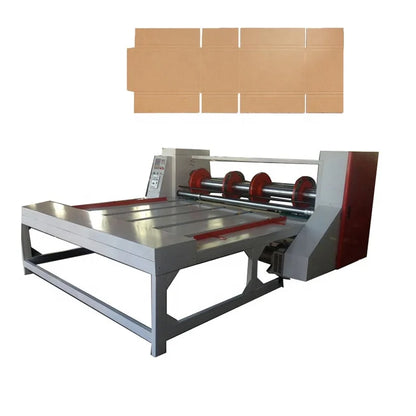

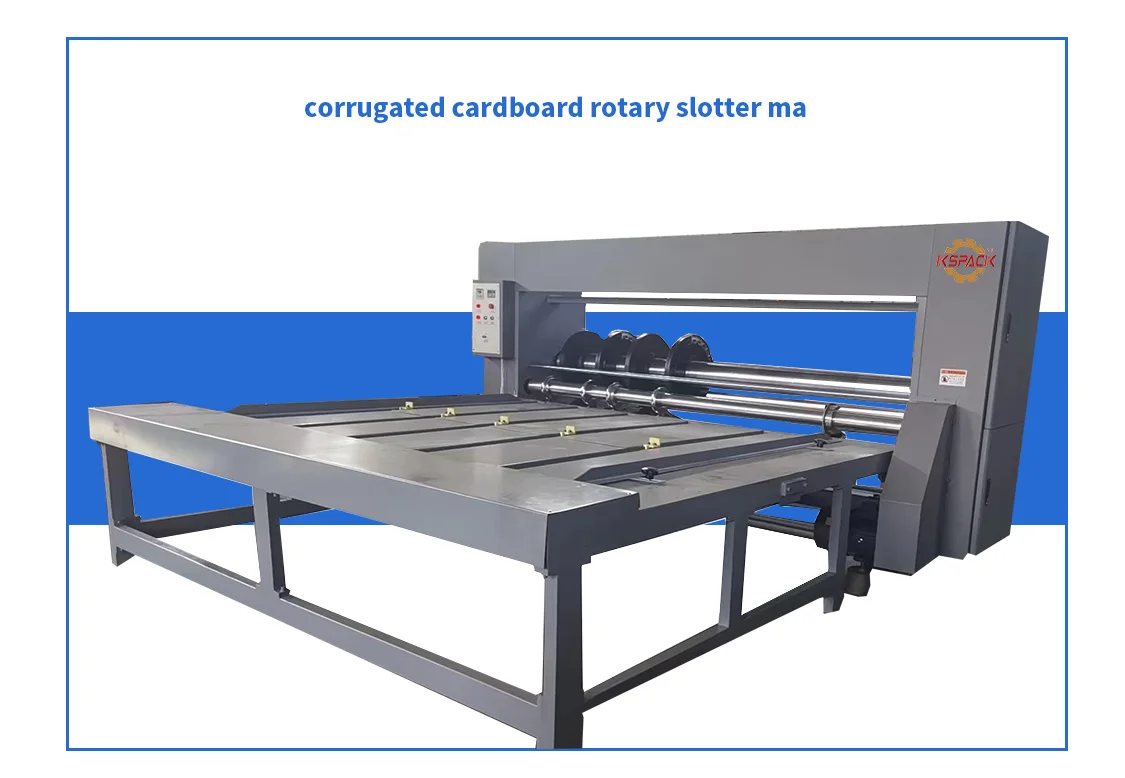

Factory Low Price Semi Automatic Rotary Slotting Die Cutting Machine For Corrugated Carton Box Making Pizza Box



Use and Characteristics: This series corrugated paperboard separating paper rolling line cutting corner opening slot machine, is a comprehensive production equipment which integrate several process such as cutting corner, rolling line and slicing side, the main characteristic is feeding single paperboard by hand, general flexural paperboard is applicable too. Phase Electrically: Slotting tool apron can be turned 360 degree positive and reverse, circularly adjusted, adopt motor micro-adjusting equipment, convenient to operate, accurate adjusted size, locking reliable and slotting accuracy. Taiwan showdown brake motors,coded pulse monitor, sensitive andaccurate, microcomputer show, memory is memory and automatic zero adjustment phase (choose) function. Slotted synchronized adjustments on the line and save time. Lubricating system adopt the type of spraying self-lubricate.

Model	YSF-S 900	YSF-S 1200	YSF-S1450	YSF-S1650
Diameter of roller	300mm	400mm	480mm	530mm
The max speed	60pcs/min	60pcs/min	60pcs/min	60pcs/min
The max feeding size	900X(2200-2800)	1200X(2200-2800)	1400x(2200-2800)	1650X(2200-2800)
Slot Min feeding size	230X600mm	330X600mm	350X600mm	380X600mm
The effective thickness	3.5.7ply(2-12mm)	3.5.7ply(2-12mm)	3.5.7ply(2-12mm)	3.5.7ply(2-12mm)
The max depth of slot	250	314	370	416
