Description

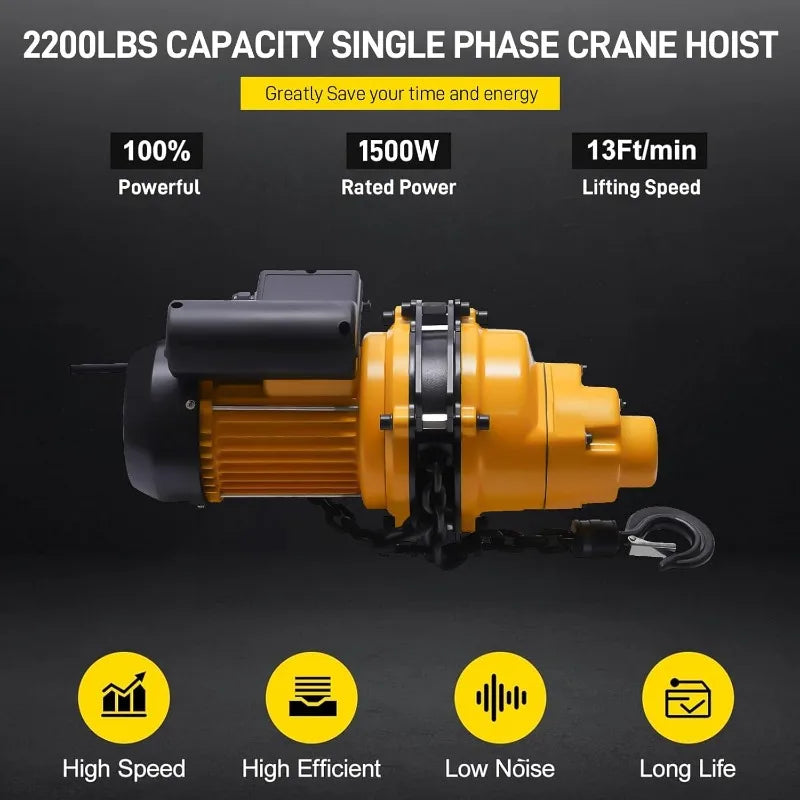

Heavy objects, especially irregular objects, are hard to lift while costing lots of manpower. So an efficient lifting machine is necessary. A pure copper motor with high power (1500W) and sturdy chains made of 20Mn2 ensure a strong load capacity (2200lbs) with high work efficiency. It will be a great assistant for your lifting work!

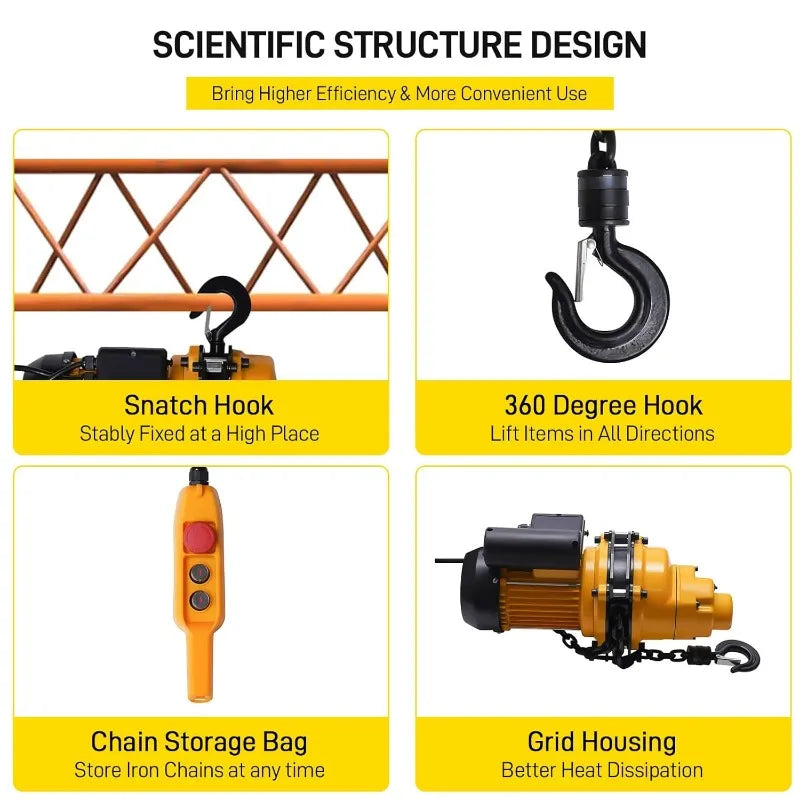

Details

Lifting Strap: The lifting strap in the package can secure hard-to-hook goods, so you don't need to buy extra fixing tools, which is economical and convenient.

Chain Bag: It can prevent the chain from moving during operation.

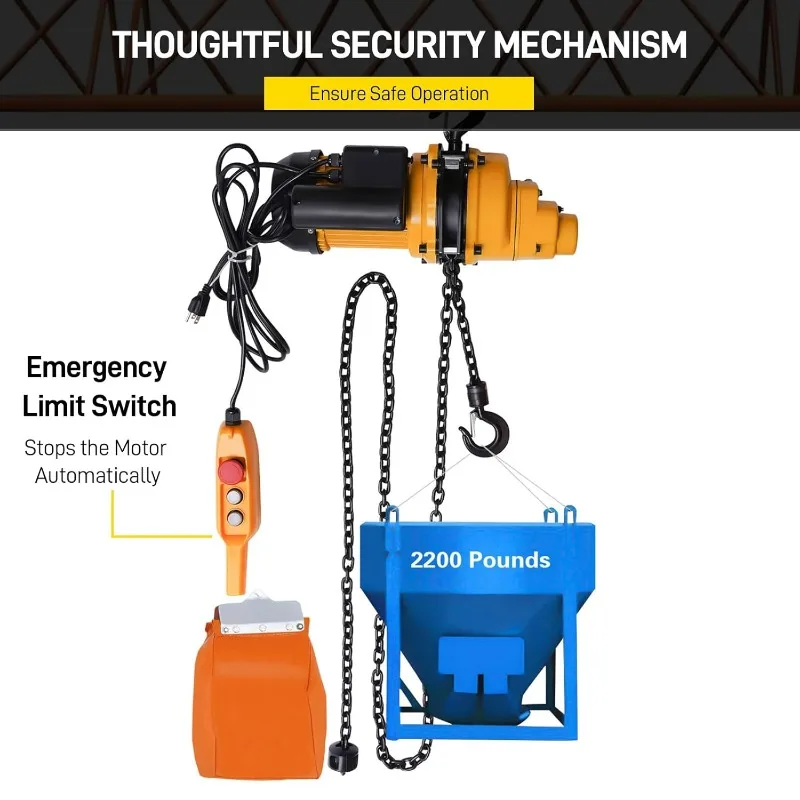

Wired Remote Controller: The wired remote control allows you to control the lifting and lowering functions of the product within 10ft for safe operation. Meanwhile, you can press the emergency stop button on it to quickly brake the product, thus preventing sudden accidents.

Application

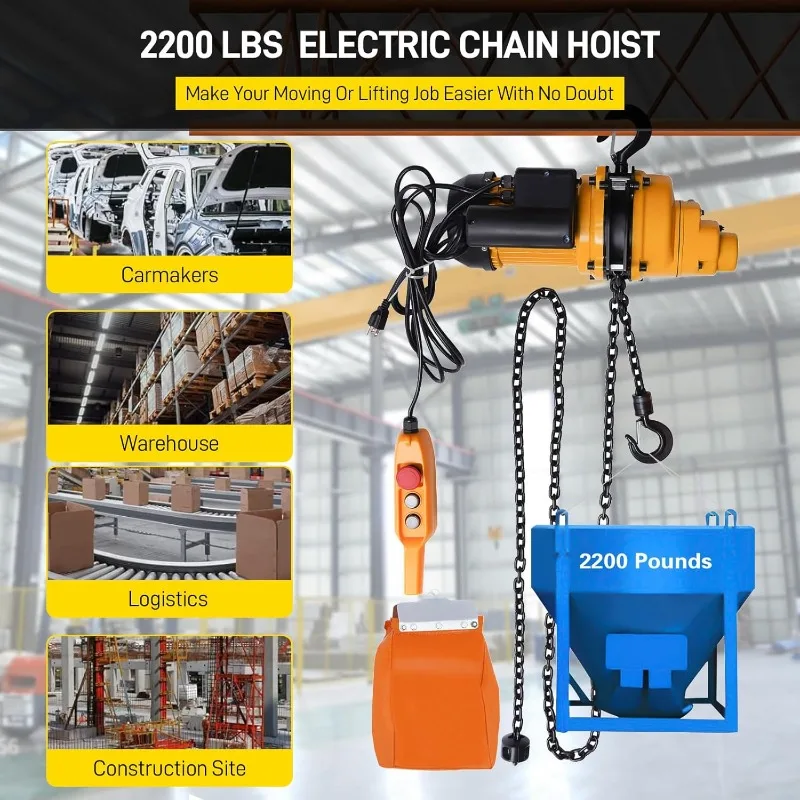

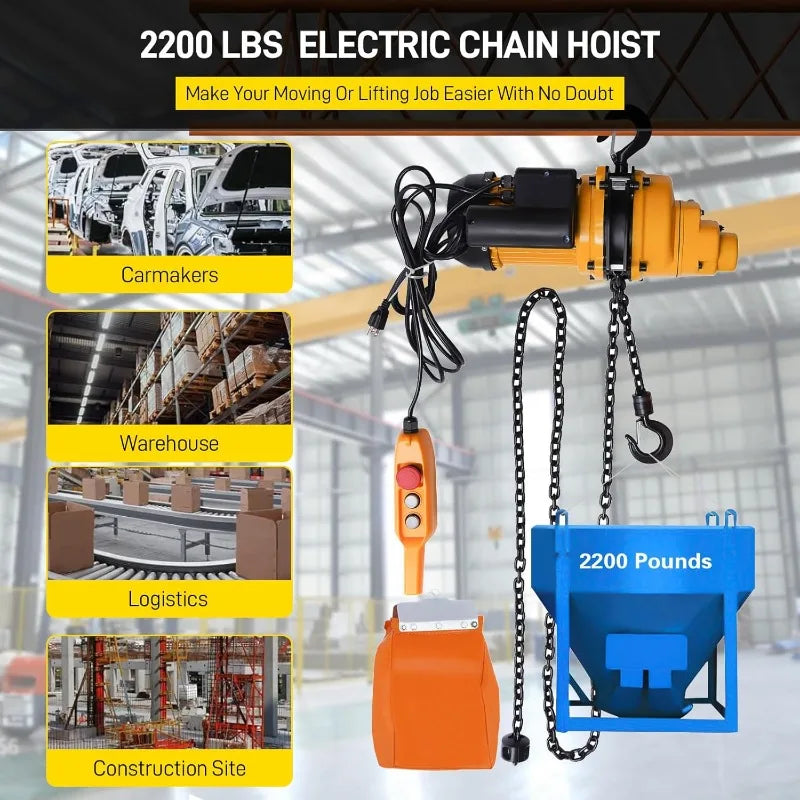

It is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railways, construction, garages, ceilings, attics, barns, lofts, etc. for lifting regular or irregularly shaped objects, and can be used for various lifting equipment such as single column, wall column, and crane.

Specifications

Color: Orange Color

Housing Material: Aluminum Alloy

Chain Material: 20Mn2

Hook Material: Manganese Steel

Rated Voltage: 110V

Rated Power: 1500W

Style: Modern

Type: Double Chains

Motor Protection Grade: IP55

Insulation Class: F

Chain Diameter: 6.3mm/0.25inch

Motor Type: Pure Copper Motor

Plug Type: American Standard

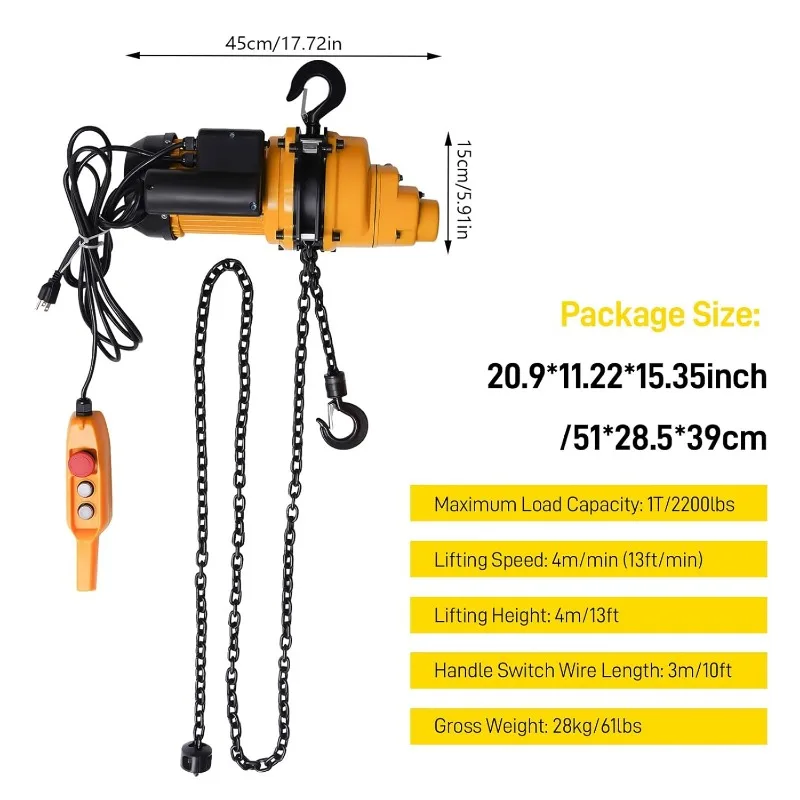

Maximum Load Capacity: 1T/2200lbs

Lifting Speed: 4m/min (13ft/min)

Lifting Height: 4m/13ft

Handle Switch Wire Length: 3m/10ft

Gross Weight: 28kg/61lbs

Package Size: 51*28.5*39cm/20.9*11.22*15.35inch

Machine Body Size (L*H): 45*15cm/17.72*5.91inch

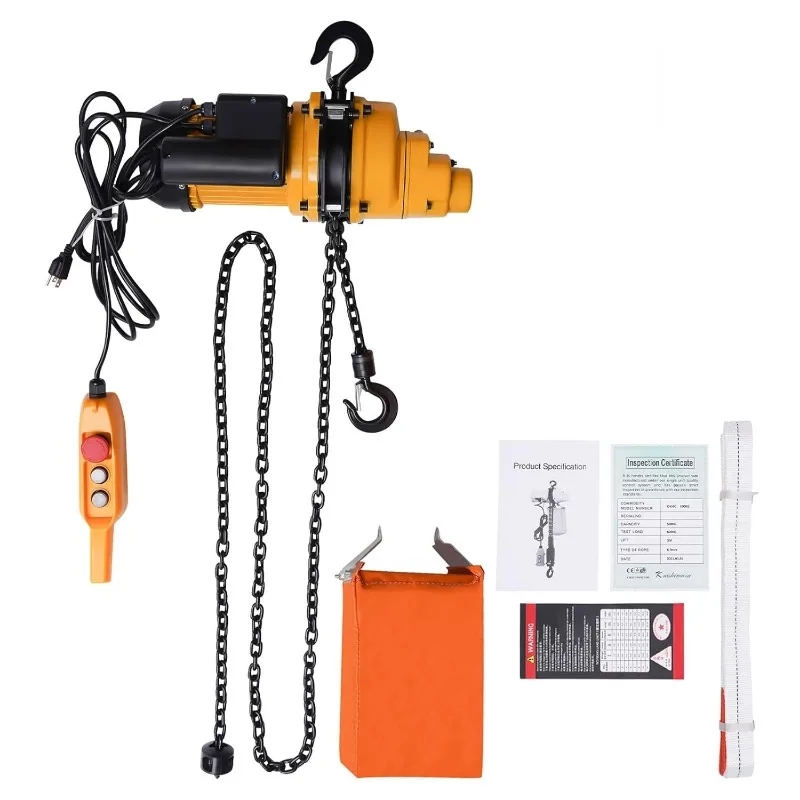

Package Included

1* Electric Chain Hoist

1* Lifting Strap

1* Chain Bag

1* English Manual

1* English Inspection Certificate

1* Chinese&English Warning
