SPECIFICATIONS

Brand Name: NoEnName_Null

Cutting plate size: 1080*780mm

Cutting precision: ≤±0.1mm

Die frame inner size: 1100*790mm

High-concerned chemical: None

Max. cutting size: 1075*770mm

Max.paper size: 1080*780mm

Min. gripper edge size: 7mm

Min. paper size: 400*360mm

Model: RDMG-1080

Origin: Mainland China

Product Brand: Rongda

Product Name: Die Cutting Machine

Weight (KG): 15600

Working Width: 780mm(30.71in)

computerized: Yes

core components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine

dimension(l*w*h): 4850(+1650)*2100(+1600)*2350mm

key selling points: Easy To Operate

machinery test report: Provided

plc brand: other

production capacity: 7500s/h

type: Die-cutting Machine

video outgoing-inspection: Provided

voltage: 1 PHASE 220V50HZ

warranty: 1 Year

PLEASE NOTE:

1.The price only for reference, the specific cost based on your requirements and the destination port, please contact the customer service for more product details and quotations!

2.We ship the goods by sea !!

3.Door to door please leave message or whatsapp or email for price !!!

Contact: Kathy

WhatsApp/Wechat/Mobile: +86 13937192057
Email: sales17yugong@yg797.com



Product Description

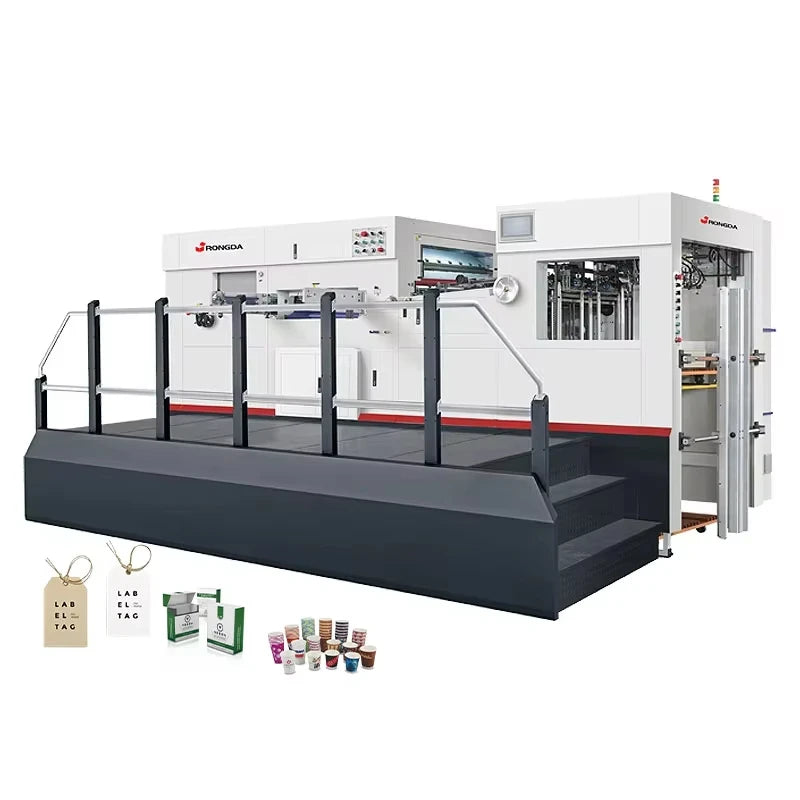

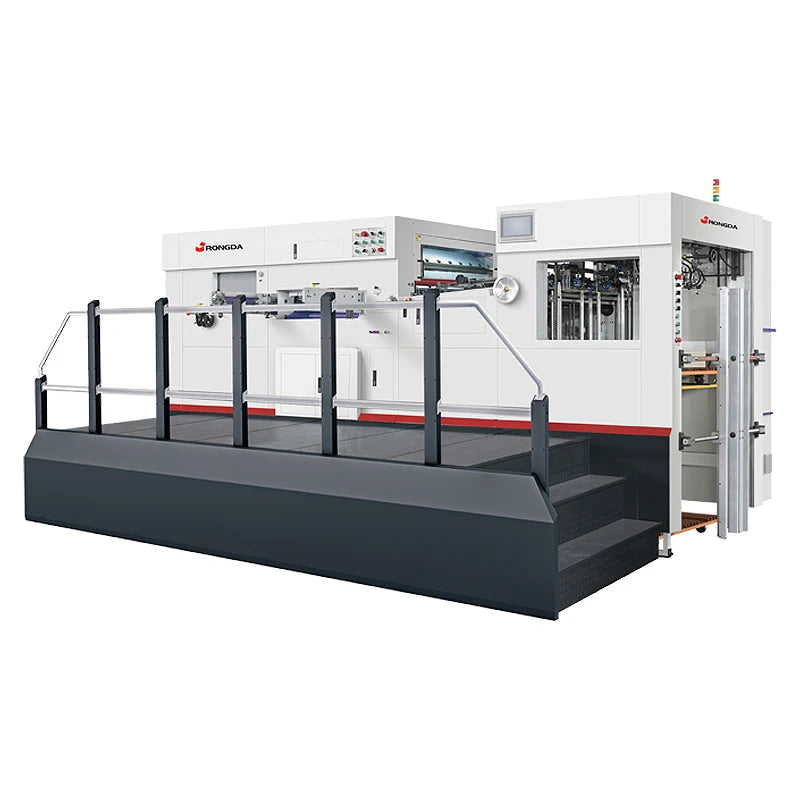

Full Automatic Die Cutting Machine

Features:

1.Complete design, accurate installation, high stability, high security, low noise.
2.Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
3.High precision intermittent mechanism, high cutting precision, running steadily.
4.Adopt European feeder, suction adjustable, stable, precise, good paper applicability;
5.Non-stop feeding, pre-stacking and delivery mechanism can shorten the auxiliary time, improve the efficiency.
6.Human-friendly designed die frame and baseplate, makes installation, adjustment convenient;
7.Pneumatic die locking device, die frame fixed more steadily, accurately and time saving.
8.Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
9.Double, crooked, empty optoelectronic position control, ensure the paper in the right position,reduce waste.
10.Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.
11.Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
12.Adopt imported server control system for foil stamping, feeding and collecting aluminum foil accurately.
13.Adopt industrial tablet PC, touch screen input data, automatic programming, greatly saving aluminum foil.
14.Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
15.Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

Specification

Max. paper size	1080*780mm
Min. paper size	400*360mm
Max. cutting size	1075*770mm
Die frame inner size	1100*790mm
Cutting plate size	1080*780mm
Min. gripper edge size	7mm
Cutting precision	≤±0.1mm
Max. cutting pressure	300T
Max. cutting speed	7500s/h
Pre-stacking height	1550mm
Delivery stack height	1400mm
White board	0.1-2mm
Corrugated paper	＜4mm
Main motor power	11KW
Total power	18KW
Dimension (L(+pre-stacking)*W(+platform)*H)	4850(+1650)*2100(+1600)*2350mm
Weight	15.6T
