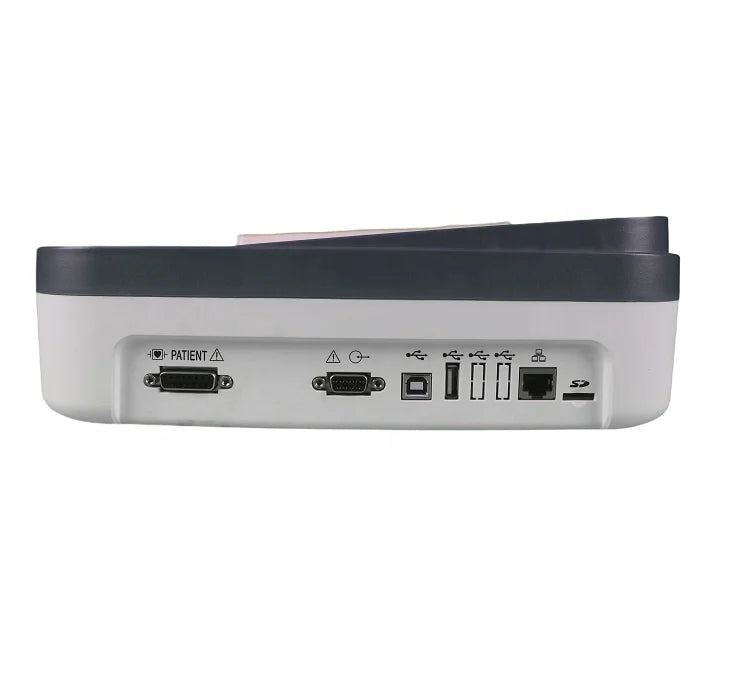

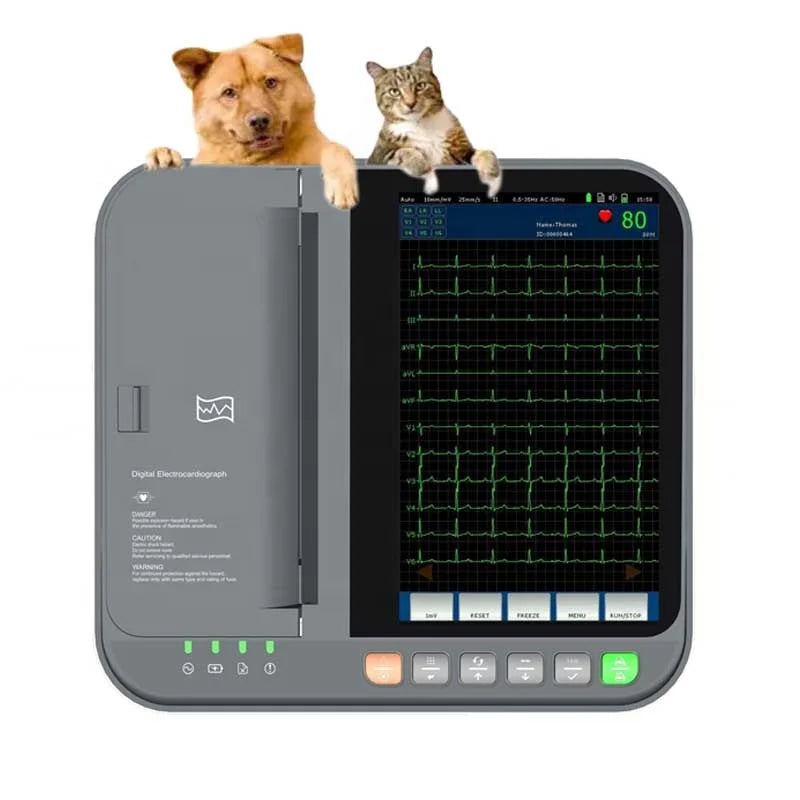

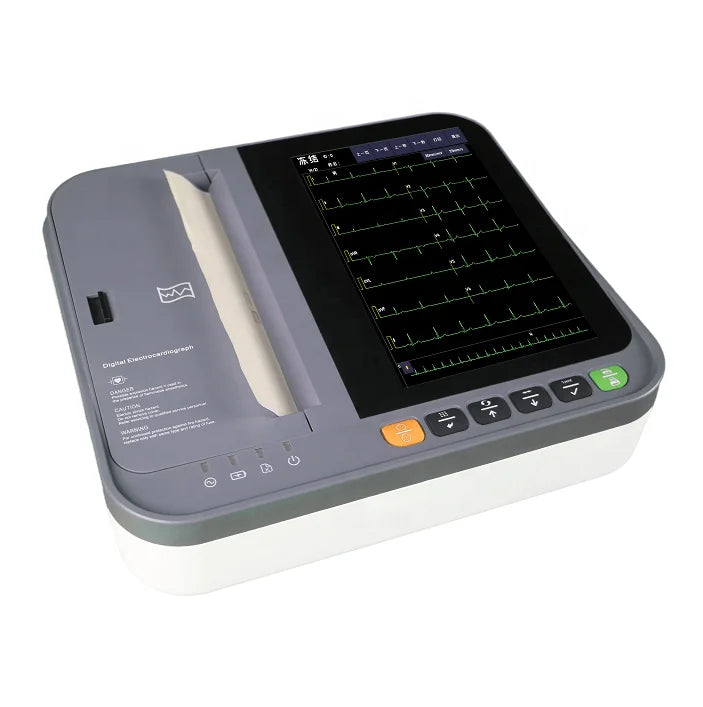

DAWEI Pet EKG Monitor Veterinary Cardiac ECG Equipment Small Animal Rabbit Ecg Machine
DAWEI Pet EKG Monitor Veterinary Cardiac ECG Equipment Small Animal Rabbit Ecg Machine
Regular price
CHF 2,526.25
Regular price
CHF 0.00
Sale price
CHF 2,526.25
Unit price
per
🔒 Safe Purchase & Lifetime Warrantee, Taxes included. 4-7 Day Delivery.
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: YTYIN,DAWEI
CMRR: ≥100dB
Calibration voltage: 1mV±3%
Heart rate: 30bpm~300bpm(±1bpm)
High-concerned chemical: None
Input loop current: ≤0.1μA
Model Number: DE12-VET
Monitor: 10.2-inch high-definition and wide-angle color LCD screen
Operating modes: Manual, automatic, rhythm, physical examination
Origin: Mainland China
Place of Origin: Jiangsu, China
Power supply: suitable for 110-230, 50/60hz
Properties: Diagnosis & Injection
Sampling rate: 12bit/1000HZ
Support languages: CHN / ENG / RUS / FREN / GER / PORTU / SPAN
The input circuit: Float, defibrillation
Products Description

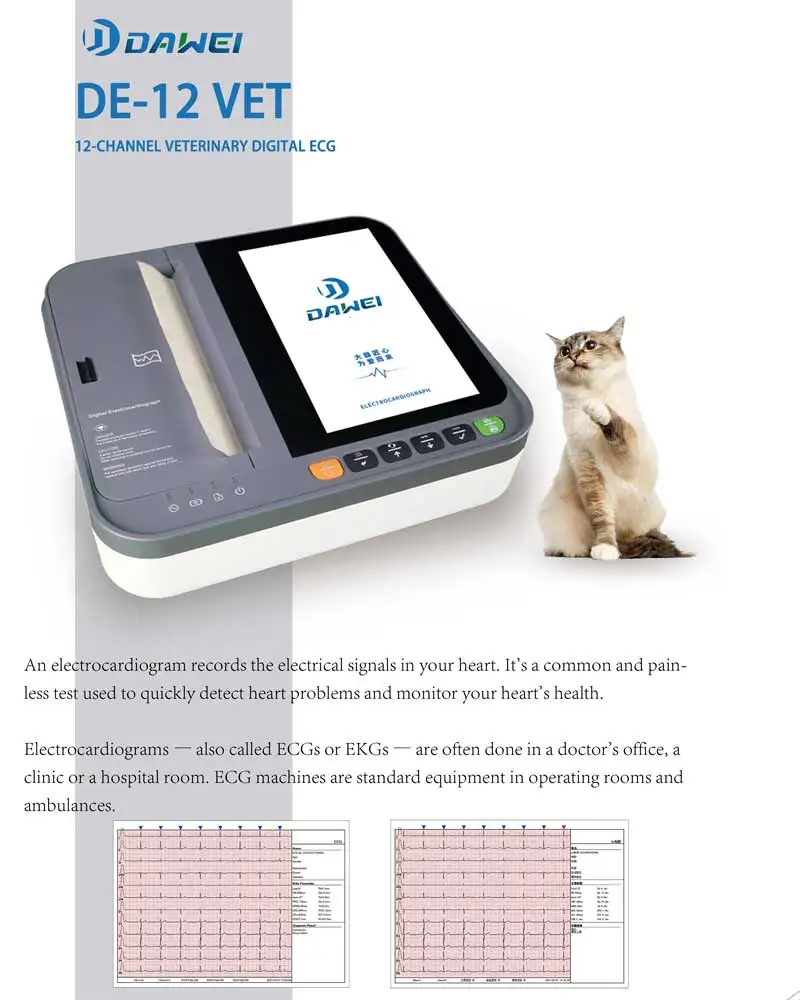

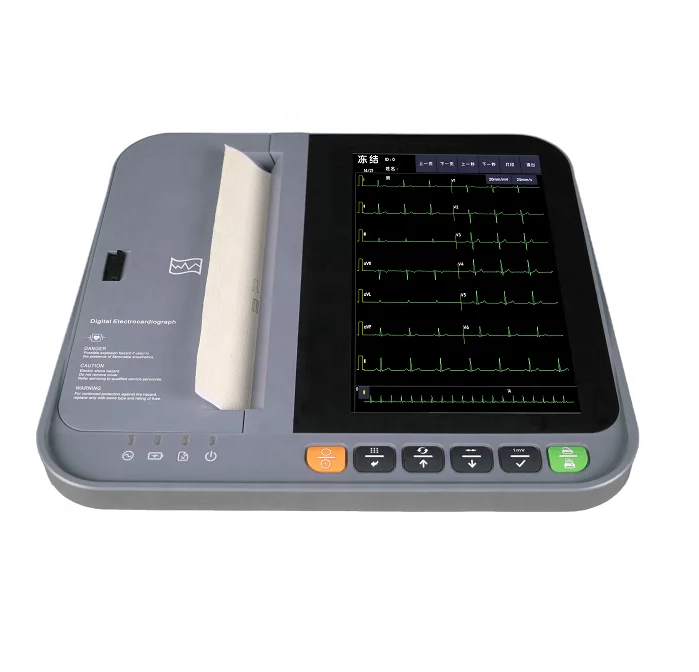

DE12-VET
DAWEI Pet EKG Monitor Veterinary Cardiac ECG Equipment Smal Animal Rabbit Ecg Machine
Technical indicators
|
Common mode rejection ratio
(CMRR) |
≥100dB
|
||
|
The input circuit
|
Float, defibrillation
|
||
|
Input loop current
|
≤0.1褔A
|
||
|
Sampling rate
|
12bit/1000HZ
|
||
|
Operating mode
|
Manual/automatic
|
||
|
The filter
|
Working filter, electromechanical filter
|
||
|
Drift filtering
|
Anti-drift system
|
||
|
The input impedance
|
锛�50MΩ
|
||
|
Patient leakage current
|
锛�10褔A
|
||
|
Fuse specification
|
T1.6A/ 250V Ø5×20
|
||
|
Recording paper specification
|
Scroll/folding thermal recording paper (210mm ~ 216mm self-adaptive)
|
||
|
Calibration voltage
|
1mV±3%
|
||
|
Polarization resistance voltage
|
±300mV
|
||
|
Time constant
|
≥3.2s
|
||
|
Frequency response
|
0.05-150Hz
|
||
|
Noise level
|
≤15褔Vp-p
|
||
|
Minimum detection signal
|
≤20褔V
|
||
|
The feeding speed
|
12.5 mm/s, 25mm/s, 50mm/s
|
||
|
The sensitivity
|
5, 10, 20 (mm/mV ±5 %)
|
||
|
record
|
Twelve high resolution thermal print
|
||
|
The battery
|
14.52V/5.2Ah锛�75.504Wh锛�
|
||
|
Overall dimensions
|
365mm×306mm×109mm
|
Net weight: 4.25 KG
|
|
|
Size of packing box
|
400mm×350mm×200mm
|
Gross weight: 6.2 KG
|
|

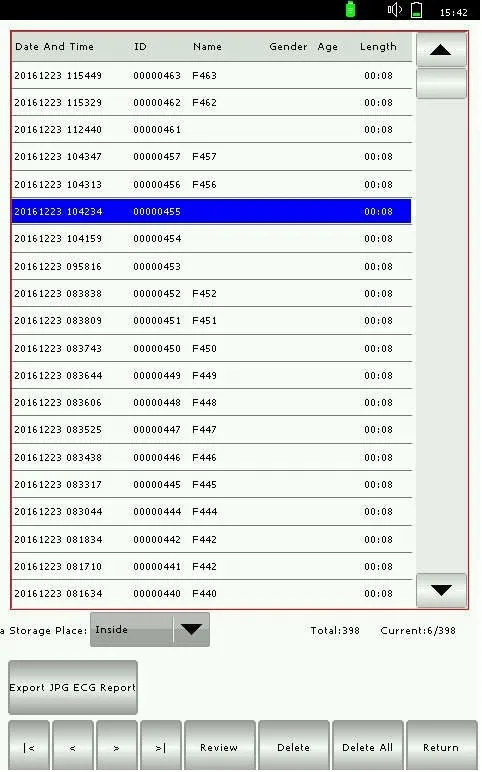

Patient data

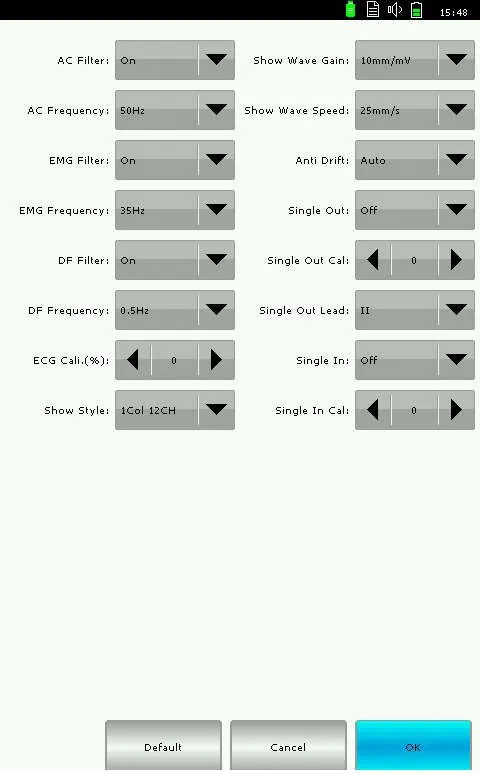

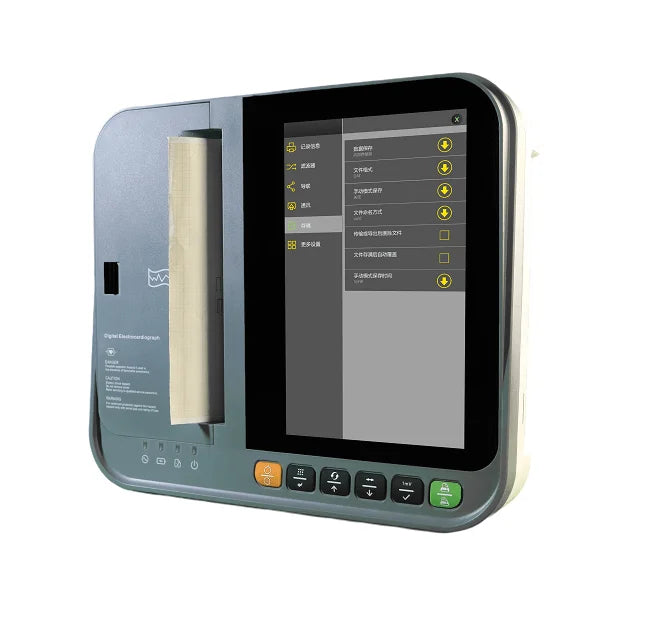

Settings

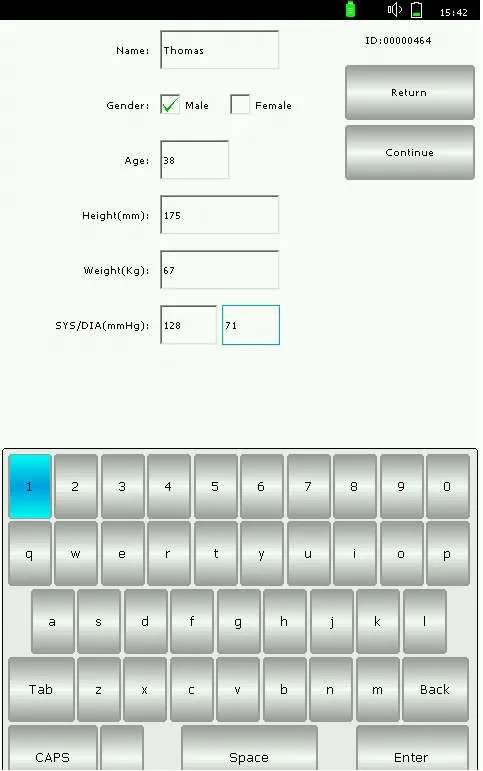

Creat new case

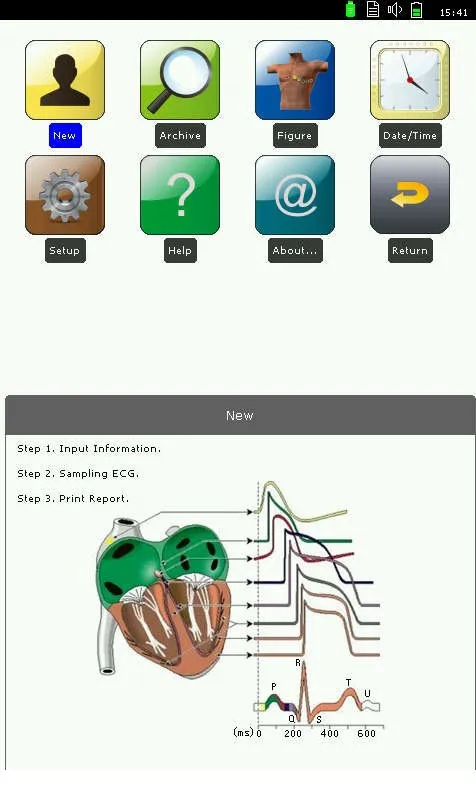

Software interface

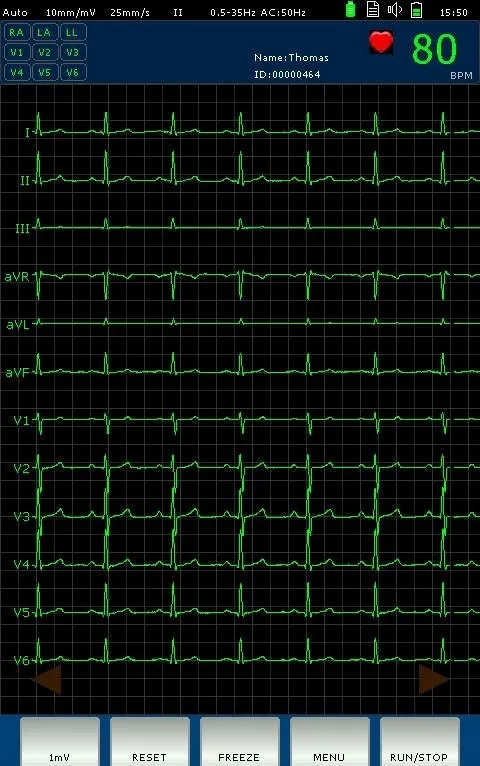

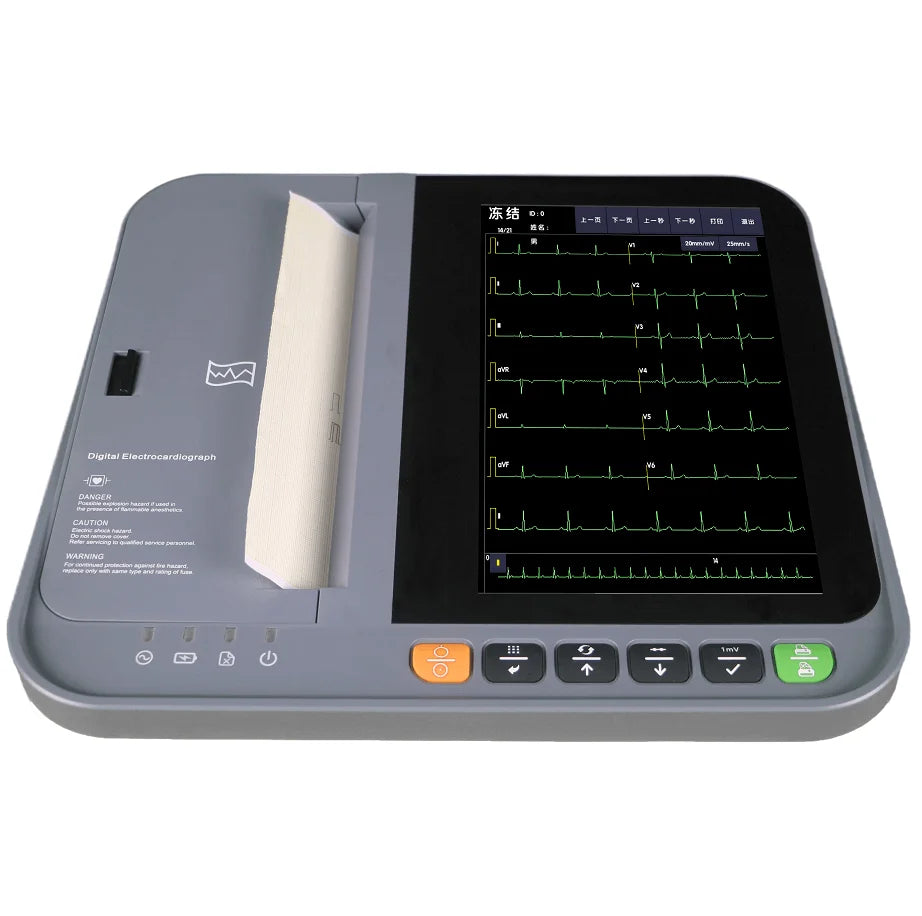

Working status:

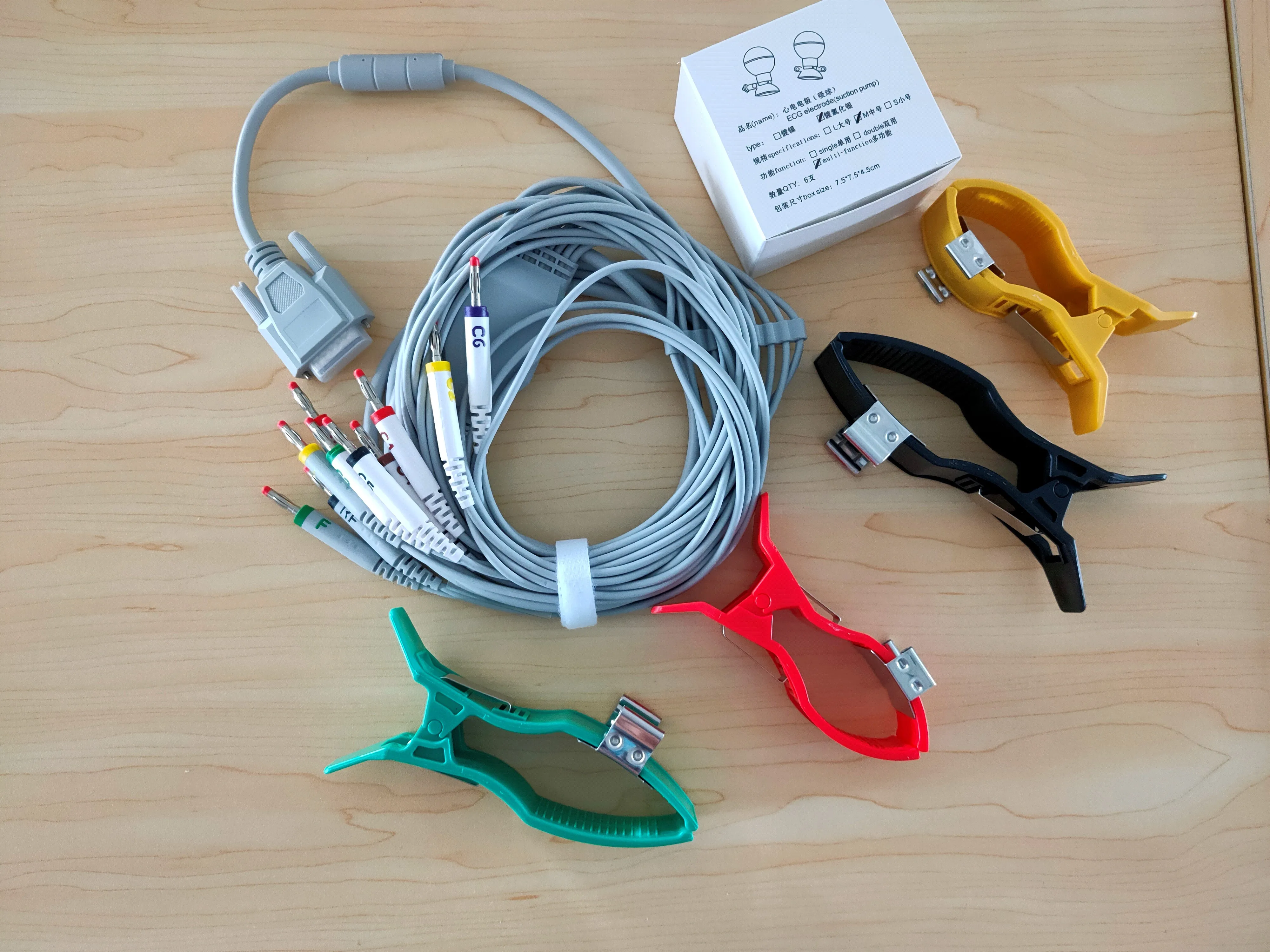

Standard accessories:
More models
|
Product
|
Model No.
|
Monitor
|
Width of printer paper
|
Auto-analysis
|
|||
|

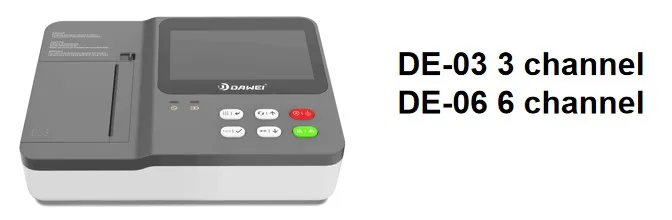

3-Channel
|
DE-03
|
7” touch screen
|
80mm
|
Yes
|
|||
|
6-Channel
|
DE-06
|
7” touch screen
|
112mm
|
Yes
|
|||
|
12-Channel |
DE-12
|
10.2” touch screen
|
210mm/215mm/216mm
|
Yes
|
|||
|
Workstation
|
Connect to PC, adapt to every model of ECG machine
|
||||||

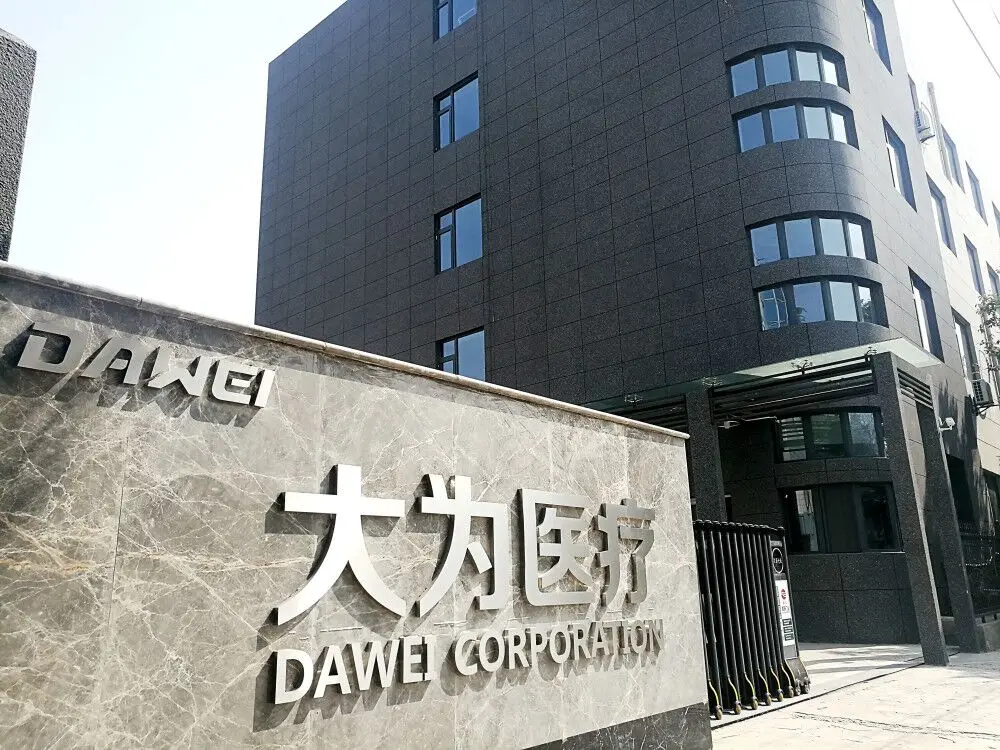

Company Profile
After more than 10 years, Dawei has developed into a leading domestic manufacturer of High-tech Ultrasound Equipment. Now our products are sold to more than 30 domestic provinces and exported to over 160 countries and regions."Profession creates more splendidness." Dawei has met the standards of ISO13485, received CE certification, and also gainedvarious of invention patents and software copyrights.

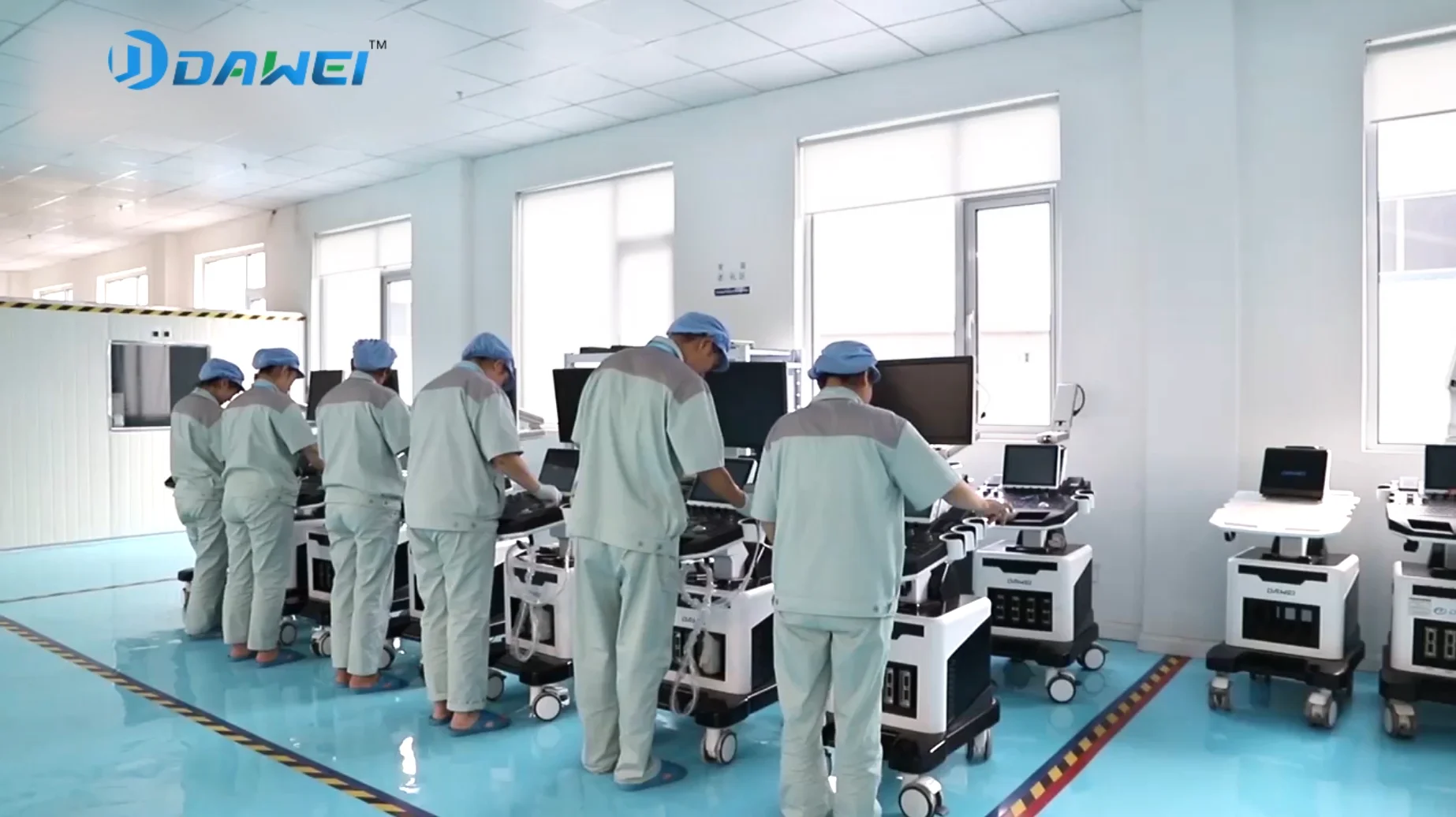

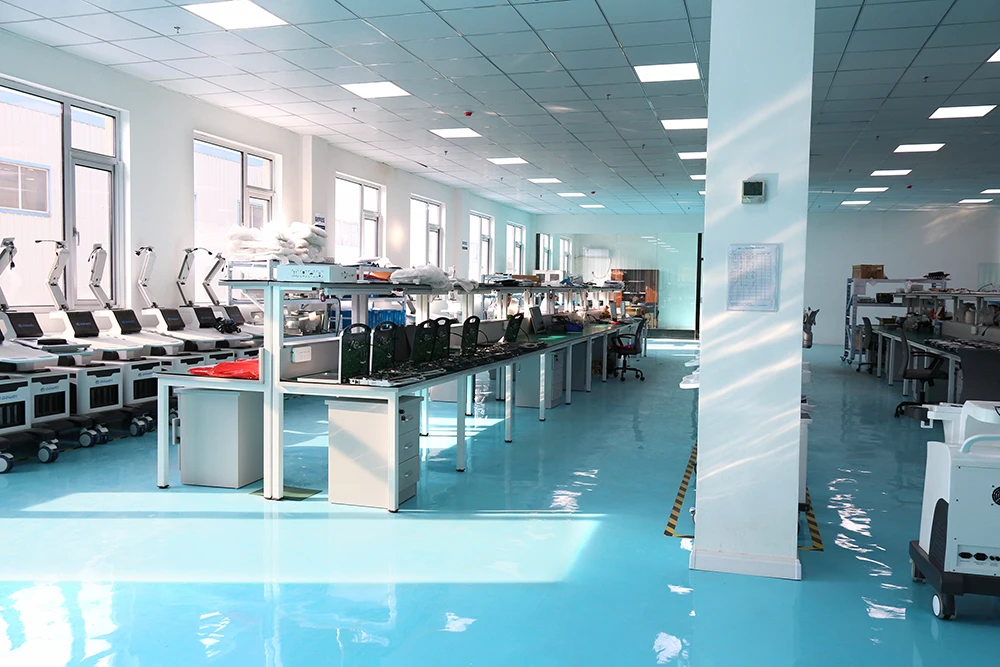

Production Line

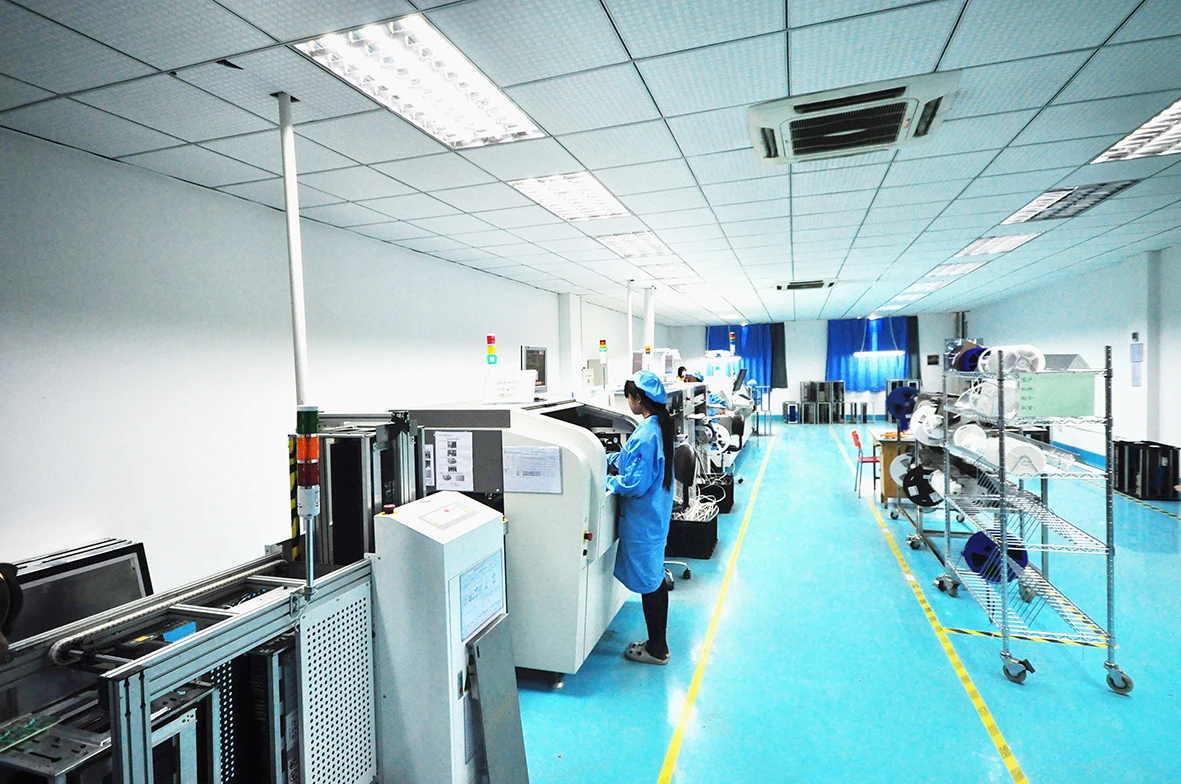

Matherboard
Probe Assembly
QC

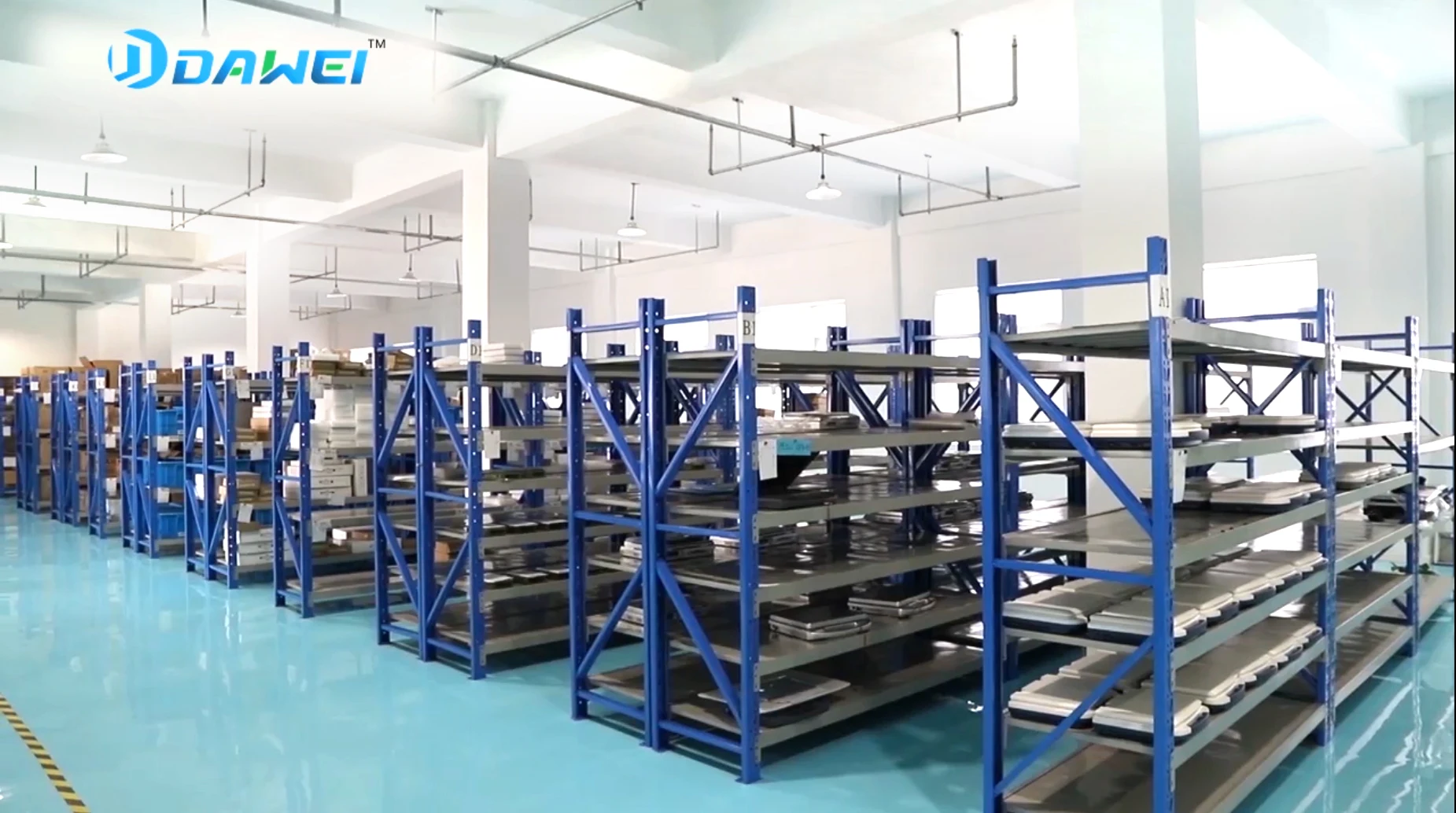

Warehouse

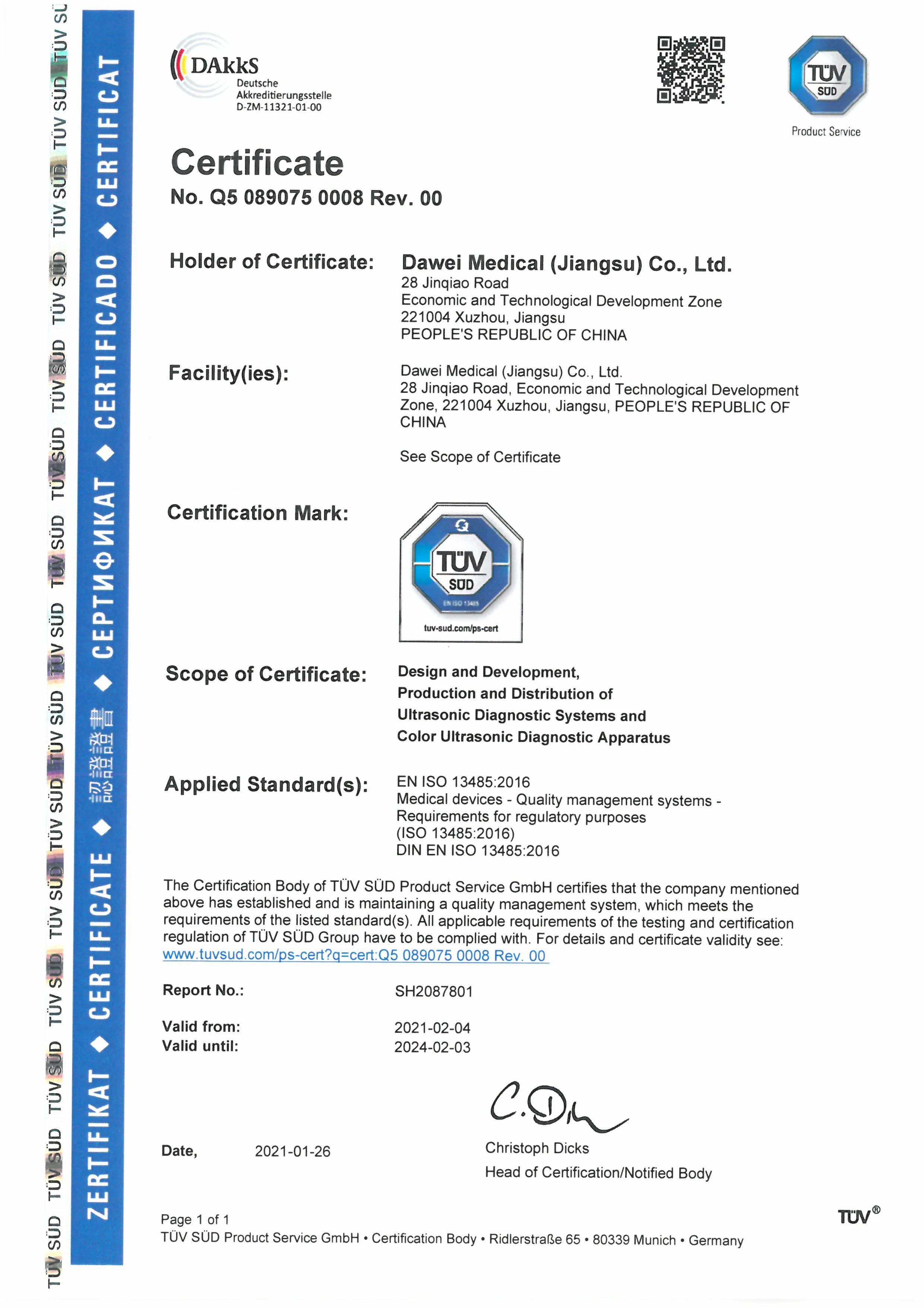

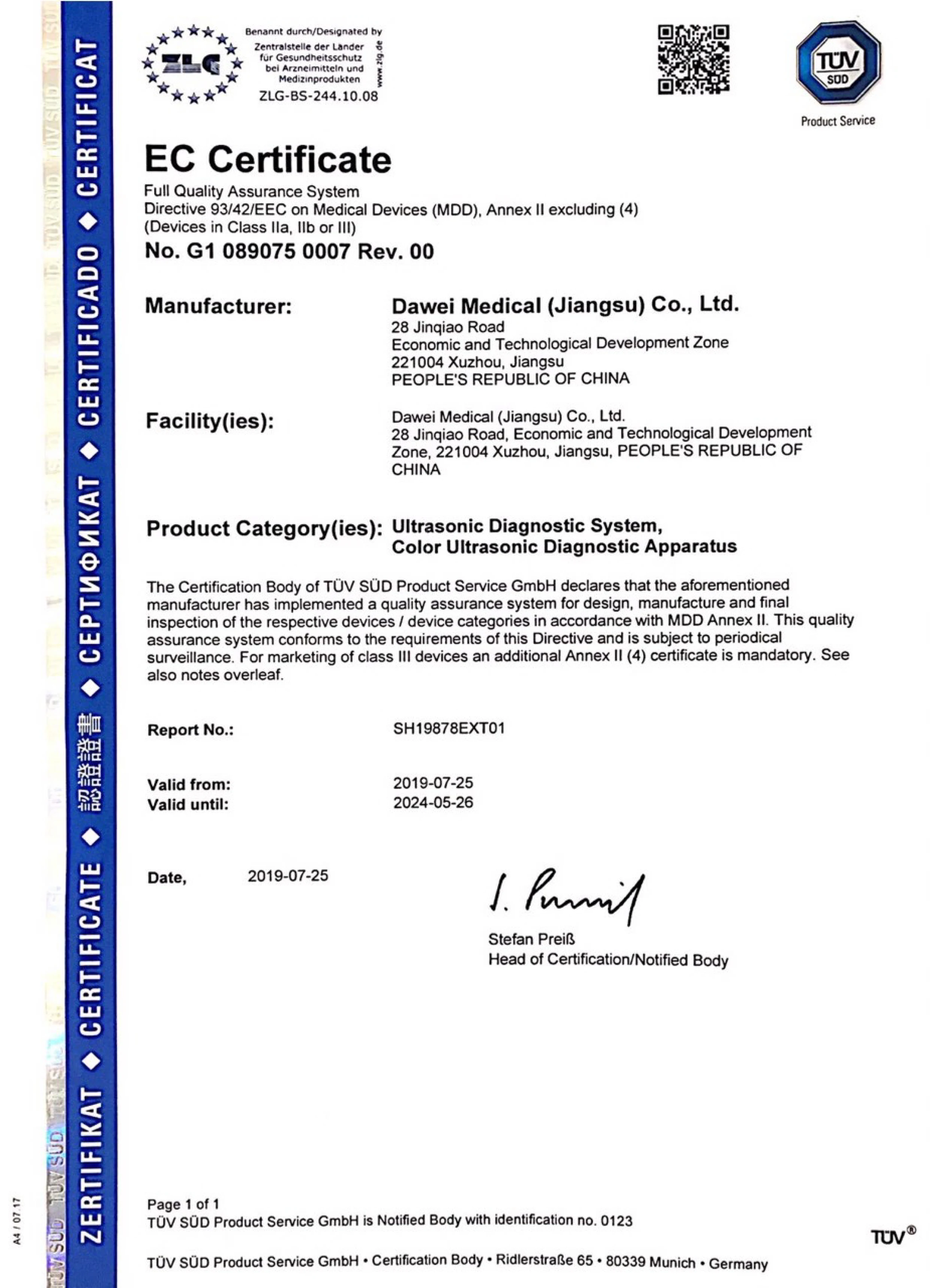

Certifications
