SPECIFICATIONS

Brand Name: NoEnName_Null

Core Components: PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

Expand IO: 4 inputs/4 outputs

High-concerned chemical: None

Installation Method: Assembly

Key Selling Points: Easy to Operate

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Maximum speed (MM/S): 500

Operating system: LCD panel/hand-held programmer

Origin: Mainland China

Program storage capacity: 999 parameter files (65,535 points per file)

Repetitive round-trip accuracy (MM): ±0.02MM-0.05MM

Showroom Location: Germany

Sport mode: 3 Axis point-to-point, continuous straight line

Transmission mode: Taiwan Shangyin guide rail (slider)

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Work environment: Humidity: 20-90% ℃, temperature: 0-40 ℃

Working range X/Y/Z (MM): Model can be customized

condition: New

current: 110V~220V

dimensions: 500*300*300*100

place of origin: Guangdong, China

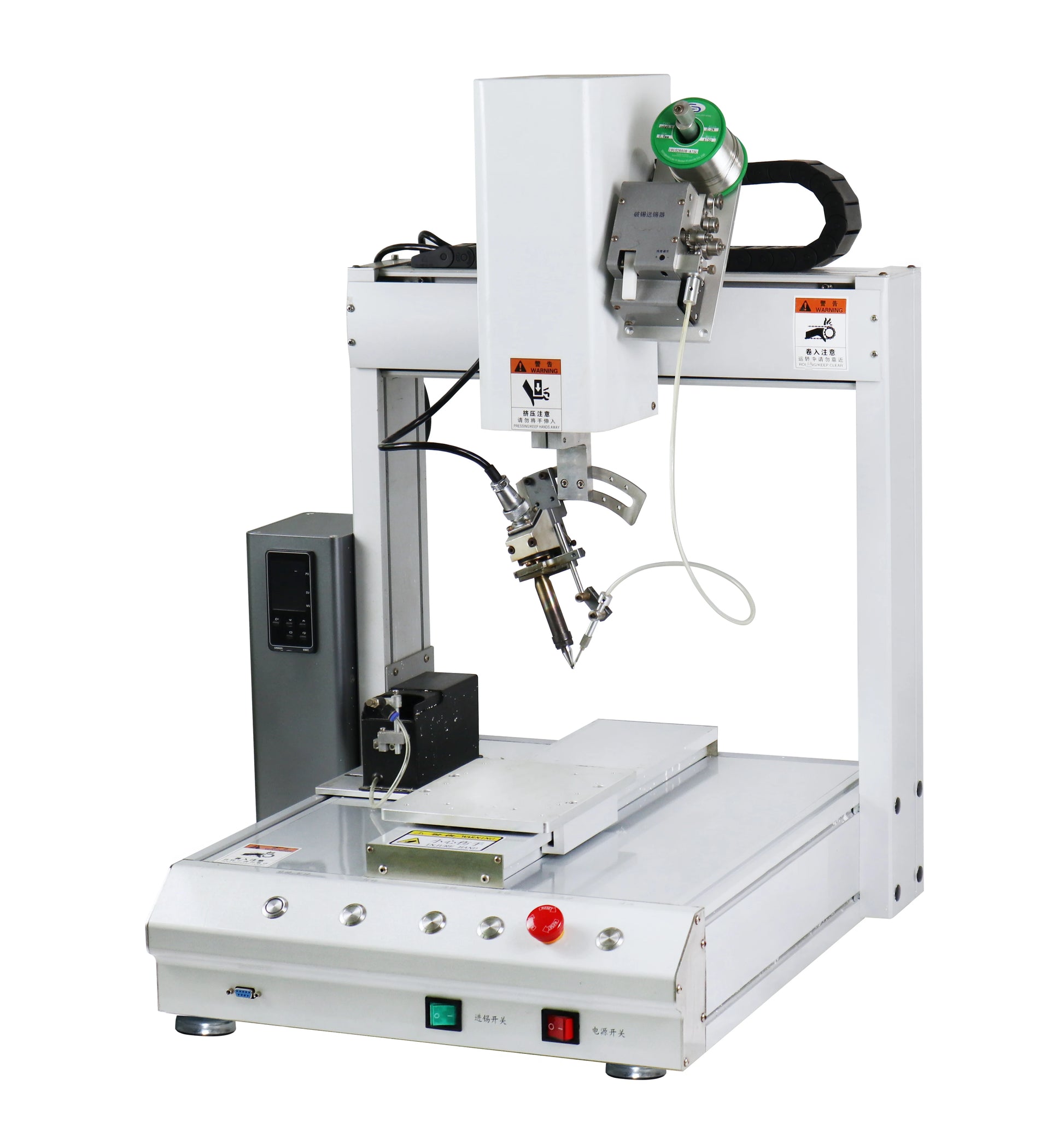

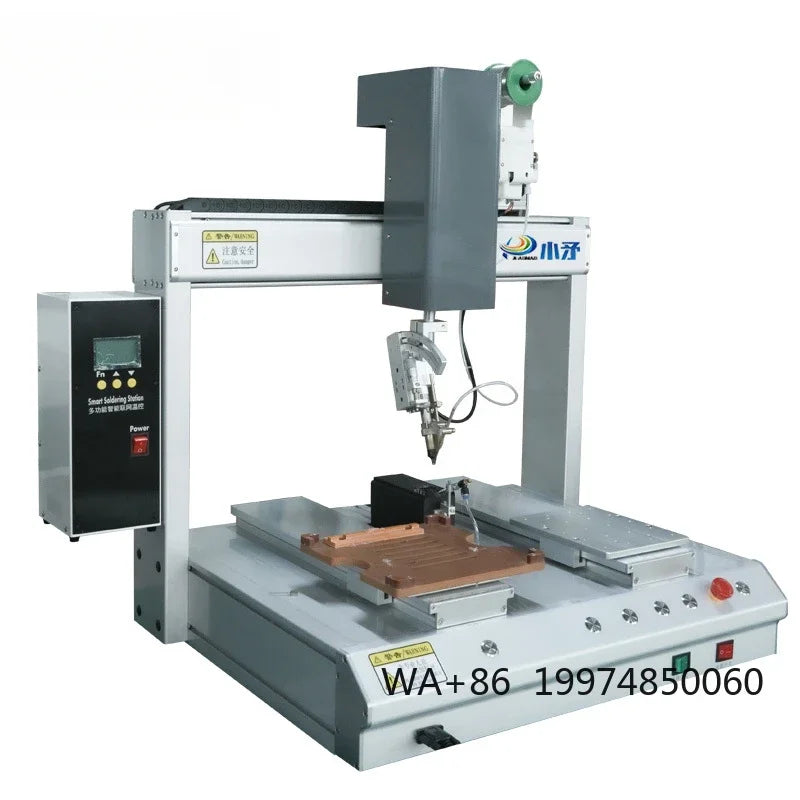

type: Soldering Machine

usage: Industrial

voltage: 110V~220V

warranty: 1 Year

weight (kg): 68 KG







Products Description

Main configuration:
name	unit	quantity	remarks

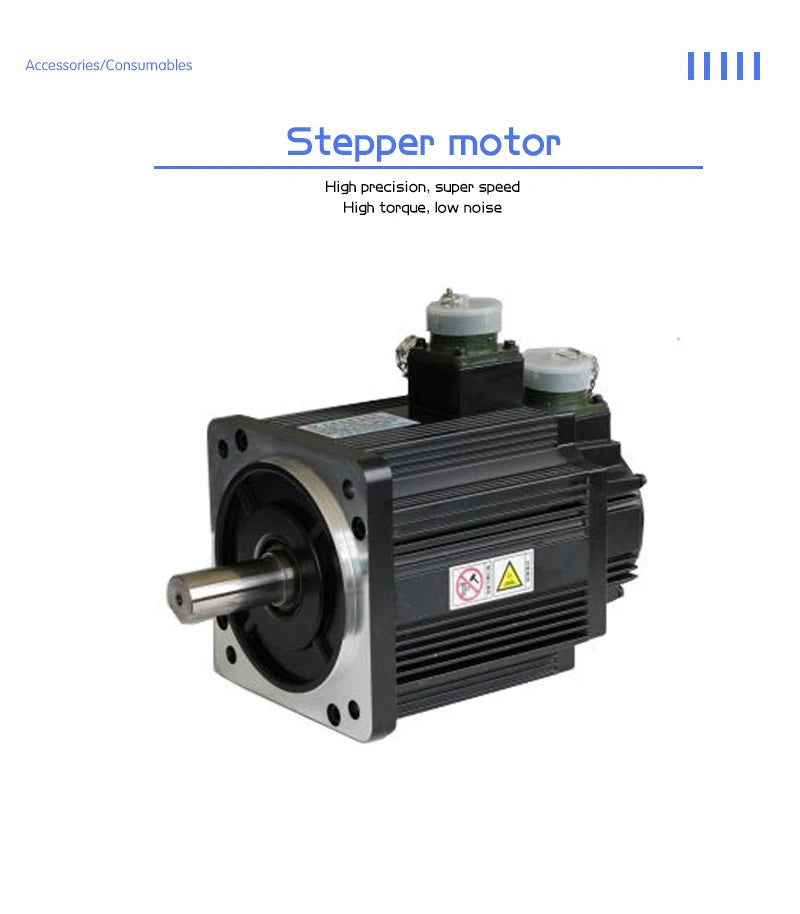

Motor	set	4	Rexay/Gemicon/Best
drive	set	4	Nippon Shinano/Best/Jermykon

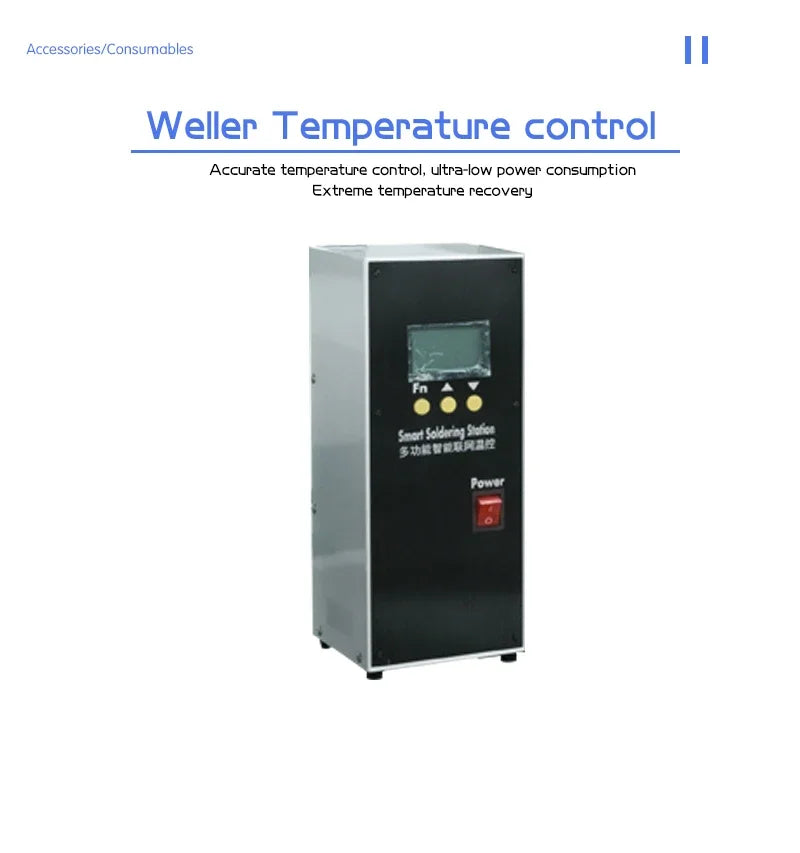

Temperature control and heating core	set	1	Weller
Temperature Range	鈩�		0-500鈩�
a sensor	piece	4	Omron, Japan
Power Supply	set	1	Mingwei, Taiwan
Automatic soldering machine system	set	1	Full time/Yuntu

Product features:

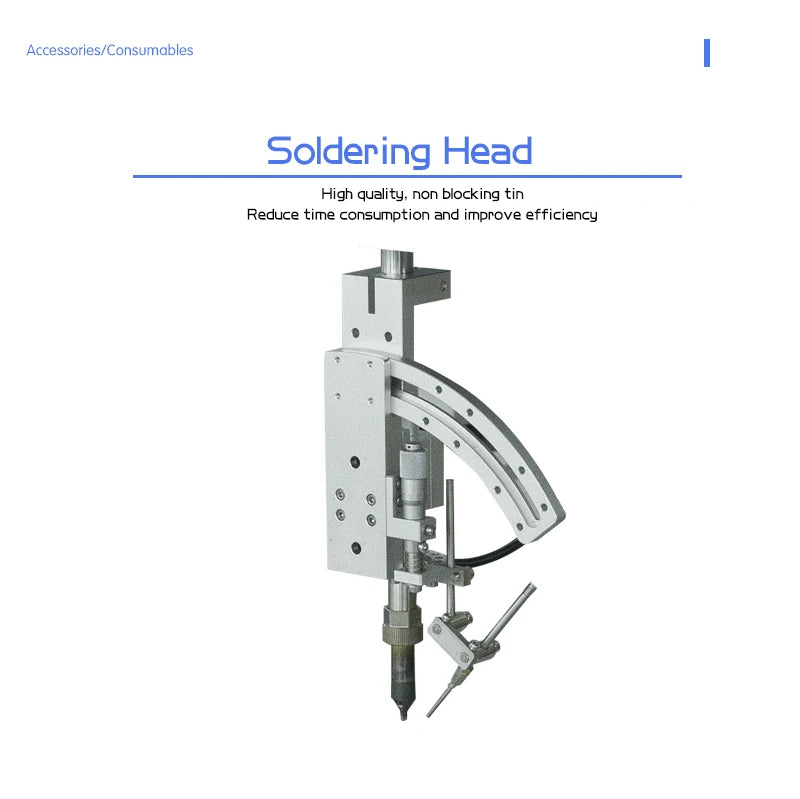

鈼� Precision temperature controller, fast temperature difference compensation; 鈼� Imported heating element from Germany WELLER, with uniform and stable temperature 鈼� Program optimization, simple operation and teaching programming 鈼� High precision tin feeding mechanism, without blocking tin, with tin breaking function. 鈼� It can be equipped with the function of rotary soldering, supporting spot welding and drag welding 鈼� The automatic soldering machine can deliver tin more accurately, and there is no tin explosion during soldering; 鈼� The automatic soldering machine has the functions of spot welding, oblique welding, buffeting welding, etc. 鈼� The soldering tin control system adopts the world's leading motion control card, which is more user-friendly than PLC programming. The working program of the equipment can be copied point to point and block to block, reducing the time for program writing. 鈼� The automatic soldering machine has the function of automatically clearing the soldering head, which can improve the efficiency of soldering to a certain extent.
