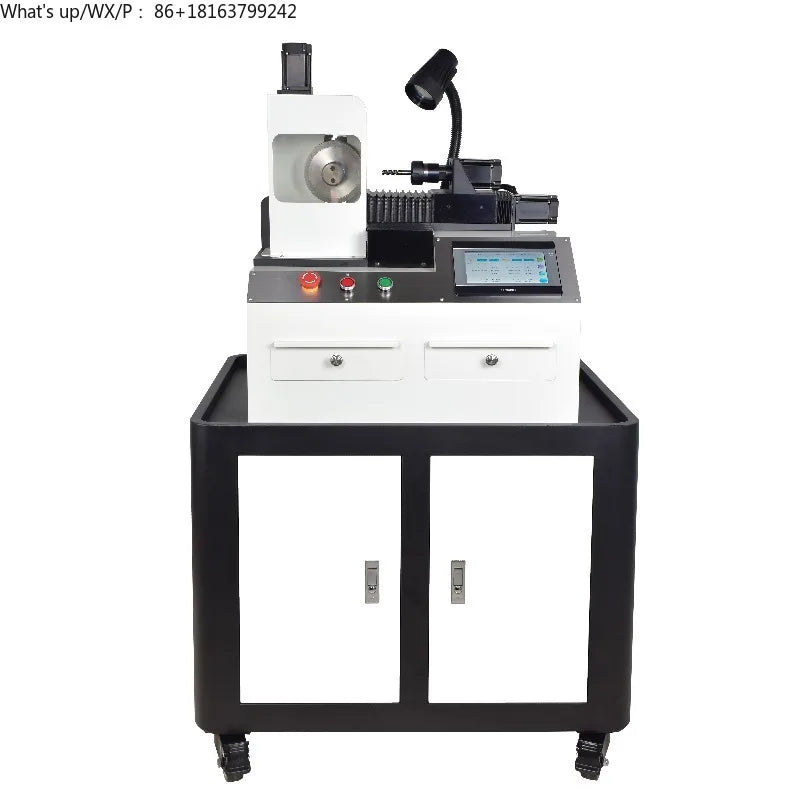

CNC Steel Edge Milling Cutter Grinder Machine Resharpener Various Grinder Machine End Grinder Milling Cutter Grinding Machine
CNC Steel Edge Milling Cutter Grinder Machine Resharpener Various Grinder Machine End Grinder Milling Cutter Grinding Machine
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
High-concerned chemical: None
Material: Stainless Steel
Origin: Mainland China
Type: Other
cnc or not: CNC
core components: Motor
dimension(l*w*h): 87*67*160
is_customized: Yes
key selling points: High Productivity
machinery test report: Provided
place of origin: China
power (kw): 2.75
type: Knife grinder
video outgoing-inspection: Provided
voltage: 380 V
warranty: 1 Year
weight (kg): 131
wheel size(mm): 125*10*32
ER32 high precision elastic chuck (φ4,φ6,φ8,φ10,φ12,φ14,φ16,φ18-20)Grinding wheel wrench 1 set
| Applicable milling cutter diameter range: diameter 3mm-20mm Applicable tools: flat milling cutter/round nose cutter/ball cutter/drill/center drill Overall dimensions: length 820mm width 620mm height 1430mm Net weight of equipment: 99 kg Total power: 2.6Kw Grinding wheel speed: 3000 rpm Grinding efficiency: 1min-2min/cut Shift capacity: 200-300 cutters Grinding wheel specifications: 125mm*10mm*32mm Grinding wheel life: 8mm diameter milling cutter 800-1000 cutters Packing size: length 870mm width 670mm height 1600mm Gross weight of equipment: 131 kg |

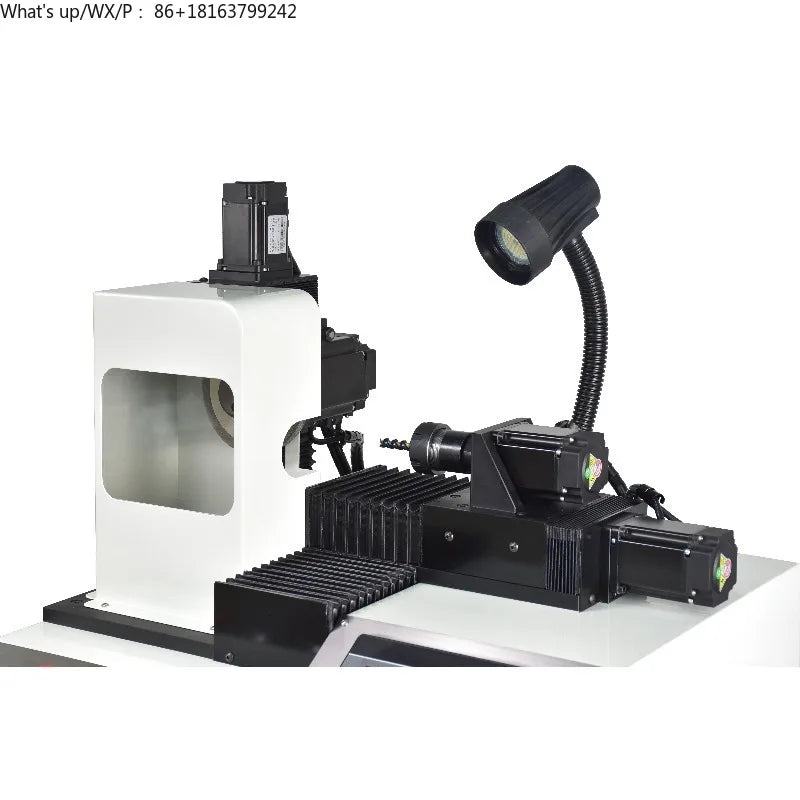

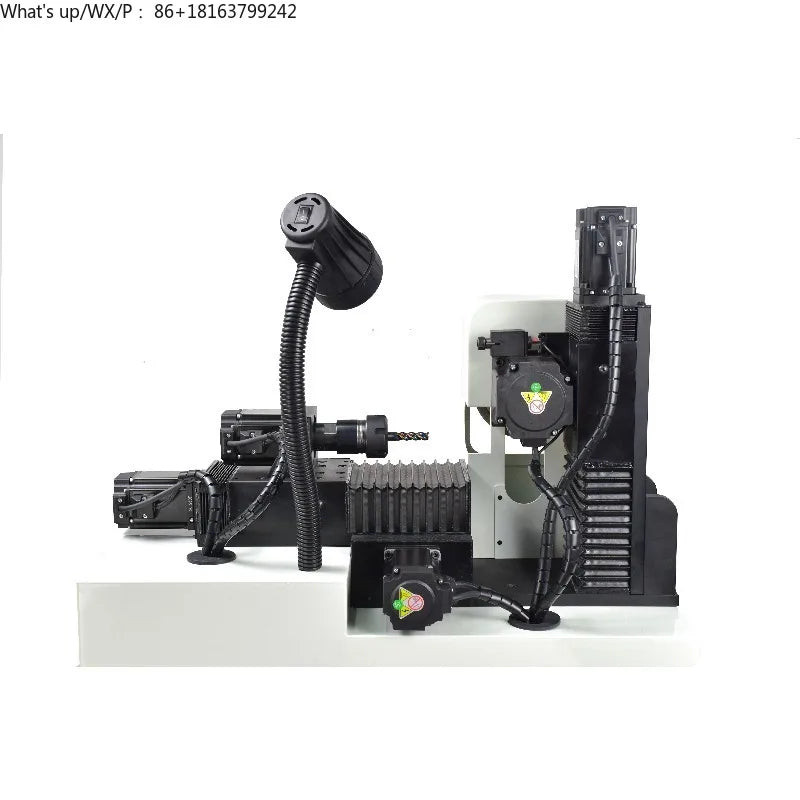

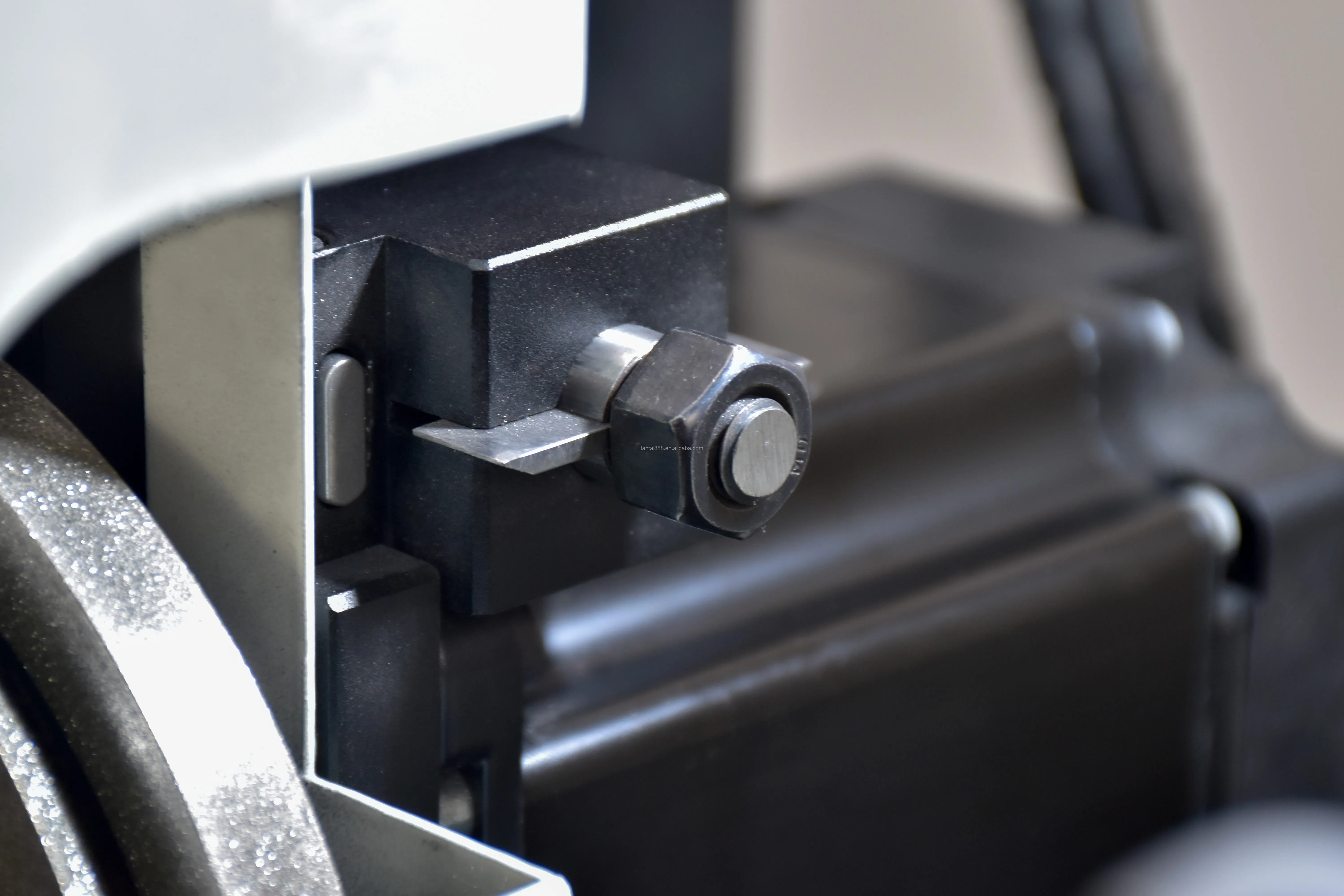

Fully Automatic intelligent tool setting system

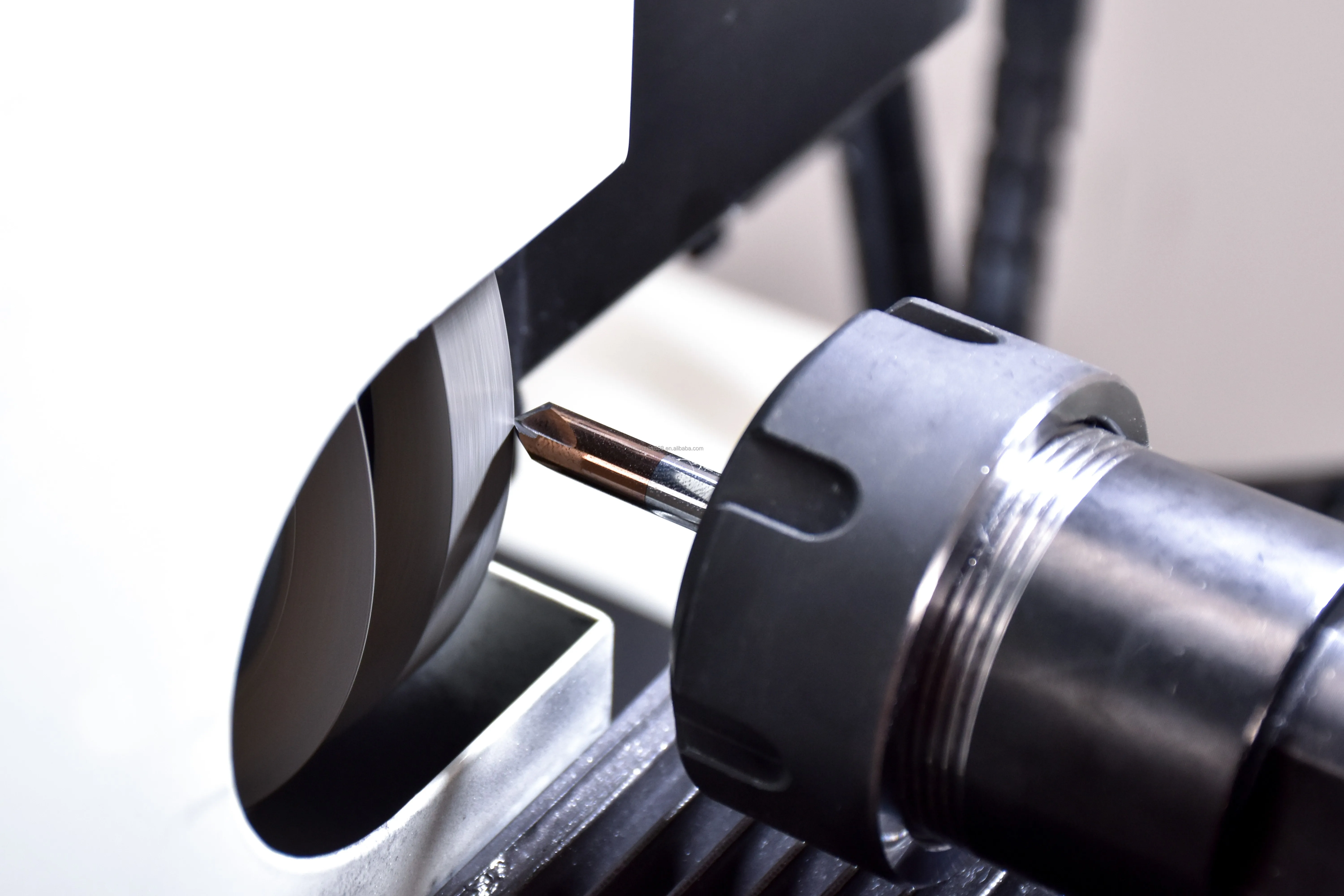

Automatic blade change, automatic tool setting, precise tool setting, multiple optional modes. The high-precision jacket has greatly improved your company's requirements for grinding. It is made of spring steel, which has good elasticity and stronger durability. It can maintain high stability under high-speed operation conditions, making the grinding of drill tools better and more accurate.

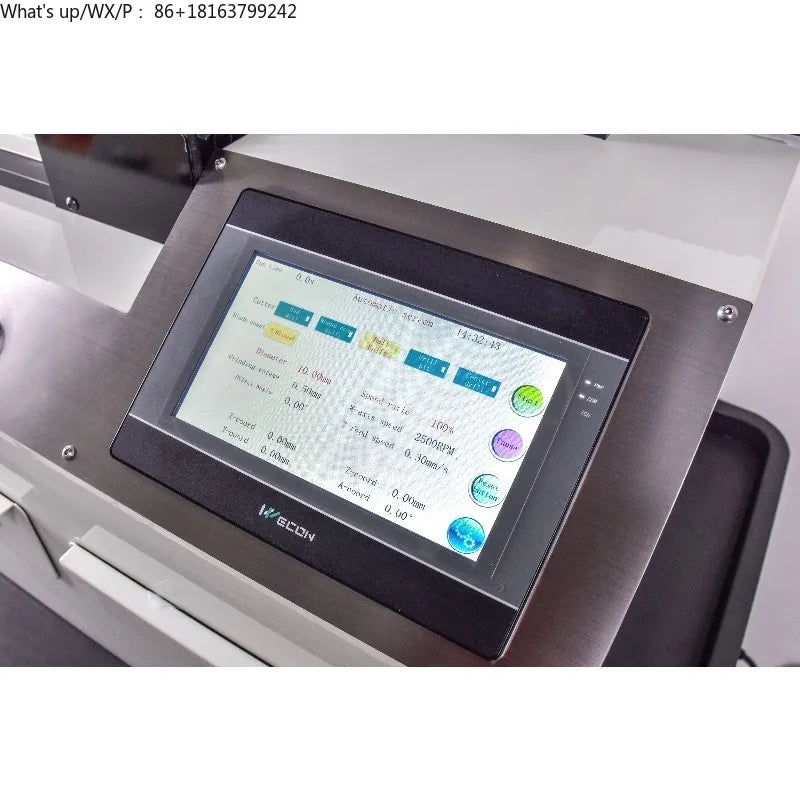

Customizable program/intelligent LCD display
Intelligent LCD touch screen, oversized size, simple and clear intelligent touch screen. Fully computerized numerical control system operation, convenient and fast, can ensure the grinding accuracy of the tool, durable, suitable for various precision processing needs
Brazed diamond grinding wheel
It can grind hard-to-process materials such as carbide, glass, and ceramics efficiently, and the grinding tool has the longest service life. Low friction during grinding reduces loss, higher load limit, low noise, and stronger grinding effect.
Suitable for different knife chucks, more convenient to use.

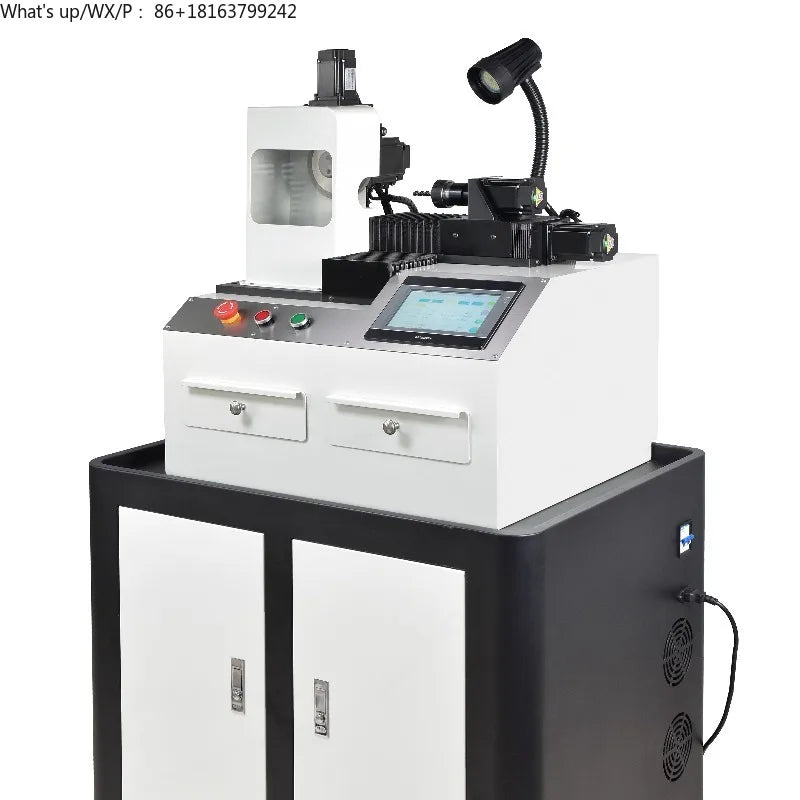

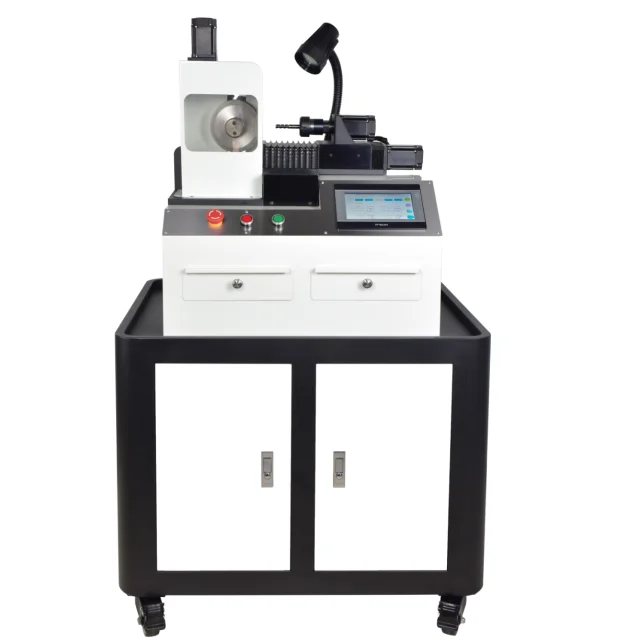

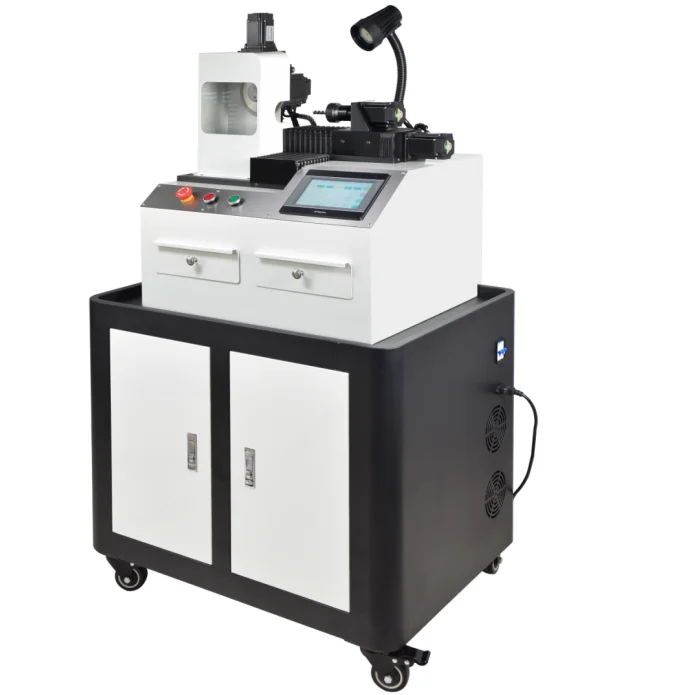

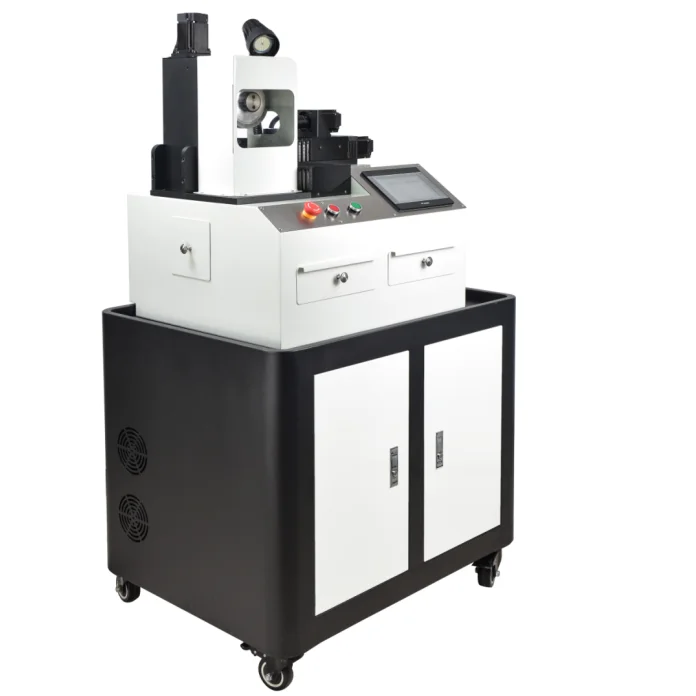

Equipped with a workbench, the machine is more convenient to use and can be stored conveniently. The height is also perfectly adapted.
To ensure grinding machine more safty for shipping, if shipping by sea, we will be using wooden case, ensure more safty, cannot be load by others.
