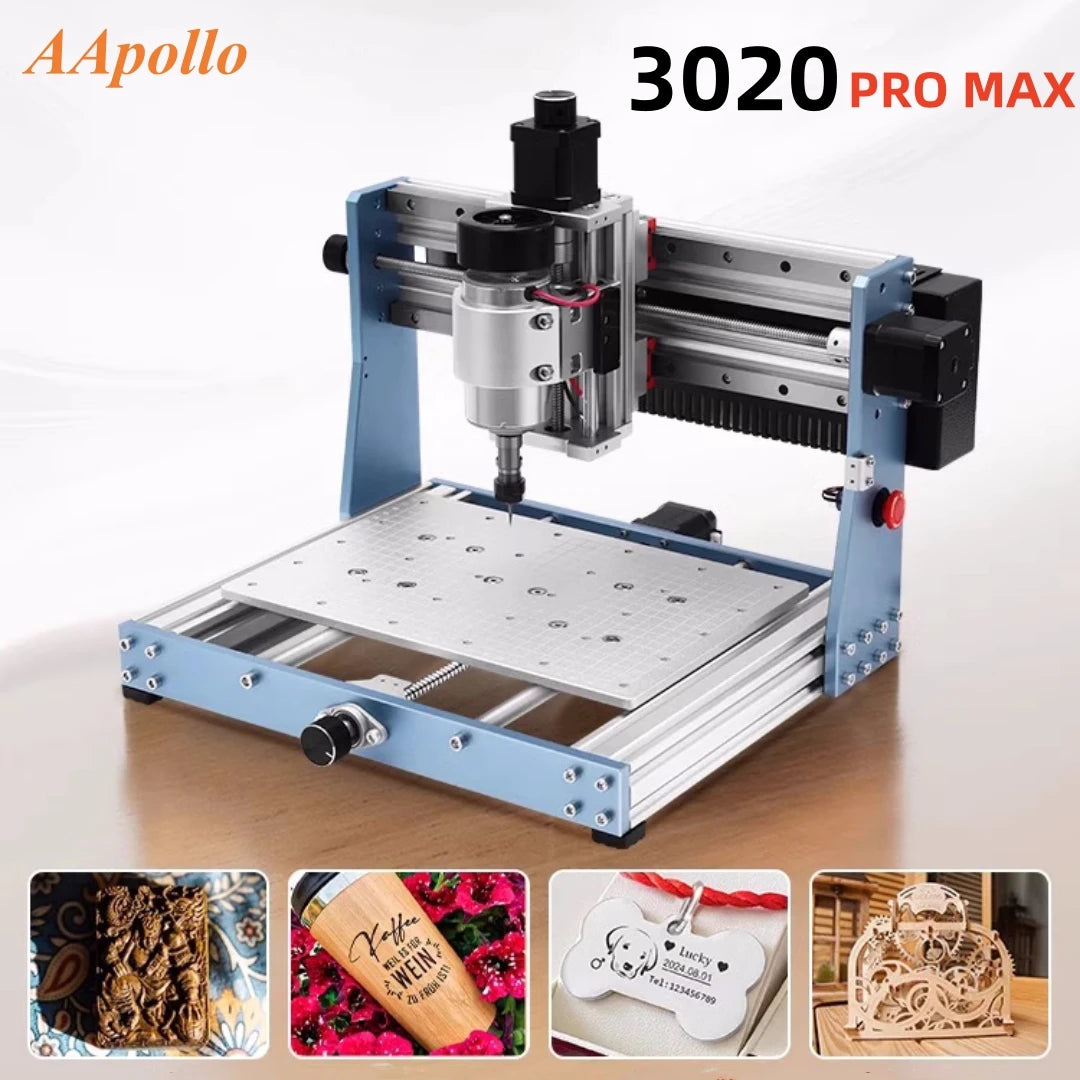

CNC 3020 Pro Max Engraving Machine, 300W Spindle Wood Router For Metal Acrylic, Milling Cutting Machine with Offline Controller
CNC 3020 Pro Max Engraving Machine, 300W Spindle Wood Router For Metal Acrylic, Milling Cutting Machine with Offline Controller
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: yofuly
CNC or Not: CNC
Certification: CE
Choice: yes
Condition: New
Controller: GRBL
High-concerned chemical: None
Is Smart Device: No
Model Number: 3020 PRO MAX
Origin: Mainland China

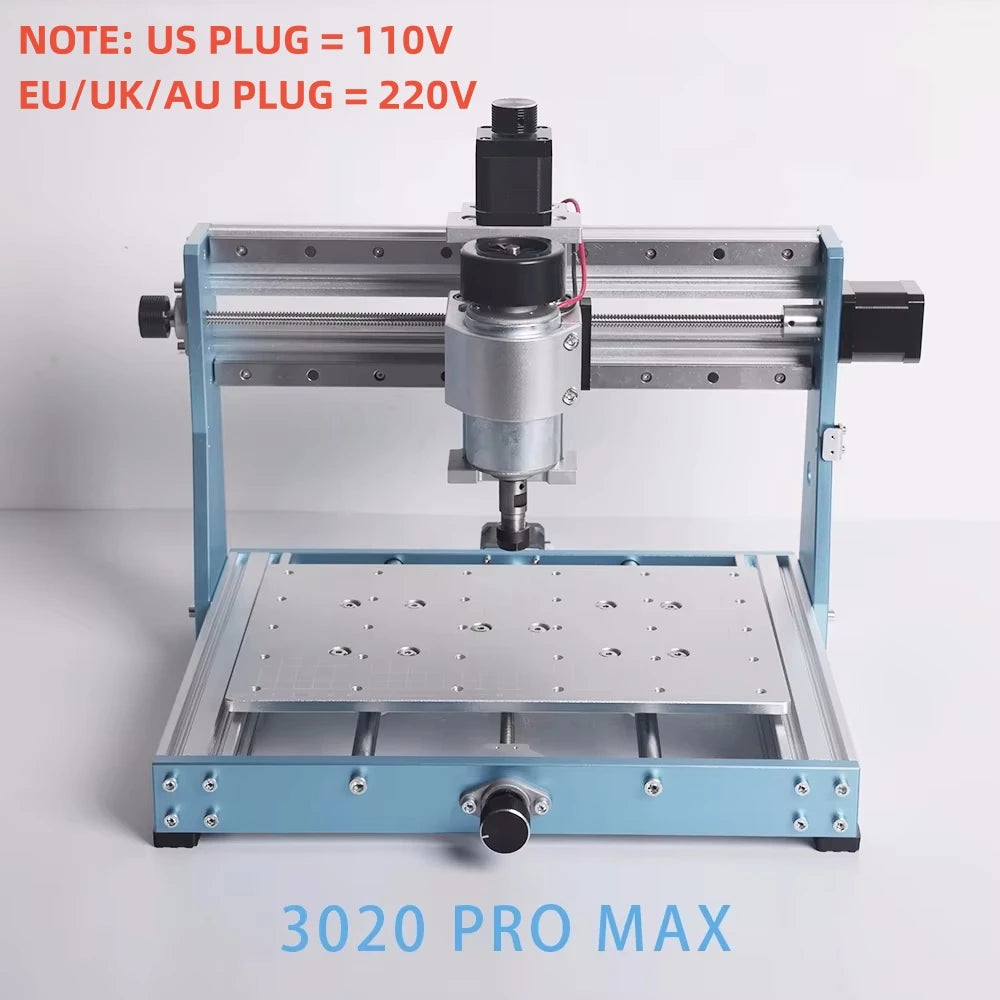

NOTE: US PLUG = 110V
EU/UK/AU PLUG = 220V
CNC 3020 Pro Max Engraving Machine, 300W Spindle Wood Router For Metal Acrylic, Milling Cutting Machine with Offline Controller
Specifications:

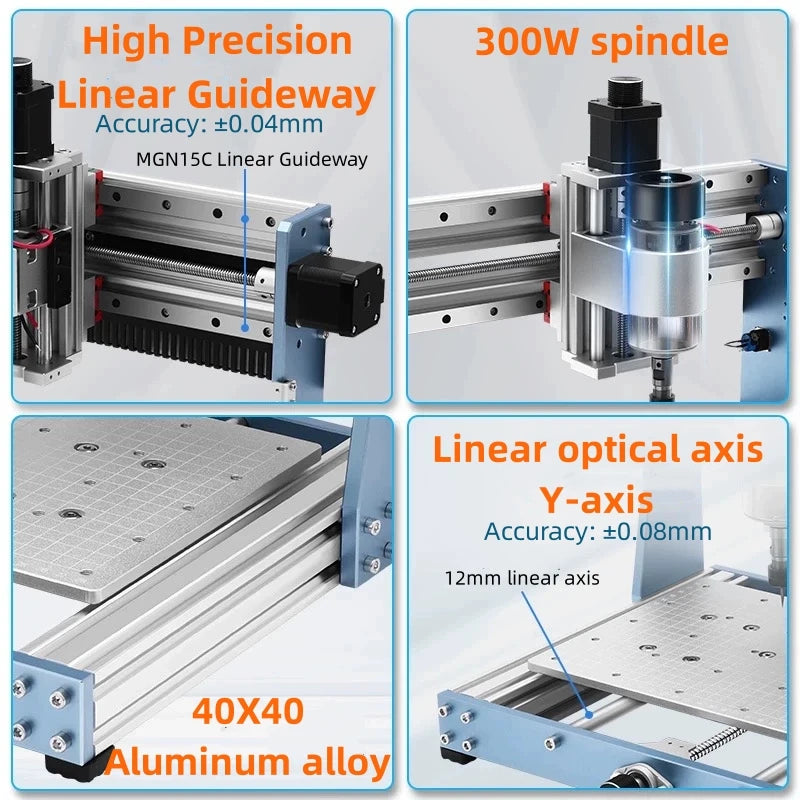

The body structure of this 3020 Pro Max CNC engraving machine is made of All-Metal(no plastic parts).
It is equipped with 12mm thick solid double-steel linear guide rail and bearing slide rail.
All-metal X-Z axis parts have a vertical stroke of up to 72mm,these designs enable the machine to move faster,with 0.01mm high accuracy and stability.
The worktable has an accurate scale line,which is convenient to locate and measure the size of the engraving material.
The machine is equipped with an emergency stop and limit switches.
The 3020 Pro Max CNC router is equipped with 300W 48V 12000rpm spindle(with E11 collet),which is more powerful and efficient,and can cut stainless steel,aluminum and other metals.
Small and practical, no problem for using on your desk.
Support Windows XP/7/8/10、Mac OS system
Aluminum alloy material with fine workmanship show excellence in quality.
Very interesting to install and use, perfect gift for engraving DIY enthusiasts.
Wide application: can be used for print, hand tools and industrial processing.
Product Information
Work Area：300x200x72mm(11.81x7.87x2.83inch)
Drive System：Linear Rail Guide &T nut ScrewControl Board Compatibility：GRBL 1.1f
Stepper Driver：A4988

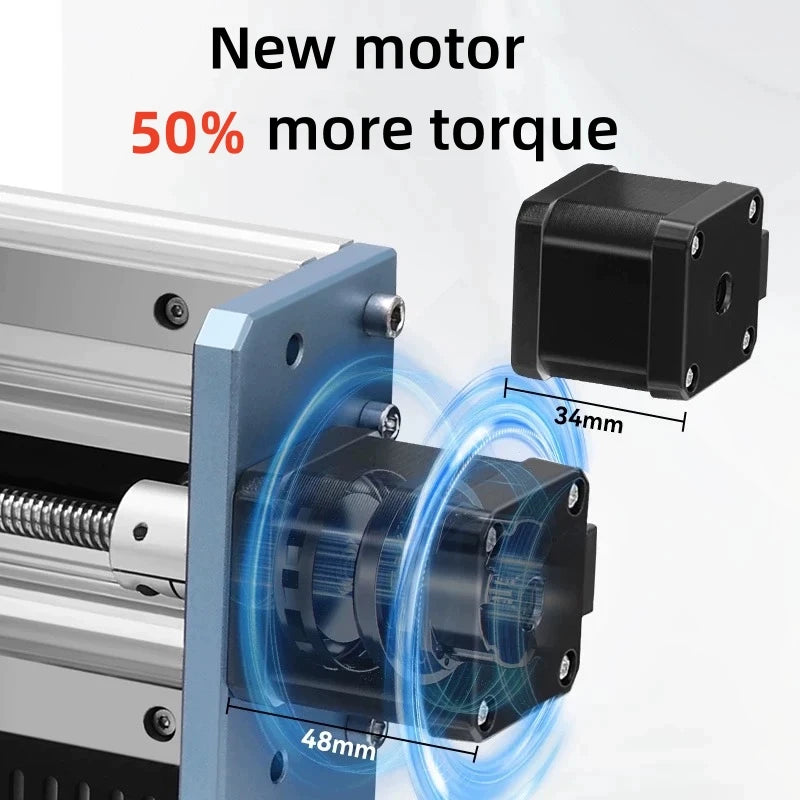

Stepper Motors：42 x48mm
Spindle：300W/12000RPM
Accuracy：±0.1mm
Power Supply：48V/10.4A
CAM Software：Candle,Carveco Maker, Easel and more
Limit Switches：Yes
Emergency Stop：Yes
Offline Controller：Yes

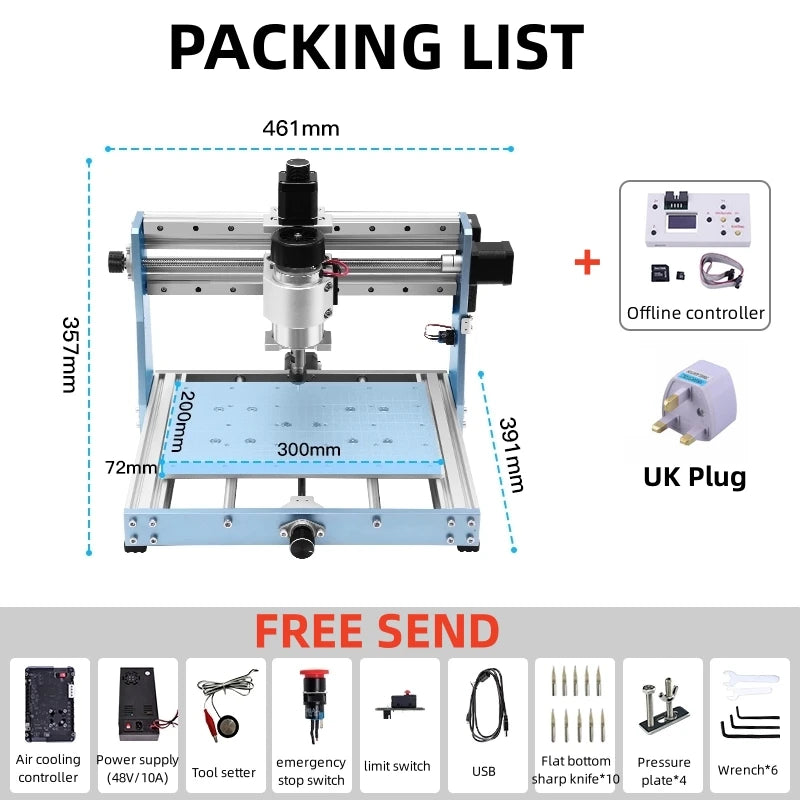

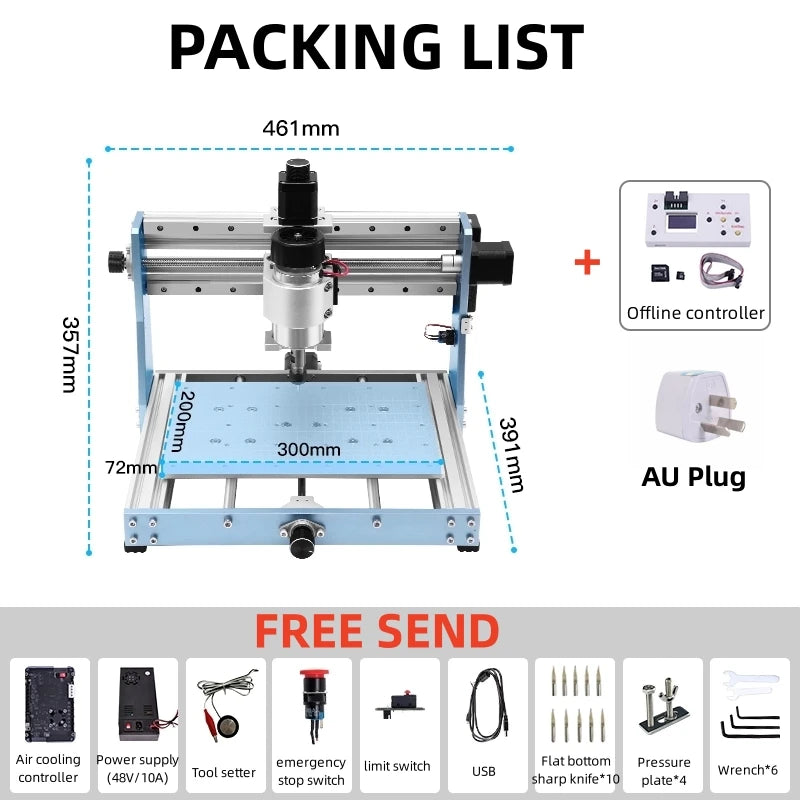

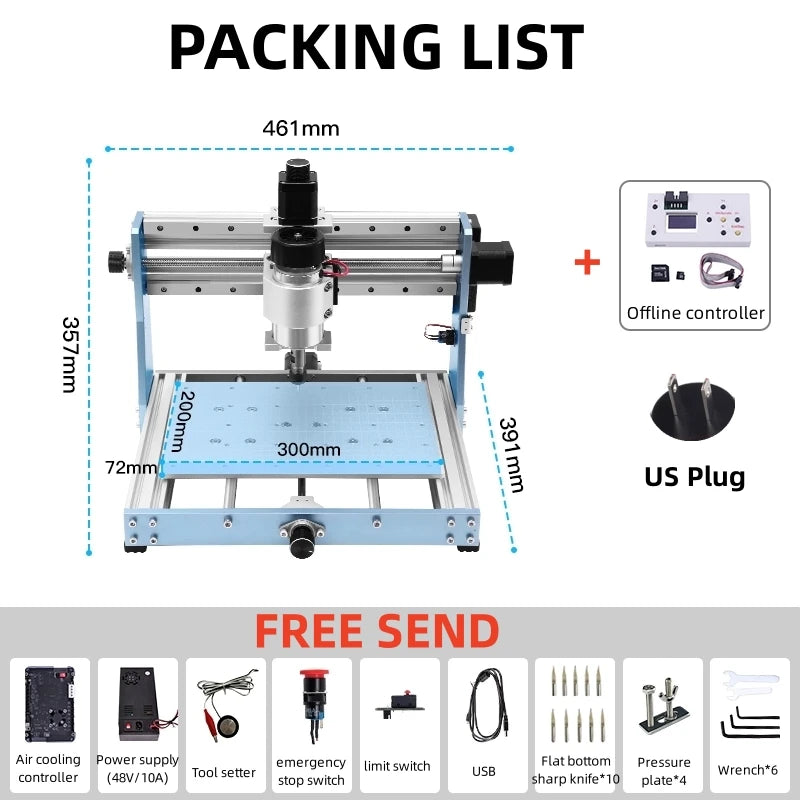

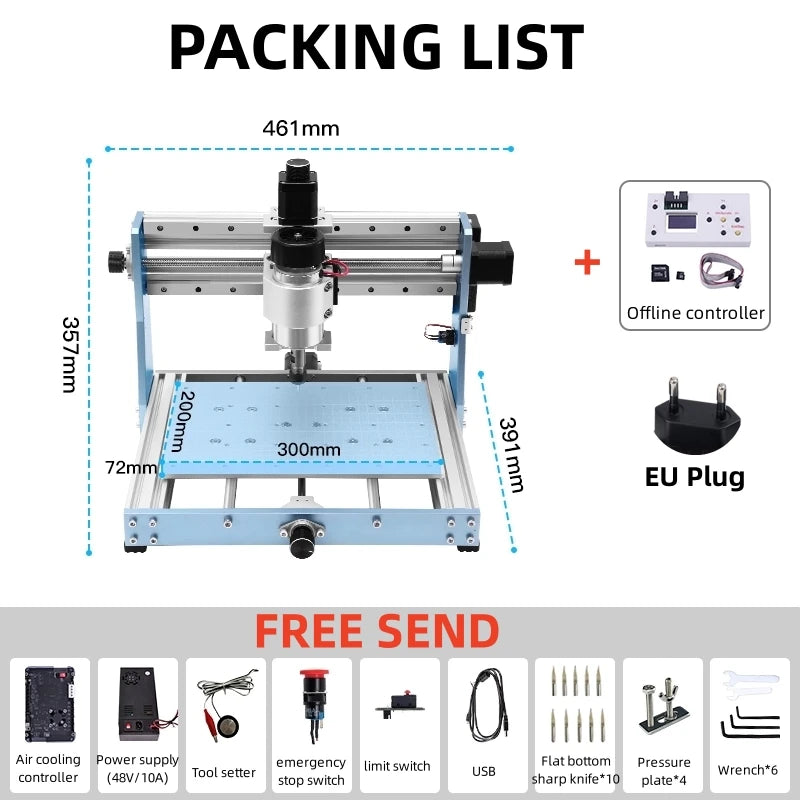

Overall machine size：391x461x357mm(15.39 x18.15 x14.06inch)
Machine Weight：10.8kg
Laser Module：Support laser module with 33mm width.
Support OS：Windows XP/7/8/10.Linux.Mac OS

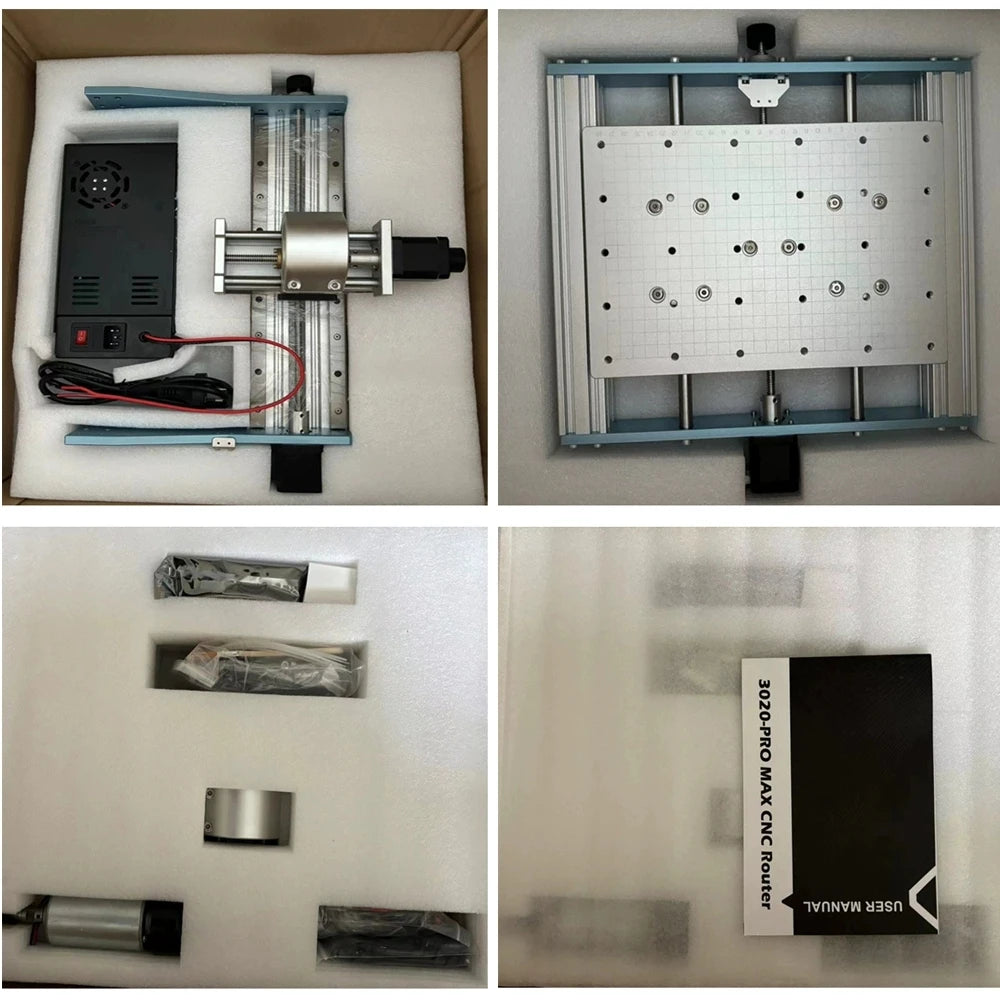

Package Includes:
1x 3020 Pro Max cnc router machine
1x 300W DC spindle
1x Emergency Stop
4x clamp
1x Z Axis Probe tool
1 x GRBL control board
1 x Offline controller
1 x 10Pcs Engraving bits
1 x 2G U disk with GRBL software
1 x English User Manual
