SPECIFICATIONS

After Warranty Service: Video technical support, Online support

After-sales Service Provided: Online support, Video technical support

Application: Cosmetics, electronics, color boxes, etc

Automatic Grade: Automatic

Bag length: 70mm- unlimited bag length

Bag width: 30-110mm

Brand Name: NoEnName_Null

Condition: New

Core Components: PLC, Motor

Dimension(L*W*H): 2300x1200x1600mm

Driven Type: Electric

Film width: ≤250mm

High-concerned chemical: None

Key Selling Points: High-accuracy

Local Service Location: None

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Mechanical weight: 500kg,Packaging machine :210kg Shrinkage machine: 240kg

Mechanics size: L3920*W670*H1320mm

Origin: Mainland China

Packaging Material: Plastic, Wood

Packaging Type: Film, case

Packing speed: 20-260 packets/min

Place of Origin: Guangdong, China

Power supply: 220V 50/60Hz

Product height: ≤60mm

Showroom Location: None

Type: Other

Video outgoing-inspection: Provided

Voltage: 220V 50/60Hz

Warranty: 1 Year

Warranty of core components: Other

Weight: 1150 KG

service: customization

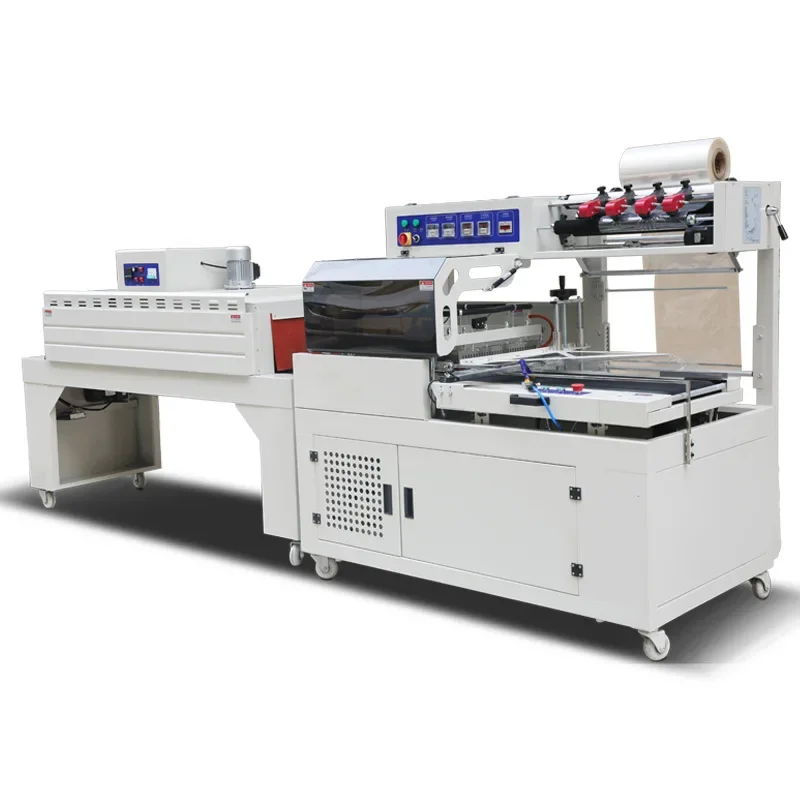

Products Description

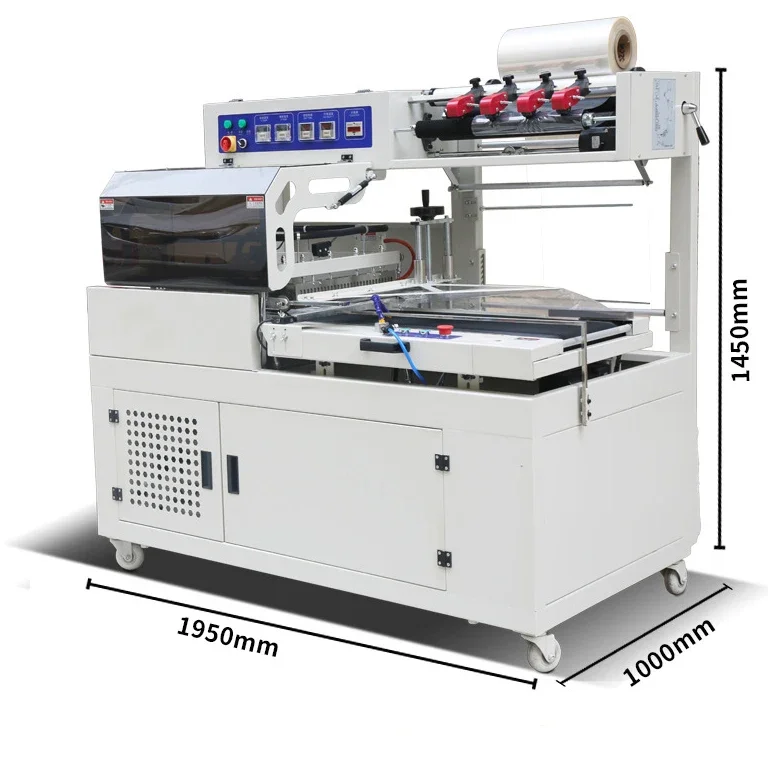

Name	Sealing and cutting machine
Voltage	220 V
Power	1.5KW
Air pressure	5-6KG/cm²
Packing speed	15-25 PCS/min
Overall dimensions	195*100*145CM

Name	Shrink machine
Voltage	380 V
Power	12 KW
Heating furnace size	150*55*30CM
Conveying speed	0-10 m/min
Overall dimensions	190*80*138CM
Load	30 KG

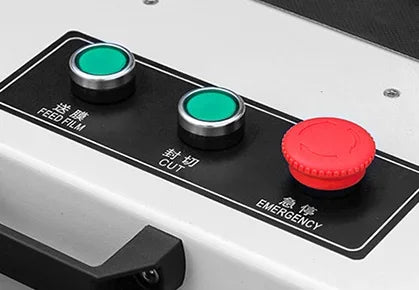

The machine has a one-key emergency stop button. Press the emergency stop button and the machine will stop all work.

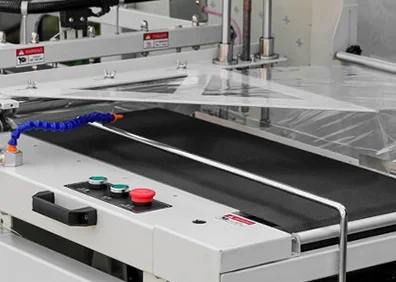

The position of the package can be manually adjusted here and then automatically packaged.

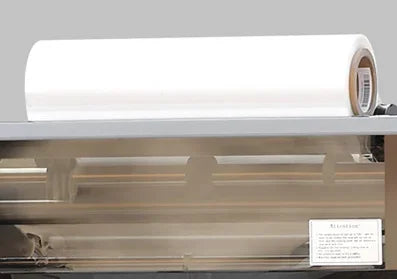

Automatic binding film breathable/automatic release film (film installation see instructions)

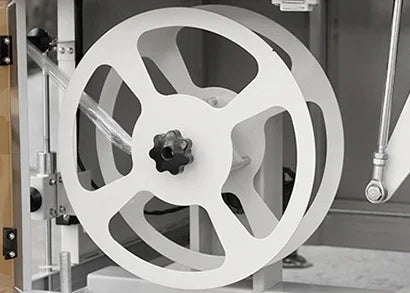

The cut waste film is automatically wound on the waste film wheel for easy removal.

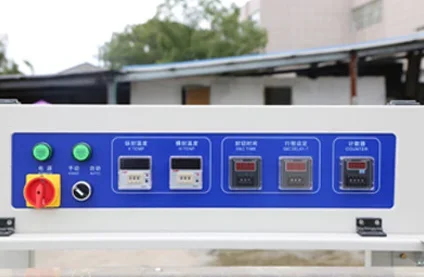

Operation switch simple and clear stepless speed regulation leakage protection switch assured electricity.

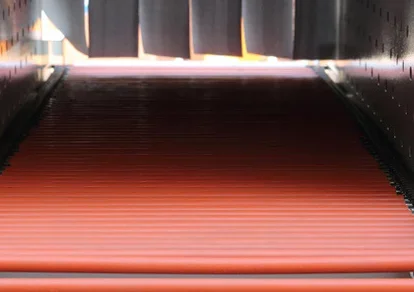

Stainless steel heating tube uniform heating long service life, with large fan travel heat circulation, make the article shrink
evenly, good effect and high efficiency.
