SPECIFICATIONS

Advantage: High Speed Stability

After Warranty Service: Y

Brand Name: NoEnName_Null

DIY Supplies: Metalworking

Drive Type: Electromechanical, servo-electric

Function: punching machine, pressure casting, food handling, etc

High-concerned chemical: None

Ingress Protection: ip54, ip65

Keyword: Four-axis Robot

Model Number: Spider Hand Robot

Number of Jaws: 6

Number of axis: Four

Origin: Mainland China

Output Voltage: Industrial Robot Arm

Payload: 3 KG

Product name: BORUNTE Four-axis Robot

Robot type: BRTIRSC0603A

Style: Delta Manipulator

Technology: HC control system

Type: Visual System Robot Arm

Usage: Manufacturing

Warranty: 1 years

application: printing and packaging, mental processing, etc.

core components: Engine, Bearing, Gearbox, motor, Gear

dimension(l*w*h): 50*70*90cm

machinery test report: Provided

place of origin: Guangdong, China

power(w): 1940

production capacity: 500

video outgoing-inspection: Provided

voltage: 220V±10% 50Hz±10%

weight (kg): 70

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Violet Ms WhatsApp:+86 15073113615 Email:ericqianrui@gmail.com

Product Description

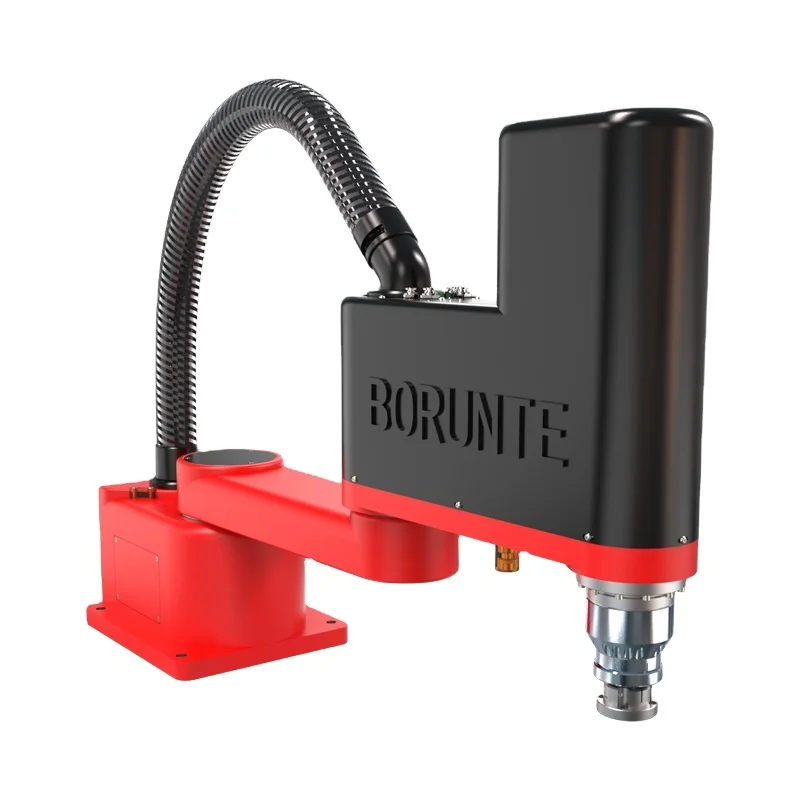

BRTIRSC0603A

BRTIRSC0603A is a four axis robot developed by BORUNTE for certain monotonous, frequent, and repetitive long-term tasks. It has a 600mm arm span and a maximum load of 3kg. It has multiple degrees of flexibility and is mainly used in fields such as printing and packaging, metal processing, light textile home furnishings, electronic equipment, etc.

鈼� The structure of servo motor with RV reducer and harmonic reducer, which has small volume, large working range, fast speed and
high precision, and can be integrated with turntable, slide conveyor chain system and other auxiliary equipment. 鈼� The handheld
dialogue operator of the control system is simple and easy to learn, which is very suitable for production.
鈼� The robot body adopts partial internal wiring, which is safe and environmentally friendly

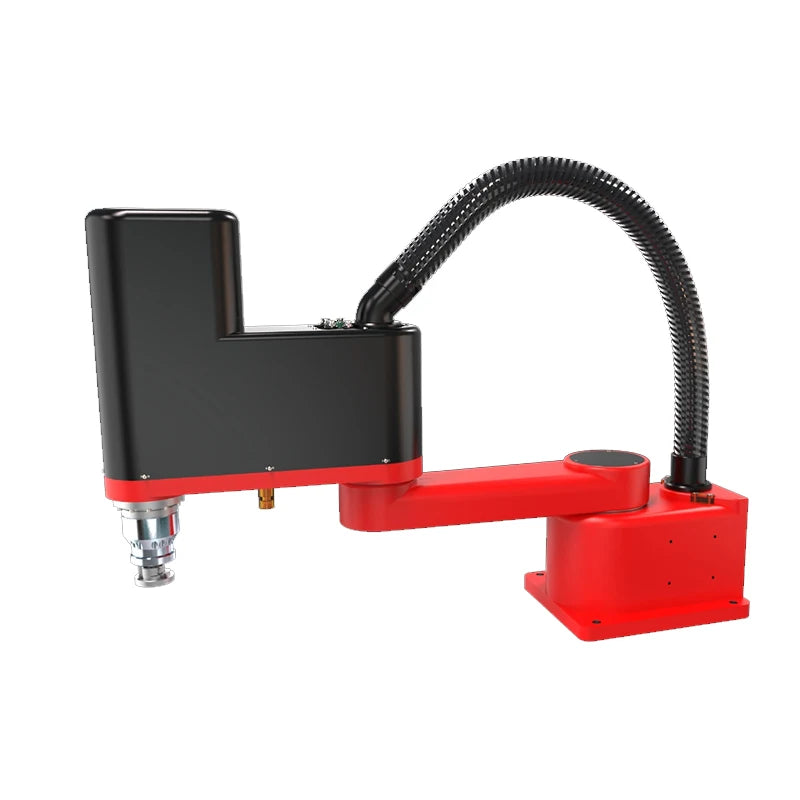

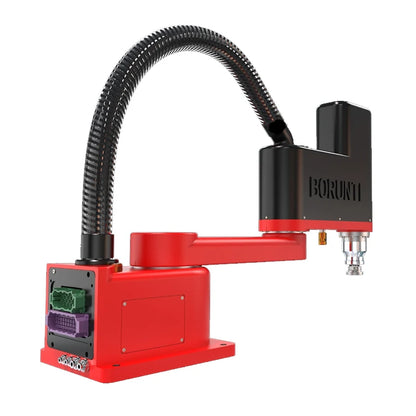

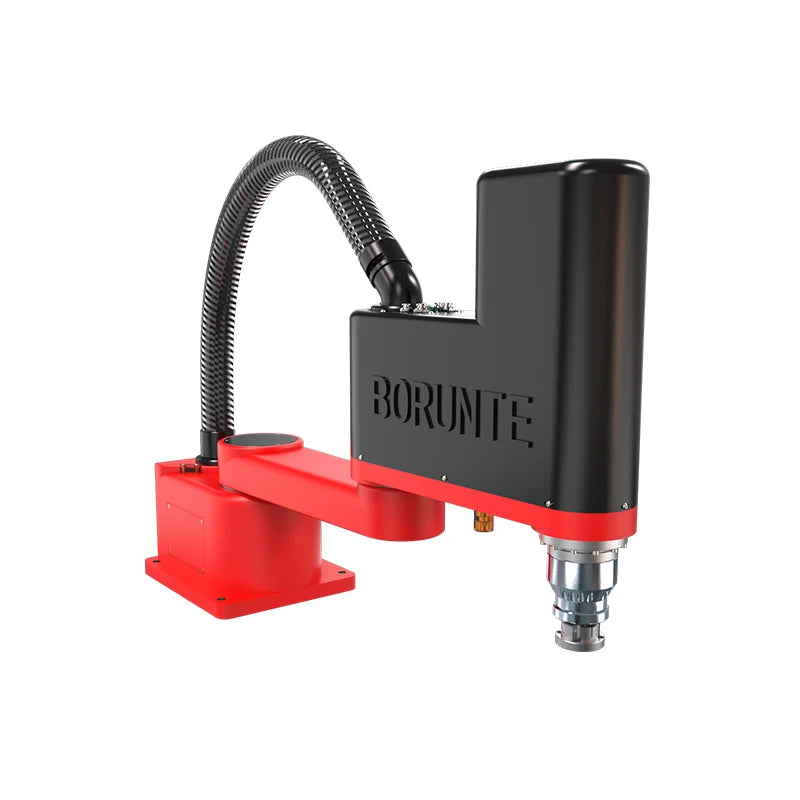

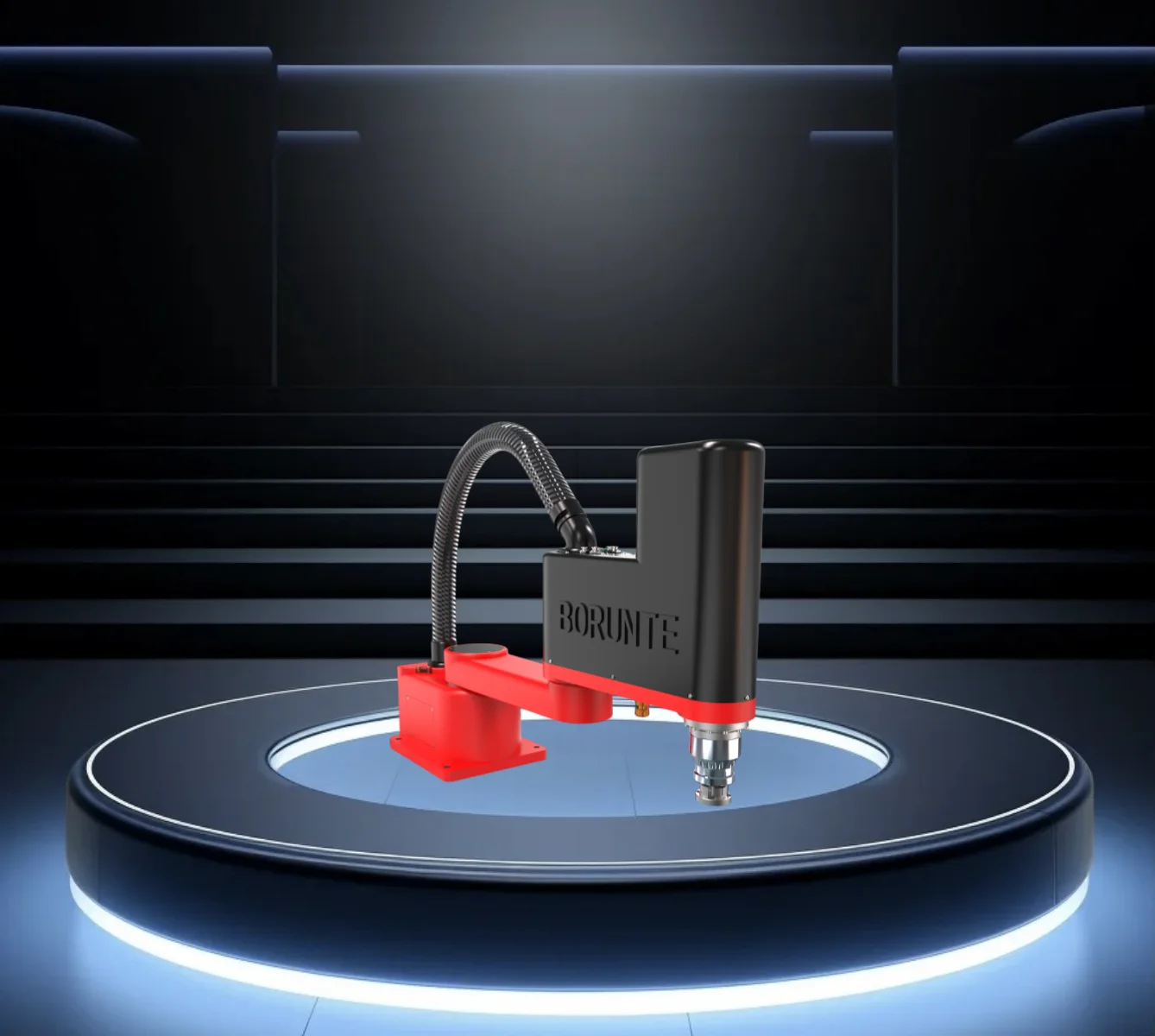

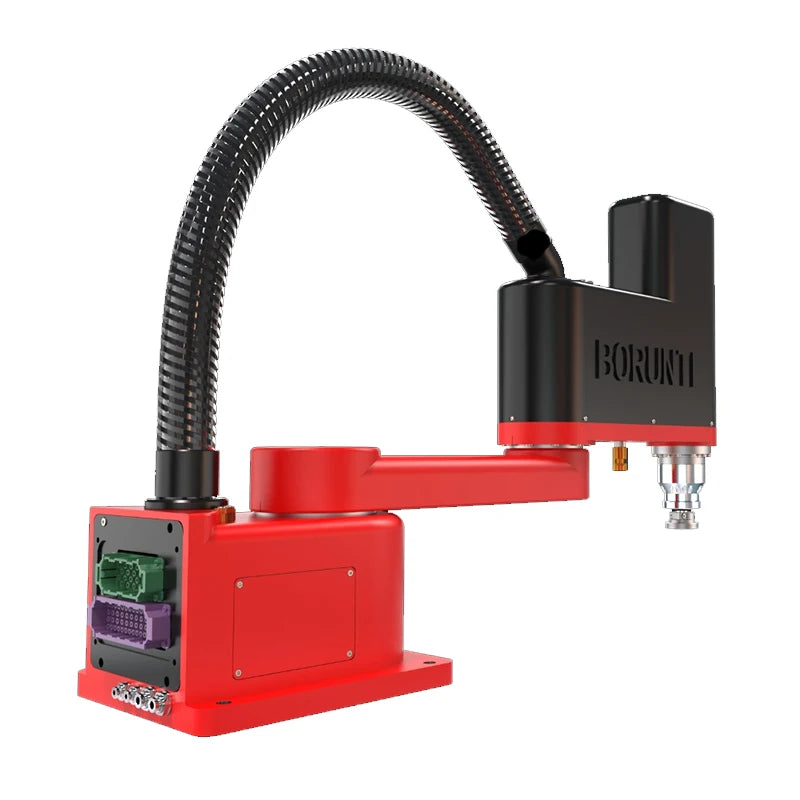

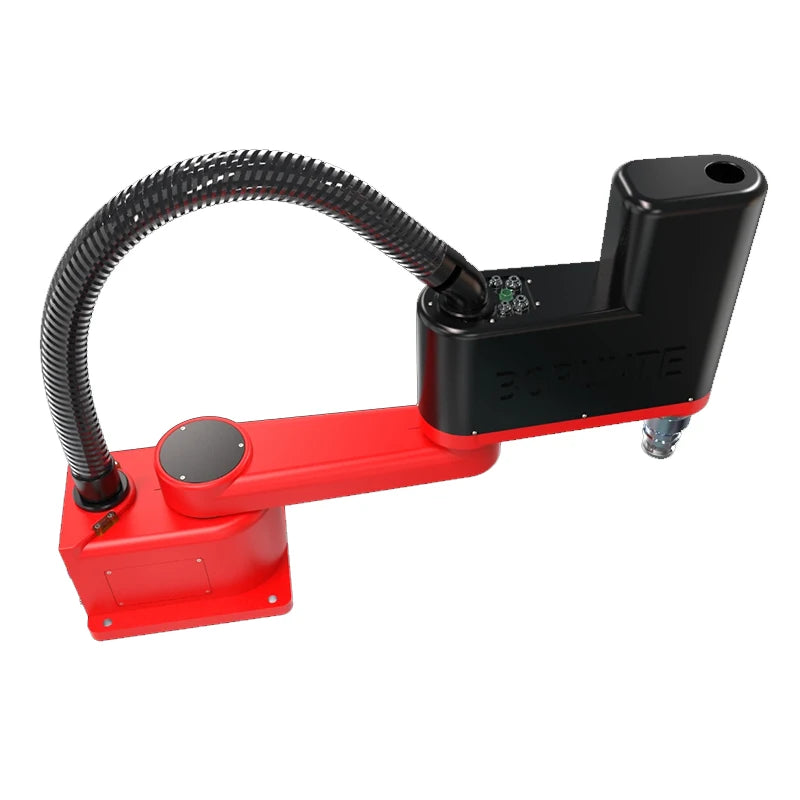

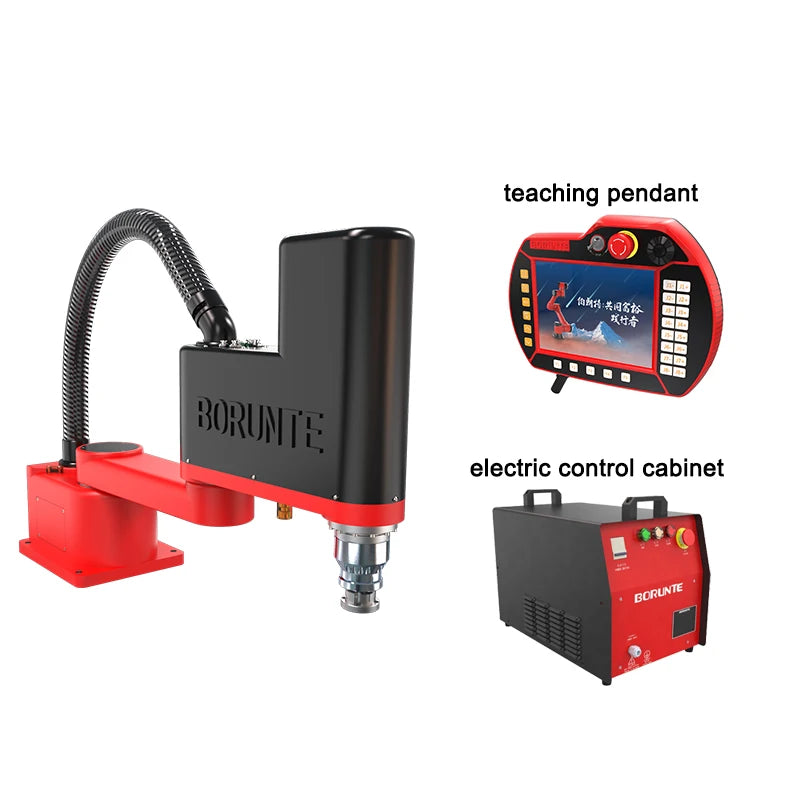

BRTIRSC0603A robot arm

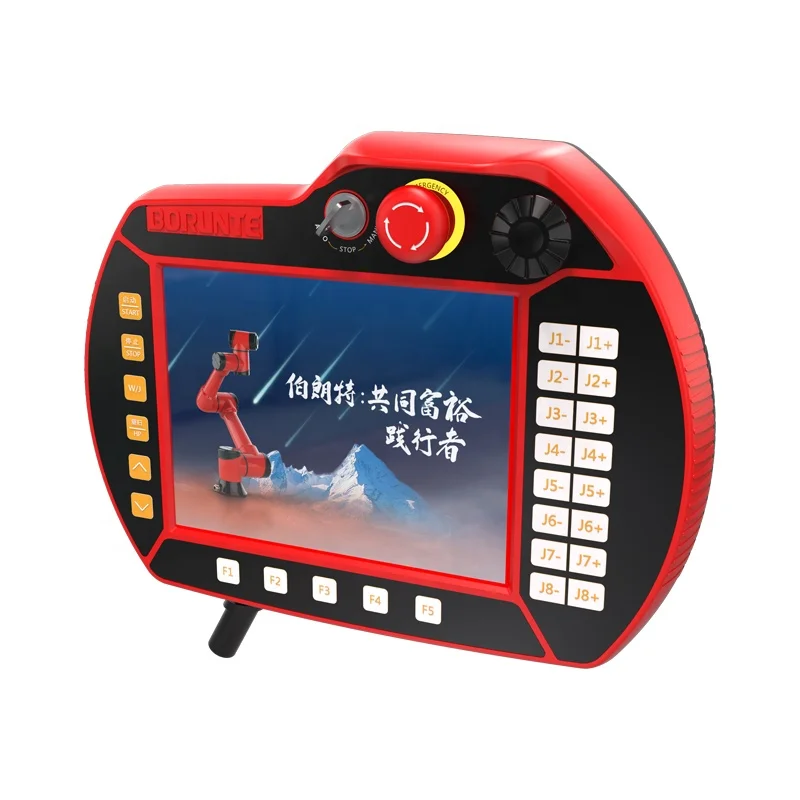

FlexPendant

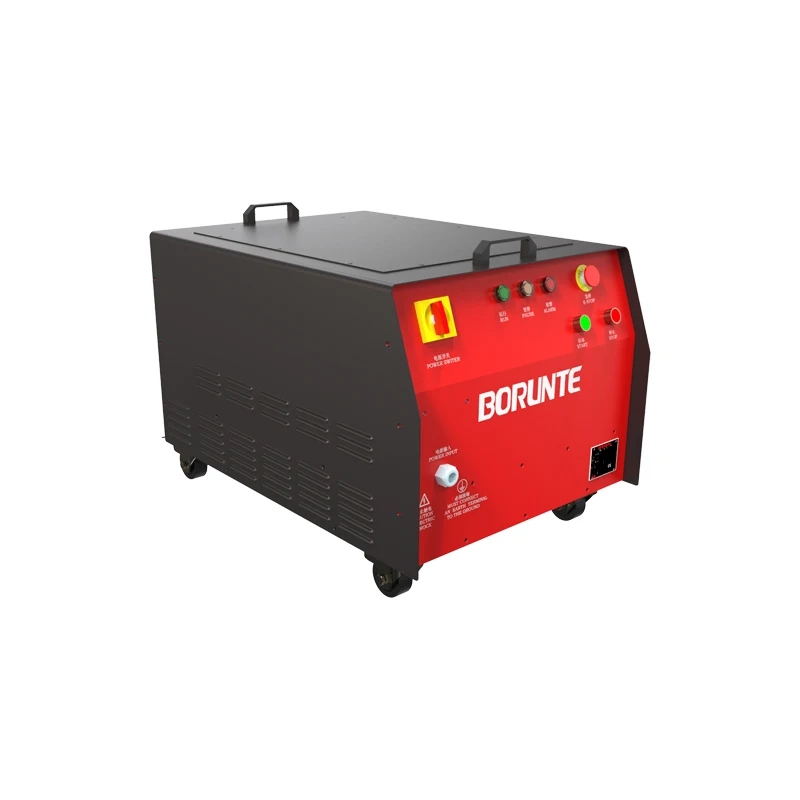

Electric Cabinet

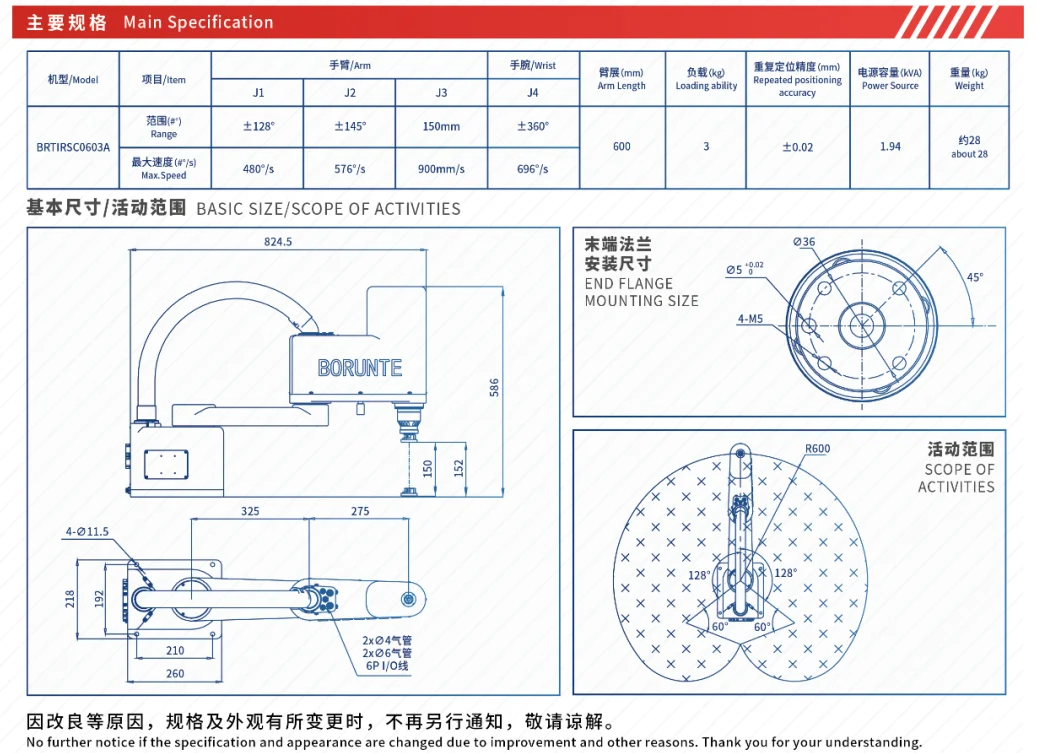

Product Specifications

Model	BRTIRSC0603A
Axes	4 axis
Loading ability	3kg
IP code	IP40
Repeated positioning accuracy	±0.05mm
Maximum arm span	600mm
Weight	73kg
Max speed	J1	300°/s			J2	473.5°/s
		J3	1134mm/s			J4	1875°/s
Motion range	J1	±130°			J2	±140°
		J3	180mm			J4	±360°
Maximum rotational torque	J3	16.256N*m			J4	1.016N*m
Maximum moment of inertia	J3	0.0286kg*m2			J4	0.0001kg*m2
Mounting environment	Operating temperature锛� 0鈩儈40鈩�  Best temperature锛�25鈩儈40鈩�  Humidity锛�20~80%R锛圢ocondensation锛�					Mpa	0.5~0.7MPa
								Power supply	220V±10锛� 50Hz/60Hz
Core components	Name	Operating system			Brand	BORUNTE
				Casting body				BORUNTE
				Servo motor				BORUNTE
				Reducer				BORUNTE
				Electrical component				BORUNTE
Oil content	J1	700ML	J2	400ML	J3	/
Vulnerable parts	Timing belt	Tooth shape 5M, 108 teeth, 9mm wide
		Timing belt	Tooth shape 5M, 148 teeth, 9mm wide
	Vulnerable parts	Timing belt	Tooth shape 5M, 104 teeth, 15mm wide
Robot accompanying materials	USB

Applications

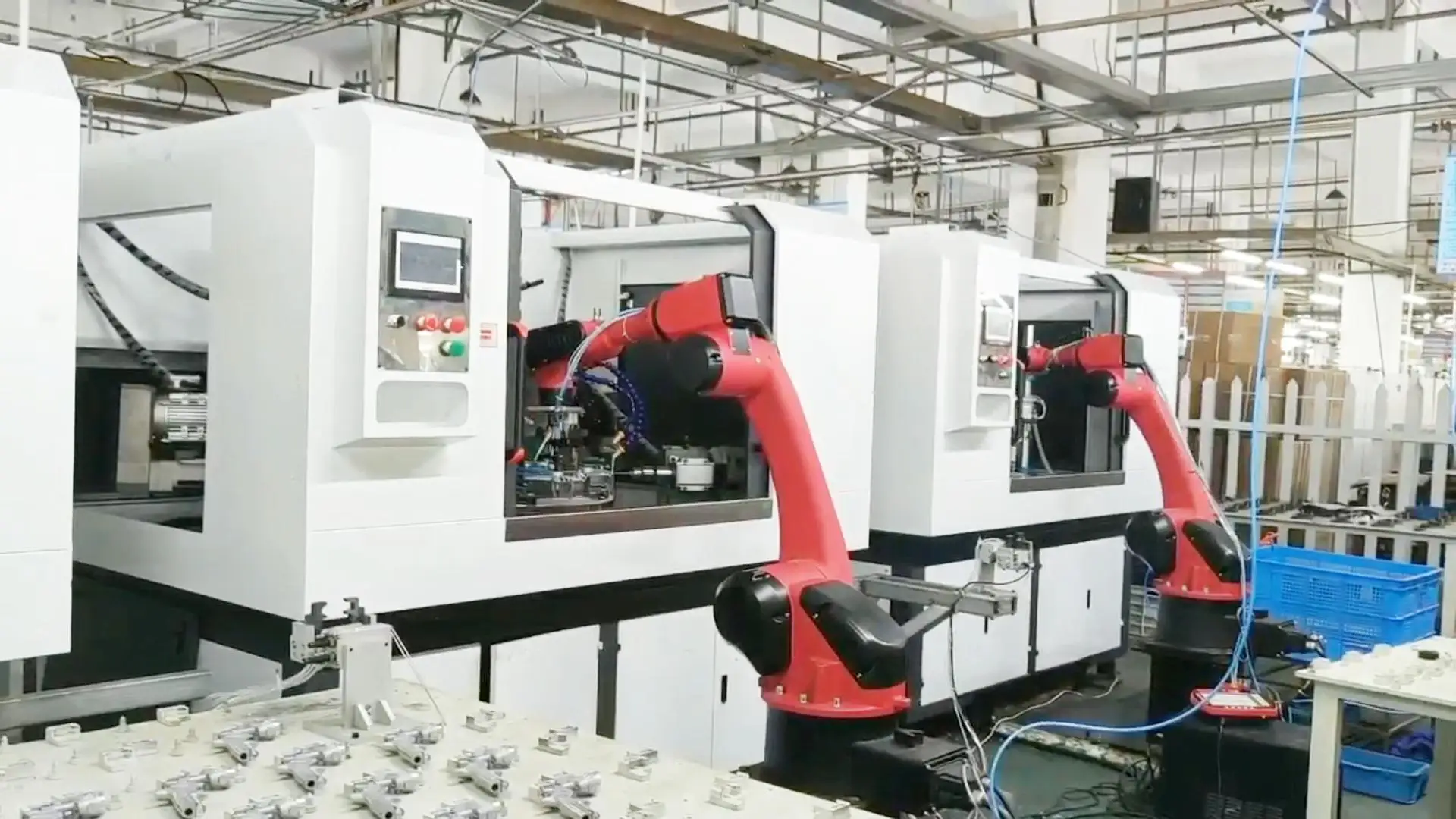

loading with CNC machine

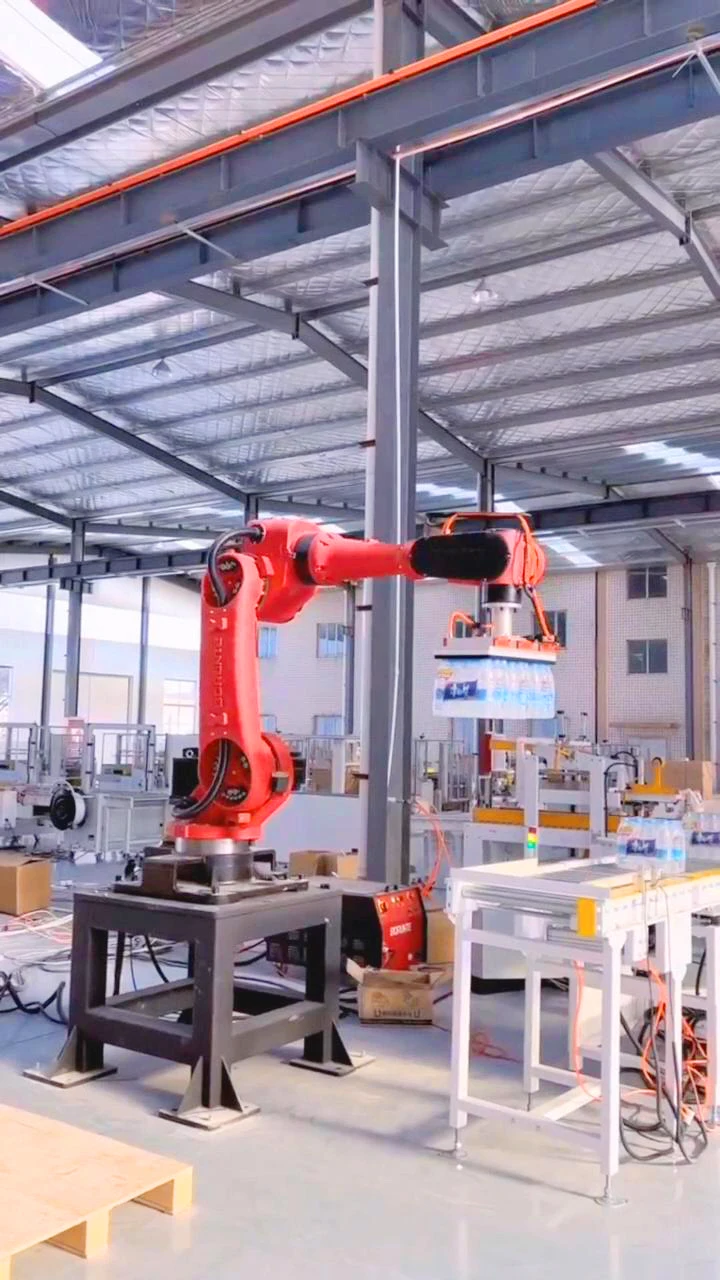

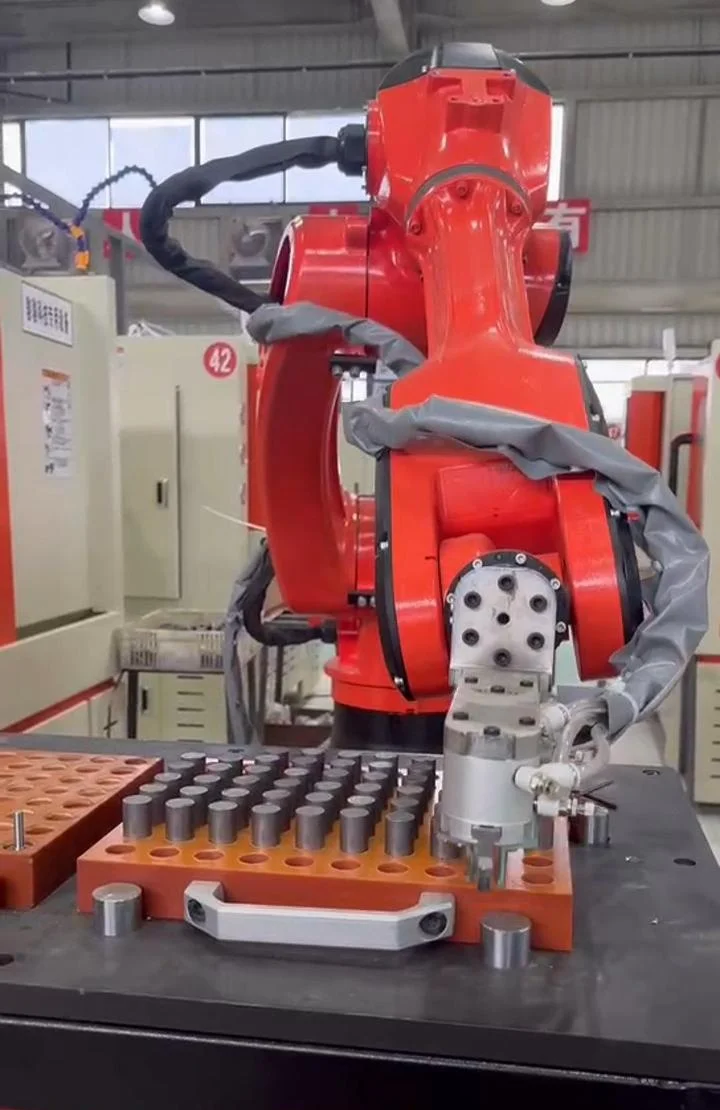

handing

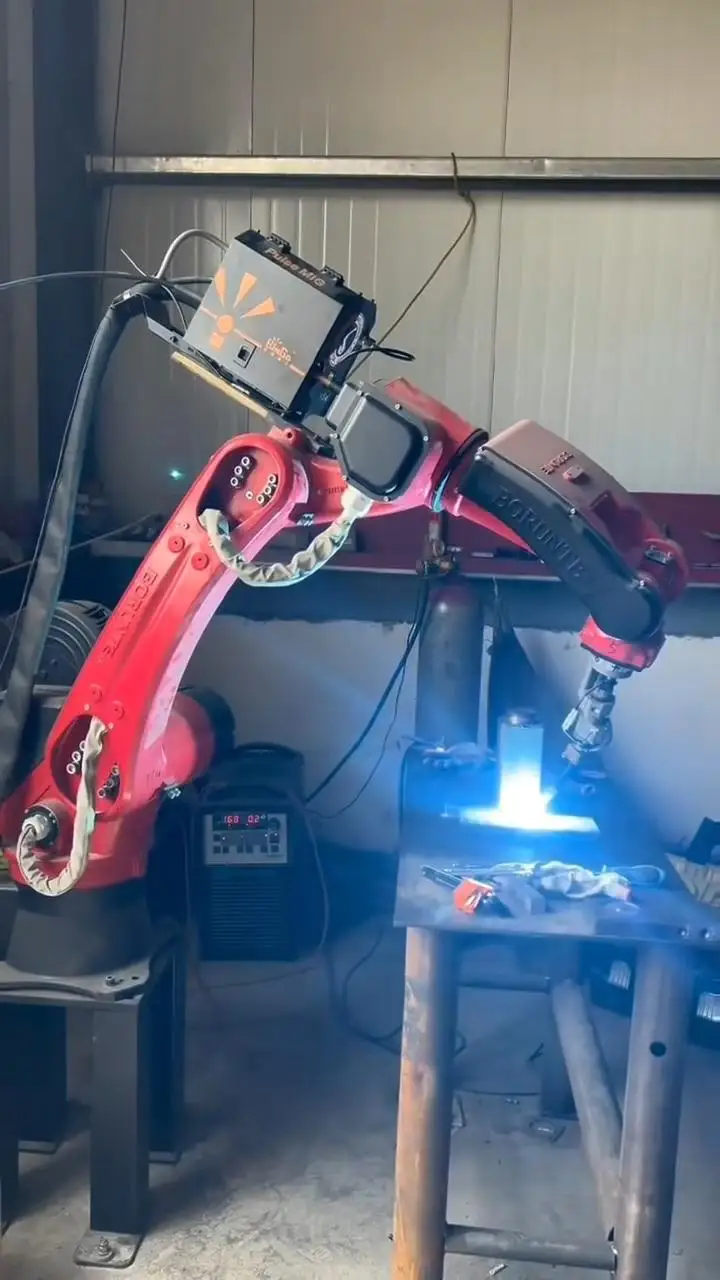

welding

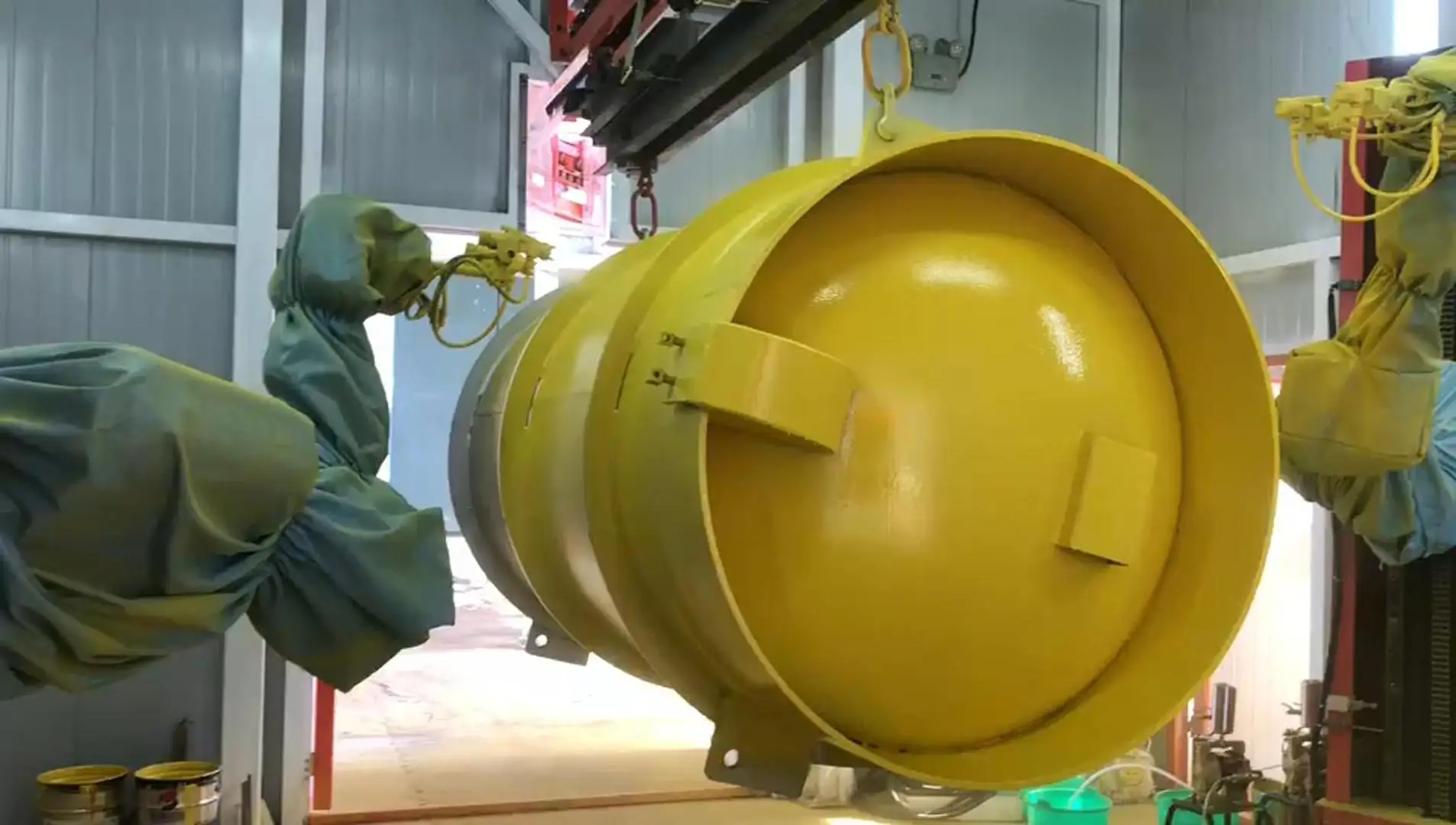

painting

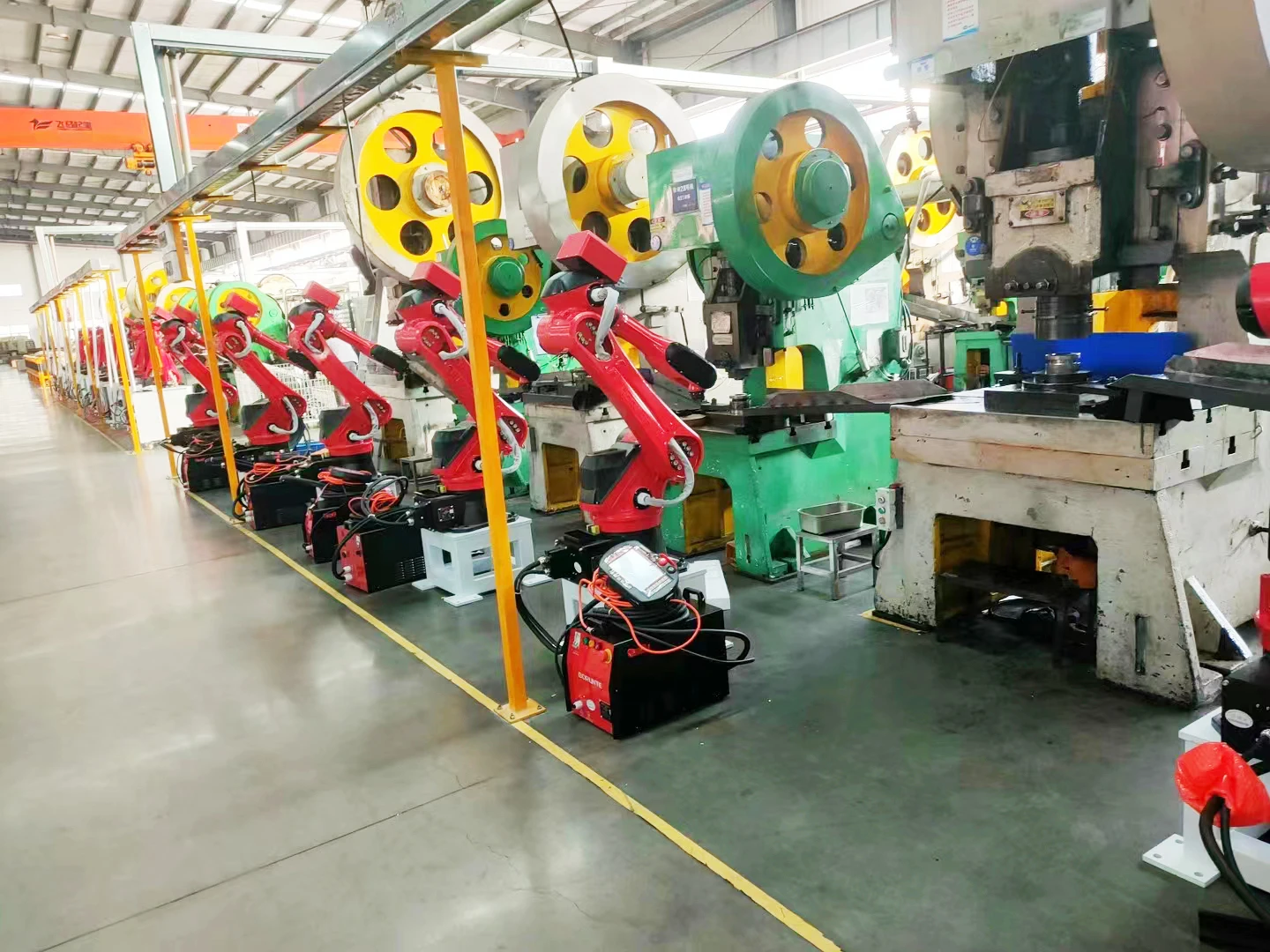

stamping

injection molding

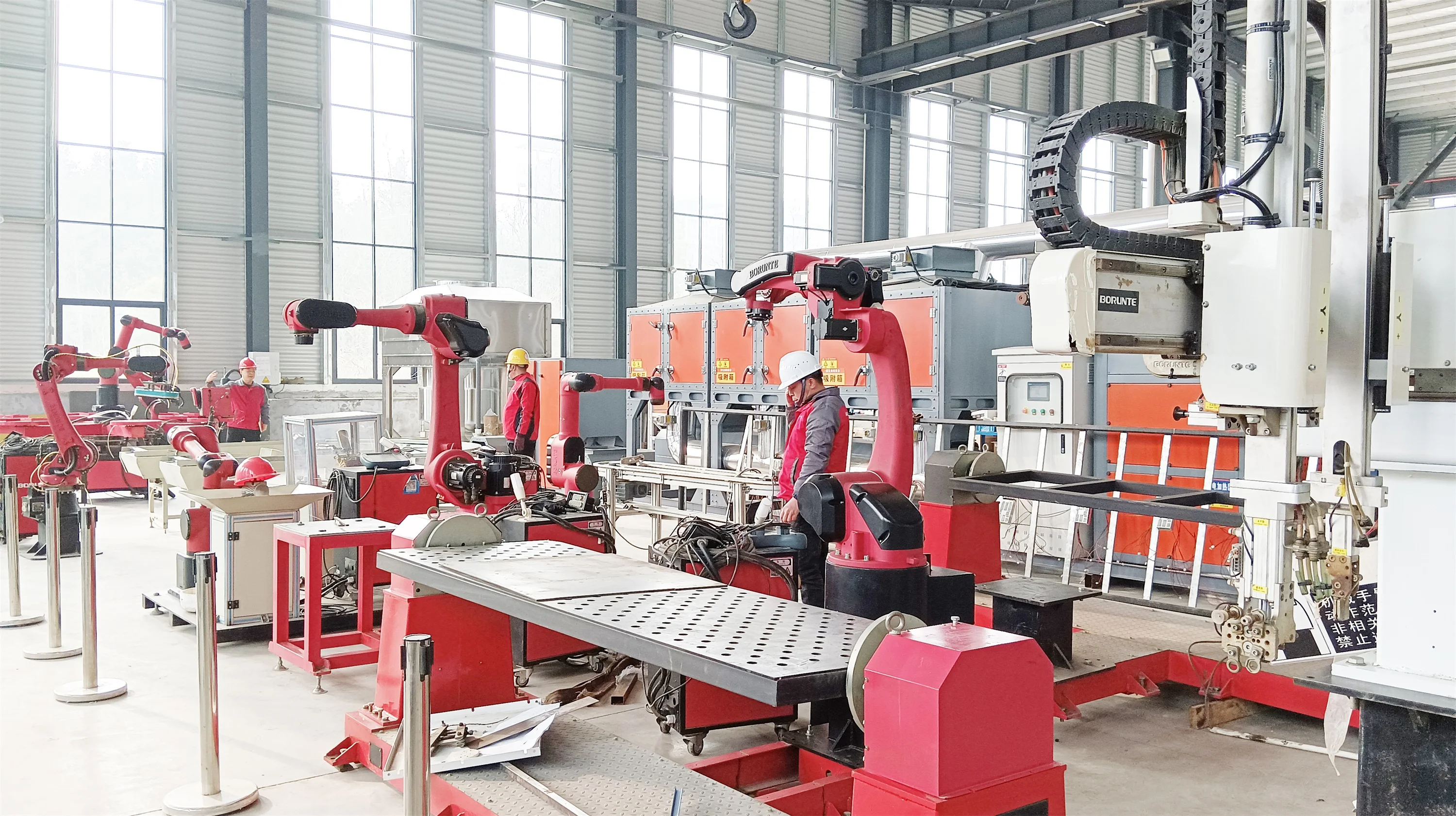

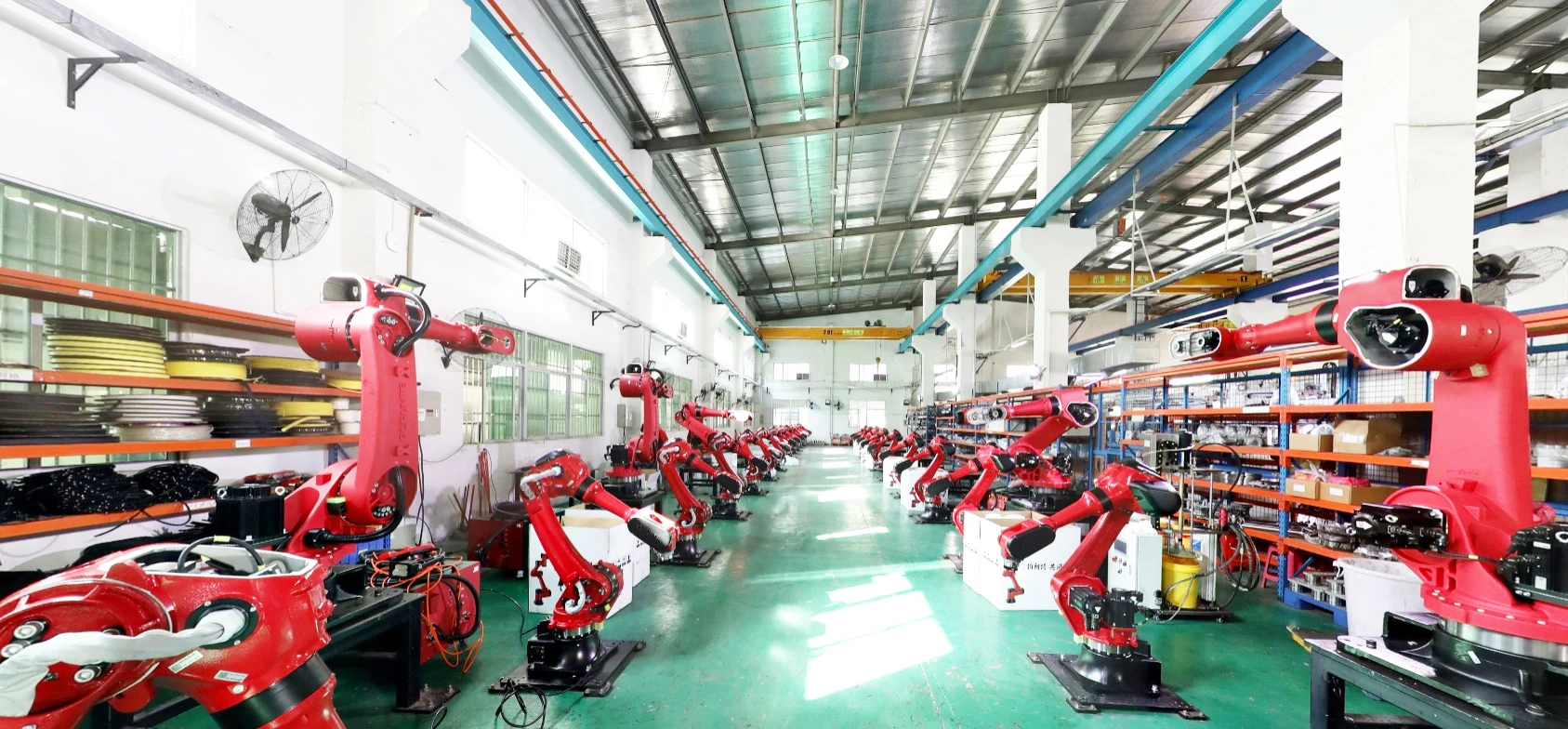

Company Profile



Longen intelligent equipment Co., Ltd. was founded in 2012, from a singleautomated assembly line to the whole field automation supporting applicationprogram, set design, development, manufacturing training and after-sales serviceas one, the company's products are: industrial robot applications widely usedin spraying,welding, grinding, stamping, automatic assembly, machine toolloading and unloading, palletizing, aluminum casting, etc. Automatic sprayingline, electrophoresis line, logistics, high precision CNC parts processing and avariety of non-standard automatic production lines.

CERTIFICATIONS

Exhibition Photos

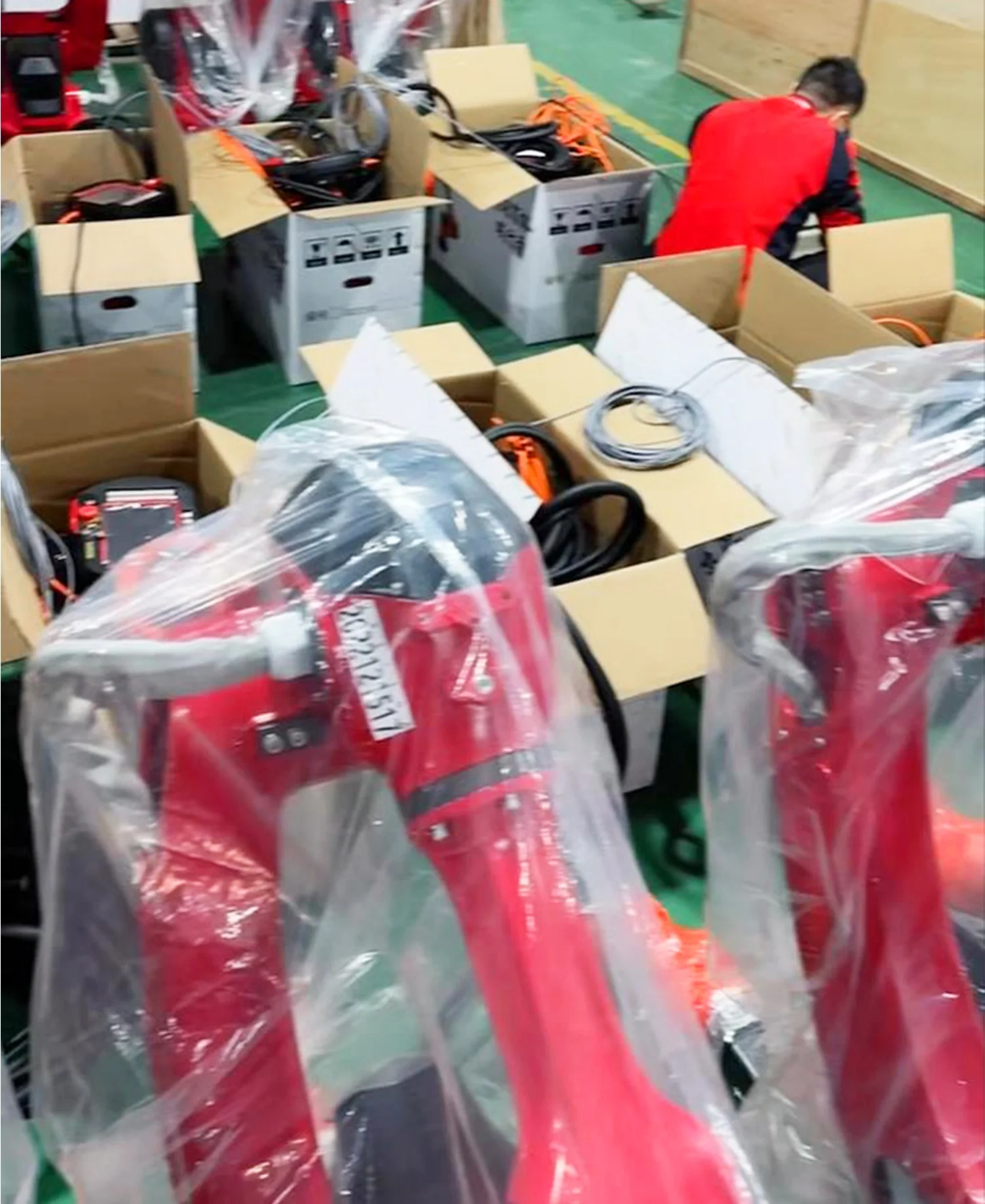

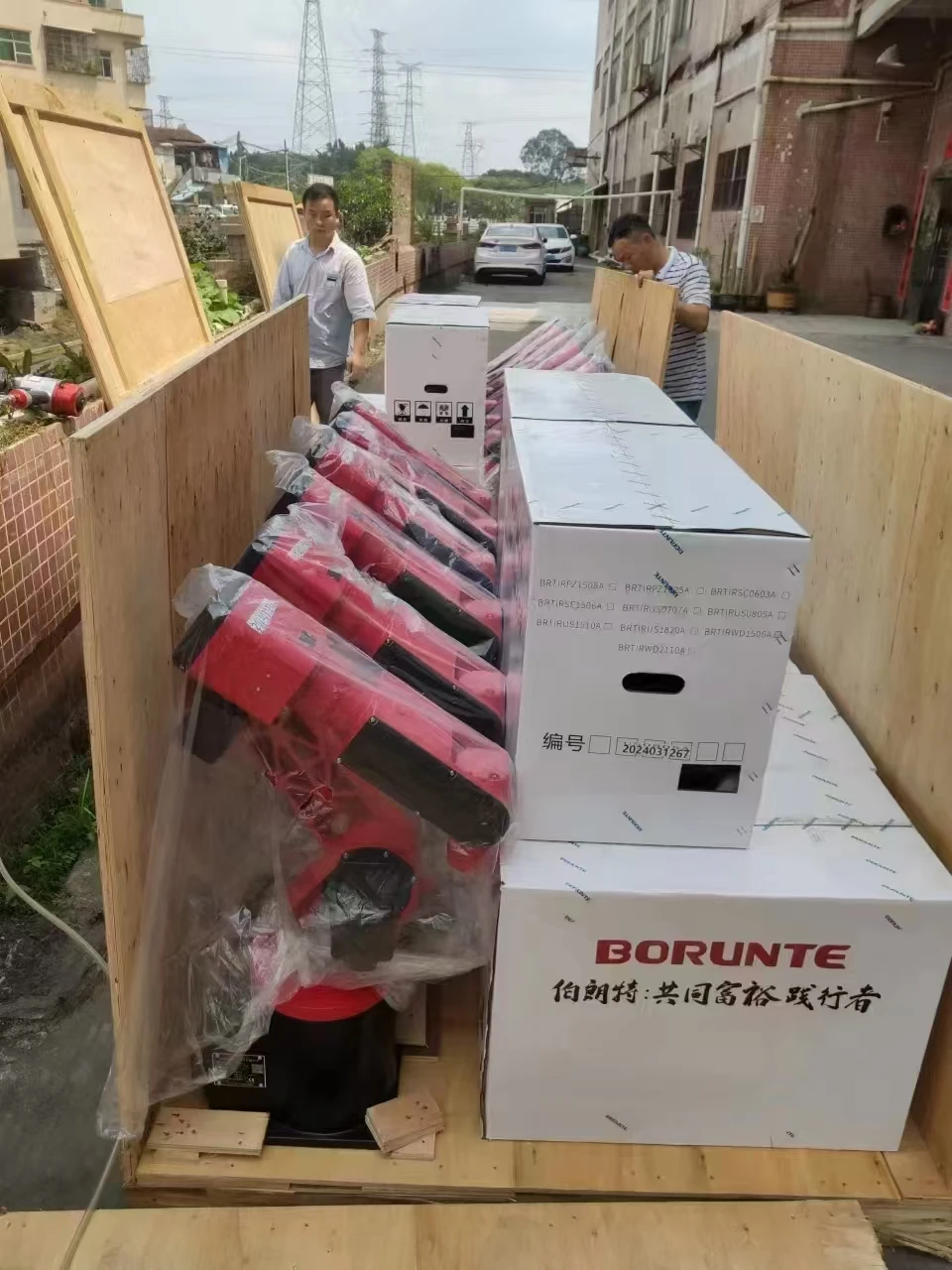

Packing & Delivery

1. Standard export pallet package

2. 1 PCS Packaging size: 55*70*70CM锛孏W:70KG

3. Loading port锛歋henzhen / Shanghai

4. loading within 3-5 working days after payment

FAQ

Q: Are you a trading company or manufacturer? A: We are an experienced manufacturer with a factory covering an area of 30,000 square meters. Q: How to choose the right robot model? A: Acoording to the application, your products weight and the needs of arm length. You can send us the video of your workers'oparation, and then we will recommend the most suit model for you. Q: Can I have my own customized product? A: Yes.OEM are available,including logo,package etc. Q: How long is the warranty period of your robot? A: 1 year warranty and lifetime maintenance. Q: What's the delivery time? A: Within 5-10 days for ready stock order.The exact time depends on actual situation. Q: What payment do you accept? A: In general, our payment is trade assurance order for retail order and bulk order accept T/T ,Deposit and etc.
