SPECIFICATIONS

After Warranty Service: Online Technical Support

Brand: rayman

Brand Name: NoEnName_Null

Core Components: PLC, Gearbox, Gear

Function: Picking Lifting Handing Placing

High-concerned chemical: None

Key Selling Points: High Safety Level

Keyword: Automatic Robot

Machinery Test Report: Provided

Marketing Type: Hot Product 2022

Origin: Mainland China

Payload: 10kg

Product name: Robot Arm

Robot type: 6 Axis Articulated Robot

Technology: Robot Controller Technology

Type: Hand Tool Parts,Stamping Line

Usage: Industrial

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

condition: New

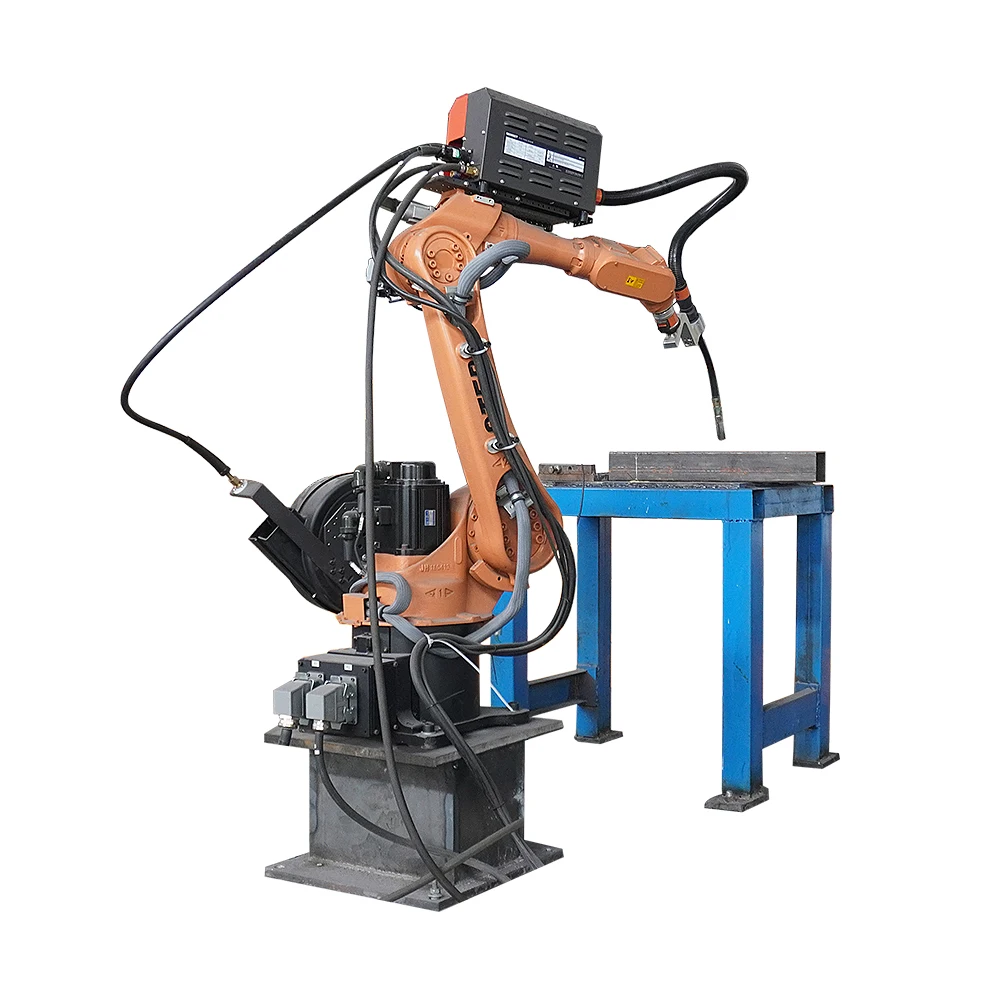

machine type: Welding robot

place of origin: China

warranty: 1 Year

weight (kg): 200

If you need me to reply to you now, you can add my Whats.app + 86 17375790872, Thank you again! Wishing you a happy life



Robotic Arm Industrial Industrial Manipulator Machine Robot Arm Industrial Robot Arm Price Servo Motor For Industria

Robot Specifications
Model No.MR10-1440
Controlled axis 6-DOF
Max payload 10 kg
Max stroke 1440mm
IP Level J1, J2-IP56; J3, J4, J5, J6-- IP67
Installation mode Floor type, ceiling type
Robot mass 172 kg
Repeatability ±0.05 mm
Plasma cutting machines IGBT LGK-120A, Huyuan brand
Travel range

J1 axis S ±160°
J2 axis L +80°~-145°
J3 axis U+145°~-75°
J4 axis R ±190°
J5 axis B +50°~-210°
J6 axis T ±230°
Travel speed

J1 axis S 199.5 藲/s
J2 axis L 159.3 藲/s
J3 axis U 199.5 藲/s
J4 axis R 392 藲/s
J5 axis B 272 藲/s
J6 axis T 1000 藲/s



Electrical cabinet speci铿乧ations
Dimensions 650*460*580mm
Cabinet Mass 50KG
Cooling method Natural cooling
IP Level IP54
Input power 220VAC 50/60Hz
I/O signal 16-in / 16-out 24VDC; 2 analog output 0~10V
LAN EtherCAT, TCP/IP
Serial port I/F RS485*1, RS422*1, RS232*1, CAN*1, USB*1
RAM capacity JOB 200,000 steps (200MB) PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Installation environment
Ambient temperature 0~45°C
Humidity 20~80%RH, no condensing
Vibrations Below 0.5G
Altitude Below 1000m

Other requirements
鈼� With no corrosive or combustible gas
鈼� With no water, oil or drug splashing
鈼� With no electromagnetic 铿乪ld nearby
鈼� With no radiations nearby
