SPECIFICATIONS

After Warranty Service: Video technical support, Online support

After-sales Service Provided: Video technical support, Online support

Applicable Industries: Machinery Repair Shops, Manufacturing Plant

Axis: 4 Axis

Brand Name: NoEnName_Null

CN: Guangdong

Core Components: PLC, Bearing, Motor, Gear

Function: Multifunctional Automatic Soldering Robot

Heating Power: 150~300W

High-concerned chemical: None

Key Selling Points: Automatic

Machinery Test Report: Provided

Marketing Type: New Product 2020

Model: GM-HX-TS5331-Double

Operate Temperature: 0℃~40℃

Origin: Mainland China

Preheating Temperature Range: 0℃~550℃

Product name: Automatic PCB Soldering Machine

Showroom Location: None

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

brand name: MINGSHUO

condition: New

current: AC

dimensions: 1040 x 680 x 900mm

place of origin: Guangdong, China

type: Soldering Machine

usage: TIN SODLERING

voltage: 110V / 220V

warranty: 1 Year

weight (kg): 85 KG

Products Description

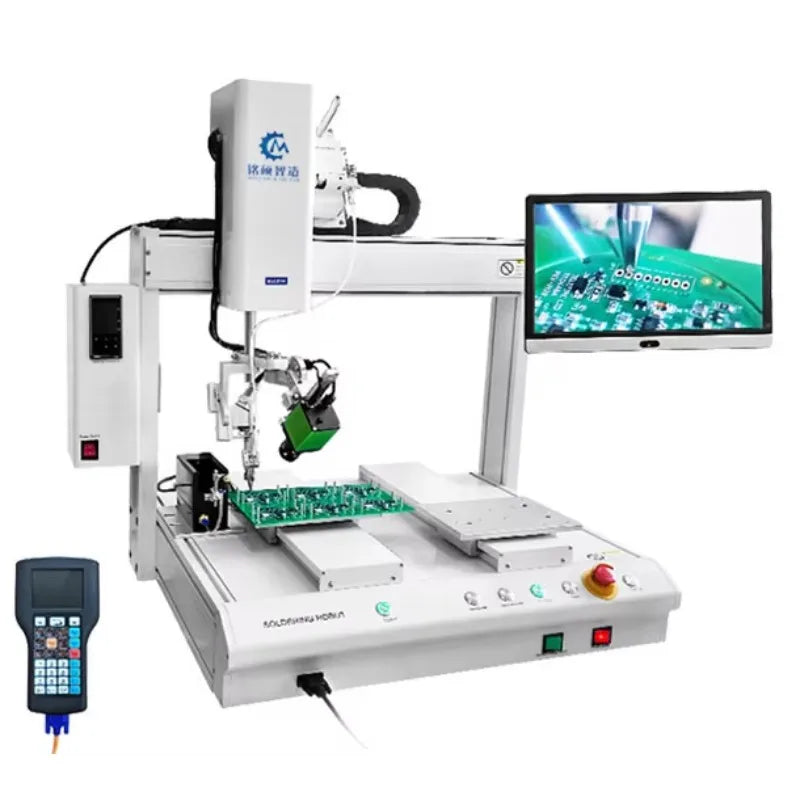

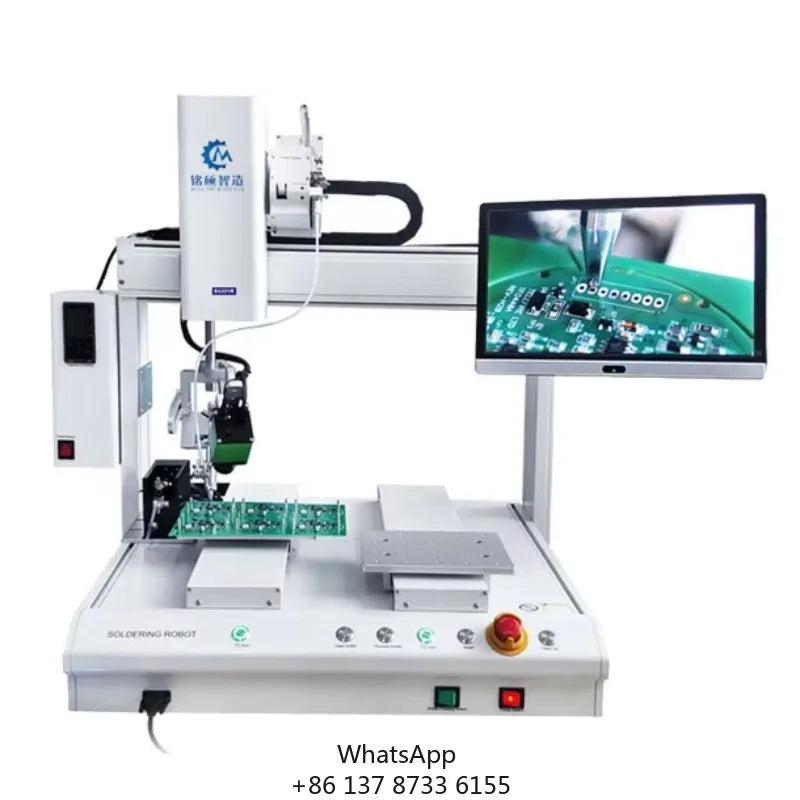

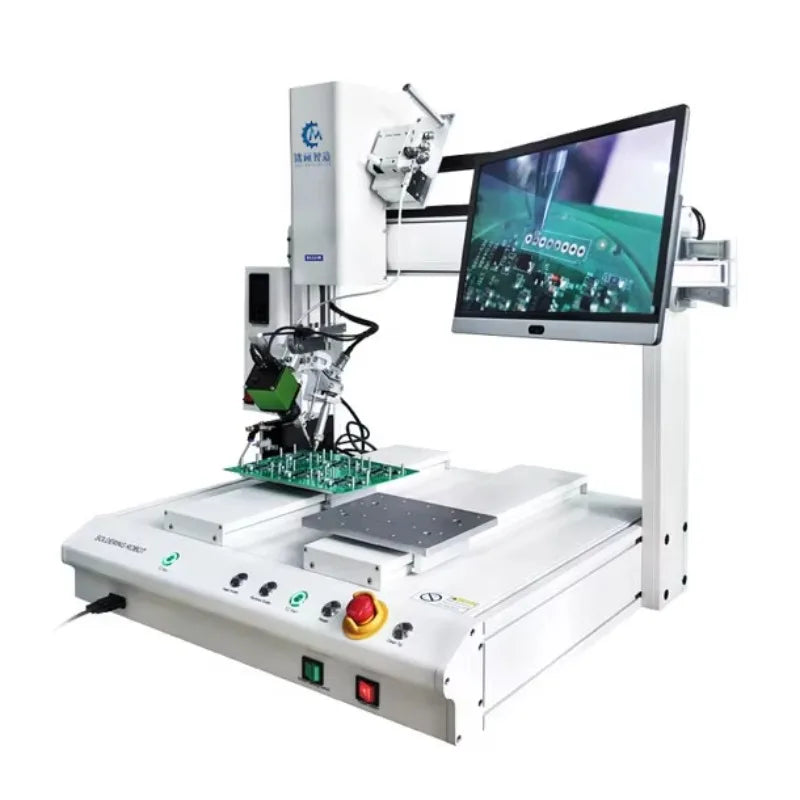

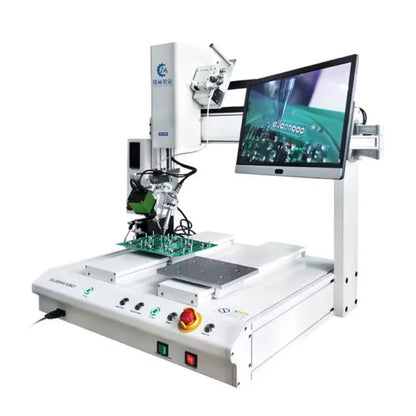

Soldering Robot:
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the
soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.

Features

1. High power heating controller ensures the tip temperature to reach 350°C within 30 seconds;

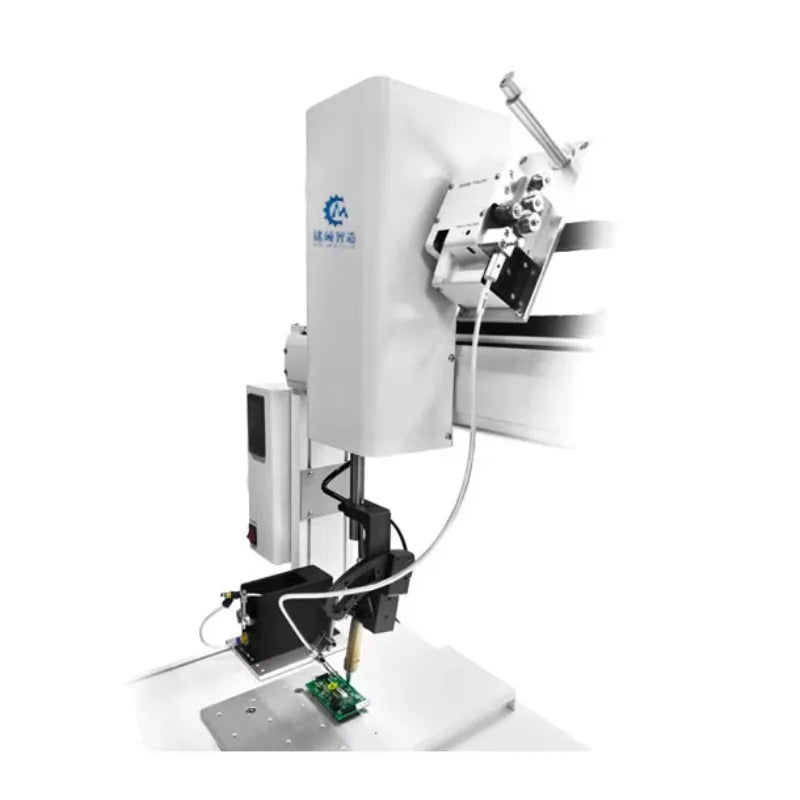

2. With the sleeve design, the soldering tip can be replaced quickly and easily.
3. Intelligent solder feeding mode, parameters can be set freely.
4. Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.

Specification

Model	GM-HX-TS5331-Double
Voltage	110V / 220V
Heating Power	150~300W
Preheating Temperature Range	0℃~550℃
Axis	5
Operating Range (X * Y * Z)	500 x 400 x 80mm
Movement Speed	X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy	±0.002mm (X * Y * Z)
Resolution	0.01mm (X * Y * Z)
Maximum Load Weight	8kg (for work platform)
Solder Wire Diameter	0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Operate Temperature	0℃~40℃
Operate Humidity	20~90%
External Dimensions	1040 x 680 x 900mm
Weight	about 85kgs

Application

The robot is widely used for welding all kinds of plug-in electronic components such as capacitors, resistors, plugs, shield boxes, etc.,as well as various electronic connectors, LED lamp posts and light strips,video cable plugs,audio cable plugs,RF
cables plugs, sockets, headphone cable, computer cable, USB cable, power lines and small circuit board etc.

Company Profile

Package & Shipment

Packed in wooden case for export, filled with cushion cotton.
