SPECIFICATIONS

Anycubic Photon Mono 4: Anycubic Photon Mono 4

Anycubic Photon Mono M5: Anycubic Mono M5

Anycubic Photon Mono M5s: Anycubic Mono M5s

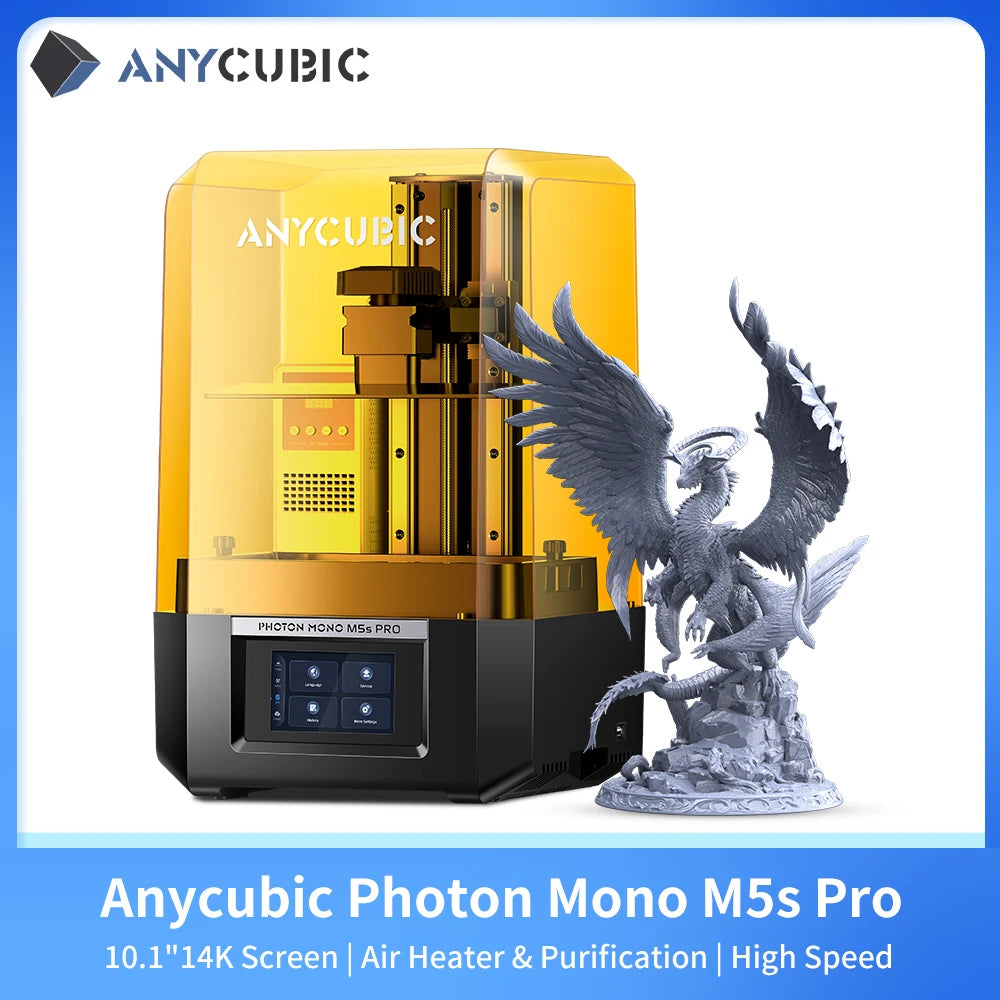

Anycubic Photon Mono M5s Pro: Anycubic Mono M5s Pro

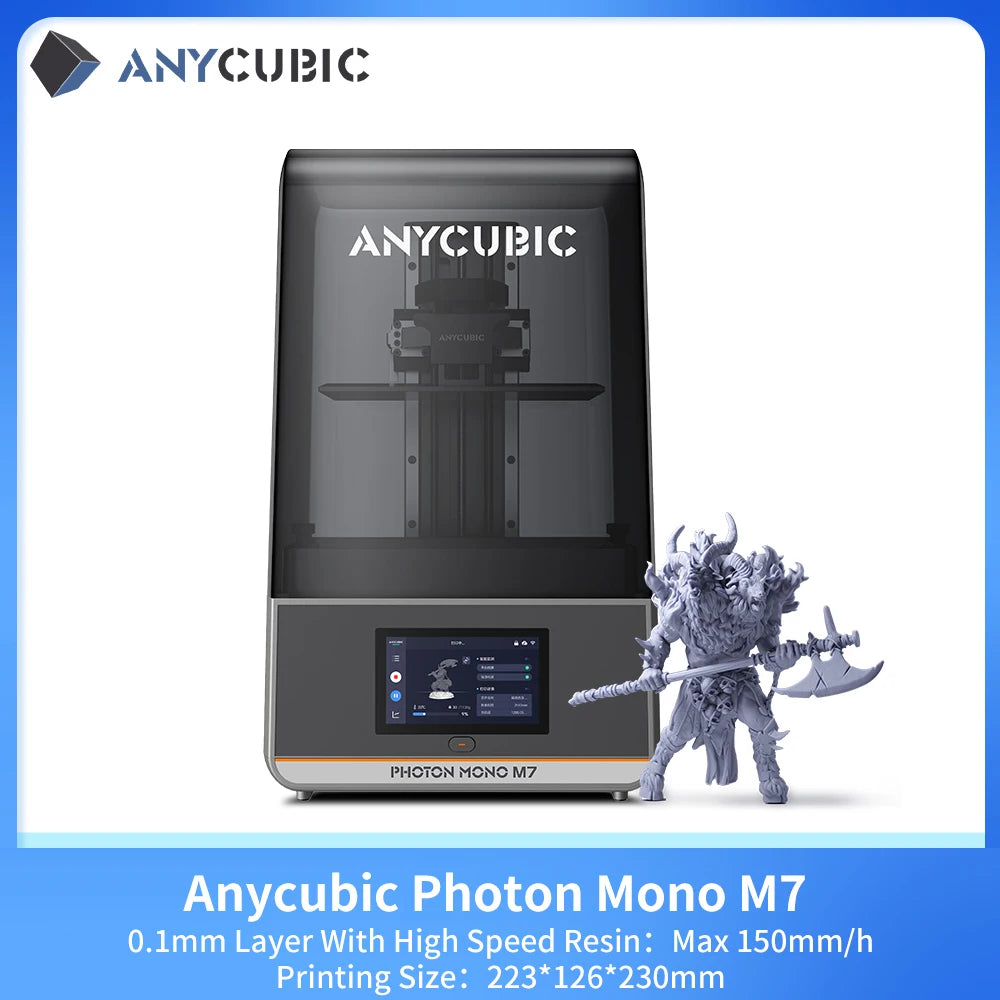

Anycubic Photon Mono M7: 14K 3D Printer

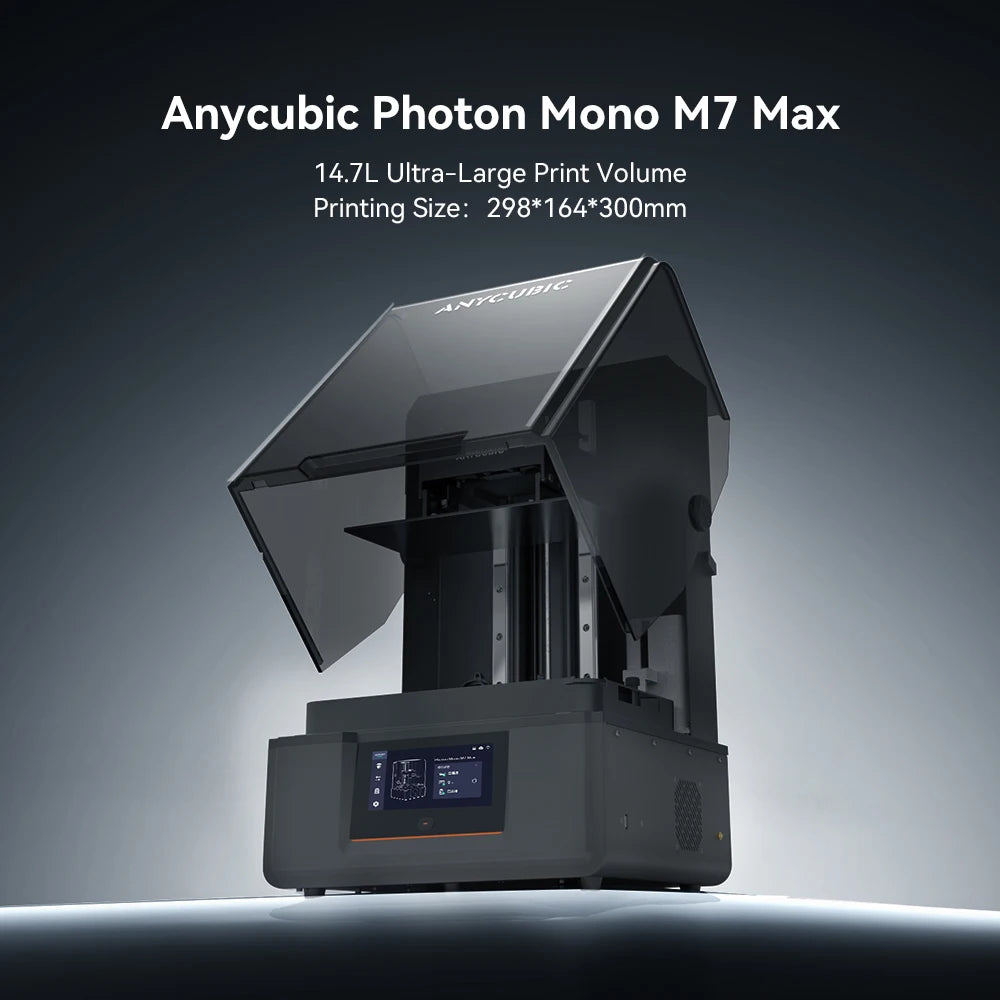

Anycubic Photon Mono M7 Max: 7K M7 Max

Anycubic Photon Mono M7 Pro: 14K LCD 3D Printer

Anycubic Wash and Cure 3: Wash and Cure 3

Anycubic Wash and Cure 3 Plus: Wash and Cure 3 Plus

Anycubic Wash and Cure Max: Wash and Cure Max

Brand Name: PHOTON

CE Certification: Yes

Certification: CE

DLP 3D Printer: Resin 3D Printer

Fliament: 405mm Resin

High-concerned chemical: None

Impresora 3d: 3D Printer

Interface Type: USB

Molding Technology: LCD

Origin: Mainland China

Photon Mono 4 Ultra: Photon Mono 4 Ultra

SLA 3D Printer: LCD 3D Printer

Slice Software: PHOTON Workshop

Warranty: 1 Year Warranty

Wireless Connectivity: None

ANYCUBIC Photon Mono 2

The First Choice for Resin 3D Printing Beginner

6.6-inch 4K+ LCD Screen | 2.09L Print Volume | Upgraded LighTurbo Matrix

Exposure screen: 6.6'' monochrome

Printing accuracy: 4K+4,098 x 2,560 px

Contrast ratio: 300:1

Light transmittance3.5-4.5%

Light source: Parallel matrix (LED x 15)

Printing dimensions: 5.6 x 3.5 x 6.5 in.

Printing time: >1.5s / layer

Printing speed: 1.97 in./hr.

Machine leveling: Manual (4-point)

Power supply: 48W

ANYCUBIC Photon Mono X2

Following the Classics Unlimited Creativity

9.1" 4K HD Screen  |  Anycubic LightTurbo  |  Improved Speed & Stability

Exposure screen: 9.1'' monochrome

Printing accuracy: 4K+4,098 x 2,560 px

Contrast ratio: 200:1

Light transmittance: 5.0%

Light source: Parallel matrix (LED x 24)

Horizontal resolution: 48 μm

Printing dimensions: 7.8*7.7*5 in.

Printing time: 1.5-3s/ layer

Printing speed: 2.36 in./hr.

Machine leveling: Manual (4-point)

Power supply: 100W

ANYCUBIC Photon Mono X 6Ks

6K and 9-inch Upgrade

9.1 inch 6K screen | 4.76L build volume | Upgraded LighTurbo Matrix

Exposure screen: 9.1'' monochrome

Printing accuracy: 6K5,760 x 3,600 px

Contrast ratio: 380：1

Light transmittance: 6.5%

Light source: Parallel matrix (LED x 24)

Horizontal resolution: 34 μm

Printing dimensions: 7.8 x 7.7 x 4.8 in.

Printing time: ≥1s / layer

Printing speed: 3.15 in./hr.

Machine leveling: Manual (4-point)

Power supply: 80W

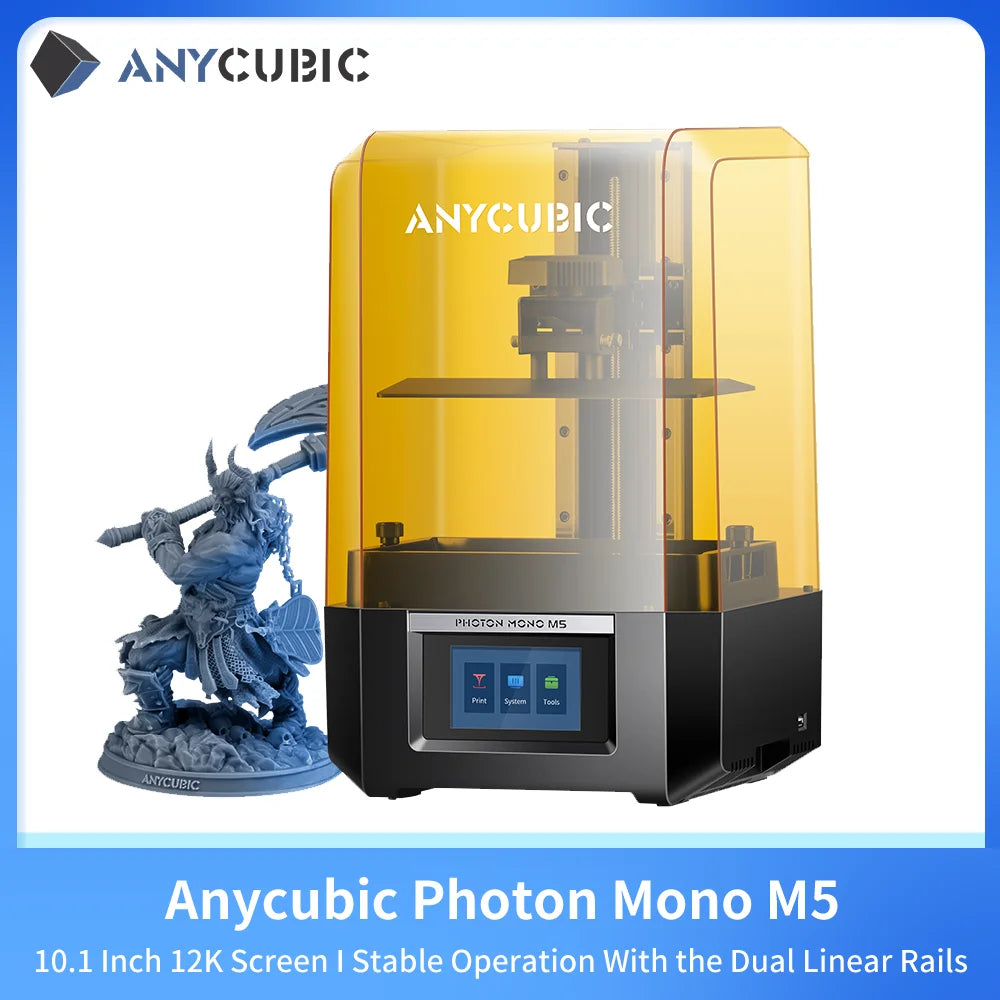

ANYCUBIC Photon Mono M5

Details Always On

10.1 Inch 12K | Laser Carving Build Plate | Dual Lead Screw Linear Rails

Support App control

Exposure screen: 10.1'' monochrome

Printing accuracy: 12K 11520*5120

Contrast ratio: 480：1

Light transmittance: 4.7%

Light source: Parallel matrix (LED x 28)

Horizontal resolution: 19μm

Printing dimensions: 8.58 x 7.87 x 4.84 in.

Printing speed: 1.96 in./hr.

Machine leveling: Manual (4-point)

Power supply: 100W

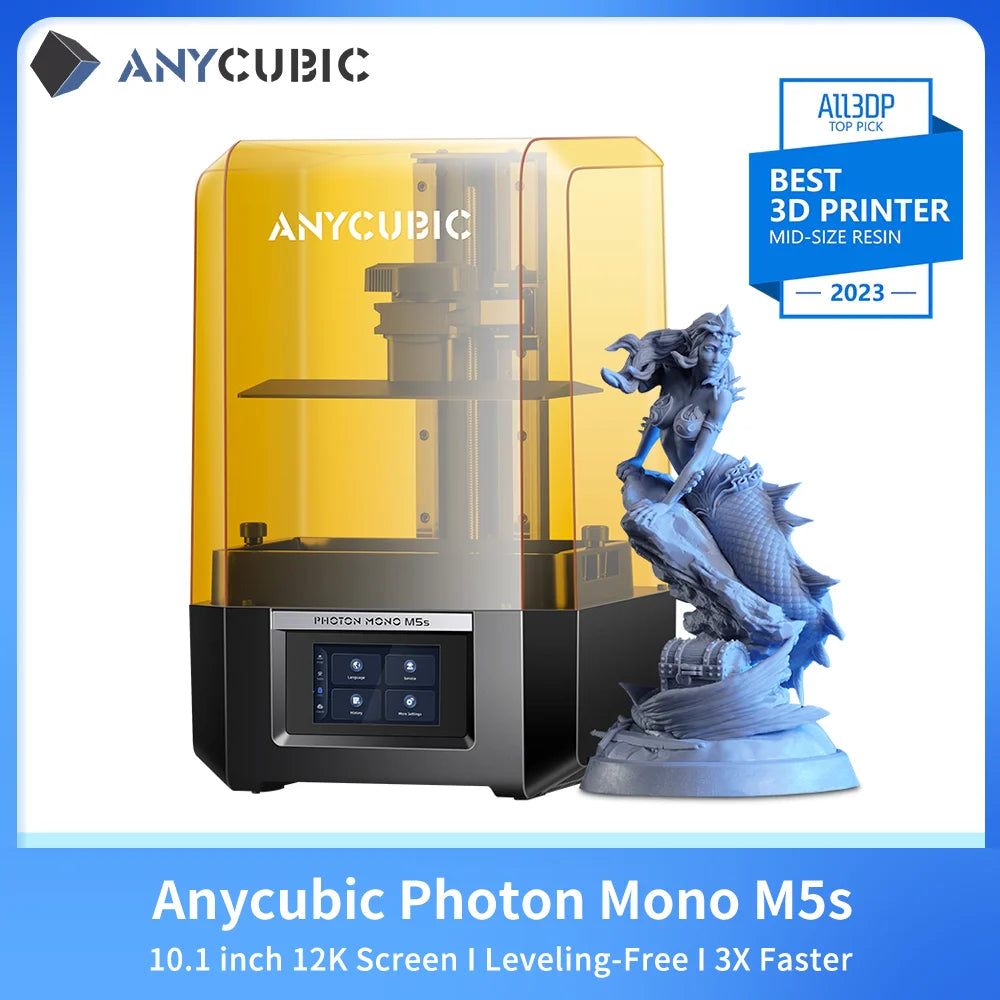

ANYCUBIC Photon Mono M5s

Print Like a Master

10.1" 12K Screen | Leveling-Free | 3X Faster

Support App control

Machine leveling: Leveling-Free

Exposure screen: 10.1'' monochrome

Printing accuracy: 12K 11520*5120

Contrast ratio: 480: 1

Light transmittance: 4.7%

Light source: Parallel matrix (LED x 28)

Horizontal resolution: 19μm

Printing dimensions: 8.58 x 7.87 x 4.84 in.

Printing speed: With high speed Resin：4.13 in./hr, With general resin：2.76 in./hr"

Power supply: 100W

ANYCUBIC Photon M3 Max

Large and Extraordinary

14.7L Large Print Volume | 13" 7K Monochrome Screen | Anycubic Auto Resin Filler

Support Automatic feeding

Exposure screen: 13.6'' monochrome

Printing accuracy: 7K6,480 x 3,600 px

Contrast ratio: 450:1

Light transmittance: 5-6%

Light source: Parallel matrix (LED x 84)

Horizontal resolution: 46 μm

Printing dimensions: 11.8 x 11.7 x 6.5 in.

Printing time: ≥1.5s / layer

Printing speed: 2.36 in./hr.

Machine leveling: Manual (4-point)

Power supply: 120W

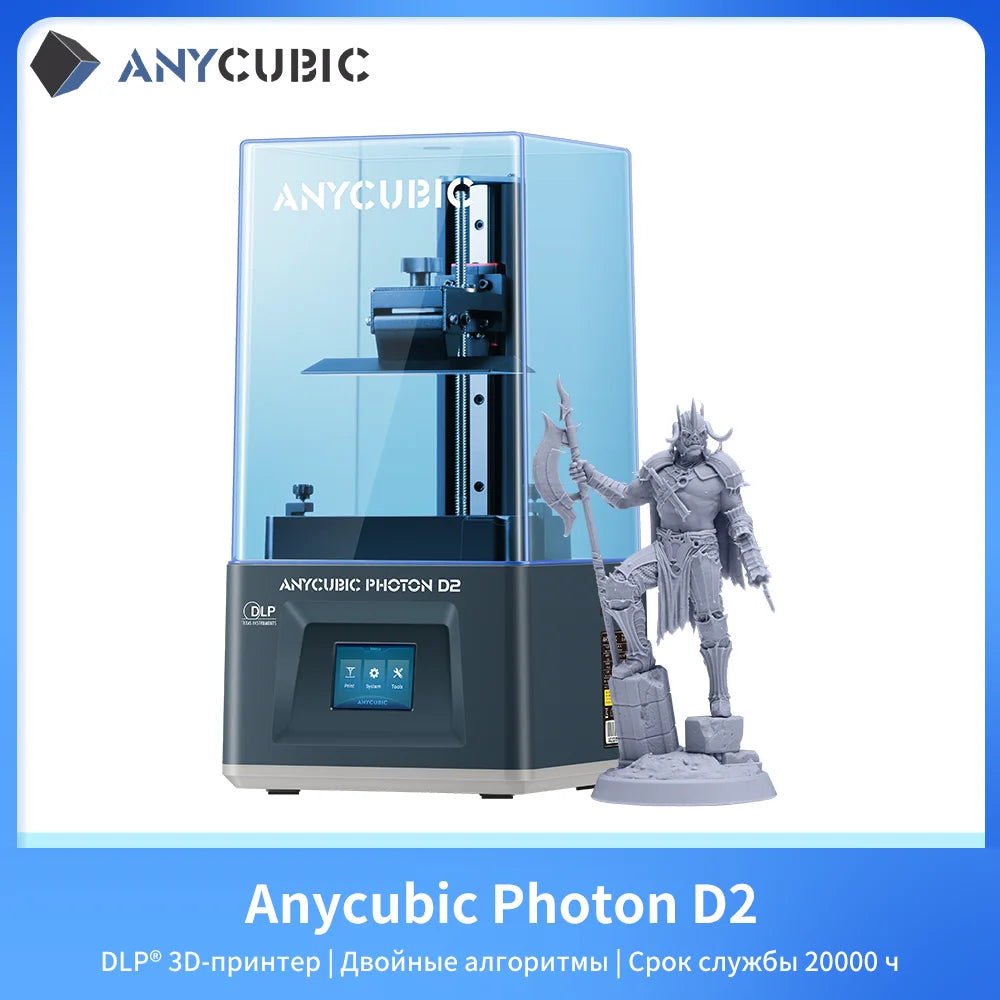

ANYCUBIC Photon D2

One Step Forward

DLP®| High Precision| Premium Experience

Exposure screen: 5.9'' monochrome

Printing accuracy: 2K2,560 x 1,440 px

Contrast ratio: 1000:1

Light source: DLP

Horizontal resolution: 51 μm

Printing dimensions: 6.5 x 5.1 x 2.9 in.

Printing time: ≥2.5s / layer

Printing speed: 1.96 in./hr.

Machine leveling: Manual (4-point)

Power supply: 15W

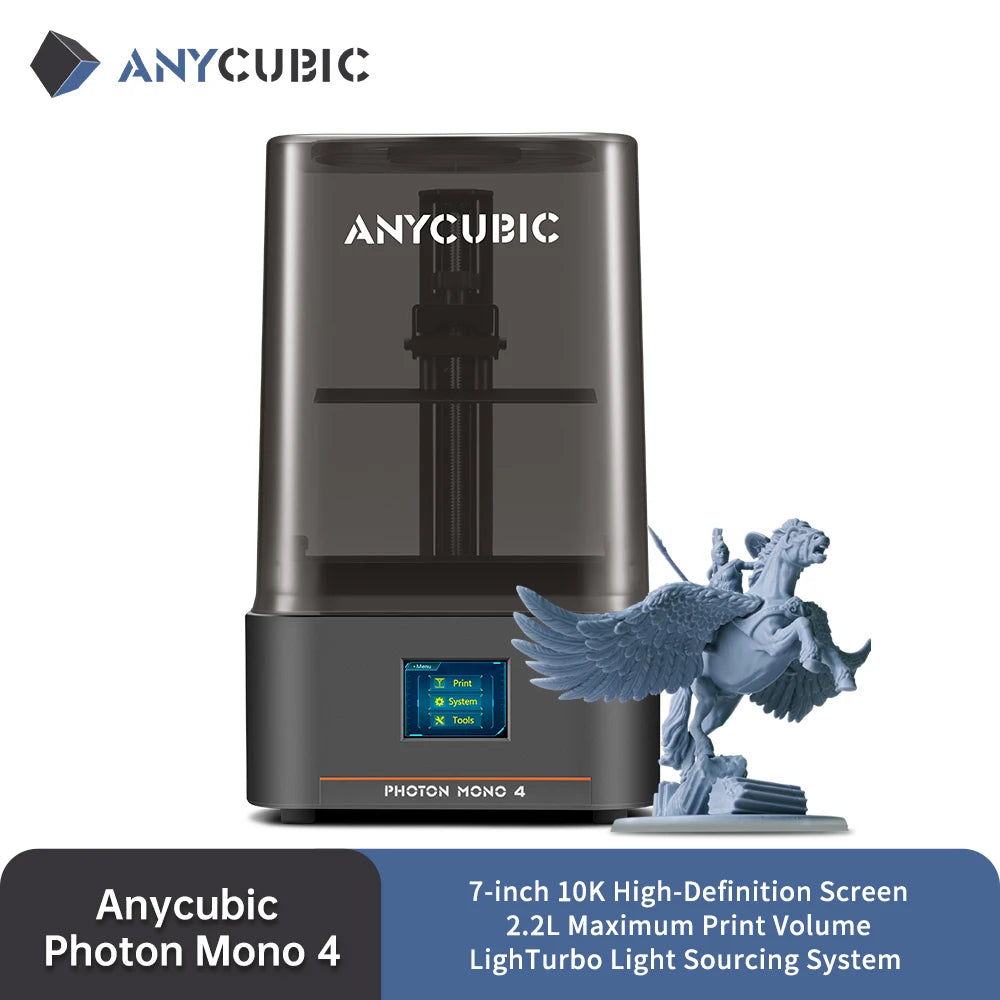

ANYCUBIC Photon Mono 4

Beginning is Stunning

7-inch 10K High-Definition Screen |2.2L Maximum Print Volume | LighTurbo Light Sourcing System

Exposure screen: 7" High-Definition Screen

Printing accuracy: 10K+9024 x 5120 px

Light source: Parallel matrix upgrade Light Source

Printing dimensions: 6.0 x 3.4 x 6.5 in.

Product Dimensions：9.1 x 9.3 x 15.4 in.

Printing speed: ≤2.76 in./hr.

Machine leveling: Manual (4-point)

Slicing software：Photon Workshop

File Transfer：USB

Maximum print volume：2.2L

Net Weight：4KG

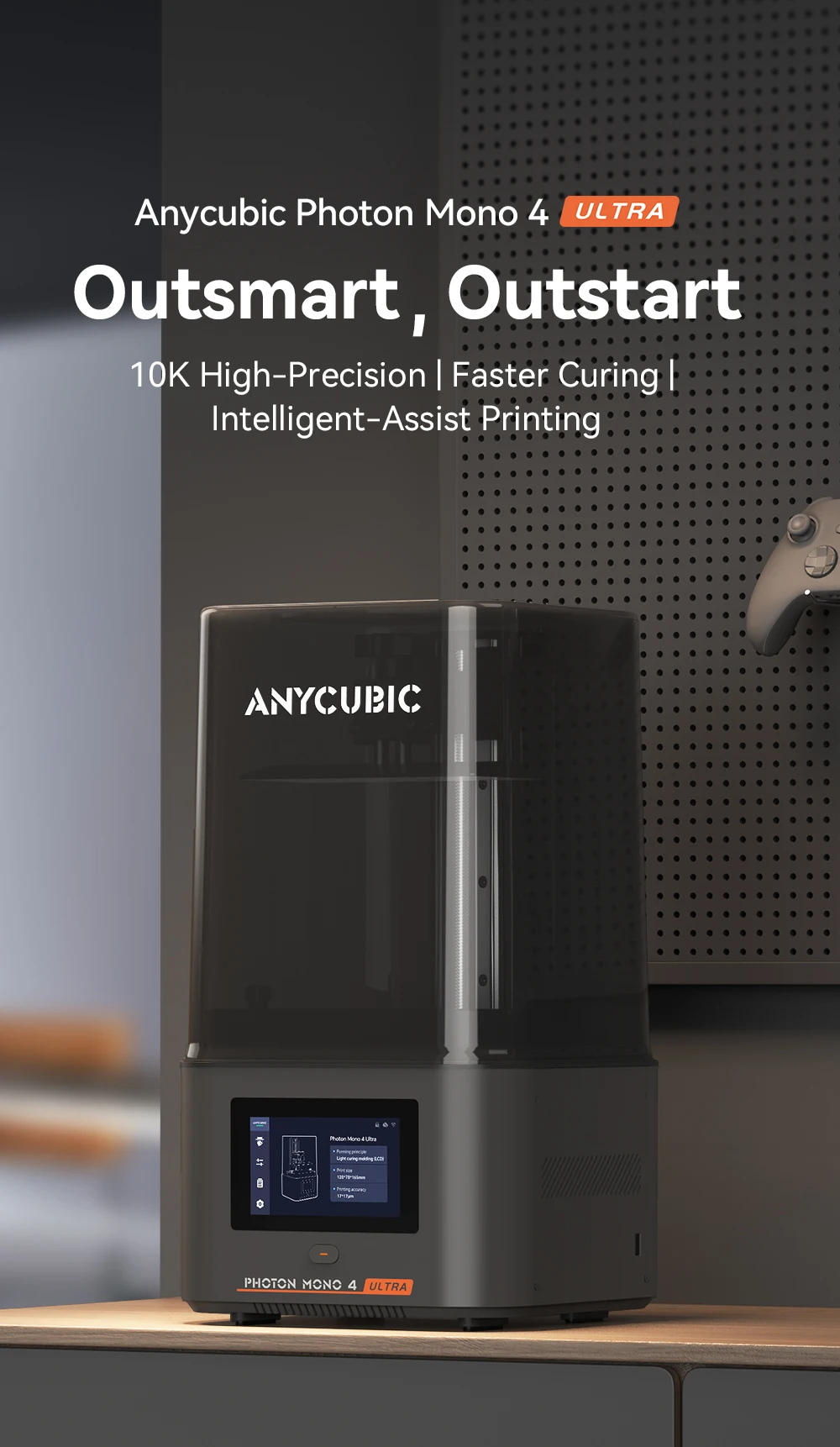

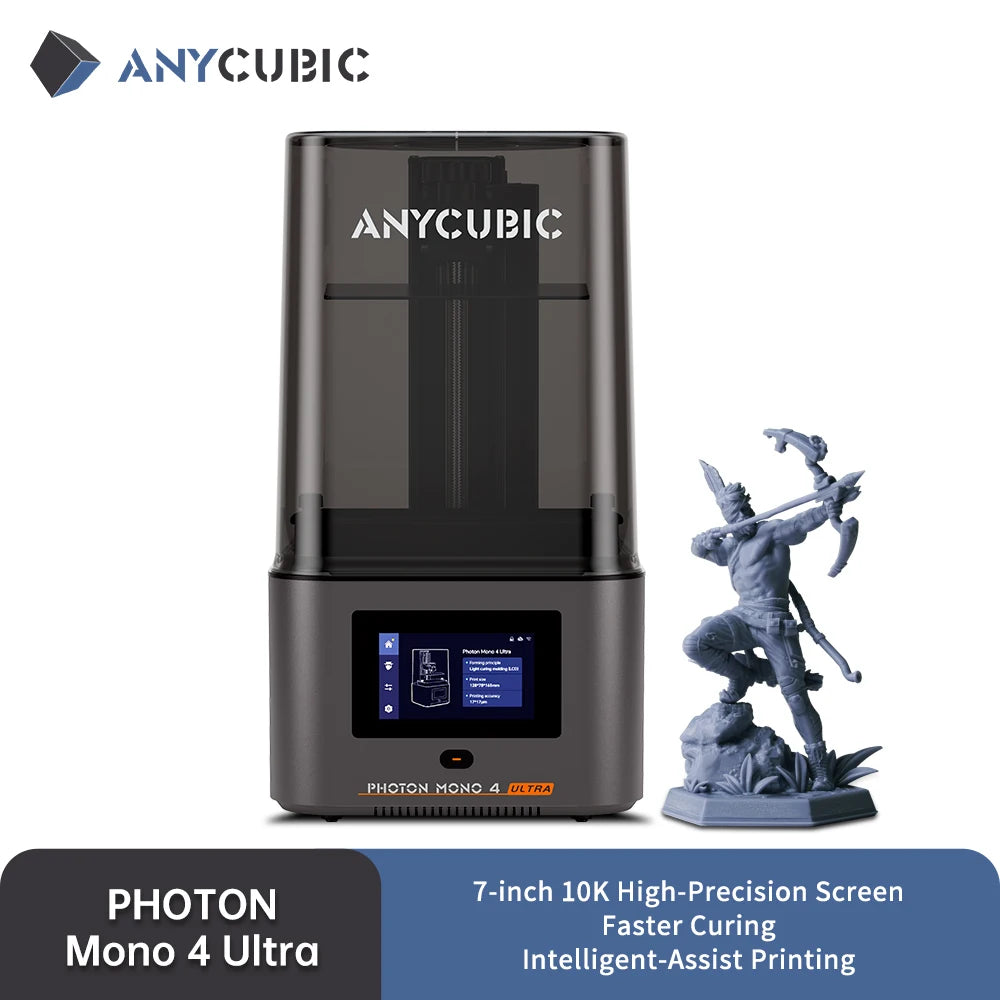

ANYCUBIC Photon Mono 4 Ultra

Outsmart, Outstart

10K High-Precision | Faster Curing | Intelligent-Assist Printing

●Z Axis：Single liner with 20μm accuracy

● Build Platform: Laser engraving aluminum alloy

● Exposure Screen: 7"  monochrome

●LCD Resolution：10K (9024*5120px)

● Light Source: COB Light Source and Fresnel Lens and Factory Algorithm Calibration

● Control Panel: 4.3" TFT touch-control

● Data Input: USB-A 2.0, WIFI

● Machine Leveling: 4-point manual leveling

● Printing Speed 1: 80mm/h peek speed(Standard Resin 0.1mm layer height)

● Printing Spee2: 120mm/h peek speed(High Speed Resin 0.1mm layer height)

● Printing Dimensions: 6.04*3.42*6.48in./153.4*87.*165mm (HWD)

● Product Dimensions:236mm*231mm*430mm/ 9.29*9.09*16.93in.(HWD)

● Machine Weight: 5KG/11lb.

●Maximum print volume：2.2L/74.4oz.

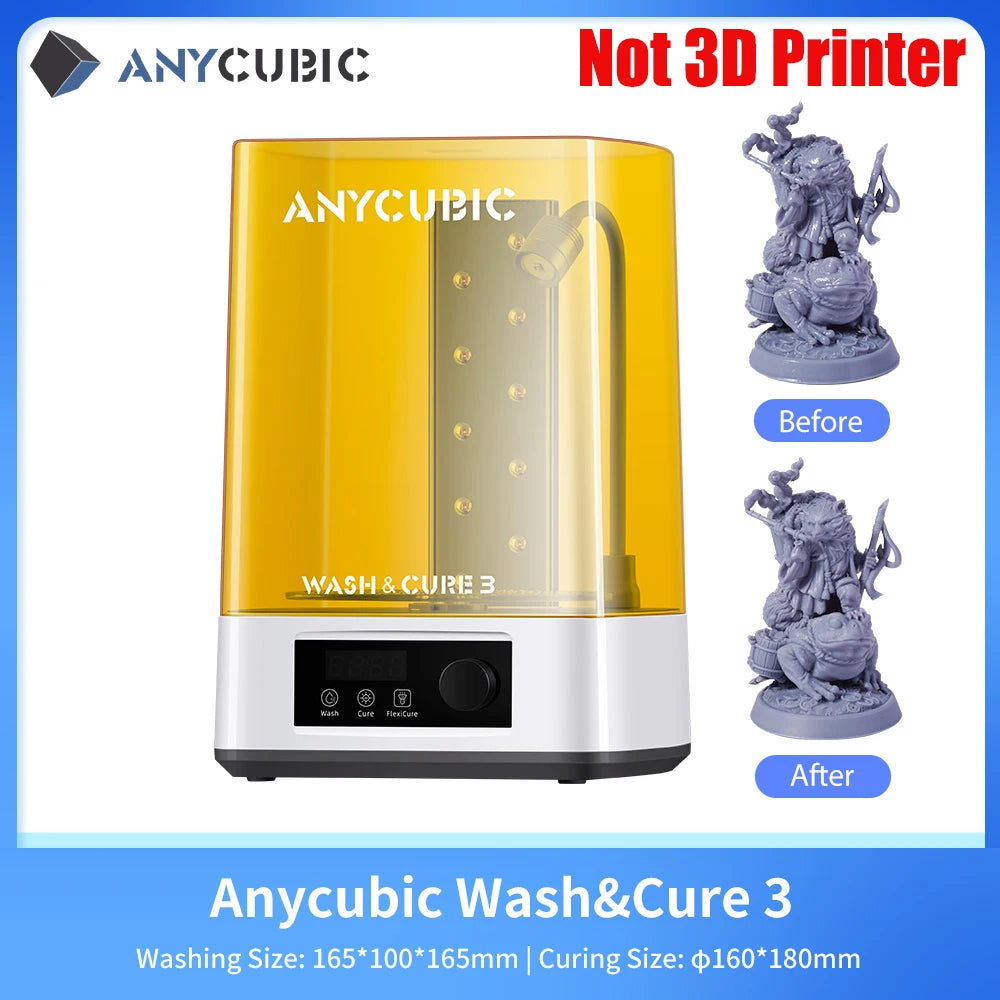

Wash and Cure 3

Cleaning Size(With platform): 165*100*165mm/ 6.5*3.9*6.5 inch

Maximum Cleaning Size(Without platform): 165*100*180mm/ 6.5*3.9*7.1 inch

Maximum Curing Size: φ160*180mm/ φ6.2*7.08 inch

Machine size: 216*217*310 mm/ 8.5*8.5*12.2 Inches (L*W*H)

Machine Weight: 2.7 kg/ 5.9 lbs

Suitable Model: Photon Mono 2/ Photon D2

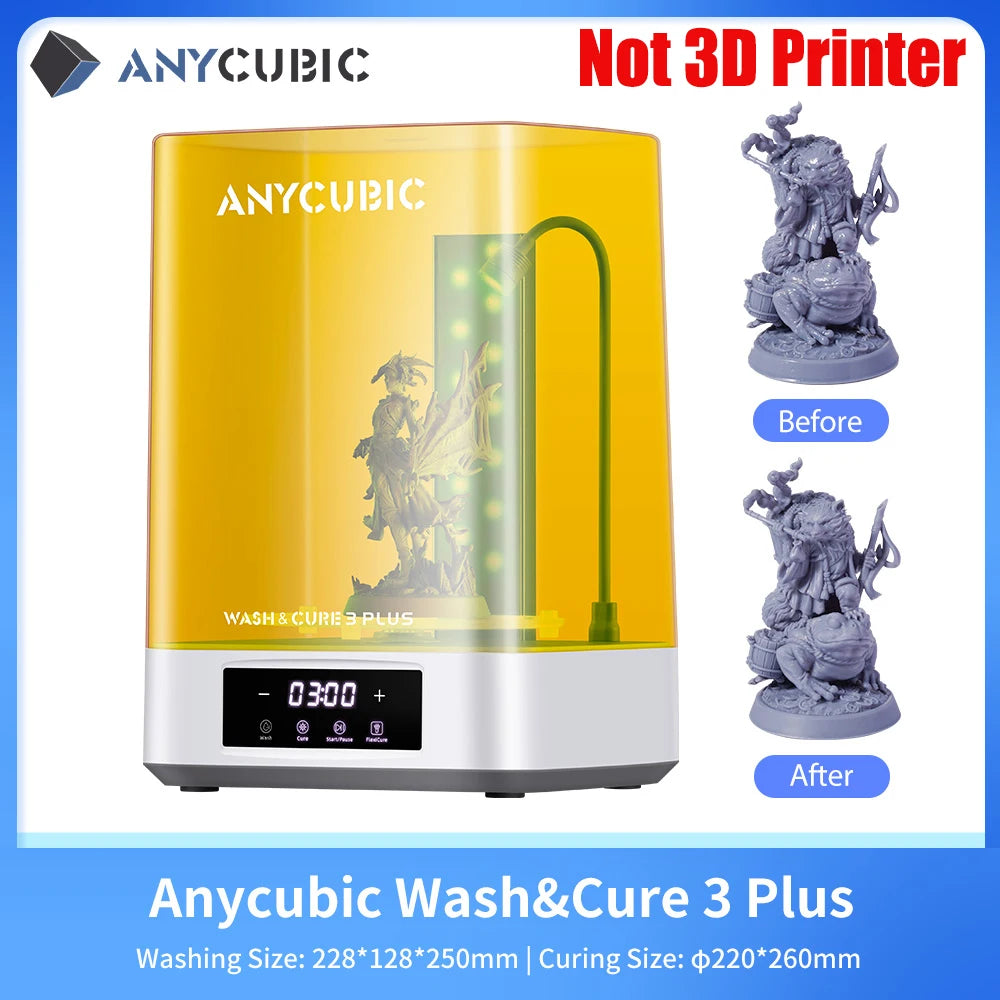

Wash and Cure 3 Plus

Cleaning Size(With platform): 228*128*250 mm/ 6.5*5.0*9.8 inches

Maximum Cleaning Size(Without platform): 228*128*260 mm/ 6.5*5.0*10.2 inches

Maximum Curing Size: φ220*260mm/ φ8.7*10.2 inch

Machine size: 312*267*434mm/ 12.3*13.8*17.1 inches (L*W*H)

Machine Weight: 5.7 Kg/ 12.6 lbs

Suitable Model: Photon Mono X2/ X 6Ks/ M5/ M5s

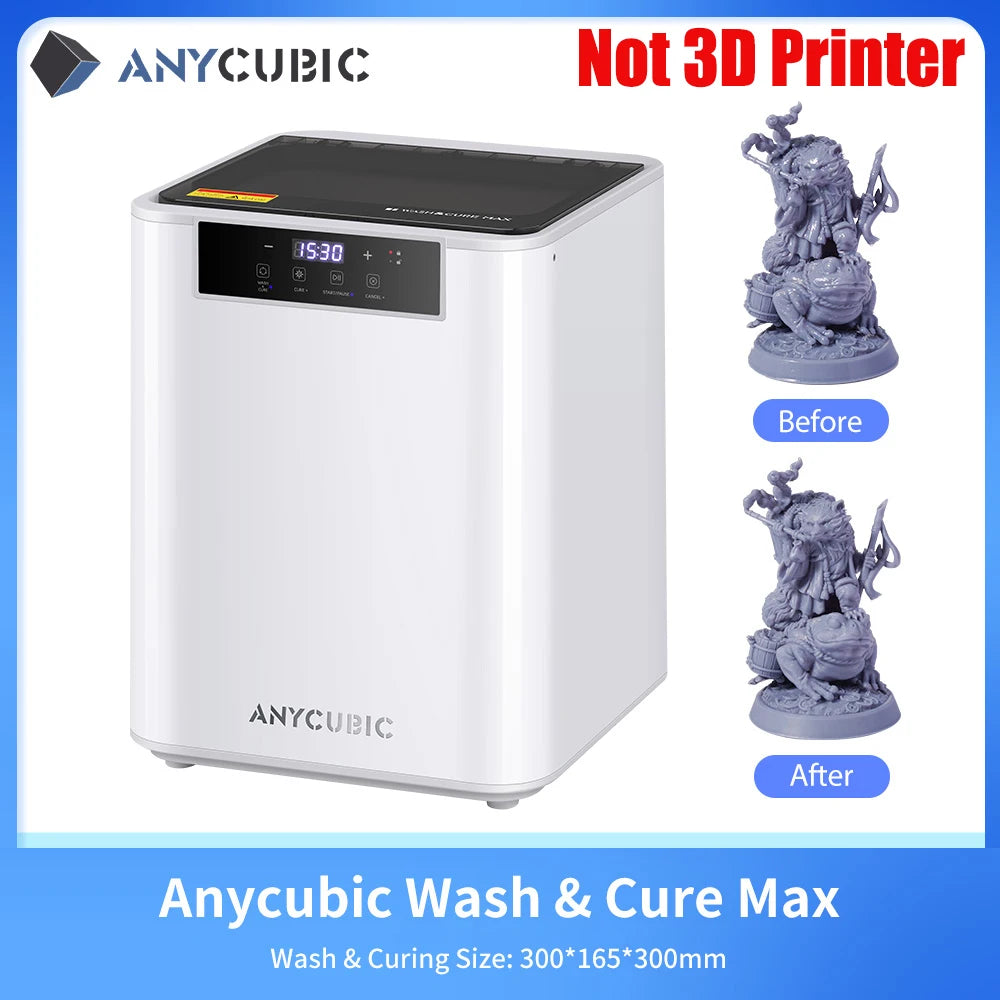

Wash and Cure Max

Washing and Curing Size: 300*165*300mm/ 11.8*6.5*11.8 inches (LWH)

Machine size: 434*434*556mm/ 17.1*17.1*21.9 inches (LWH)

Machine Weight: 13.5 kg / 29 lbs

Suitable Model: Photon M3 Max
