Model: NKRT60407
Voltage: 220V
Payload: 4kgs
Arm range: 700mm
Application: teaching, coffee machine, vending machine, pic and place etc
Industrial Machine™

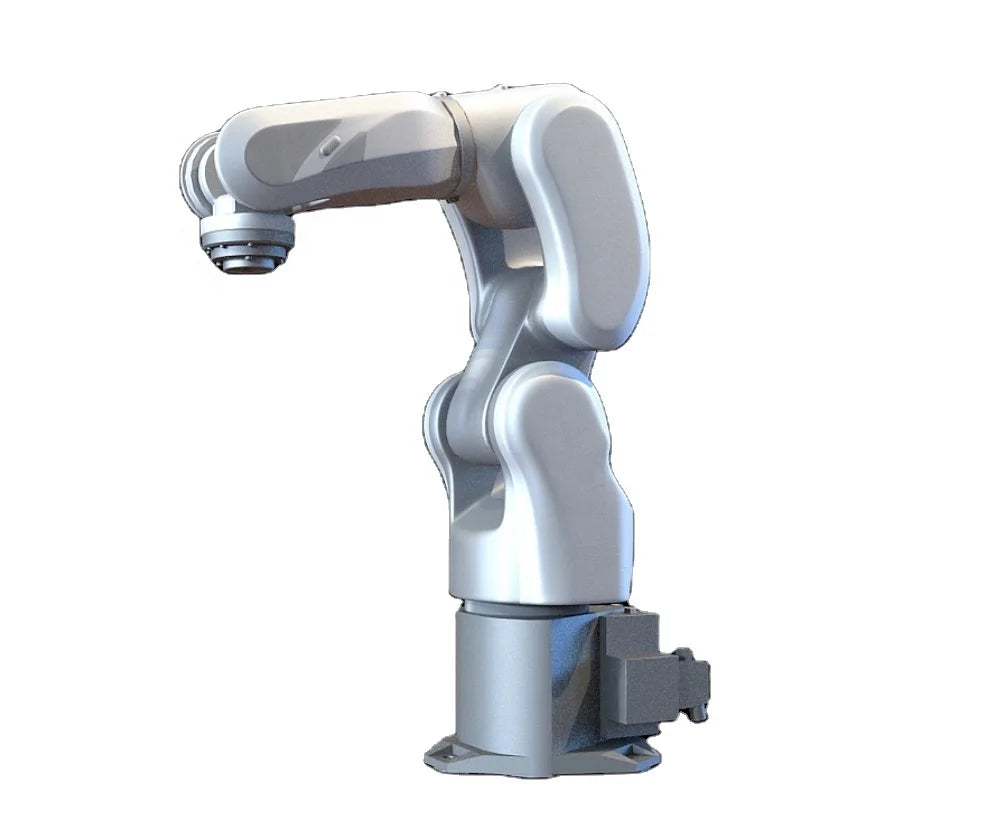

6-axis Education or Articulated Robot Arm Diy Delta or Camera Robot Arm and Cnc Robot Arm Milling
6-axis Education or Articulated Robot Arm Diy Delta or Camera Robot Arm and Cnc Robot Arm Milling
Regular price
CHF 14,886.96
Regular price
CHF 0.00
Sale price
CHF 14,886.96
Unit price
per
🔒 Safe Purchase & Lifetime Warrantee, Taxes included. 4-7 Day Delivery.
Couldn't load pickup availability
SPECIFICATIONS
Axis: 6 axis
Brand Name: NoEnName_Null,NEWKer-CNC
CPU: ARM(32bits)+DSP+FPGA
Certification: CE
Condition: New
DIY Supplies: Electrical
Dimension(L*W*H): Optional
Display: 8 Inch Real Color LCD
Function: PLC+CNC+Teach
High-concerned chemical: None
Horizonal Travel(mm): 700mm, 1300mm, 1500mm, 2100mm
Interface: USB+RS232 Communction Port
Origin: Mainland China
Place of Origin: China
Port: 48input 32output
Program: Teach function, G code
Speed: 1.5m/s
User Store Room: 256Mb (Expand to 2G)
Vertical Travel(mm): 350mm, 700mm, 1300mm, 1500mm
Warranty: 2 years
Weight: 68 kg
Hello my friend, my name is Azalea. Welcome to my store. If you have any questions, please feel free to contact me. If I don't reply to you in a timely manner, please forgive me. You can add me on WhatsApp+8618175899107. I hope you have a pleasant shopping experience
VR
Poster
Products Description
Teaching robot
Commercial robot
(making coffee or ice cream, writing and painting)
axis 6
max payload 4
repeated location ±0.01mm
usage humidity 20-80%
usage environment 0°~ 45°
installation: ground锛�desktop

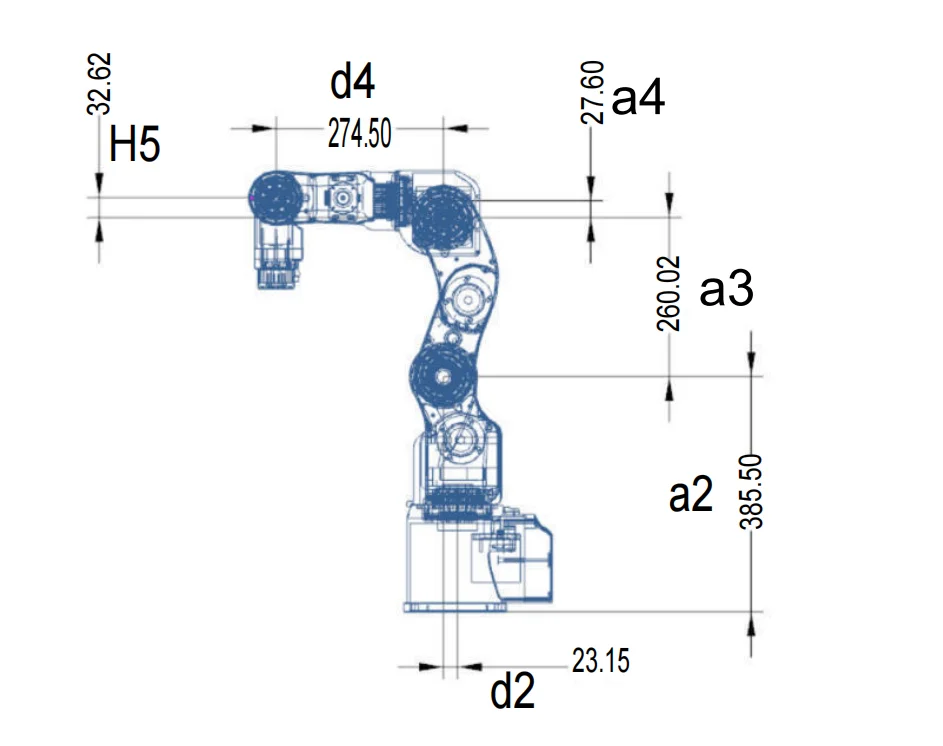

working range
J1 ±165°
J2 -100°~+120°
J3 +150° ~-60°
J4 ±175°
J5 +130° ~-30°
J6 ±180°

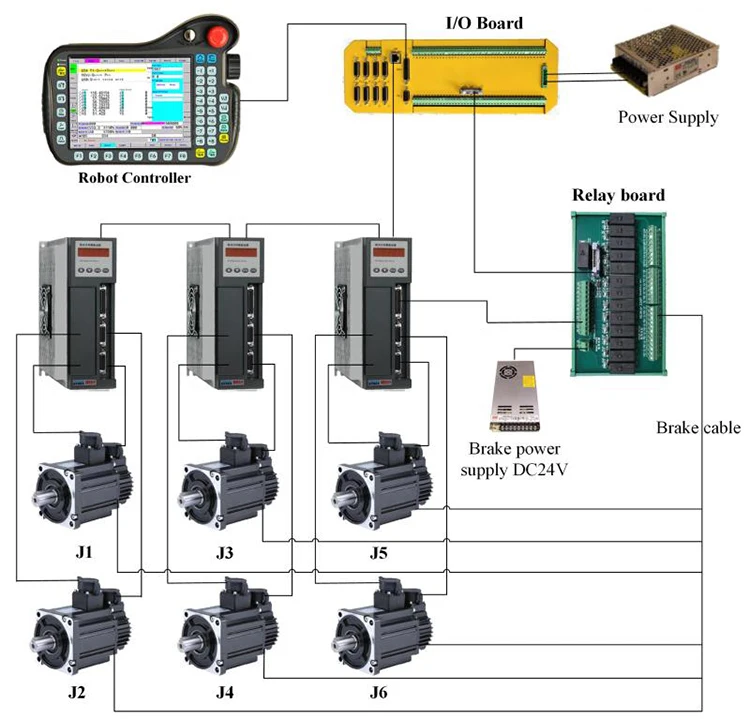

A set of robot arm includes robot arm body, controller, motor and drive, and we can also provide you with application fixtures according to your needs, such as teaching demonstration, making coffee, writing and painting, etc

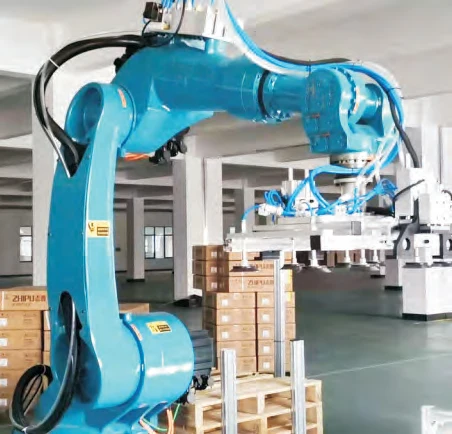

Palletizing锛�Visual recognition锛�
Visualization calibration

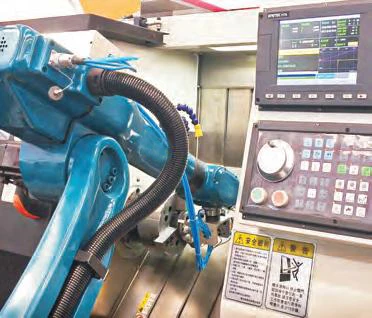

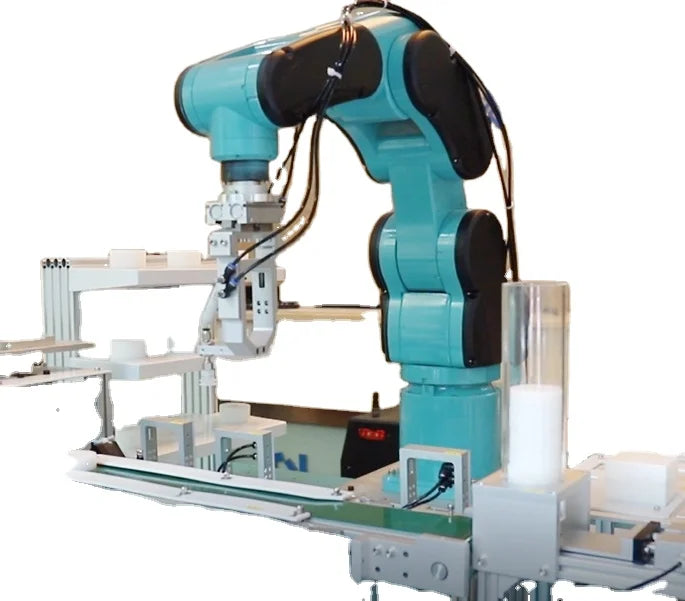

Loading and unloading of machine workpieces

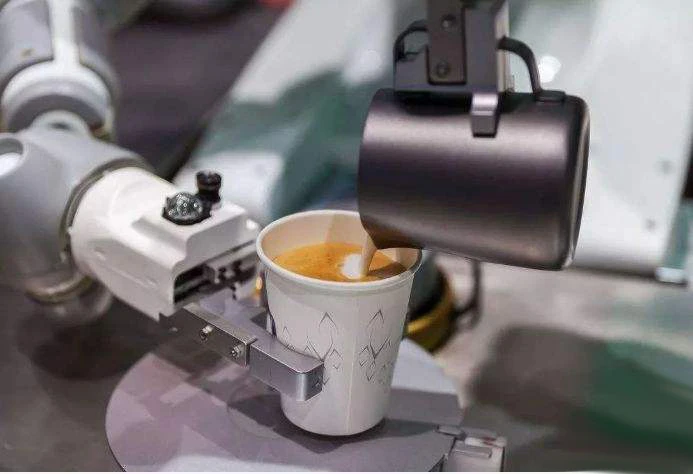

Coffee robot
Parameter details
Function advantage
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)

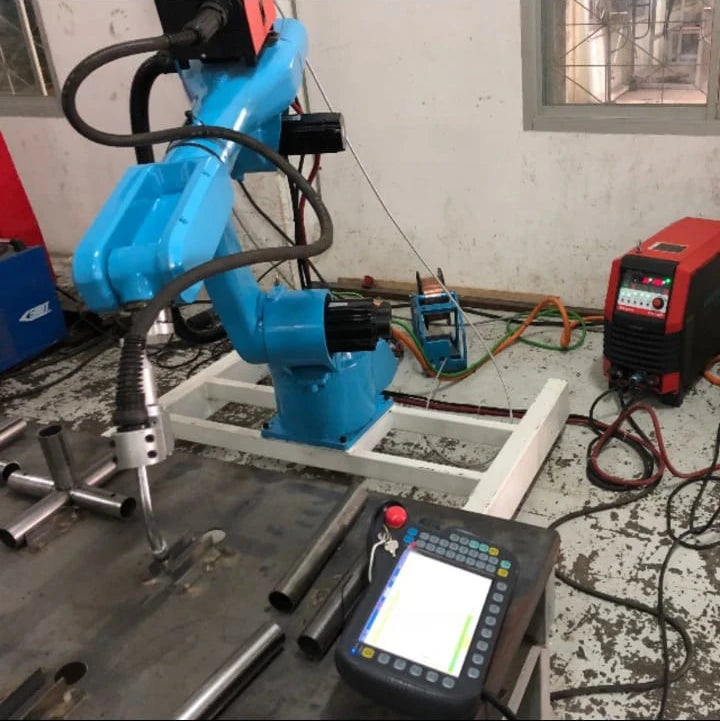

Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)
Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)
G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)
Teach function with technics parameter, easier to operate (NewKer feature)
PLC and macro program are all opened (NewKer feature)
Only one cable come out from controller, easier to connect (Bus type feature)
Multilevel random password protection, more safety (NewKer feature)
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)
Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)
G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)
Teach function with technics parameter, easier to operate (NewKer feature)
PLC and macro program are all opened (NewKer feature)
Only one cable come out from controller, easier to connect (Bus type feature)
Multilevel random password protection, more safety (NewKer feature)

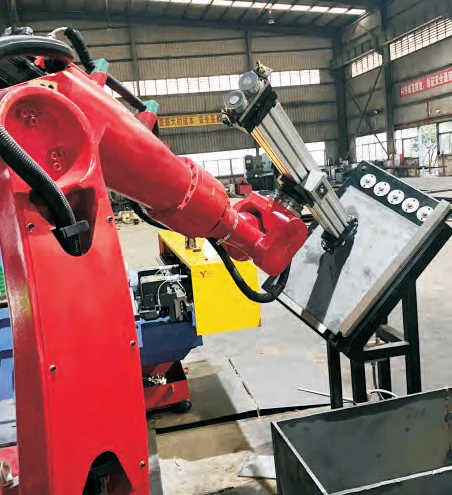

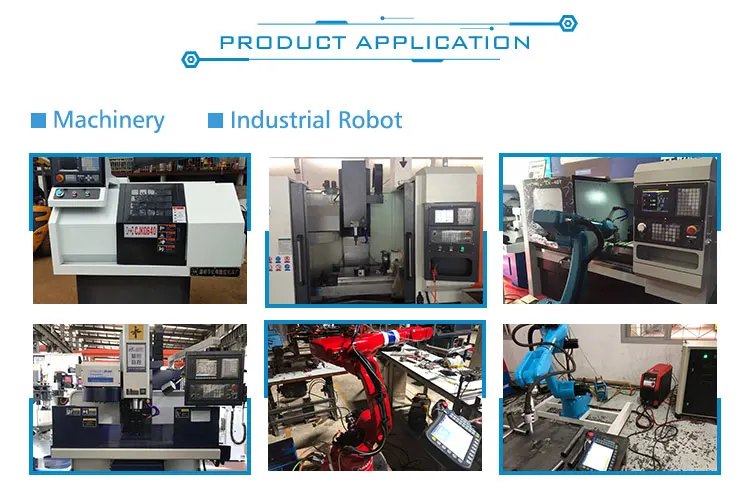

Product applications
NEWKer is the manufacturer
We are a factory, not a trader, so we can provide you with low price but high quality products

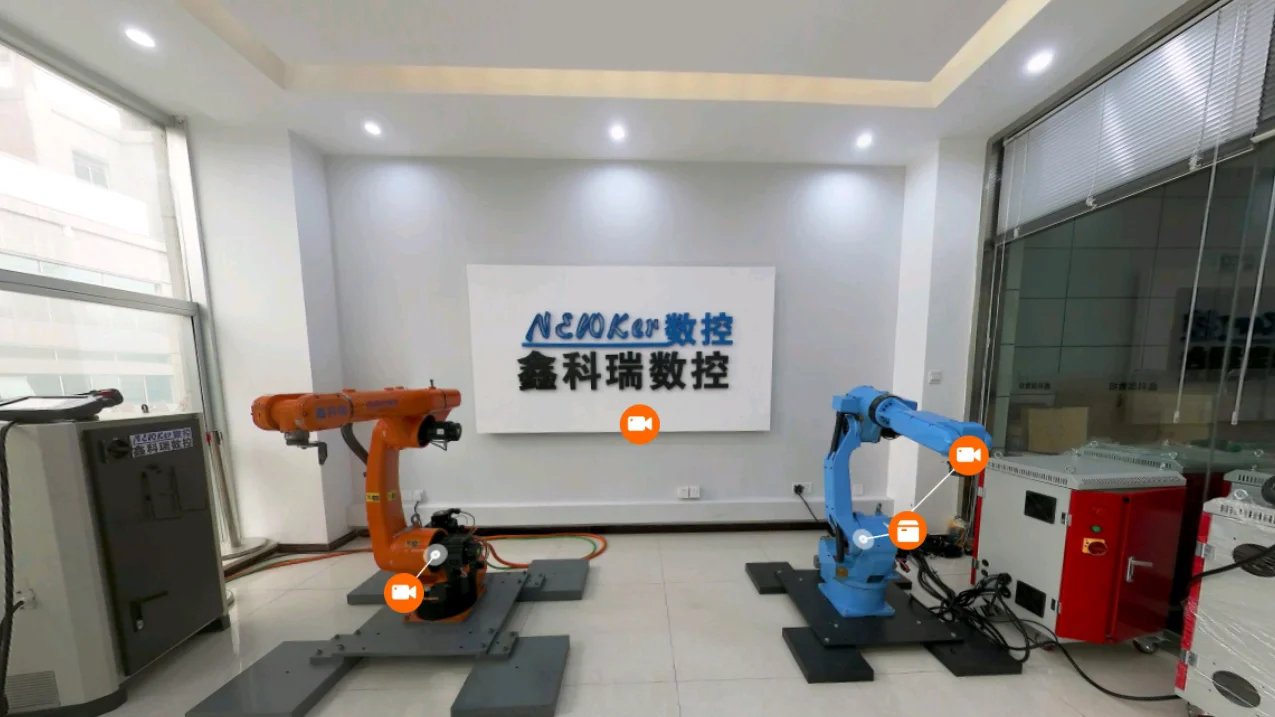

This is our showroom锛�
About us
Certifications

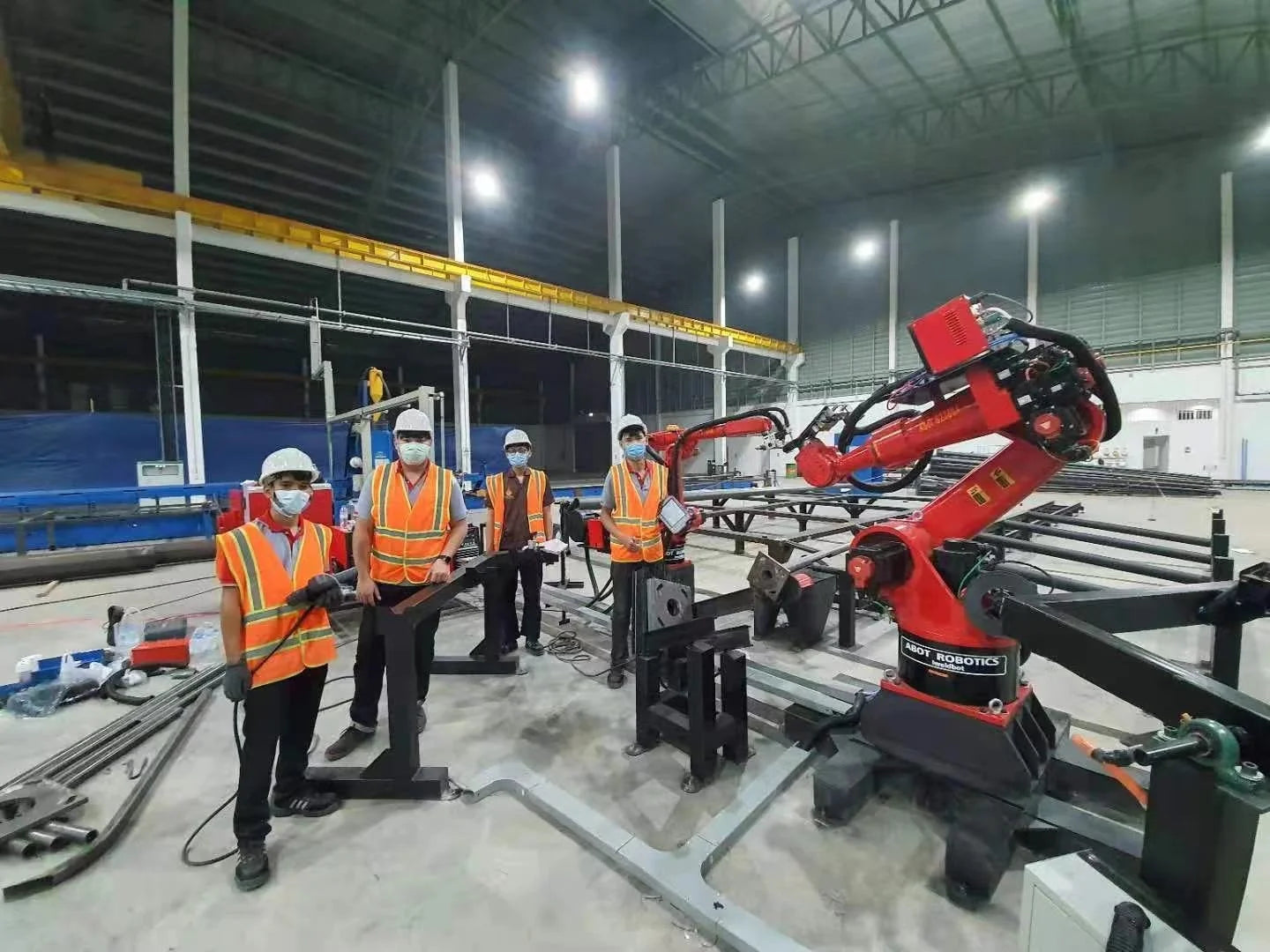

Customer Photos
Why Choose Us
Main products
Rave

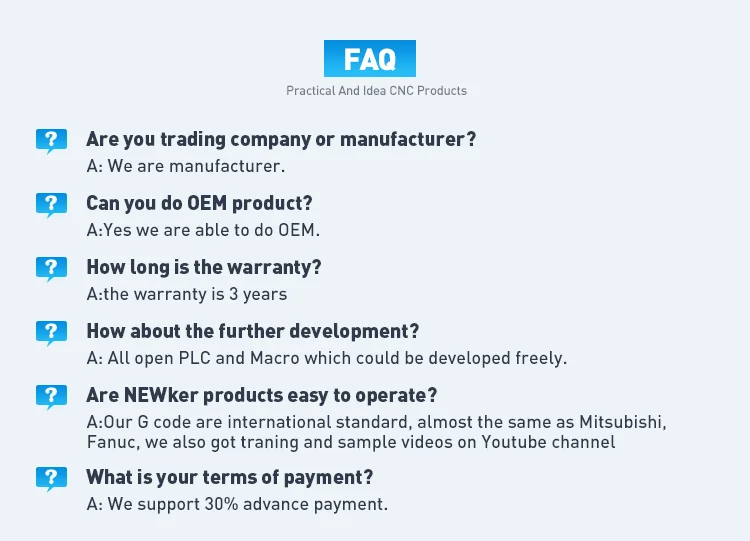

FAQ
