Description

Heavy objects, especially irregular objects, are hard to lift while costing lots of manpower. So an efficient lifting machine is necessary. A pure copper motor with high power (1500W) and sturdy chains made of 20Mn2 ensure a strong load capacity (2200lbs) with high work efficiency. It will be a great assistant for your lifting work!

Key Features

High Lifting Efficiency: With a powerful pure copper motor (1500W), it can lift heavy objects to a height of 13ft in a minute to promote efficient work while saving labor costs.

Stable Performance: The high-speed bearing can ensure that the bearing rotation gap of the motor remains unchanged under long-term use. It has a stable rotor axially with high motor force, which ensures good working performance. Meanwhile, the pure copper motor with good heat dissipation and good stability can provide strong power for lifting with low noise, giving you a more comfortable working environment.

Thoughtful Design: When the anti-rush top limiter touches the hook, the machine can automatically stop lifting to avoid damaging the machine due to excessive lifting.  Meanwhile, the hook with a safety latch can rotate 360° to lift objects in all directions and allows the machine to be fixed stably at a high place or connected to most trolleys or beam clamps while promoting safety.

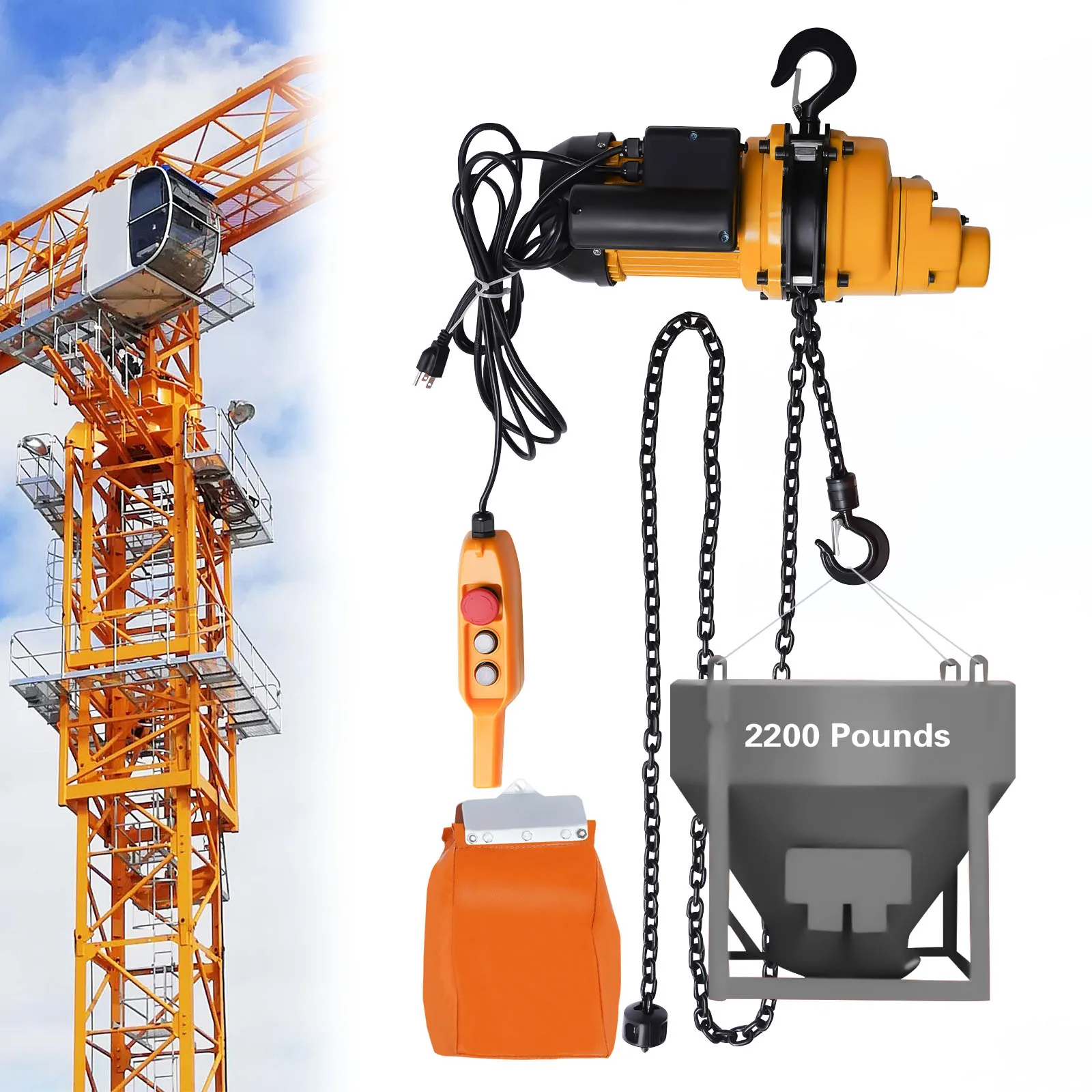

Strong Load Capacity: The sturdy double chains and hooks ensure a strong load capacity of 2200 lbs, allowing this product to lift heavy items.

Strong and Durable: The aluminum alloy housing, 20Mn2 chain, and manganese steel hook with high strength and good rigidity can resist wear, corrosion, shock, and deformation. Also, the silver point switch, high-speed synchronous gear, and three-wire power cord can be used for a long time and the high protection grade (IP55) allows it to be used in different environments.

High Safety: The highly insulated motor (Class F) can prevent thermal damage and the built-in electronic thermal protector can shut down the motor when its temperature rises or the running time is too long until the motor is completely cooled. The limit switch will be disconnected immediately after power failure. Besides, the reverse phase sequence protection device and dual brake system can also enhance safety.

Excellent Heat Dissipation: The built-in cooling fan and heat dissipation holes can dissipate heat quickly to reduce the risk of burning out the machine while ensuring stable operation for a long time.

Ready to Use: This product doesn't need assembly and you can use it directly after receiving it.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Lifting Strap: The lifting strap in the package can secure hard-to-hook goods, so you don't need to buy extra fixing tools, which is economical and convenient.

Chain Bag: It can prevent the chain from moving during operation.

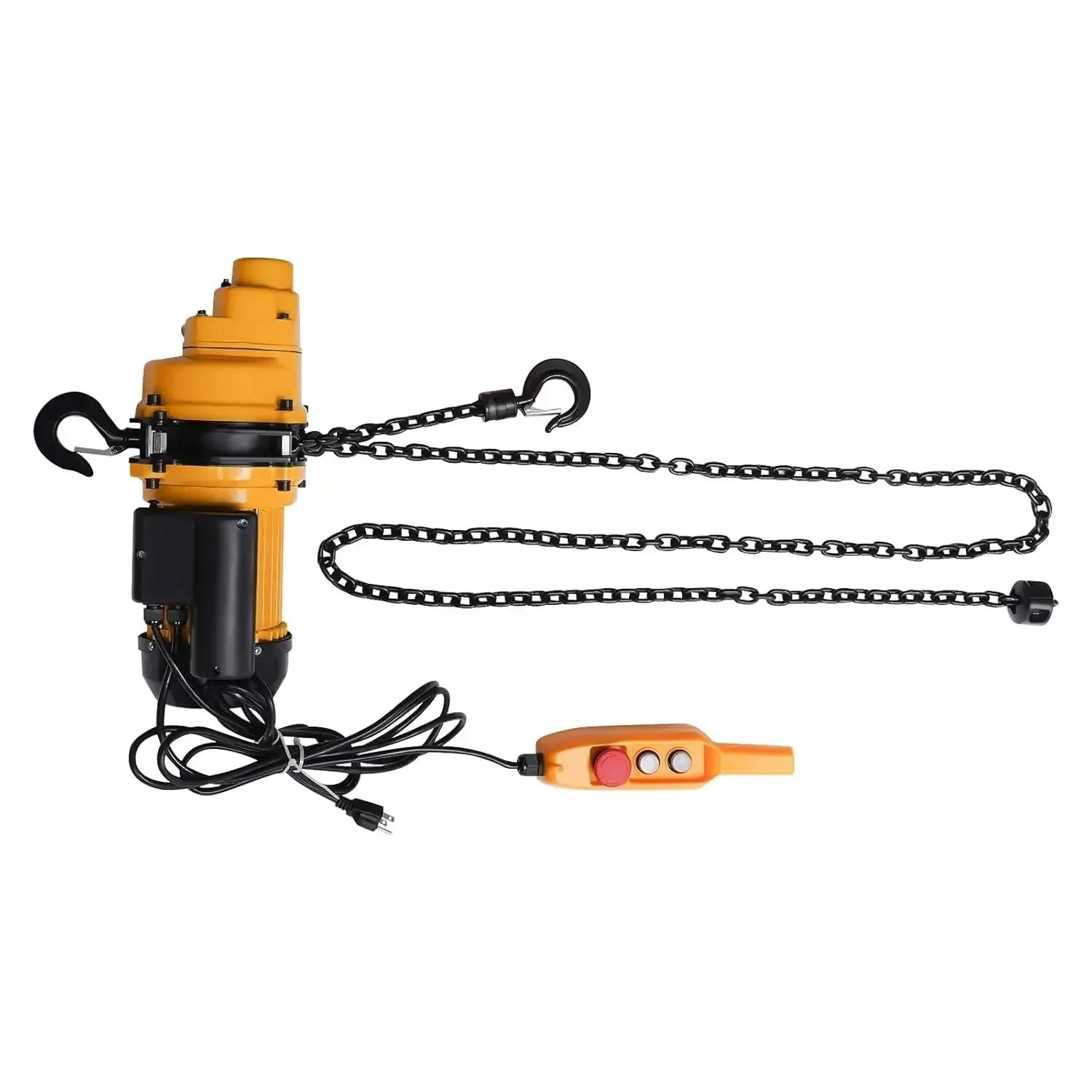

Wired Remote Controller: The wired remote control allows you to control the lifting and lowering functions of the product within 10ft for safe operation. Meanwhile, you can press the emergency stop button on it to quickly brake the product, thus preventing sudden accidents.

Application

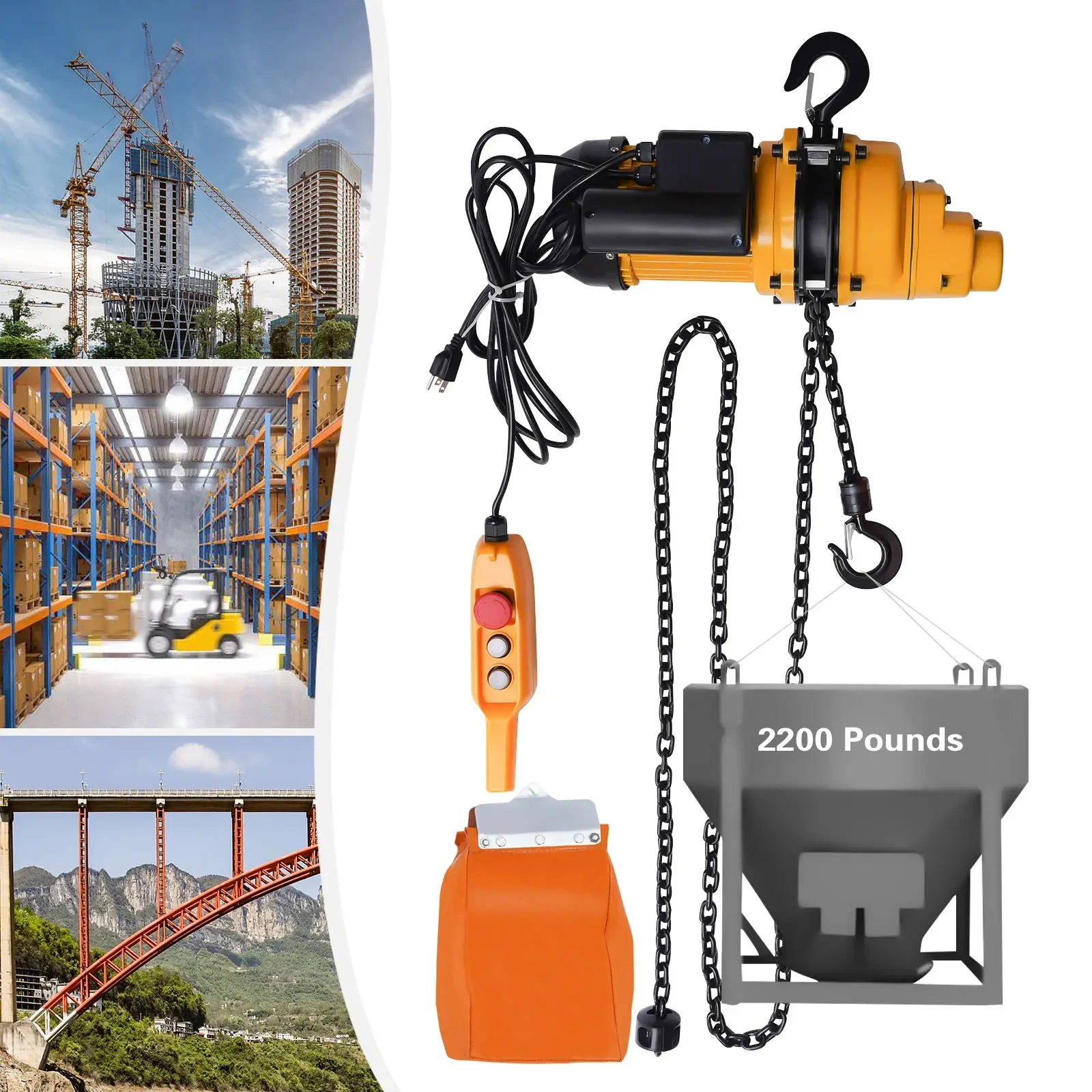

It is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railways, construction, garages, ceilings, attics, barns, lofts, etc. for lifting regular or irregularly shaped objects, and can be used for various lifting equipment such as single column, wall column, and crane.

Specifications

Color: Orange Color

Housing Material: Aluminum Alloy

Chain Material: 20Mn2

Hook Material: Manganese Steel

Rated Voltage: 110V

Rated Power: 1500W

Style: Modern

Type: Double Chains

Motor Protection Grade: IP55

Insulation Class: F

Chain Diameter: 6.3mm/0.25inch

Motor Type: Pure Copper Motor

Plug Type: American Standard

Maximum Load Capacity: 1T/2200lbs

Lifting Speed: 4m/min (13ft/min)

Lifting Height: 4m/13ft

Handle Switch Wire Length: 3m/10ft

Gross Weight: 28kg/61lbs

Package Size: 51*28.5*39cm/20.9*11.22*15.35inch

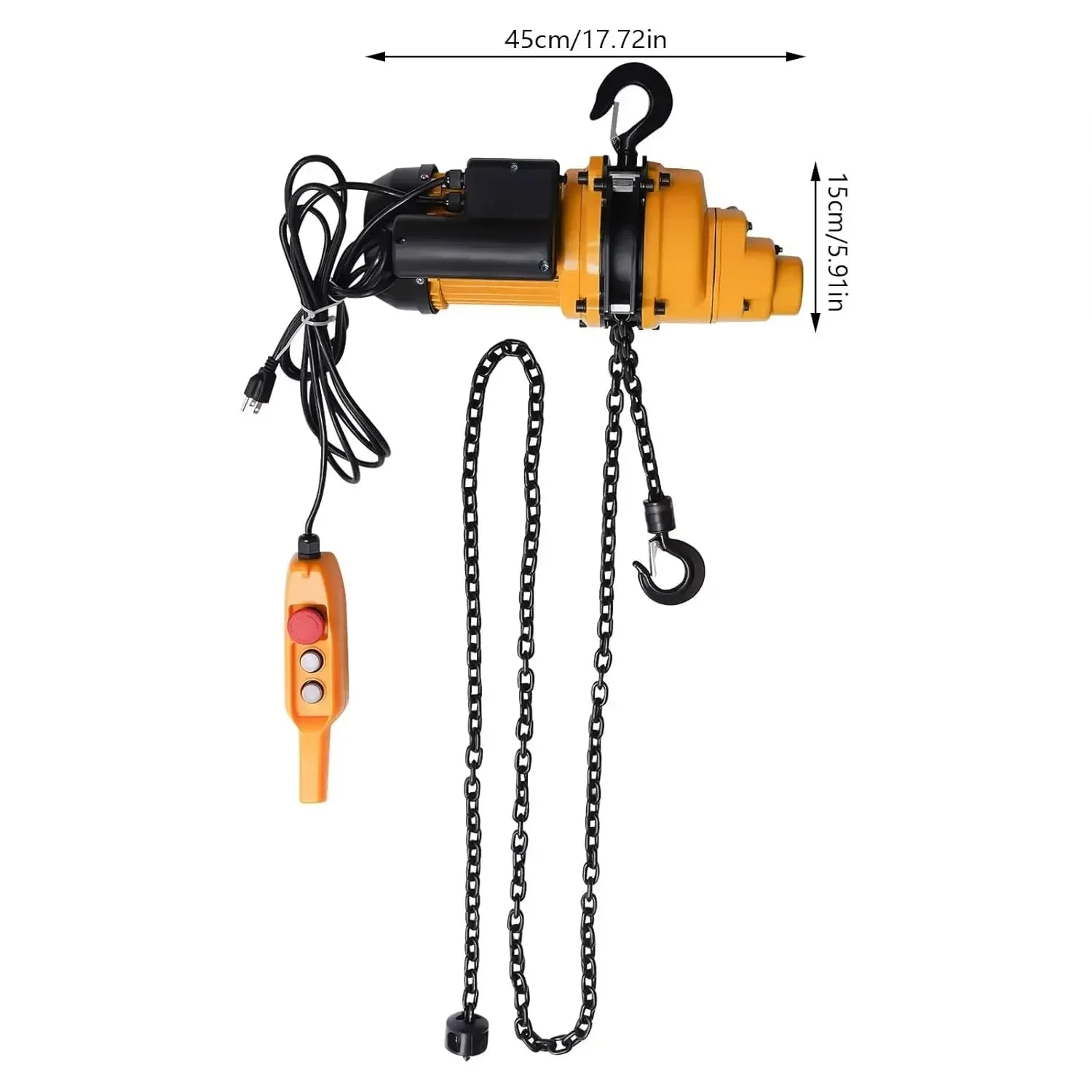

Machine Body Size (L*H): 45*15cm/17.72*5.91inch

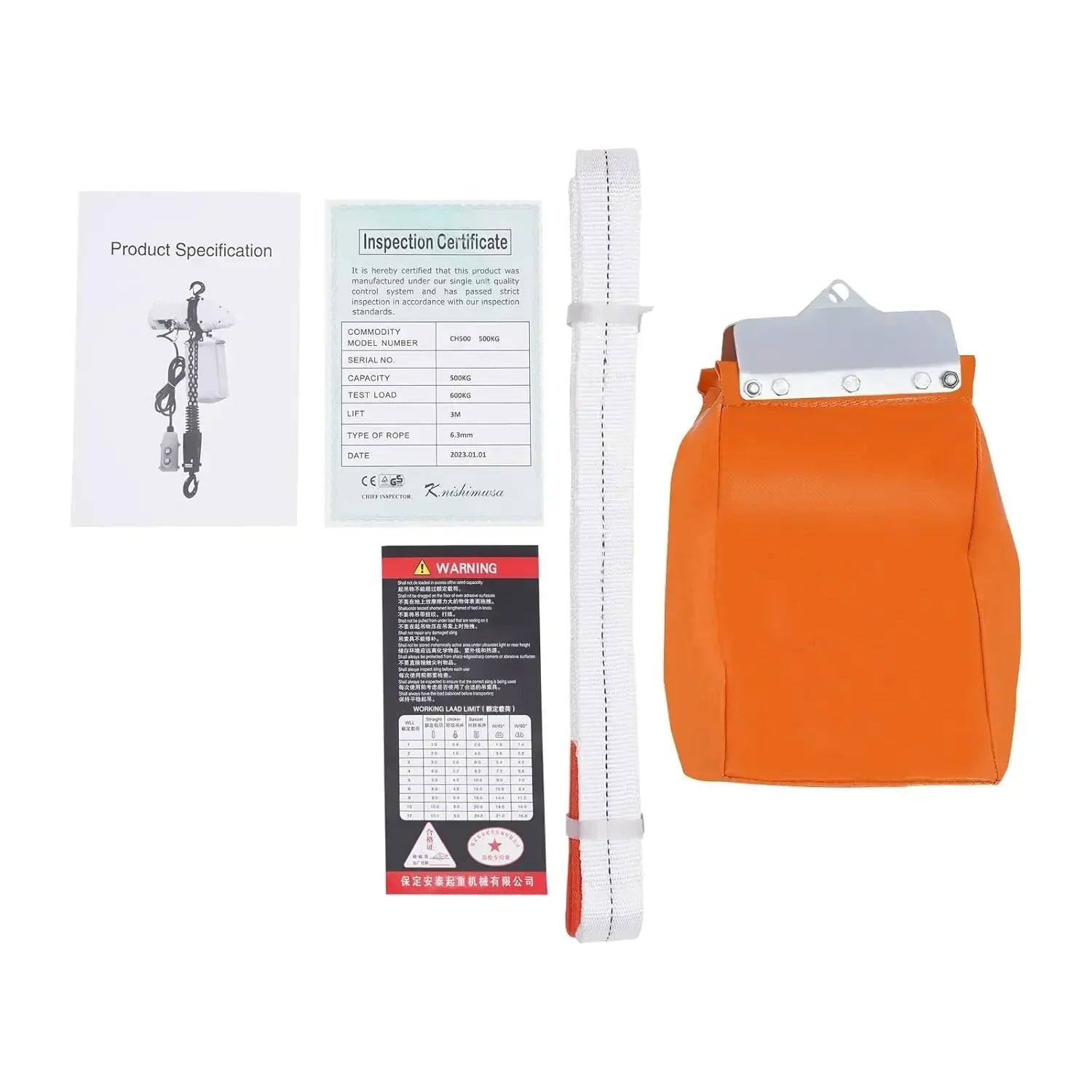

Package Included

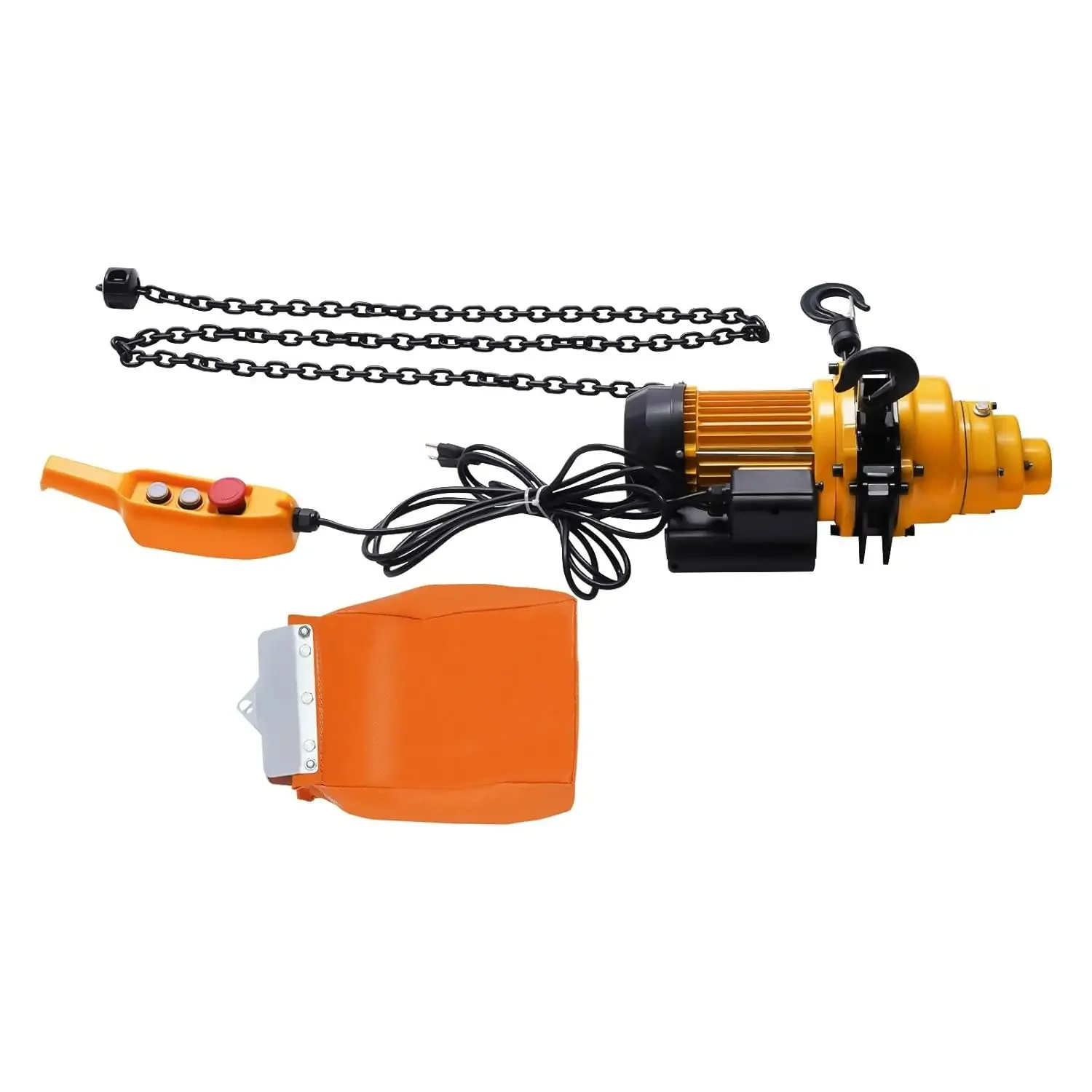

1* Electric Chain Hoist

1* Lifting Strap

1* Chain Bag

1* English Manual

1* English Inspection Certificate

1* Chinese&English Warning

Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
