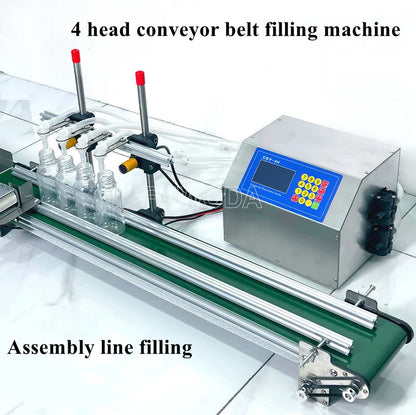

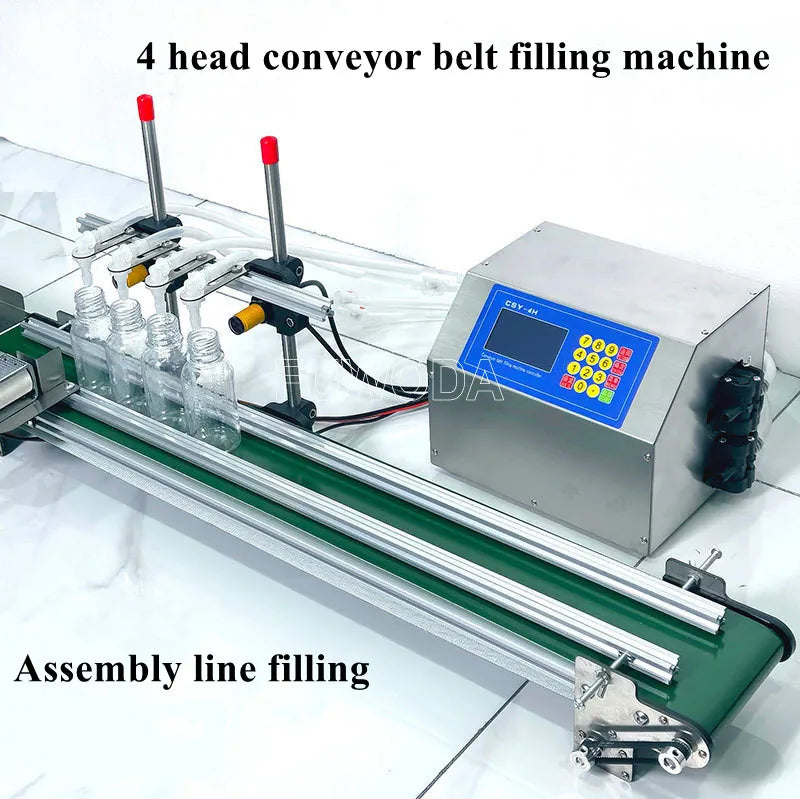

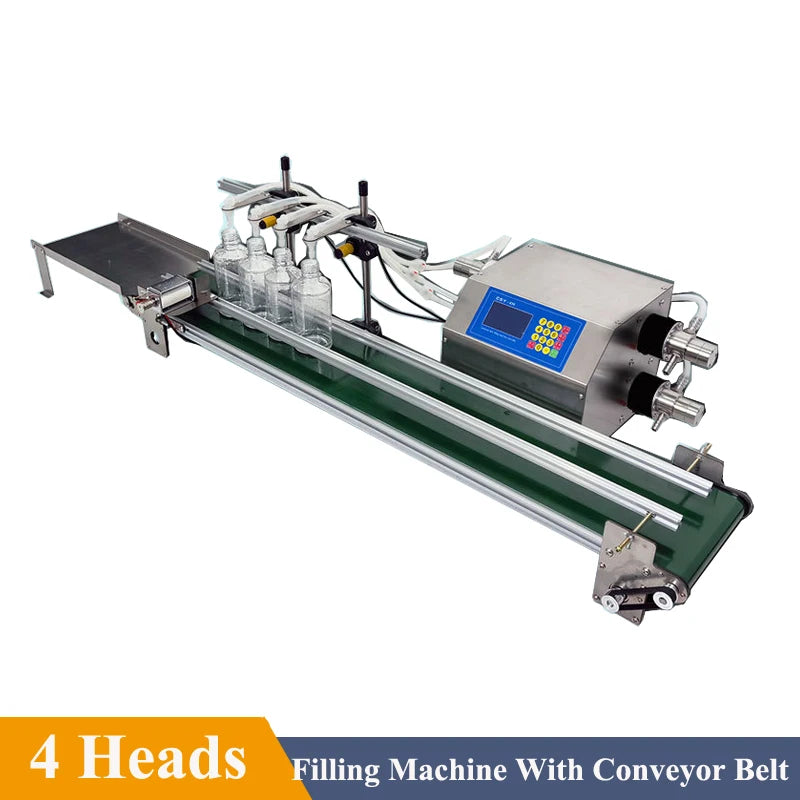

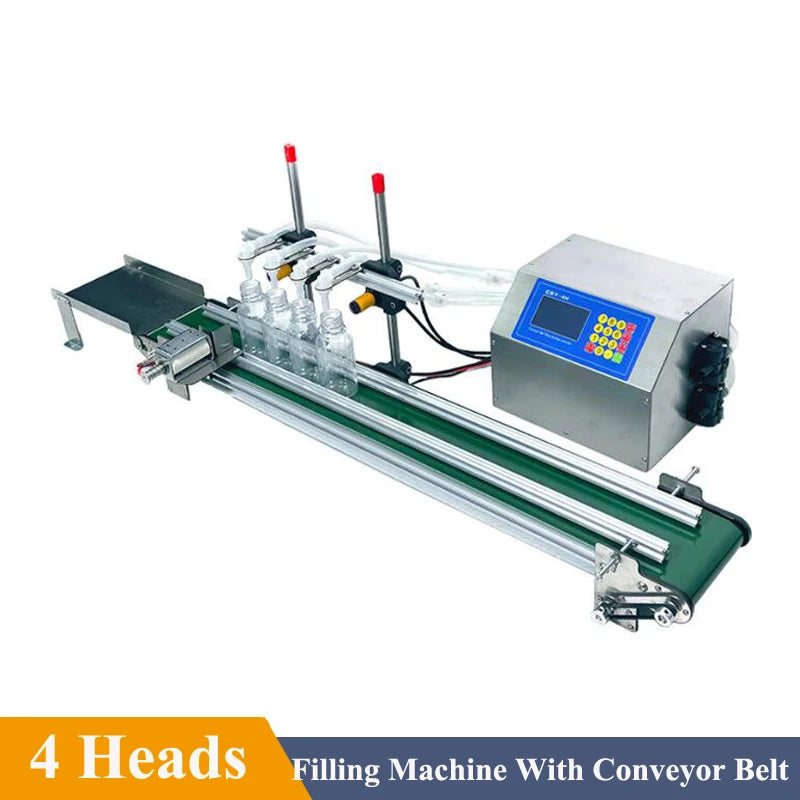

4H3200 diaphragm pump 3200ml/min

Open-loop version: Bottles need to be placed close to each other. Most common conveyor belt filling machines on the market are open-loop controlled.

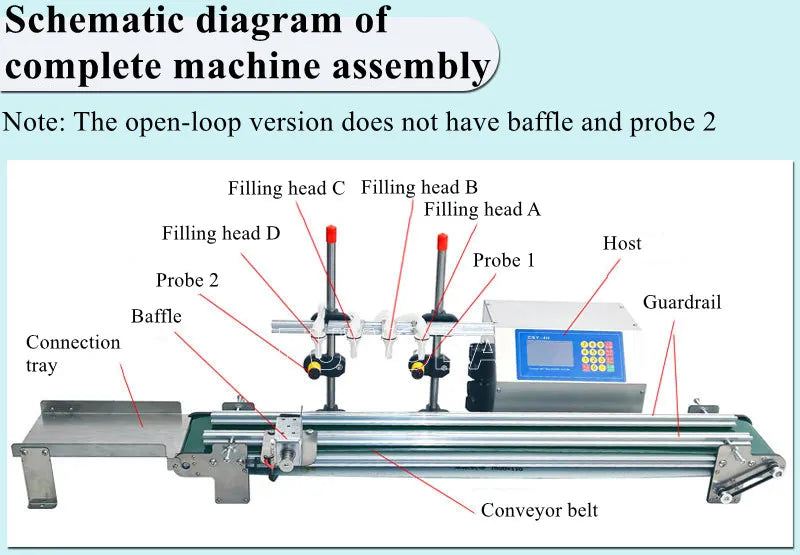

Closed-loop version: Just place the bottles at any distance. Compared with the open-loop version, it has one more probe and electric baffle, which will automatically block the bottles.

The closed-loop version of the machine can also be set to open-loop control, but the open-loop version cannot be set to closed-loop use.
Both the open-loop version and the closed-loop version can be set to any number of heads from 1 to 4 for use.

Specifiction

Product model: 4H3200
Voltage/power: 220V/110V 150W
Filling range: 10-500ml
Water pump type: diaphragm pump
Water pump flow: 4*3.2L/min
Number of filling heads: 1-4
Filling head diameter: 8MM
Filling height: 4-25cm adjustable
Water pipe material: silicone pipe
Water pipe specifications: inner diameter 7*outer diameter 10mm
Water pipe length: 2 meters in/1 meter out

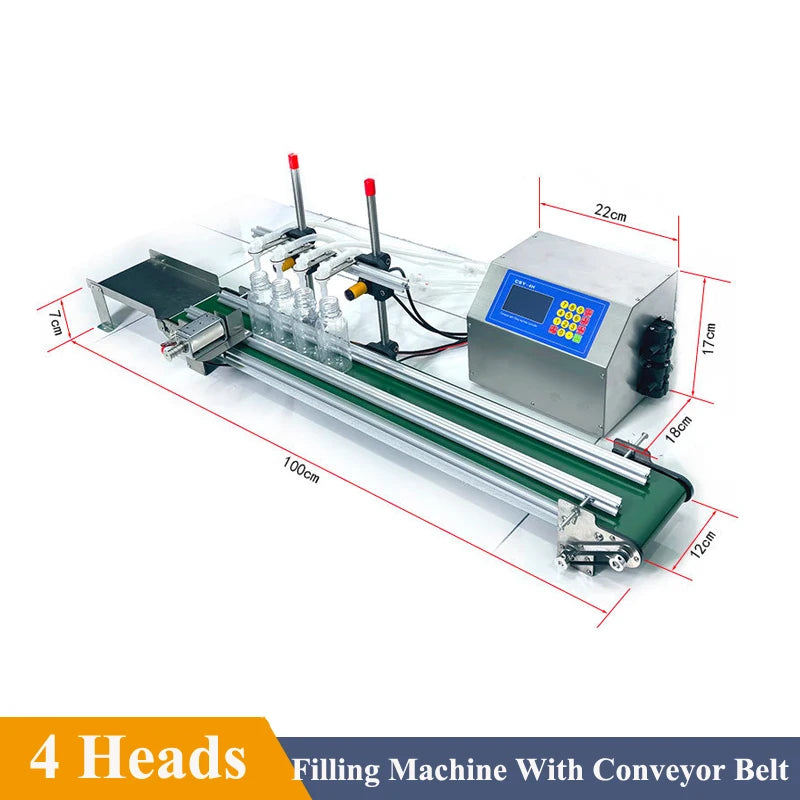

Host size: 22*18*18cm
Host packaging: 35*25*25cm, 5kg

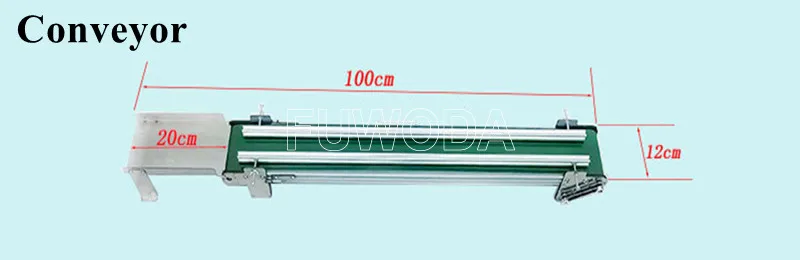

Conveyor size: 100*12*7cm
Conveyor packaging: 90*16*16cm, 5kg

Conveyor requirements for bottles:

Applicable bottle width: 20-90mm
The width of the bottle mouth must be smaller than the width of the bottle body
Bottle height range requirements: 40-250mm
Bottle shape: suitable for cylindrical bottles

Choice of closed loop and open loop:
If the bottle width is greater than 30mm and is difficult to pour, closed loop can be used
Bottles that are thin, tall, unstable, and easy to pour can only use open rings.
